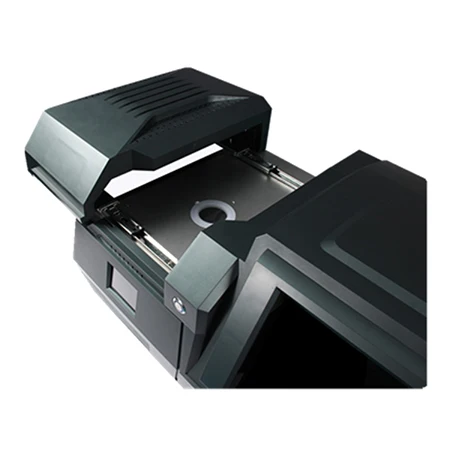

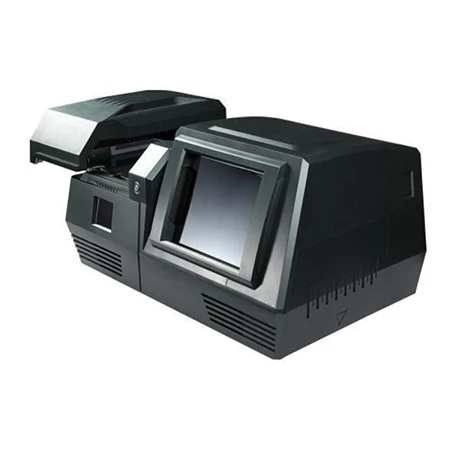

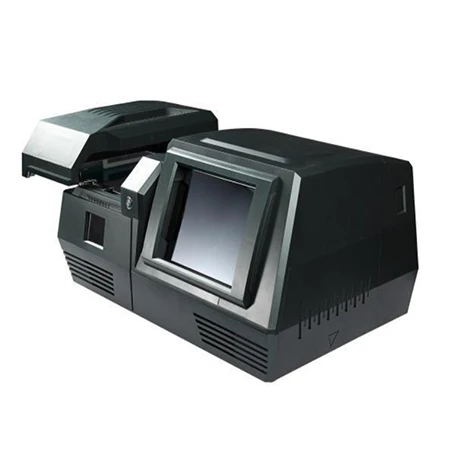

New EXF9600 xrf gold testing machine exf9600 gold purity testing machine gold tester measuring
- Category: >>>
- Supplier: Yantai Bede Machinery Co. Ltd.
Share on (1600544150671):
Product Overview
Description
Product Overview

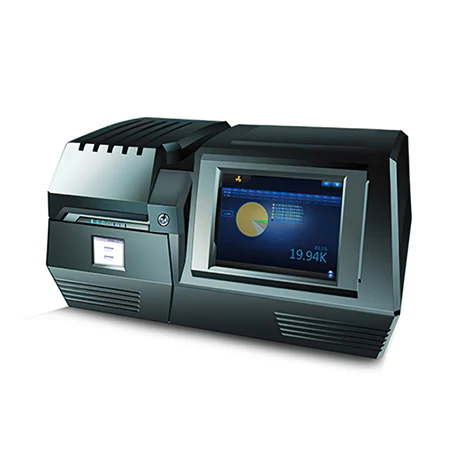

New EXF9600 xrf gold testing machine exf9600 gold purity testing machine gold tester measuring
In the field of precious metal detection, traditional analysis methods such as litmus test method, cupellation, fire assay methodbbelongs to destructive testing, such as a consuming and dangerous, and sample preparation process takes longer. And X-ray fluorescence spectrometry technology is relatively mature, can achieve real-time analysis, nondestructive testing, does not require any consumables, and precision can reach four digits after the decimal point, is the development direction of affordable precious metal detection technology.
Precious metal detector EXF9600 is west every technology based on years of precious metal detection technology and experience, independent research and development production of X-ray fluorescence spectrum detector, one of the high-end detector is a top-level configuration of all elements. It is equipped with imported top SDD detector, the use of aircraft design, high-end
atmosphere, with research and development of more than a dozen patents, outstanding performance, small size light weight, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry.
Precious metal detector EXF9600 is west every technology based on years of precious metal detection technology and experience, independent research and development production of X-ray fluorescence spectrum detector, one of the high-end detector is a top-level configuration of all elements. It is equipped with imported top SDD detector, the use of aircraft design, high-end
atmosphere, with research and development of more than a dozen patents, outstanding performance, small size light weight, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry.
FEATURES AT A GLANCE
New EXF9600 xrf gold testing machine exf9600 gold purity testing machine gold tester measuring

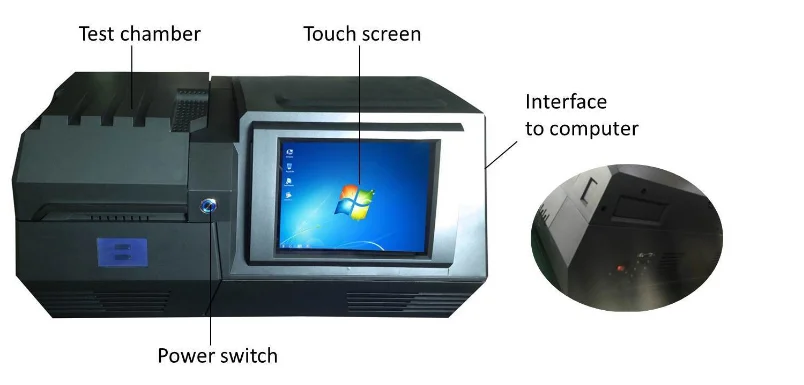

EXF 9600 is an excellent precious metal analysis instrument integrated an inbuilt computer with high industrial motherboard and multi- point hand touch.
Description:
EXF9600 can provide customers higher accuracy and precision.

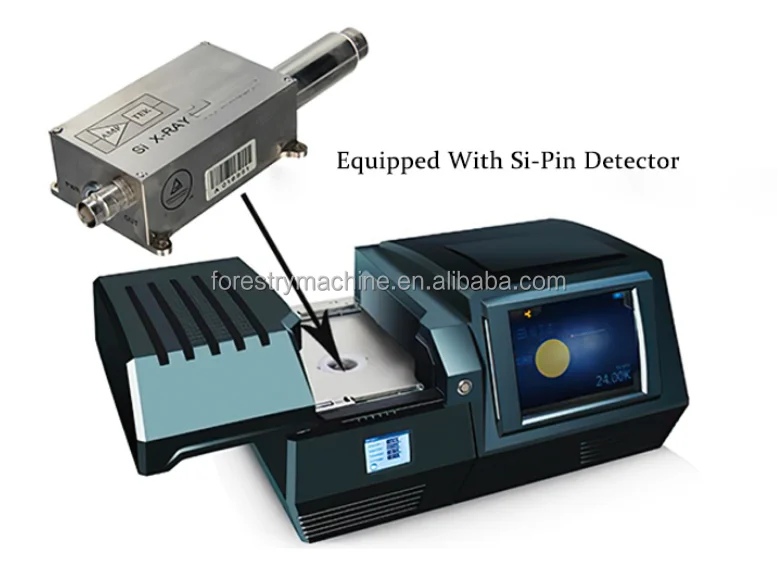

EXF 9600 with Si-pin detector delivers wide elemental coverage with an easy-to-learn software. Non-destructively analyze from
sodium (Na) through uranium (U) in powders, liquids and solids.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating
protection.
Malfunction Analyze.
Low cost with unmatched performance-to-price ratio.
Description:
EXF9600 can provide customers higher accuracy and precision.
EXF 9600 with Si-pin detector delivers wide elemental coverage with an easy-to-learn software. Non-destructively analyze from
sodium (Na) through uranium (U) in powders, liquids and solids.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating
protection.
Malfunction Analyze.
Low cost with unmatched performance-to-price ratio.

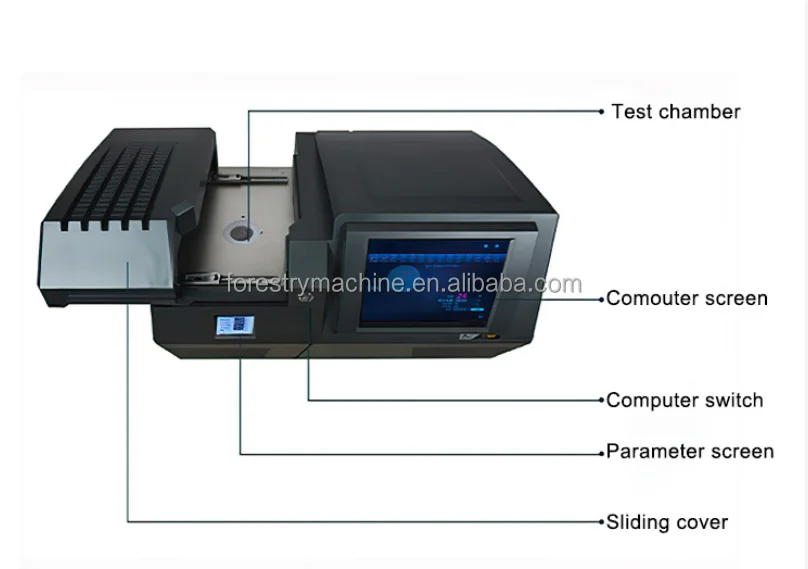

Details Images
PRODUCT SPECIFICATIONS
Basic parameters | ||
Working Priciple | Energy Dispersive X-Ray Fluorescence | |
Measurement & Weight | 450*650*350mm/32kg | |
Detection limit | 100ppm(Best substance effect) | |
Precision | ±0.05% | |
Expanded uncertainty | ≤0.19% — | |
Operating Environment | Temperature-11~46°C Humidity≤70% | |
Operator requirement | Above senior middle school eduction | |
Instrument standard configuration | ||
High Voltage | 0~50kv(Made in China) 0~2mA | |
Detector | Si-pin 145Kev±5 | |
Main structure | High-strength metal frame and industry plastic shell | |
Integrated Computer | Intel SandyBridge highly integrated industrial motherboard & multi-point hand touch | |
Testable Elements | From K to U (74 elelments) | |
Technical Parameters:
1. Equipment principles: X fluorescence energy dispersion
2. Accuracy: ±0.05%
3. Machine resolution:145±5eV
4. Detector: Si-Pin probe
5. temperature: - 11 ~ 46℃
6. Built-in capacitive touch LED: OLED (9.7 inches)
7. Size: 670×400×330mm
8. Label printer: support Normal printer: support
9. Thermal printer: support
10. Balance/density meter: support
11. Whether the battery support: NO
12. Built-in industrial control computer: YEs
13. Voltage: 100 v to 240 v
14. Rated power: 150 w
15. Gross/Net Weight: 43/33kg; Packing size: 77 x 51 x 40cm
1. Equipment principles: X fluorescence energy dispersion
2. Accuracy: ±0.05%
3. Machine resolution:145±5eV
4. Detector: Si-Pin probe
5. temperature: - 11 ~ 46℃
6. Built-in capacitive touch LED: OLED (9.7 inches)
7. Size: 670×400×330mm
8. Label printer: support Normal printer: support
9. Thermal printer: support
10. Balance/density meter: support
11. Whether the battery support: NO
12. Built-in industrial control computer: YEs
13. Voltage: 100 v to 240 v
14. Rated power: 150 w
15. Gross/Net Weight: 43/33kg; Packing size: 77 x 51 x 40cm
Our Advantages
Product Advantage:
1. High cost performance
2. Can fast accurate detection of various precious metal, widely applied
3. Nondestructive testing
4. Will not cause any damage to measured sample jewelry and so on.
5. Operation is simple and smart
6. Automated testing without a unique key testing capabilities, with professional personnel
7. Fast for Testing
8. Qualitative 3 seconds, 7 seconds can be intuitive results.
9. Easy to Bring
10. The integration of design, small footprint, easy to carry and management.
11. Safe and durable
12. Have anti-radiation function, the machine more than 10 years of life
13. High precision
14. PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision
15. The operational safety
16. Equipped with radiation protection devices, and active protection operation safety.
1. High cost performance
2. Can fast accurate detection of various precious metal, widely applied
3. Nondestructive testing
4. Will not cause any damage to measured sample jewelry and so on.
5. Operation is simple and smart
6. Automated testing without a unique key testing capabilities, with professional personnel
7. Fast for Testing
8. Qualitative 3 seconds, 7 seconds can be intuitive results.
9. Easy to Bring
10. The integration of design, small footprint, easy to carry and management.
11. Safe and durable
12. Have anti-radiation function, the machine more than 10 years of life
13. High precision
14. PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision
15. The operational safety
16. Equipped with radiation protection devices, and active protection operation safety.
