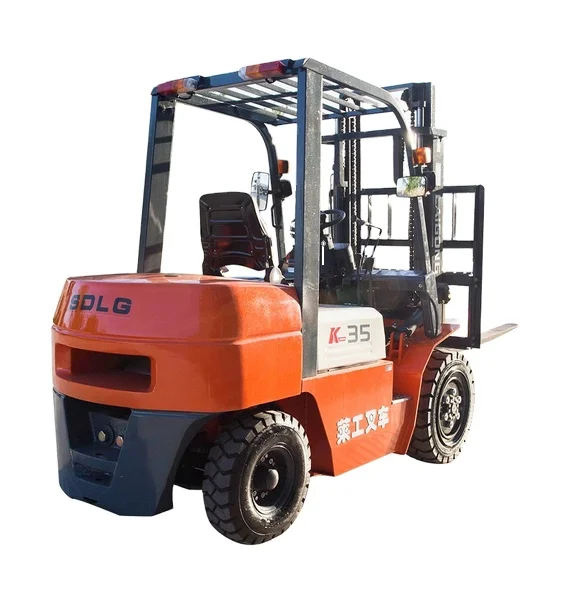

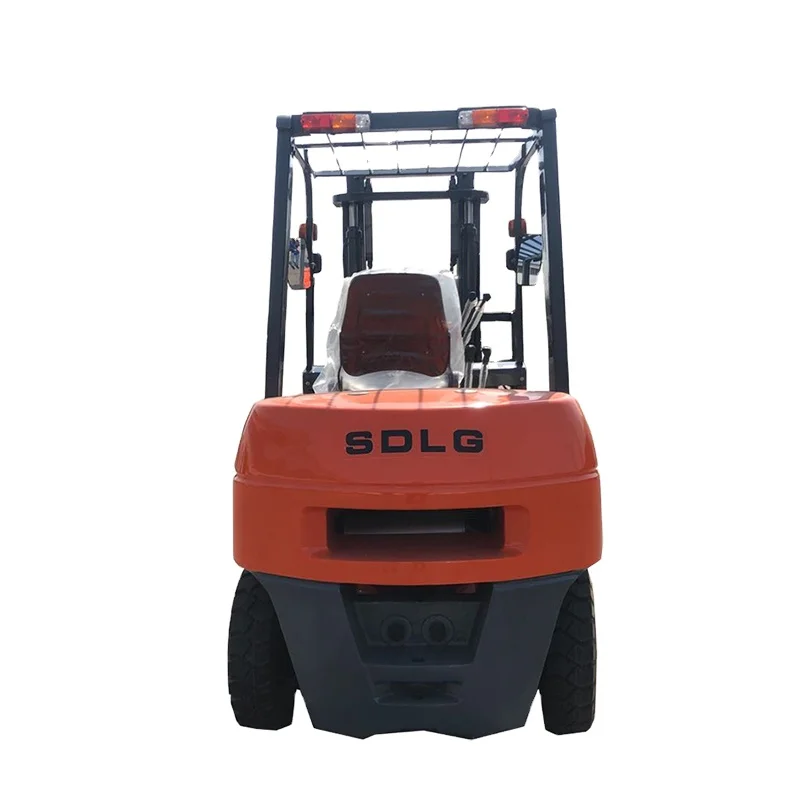

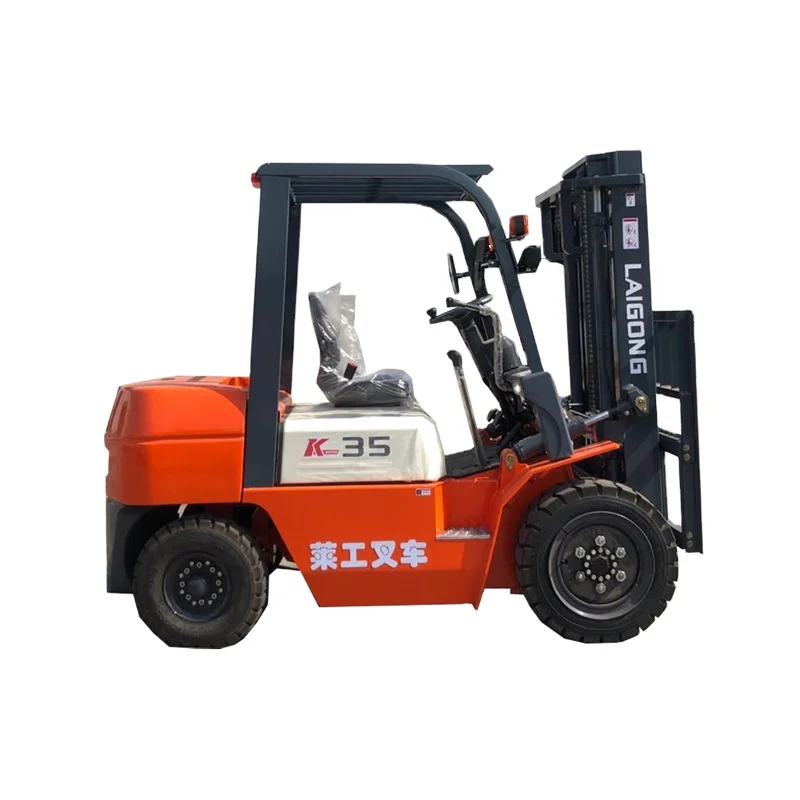

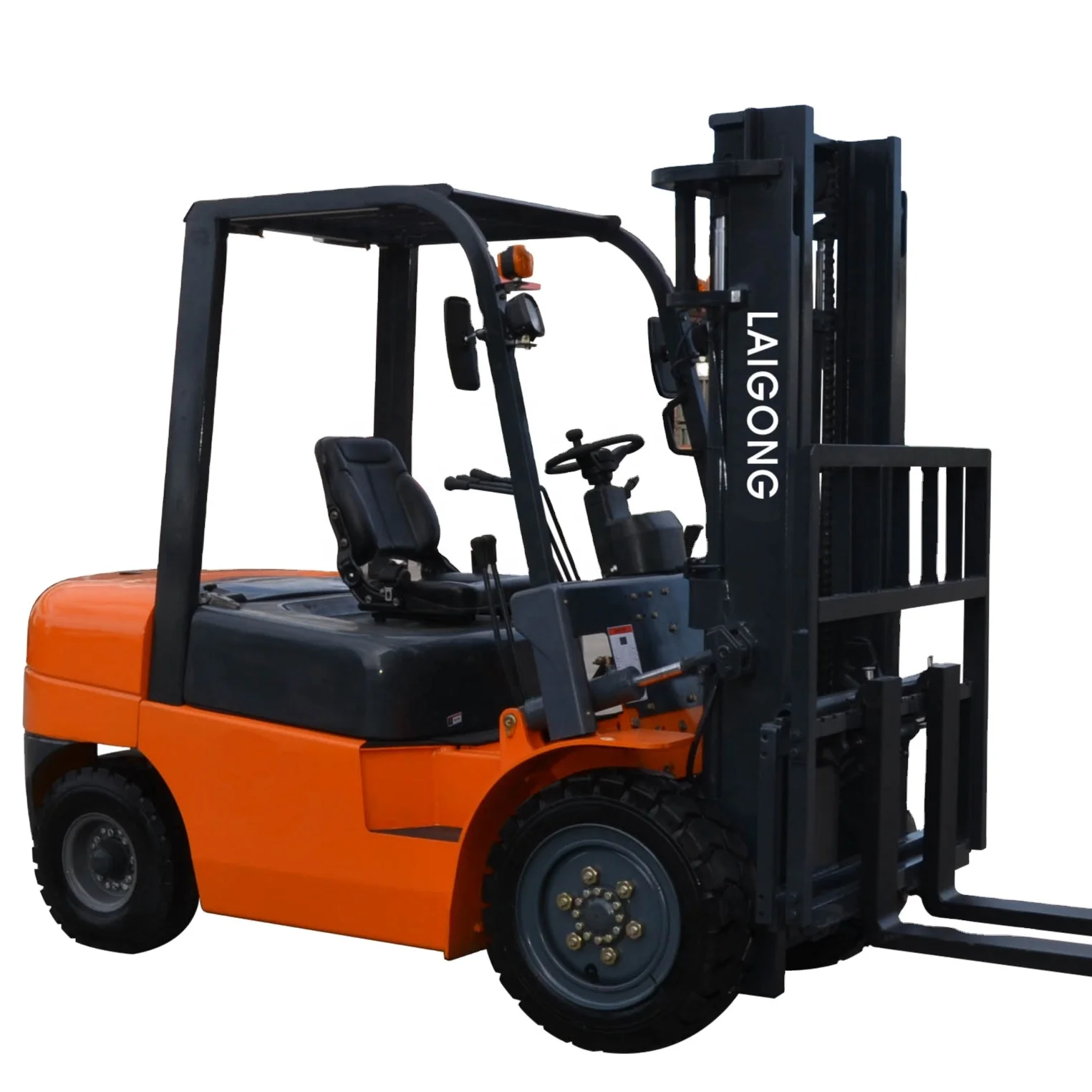

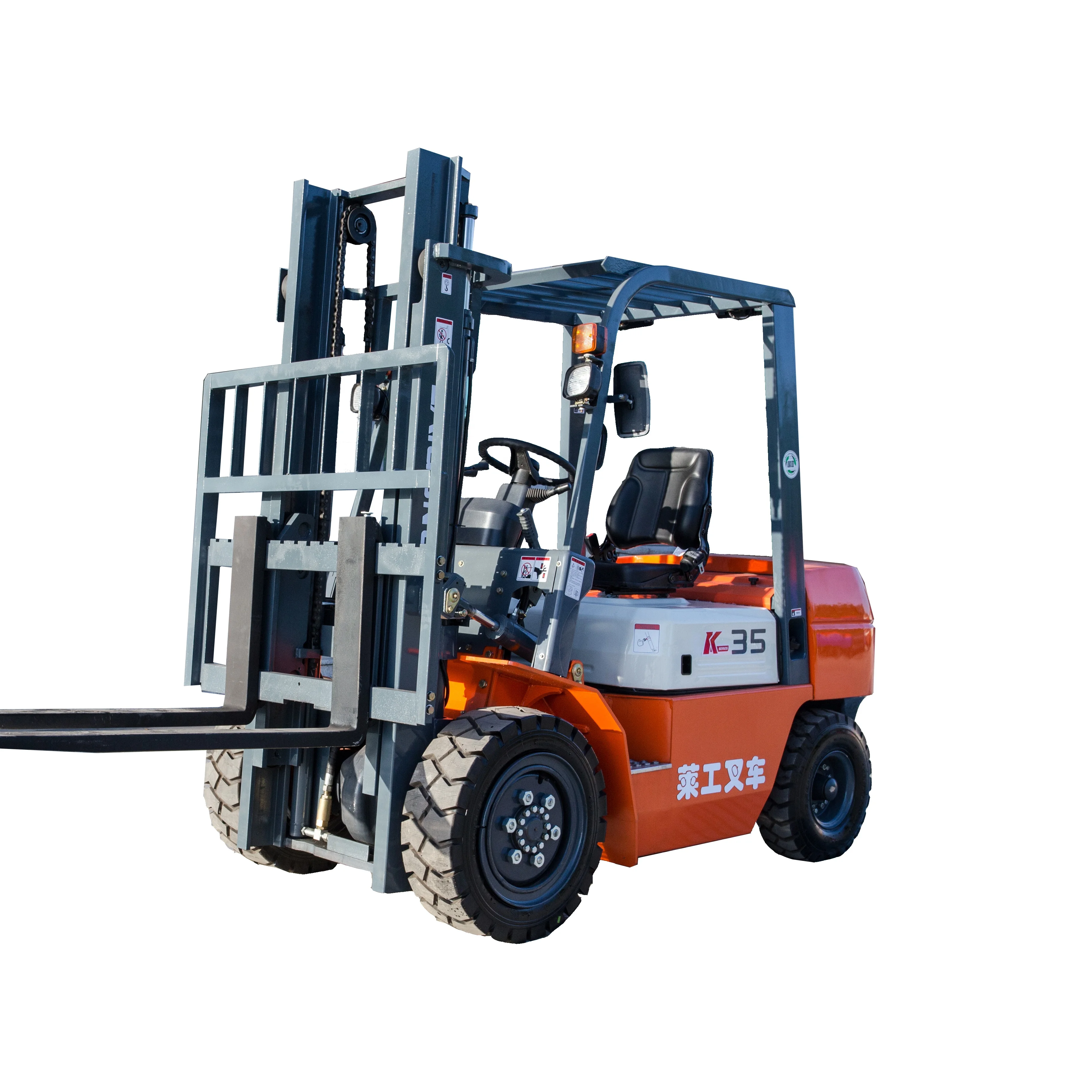

LGCM 3.5 ton diesel lifting height 4.5m forklift made in china
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600544157513):
Product Overview
Description
LAIGONG forklift CST tires or solid tires, low wear co-efficience, high elasticity.
Stamped radiator cover, reliable and long lifetime.
A design based on human engineering relieves fatigue and increased operator's efficiency.
Product Paramenters
Overall Performance Unit | CPC(D)35 | ||||||||
1 | Characteristics | Fuel type | Diesel | ||||||
2 | Load capacity | kg | 3000 | ||||||
3 | Load center | mm | 500 | ||||||
4 | Lift height | mm | 3000 | ||||||
5 | free lift height | mm | 100 | ||||||
6 | Fork dimension | mm | 1070×125×45 | ||||||
7 | Mast tilting angle | Deg | 6/12 | ||||||
8 | Min.turning radius | mm | 2400 | ||||||
9 | Min. Groud clearance | Mast | mm | 135 | |||||
10 | Frame | mm | 140 | ||||||
11 | Overhead guard height | mm | 2165 | ||||||
12 | Front overhang | mm | 490 | ||||||
13 | Performance | Max travel speed | km/h | 20 | |||||
14 | Max lift speed | mm/s | 480 | ||||||
15 | Max.towing force(full load) | KN | 22 | ||||||
16 | Max. gradeability | % | 20 | ||||||
17 | Dimensions | Total length with fork | mm | 3820 | |||||
18 | Total length without fork | mm | 2750 | ||||||
19 | Total width | mm | 1225 | ||||||
20 | Mast extended height | mm | 4265 | ||||||
21 | Mast lowered height | mm | 2060 | ||||||
22 | Chassis | Tyres Front | 28x9-15-12PR | ||||||
23 | Tyres Rear | 6.50-10-10PR | |||||||
24 | Wheel base | mm | 1700 | ||||||
25 | Thread | mm | 1000/970 | ||||||
26 | Service weight | Kg | 4350 | ||||||
27 | Drive | Battery | V/Ah | 12/80 | |||||
28 | Motor | Model | Xinchai 490 | ||||||
29 | Rated output | kw/r.p.m | 40/2650 | ||||||
30 | Rated torque | Nm/r.p.m | 165/1800 | ||||||
32 | Cylinders | 4 | |||||||
33 | Displacement | L | 2.7 | ||||||
34 | Fuel tank capacity | L | 70 | ||||||
35 | Transmission | Mechanical | |||||||
Details Images
Related Products
CPC(D)25
Total weight:3800kg
Loading weight:2500kg
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
CPC(D)30
Total weight:4200kg
Loading weight:3000kg
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
Loading weight:3000kg
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
CPC(D)35
Total weight:4450kg
Loading weight:3500kg
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
Lifting high:3000mm
Power:40kw/rpm
Engine:Xinchai 490
Optional Attachments:
Company Profile
Shandong Laigong Machinery Manufacturing Co., Ltd is a state-level high-tech enterprise. It was founded in 1998, covers an area of 150, 000 square meters located in Shandong Laizhou Laigong Industrial Park and specializes in mini construction machinery industry.
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept.
There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept.
There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Certifications
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
