HSLJ 500 * 2G высокая скорость 2 линий плоский пластиковый пакет для покупок машина для производства рулонов туалетной бумаги

Product Overview

Description

HSLJ-500*2G High speed 2 lines flat plastic shopping bag roll making machine

1.Feature:

1)Has functions as automatic photoelectricity tracking, microcomputer length setting, high limit stopping.

2)Automatic counting and alarm when reaching the setting value, high compensation accuracy.

3) Bags of production are neat, little error.

4)Ideal equipment for producing blank bags, color bags, flat bags, vest bags and various soft package bags.

2. Main Technical Specification

Model	HS-LJ-500Gx2G
Max. Bag-making width	100-400mm*2line
Max. Bag-making length	320-600mm
Thickness of film	0.008-0.1mm
Bag-making speed	100-300pcs/minx2
Main motor	1.5KW
Heating power	4.5KW
Voltage	220V, 50HZ,single phase
Weight of machine	1600KG
Overall dimensions	4000×1600×1600mm



3.Detail picture display

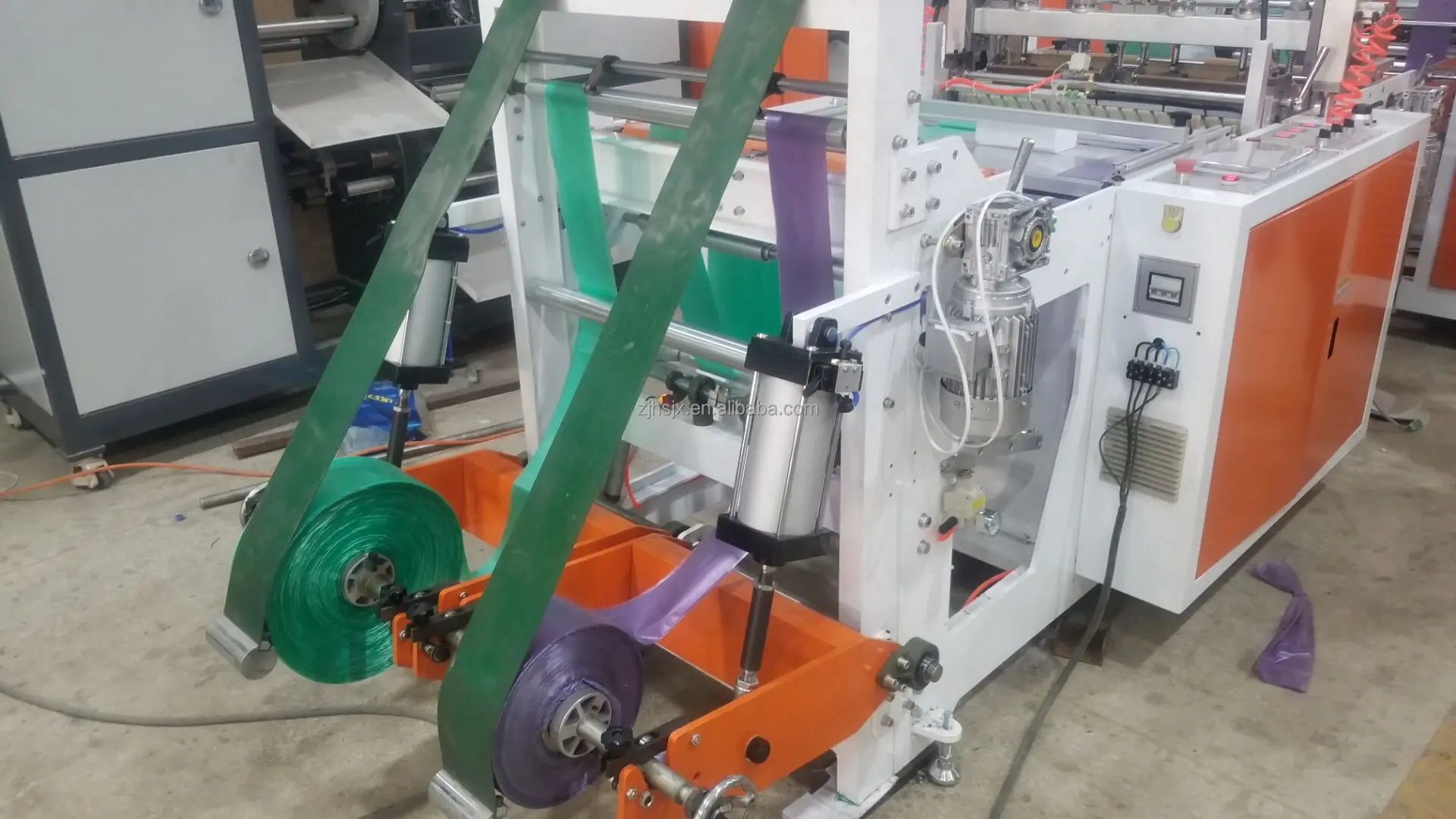

1)unwind double roll

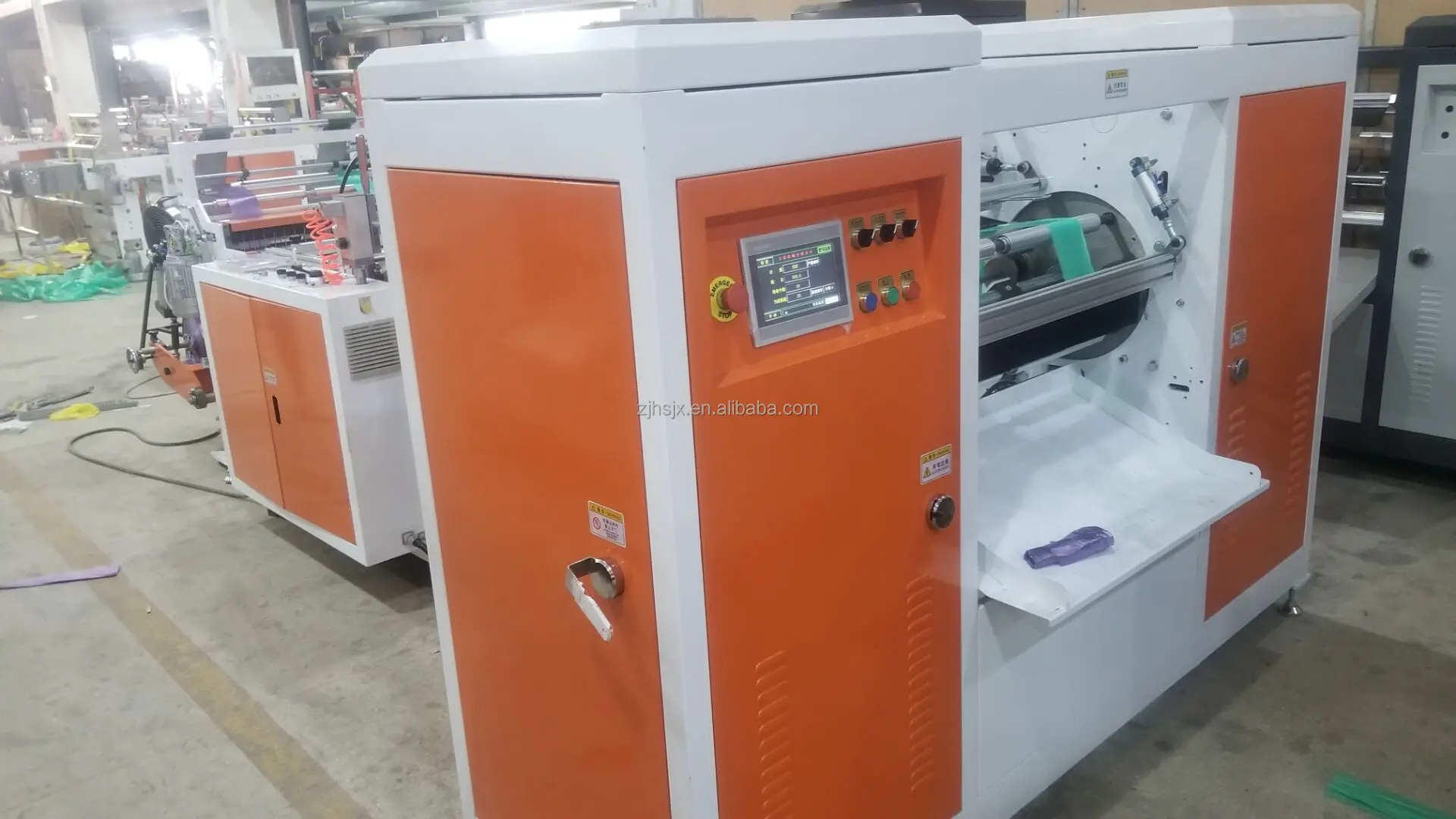

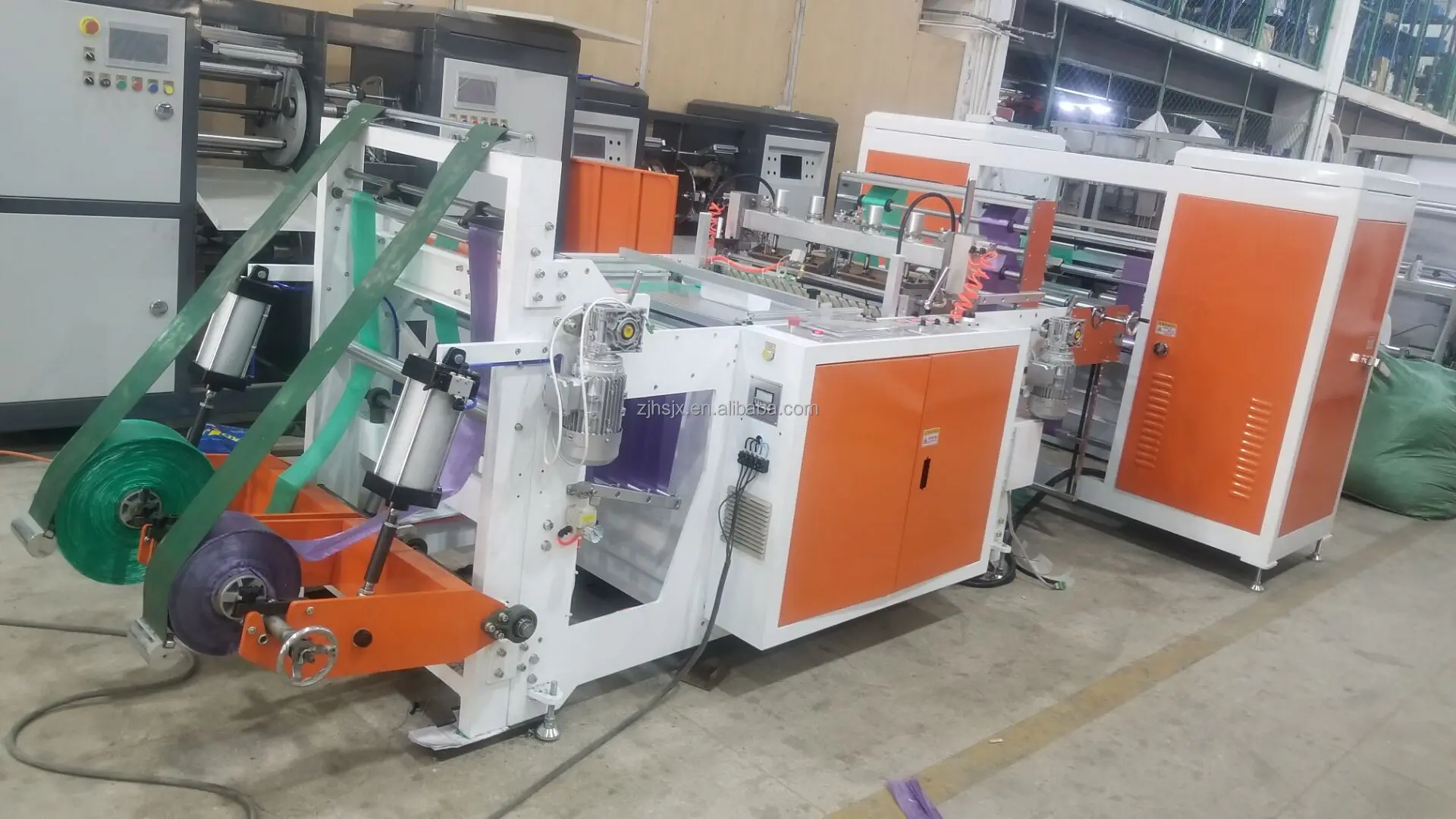

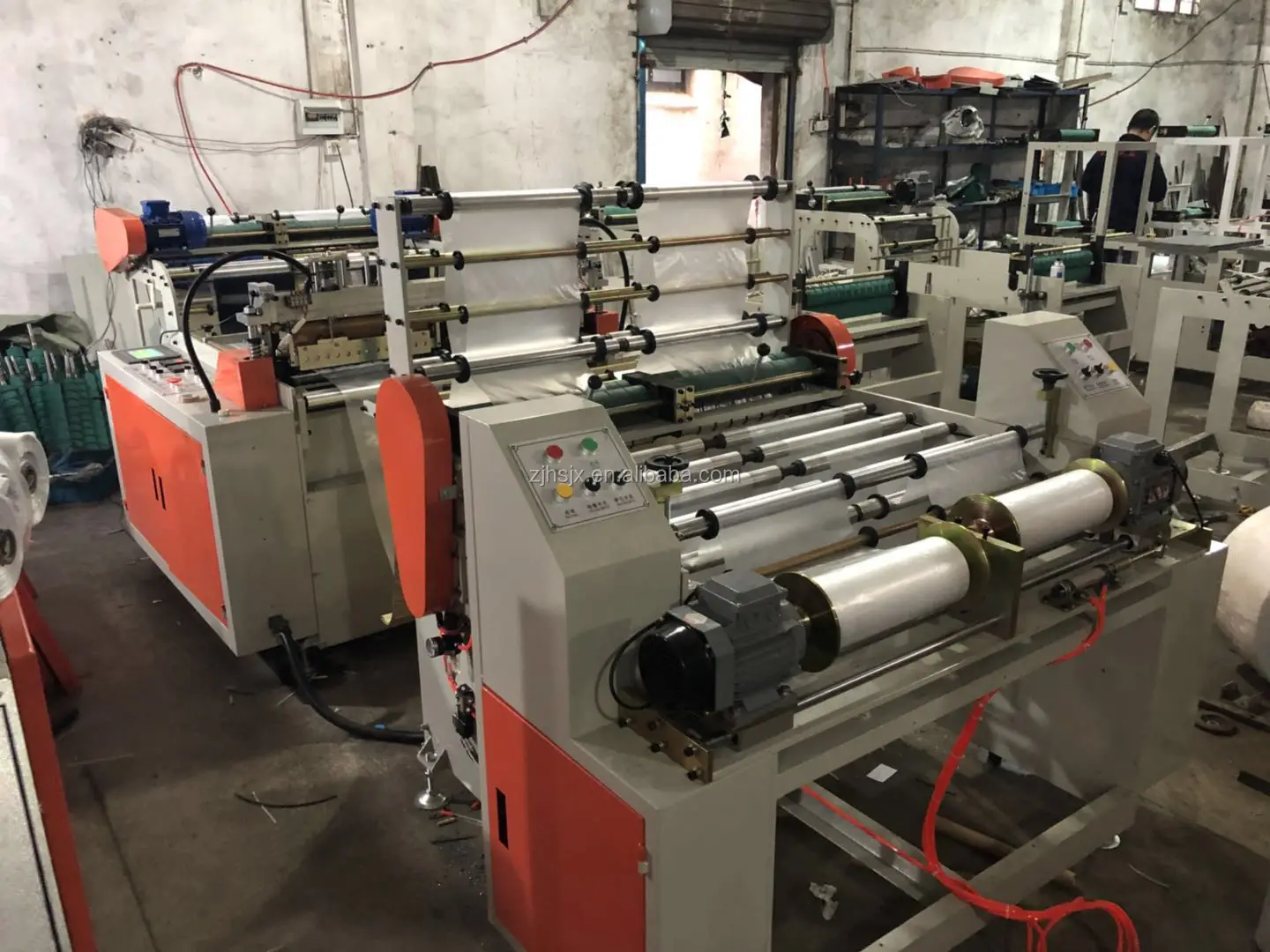

2)machine side view

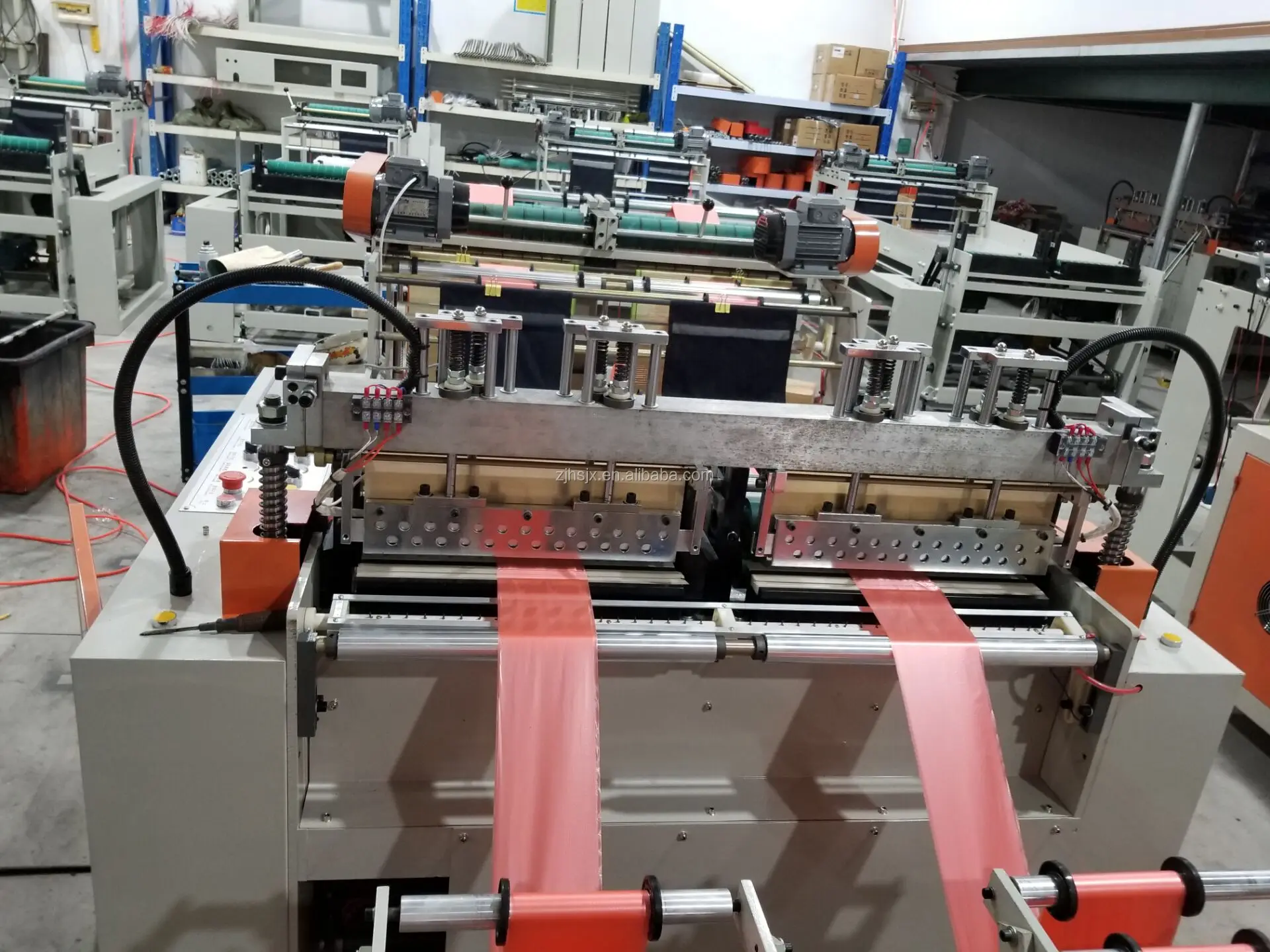

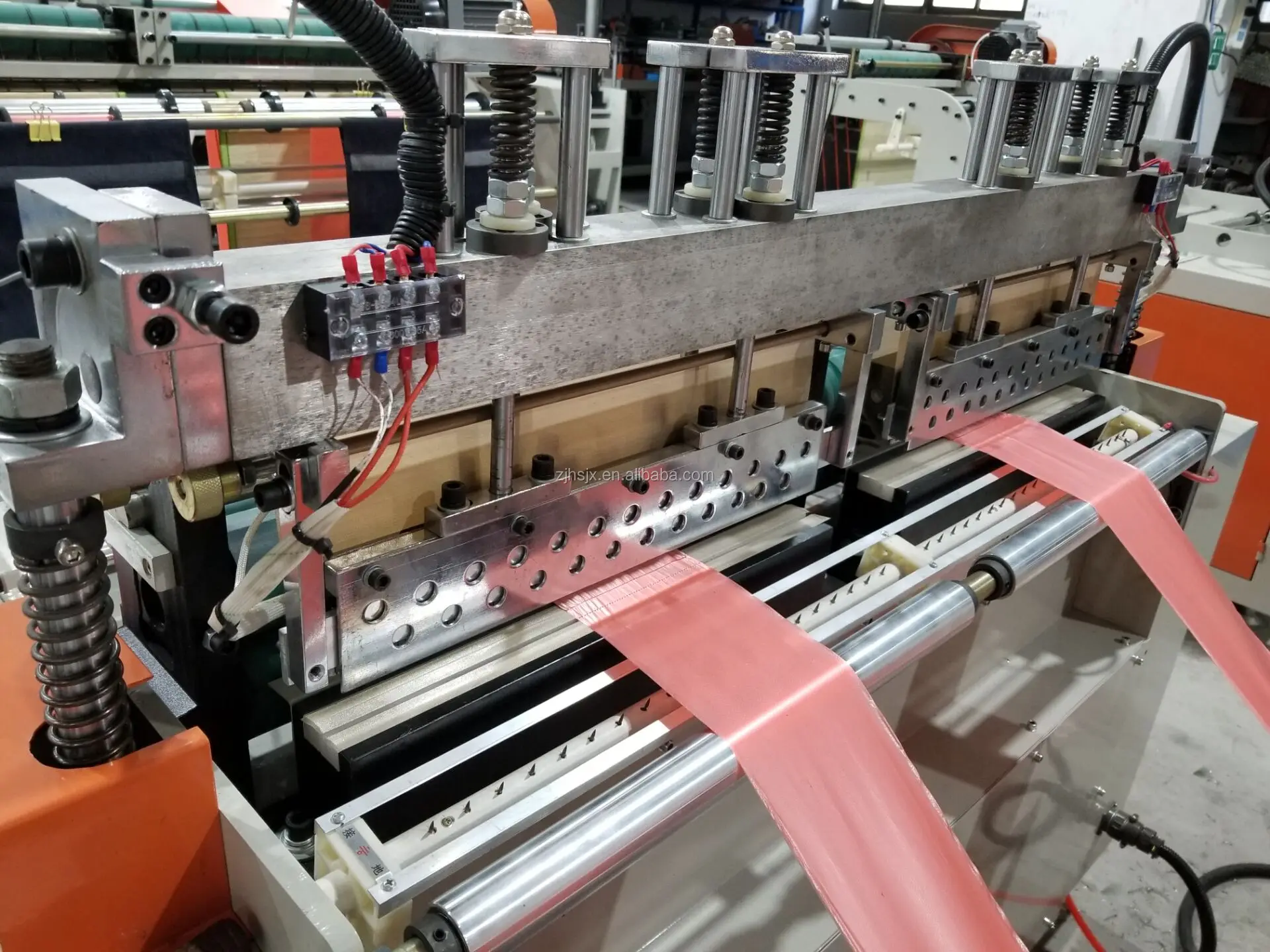

3)double lines hot cutting

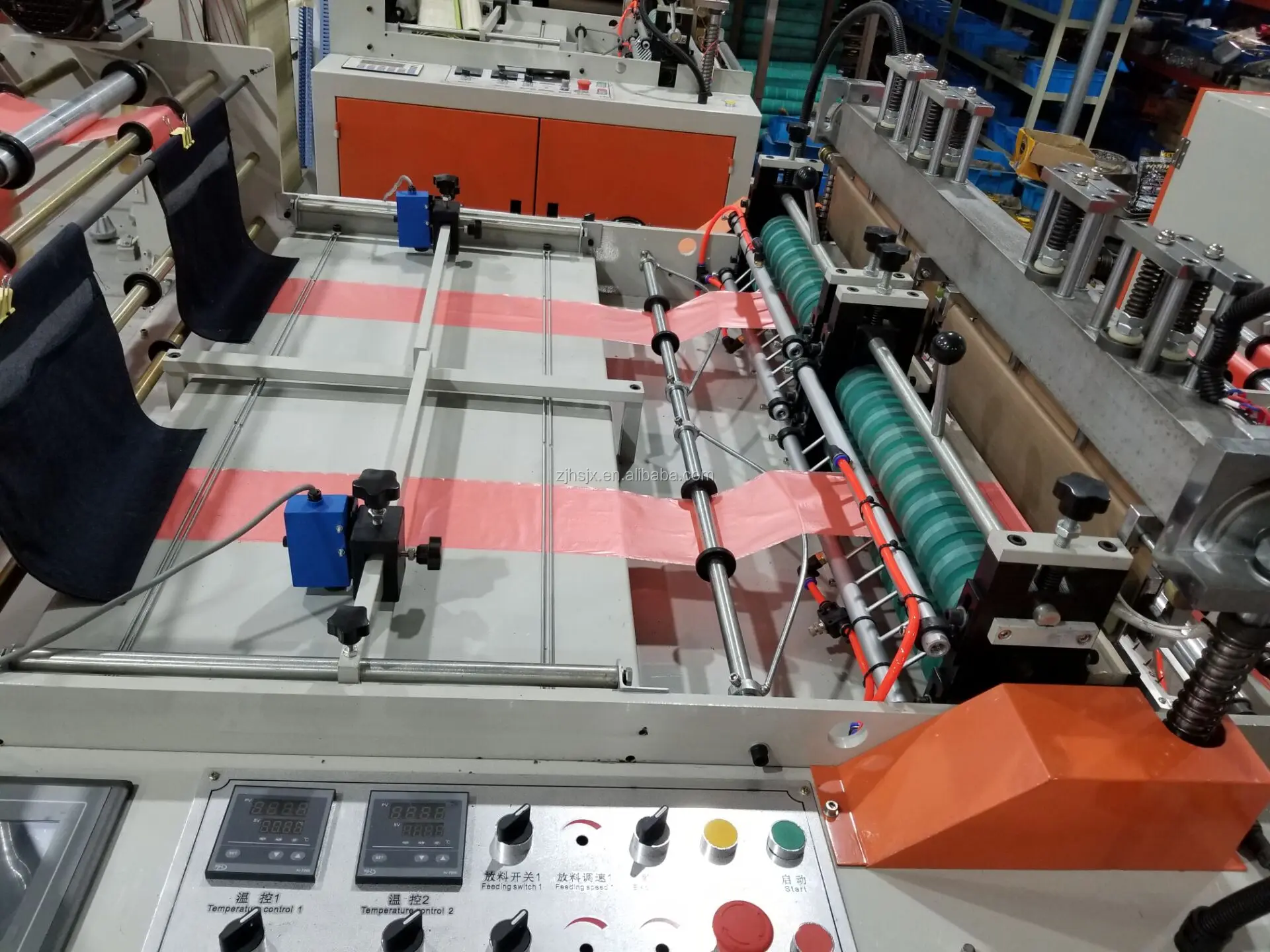

4)double tracking sensor

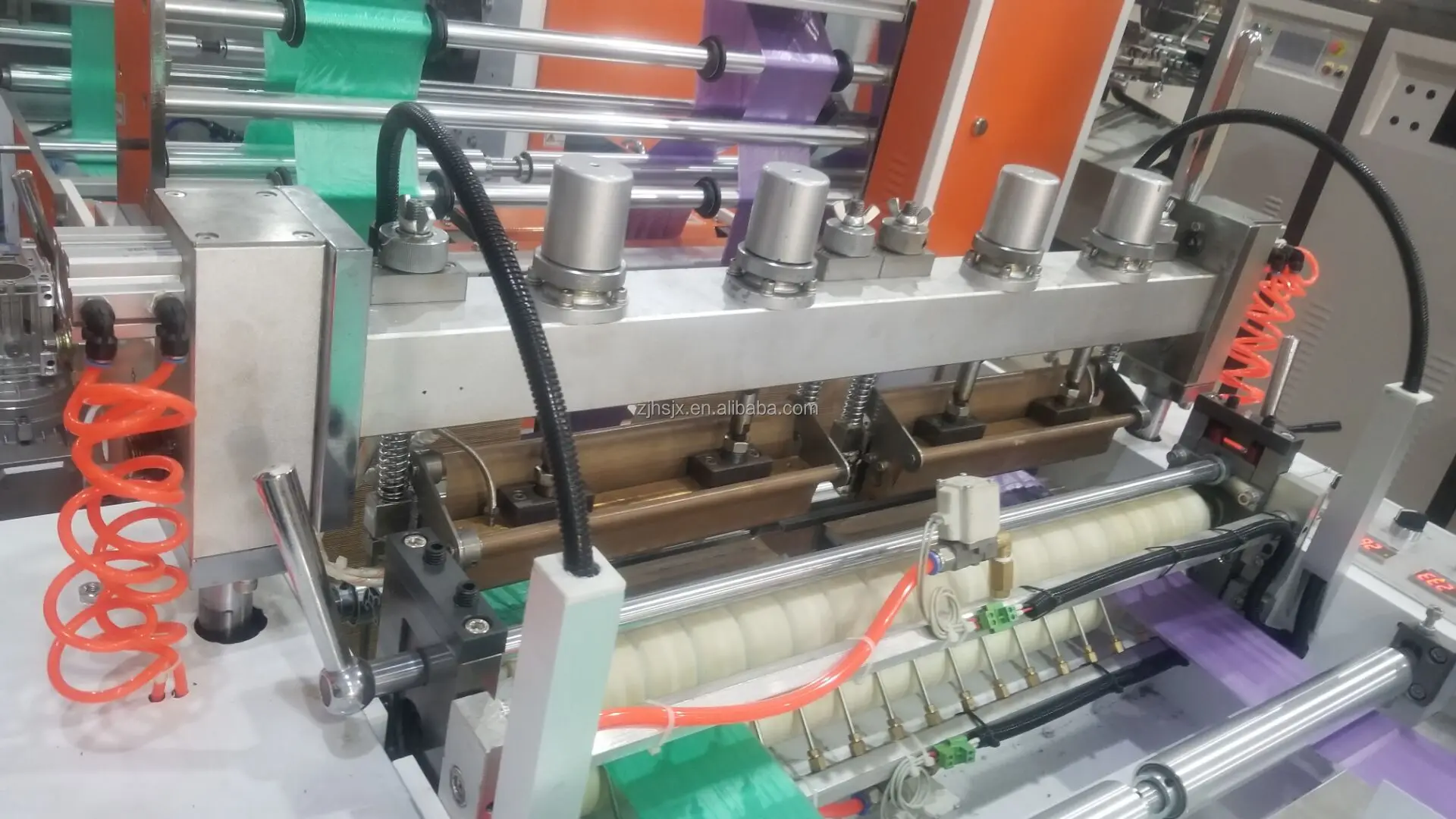

5)perforate cutter blade

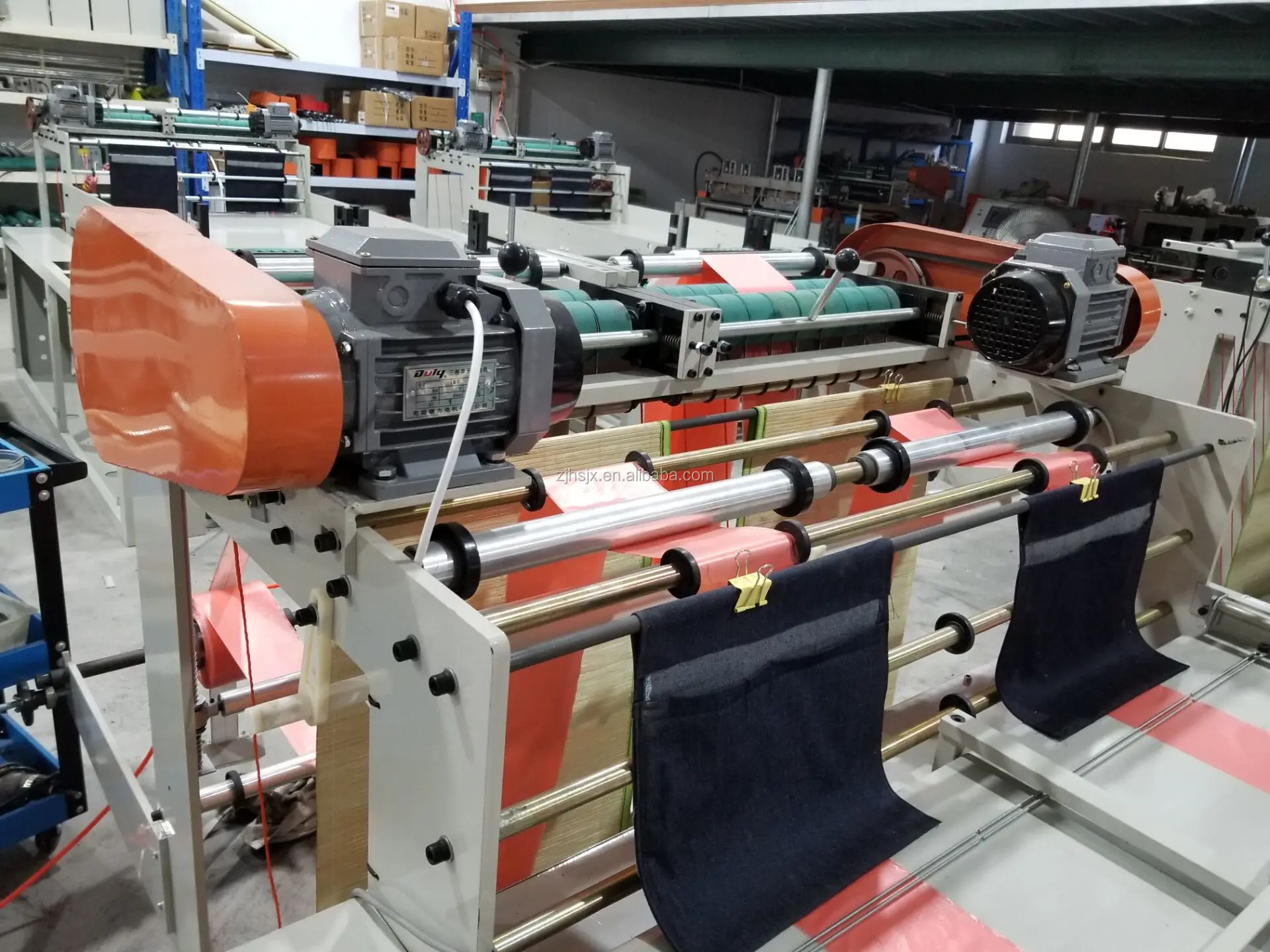

6)tracion part

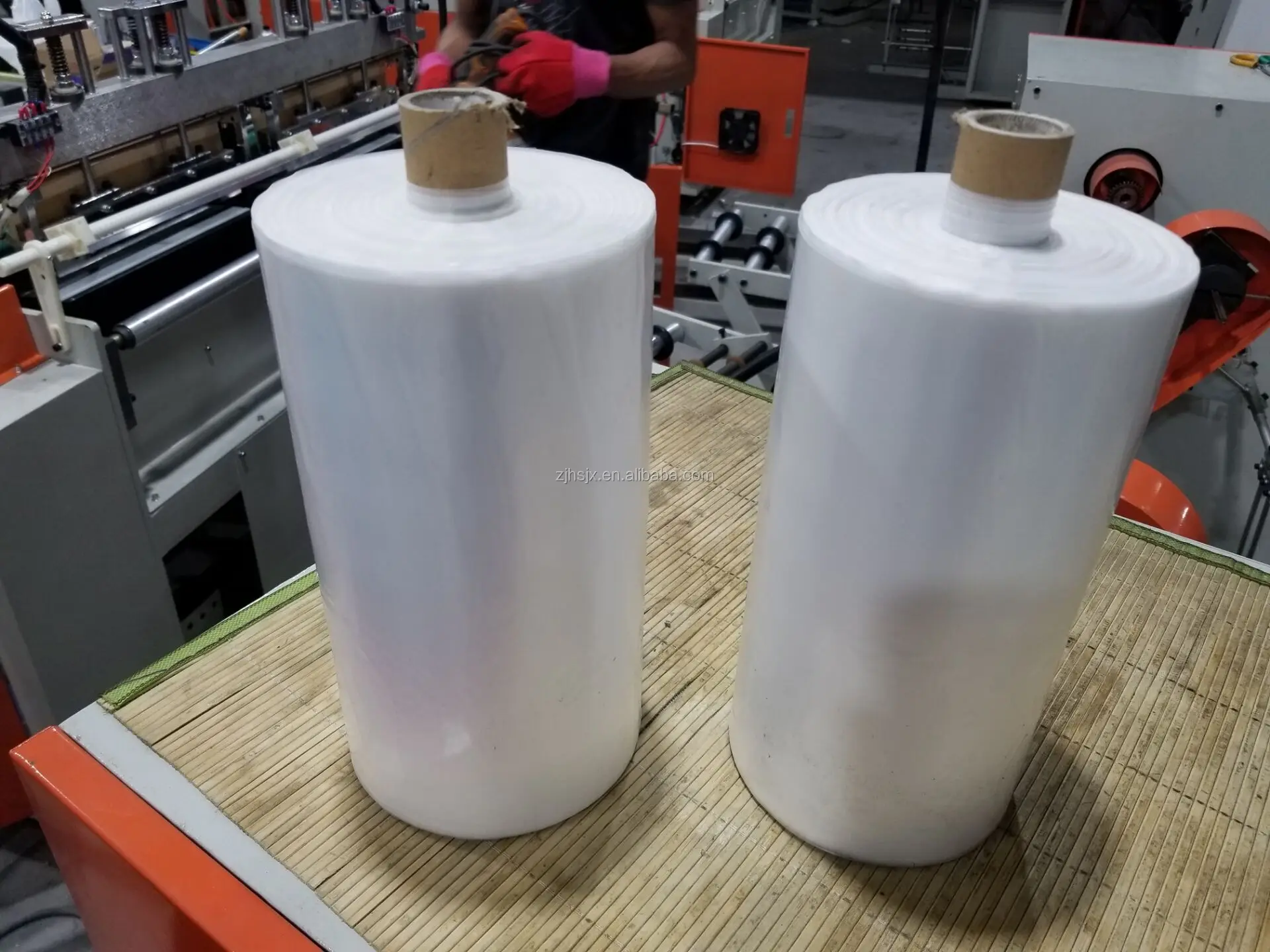

7)roll bag with paper core
