Co2 laser printer/PET Bottle Expiry Date Printer/Batch code printing machine
- Category: >>>
- Supplier: Zhangjiagang Paima Import And Export Trading Co. Ltd.
Share on (1600544164263):
Product Overview
Description
Product Overview

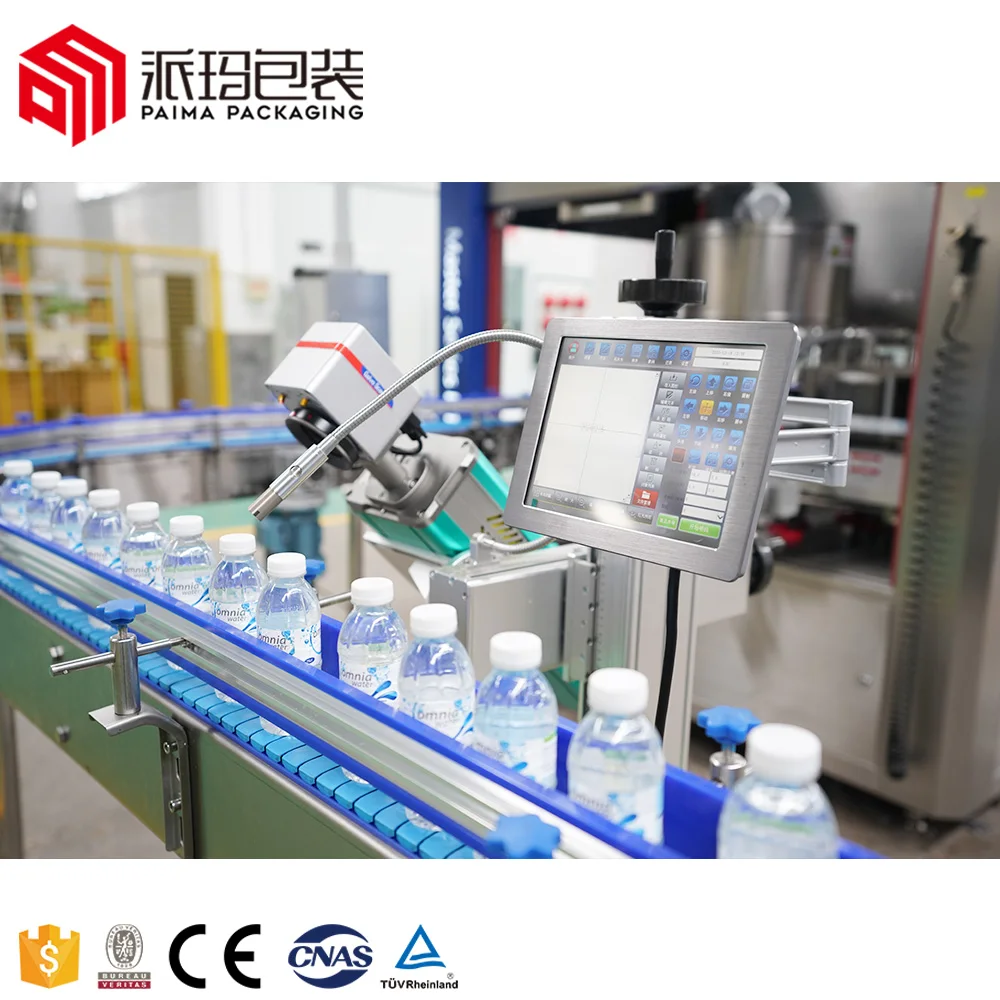

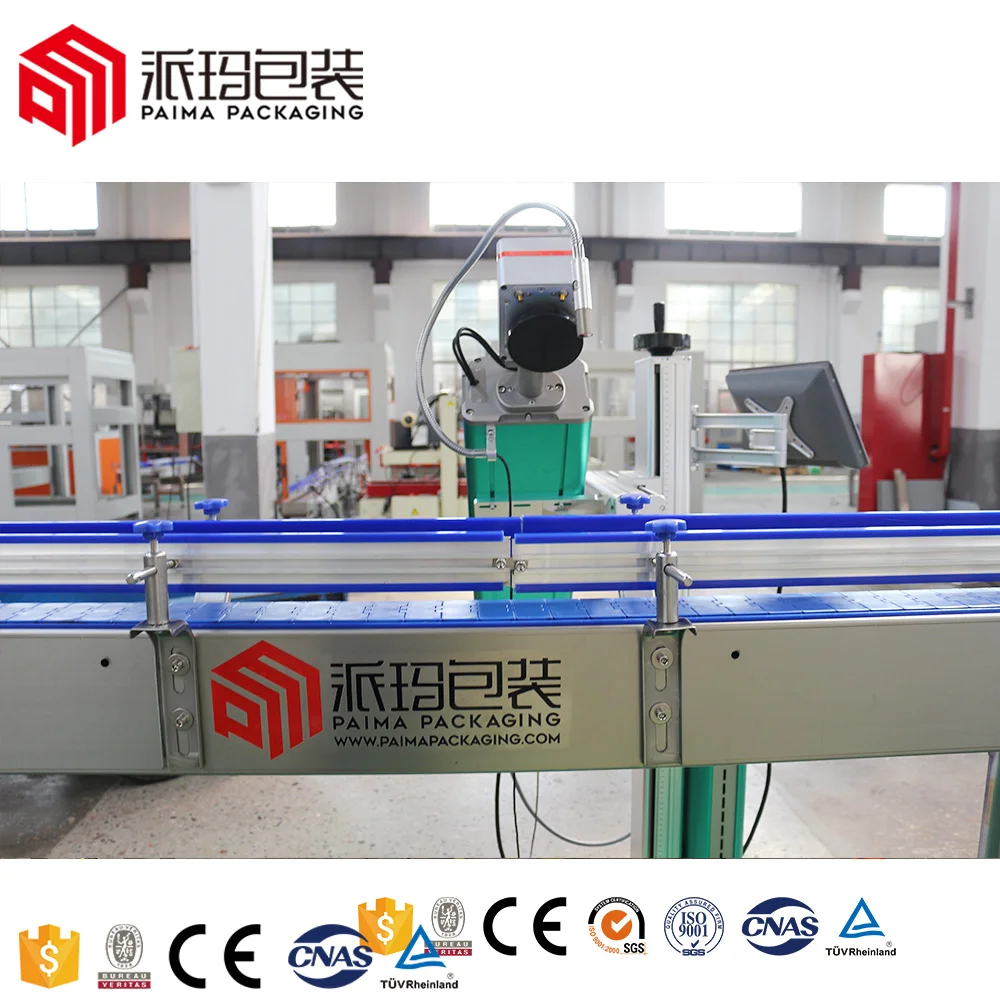

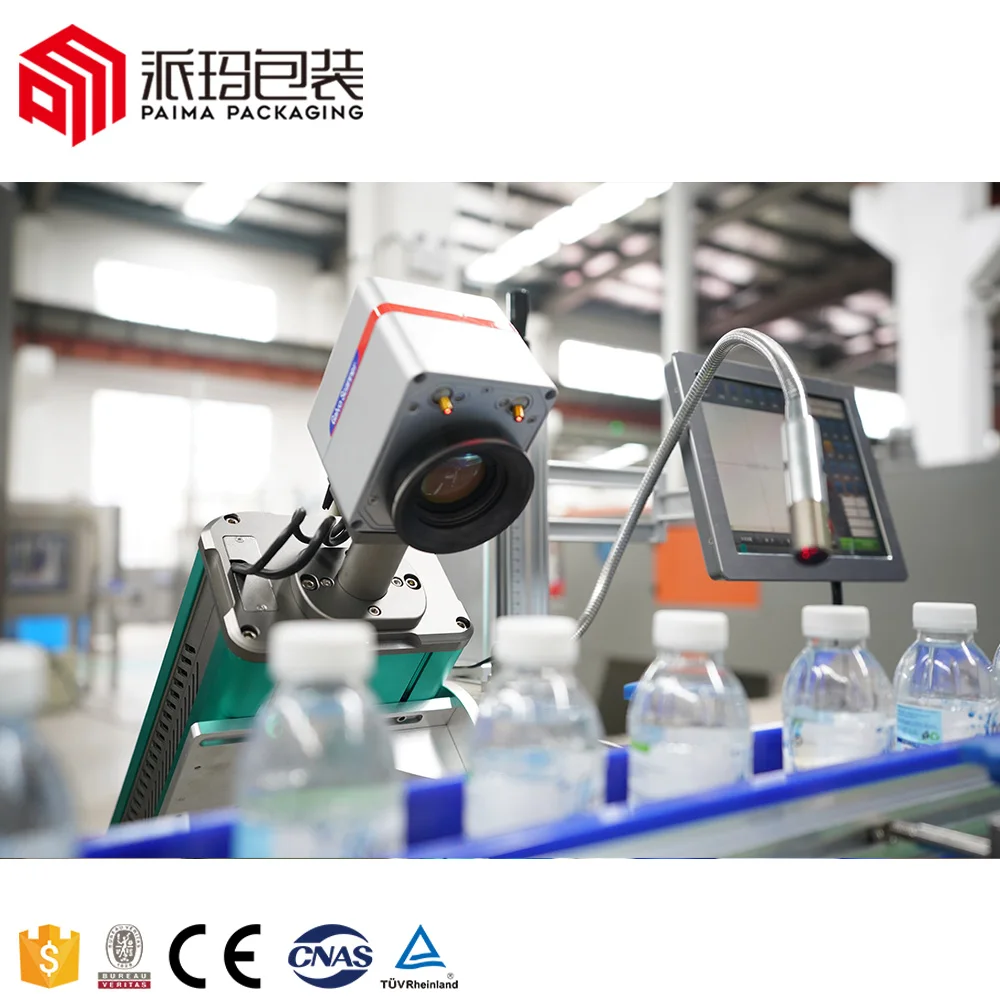

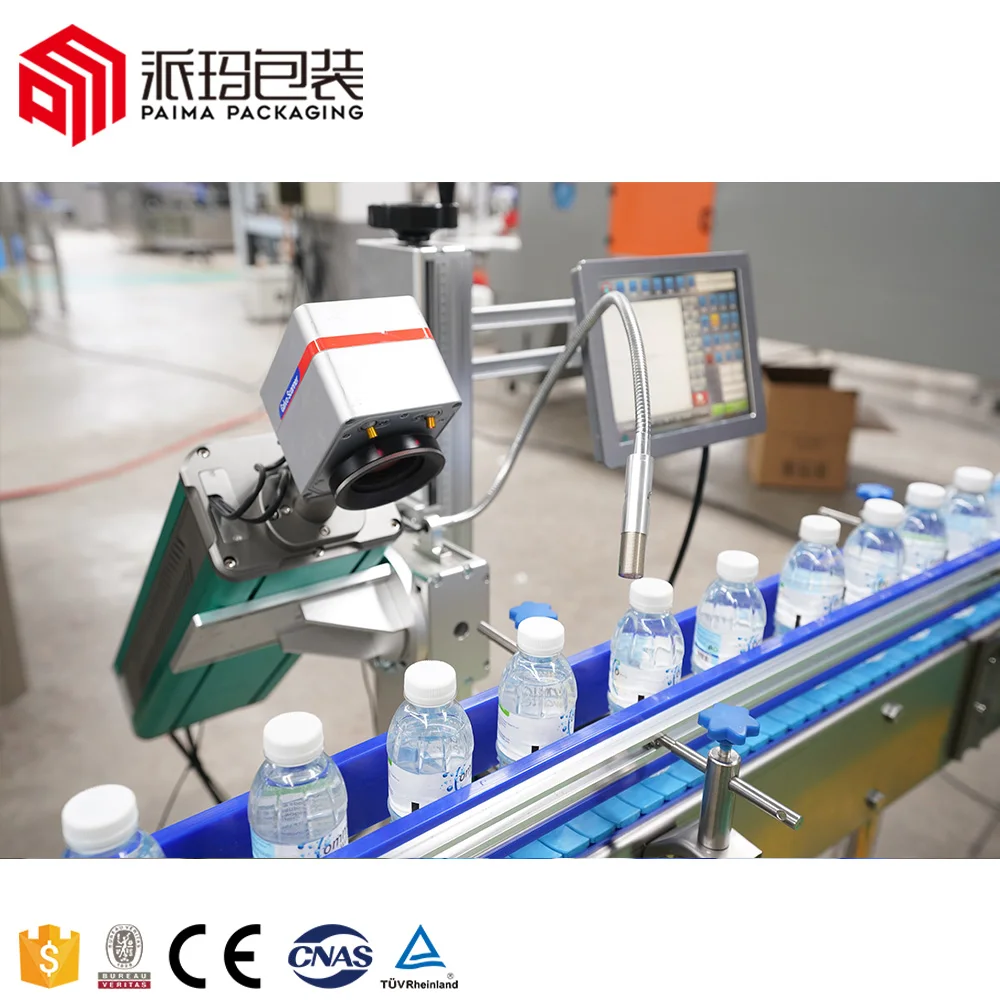

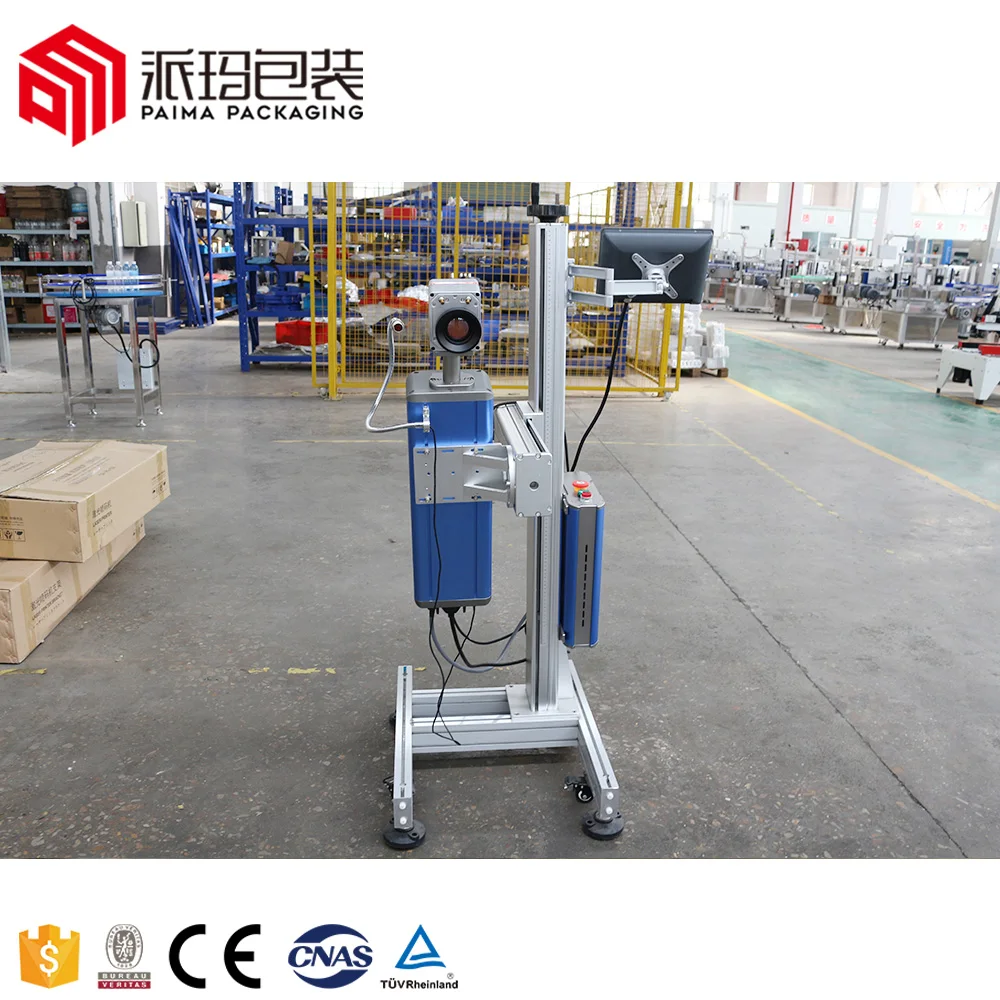

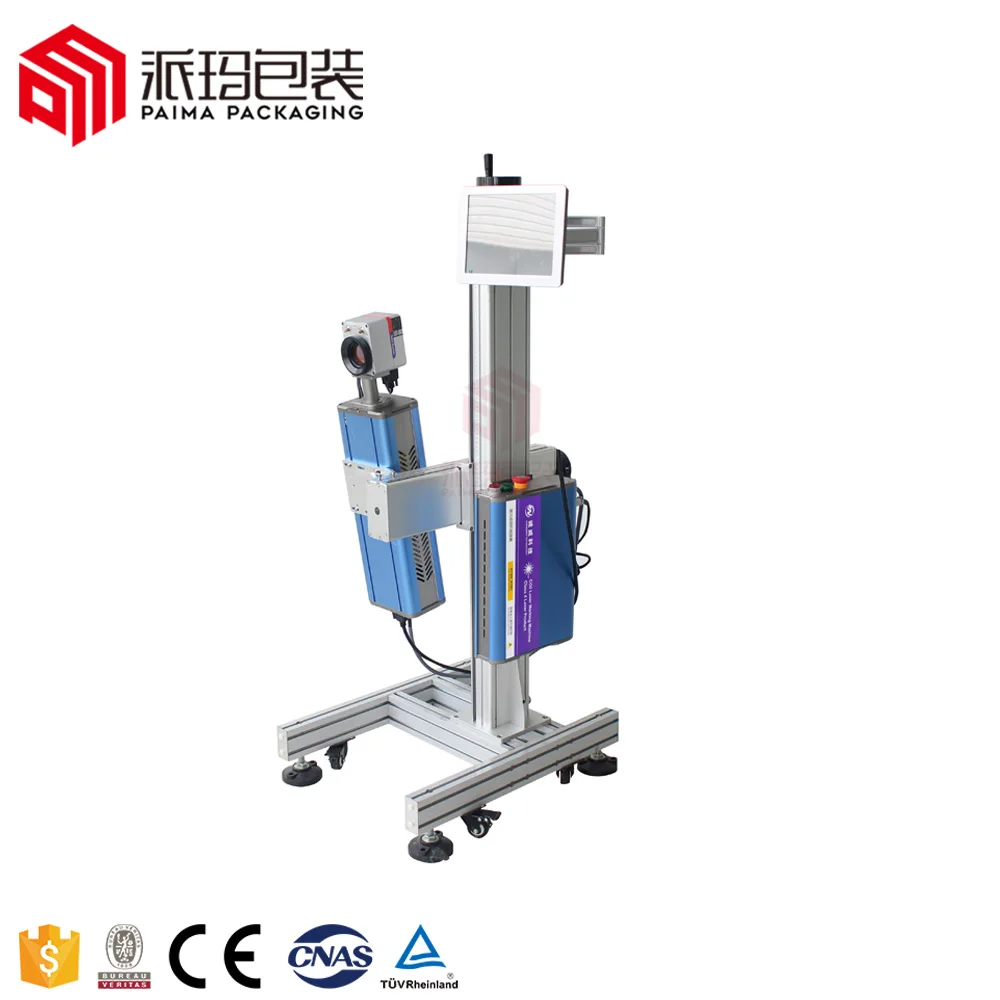

CO2 laser code printer
The new CO2 laser code printer is a highly integrated, compact, easy to operate and cheap to use and maintain.It is not only applicable to the carton, food, medicine industry in the simple marking code application, but also very suitable for the beverage industry production date marking, and optimize the use in the beverage industry.
PRODUCT SPECIFICATIONS

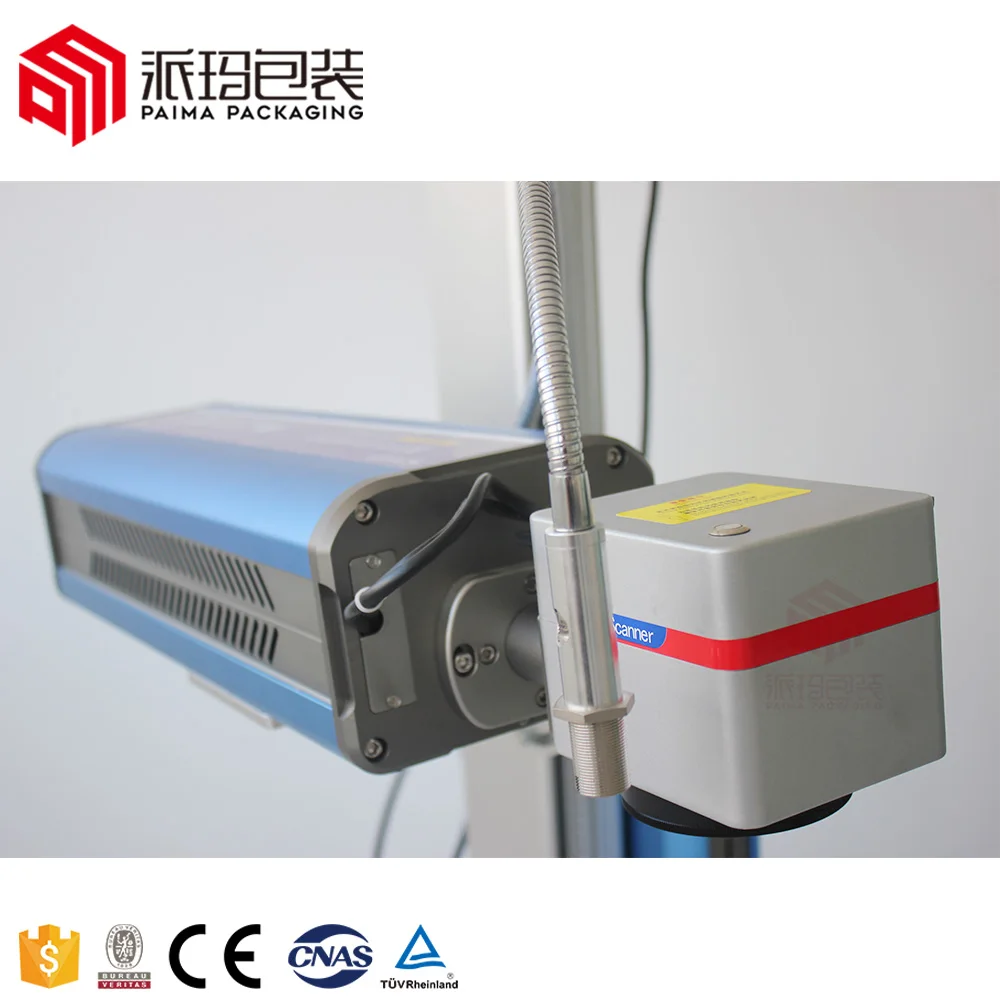

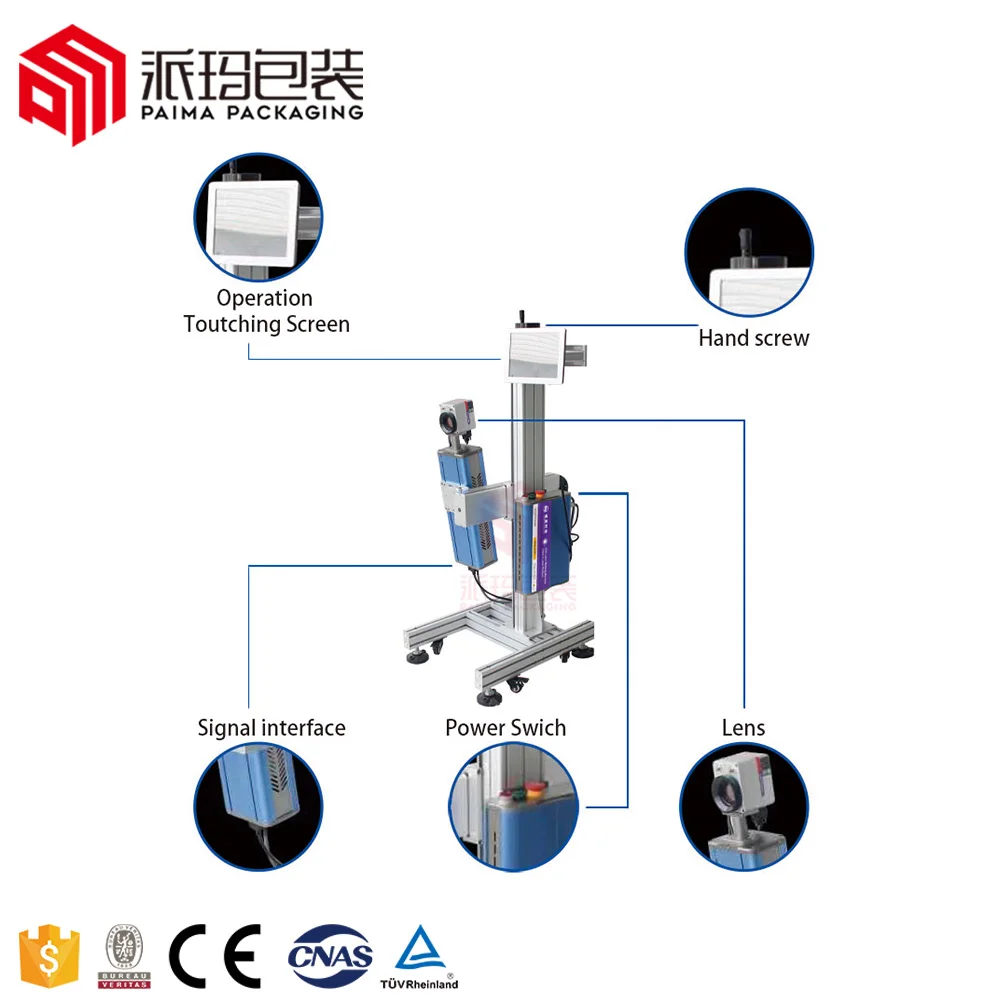

It is mainly composed of laser generator, deflection galvanometer, photoelectric sensor, main controller and power supply. PAIMA 60 series laser marking machine is the latest application of dynamic laser marking control system.The system is equipped with software and hardware functions to control the motion precision parameters, synchronously track the fast-moving workpiece and control the laser output, and mark when the production line moves rapidly and the workpiece nonstop. Markers are both dot and vector.It can run continuously 24 hours at the working site.
ITEM | Model | CO2 W6330 | CO2 W6430 | |
Laser Machine Characteristics | Material | All aluminum structure | ||
Laser | Sealed metal radio frequency carbon dioxide laser generator | |||
Continuous output power | ≥30W | ≥40W | ||
Laser wavelength | 9.3um | |||
Galvanometer deflection | High precision Double d scanning system | |||
Engraving speed | ≤7000mm/s | |||

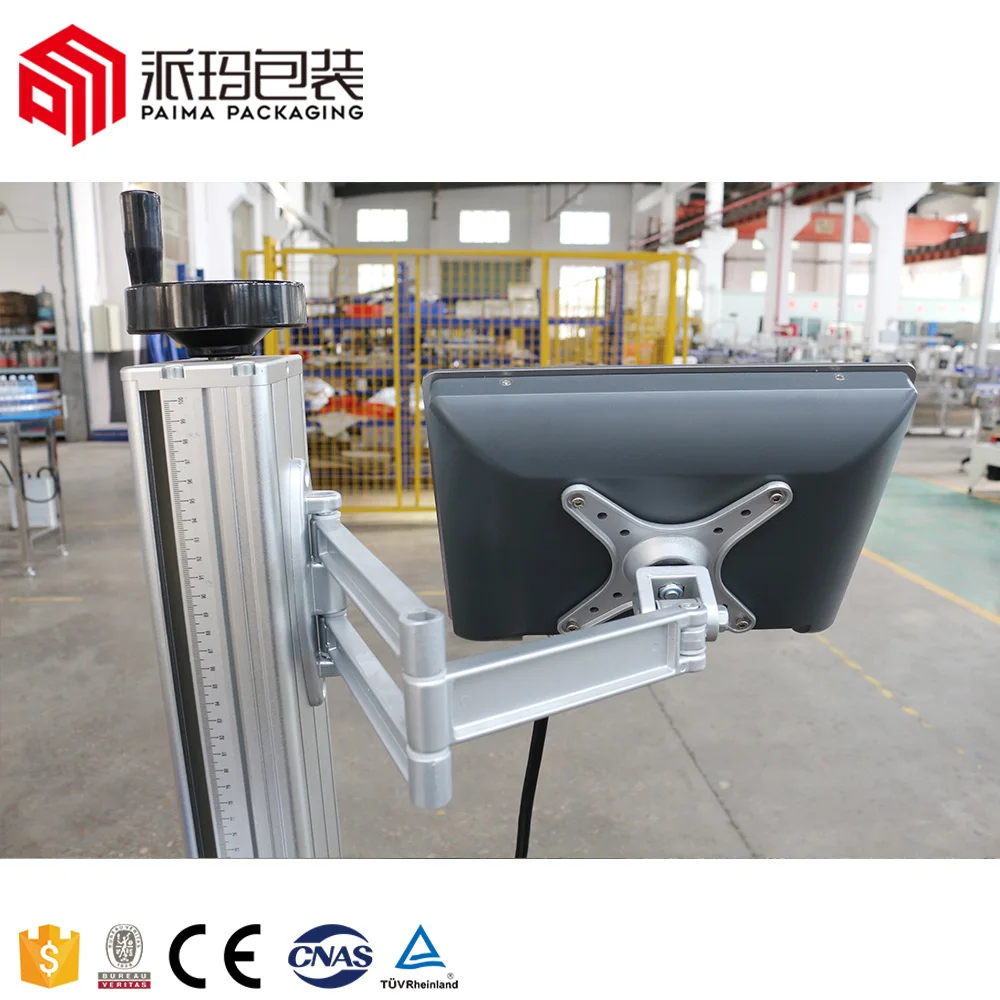

Master control | Highly integrated motherboard with 10 inch screen | |||
Operating system | WIN CE | |||
Cooling System | Air cooling system | |||

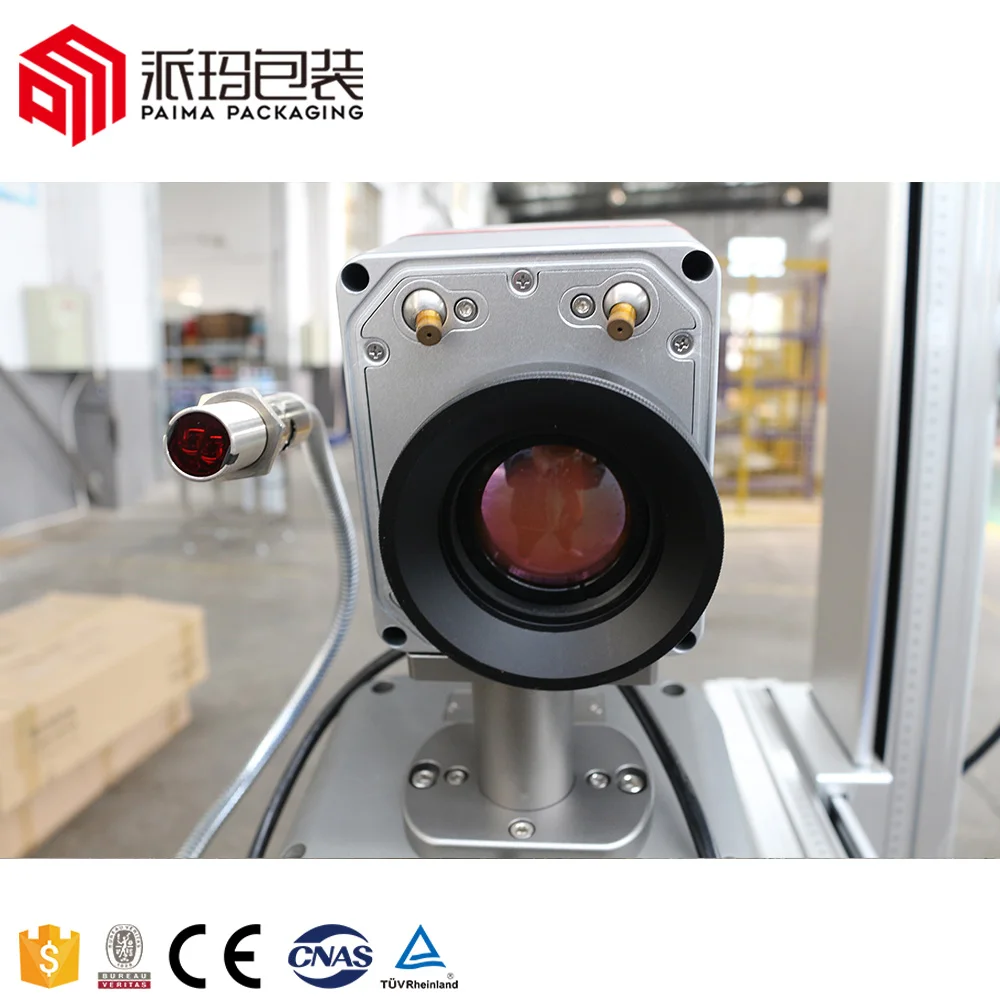

Laser Parameters | Focus lens | Focal length 138 mm | ||
Marking type | Dot matrix and vector machine (can play both dot matrix and vector) | |||
Minimum line width | 0.03mm | |||
Repositioning Accuracy | 0.01mm | |||
Marking area | 110mm×110mm（Choosable） | |||
Locate mode | Red light focusing | |||
Lines to type | Any lines in the marking range | |||
Production Line Speed | 0~100m/min (depends on the material) , 0~150m/min (depends on the material),0~200m/min (depends on the material) | |||
Support Types | Font | Standard Chinese and English, Numbers, etc | ||
File Format | BMP/DXF/HPGL/JPEG/PLT | |||
Bar codes | CODE39、CODE128、CODE126、QR、ETC | |||
Parameters | Power | 220V | ||
Power Consumption | 300W | 580W | ||
Machine net weight | 14kg | 25kg | ||
3 d bracket net weight | 30kg | |||
Operational Reliability | \\ | External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing;No vibration | ||
FEATURES AT A GLANCE
Technical Features:
A new generation of 60 series carbon dioxide laser inkjet machine
The new CO2 laser code printer is a highly integrated, compact, easy to operate and cheap to use and maintain.It is not only applicable to the carton, food, medicine industry in the simple marking code application, but also very suitable for the beverage industry production date marking, and optimize the use in the beverage industry.
* ··Compact integrated solutions
* New modular design, fast installation
* New aluminum alloy custom light path, compact and reasonable structure
* ··Easy to install and transfer solution
* Setting can be in 30 minutes.Production line change can be in 20 minutes

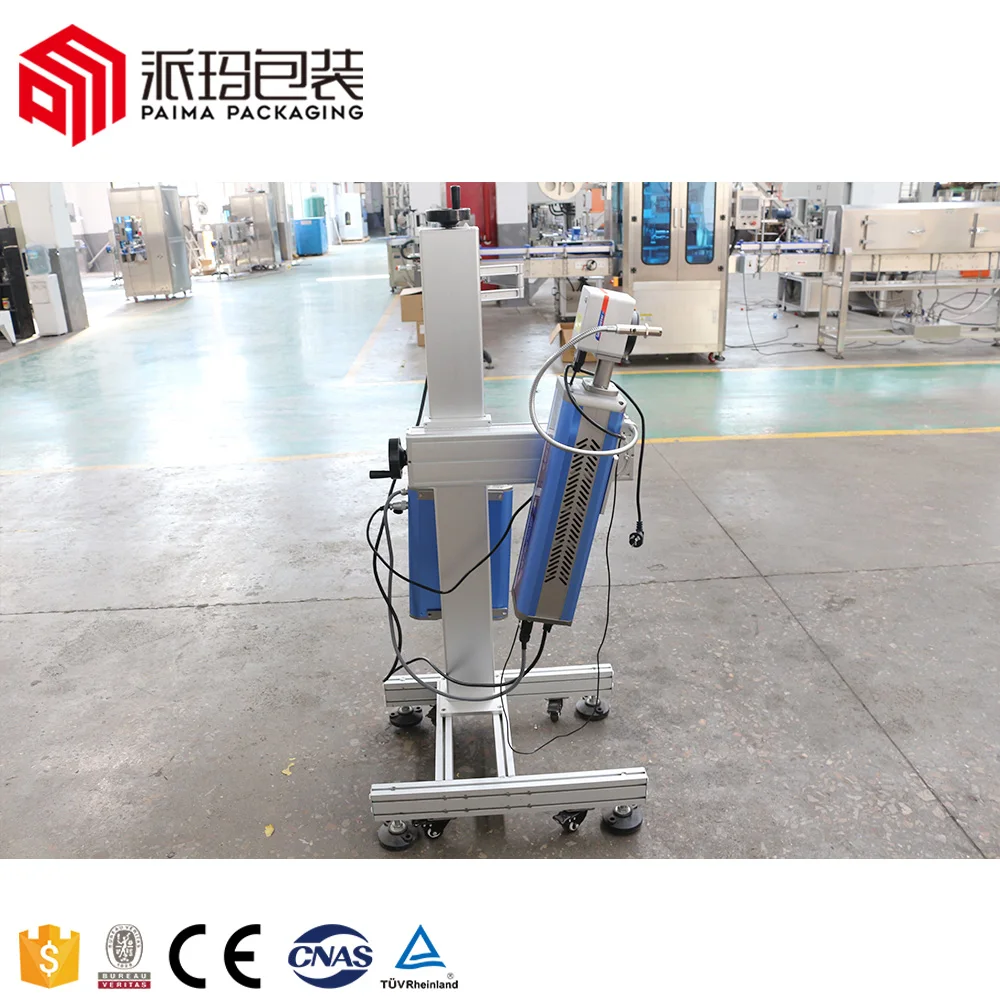

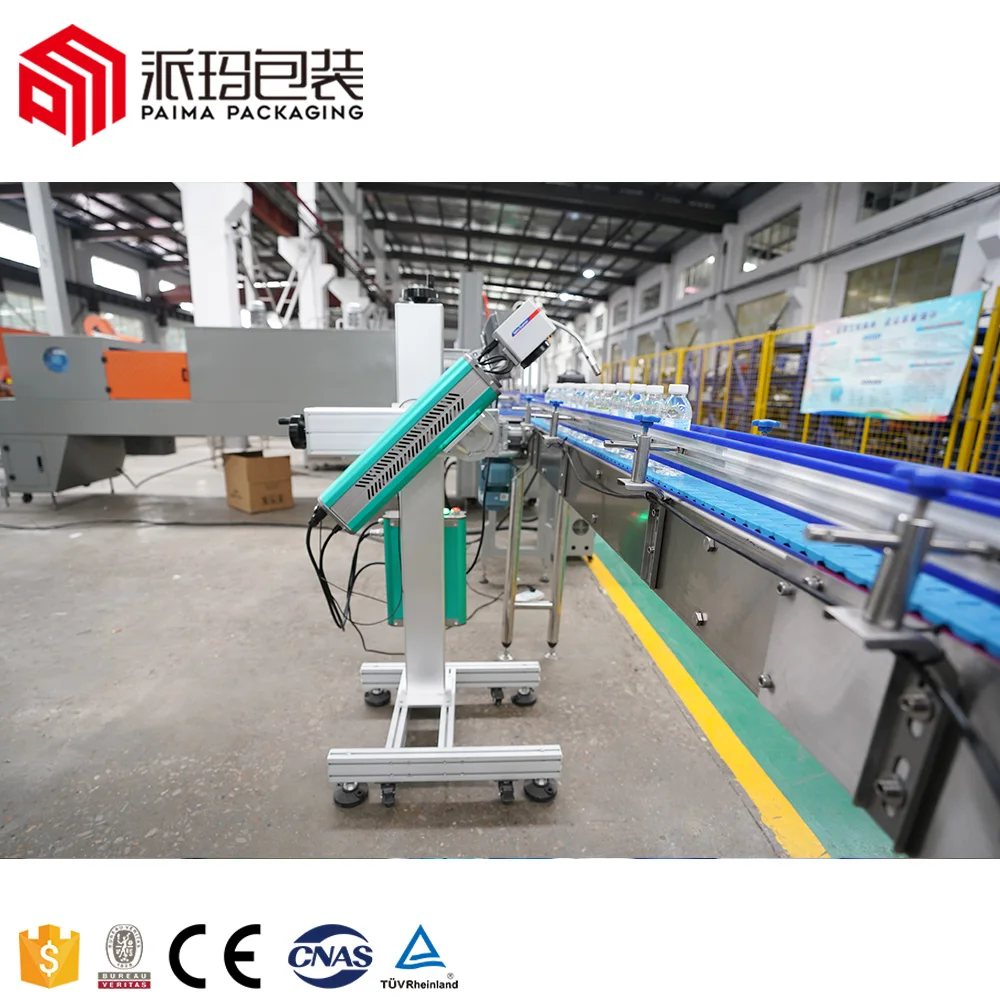

* The movable bracket is convenient for flexible installation

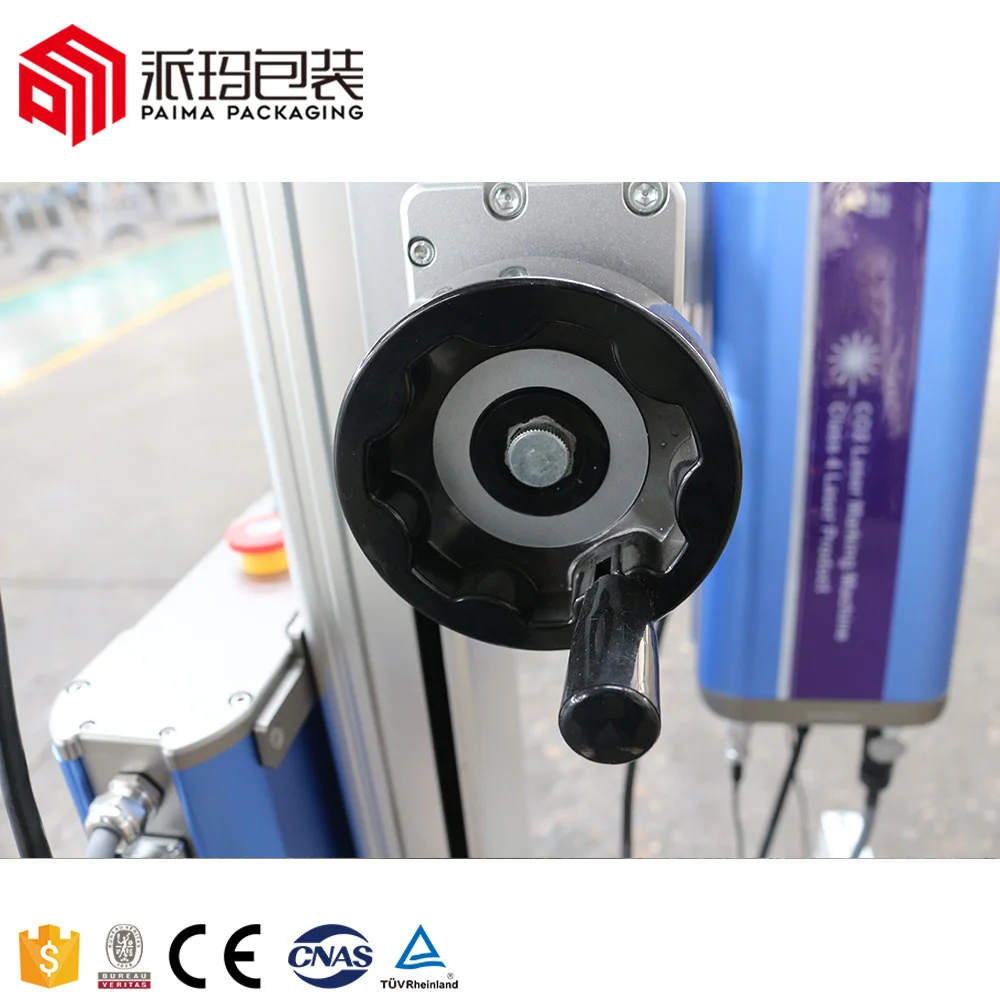

* Auxiliary focusing system,easy to find the focus, make the logo more clear
* ··Quick start and easy operation

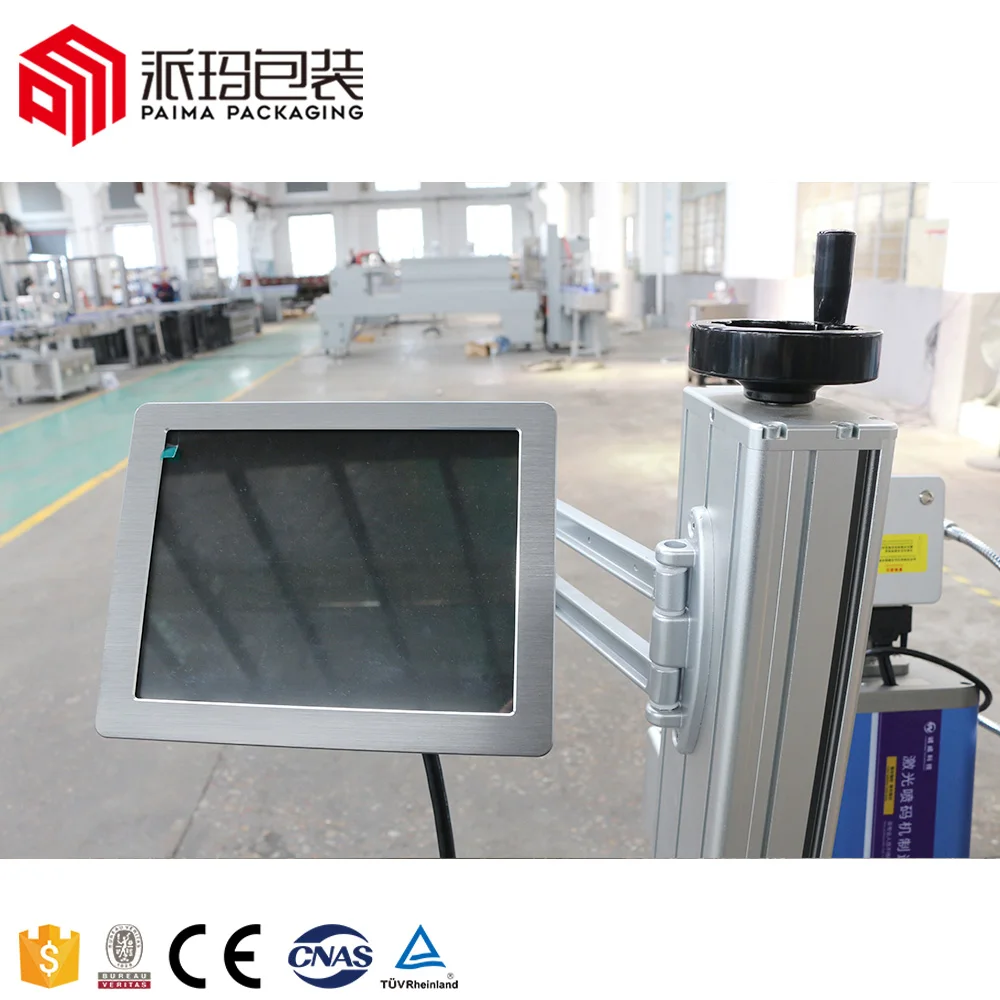

* Touch screen control is easier to operate for a best ease of use
* Application Settings and task creation takes only 2 minutes
* Simple pipelining can be made from the select box menu and preview window
* Automatic detection of ready-to-use encoders and product detectors
* ··Unique 9.3 wavelength laser, more conducive to high-speed production of beverage production line
* 9.3 wavelength /10.6 wavelength laser,which can meet different materials coding of PET bottle and glass bottle
PRODUCT CONFIGURATION
Full line of products

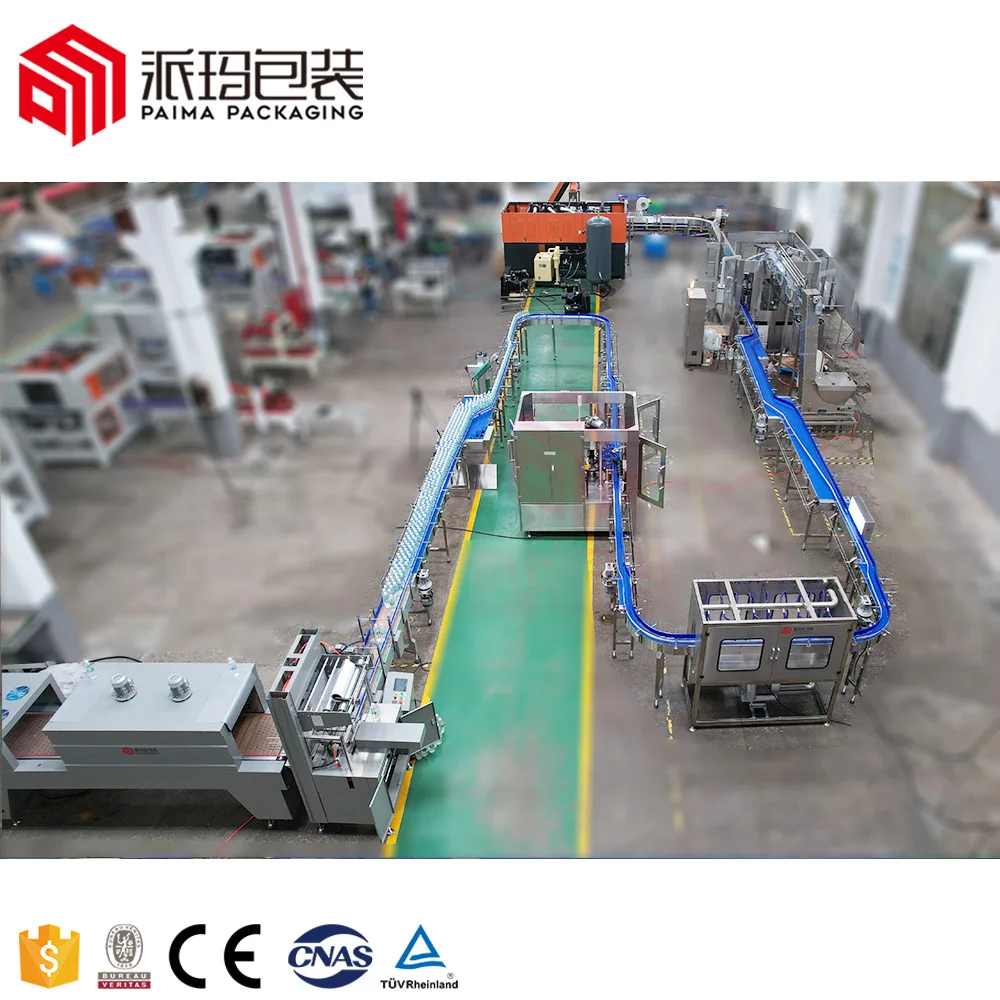

Complete bottled water production line
1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 monoblock Rinser-filler-capper machine
5. Labeling machine(PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. End packaging ( PE film shrink wrapping machine / Carton packing machine )
Water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage.
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

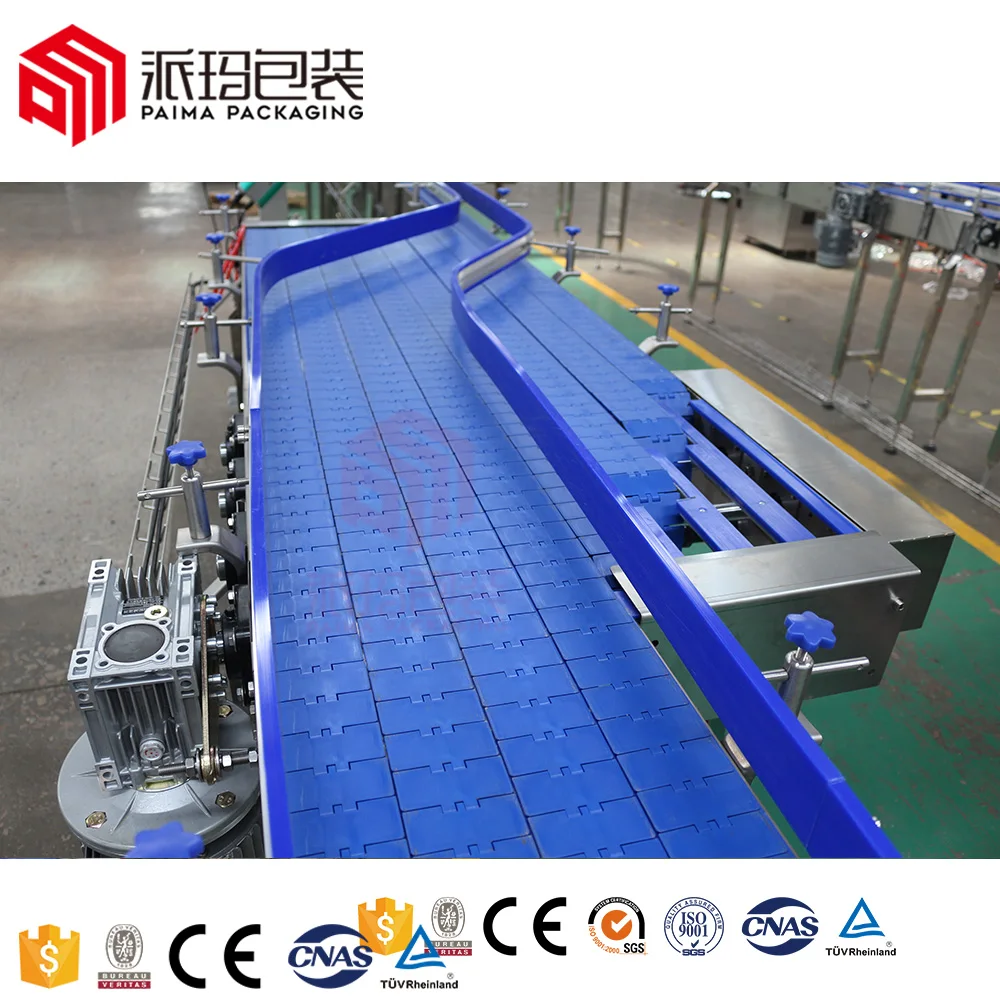

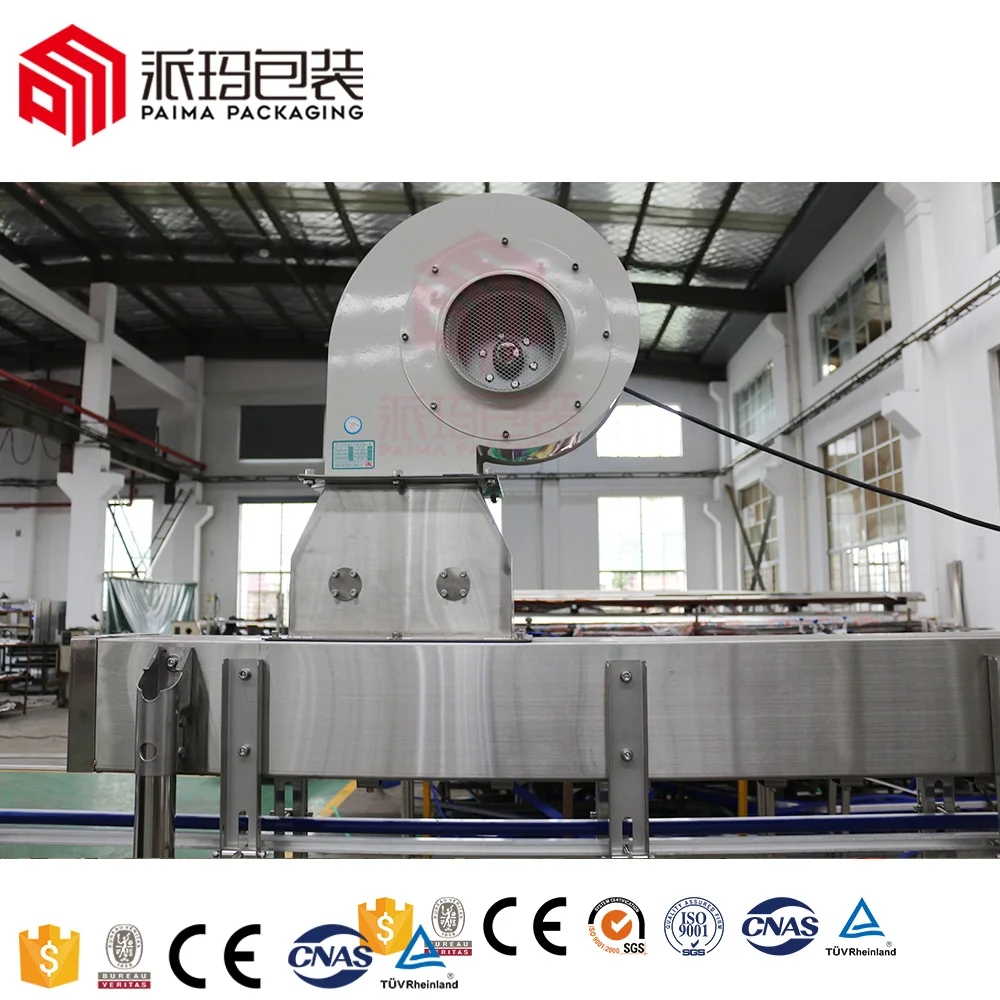

Air conveyor is fixed on the floor, with fan installed on the top.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded.
1. This machine is reliable, stable and can be used in the production line with high speed.
2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation.
3. Almost every kind and size of bottles can be dried by this machine.
4. Low energy cost.
5. No easy-wear accessories or parts.

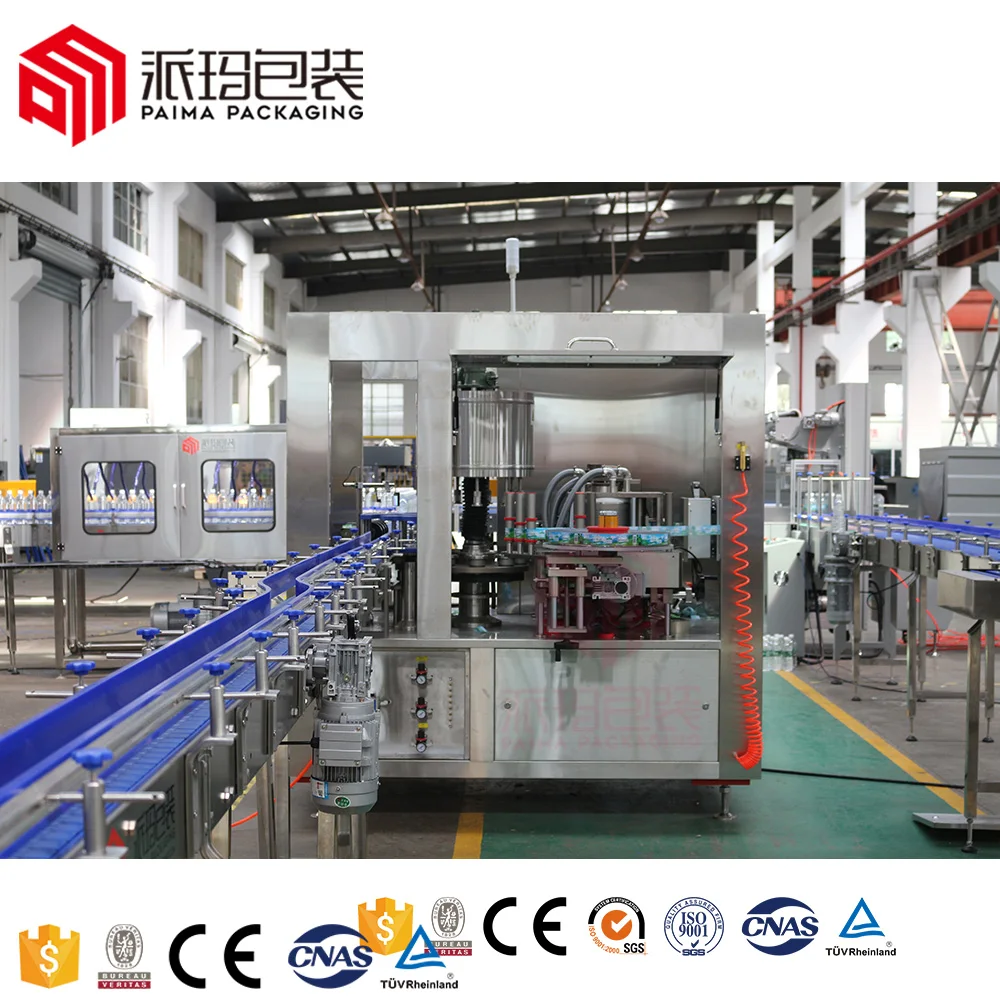

OPP labeling machine
Hot melt glue labeling machine is a labeling machine equipment that can be used for full circle labeling. The cut label pattern is complete and does not deform; always end mesh gluing, which saves 50% of hot melt; deviation correction ±0.05 (mm); upper and lower label heat shrinkable hoop tightness; overall The labeling surface is smooth, there is no dislocation of overlap, no leakage, no glue opening.
1. Energy saving. High efficient. Adapt to customer factory layout.
2. Special lubrication system, keep products clean, health, safety.
3. Extended service life.
4. Electric eyes design keep whole line running safety and quickly.
5. Overload protection mechanism to effectively ensure the safety of the machine.
1. High speed running
2. High quality accessories
3.Powerful functions
4.Permanent marking
5.laser print words very clear
2. High quality accessories
3.Powerful functions
4.Permanent marking
5.laser print words very clear

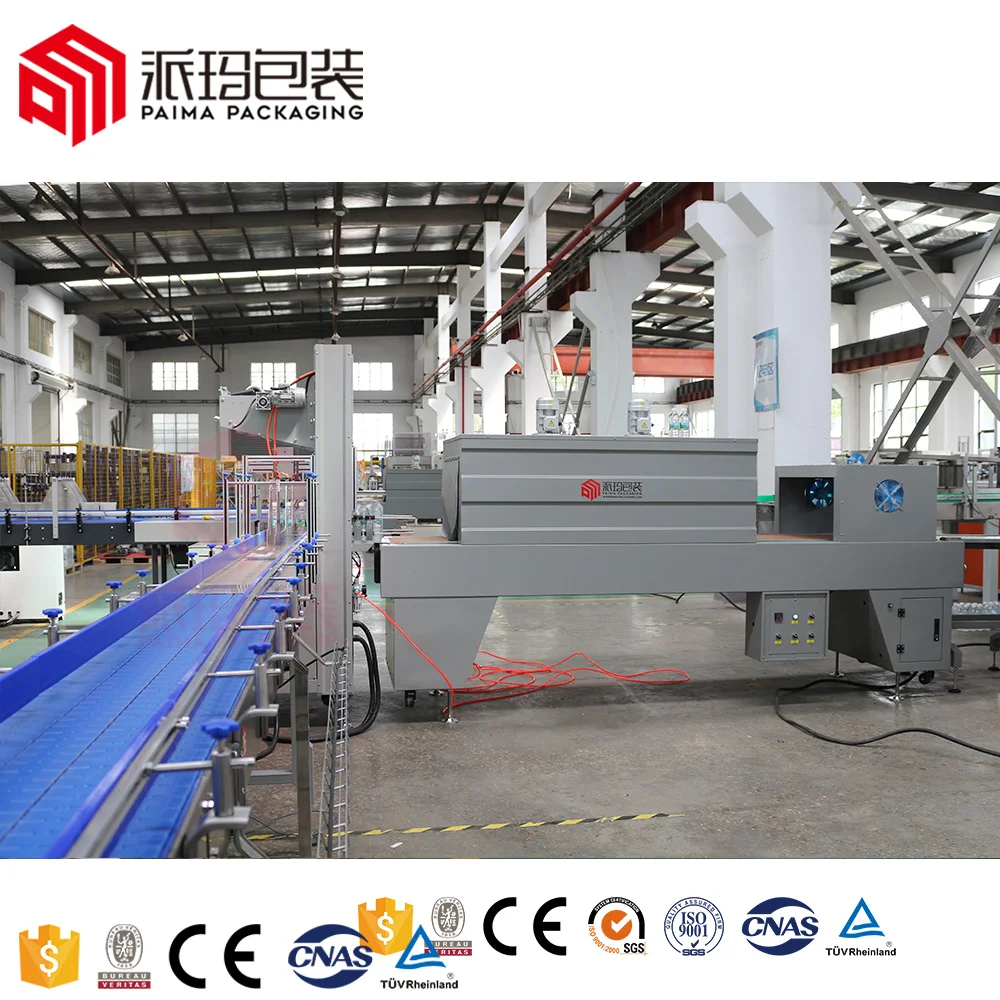

Shrink wrapping machine
PE film Shrink wrapping machine is suitable for wrapping of such prkducts as mineral water, bottles beer, drinks etc without bottom-tyay (or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopt the Germany aduanced technics.
Successful Project
Customer Cases for Real factory layout and water plant
Choose Paima Packaging bottled water production line to help you set up a water factory:
1-Bottled water packaging solutions to better help you control your total cost of ownership;
2-Higher packaging speed, gentler global control system;
3-Safe and hygienic quality water production process;
4-Reduce energy consumption and use water resources more efficiently and rationally;
5- According to your plant area, accurately lay out your machinery and equipment.;
VR
Water Project in Ethiopia
Water Project in Yemen
Water Project in Georgia
