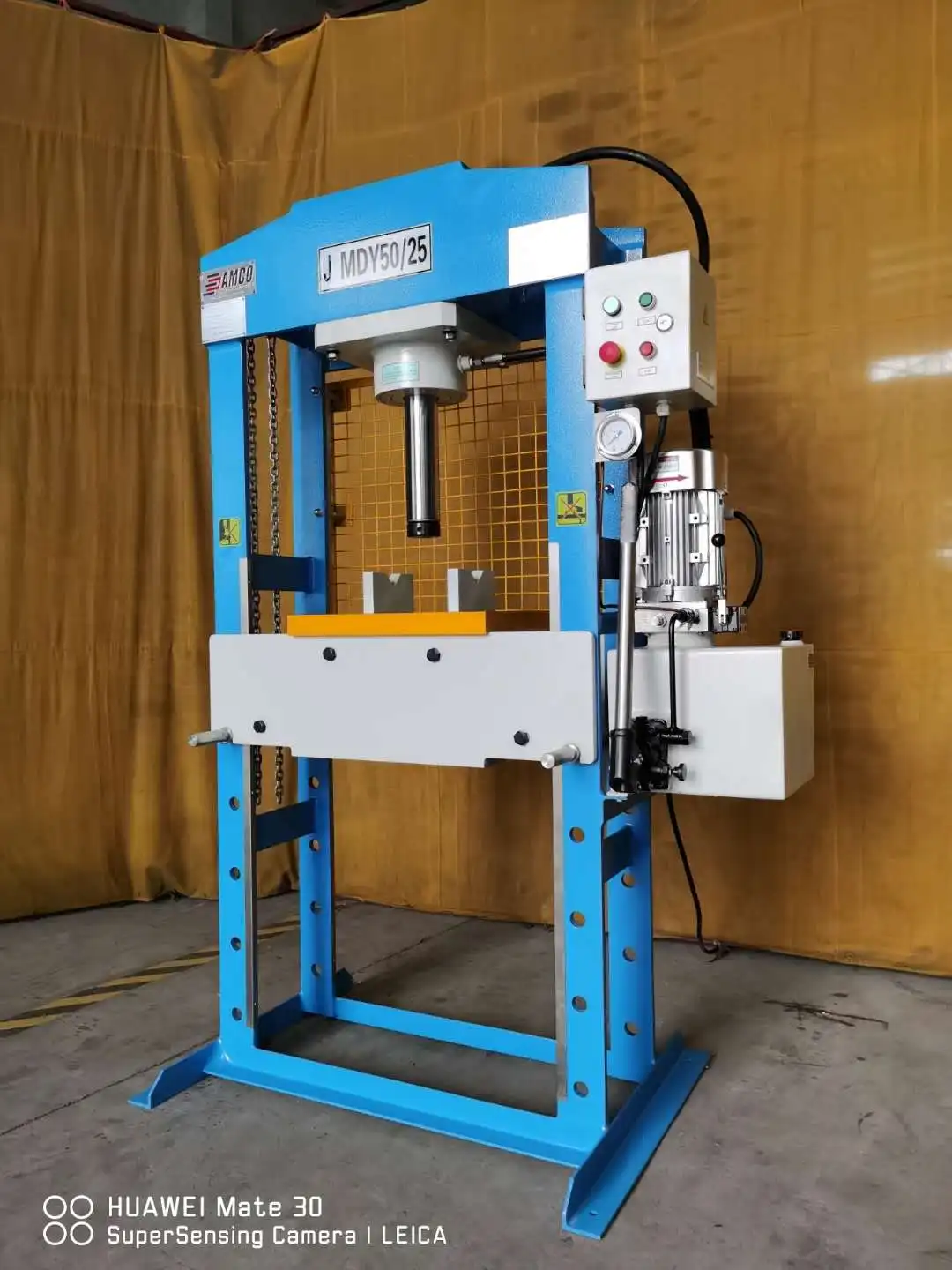

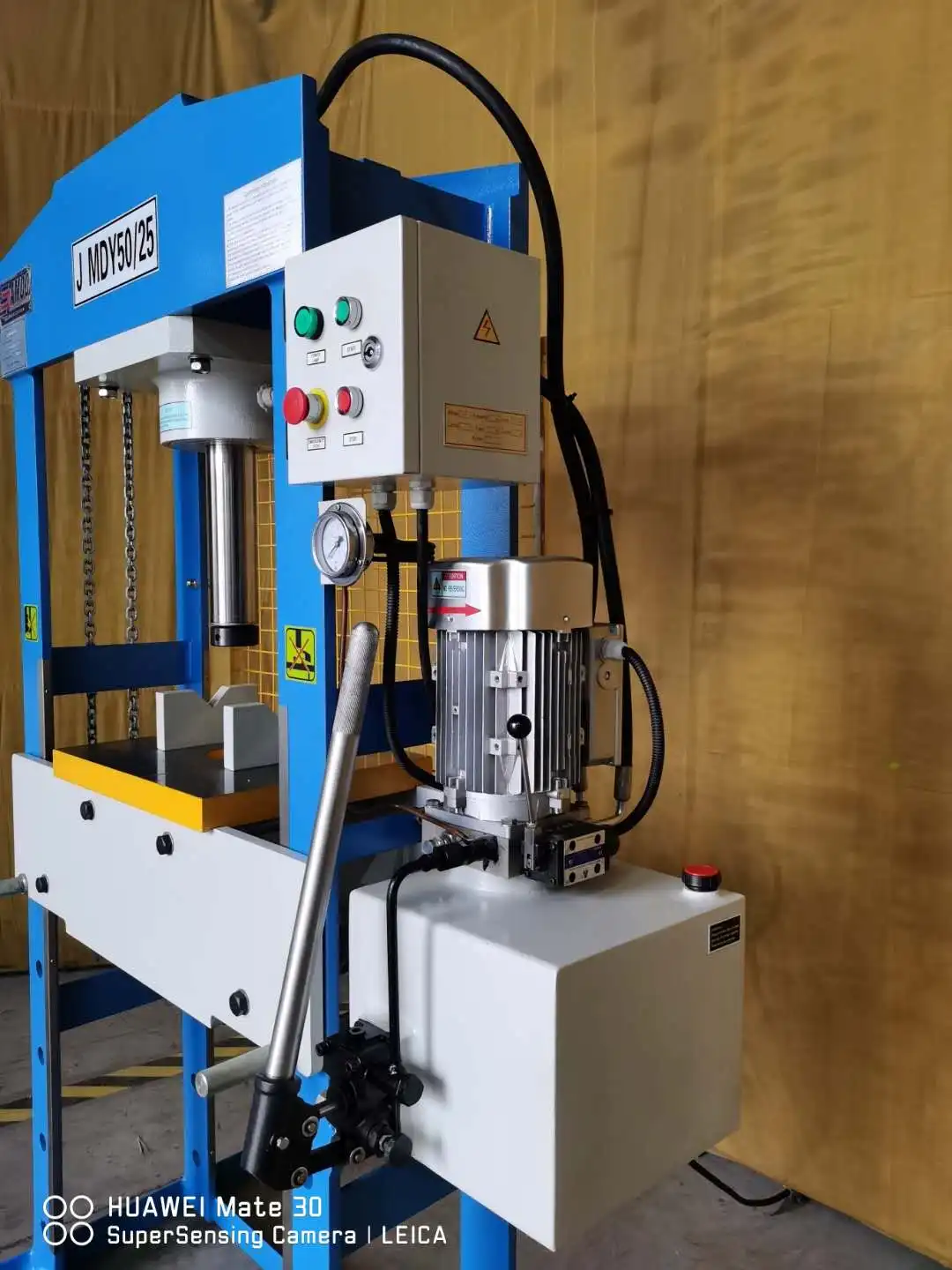

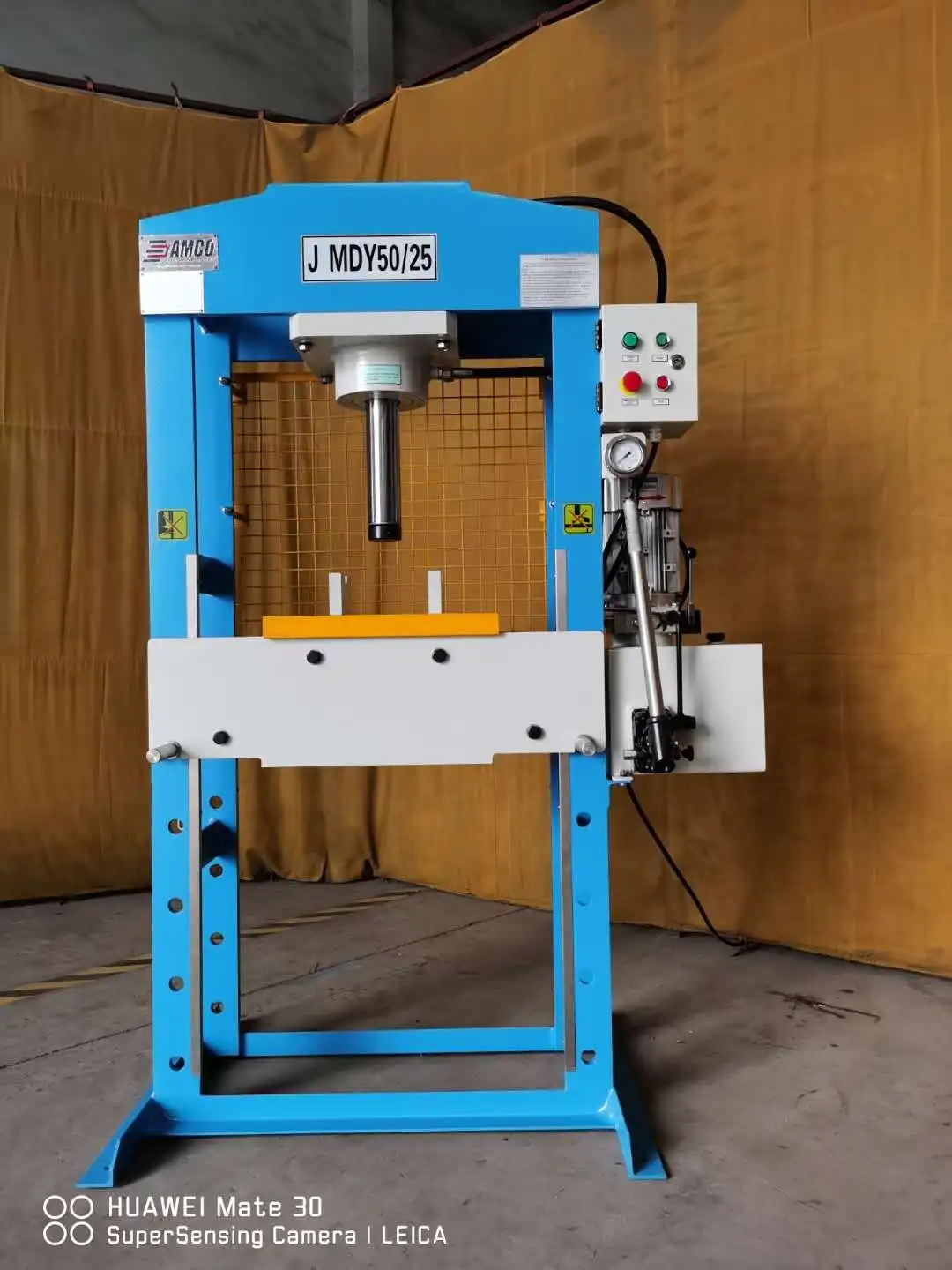

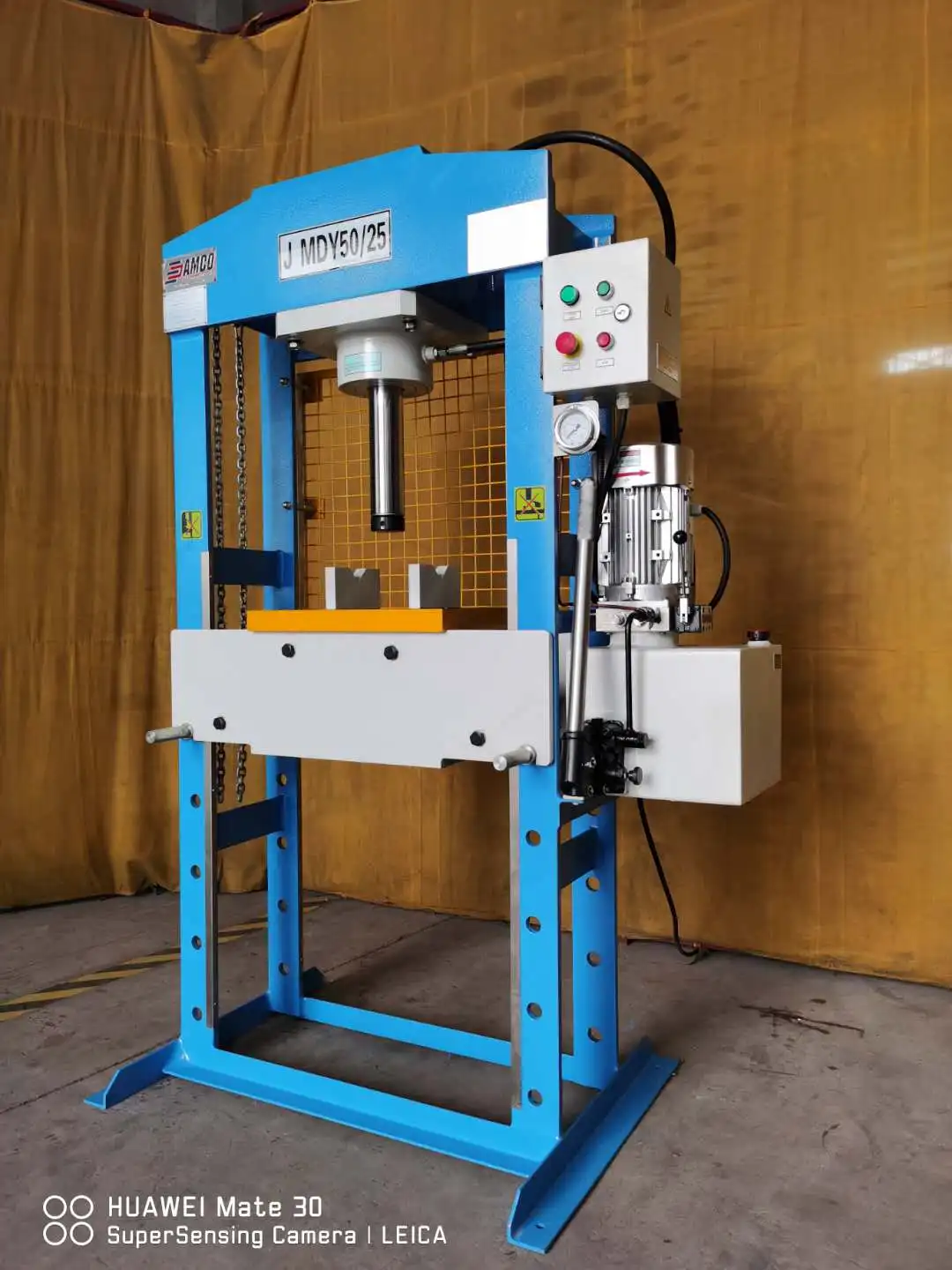

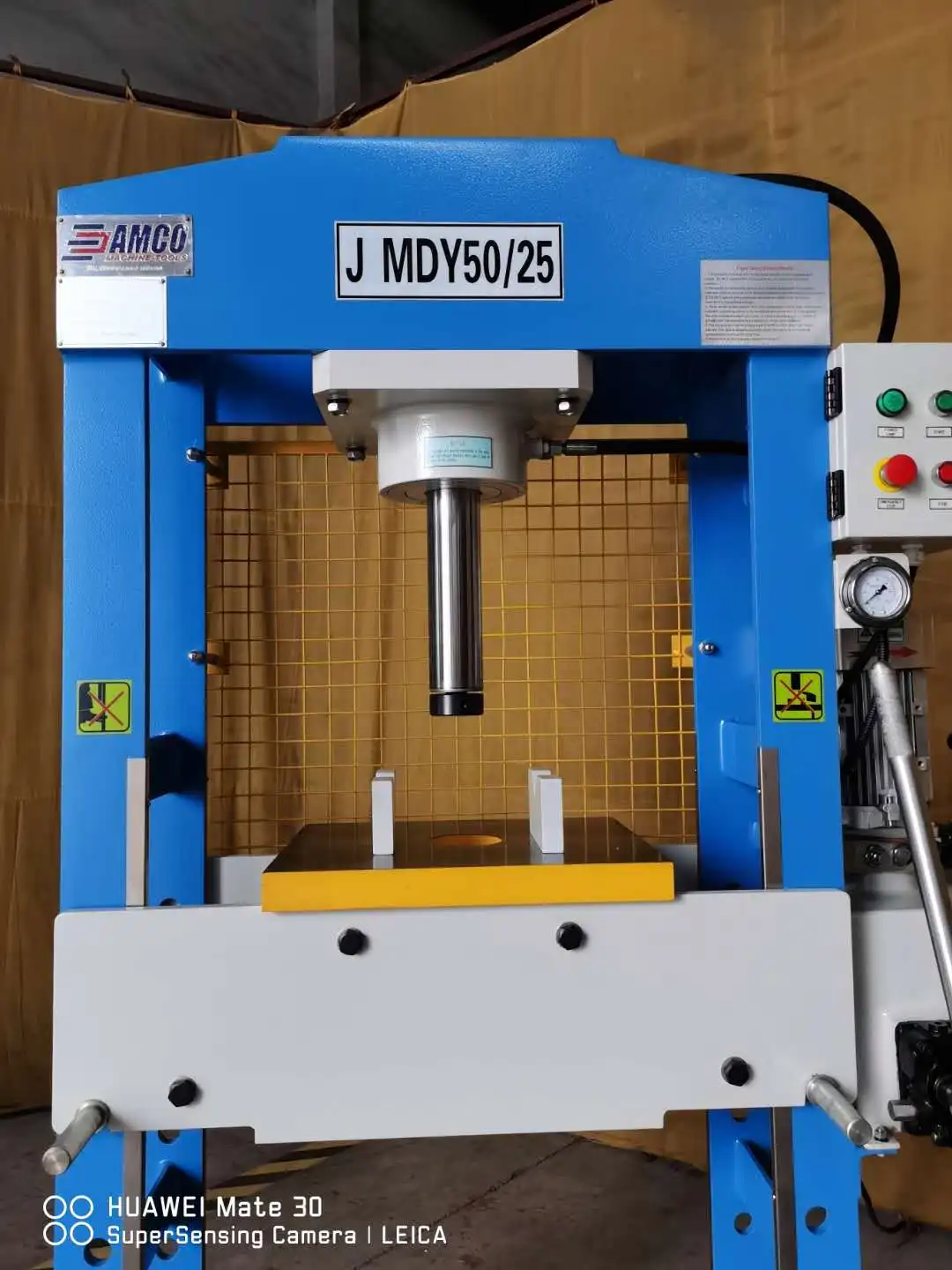

JMDYy series manual hydraulic press with adjustable table beam
- Category: >>>
- Supplier: Xian Amco Machine Tools Co. Ltd.
Share on (1600544183732):
Product Overview
Description
Produt Description

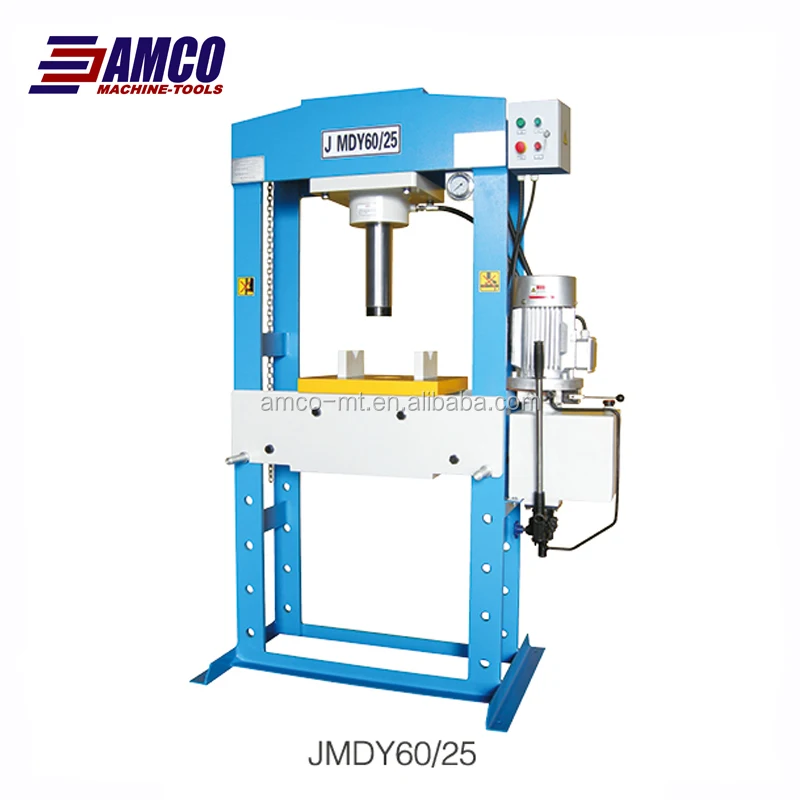

JMDYy60/25 Power operated hydraulic press
1. Optimally designed steel-frame structure,is sturdy and durable
2. Single piston double-acting hydraulic oil cylinder,is durable
3. Up stroke and down stroke of cylinder rod controlled by manual,is convenient and flexible
4. Beam of work platform moves lifting device from up to down,is convenient and easy
5. Electric pump,manual compensation,easy to operate
Main Specifications
JMDYy60/25 Power operated hydraulic press

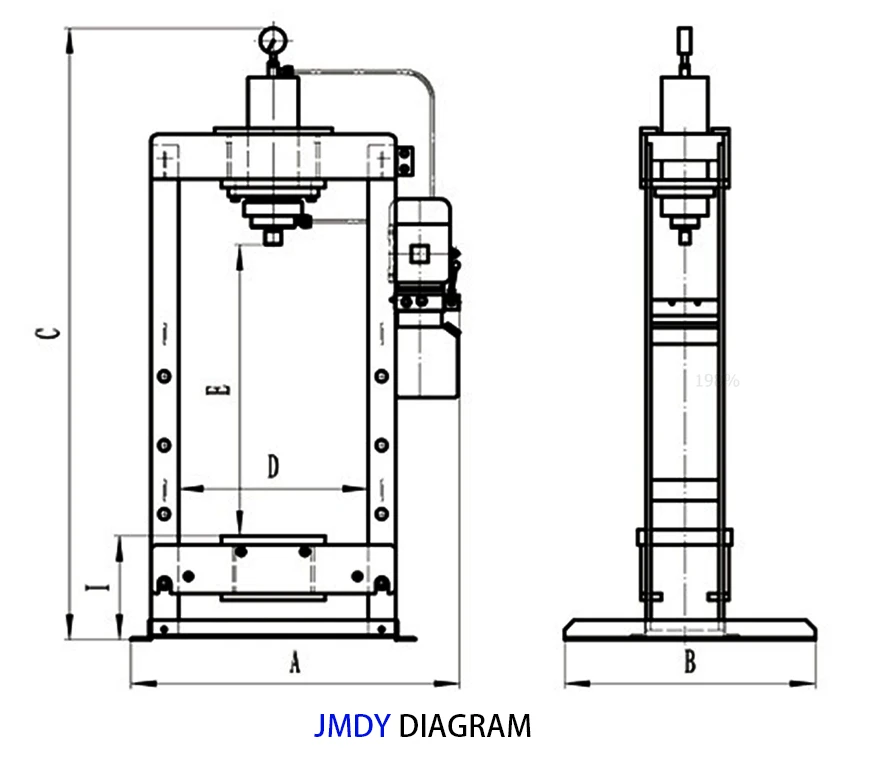

Model | Maximun pressure(KN) | Hydraulic pressure(MPa) | Stroke of cylinder rod(mm) | Working speed(Electric mm/s) | Adjustment distance of worktable | Motor power(kw) | Meight(kg) | A | B | C | D | E | J |
JMDY50/25 | 490 | 20/25.5 | 250 | 3/h4 | 150x4 | 2.2 | 506 | 1026 | 700 | 1805 | 700 | 304 | 335 |
JMDY60/25 | 588 | 20/26 | 250 | 2.6/h3.6 | 150x5 | 2.2 | 560 | 1076 | 700 | 1863 | 750 | 368 | 360 |
JMDY100/30 | 980 | 20/25.5 | 300 | 2.5/h3.5 | 150x5 | 3 | 1150 | 1480 | 790 | 2120 | 1100 | 185 | 640 |
JMDY160/30 | 1568 | 20/25.5 | 300 | 2.4/h3.6 | 150x5 | 4 | 1790 | 1476 | 870 | 2200 | 1100 | 297 | 580 |
JMDY200/30 | 1960 | 20/24.5 | 300 | 1.8/h2.7 | 150x5 | 4 | 2750 | 1686 | 900 | 2270 | 1300 | 273 | 730 |
