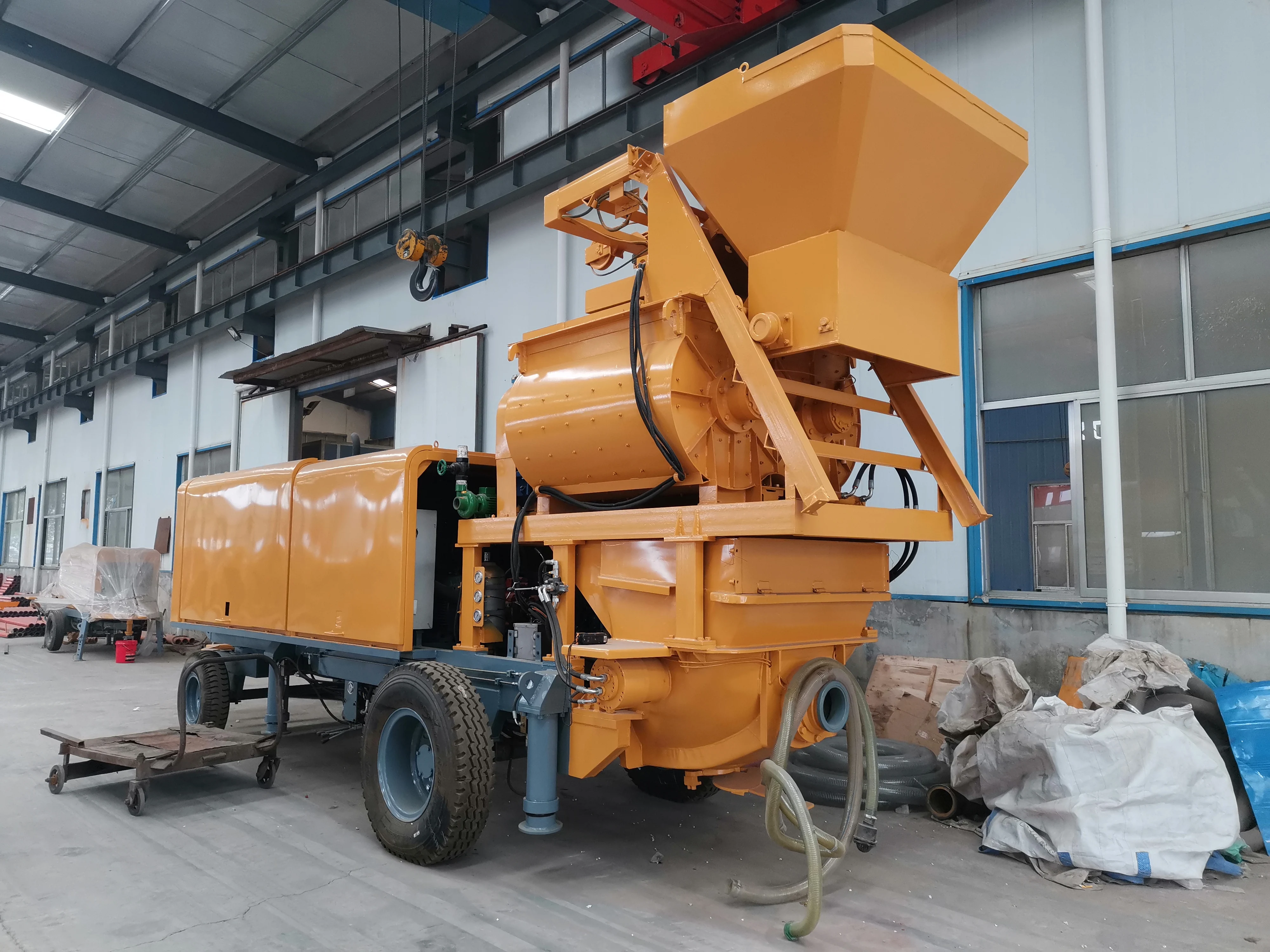

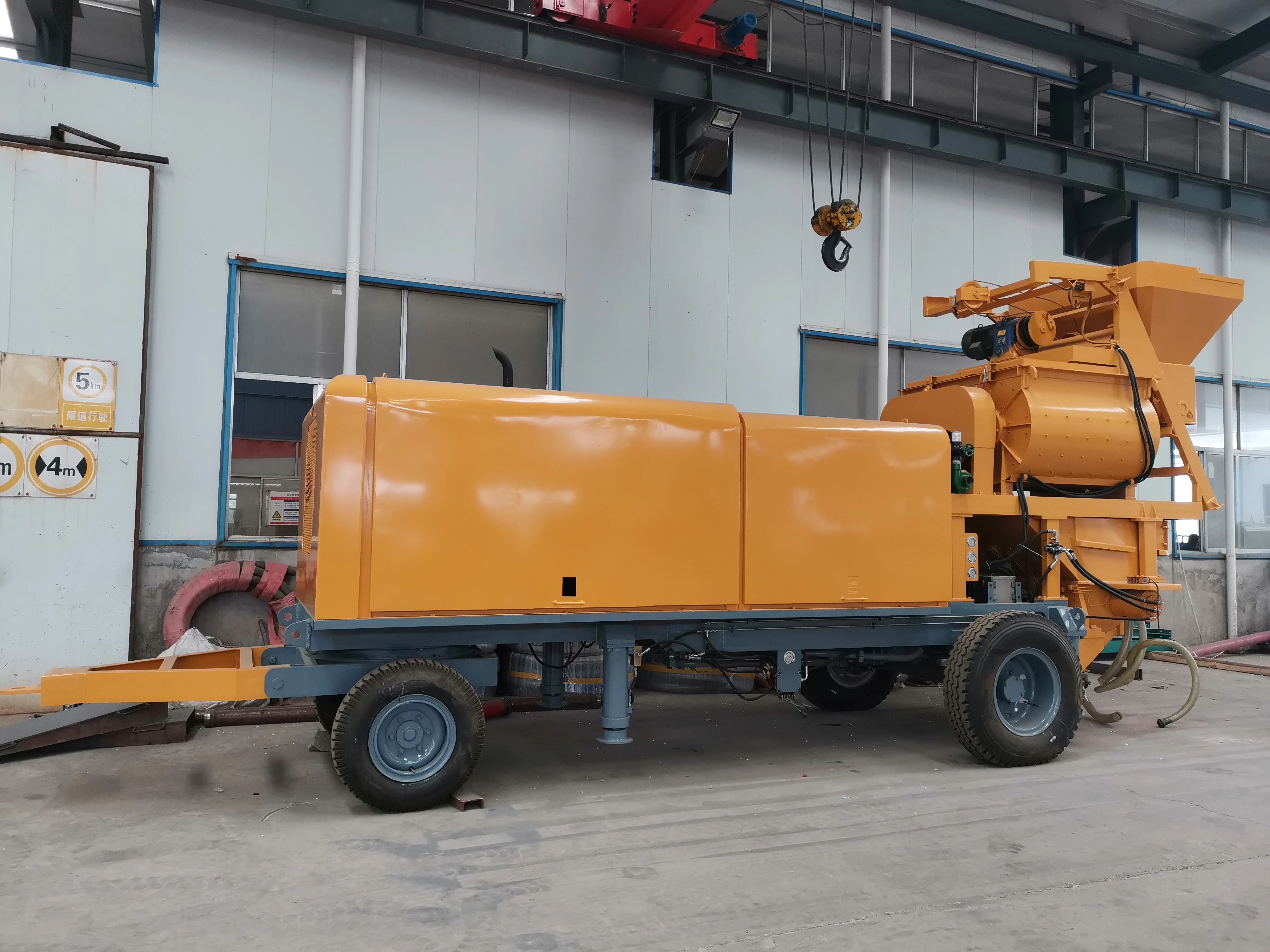

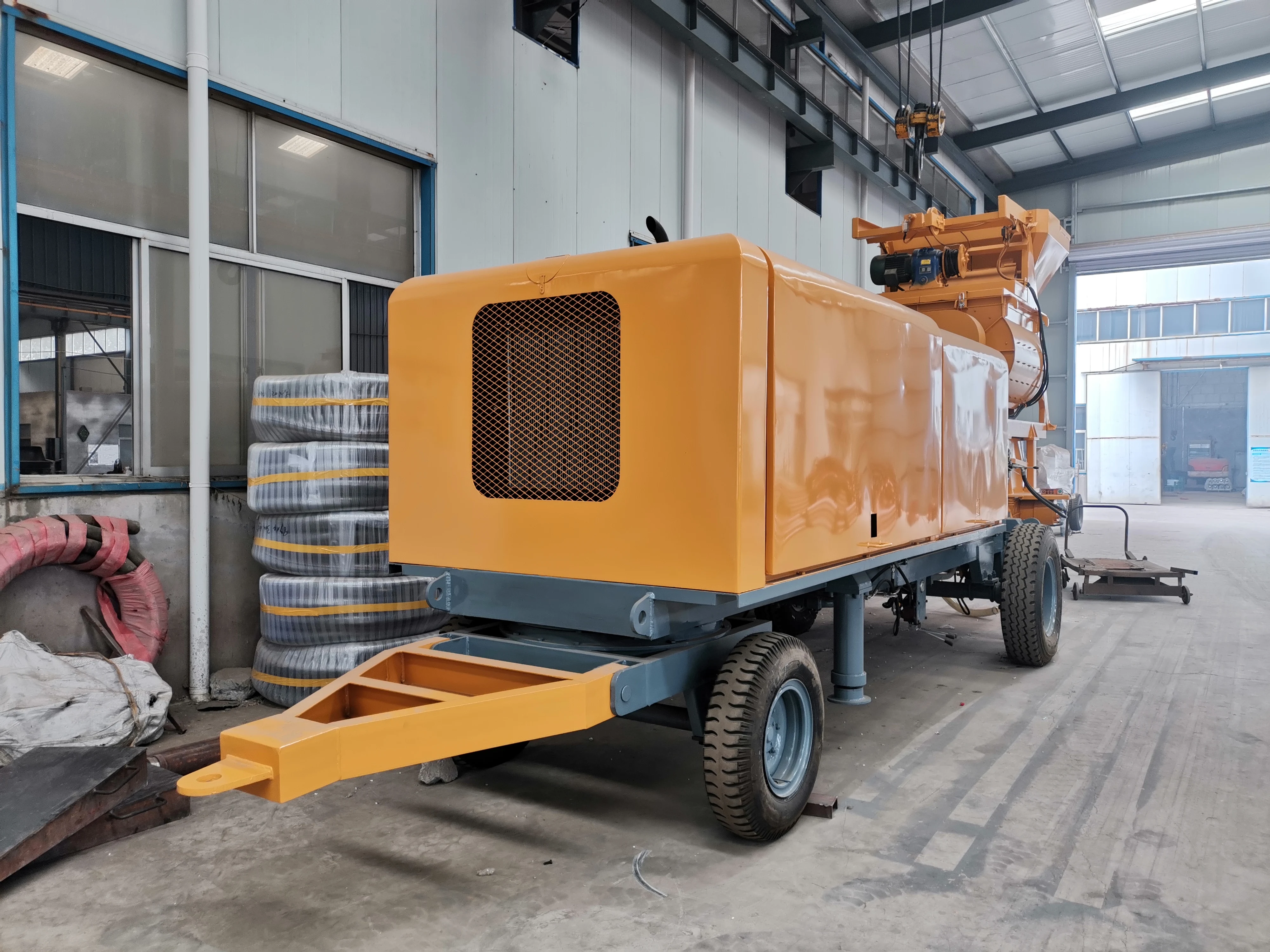

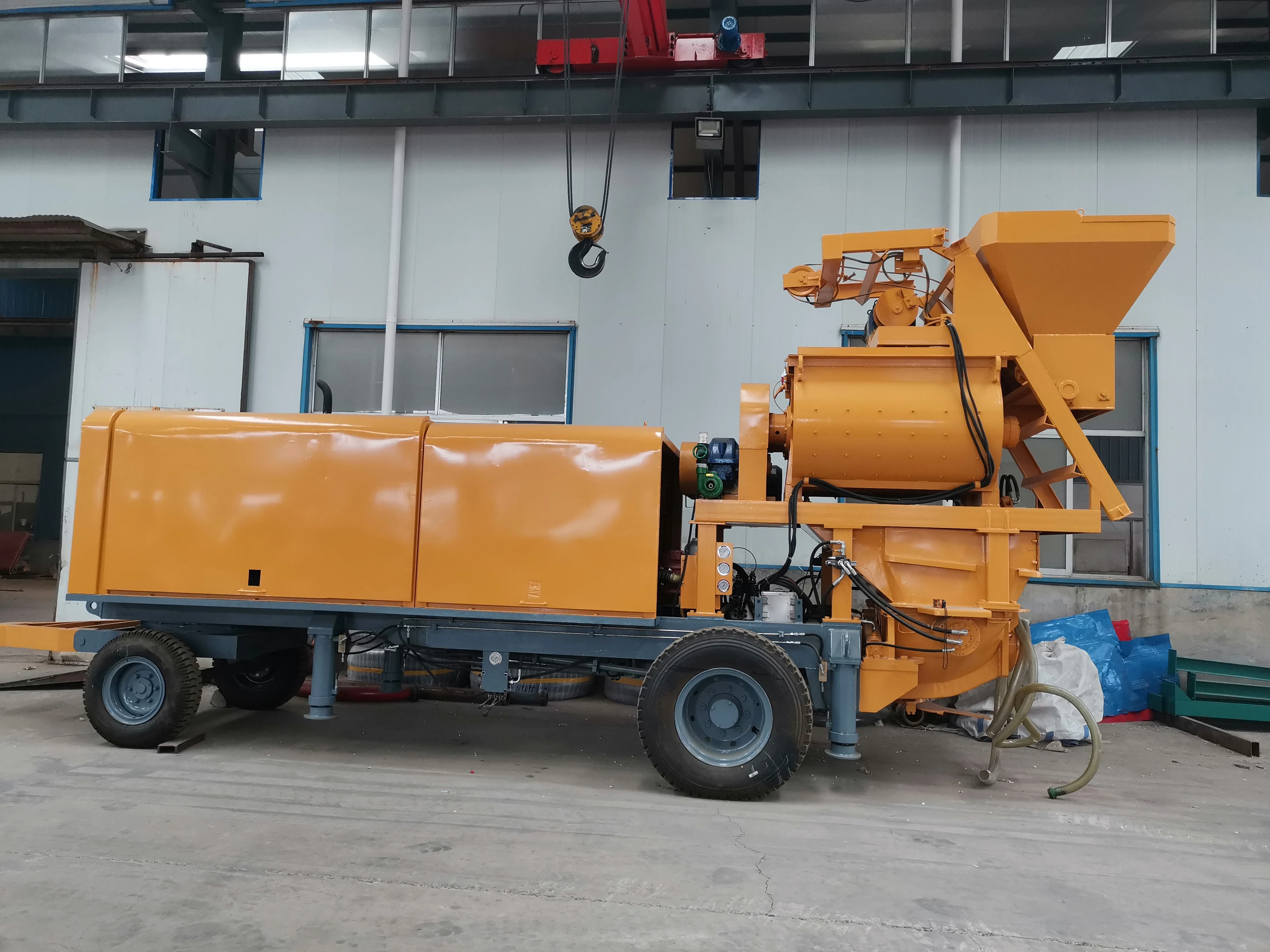

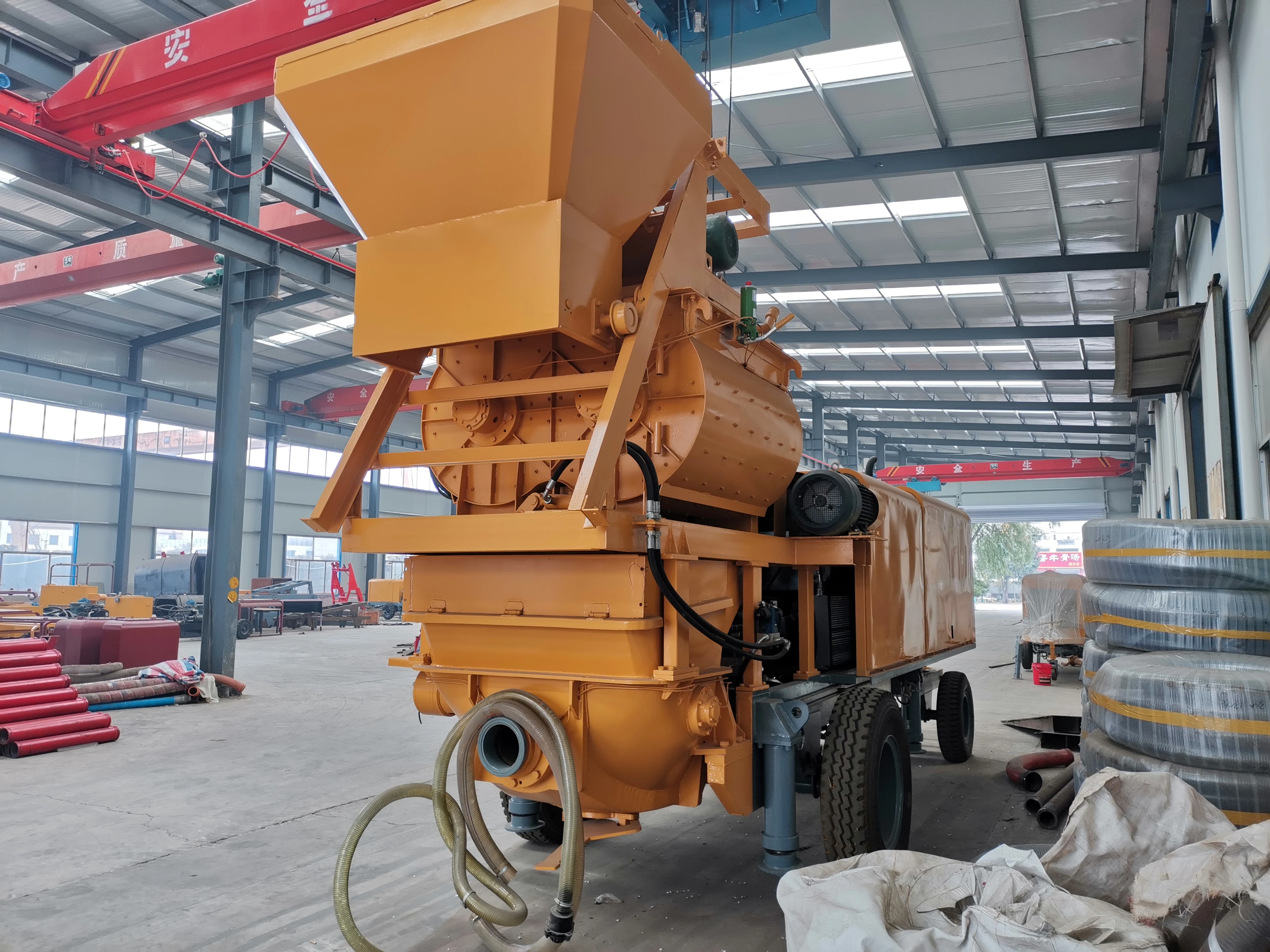

Factory supply 40m3/h forced diesel mobile concrete pump pumpcrete with mixer for hot sale

Product Overview

Description

 Factory supply 40m3/h forced diesel mobile concrete pump pumpcrete with mixer for hot sale

Welcome to inquiry /visit us . mobile/wechat/whatsapp 86-15866001919





Products Description of mobile concrete mixer with pump :

Specifications of mobile concrete mixer with pump



item	unit	QJHBT40-13-120R
Theoretical Max output	m3/h	40
Max. Pressure on Concrete	MPa	13
concrete slump	mm	100-200
Aggregates size	mm	30
The type of distribution valve		S Tube valve
concrete cylinder	mm	Φ200*1050
generator set(Perkins)	KW	100
delivery pipe diameter	mm	Φ125
Hydraulic Oil tank capacity	L	300
Pumping hydraulic system working pressure	Mpa	30
Hopper mixing hydraulic system working pressure	Mpa	14
Maximum theoretical delivery Horizontal distance	M	400
(Db)		less than 116
Maximum theoretical delivery Vertical distance	M	150
mixing motor	KW	15
improving motor	kw	4.5
pump motor(Siemens)	KW	45
water pump motor	kw	0.7
Cleaning Mode	High pressure washing

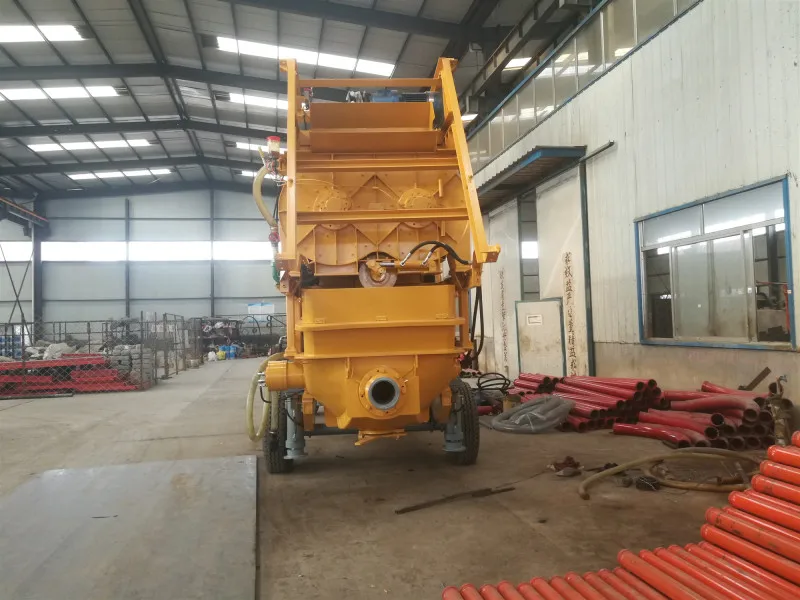

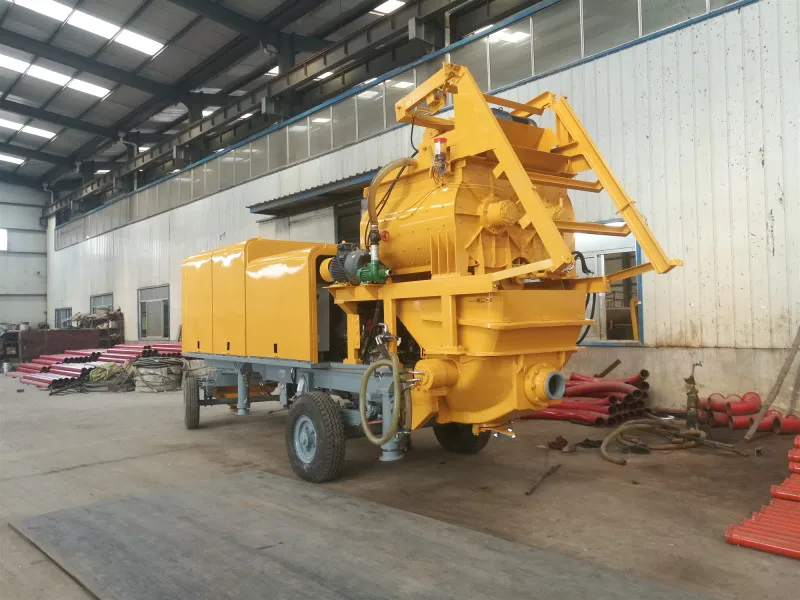

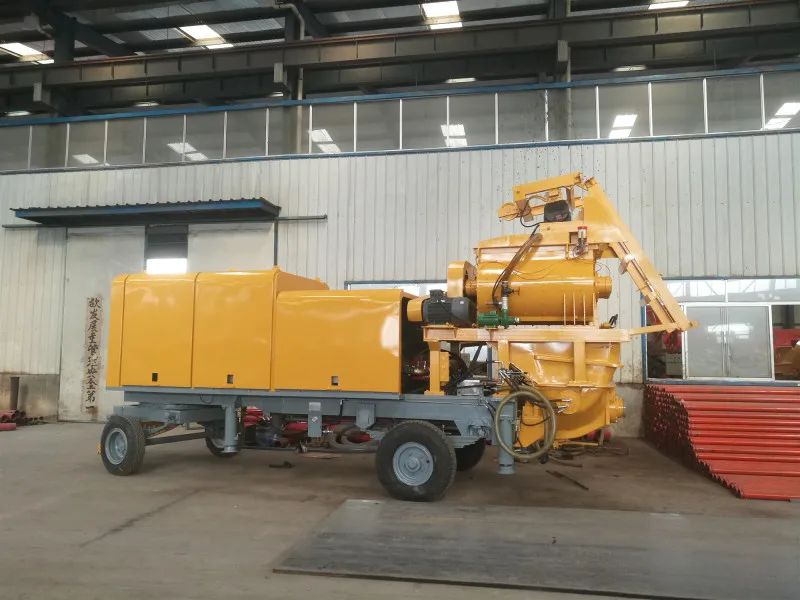

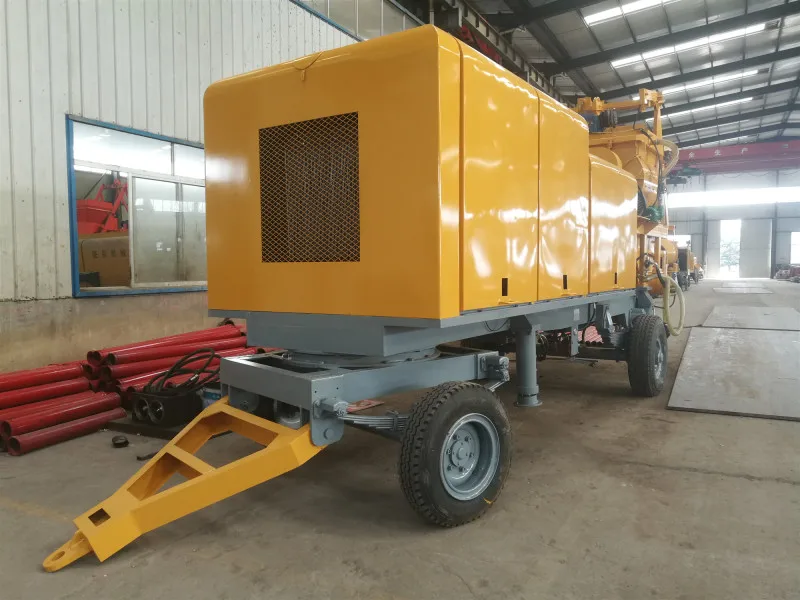

 More pics









1.Power system mobile concrete mixer with pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc

2.Electronic control mobile concrete mixer with pump

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

3.Hydraulic system mobile concrete mixer with pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4.Pumping system mobile concrete mixer with pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

5.Lubrication System mobile concrete mixer with pump

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System mobile concrete mixer with pump

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.





















FAQ

Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products with our patent.

Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.

Q4: How many types of concrete pump machine with mixer  you have?

A: The motor ,diesel or electric.
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ.
If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?

Q5: What is the capacity of your concrete mixer pump?

A: We have 30m-40m3/h.

Q6: How long and high you want to pump?

A:Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q7: The aggregate size that you usually use?

A: Pebble 40mm, crushed stone 30mm.
