Industrial Anodizing Plating Water Chiller
- Category: >>>
- Supplier: Shenzhen Anyda Refrigeration Equipment Co. Ltd.
Share on (1600544221002):
Product Overview
Description
Product Description

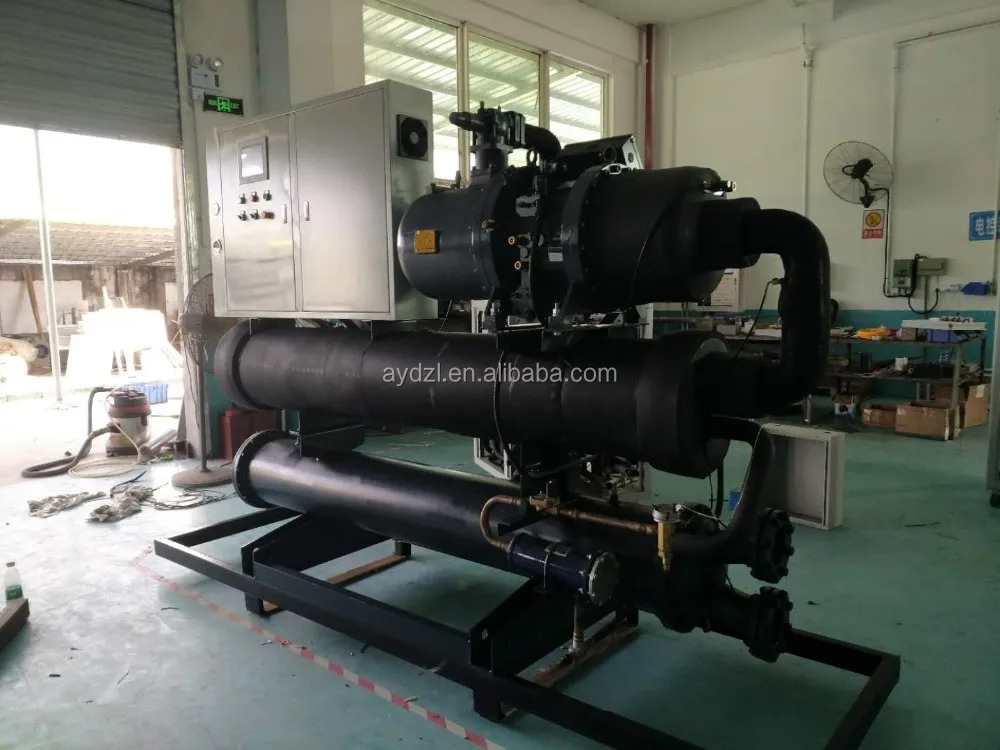

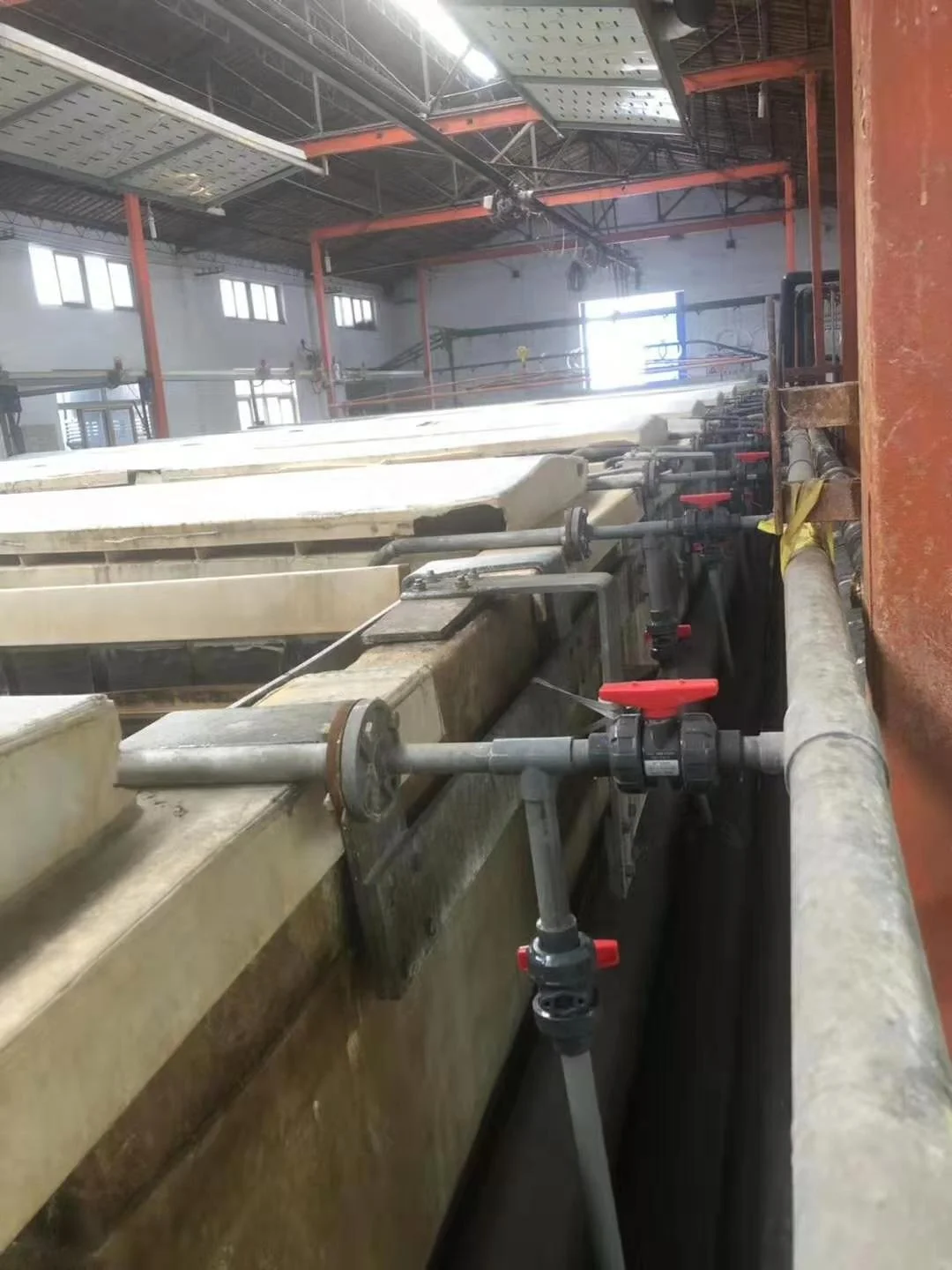

Industrial Anodizing Plating Water Chiller
Anyda as the china water chiller manufacturer, have gradually produced Industrial Chiller,Water Chiller,Air Cooler,Oil Chiller,Low Temperature Chillers,Hot Water Chiller, Heat Pumps and Central Air Conditioner which are widely applied to plastic & rubber machinery, daily-use chemical, textile, general machinery, laser machinery, LCD and PCB industry, electroplating, equipments of laboratory, food, pharmacy, etc .

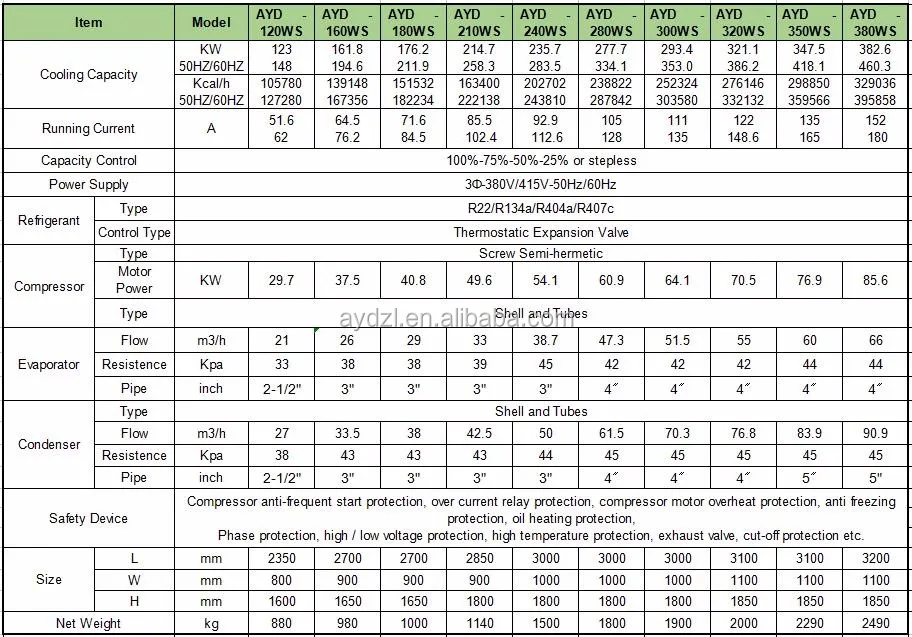

Item | Specifications | ||
Cooling Capacity | Model | AYD-200WS | |
ton/h | 50 | ||
Power Input | kw | 49.5 | |
Outlet Temp | degree | 7 | |
Power Supply | 380V-3N-50HZ | ||
Refrigerant | R407C | ||

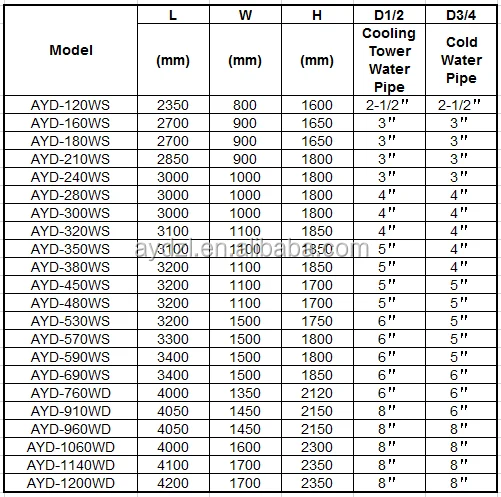

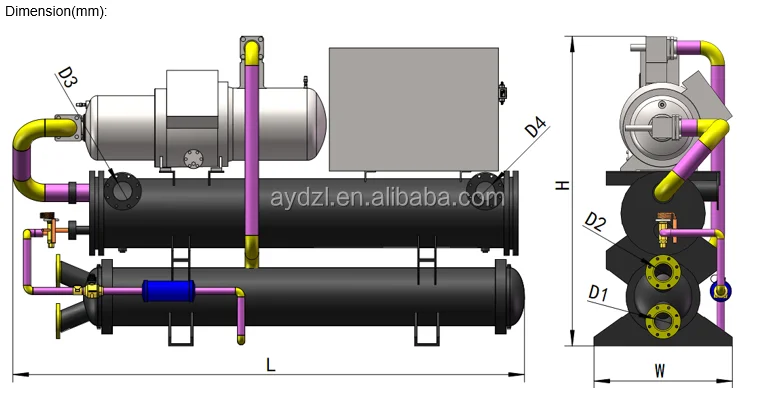

Dimension(L*W*H) | mm | 2700*900*1650 | |
Compressor | Type | semi-hermetic screw | |
Power(kw) | 49.5 | ||
Condenser | Type | Shell and Tubes | |
Pipe Size(DN) | 3" | ||
Flow(m3/h) | 53.6 | ||
Evaporator | Type | Shell and Tubes | |
Pipe Size(DN) | 3" | ||
Flow(m3/h) | 34.4 | ||
Protector Device | 1.Phase protector 2.Overload protector 3.High/low voltage protector 4.Coil overheat protector 5.Anti-freeze protector | ||
Main Features
1. Water Cooled Screw Chiller System adopt the semi-hermetic screw compressor(like Habell,Bitzer), and operate credibility, high efficiency, easy to maintain, exact volume control, a wide range of application. The system adopts the latest asymmetric rotor profile. Build-in pressure drop lubricant to system with low vibrations, sound emissionshigh sealing performance.
2.Water Cooled Screw Chiller System 's human machine interface configures a full touch screen, which enables automatic control and accurate monitoring. The advantages of unit: water-proof,dust-proof, corrosion resistant, long life. Step or stepless capacity control, the unit ensure that it bring into the most energy-saving effective in any load conditions.
3.Water Cooled Screw Chiller System due to use heat copper tube and high efficiency compressor with high effective thermal expansion current-saving device, the unit will operate in stability, longer and effectively.
4.Water Cooled Screw Chiller System adopts a reliable safety protection device: to prevent compressor starting frequently, over-current protection, overheat of motor protection, prevent freezing, sight glass in liquid, oil heating protection, phase protection, HV/LV protection, discharge high-temperature protection, safety value, soluble clock, water shut-off protection, and so on.
Detailed Images

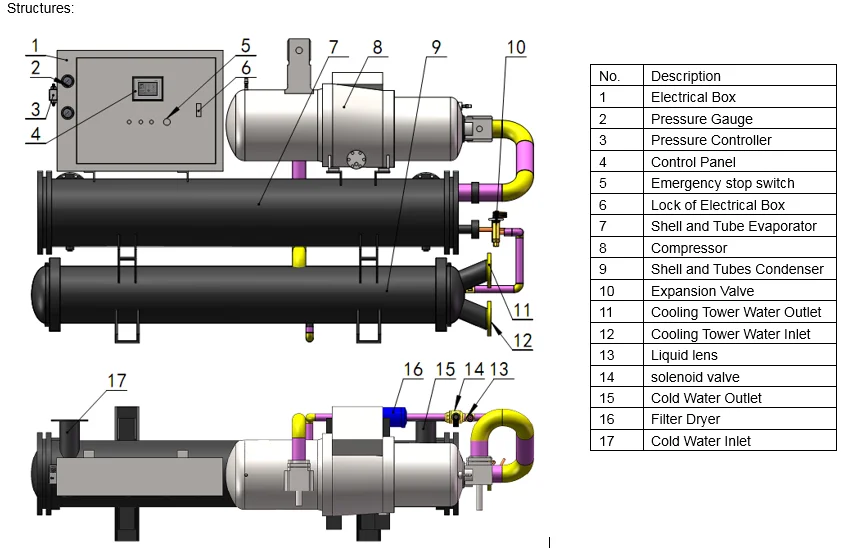

Machine Parts
Name: Compressor
Brand: Sanyo/ Copeland
Name: Condenser,Evaporator
Brand: Anyda
Name: Electrical Parts
Brand: LG/Schneider
Name:Control Panel
Brand:Punp
Packing & Delivery
Packaging | ||
Size | 4000 (L) * 2200 (W) * 2500 (H) | |
Weight | 3380kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
Some Customer List
Why Choose Us
1.Reply your inquiry within 12 working hrs.
2.Strong R&D team,more than 15 years of manufacturing chiller experience. OEM&ODM is welcomed.
3.Direct factory,offer customer competitive price with high quality chiller.
4.Strict quality control system,professional QC team.
