Product Overview
Description
Product Description
This set Cheap Price Best Quality Handmade Soap Machine is use neat soap(soap noodle) as raw materials, output for 50-150kg/h. After mixing, grinding, vacuum article out and roller cut into parts, this line can production of fatty acids in 35-60% of the high-grade soap. The production line adopts double vacuum article out machine, can make the soap compact, not easy to cracking.
Production conditions:
1. The water: 1 cubic circulating water (not consume)
2. Electricity: 15.6 kilowatts/hour,380v, 50hz
3.Workshop requirement: 15 meters long, 3m wide and 2.5 meters high(including workers operating area)
4. Operate person requirements: 2-4people/class

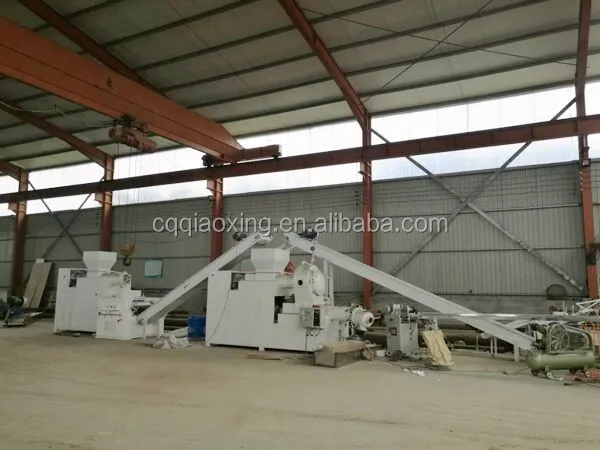

Working process:
Mixing→deliver→grind→deliver→molding→cutting→delivery→packing(total is about 20 minutes)
Machine List :
Name | Quantity |
Mixer | 1 set |
Three roller mill | 1set |
Single screw plodder machine | 1set |
Electronic cutting machine | 1 set |
Conveyor belt | 3 set |
Detailed Images

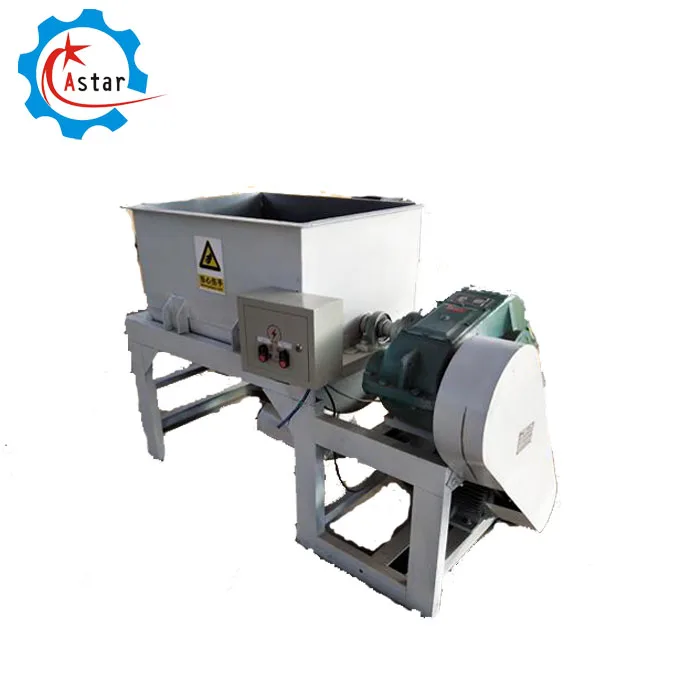

Mixer ( use for mix the soap noodles more uniform)
Capacity：50kg/time
Power：3kw
Size：1450*570*760mm
Weight：220kg

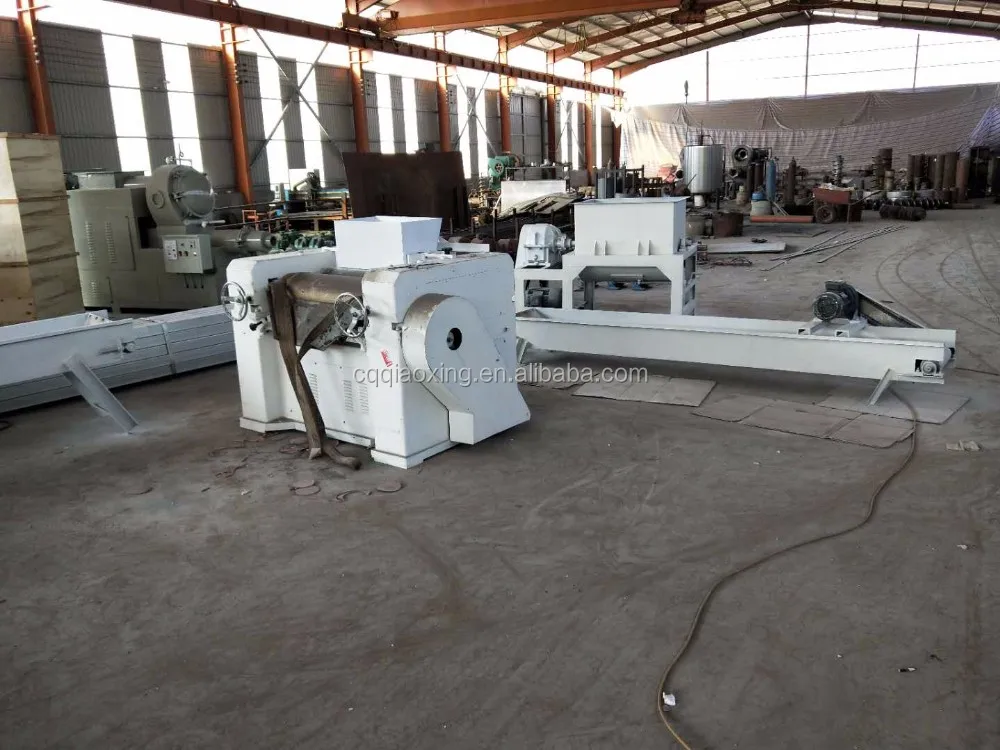

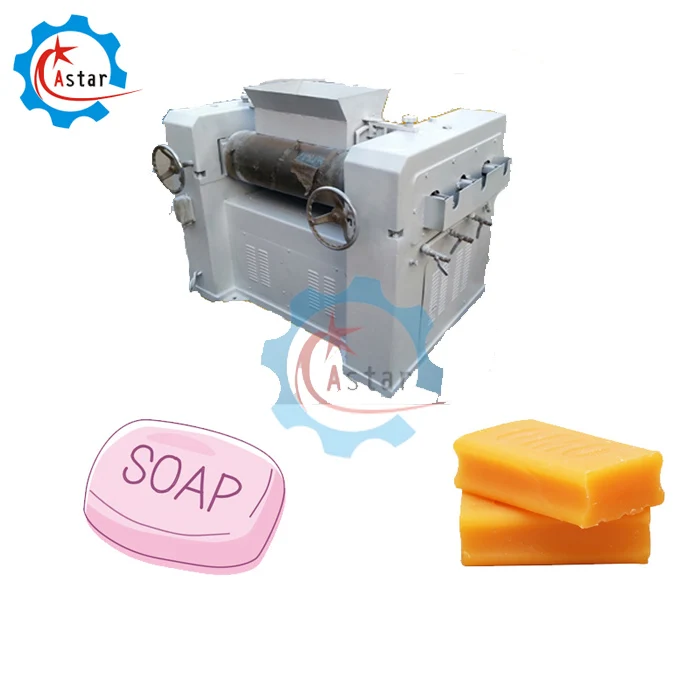

Three Roller Miller ( crush the soap noodles )
roller diameter：150mm
Working length：300mm
Power：2.2kw
Size：820*800*920mm
Weight：500kg

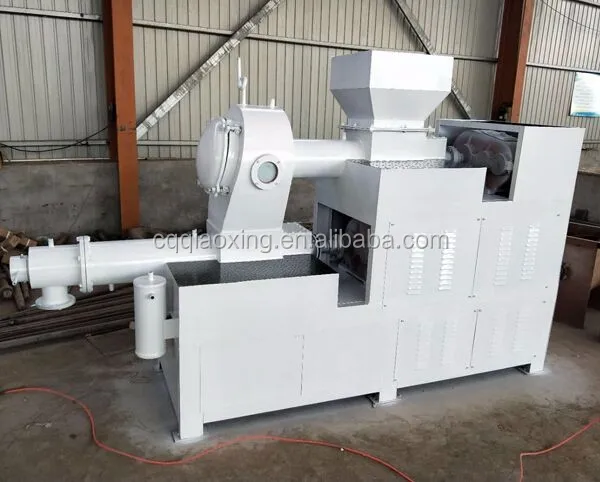

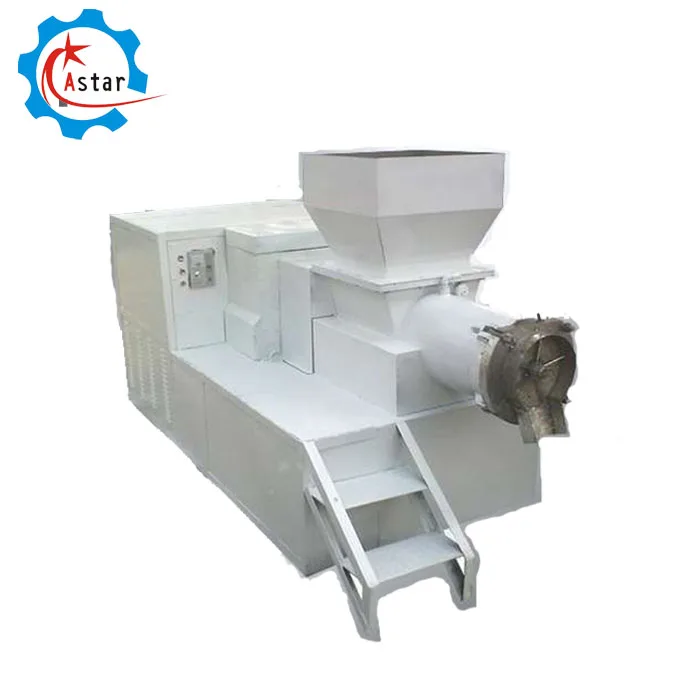

Single Screw Soap Extruder ( main machine, use for make soap)
Capacity：50-120Kg/h
Power：5.5kw
Size：1800*720*1350mm
Weight：600kg

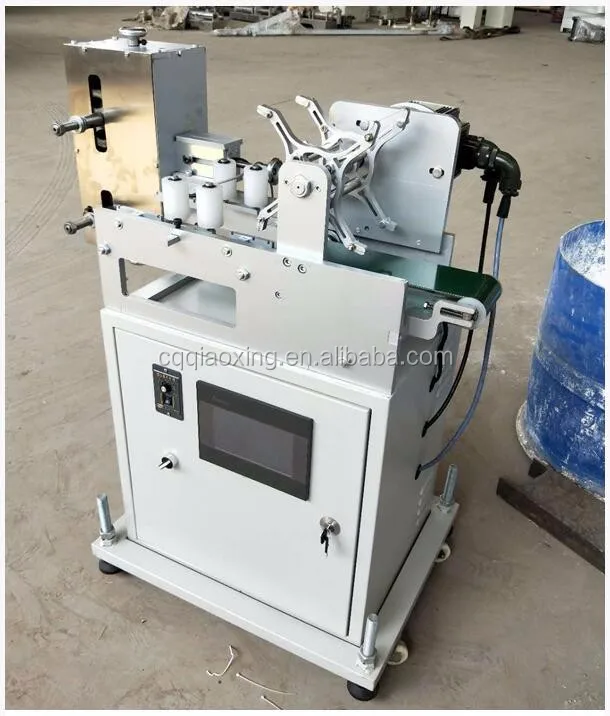

Electronic cutting machine( cut soap into suitable size)
cutting speed is determined by the speed strip out machine
Capacity: 500-1000kg/h
Strip size: 60-400mm
Size: 800*360*800mm
Weight：58kg
Belt Conveyor ( total have three set, one use for convey soap noodles into mixer, second one use for convey to miller, third one use for convey raw materials into plodder)
Size：3000*220*800mm
Size：3000*420*260mm
Power: 1.5kw
Size ：2000*420*260mm

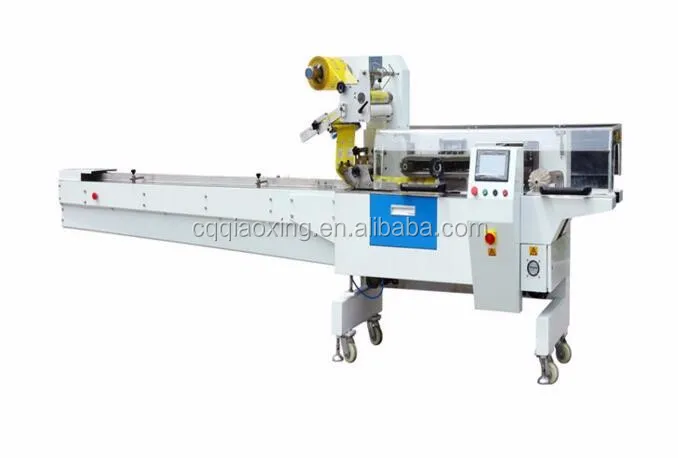

Soap Packing Machine ( pack soap into plastic bag)
Packing speed:50-120bag/min
Length of pack:70-450mm
Pack width:20-140mm
Pack height:5-40mm
Max film width:450mm
Packing & Delivery
Machine packing
machine self use plastic film wrap.
Loading container
then all machines loading by container .

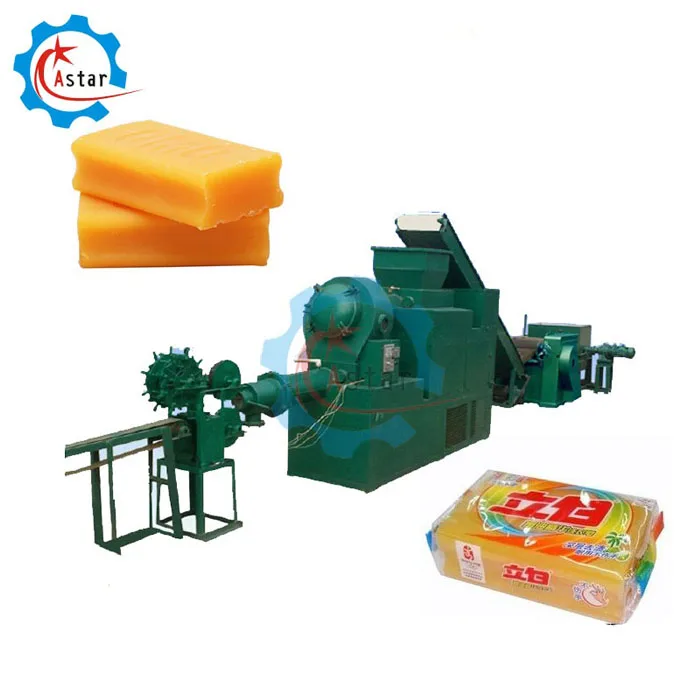

Soap Making Line:
For the soap making line, we have below capacity | ||
1 | 50-150kg/h | |
2 | 300-800kg/h | |
3 | 1000-2000kg/h | |
we also have the soap making line use by oil as raw materials | ||
