Factory Direct Sales SUS304 Medical Grade Automatic Soft Sweets Fondant Gummy Jelly Candy Machine Production Line
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600544226050):
Product Overview
Description

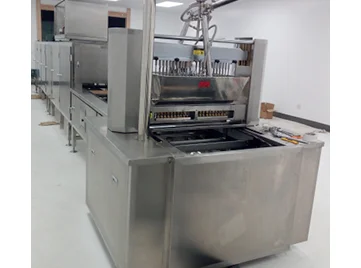

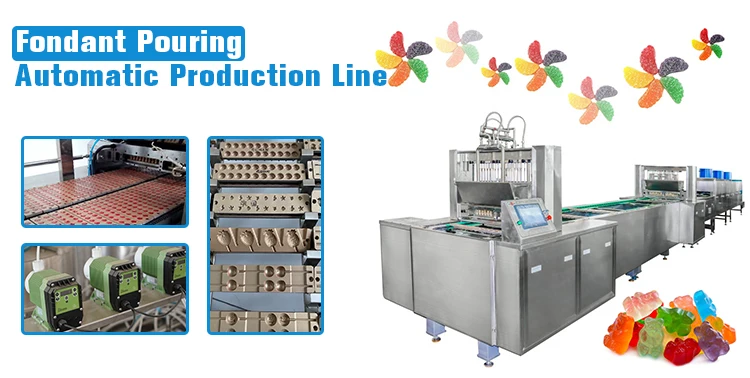

Fondant Pouring Automatic Production Line
This Production Line Is a Fully Automatic Fudge Pouring Production Line Independently Developed And Produced By LTPMCHINA, Which Can Meet The Needs Of Various Shapes And Colors. The Machine Adopts Continuous Pouring, Automatic Demoulding, Fan Forced Cooling And Other Devices. , It Is An Ideal Equipment For Continuous Production Of High-Grade Soft Candy And Functional Soft Candy. It Can Produce High-Quality Single-Color, Double-Color Fondant, Gel Fondant, Carrageenan Fondant, Pectin Fondant, Etc.; It Can Also Produce High-Quality, Multi-Shape, Multi-Color Curds By Changing Molds Or Pouring Heads. Gummy Candy. It Can Realize The Quantitative Filling And Mixing Of Flavor, Pigment And Acid Solution; It Has Good Stability, Can Ensure The Quality And Output Of Candy In a Long-Term Production Process, And Can Save Manpower And Reduce Production Costs.
Scope Of Application
It Is Suitable For Pouring Different Shapes Of Gummies, Gel Gums, Pectin Gummies, Carrageenan Gummies, Various Vitamin Gummies, Functional Gummies, Health Care Gummies, Etc.

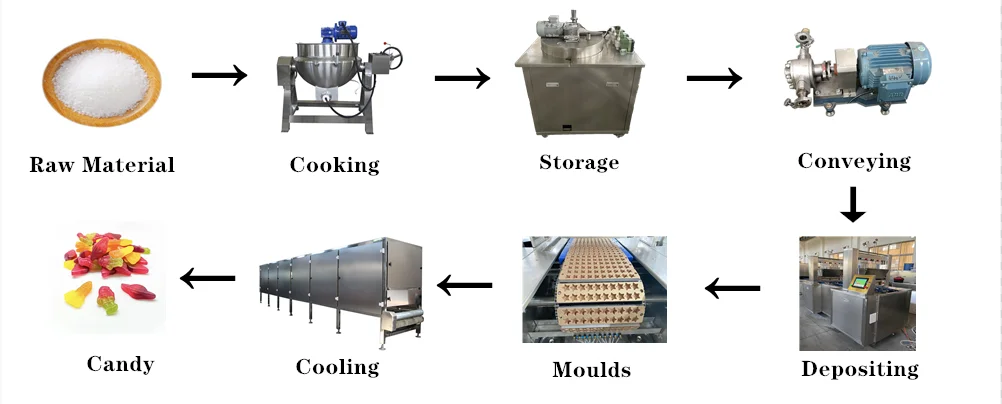

Equipment Process
Fudge:
Dissolving Sugar → Boiling Sugar → Conveying → Gelatinizing → Conveying → Mixing And Filtering → Temporary Storage → Mixing → Casting Molding → Cooling → Demoulding → Conveying → Drying → Selection → Packaging → Finished Product
Machine Parameters
Output | 100~150 kg/h (Depending On The Size Of The Sugar Sample) |
Pouring Speed | 25-45 n/Min (Adjustable Speed By Touch Screen Operation) |
Working Environment | Temperature 20-25 ℃; Humidity: 50% (Provided By The Buyer) |
Power Of Forming Line | 50~80Kw/380V/50Hz |
Length Of The Whole Line | 13.5m |
Plant Area: (Length x Width) (Recommended) | Production Workshop: 20mx8m=160㎡ |
Raw Material Warehouse: 10mx10m=100㎡ | |
Finished Product Warehouse: 12mx10m=120㎡ | |
Personnel Required For Each Shift | 1 Batching Engineer, 1 Sugar-Boiler, 1 Operator, 3 Packers 2 Air Conditioners On The Buyer Side (For Cooling Area, Packaging Workshop, Guaranteed Temperature Is 20~25℃), Drying Room (20~30㎡). |
Gummy Production Line Related Equipment

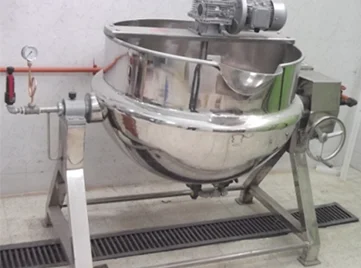

Cooking system
Cooking system is consists of jacket cooker and storage tank. Jacket cooker can dissolve sugar and maltose rapidly, reach full uniform effects of dissolving Storage tank is used to storage liquid and decrease the temperature of liquid.
Depositing system
High accuracy fabrication technology for deposit piston and copper makes the same candy weight. Flavor and color mixer can effectively mix flavor color and other ingredients. The an oil-spraying machine makes the candy easier to demold.
Cooling system
The cooling system is used to cool the temperature of the candy. Stable running with low noise and long life. it is much stronger than other factory with 1mm or 2mm thickness frame.
The cooling system is used to cool the temperature of the candy. Stable running with low noise and long life. it is much stronger than other factory with 1mm or 2mm thickness frame.
Specification Name | Sugar Pot |
Quantity | 1 |
Power | 15kw |
Material | 304 Stainless Steel |
Dimensions | 1200*1300mm |
Remarks | With Stirring, For Sugar Melting |
Electric Heating Tilting Glue Pot
(For Gelatinization, No Need To Configure If The Formula Has No Gelatin)
Quantity: 1
Power: 7.55kw
Material: Pot Body And Rack 304
Stainless Steel
Stainless Steel
Dimensions: 800*1200mm
Remarks: With Stirring, Automatic Temperature Control, Electric Heating, With Scraping Edge Stirring

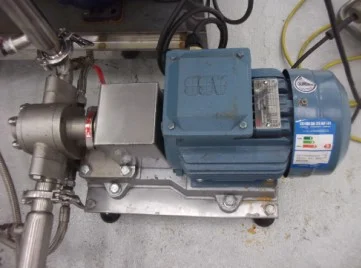

Specification Name | Feeding Pump |
Quantity | 1 |
Power | 1.5KW |
Material | 304 Stainless Steel Pump Head, Food Grade Inner Core |
Dimensions | 600*280*260mm |
Remarks | Flow Rate 3.3m³/h, Discharge Pressure 0.33Mpa |
Instruction | Transfer The Melted Syrup To The Storage Tank |
Storage Tank
Quantity: 1 Unit
Power: 8kw
Material: 304 Stainless Steel Inner Tank, Outsourcing 201 Stainless Steel
Size: 900*1000*1350mm
Remarks: Plc Control With Stirring; Automatic Temperature Control; Double-Layer Insulation
Remarks: Plc Control With Stirring; Automatic Temperature Control; Double-Layer Insulation
Instructions: Syrup Is Cooled, Adjuncts
Are Mixed
Are Mixed
Specification Name | Auxiliary Material Barrel |
Quantity | 3 |
Material | 304 Stainless Steel |
Remarks | 5-8 Liters |
Description | Storage Accessories (Such As Liquid Flavor Pigments, Etc.) |
Automatic Servo
Casting Molding Machine
Quantity: 1
Power: 8kw
Material: The frame and shell door of the pouring machine are made of 201 stainless steel; the pouring nozzle is copper; the parts in contact with food are all 304 stainless steel or copper
Dimensions: 1200*960*1800mm
Remarks: PLC automatic control;Sugar weight, pouring speed and holding temperature can be controlled on the touch screen;Servo pouring speed is 25-45 n/min; servo drive Equipped with automatic fuel injection device (with oil return tank) (The injection time and times are
automatically controlled by the touch screen PLC),
automatically controlled by the touch screen PLC),
Description: Pour the mixed syrup quantitatively into the mold to form

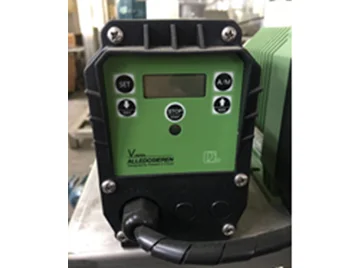

Specification Name | Metering Pump (Liquid) |
Quantity | 3 |
Remarks | German Brand; Feeding Is Done Online |
Description | Put The Liquid Flavor And Pigment Conveyor Belt Accessories In The Mixer |

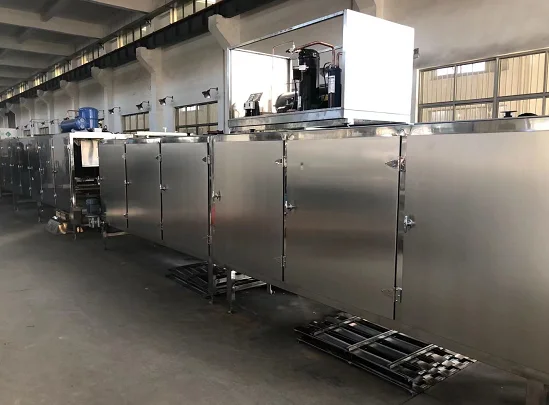

Automatic Freezer
Quantity: 1
Power: 8kw
Material: Freezer Rack And Door Are 201 Stainless Steel
Dimensions: 9000*1100*2300mm Remarks: Supporting Fully Enclosed Water-Cooled Air-Conditioning Refrigeration Unit Automatic Conveying By Conveyor Belt; Three-Layer Cooling
Specification Name | Syrup Pipe |
Quantity | 1 Set |
Material | 304 Stainless Steel |
Remarks | Double Layer With Insulation |

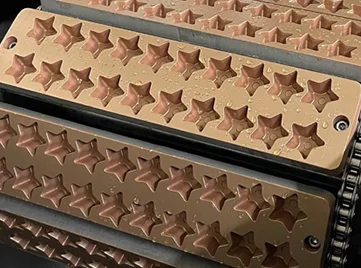

Mold
Quantity: 250 Pieces
Dimensions: 320*76.2*35mm
Material: Aluminum Alloy Die-Casting; Surface Coated With Teflon
Remarks: The Mold Can Be Customized According To The Needs. Under The Premise Of The Same Weight Of a Single Piece, a Variety Of Shapes Can Be Made On One Mold Matching Special Automatic Demoulding Device For Soft Candy
Company Profile

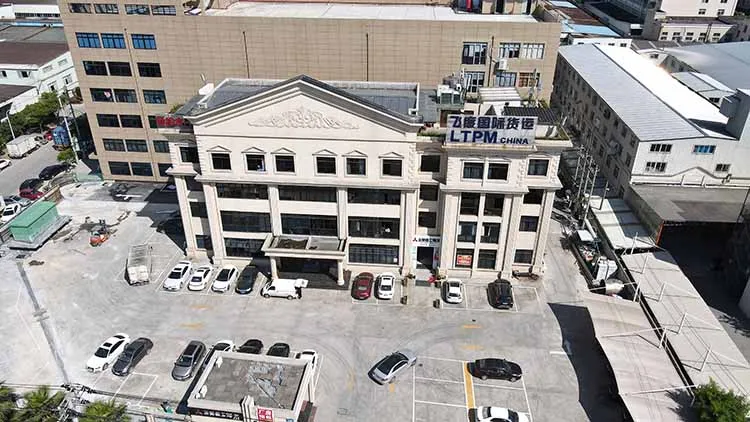

Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand

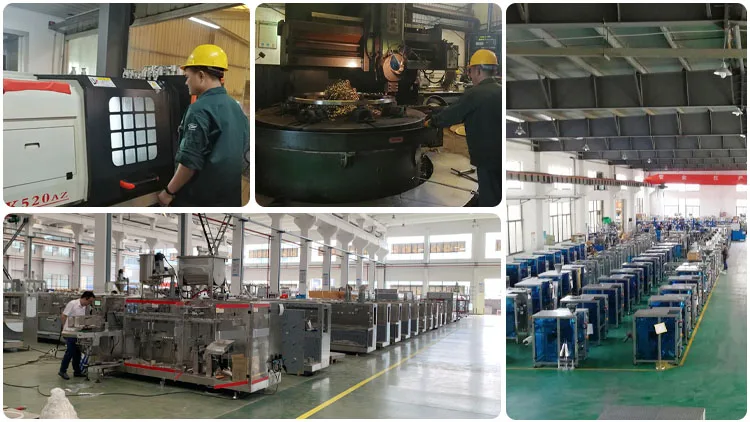

Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers

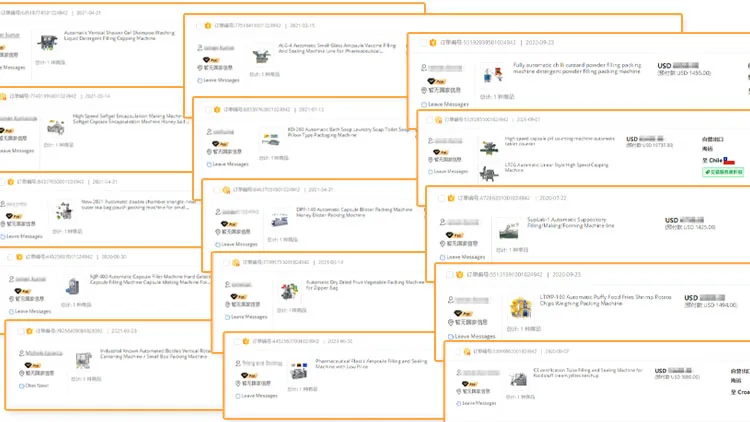

Orders from Alibaba
