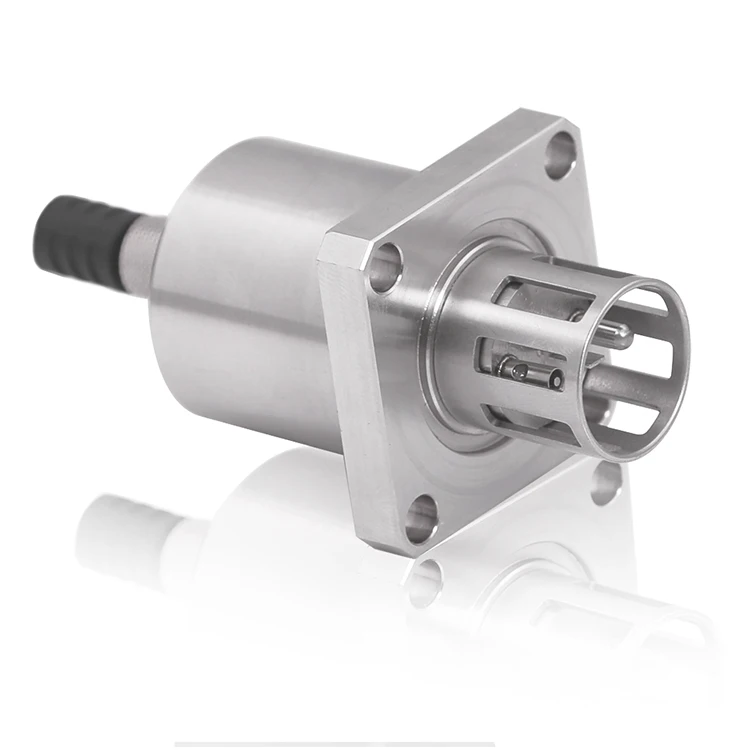

Online Oil Diesel Gasoline Ethyl Alcohol Chemical Reagent Viscosity Density Temperature Sensor

Product Overview

Description



Description

The PPM-HLV-2 Sensor adopts MEMS piezoelectric resonance component, with the intergration of high accuracy signal sampling and processing unit inside, it can measure density, viscosity and temperature automatically at the same time. Density at 20ºC, kinematic viscosity, viscosity index, viscosity at 40ºC, viscosity at 100ºC, could be measured through it's calculate program.
Measuring medium: Lubricating oil, hydraulic oil, gasoline, diesel oil, aviation fuel, kerosene, ethanol, printing ink, paint.

Features

1. Imported probe for real time monitoring online with high accuracy.

2. All stainless steel material adopted, good corrosion resistance and vibration resistance.

3. Quick response, data updating rate less than 1s.

4. Long working life more than 10 years.

5. Small size , easy to install, help to the intergration.



Product Name	-40 To 120 Degrees Celsius High Quality Hastelloy Alloy Kinematic Viscosity Density Sensor
Measuring parameters	Density(kg/m³), kinetic viscosity(mPa·s), temperature(ºC)
Measuring parameters(optional)	Kinematic viscosity, viscosity at 40ºC, viscosity at 100ºC, viscosity index, density at 20ºC
Response time	<30s(first time), data updating rate 1 time/second

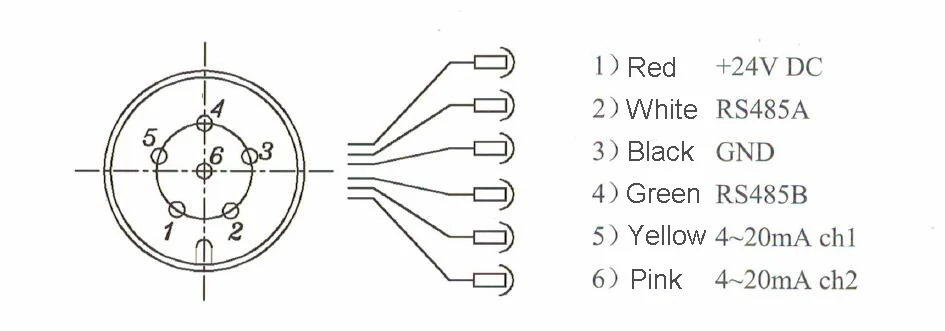

Signal output	Digital signal: RS485 MODBUS RTU or RS232 Analog signal: 4~20mA , RL=500Ω (optional)
Alarm points	2 points 250VAC/3A or 30VDC/3A (optional)
Power supply	9~32VDC
Power consumption	< 30mA at 24VDC (RS485)
Pressure range	≤ 200 bar
Medium temperature	-40~120ºC
Ambient temperature	-40~85ºC
Storage temperature	-40~80ºC
Housing material	SS316 or 304, Hastelloy
Process connection	NESSI, G1/2''
Weight	0.36kg
Ingress protection	IP66
Sealing material	FKM fluorine rubber
