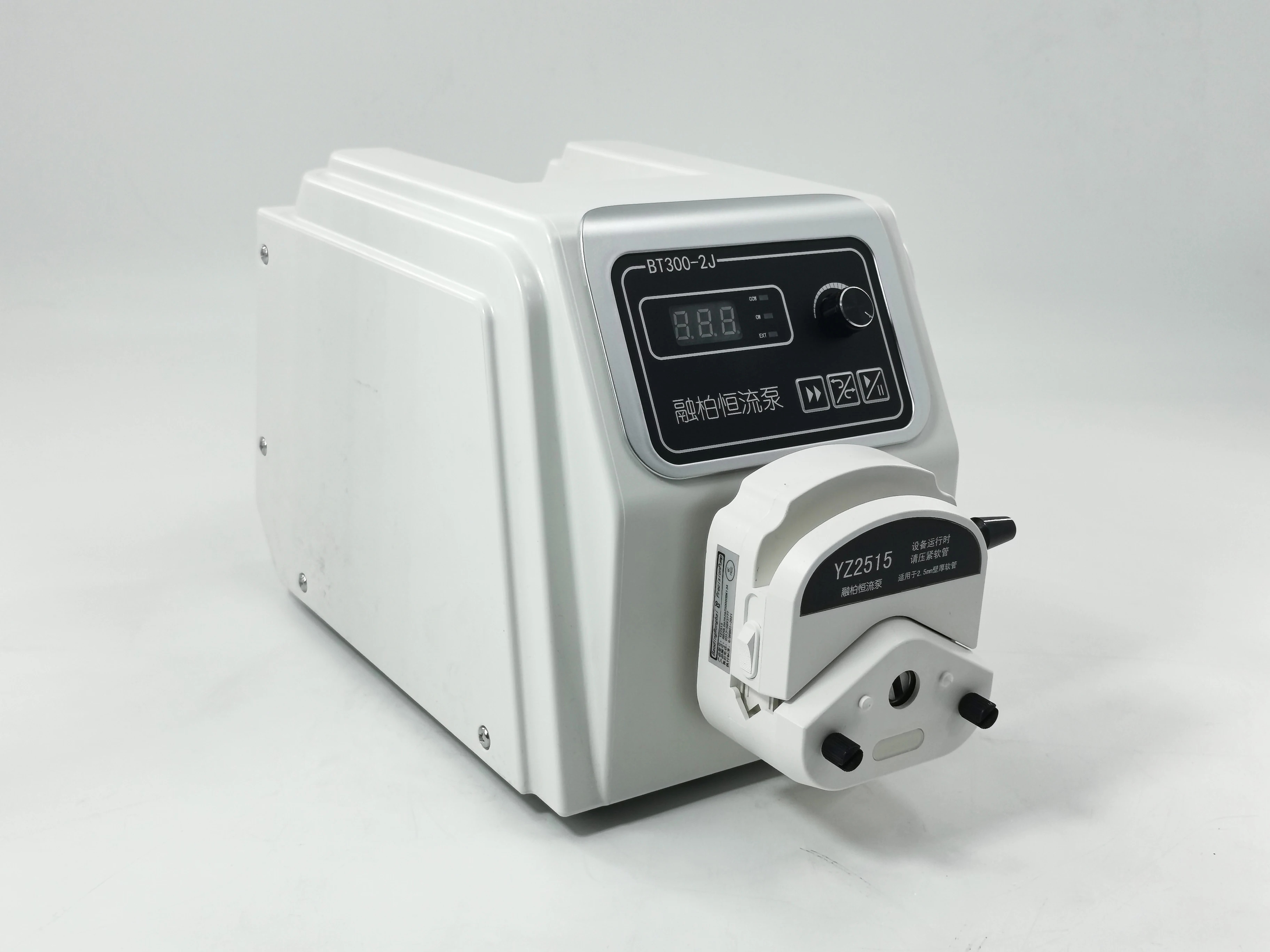

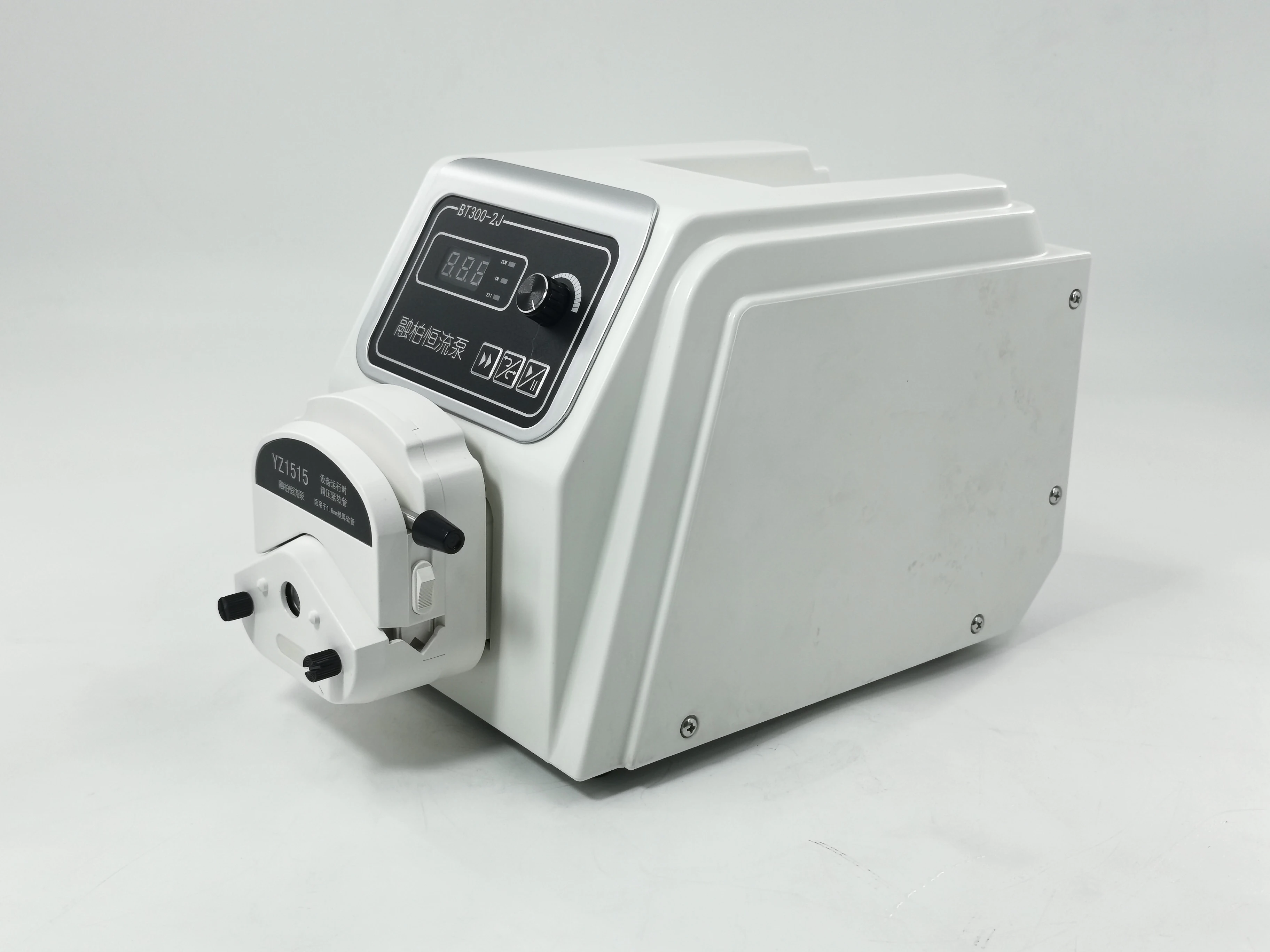

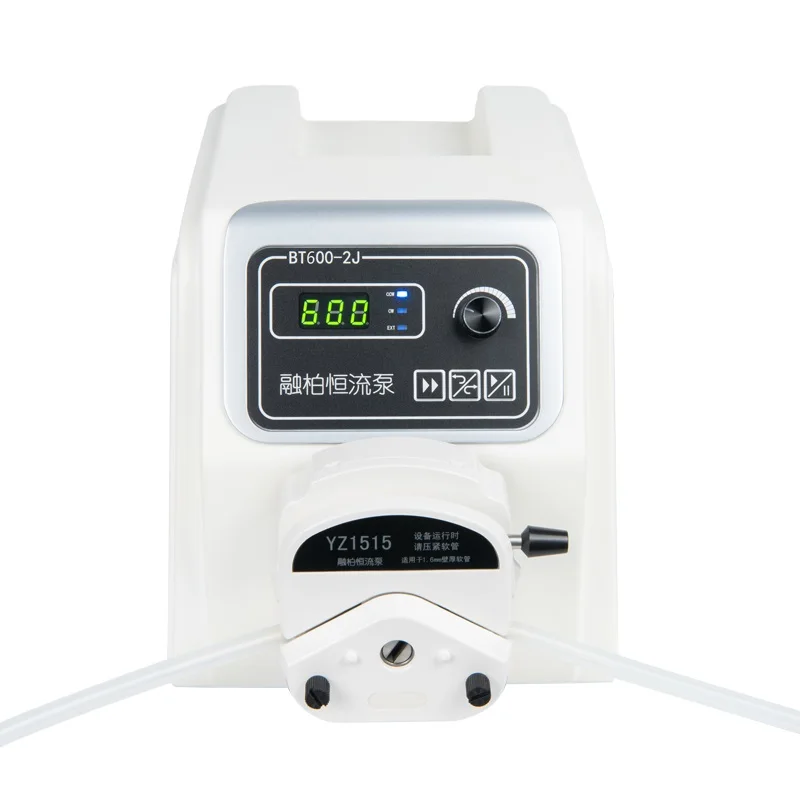

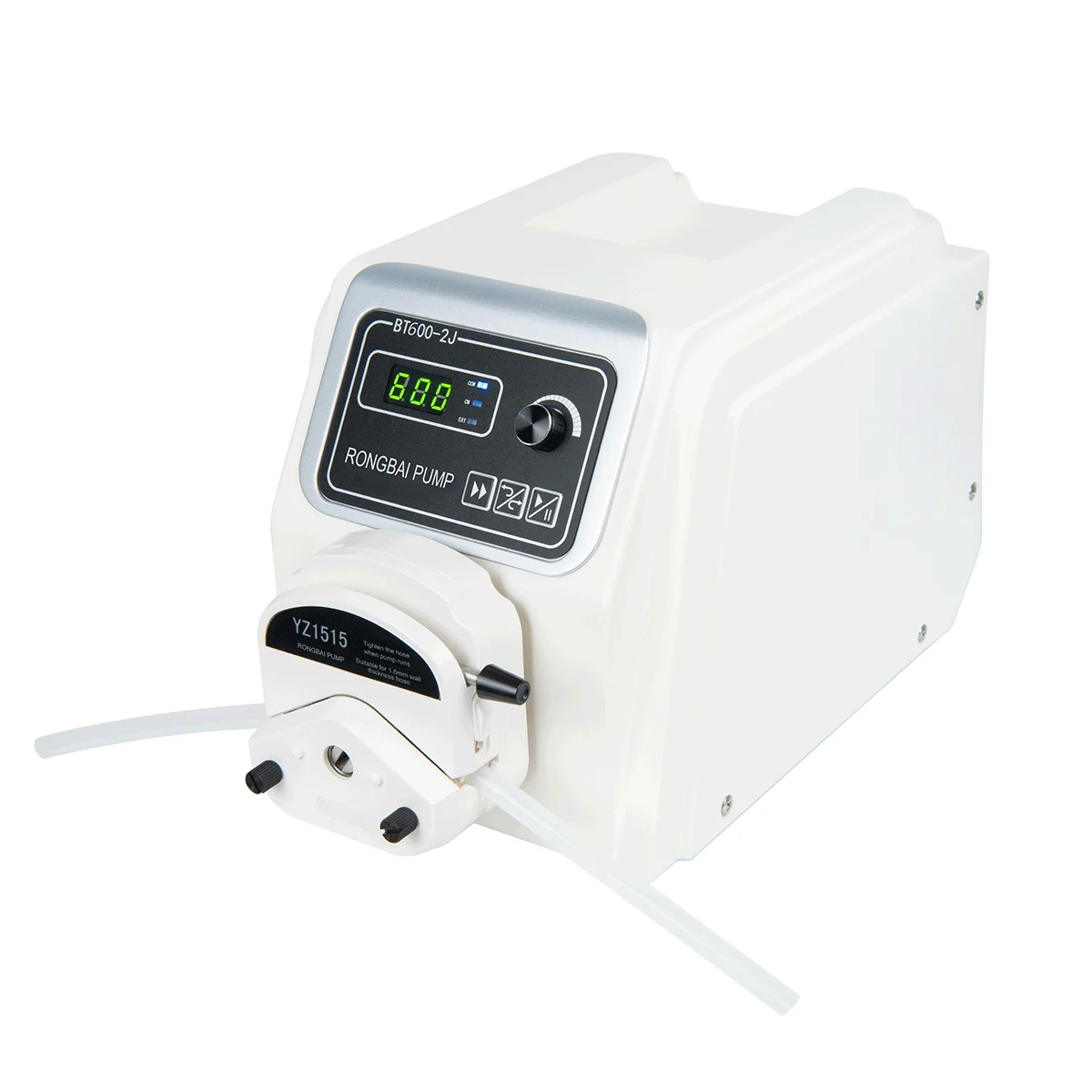

BT600 2J Variable speed peristaltic pump, 0 2280mL/min liquid filling machine, laboratory water pump,Endoscope water supply pump
- Category: >>>
- Supplier: Baoding Rongbai Constant Flow Pump Manufacturing Co. Ltd.
Share on (1600544251702):
Product Overview
Description
Speed precision: 0.1 rpm(＜100rpm);1 rpm(≥100rpm)

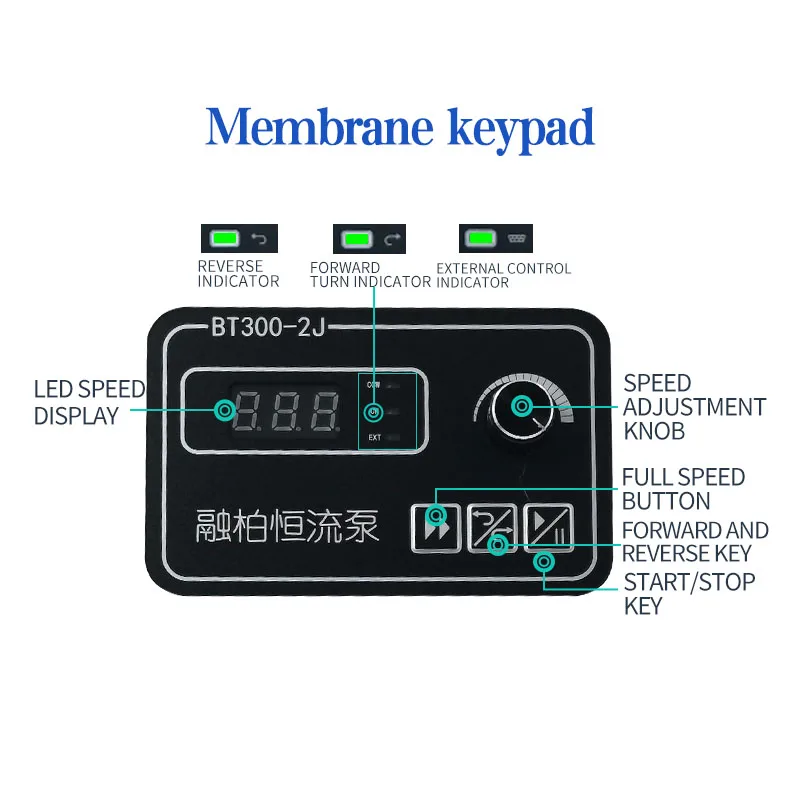

Speed control: Membrane keypad
Display: 3-digit LED displays current rpm
Communication interface: RS485
External control: Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
Power supply: AC 90V-265 V 50/60 Hz
Power consumption: ≤60 W
Operating condition: Temperature 0 to 40 ℃ ; Relative humidity < 80%
Dimensions: 290×200×206 (mm)
Drive weight: 2.5 kg
IP rating: IP 31
Pump head and Flow rate

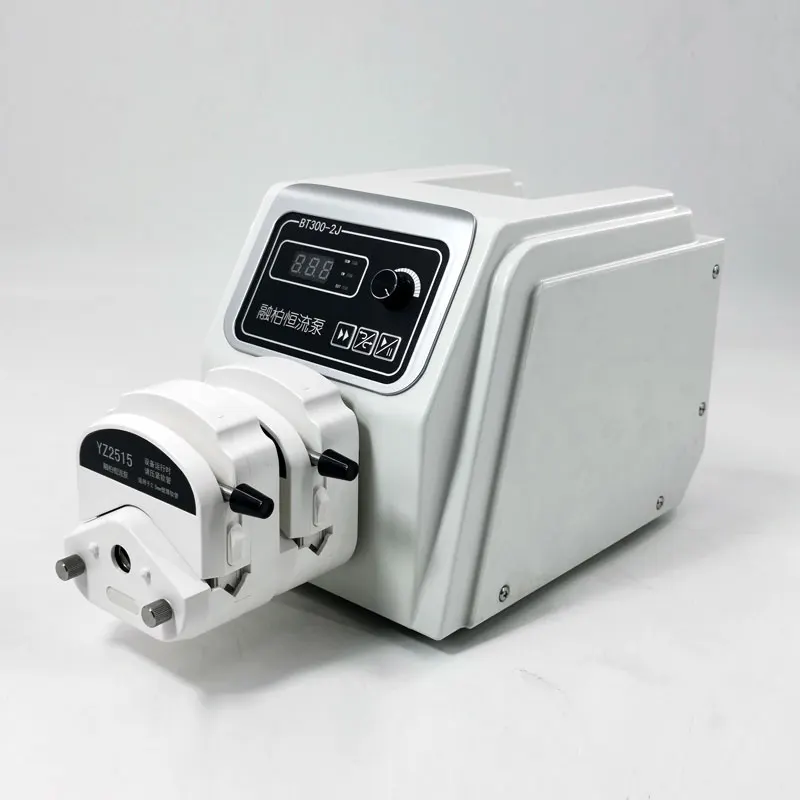

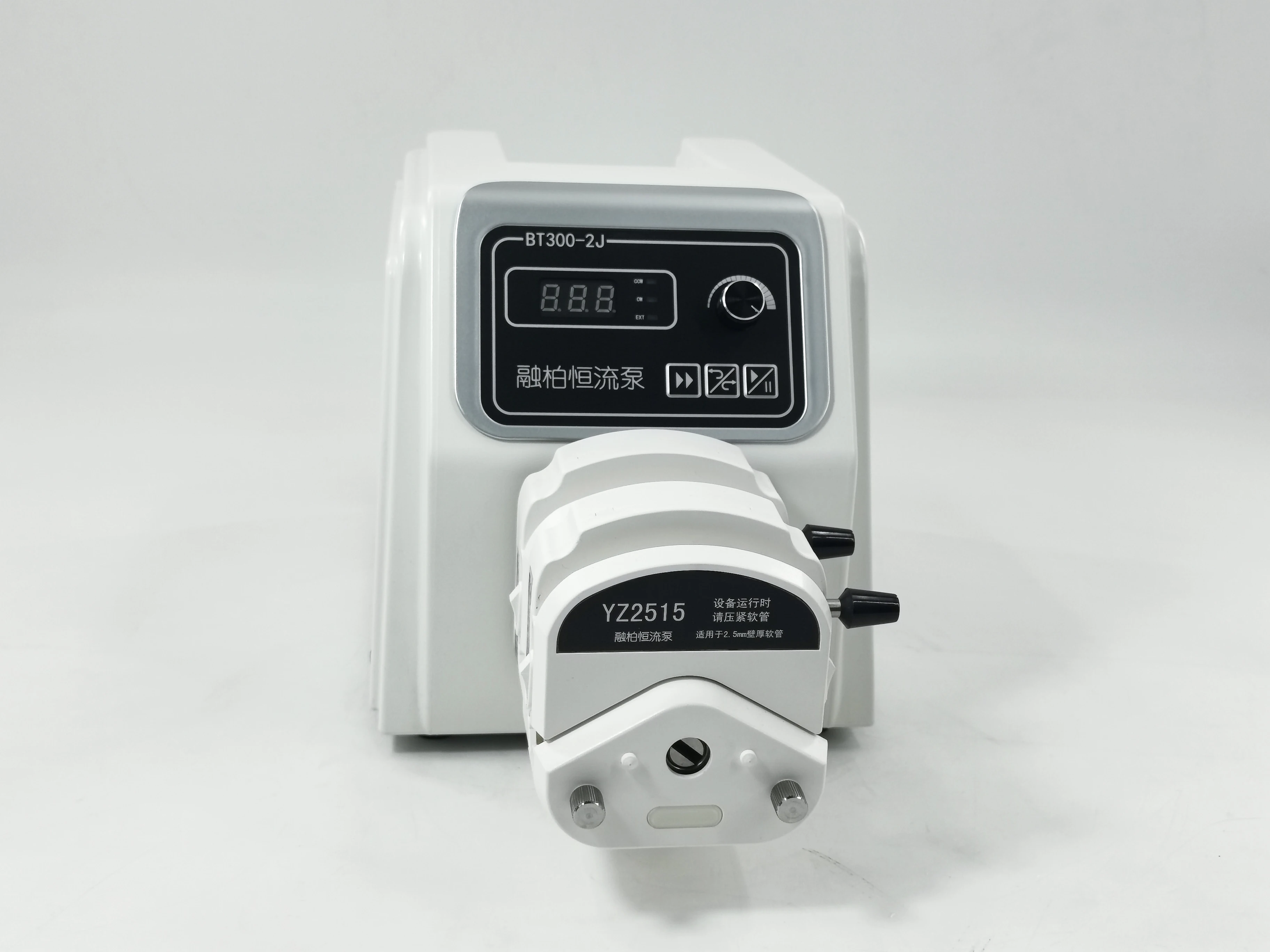

BT300-2J
Pump Head:YZ1515
Tube code:13# 14# 19# 16# 25# 17# 18#
Flow Range(ml/min):0.007-1140/ single passage
Channel Number:1/2
Pump Head:YZ2515
Tube code:15# 24#
Flow Range(ml/min):0.17-800/ single passage
Channel Number:1/2

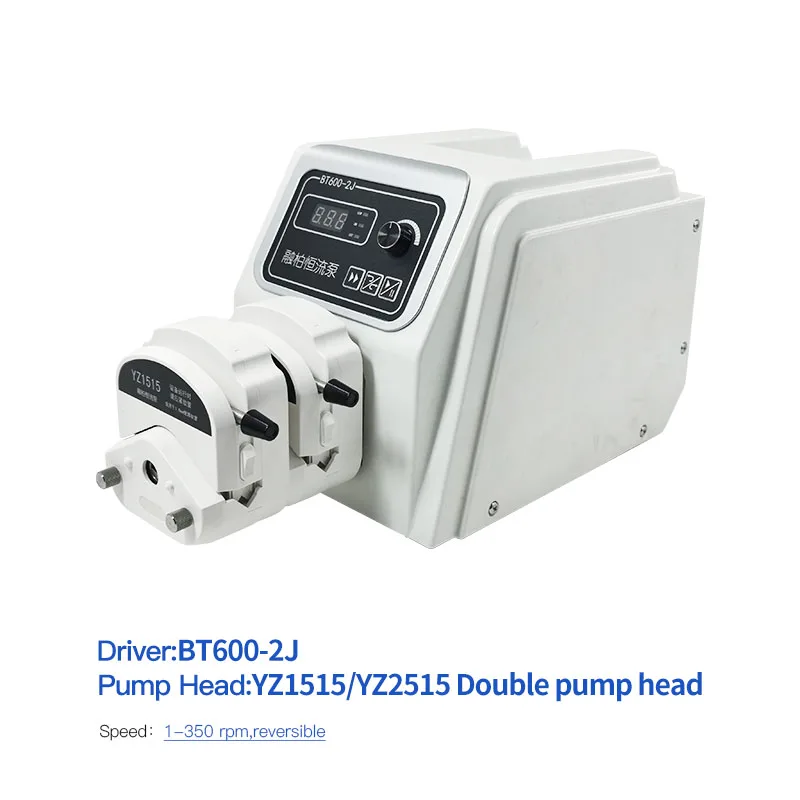

BT600-2J
Pump Head:YZ1515
Tube code:13# 14# 19# 16# 25# 17# 18#
Flow Range(ml/min):0.007-2280/ single passage
Channel Number:1/2
Pump Head:YZ2515
Tube code:15# 24#
Flow Range(ml/min):0.17-1600/ single passage
Channel Number:1/2
The main factors affecting the flow of peristaltic pumps are:
1. The speed of the drive;
2. The selection of pump head;
3. The diameter of the hose;
The higher the speed of the drive, the greater the flow rate;
At the same speed, the larger the diameter of the hose, the greater the flow rate;
Different types of pump heads are suitable for different hoses.
Pump Head:YZ1515
Tube code:13# 14# 19# 16# 25# 17# 18#
Flow Range(ml/min):0.007-2280/ single passage
Channel Number:1/2
Pump Head:YZ2515
Tube code:15# 24#
Flow Range(ml/min):0.17-1600/ single passage
Channel Number:1/2
The main factors affecting the flow of peristaltic pumps are:
1. The speed of the drive;
2. The selection of pump head;
3. The diameter of the hose;
The higher the speed of the drive, the greater the flow rate;
At the same speed, the larger the diameter of the hose, the greater the flow rate;
Different types of pump heads are suitable for different hoses.
Baoding Rongbai Peristaltic Pump Manufacturing Co., Ltd. |
4-C-622, Electric Valley Technology Center, No. 3088, Lekai North Street, National High-tech Industrial Development Zone, Baoding City, Hebei Province, China |
FAQ
(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.
(2) A tracking number will send to you after your order has been shipped
(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large
orders,please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is anextension Please understand.
(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.
(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.
(6) Color: Store products are all actual shots.
(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.
Product Maintenance：
(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.
(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the
service life of the hose and cause premature damage to the roller.
(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.
Warranty：
(1) The product is guaranteed for one year.
(2) Contact the seller or manufacturer before returning to the factory for repair.
(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.
(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.
(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
