Product Overview
Description
Option

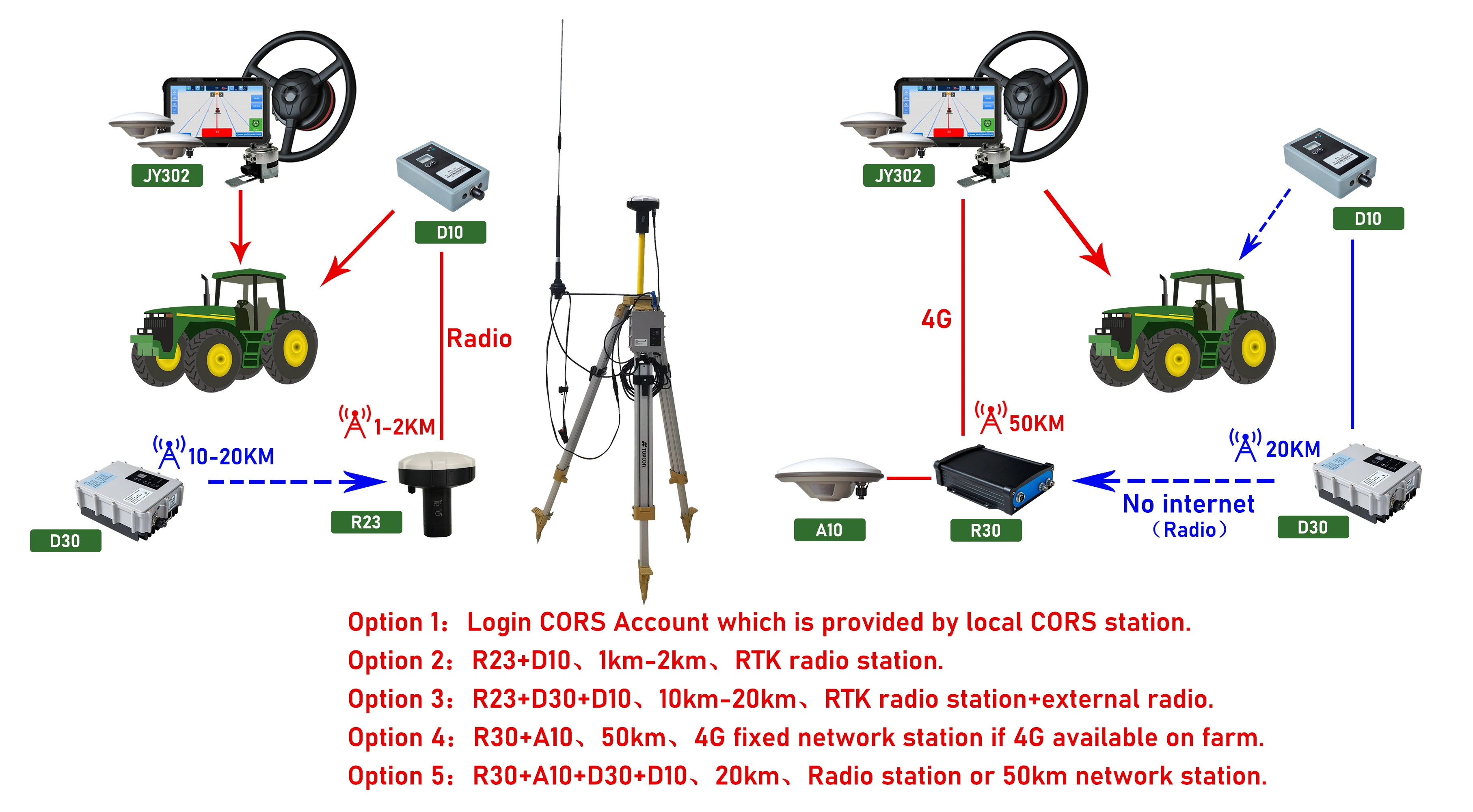

Option 1：Login CORS Account which is provided by local CORS station.
Option 2：R23+D10、1-2km、RTK radio station.
Option 3：R23+D30+D10、10-20km、RTK radio station+external radio.
Option 4：R30+A10、50km、4G fixed network station if 4G available on farm.
Option 5：R30+A10+D30+D10、20km、Radio station or 50km network station.
Option 2：R23+D10、1-2km、RTK radio station.
Option 3：R23+D30+D10、10-20km、RTK radio station+external radio.
Option 4：R30+A10、50km、4G fixed network station if 4G available on farm.
Option 5：R30+A10+D30+D10、20km、Radio station or 50km network station.
Product Description

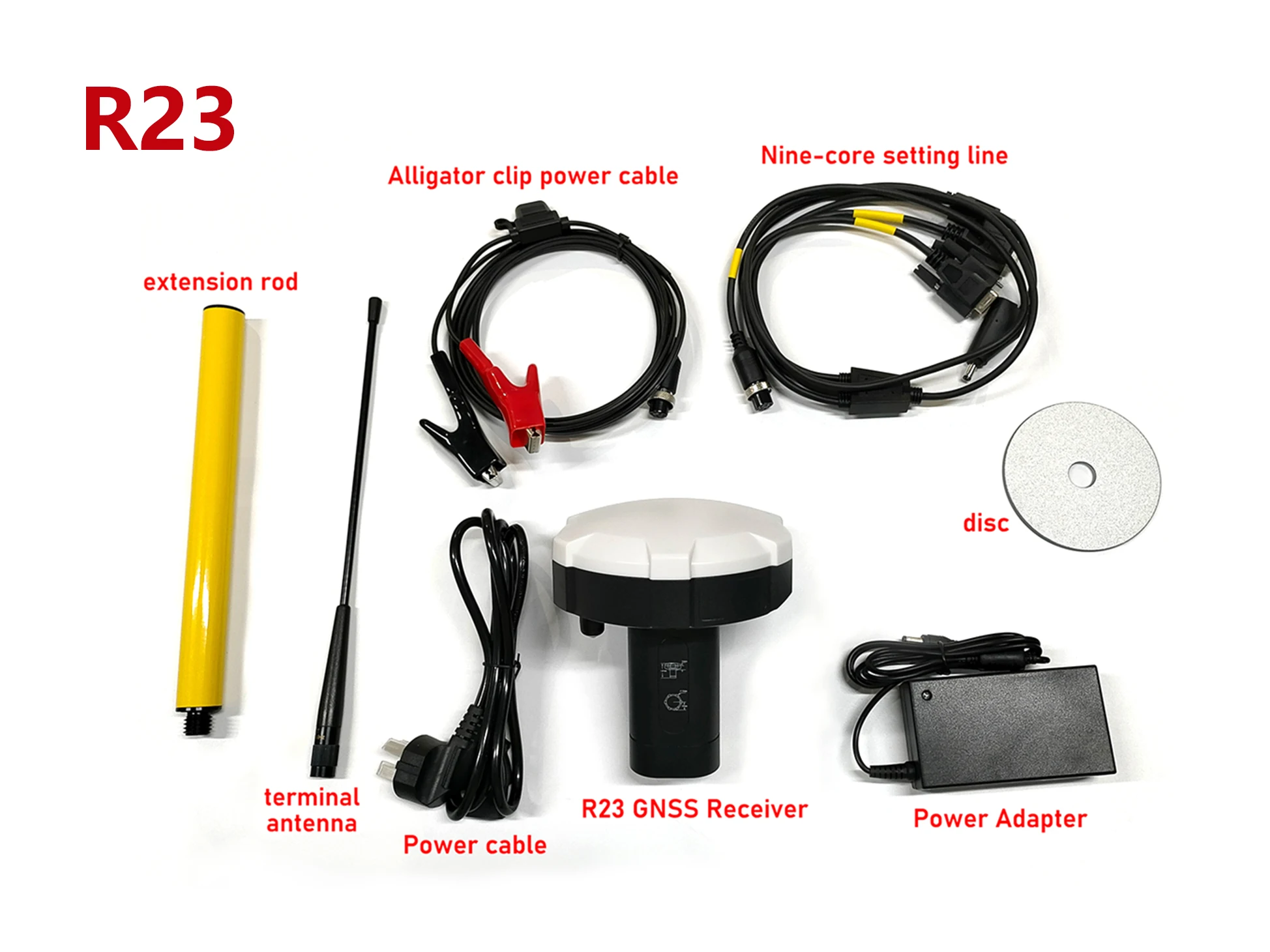

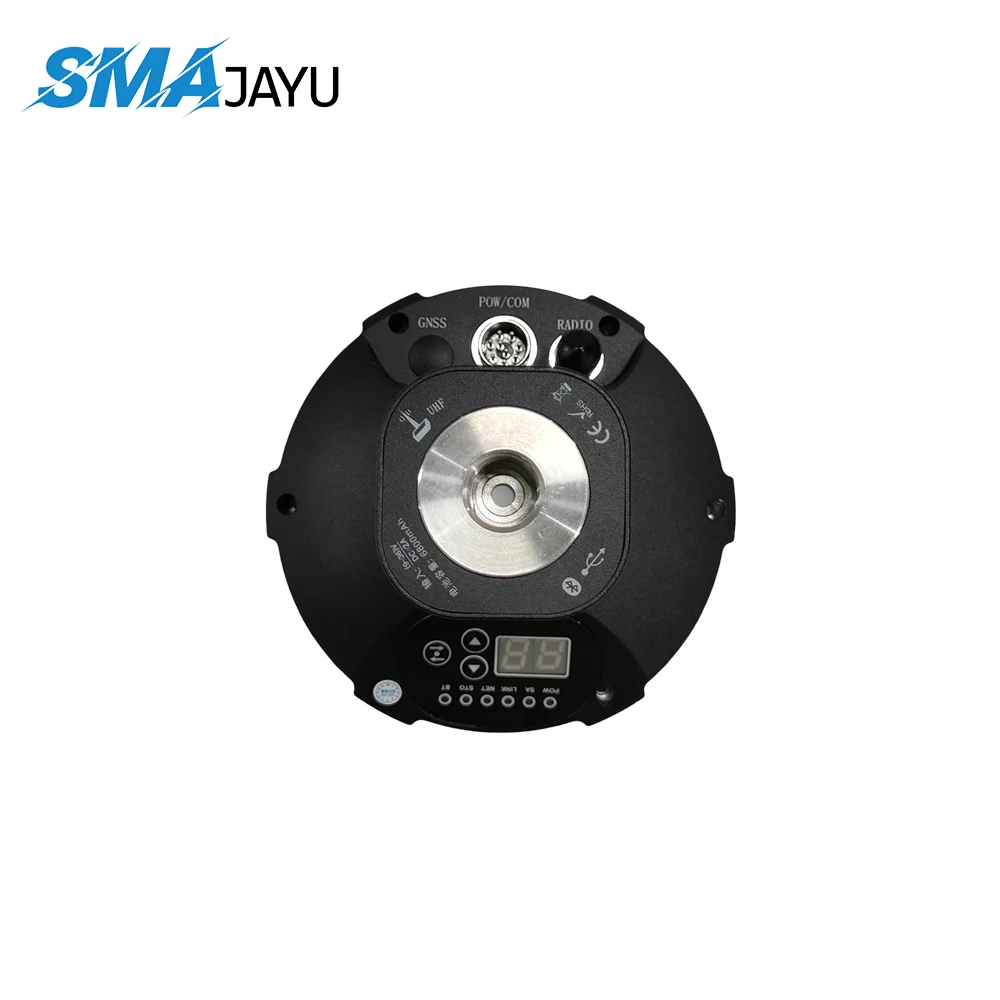

R23 integrated Beidou / GNSS inertial navigation RTK is an integrated multifunctional high-precision RTK receiver with built-in high-capacity battery, high-capacity storage, inertial navigation module, built-in Beidou / GNSS full frequency antenna, system wide multi frequency point.high-precision positioning and orientation board, Bluetooth and wireless communication module.
R23 inertial navigation RTK receiver can be used as both RTK mobile station and RTK reference station;It has the advantages of high precision, low power consumption, small volume, convenient and fast carrying and operation, and meets the positioning and orientation needs of various industries, such as mechanical control, surveying and mapping engineering, precision agriculture, geographic information, water survey, engineering survey, mine survey, aerial photography, UAV, etc.
R23 inertial navigation RTK receiver can be used as both RTK mobile station and RTK reference station;It has the advantages of high precision, low power consumption, small volume, convenient and fast carrying and operation, and meets the positioning and orientation needs of various industries, such as mechanical control, surveying and mapping engineering, precision agriculture, geographic information, water survey, engineering survey, mine survey, aerial photography, UAV, etc.

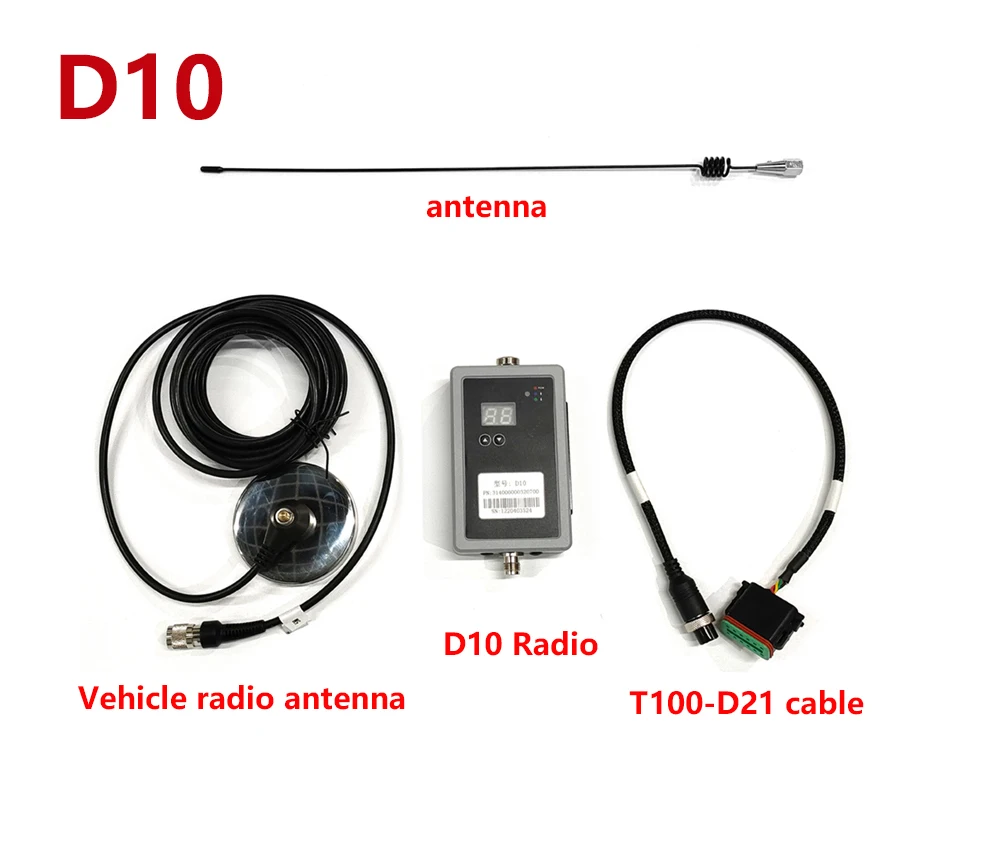

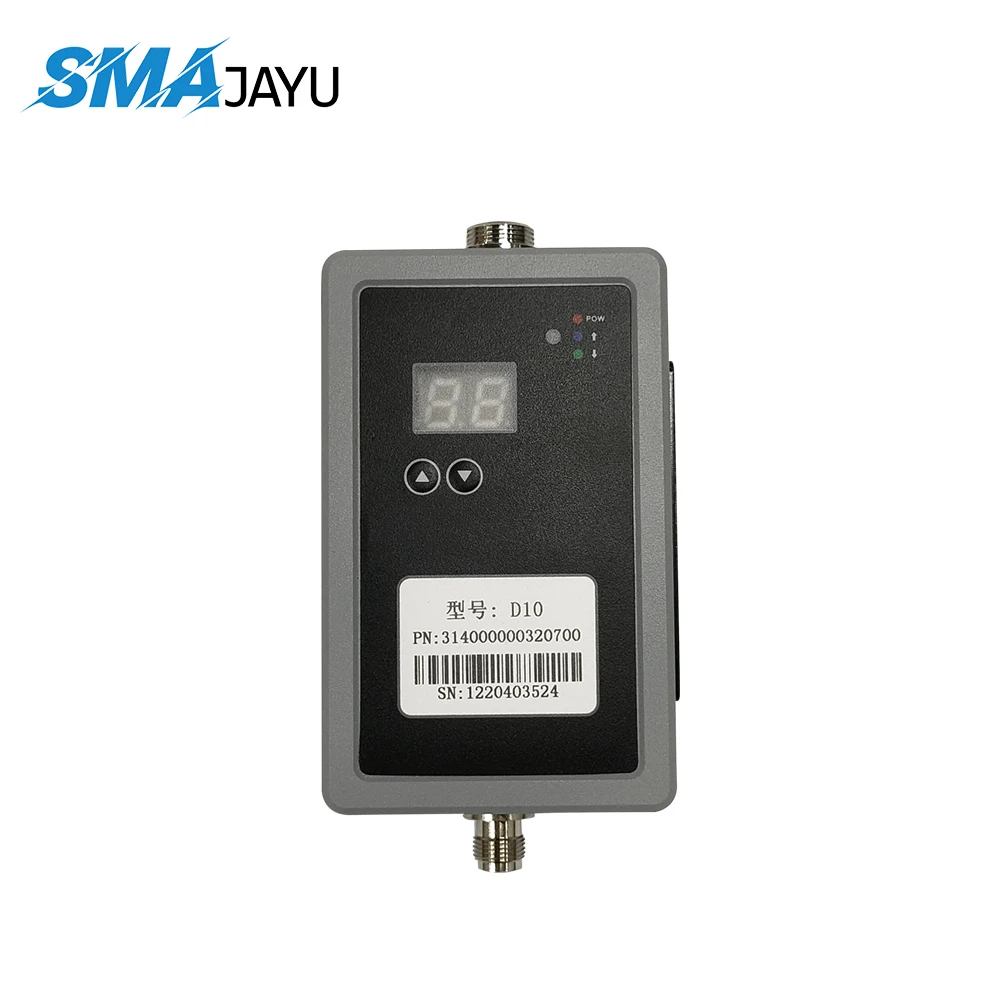

D10 protocol support transparent transmission, TRIMTALK, South protocol and compatible with PDL Radio, Watson Radio and Radio South. D10 radio feature greater receiver sensitivity and highperformance external radio antennas to help you achieve a greater range. It could use for the field of smart transportation, precision agriculture, surveying, geographic information and Drone RTK communication.

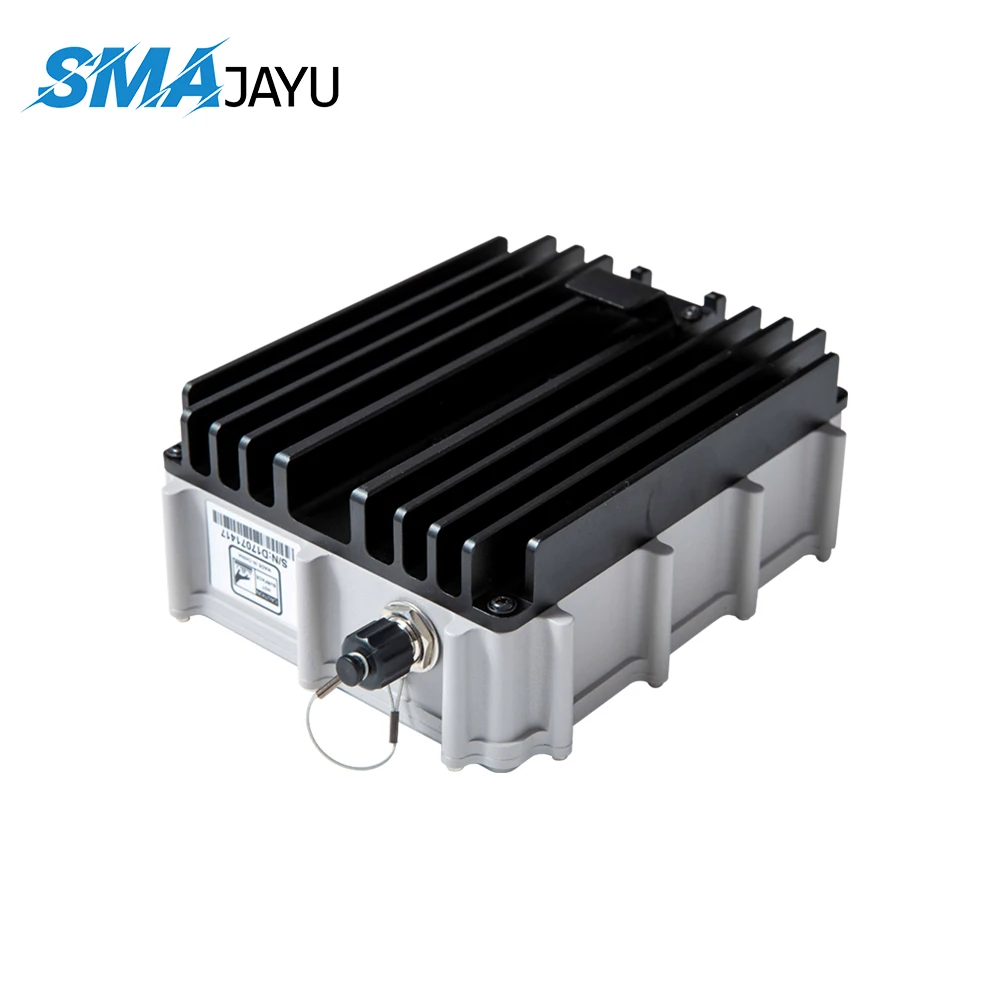

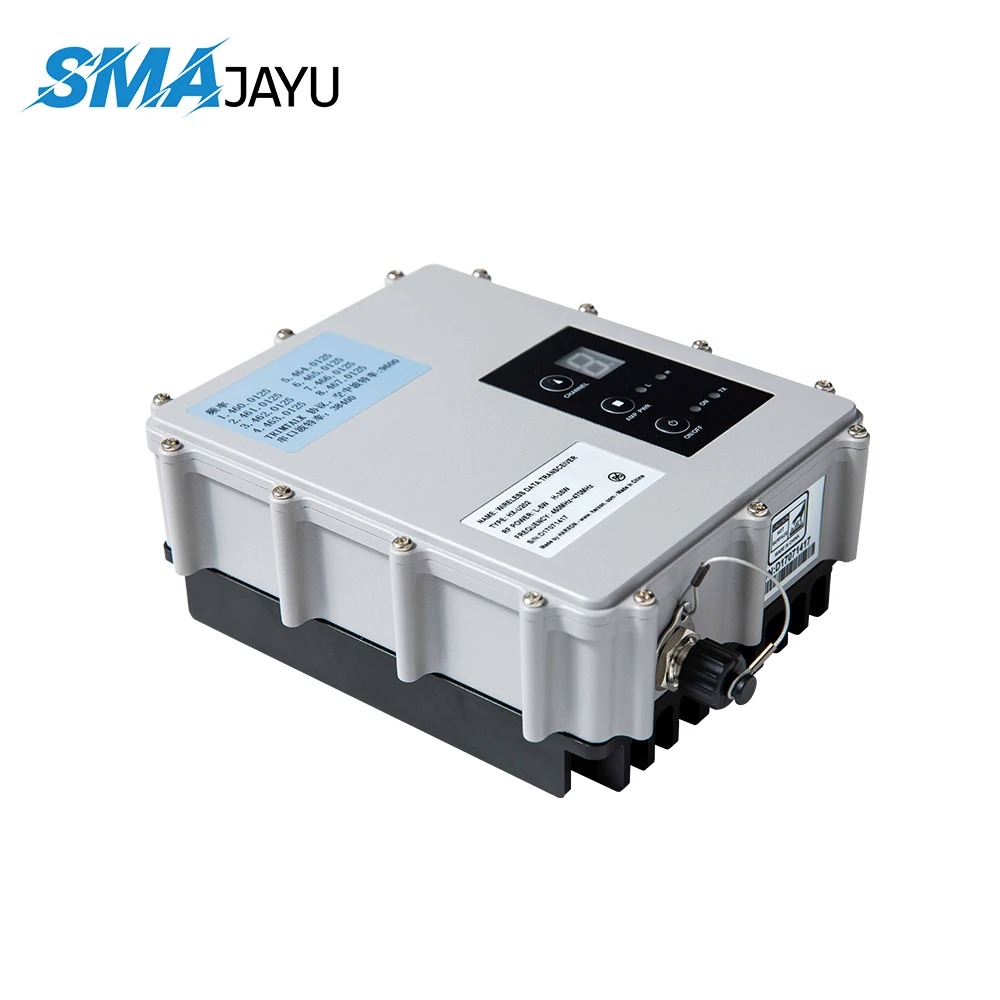

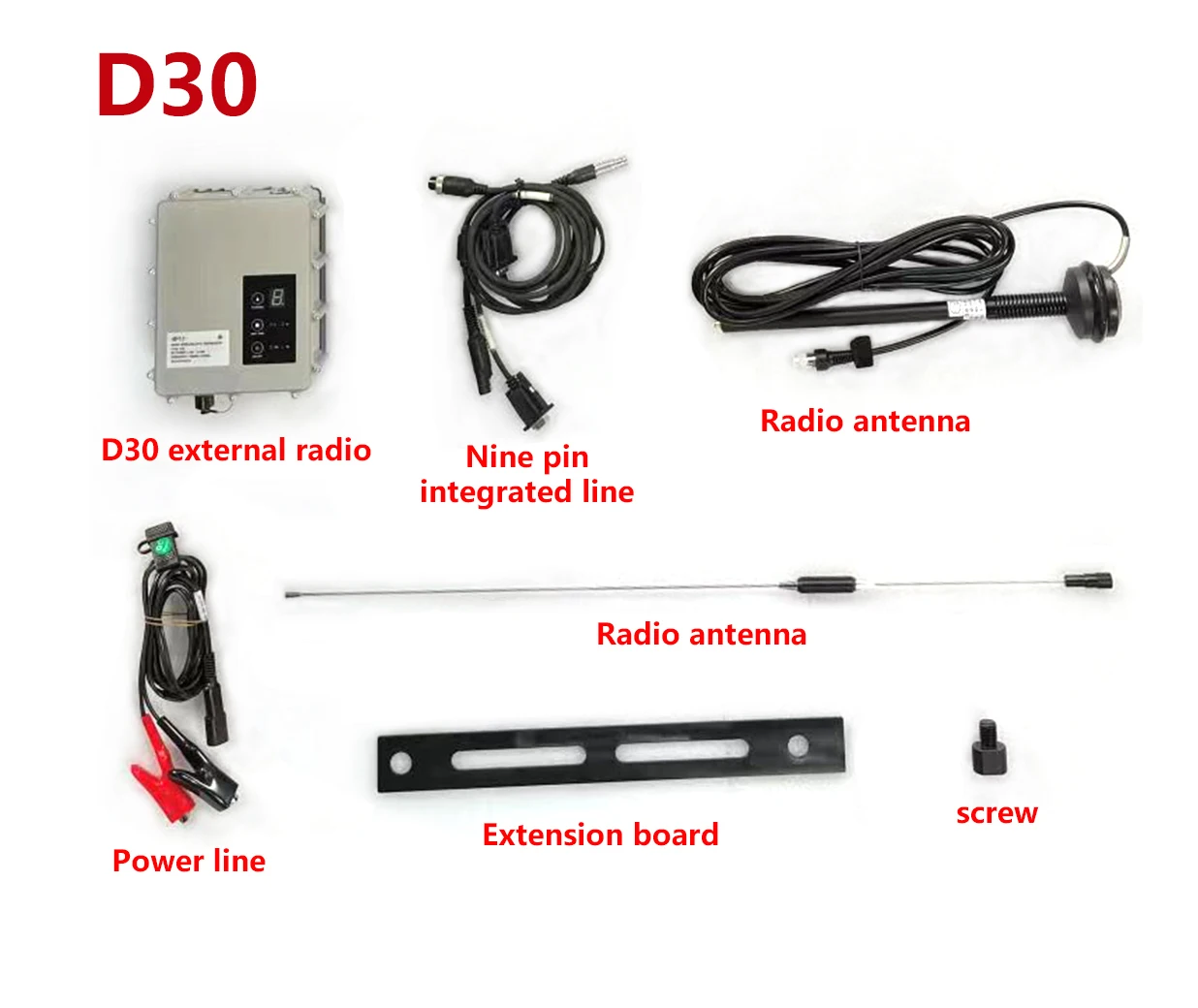

D30 Radio station
Specification
R23 | value | ||
Signal tracking | GPS | L1/L2 | |
BDS | B1/B2 | ||
GLONASS | L1/L2 | ||
QZSS | L1/L2/L5 | ||
Galileo | E1/E5b | ||
Precision index | Static accuracy | Plane accuracy；±(2.5 + 0.5×10 D)mm | |
Elevation accuracy；±(5 + 0.5×10 D)mm | |||
RTK Positioning Accuracy | Plane accuracy；±(10 + 1.0×10 D)mm | ||
Elevation accuracy；±(15 + 1.0×10 D)mm | |||
Single machine accuracy | 1.5m | ||
Initialize confidence | Greater than 99.99% | ||
Data output | Differential data | RTCM2.X、RTCM3.X、CMR、RTCA | |
Positioning data | NMEA-0183 | ||
Static data | Binary | ||
Electrical parameters | power waste | Mobile station ≤ 4.0w, reference station ≤ 10.5w | |
Endurance time | ≥ 13h (mobile station), ≥ 6.5h (Reference Station) | ||
Radio frequency | 410-470MHz/840MHz | ||
input voltage | DC 9-36V | ||
Battery capacity | 6800mAh | ||
Radio power | 0.5W / 1W / 5W | ||
storage capacity | 8g, direct high-speed download via USB (support automatic cyclic storage of data) | ||
Physical property | working temperature | -30℃~+70℃ | |
Storage temperature | -40℃~+80℃ | ||
Physical size | 136mm*136mm*147mm | ||
weight | 1.16Kg | ||
Degree of protection | IP67 | ||
key | 2/3Keys | ||
instructions | 6LED power indicator | ||
humidity | 100% non condensing | ||
data output | NMEA-0183 | ||
Data refresh rate | 1- 20Hz | ||
Network protocol | TCP、NTRIP | ||
Interface mode | 1Nine nine core aerial connector, one directional antenna TNC connector and one radio antenna TNC connector | ||
Baud rate | 9600~460800 | ||
Inertial navigation measurement | Tilt angle | 0-60° | |
Tilt accuracy | 62.5px (30 ° inclination angle) | ||
notes | [1] RTK initialization time may be affected by atmospheric conditions, signal multipath, obstacles and satellite geometric position, and the actual test data shall prevail. | ||
[2] D is the baseline length, in mm | |||
D10 | value |
Frequency Range | 410~470MHz |
Work Module | Half duplex |
Channel Gap | 25KHz |
Channel quantity | 10 channels |
Modulation | GMSK、4FSK |
Operating Voltage | 8-32VDC |
Indicator light | Power、 Receive、 Send |
Button | Channel Switch |
Power consumption (typical) | Transmit high power：3.3W Transmit low power：2.7W receive：0.5W |
Frequency stability | ≤±1.0ppm |
Dimension | 126×71×30mm |
Weight | 300g |
Protect | IP67，100% Non-condensing, 2M fall |
Storage Temperature | -40~+85 ℃ |
Operating Temperature | -40~+70 ℃ |
Antenna Port | TNC |
Antenna Port Impedance | 50ohm |
Data Port | Air plug connector-RS232 |
Serial baud rate | 9600bps，115200bps，38400bps |
Air baud rate | 9600bps、 19200bps |
Protocol | Transparent transmission、TRIMTALK、South protocol |
D30 | value | |
Frequency | 450~470MHz | |
Work Mode | Simplex | |
Channel spacing | 25KHz | |
Number of channels | 10 | |
Serial baud rate | 9600bps、19200bps、38400bps | |
Air baud rate | 9600bps、19200bps | |
Modulation | GMSK、 4FSK | |
Protocol | SOUTH/TRIMTALK/ TRANSEOT(PCC ) | |
Voltage | 9-16VDC | |
Indicator light | High power indicator, low power indicator, transmit signal indicator, receive signal indicator | |
button | Channel switch key, power switch key, switch key | |
Transmit power | High power 35W Low power 5W | |
Frequency stability | ≤±1.0ppm | |
size | 180×140×65mm | |
weight | 1.5kg | |
three proofings | IP67，100% Non-condensing，Resistant to 2m drops | |
storage temperature | -55~+75℃ | |
Operating temperature | -40~+70°℃ | |
Antenna interface | TNC | |
Antenna interface impedance | 50ohm | |
Data interface | LEMO 5pin | |
Transmitter performance specifications | ||
RF output power | (35W) 44.2±0.5dBm@DC 12V | |
(5W) 38±1dBm@DC 12V | ||
RF power stability | ±1dB | |
Adjacent channel power | >50dB | |
