Price:$1.65 - $1.95
Price in USD:Details

Quantity:

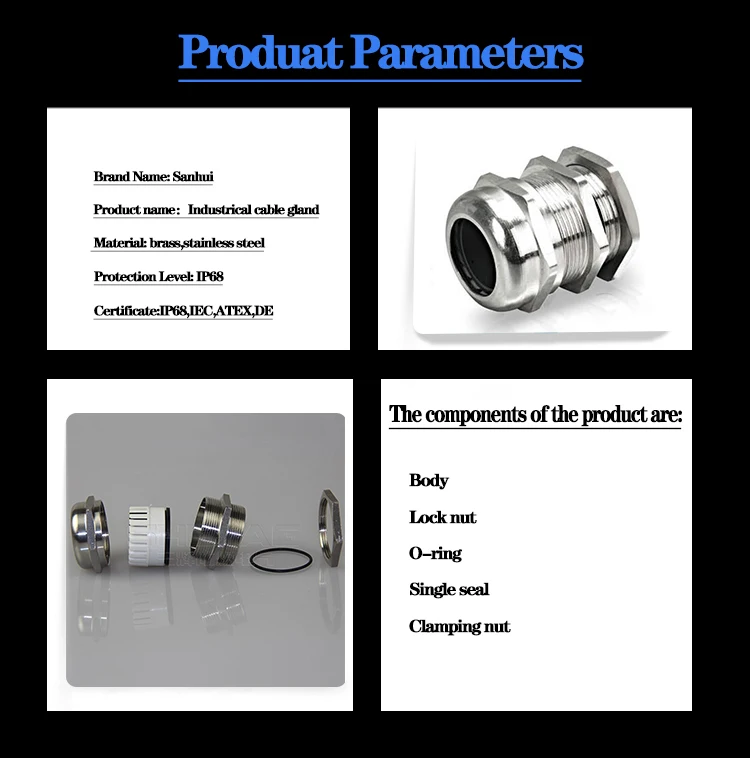

Product Overview

Description


1.1


Specification:

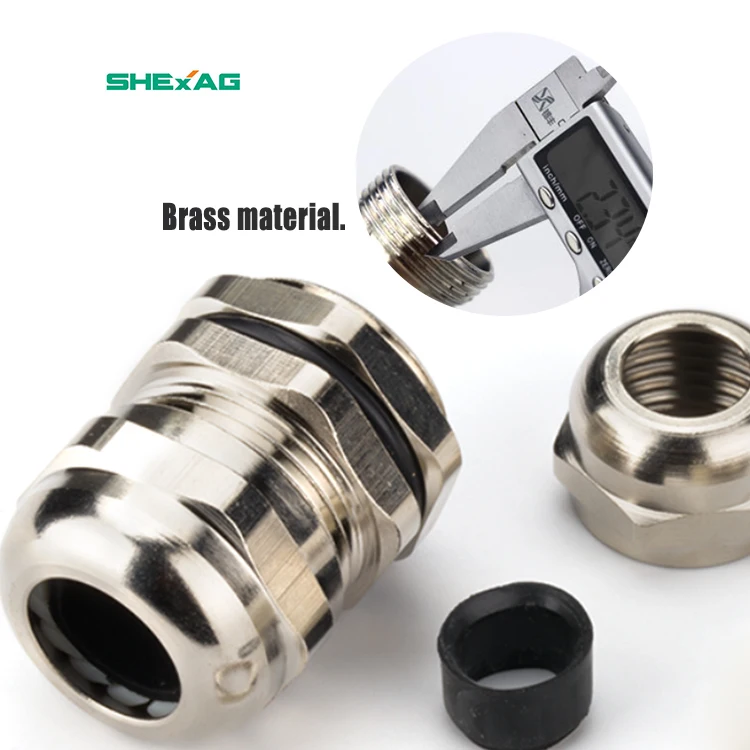

Main body is made of brass,nickel planted or brass,Claw is made of PA,


seal and o-ring is made of NBR.


Approvals:CE


Protection level:IP68(Tighten the glands with o-ring)


Ambient temperature:Static from -40℃ to 100℃,short up to 120℃


Dynamic from -20℃ to 80℃,short up to 100℃


Thread length:Standard thread type is used for the equipment which has inner thread


or for the thin board.Long thread type is used for the thick board.


Function:Extremely easy installation,simply insert cable through the assembled gland


and tighten gland lock nut until cable is secured.


These cable glands are designed to withstand water,dust,salt,acid-base,alcohol,


oil and common solvent.


Usage:Waterproof cable gland is the product of form a complete set of the cable,


connector cable can be locked,the other end can access devices on the box body,


also can choose thread access according to th import


and export for internal thread electric devices.





Technical parameters:






































































































Mode



Item AG



Cable range(mm



Thread O.D.(mm)



Thread length(mm)GL



Spanner size(mm)



SH-BDM-27-67



G1/4



6.5-3



13.1



7



14



SH-BDM-27-68



G3/8



8-4



16.6



8



18



SH-BDM-27-69



G1/2



12-6



20.9



8



22



SH-BDM-27-70



G3/4



18-13



26.4



9



30



SH-BDM-27-71



G1



25-18



33.2



11



40



SH-BDM-27-72



G1-1/4



33-25



41.9



13



50



SH-BDM-27-73



G1-1/2



38-32



47.8



14



57



SH-BDM-27-74



G2



44-37



59.6



14



65



SH-BDM-27-75



G2-1/2



52-42



75.1



15



77



SH-BDM-27-76



G3



70-65



87.8



15



94




























Show


5a31361f7a891_02





Sanhui Explosion-proof Electric Co., Ltd. provides free sample service,
but the courier fee needs to be paid by yourself.





02





For safety, we are more professional
and we have passed the ATEX IECEx and other relevant international agency certifications.
At the same time, we also obtained multiple product patents.





22.3





Yueqing Sanhui Explosion-proof Electrical Co.,Ltd is a scientific and innovative enterprise
dedicated to the R&D manufacturing,sales,and service of cable tightening, and sealing products.
Our products are widely used in petrochemical, offshore oil,platform, chemical, pharmaceutical,
coal, steel, shipbuilding,military and so on.





03








The products are widely used in petrochemical, CNOOC, platform, chemical,


pharmaceutical, and coal mining companies.


They always adhere to the principle of "production by quality and development by credit".


The value created for customers is win-win.


Maintaining product safety and reliability is the customer's need and the main goal of Sanhui.


After excellent design,


we choose long-life materials and manufacturing processes to guarantee product safety and reliability,


convenient installation, and reduced procurement and maintenance. cost.


Pillows welcome new and old customers to guide! Main Scope:


Explosion-proof electrical appliances, explosion-proof pipes.


My products have good sealing performance, excellent explosion-proof performance,


excellent fastening effect, and high cost performance.


During the production process,


the products are professionally produced in strict accordance


with national technical requirements and manufactured with conscience.








Sanhui and our friends from all corners of the world have become partners,
providing them with our high-quality cable glands.








01











Projects:
In recently years, SANHUI have a cooperation with Hengli Petrochemical (Changxing Island.Dalian)
refining Co. Ltd --- 20 million tons/year refinery integration project;
ZSH1707-ZSH1710 SINOPEC Project;
Zhejiang Petroleum&Chemical Co.,Ltd---40 million tons/year refinery integration project;
BOMESC Offshore Engineer Company Limited;
IMC Raffles Offshore Engineering Pte Ltd (CIMC Raffles);
Dalian shipbuilding industry group;
Shanghai Changjiang shipping Co.,Ltd ,
and so on .





2


FAQ:


1. Are you a manufacturer?


We're the manufacturer and trader,we have the factory for


Hardware field industry for more than for many years.


2.How about the quality and warranty?


We have strict quality inspection system from raw material to finished products.


We can send you sample to check quality first


and we guarantee the sample quality is the same as the mass production.
3.What's the Minimum Order Quantity (MOQ) ?


Please tell me the details request of what you want,like the item,the size and quantity,


i will tell you MOQ once we get it from you.
4.How long about the delivery time after I place an order?


Usually our delivery time is 3-7days after we receive the deposit.
5.What's the terms of payment?


Normally 30% T/T in advance,70% should be paid before shipment.
