TTGO T PCIE ESP32 WROVER B AXP192 Chip WIFI Nano Card SIM Series Composable Development Board Hardware
- Category: >>>
- Supplier: Shenzhen Junbaoxiang Technology Co. Ltd.
Share on (1600544312335):
Product Overview
Description
Product Description
TTTGO T-PCIE ESP32-WROVER-B AXP192 Chip WIFI Nano Card SIM Series Composable Development Board Hardware Description: | Buck module | |
Description: | ||

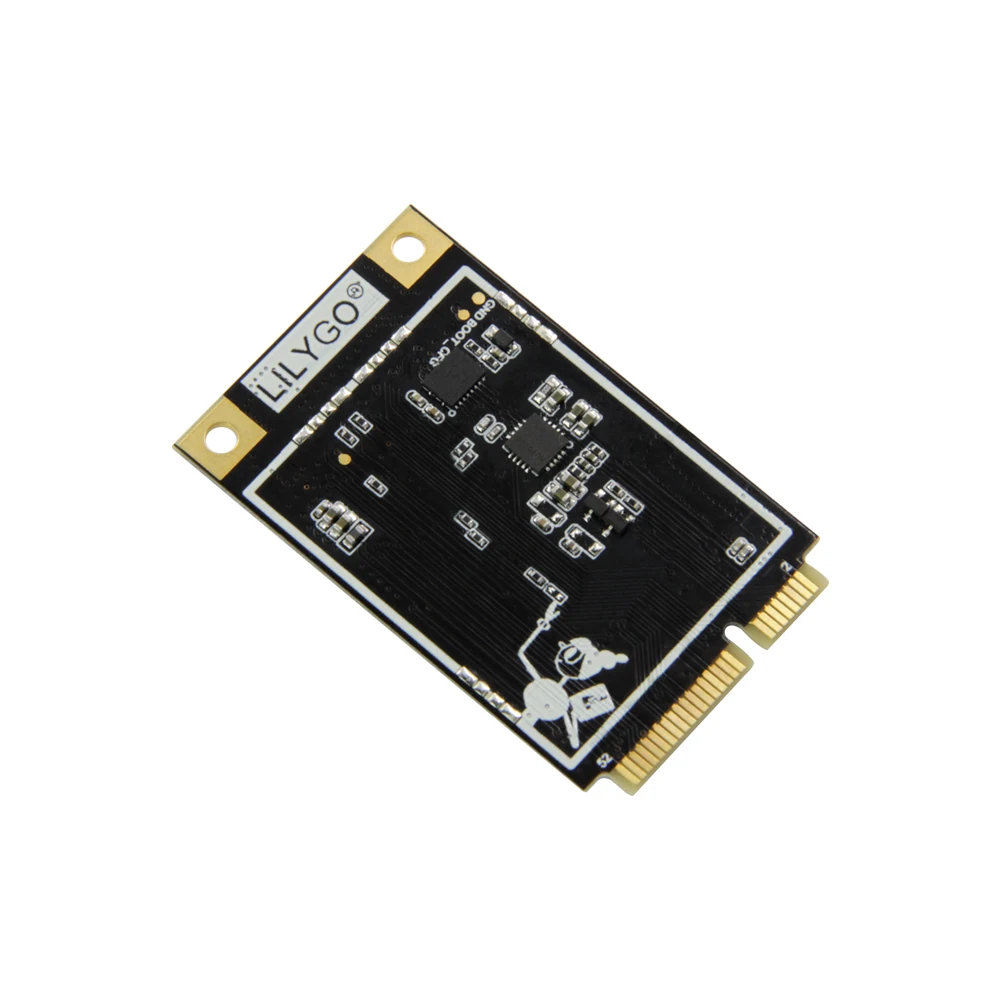

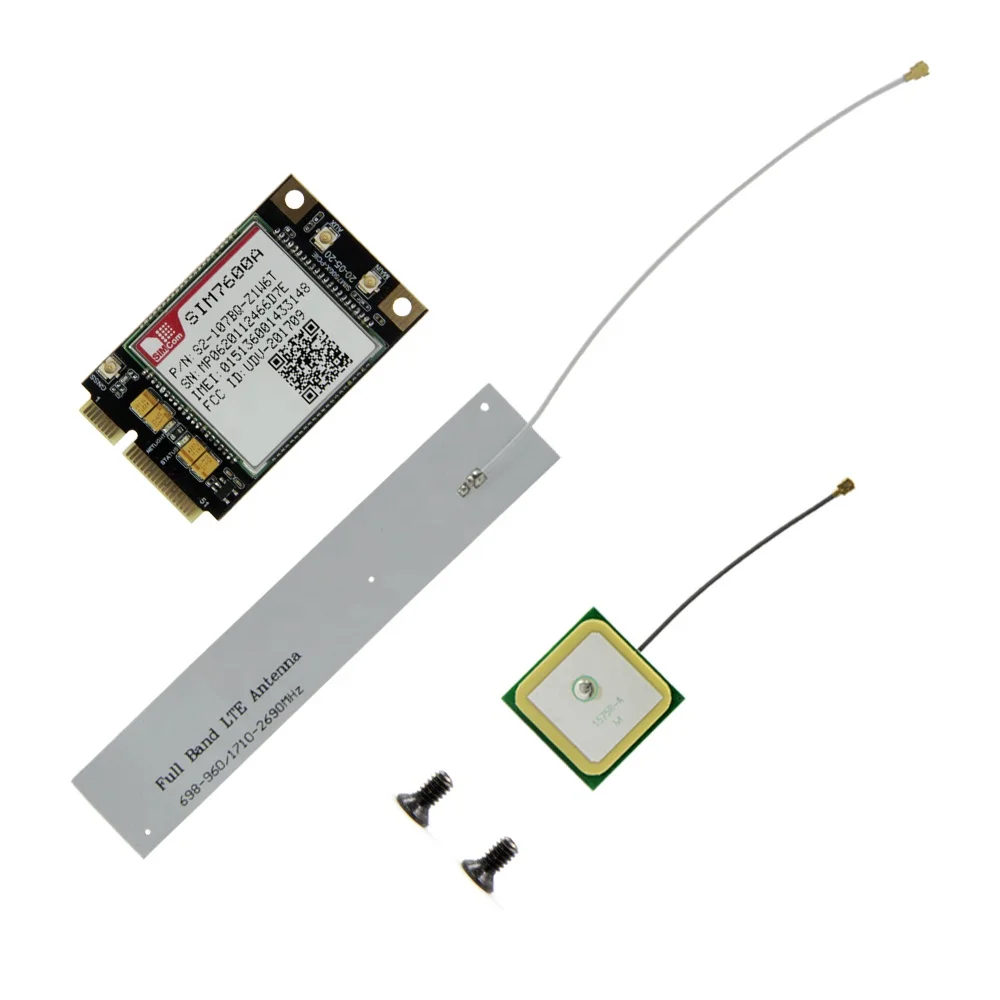

T-PCIE Introduce * This T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely * We Have: SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X,SIM7080X, A7608X-H, A7670X. SIM7000X Series： * T-PCIE SIM7000G / T-PCIE SIM7000E / T-PCIE SIM7000A / T-PCIE SIM7000JC * https://www.aliexpress.com/item/1005003903831132.html Notice: This version is compatible with T-PCIE shield. If you use it for other PCIE driver boards, you need to pay attention to the usage method. Note：TF card deck is upgraded to self-popping deck SIM7600 Series： | ASR6505 | |
Hardware Specifications | ||

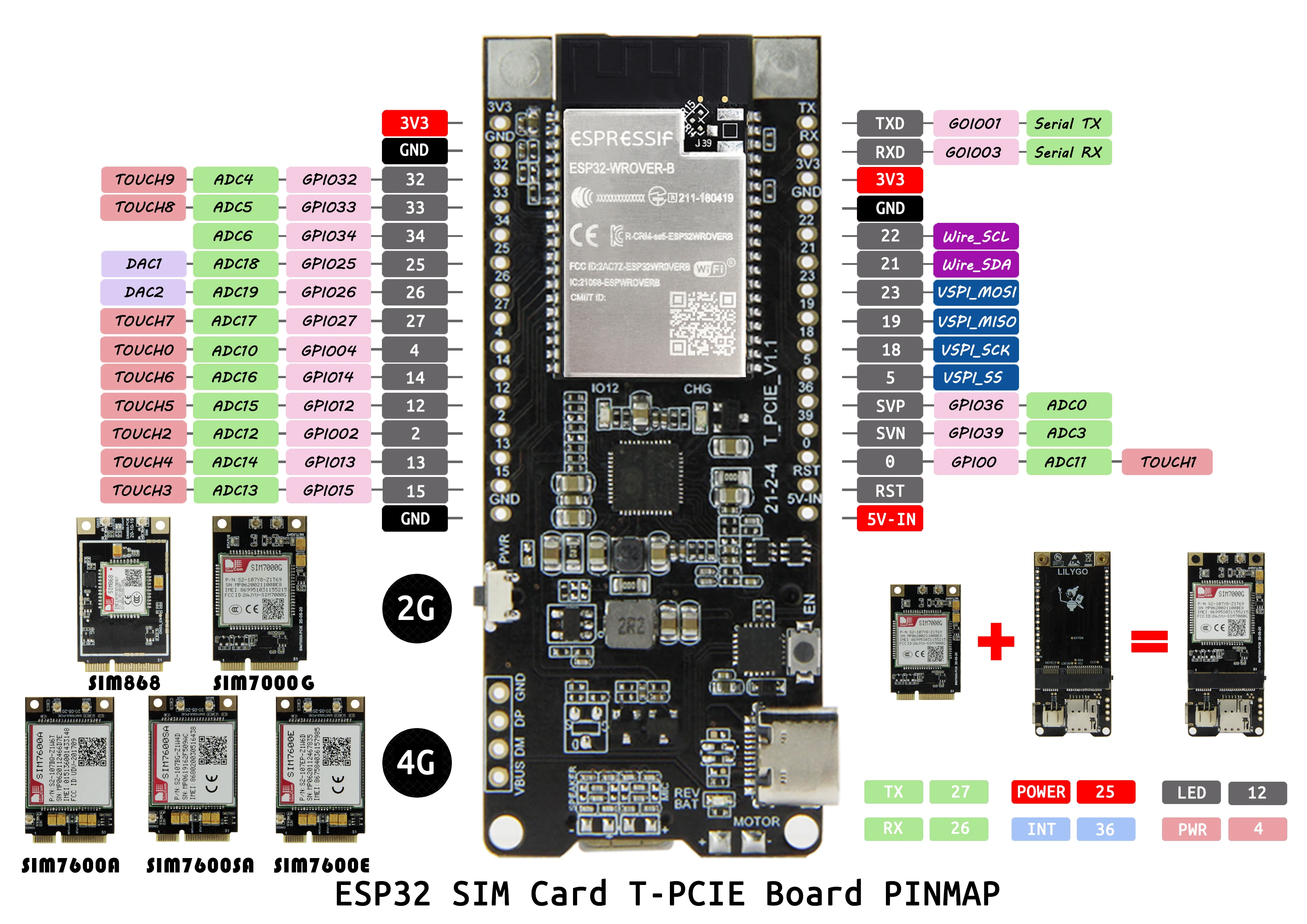

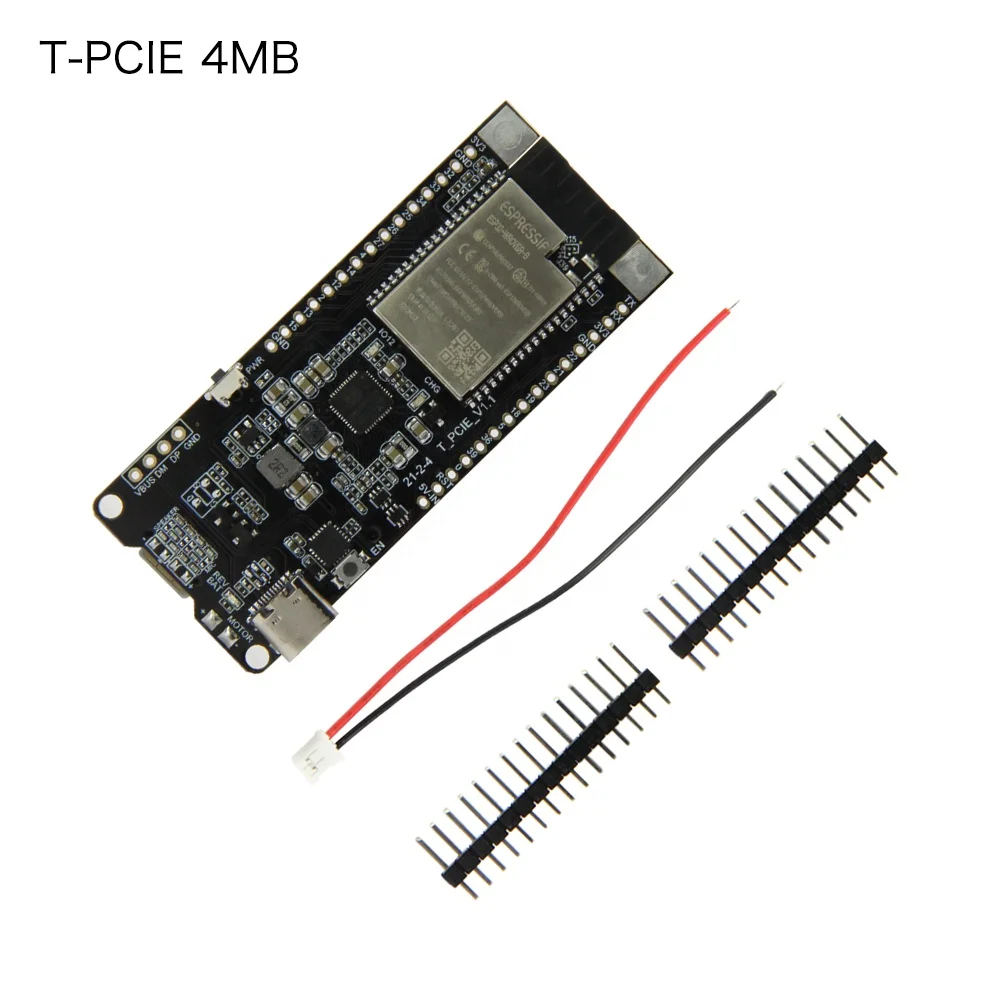

Chipset | ESP32-WROVER-B/E(B and E are shipped randomly) AXP192 Power Management Chip | |
FLASH | 4MB/16M | |
PSRAM | 8MB | |
SRAM | 520 kB SRAM | |
Button | PWR Power Switch,Reset | |
USB to TTL | CH9102F | |
On-board clock | 40MHz crystal oscillator | |
Peripherals | SIM Nano Card Slot,Mini PCIE Card Slot | |
Antenna | Onboard antenna(Default) | |
Working voltage | 2.7V-3.6V | |
Working current | - | |
Sleep current | About 700uA | |
Working temperature range | -40℃ ~ +85℃ | |
Size | 75*33*10.5mm | |
Weight | 14.5g | |
Power Supply Specifications | ||
Power Supply Input | USB 5V/1A | |
Charging current | 500mA | |
Battery Input | 3.7-4.2V | |
Charge IC | AXP192 | |
JST Connector | 2Pin 2.0mm | |
USB | Type-C | |
Software specification | ||
Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P | |
Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS | |
Encryption Type | AES/RSA/ECC/SHA | |
Firmware upgrade | UART download/OTA（Through network/host to download and write firmware） | |
Software Development | Support cloud server development /SDK for user firmware development | |
Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT | |
User Configuration | AT + Instruction set, cloud server, android/iOSapp | |
OS | FreeRTOS | |
More Information: https://github.com/Xinyuan-LilyGO/LilyGo-T-PCIE | ||
