Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment
Sand blasting machine powder drum magnetic separator for Iron powder purification equipment

Sand blasting machine powder drum magnetic separator for Iron powder purification equipment

Share on (1600544333465):


Price:$16,400.00 - $16,445.00

Quantity:


Product Overview

Description



Specification




model
5 + 2 combined multi drum magnetic separator
Magnetic drum specification
Two rollers with diameter of 35cm and length of 60cm
5 rollers with diameter of 22cm and length of 60cm

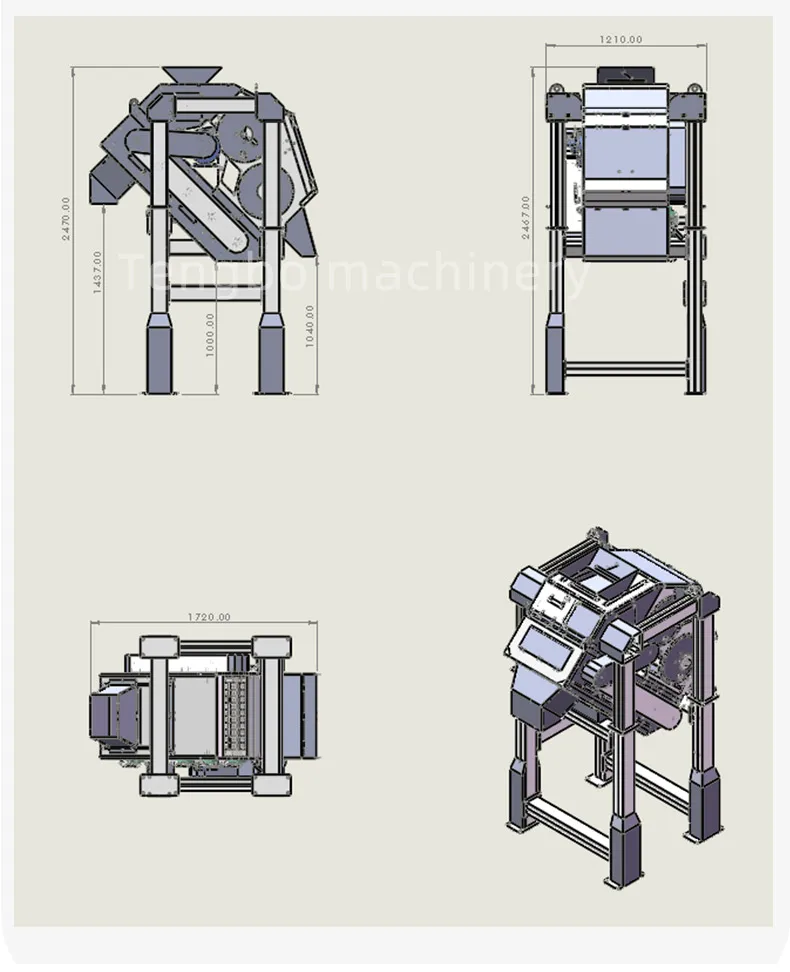

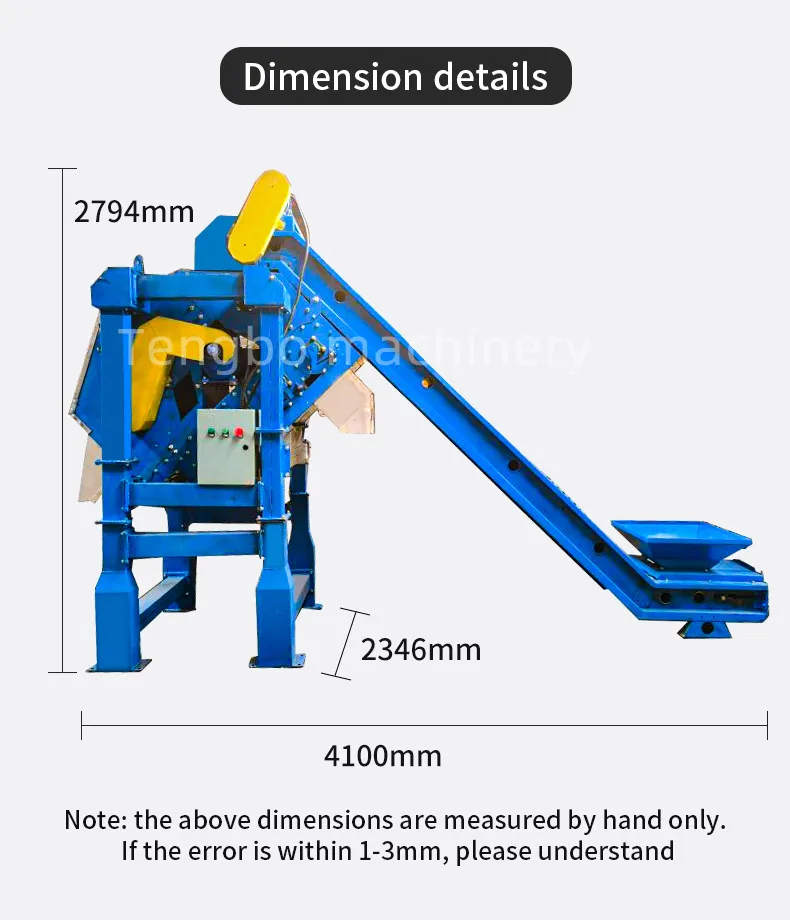

Appearance dimension
4100*2346*2794mm
weight
800kg
Motor power
1.1KW stepless speed change, one for 5 drum drive.
2. One roller drive is used,
One set is used for belt drive.
Full magnetic / semi magnetic
2 large half magnetic rollers + 5 small half magnetic rollers
Magnetic range
2 strong magnetic rollers, 1500-2500 gauss;
5 medium magnetic rollers 600-1500 Gauss
Feed particle
≤5cm
Magnetic drum speed
40-200r/min Adjustable speed
Deceleration device
Stepless speed reducer
Feed inlet
796*725mm(it can be customized according to the customer's site)


Product Description




working principle
After shaking and feeding, the product is evenly distributed to two large strong magnetic rollers. Firstly, the cleanliness of non-magnetic materials is ensured. Secondly, the purity of magnetic materials absorbed is not high, and non-magnetic materials and some intermediate products (non-magnetic materials containing iron - adhesive) will be mixed. Then, it will be purified by medium magnetic roller for five times. In the process of five times of purification, some mixed non-magnetic materials will fall back to the non-magnetic area in turn.




Separable Materials:
The iron powder content is high, and all crushing purification processes mixed with aluminum pin, aluminum chip, copper powder, copper wire, copper bran, grinding wheel ash and shot blasting ash are applicable to materials with high difficulty in purifying iron.






The product will




Main customer groups:
smelting copper, aluminum, stainless steel, nonferrous metal iron removal process manufacturers, waste metal recycling and sorting.














Packing & Delivery






Certifications




Company Profile




Recommend Products




FAQ


1. How about the quality of your products?
A: our products are produced in strict accordance with national and international standards. We will test each machine before delivery.

2、How about the warranty?
A: all our products are guaranteed for one year. An additional set of vulnerable parts can be brought to facilitate your replacement.

3. When is the delivery time?
A: according to the specific data provided by customers, the delivery time of our customized equipment is 15-30 days.

4. Service and payment terms?
A: we can accept T / T and L / C; 30% deposit and 70% balance before ex works delivery, which is international trade practice;
The finished product pictures will be provided to the customer before delivery.
