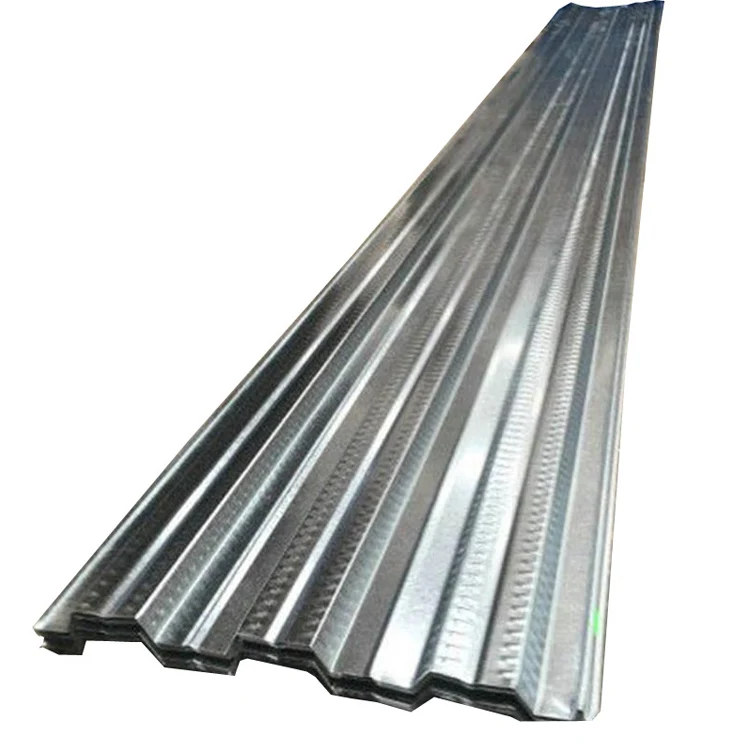

Three waves strong bearing metal decking floor
- Category: >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (1600544333696):
Product Overview
Description
Products Description

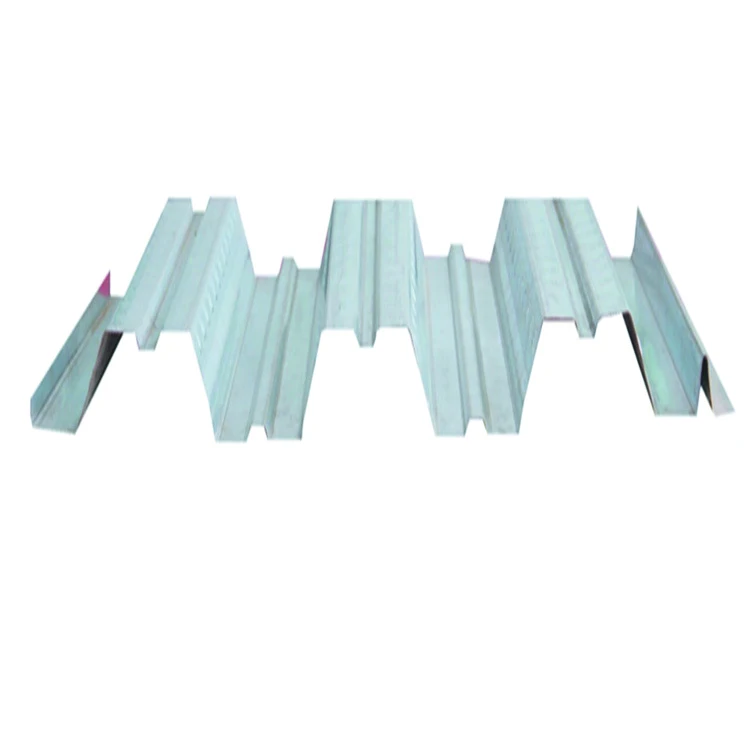

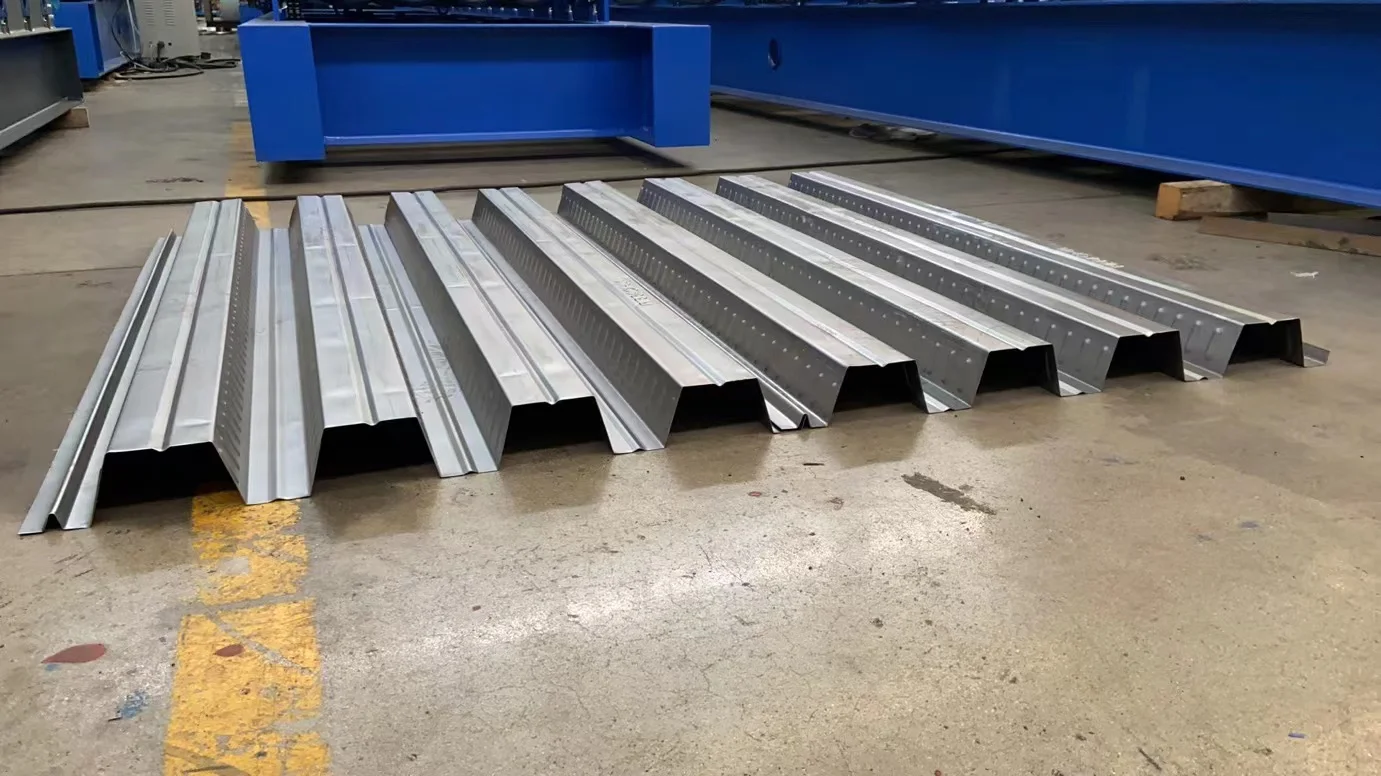

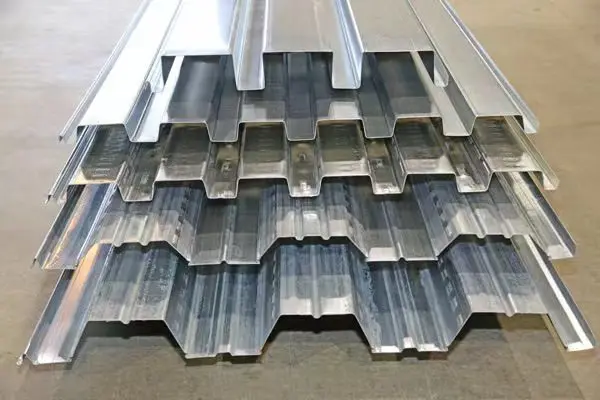

Description of the three waves strong bearingmetal decking floor
The metal decking floor is also called profiled steel plate, load-bearing plate, etc. The decking floor is made of galvanized steel sheet by roll forming and cold bending, and its cross-section is V-shaped, U-shaped, trapezoidal or similar to these types of corrugated steel plates. The role is when permanent templates are used. Another name for yx51-305-915 profiled steel plate is 2w-305 or yl51-915. Its technical parameters, the wave height is 51mm, it consists of three waves, each wave distance is 305mm, and the effective coverage area is 915mm. It uses a 1200mm cold-rolled hot-dip galvanized steel sheet, which has a strong bearing capacity. Because it adopts an open-type design, its fire resistance is also better than that of general floor decks.etal glazed tile is widely used in industrial and civil buildings such as factory buildings, residences, hotels and villas. It is highly praised by architects for its diverse shapes, simple and colorful glaze, environmental protection and durability. Compared with traditional metal glazed tiles, Zhongtuo glazed tiles have the following characteristics: High strength, good flatness, low water absorption, folding resistance, frost resistance, acid and alkali resistance, and never fade. Take a random glazed tile pictures for your reference:
Product Parameter
Wave height | 51mm |
Wave distance | 305mm |
Wave | 3 |
Effective coverage area | 915mm |
Bearding capacity | strong |

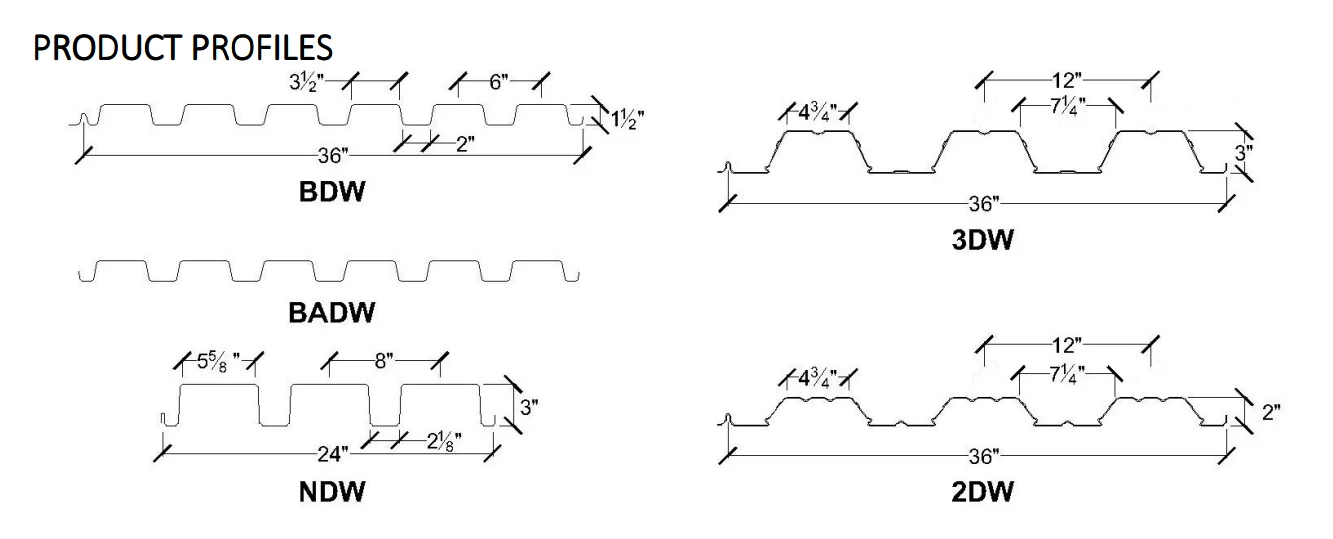

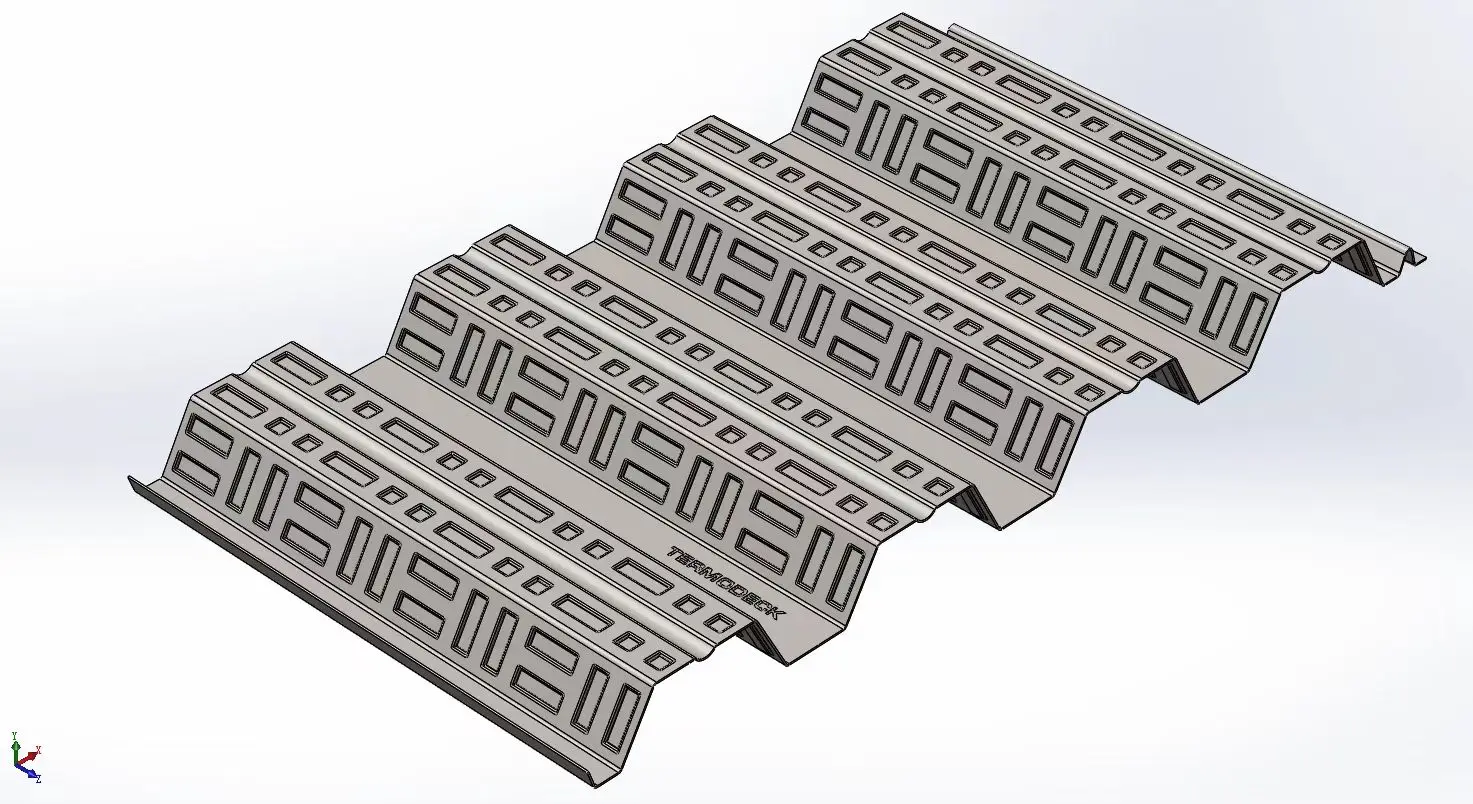

Here is the drowing profile for the main types of the metal floor decking
Why Choose Us
Features of the three waves strong bearing metal decking floor
1: To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay profiled steel plates and layer-by-layer pouring concrete slabs for flow construction.

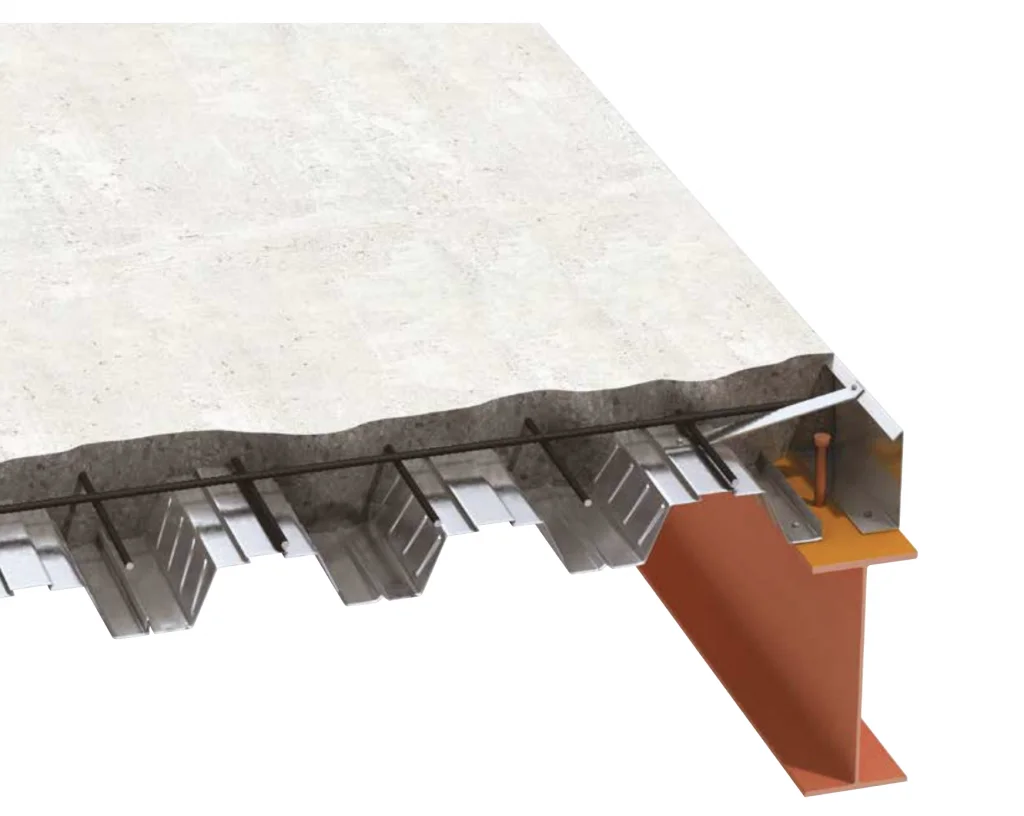

2: In the use stage, the decking floor is used as the tensile reinforcement of the concrete floor, which also improves the stiffness of the floor and saves the amount of steel and concrete.

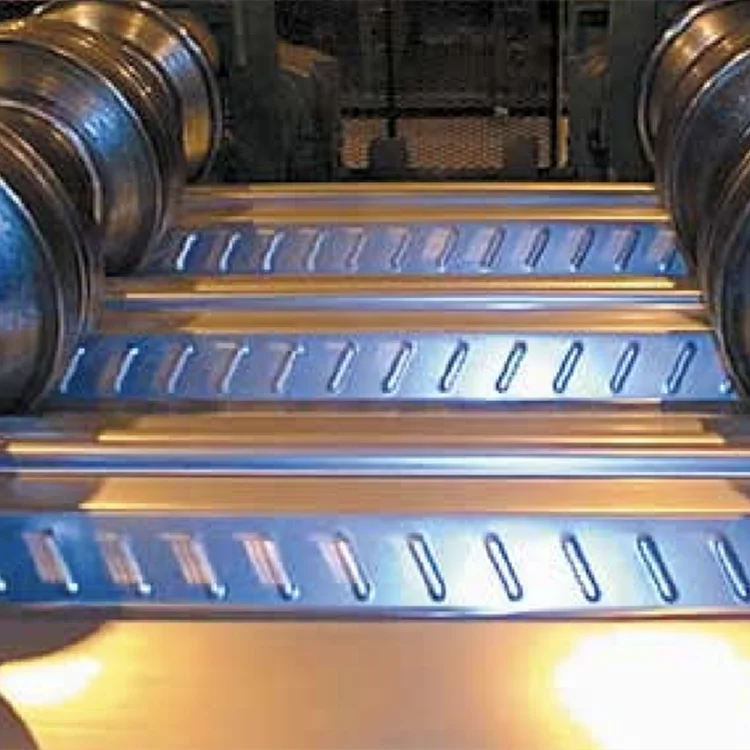

3: The embossing on the surface of the profiled plate makes the maximum bonding force between the decking floor and the concrete, so that the two form a whole, with stiffeners, so that the floor deck system has a high-strength bearing capacity.
4: Under the cantilever condition, the decking floor is only used as a permanent formwork. The length of the overhang can be determined according to the section characteristics of the floor deck. In order to prevent the cracking of the cantilever plate, it is necessary to add negative reinforcement at the support according to the design of the structural engineer.
5: Under the action of concentrated load, the type of floor deck and the amount of reinforced concrete required for the floor can be calculated according to the principle of equivalent bending moment.

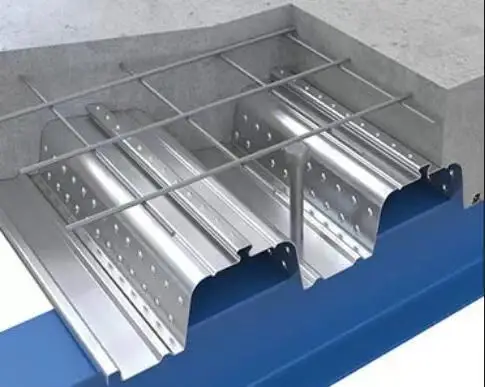

6: The floor decking is used as a steel slab for construction when pouring reinforced concrete. After the cylindrical head welding stud penetrates the slab and is welded to the upper flange of the steel beam, it can play a lateral support role for the steel girder.
2: In the use stage, the decking floor is used as the tensile reinforcement of the concrete floor, which also improves the stiffness of the floor and saves the amount of steel and concrete.
3: The embossing on the surface of the profiled plate makes the maximum bonding force between the decking floor and the concrete, so that the two form a whole, with stiffeners, so that the floor deck system has a high-strength bearing capacity.
4: Under the cantilever condition, the decking floor is only used as a permanent formwork. The length of the overhang can be determined according to the section characteristics of the floor deck. In order to prevent the cracking of the cantilever plate, it is necessary to add negative reinforcement at the support according to the design of the structural engineer.
5: Under the action of concentrated load, the type of floor deck and the amount of reinforced concrete required for the floor can be calculated according to the principle of equivalent bending moment.
6: The floor decking is used as a steel slab for construction when pouring reinforced concrete. After the cylindrical head welding stud penetrates the slab and is welded to the upper flange of the steel beam, it can play a lateral support role for the steel girder.
Advantages and Function of metal decking floor
1. The bonding ability between the profiled steel plate of the floor deck and the concrete is very good.
2. The transverse shear reinforcement can greatly improve the bonding effect between the profiled steel plate and the concrete, so that the shear resistance of the composite plate is greatly improved, but the improvement of the bending resistance is not very large.
3. The test shows that the ultimate bearing capacity of the plate is > 3.12, and the bearing capacity in normal use is > 1.76, which has a high bearing capacity.
4. The ultimate shear capacity is greater than the theoretical calculation result, and the shear capacity meets the requirements.
5. The bearing capacity of this type of profiled steel plate meets the design requirements, the ductility is good, and it has a large strength reserve, which has a good promotion and application value.
6. The construction is simple and fast, and the splicing is convenient.
7. Replace traditional templates and improve the shortcomings of traditional templates.
8. It can be used as part of structural strength to reduce material cost.
9. It is easy for the construction of reinforcement, wiring and piping.
10. Beautiful and practical, overall design.
2. The transverse shear reinforcement can greatly improve the bonding effect between the profiled steel plate and the concrete, so that the shear resistance of the composite plate is greatly improved, but the improvement of the bending resistance is not very large.
3. The test shows that the ultimate bearing capacity of the plate is > 3.12, and the bearing capacity in normal use is > 1.76, which has a high bearing capacity.
4. The ultimate shear capacity is greater than the theoretical calculation result, and the shear capacity meets the requirements.
5. The bearing capacity of this type of profiled steel plate meets the design requirements, the ductility is good, and it has a large strength reserve, which has a good promotion and application value.
6. The construction is simple and fast, and the splicing is convenient.
7. Replace traditional templates and improve the shortcomings of traditional templates.
8. It can be used as part of structural strength to reduce material cost.
9. It is easy for the construction of reinforcement, wiring and piping.
10. Beautiful and practical, overall design.
