Human & vehicle detection thermal eyeball camera strobe light audio alarm thermal & optical Bi Spectrum network turret camera
- Category: >>>
- Supplier: Shenzhen VeeZoom Technology Corporation
Share on (1600544334793):
Product Overview
Description

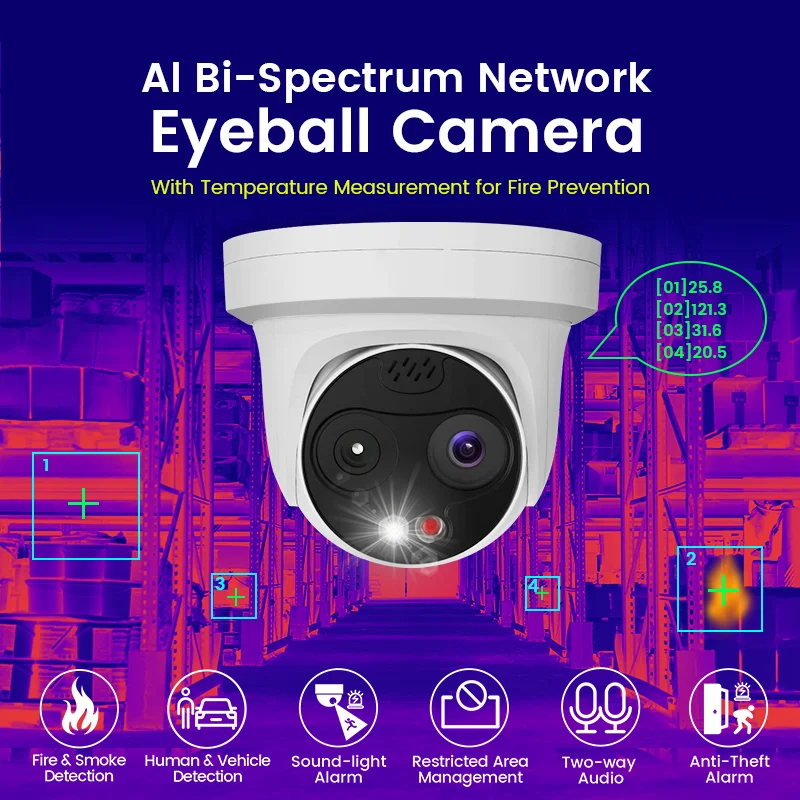

Human & vehicle detection thermal eyeball camera strobe light audio alarm thermal & optical Bi-Spectrum network turret camera

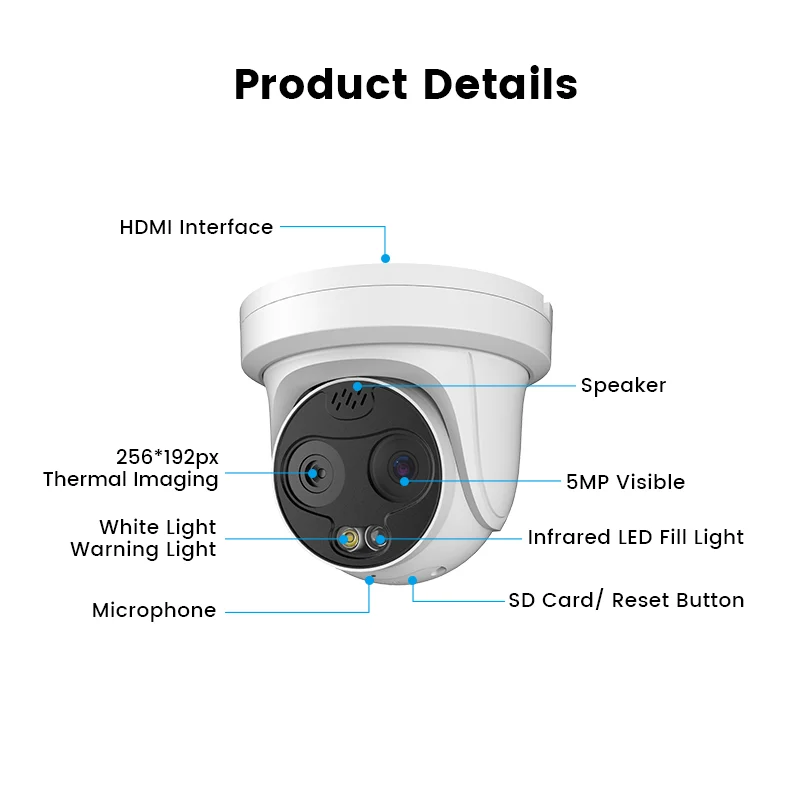

Outstanding Features：
> Powered by deep learning technology
> Uncooled VOx Micro bolometer with 256×192 resolution
> Support thermal + optical Bi-spectrum
> Thermal: 3.5 mm fixed lens, Visible: 4 mm fixed lens
> Support Human, Vehicle, Fire and Smoking detection
> Support 3 temperature measurement rule types (Spot, Line, Area)
> Image processing technology: DVE, 3D DNR, Defog, WDR
> Built-in microphone and speaker, support sound-light alarm
> Smart IR distance up to 35m
> Support I/O alarm, RS485, Micro SD card, up to 256G
> DC12V/DC24V, PoE power supply
> Uncooled VOx Micro bolometer with 256×192 resolution
> Support thermal + optical Bi-spectrum
> Thermal: 3.5 mm fixed lens, Visible: 4 mm fixed lens
> Support Human, Vehicle, Fire and Smoking detection
> Support 3 temperature measurement rule types (Spot, Line, Area)
> Image processing technology: DVE, 3D DNR, Defog, WDR
> Built-in microphone and speaker, support sound-light alarm
> Smart IR distance up to 35m
> Support I/O alarm, RS485, Micro SD card, up to 256G
> DC12V/DC24V, PoE power supply
Product Description
Specification
Thermal Camera | |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Resolution | 256×192, Image can be scaled up to 704×576 |
Pixel Size | 12um |
Spectral Range | 8~14um |
Thermal Sensitivity (NETD) | ≤ 60mK |
Focal Length | 3.5 mm |
Angle of View | H: 48°, V: 36° |
Visible Camera | |
Image Sensor | 1/2.7" CMOS |
Effective Resolution | 2880(H)×1620(V) |
Shutter Speed | 1/5 ~ 1/20,000s |
Wide Dynamic Range | True WDR 120dB |
Min. Illumination | Color: 0.001Lux @(F1.2, AGC ON), B/W: 0.0003Lux @(F1.2, AGC ON) |
S/N Ratio | More than 55dB |
Focal Length | 4mm |
Angle of View | H: 92°, V: 46° |
Illuminator | |
IR Distance | Up to 35m |
White Light | Strobe light |
Smart Function | |
Smart Function | Temperature measurement, human detection and vehicle detection |
Advanced Intelligence Analysis | Smoker detection, Smoke and Flame detection, fire point detection |

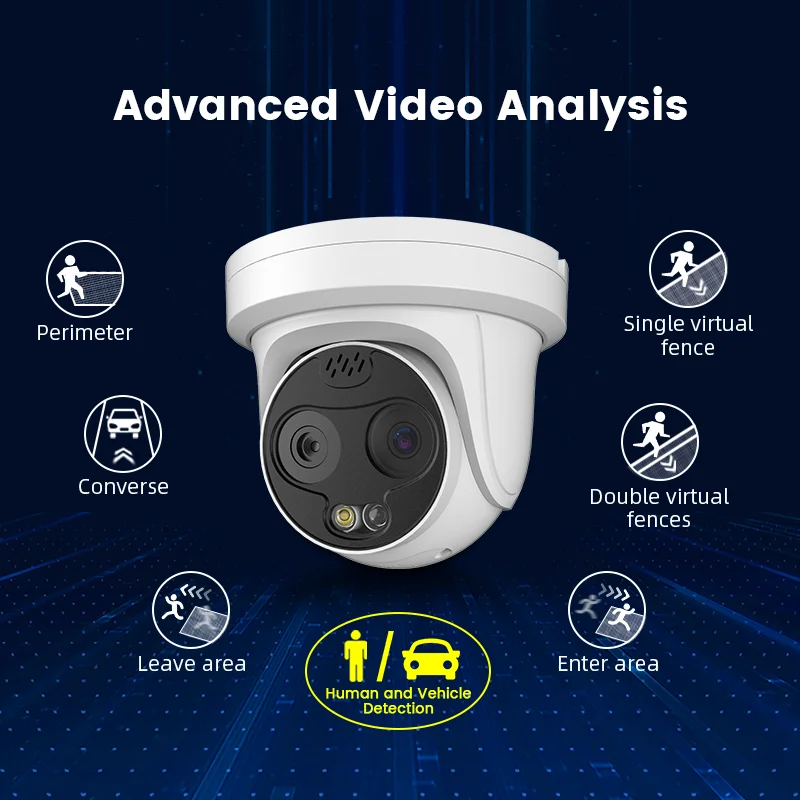

Intelligent Analysis | Perimeter, Single virtual fence, Double virtual fence, Multi loiter, Converse, Enter area, Leave area (these 7 function support accurate detection of people/vehicles) , Personnel count, |
Sound-light Alarm | Support white light flashing and horn warning |
Temperature Measurement | 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (points, areas, line). |
Temperature Alarm | Over temperature alarm, Temperature difference alarm |
Accuracy | ±2℃ / ±2% |
Response Time | ≤ 30ms |
Temperature Measurement Range | -20°C ~ 150°C (-4°F ~ 302°F) |
Network | |
Protocols | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP ,802.1x |
Interoperability | ONVIF, SDK |
Web Viewer | |
Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch input, 1ch output |
Built-in Mic & Speaker | Support |
Alarm Interface | 1ch input, 1ch output |
RS485 | Support |
HDMI Interface | Support |
Reset Button | Support |
SD Card Slot | Support, up to 256GB |
General | |
Power Supply | DC12V/DC24V/POE (IEEE 802.3af) |
Power Consumption | Max 10W |
Working Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Ingress Protection | IP66 |
Casing | Metal |
Company Profile
Packaging & Shipping
FAQ
Q: How long is the warranty ?
A: All goods have been checked before dispatch. Warranty for 1 years, have lifetime technical service.
Q: Could you support OEM&ODM ?
A:Of course you can. Color, logo, function, packaging or other. Welcome to do OEM.
Q: How long is the delivery time ?
A: Normally the package will be sent within 3-7 working days after your payment is verified by Alibaba.
Q: After-sales services ?
A: All goods will be inspected and tested before shipment.Customer's satisfactory is most important to us. If you have any problem or questions regarding our transaction.Please contact us by Trade manager or Skype and so on. It will be responded within 24 hours.
If you any further problem, welcome to contact us.Thanks for your interest.
