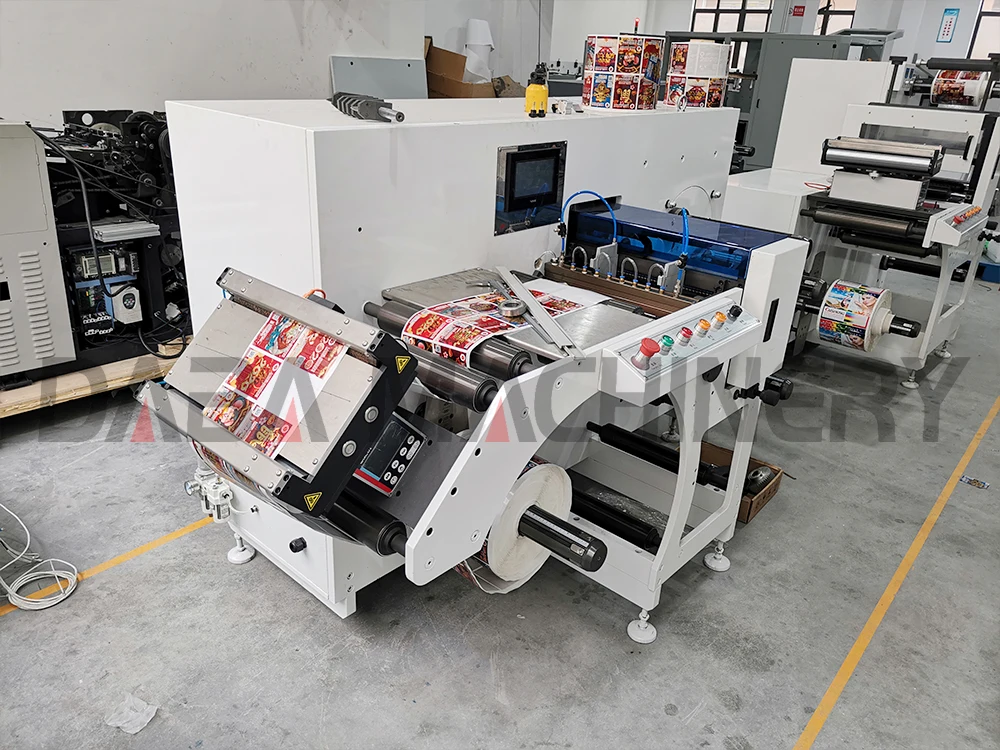

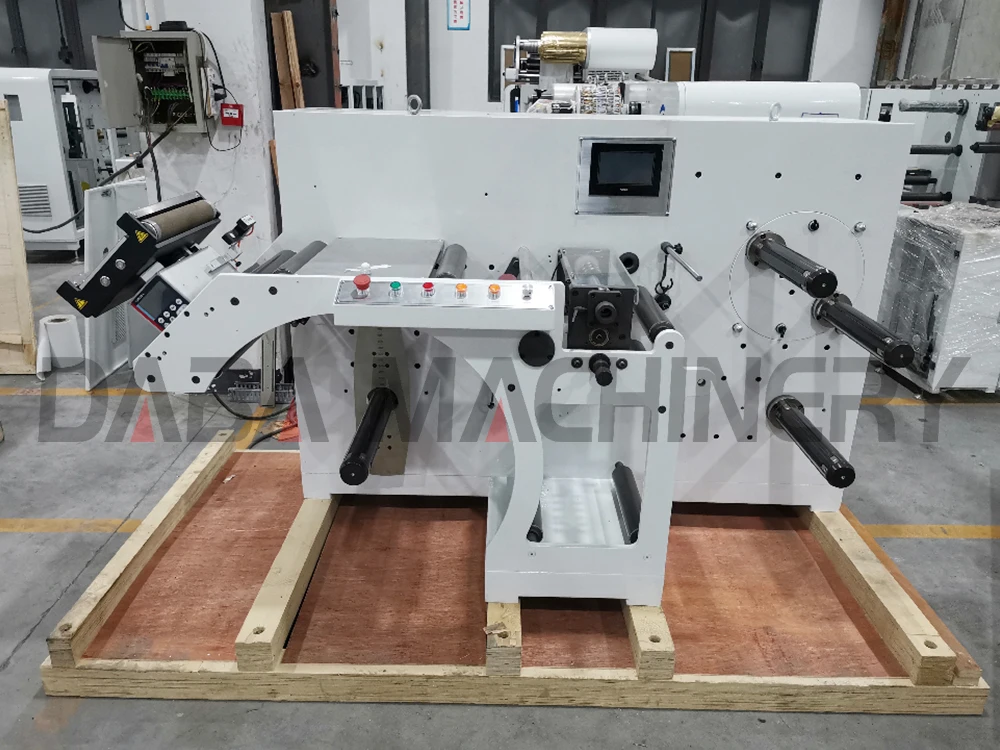

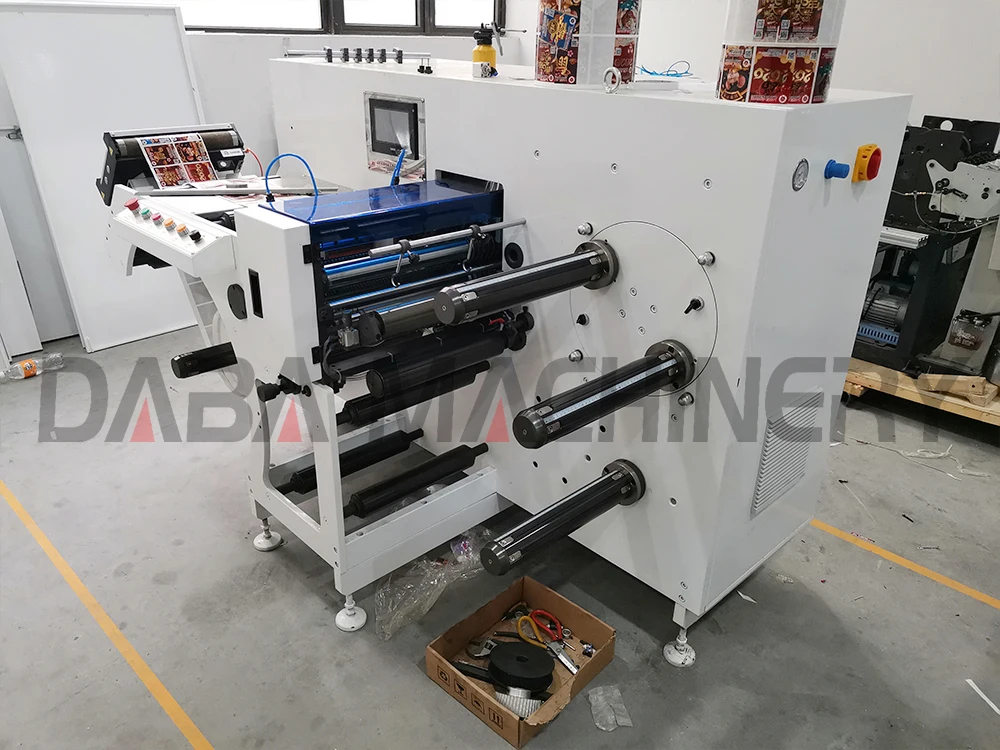

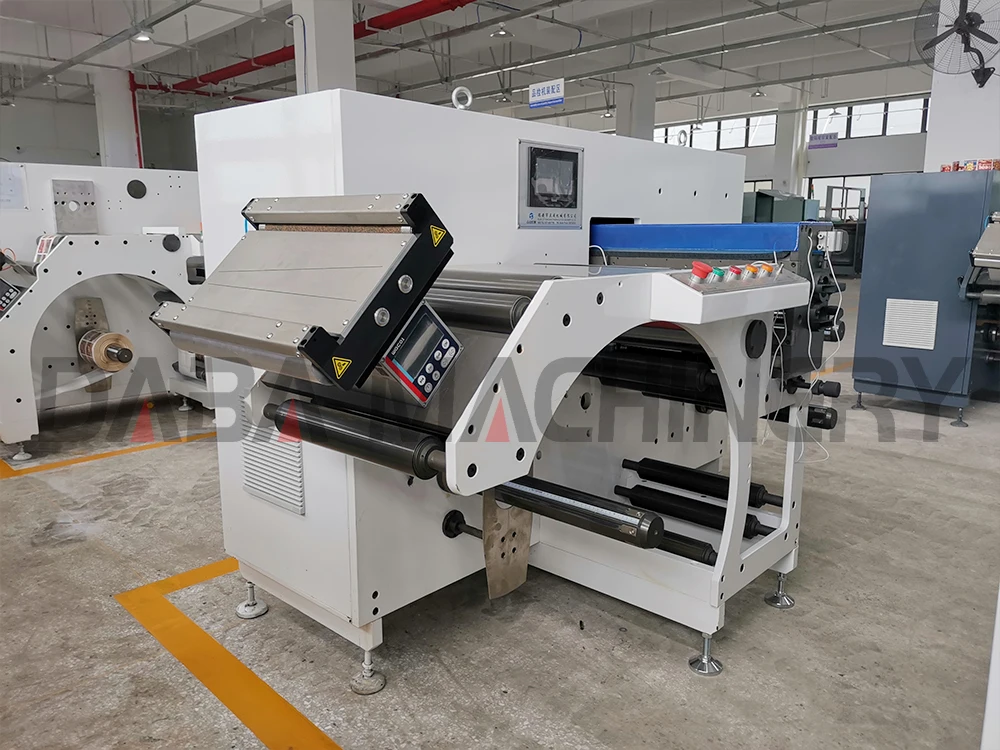

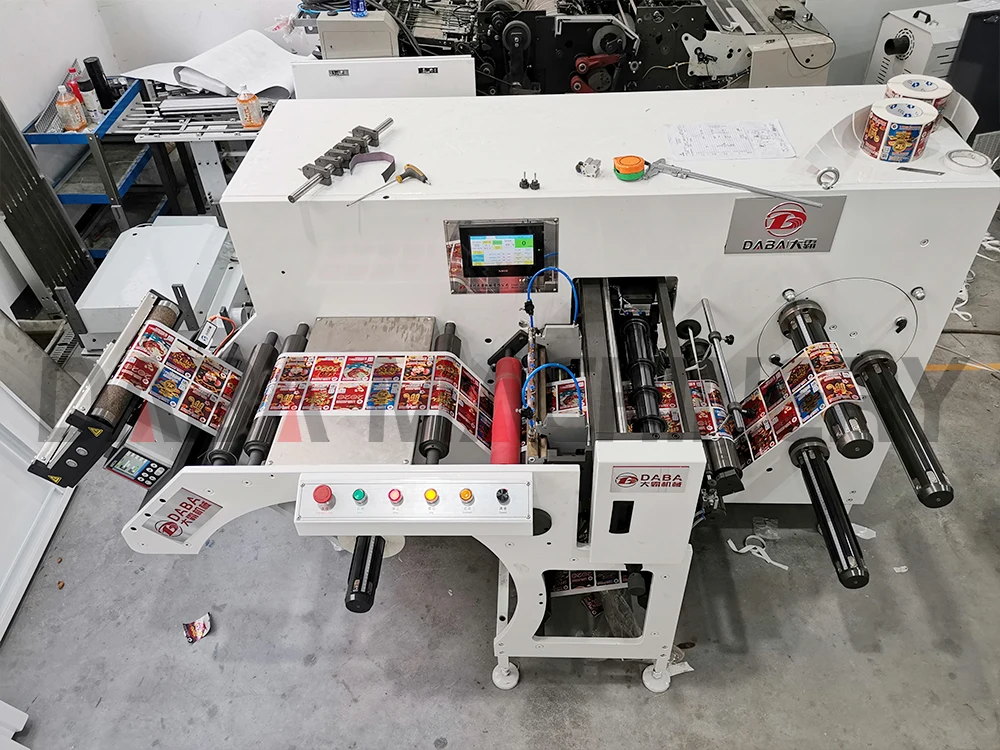

DINGYU pvc film release paper slitting cross cutting machine
- Category: >>>
- Supplier: Wenzhou Dingyu Machinery Co. Ltd.
Share on (1600544346439):
Product Overview
Description
Products Description
Main Features
1.Paper cutting machine to the entire volume or the entire printing material for the cut of a fixed length, such as supermarket labels, must use fixed-length slitting control
2.Slitting length can be set continuously, if it’s error of the actual slitting length, it’s easy to calibrate by the way of set the parameters.
3.The slitting control of paper slitting machine is in 2 modes: static slitting and dynamic slitting.
- Static slitting: Accurately stop when the set length arrives, and then static cutting, and restart operation after cutting.
- Dynamic slitting: without stopping but send slitting signal when the set length arrives, and then dynamic cutting directly on the process of material movement Unwinding unit adopt photoelectric web guide system, with high precision.
Control mode in two steps: manual and automatic
-Rewinding way: center coiling
- The tension control of unwinding unit and rewinding unit is adopt automatic tension control system;
the control modes are tension feedback control and taper control.
- The machine keep round cutter and flat cutter two tools, with reliable quality, easy to adjust.
- The slitter has fixed length automatic stop and the length meter automatically functions.
- The Slitter has trimming device, the edge material discharged by the fan.
- The machine is applicable for the slitting operation for the varies of thin coils of narrow band (insulating materials, mica tape, film, etc.)
Machine Parameter | ||||
Items | DBGFQ-370 | DBGFQ-470 | ||
Max. Web Width | 370mm | 470mm | ||
Max. Slitting width: | 350mm | 450mm | ||
Min. Slitting Width: | 17mm | 17mm | ||

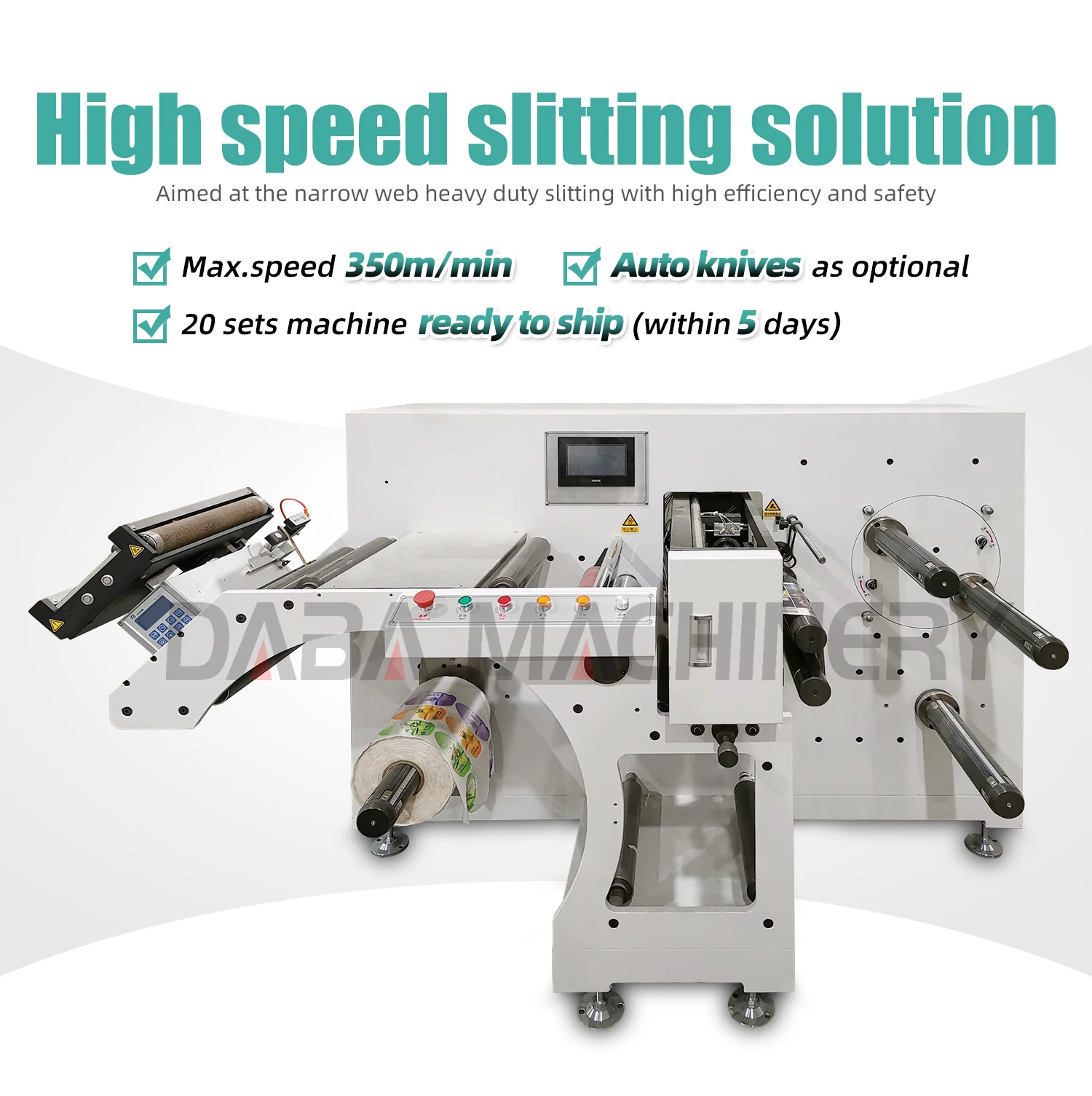

Max. Speed: | 350m/min | 350m/min | ||
Max. Unwinding Dia.: | 800mm | 800mm | ||
Max. Up Rewinding Dia: | 450mm | 450mm | ||
Max. Down Rewinding Dia: | 700mm | 700mm | ||
Dimension (L*W*H): | 2500*1500*1600mm | 2500*1600*1600mm | ||
Weight: | 1300KGS | 1500KGS | ||
Application and Sample
Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.

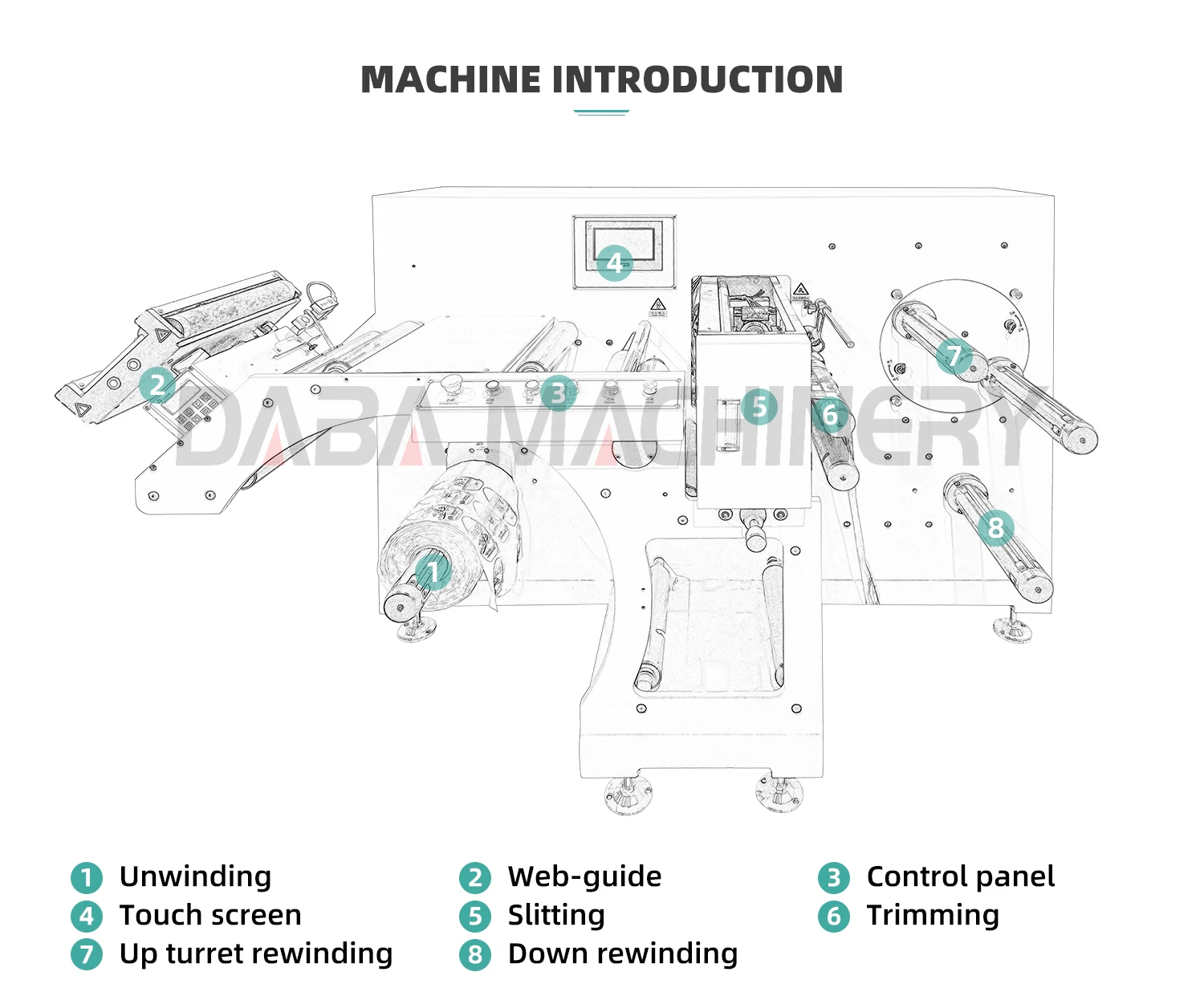

Details Images
1 Unwinding Unit
a.Touch screen auto tension,easy to operate
b.Scales on the shaft,dia clear to see
c.Photoelectric material lack stop,stop in time
2 Web Guide
a.Ultrasonic type System with high precision
b.Designed for high speed,rewinding smoothly
c.With Splice table,rolls easy to connect
3 Control Panel
a.Knob switch button,smooth interaction
b.Number/meter counting,stop accurately
c.Double side control design,easy to reach
4 Touch Screen
a.Machine running status,clear at a glance
b.Detailed parameters set easily
5 Slitting Unit
a.Razor knife for film/foil,diversified needs
b.Auto knives as optional,safe and convenient
c.With scales,slitting width easy to set
6 Trimming
a.Vacuum type,stable trimming
b.1.1kw fan,high-power for high speed
7 UP-Rewinding Unit
a.Adopts flange design,airshaft easy to change
b.Adopts(1-6)"airshaft,for different sizes
c.Turret design,small-dia roll simply rewind
8 Down-Rewinding Unit
a.Flange design with cylinder,stable flexible
b.Max.dia 700mm,rewinding easily handled

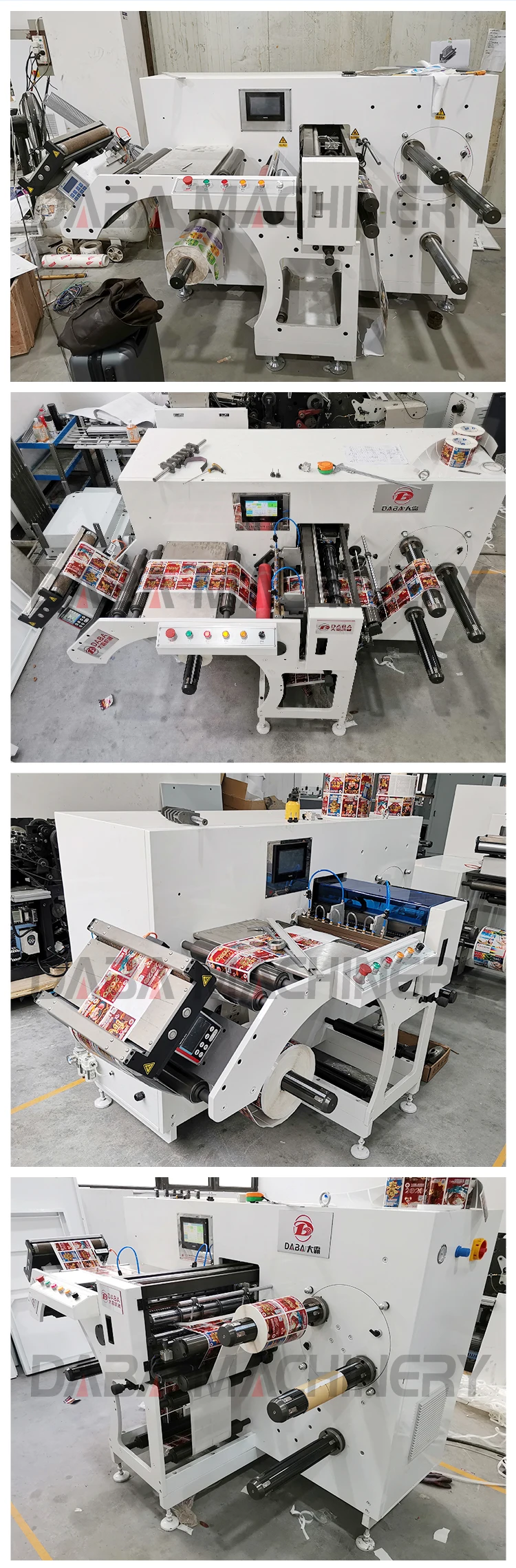

In Factory Photo
Services
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some
samples of your products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
samples of your products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exported documents could be made perfectly
DABA COMPANY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.
DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines But the buyer need to supply the round trip tickets food hotel cost.
DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines But the buyer need to supply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.
DABA Company technician will teach and train the learners hand by hand till he can operate machine by himself.
DABA Company technician will teach and train the learners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year. Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
Contact
Product packaging
Company Profile
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100 USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100 USD one day per person.
