Atomstack A5 M50 CNC Laser Cutting and Engraving Machines Portable Laser Cutting Machine Metal Small Laser Engraving
- Category: >>>
- Supplier: Maxwell (Shenzhen) Technology Ltd.
Share on (1600544351066):
Product Overview
Description
Selling points:
1. Warehouse in USA, UK, Gemany,Please contact us directly
2. Accept Dropshipping
3. Accept OEM/ODM orders
1. Warehouse in USA, UK, Gemany,Please contact us directly
2. Accept Dropshipping
3. Accept OEM/ODM orders
Product Description
1.New filter eye protection acrylic design: The filter acrylic protective cover plays a good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch the laser engraving. Reduce your goggle expense and the inconvenience of wearing goggles.
2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3.Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6.Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation focusing technology, the optical power is 5-5.5W, the laser focal area is reduced to 0.08*0.08mm, the focal length of 30mm is adopted, and the effective energy range is longer , The laser can easily cut 15mm thick wood and 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of 100W CO₂ laser engraving machine.
7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9.Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size
2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3.Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6.Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation focusing technology, the optical power is 5-5.5W, the laser focal area is reduced to 0.08*0.08mm, the focal length of 30mm is adopted, and the effective energy range is longer , The laser can easily cut 15mm thick wood and 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of 100W CO₂ laser engraving machine.
7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9.Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

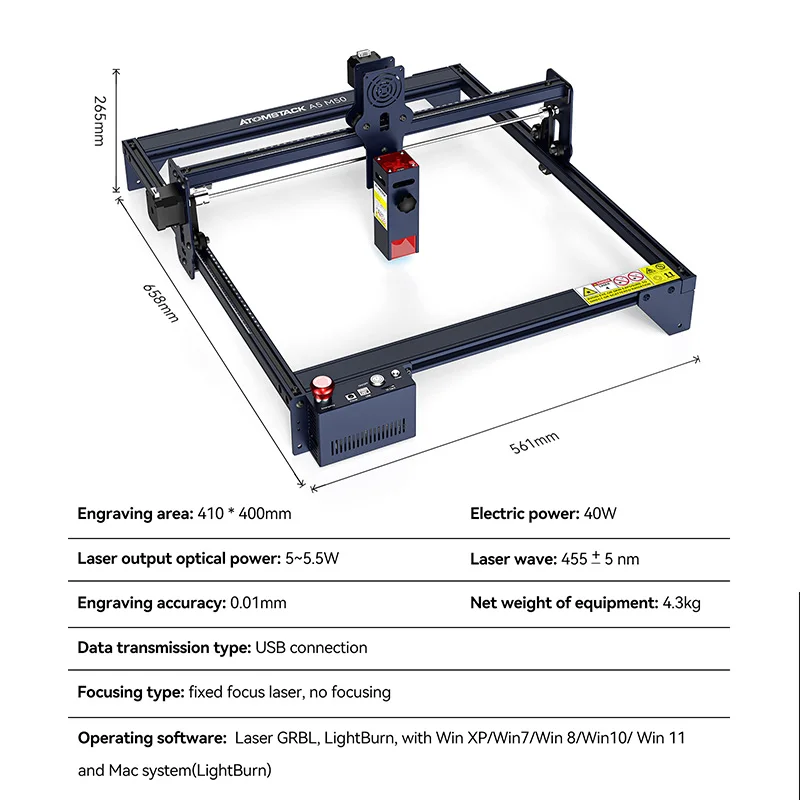

Item model number | ATOMSTACK A5 M50 |
Print Size | Recommend Print Size 410*400mm |
Carving Objects | All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal |
Cutting Objects | Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board |
Laser power | 40W |
Laser output power | 5-5.5W |
Wave Length | 445 ± 5nm |
Engraving accuracy | 0.01mm |
Focusing method | fixed focus laser, no need to focus |
Laser protective cover | Protect the user's eyes and prevent pets from grabbing the laser spot |
Operating software | LaserGRBL, LightBurn, |
Support system | support Win XP / Win 7 / Win 8 / XP / Win 10 system |
Input Format | NC, BMP, JPG, PNG, DXF, etc. |
Data transmission method | USB connection |
Input Voltage | AC100-240V, 50/60Hz |
Output Voltage | DC12V, 5A |
Certification | CE FCC RoHS |
Packing&Shipping
FAQ
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free express shipping,about 6-10 days to door.
Q: Can I adjust the laser power?
A: yes ,can adjustable.
Q:New ATOMSTACK A5 M50 40W Laser in the description informs 5-5.5W, wouldn't it be 40W?
A :The total power of the machine is 40W, and the laser power is 5-5.5W.
Q: Does this machine need to be assembled when I received it?

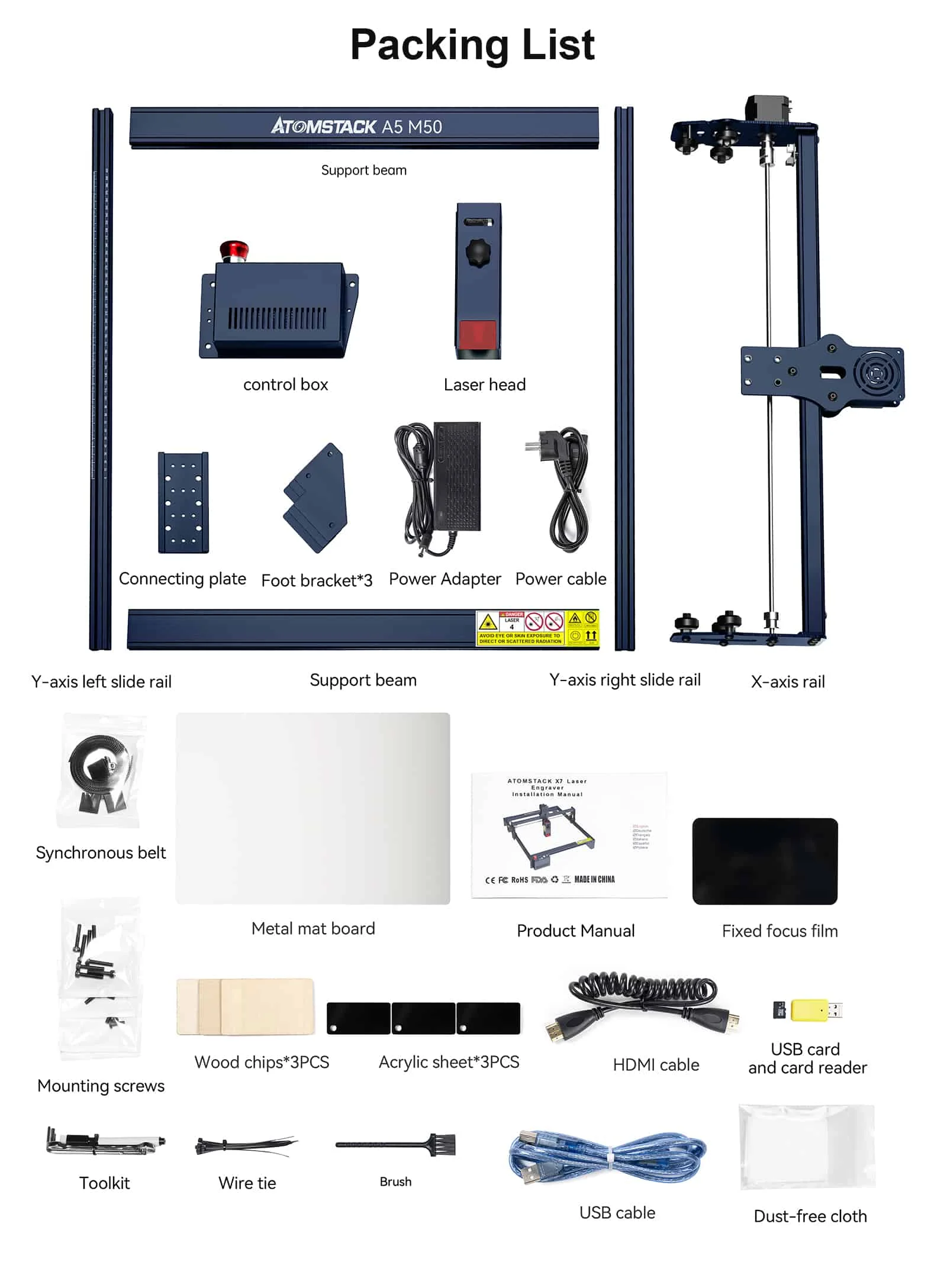

A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.
Q：I can't assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.
Q:Hello, does she cut acrylic? If so, what's the maximum thickness she cuts?
A:Yes. about 10mm Acrylic. Cutting Times about 5 min.
Q:How's the cut and carving? The machine's new, but I don't know how to handle it
A:hello. You can contact our online customer service for detailed consultation.
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free express shipping,about 6-10 days to door.
Q: Can I adjust the laser power?
A: yes ,can adjustable.
Q:New ATOMSTACK A5 M50 40W Laser in the description informs 5-5.5W, wouldn't it be 40W?
A :The total power of the machine is 40W, and the laser power is 5-5.5W.
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.
Q：I can't assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.
Q:Hello, does she cut acrylic? If so, what's the maximum thickness she cuts?
A:Yes. about 10mm Acrylic. Cutting Times about 5 min.
Q:How's the cut and carving? The machine's new, but I don't know how to handle it
A:hello. You can contact our online customer service for detailed consultation.
Note
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
