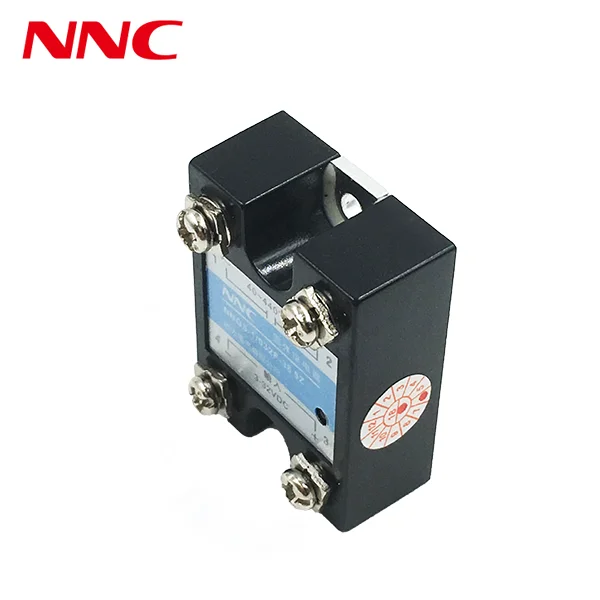

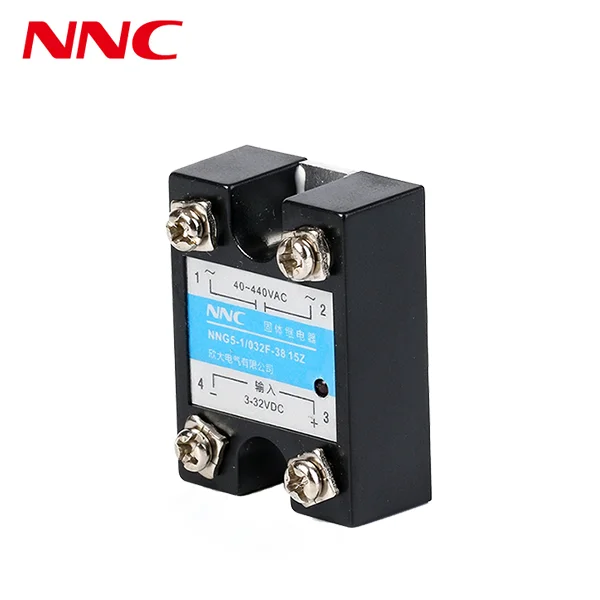

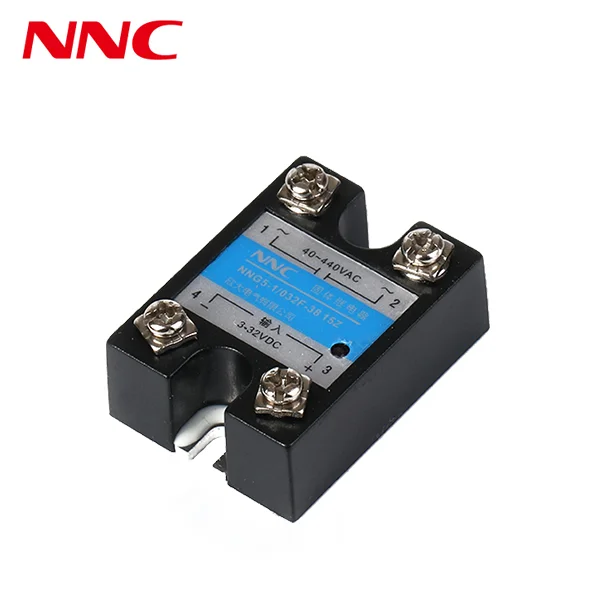

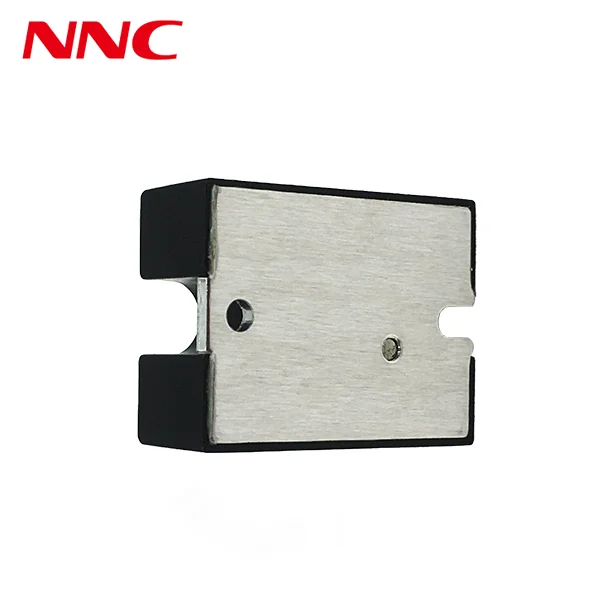

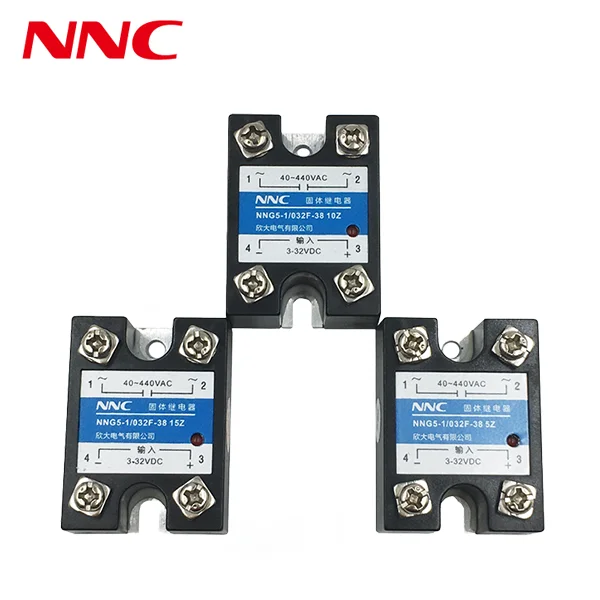

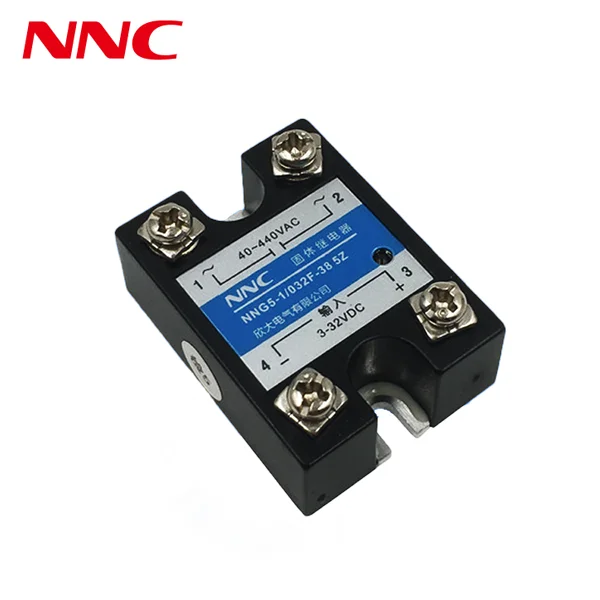

Single Phase Mini Solid State Relays NNG5 1/032F 22.38(SSR DA) Top quality black 5A 10A 15A SSR,
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (1600544381738):
Product Overview
Description
Product display
Product display
Specification | |||
Dimension | 38.5mm*28.7mm*18mm | 57.2mm*43.5mm*29mm | |
Model | HHG5-1/032F-38 10A | HHG5-1/032F-38 80A | |
Description | Single phase( Input DC, Output AC ) | Single phase( Input DC, Output AC ) | |
Control voltage | 032: 3-32VDC | ||
Control current | 6-35mA | 6-35mA | |
Turn-on voltage | 3VDC | ||
Turn-off voltage | 1VDC | ||
Reverse voltage | 32VDC | ||
Load voltage | 22: 24-240VAC 38: 40-440VAC | 38: 40-440VAC 120: 40-1200VAC | |
Load current | 5A, 10A, 15A | 100A, 120A | |
Instant voltage | 22: 600VAC 38: 900VAC | 38: 900VAC 120: 1600VAC | |
On-state voltage drop | <1.6VAC | ||
On-off time | ≤10mS | ||
Off-state leakage current | ≤10mA | ||
Dielectric strength | ≥2500VAC | ||
Insulation resistance | 500mΩ(500VDC testing) | ||
Ambient temperature | -30~80℃ | ||
Indicate methods | LED | ||
Installation | Screw | ||
Weight | Approx. 30g/PCS | Approx. 140g/PCS | |
Packing | 300PCS/Carton, G.W.: 10KG, N.W.: 9KG, Dimension(mm): 380×215×175 | 100PCS/Carton, G.W.: 15KG, N.W.: 14KG, Dimension(mm): 380×215×175 | |
Remarks | 1. Load current>10A ,a radiator is necessary, Load current>80A, fan is necessary. 2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage. | ||

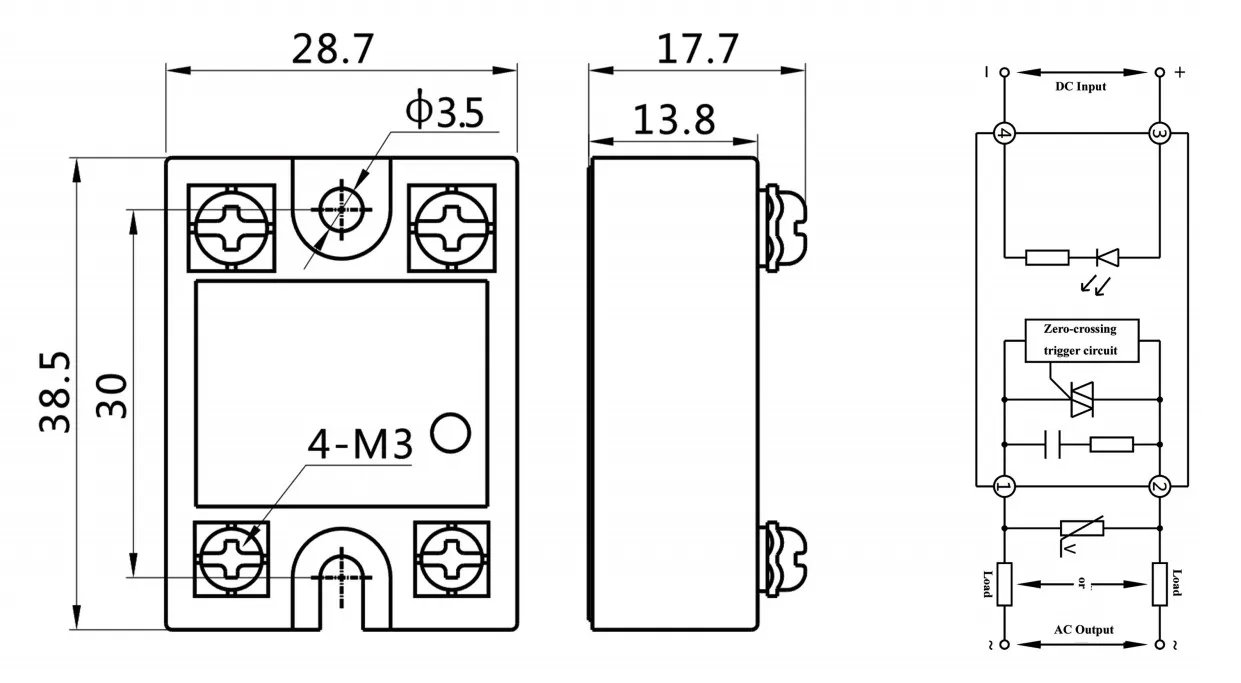

Wiring diagram
