Product Overview
Description
Products Description
HKB feed silo is made of 275g/㎡ hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life,and can withstand a strong storm.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
Specification
Project | Layer Number | V(m3) | C(t) | Dia(mm) | H(mm) |
TCKZ01801 | 1 | 4.9 | 3.7 | 1800 | 3580 |
TCKZ01802 | 2 | 7.9 | 5.9 | 1800 | 4700 |
TCKZ01803 | 3 | 10.8 | 8.1 | 1800 | 5820 |
TCKZ01804 | 4 | 13.8 | 10.3 | 1800 | 6940 |
TCKZ01805 | 5 | 16.8 | 12.6 | 1800 | 8060 |
TCKZ02701 | 1 | 13.2 | 10 | 2750 | 4640 |
TCKZ02702 | 2 | 19.9 | 15 | 2750 | 5760 |
TCKZ02703 | 3 | 26.5 | 20 | 2750 | 6880 |
TCKZ02704 | 4 | 33.2 | 25 | 2750 | 8000 |
TCKZ02705 | 5 | 39.8 | 30 | 2750 | 9120 |
Details Images

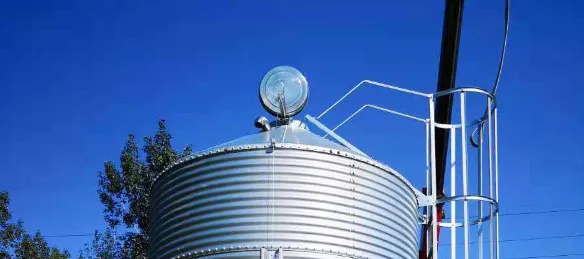

Top Movable Poultry Silo Cover System
1.It adopts a Top movable Silo cover system, which can open, close and block the silo when workers stand on the ground.
2.Limit bolts are used to ensure that the movable Silo cover can be opened freely within 180 degrees.
Wallboard for Poultry Feeder Silo
1.It is made of steel with tension up to 55000, with electroplating coating treatment, 275g zinc coating, which increase the strength and service life.
2.The corrugated steel can ensure accurate and consistent match during installation.
3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.
Poultry Silo Side Ladder
1.A strong ladder will be matched for each poultry silo.
2.Each ladder body is molded from a whole piece of galvanized steel plate, which has the advantages of high strength, good stability, and easy and fast installation.
3.There are small concave holes on the rungs of the ladder to prevent slipping.

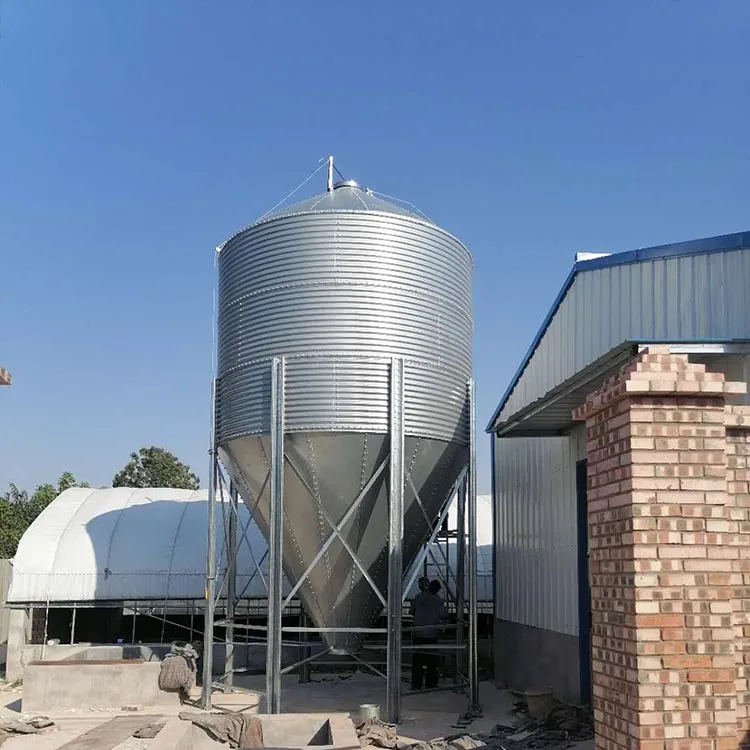

The Bottom of The Silo
The special structure makes the cone base of the tower very strong.

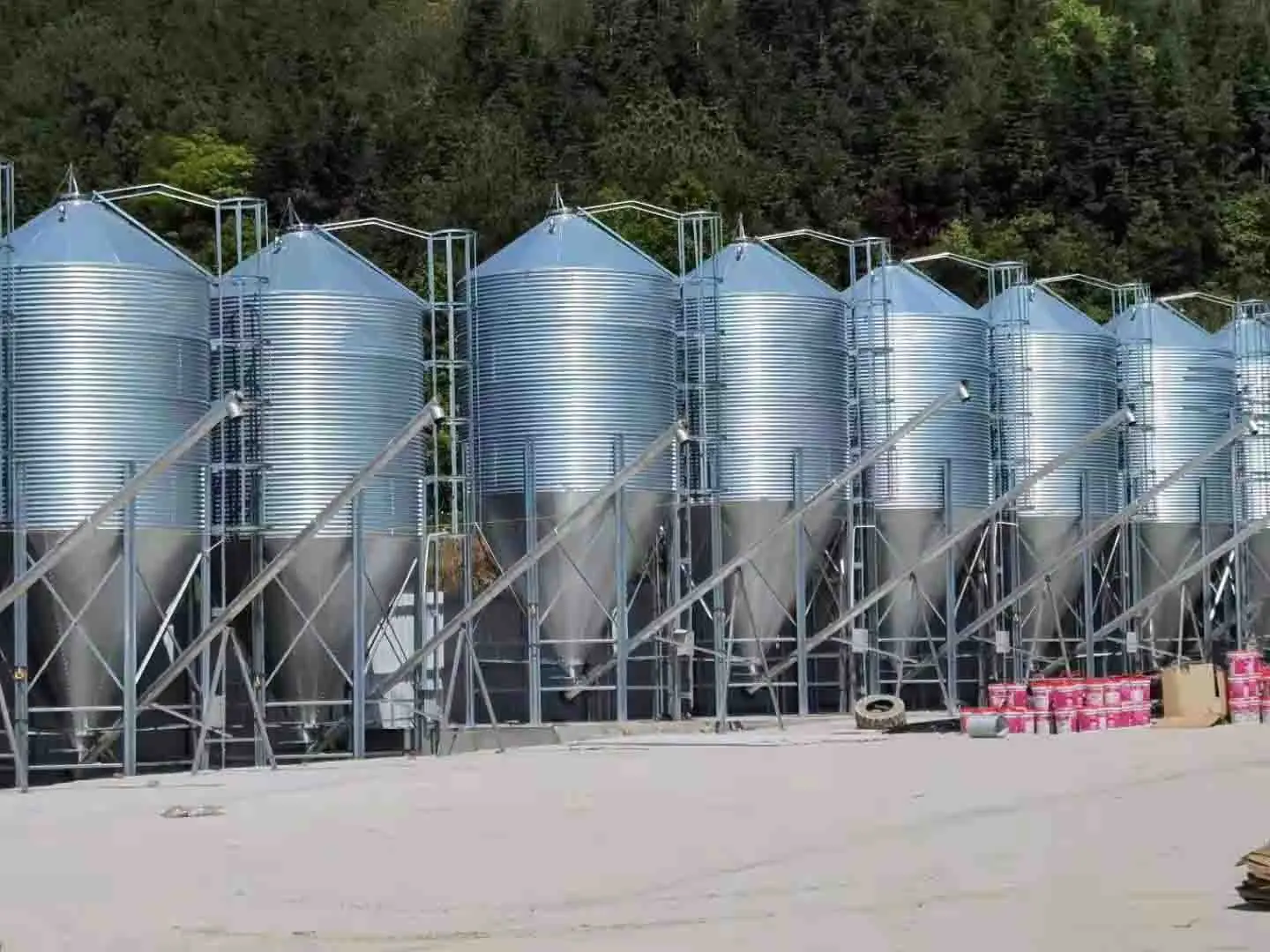

Application
Customers&Exhibition
Related Products
Company Profile
Henan Haokebang Machinery Equipment Co., Ltd.

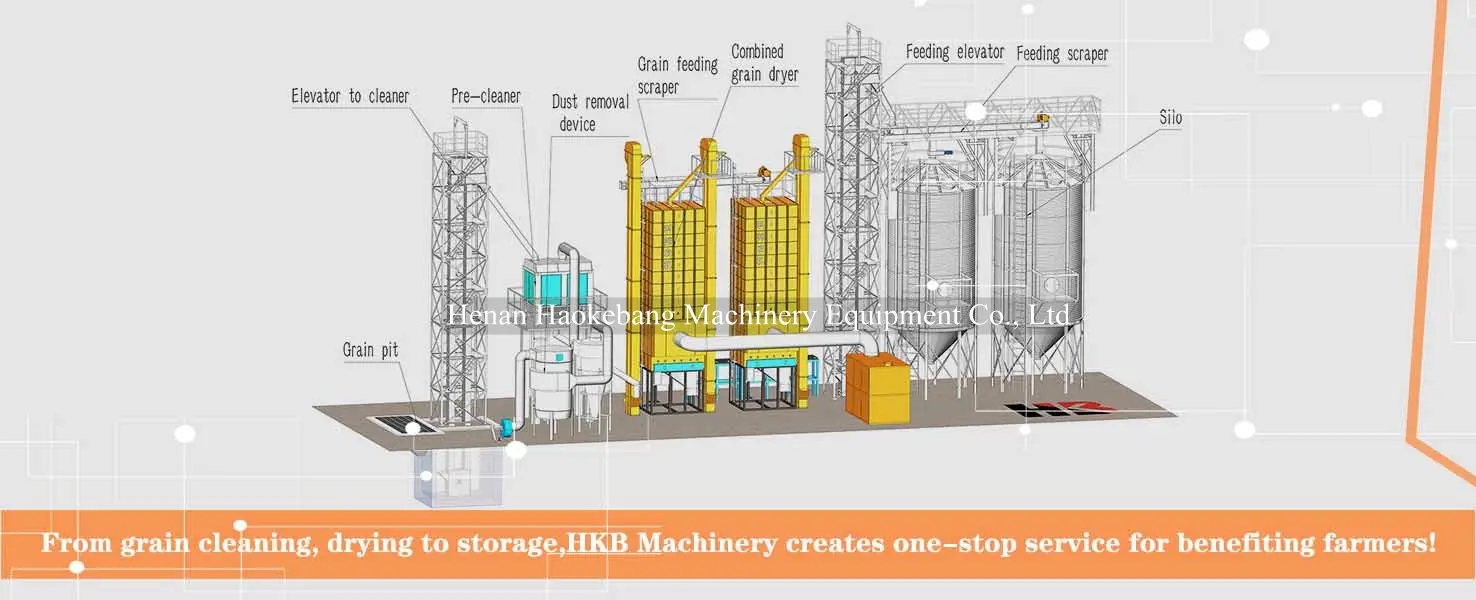

Henan Haokebang Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of standardized heavy industrial production room, specializing in the production of grain dryers, tubular dryers, all kinds of grain silos, grain pre-cleaner and other agricultural grain processing equipment. From grain cleaning, drying to storage, HKB Machinery creates one-stop service for benefiting farmers! The company has a variety of large and medium-sized sophisticated equipment, senior management and engineering and technical personnel, a professional foreign trade team to answer your questions online.
