Small power adjustable switching power supply AC220 to DC0 12V15V24V36V48V110V220V dc regulated switching power supply
- Category: >>>
- Supplier: Benbv Tech Co. Ltd.
Share on (1600544403290):
Product Overview
Description
Model Sheet
Parameter | Type | Rated voltage | Rated current | Rated power | Voltage adjustment range | Current is not adjustable | |||||
Specification | HYG-400E12 | 12V | 30A | 360W | 0-12V | ||||||
HYG-400E15 | 15V | 30A | 450W | 0-15V | |||||||
HYG-400E24 | 24V | 20A | 480W | 0-24V | |||||||

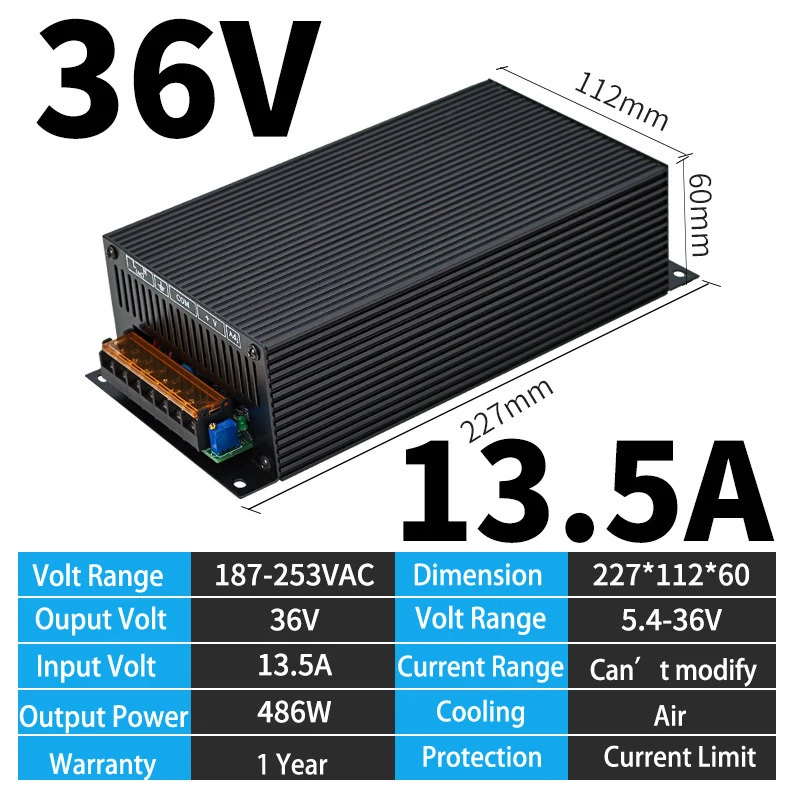

HYG-400E36 | 36V | 13.5A | 486W | 0-36V | |||||||

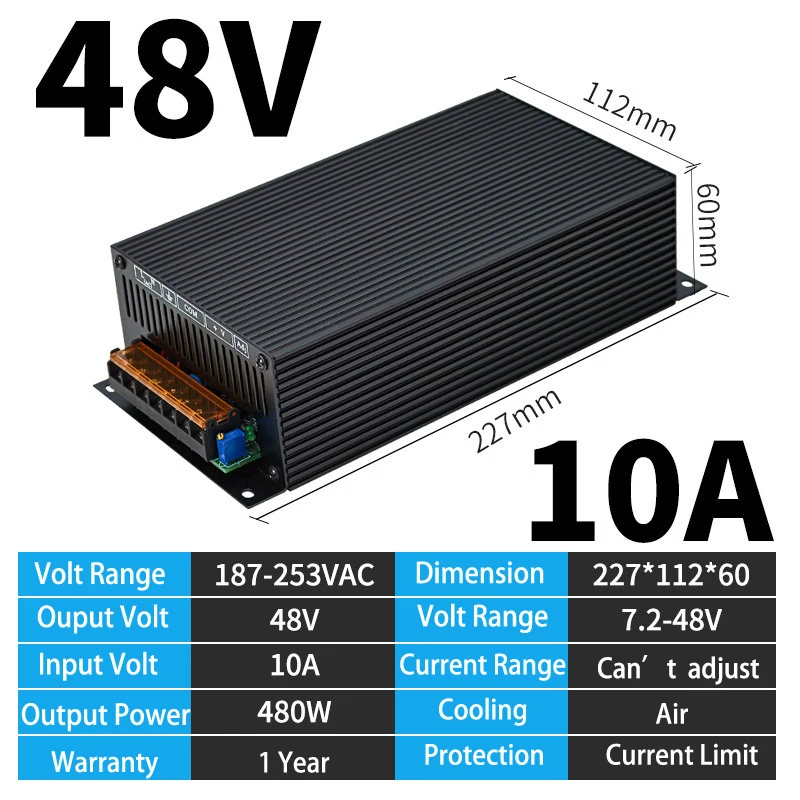

HYG-400E48 | 48V | 10A | 480W | 0-48V | |||||||

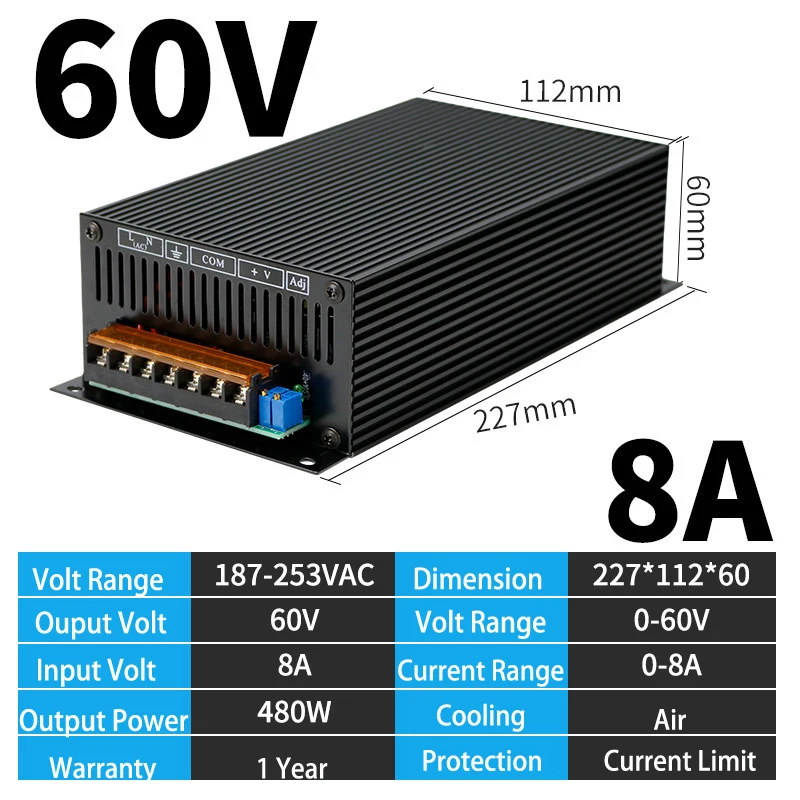

HYG-400E60 | 60V | 8A | 480W | 0-60V | |||||||
HYG-400E80 | 80V | 6A | 480W | 0-80V | |||||||
HYG-400E110 | 110V | 4A | 440W | 0-110V | |||||||
HYG-400E150 | 150V | 3A | 450W | 0-150V | |||||||

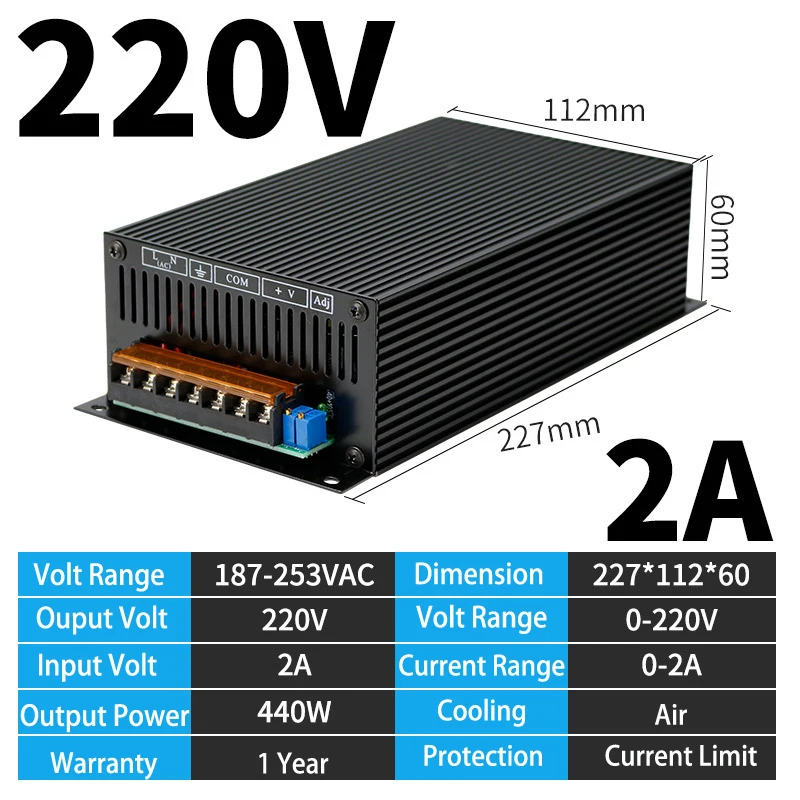

HYG-400E220 | 220V | 2A | 440W | 0-220V | |||||||
Output | Grid adjustment rate | ±0.5% | |||||||||
Load Regulation | ±0.5% | ||||||||||
Ripple and Noise | ＜1%（mvp-p） | ||||||||||
Input | Voltage range | 187-253VAC/220VAC:50~60HZ | |||||||||
Efficiency | 80-92% | ||||||||||
Lnrush current | Soft start | ||||||||||
Notice | 1. The use current cannot exceed the rated current; 2. When the voltage is greater than the rated voltage, the output power should be less than the rated power | ||||||||||
Overcurrent | Current limiting protection mode | ||||||||||
Short circuit | The output terminal is short-circuited, and the power supply starts current-limiting protection | ||||||||||
Pressure resistance | Input to output≥1.5KVAC; input to ground≥1.5KVAC; output to ground≥0.5KVAC | ||||||||||
Insulation resistance | 100M 0HMS/500VDC | ||||||||||
Cooling method | Forced air cooling, fan running temperature 45℃ | ||||||||||
Working temperature and humidity | -10＋50℃, 20~90%RH without condensation | ||||||||||
storage temperature humidity | -10＋70℃, 20~95%RH without condensation | ||||||||||
shock resistance | 10~500HZ, 2G, 10 minutes/cycle. 60 minutes each for X/Y/Z axis | ||||||||||
Weight | Net weight 1.28kg, logistics weight 1.8kg | ||||||||||
Package | Neutral white box or yellow box | ||||||||||

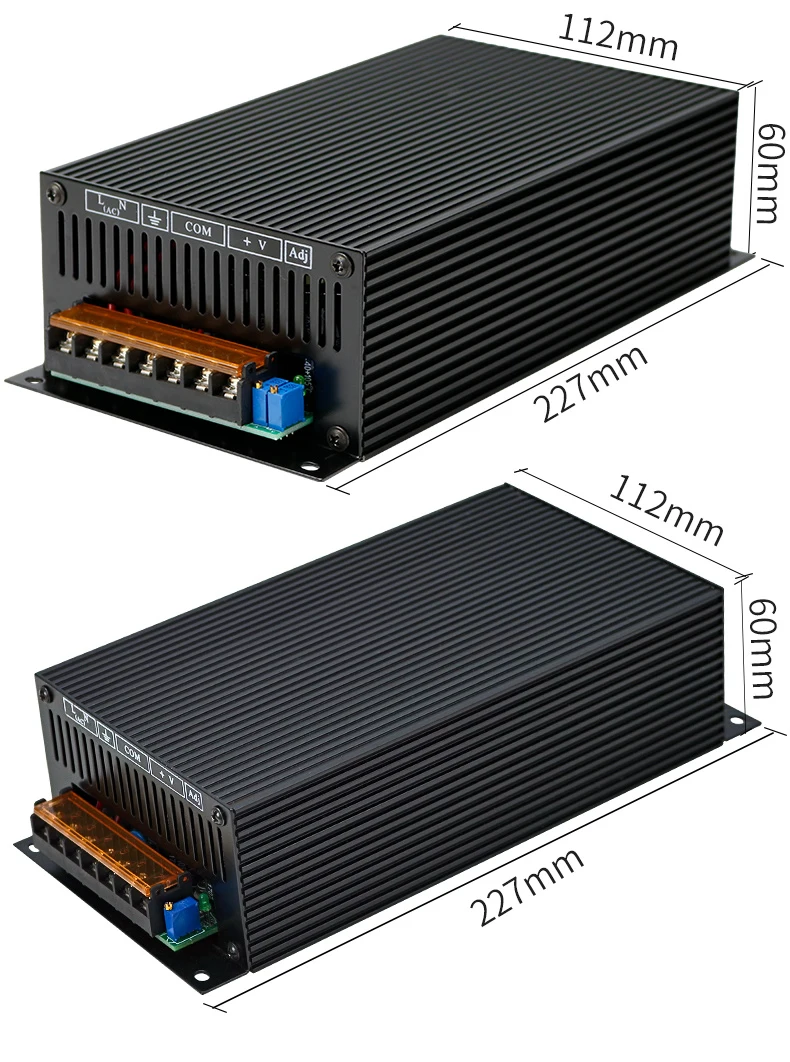

Size | 227*112*60mm | ||||||||||
After sales | One year warranty .Need datasheet ,ask us freely | ||||||||||
Products Description
Input voltage: AC 220V±20% 50/60HZ | ||||||||||

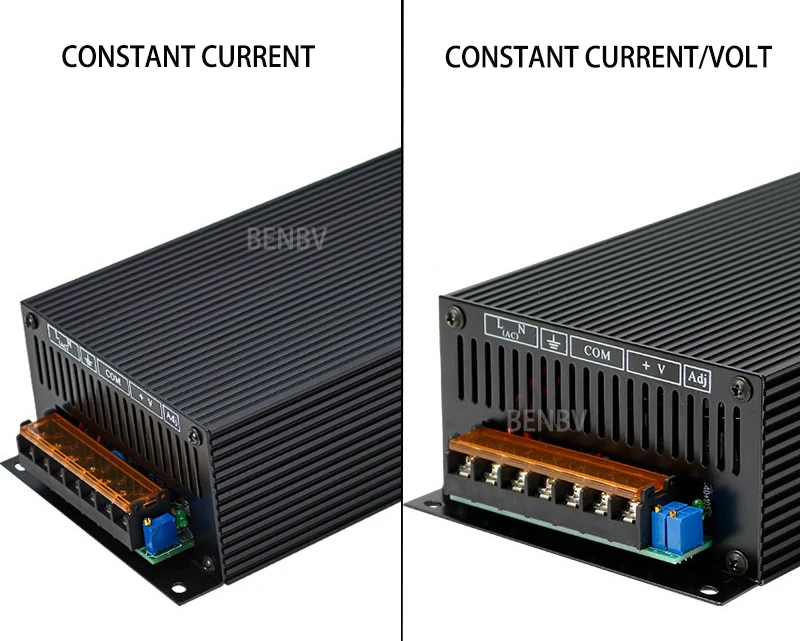

Overcurrent protection: current limiting protection mode (the current limiting value can be adjusted and set through the potentiometer, the setting range is 10%-rated current.) | ||||||||||
Short-circuit protection: short-circuit at the output end, the power supply starts current-limiting protection | ||||||||||
Over-temperature protection: When the temperature of the internal heat sink reaches 70-80°C, the power supply starts thermal protection and stops the output | ||||||||||
Ripple and noise:＜1%（MVP-P） | ||||||||||
Cooling method: forced air cooling, fan running temperature 45 ℃ | ||||||||||
Warranty: 1 year (customize acceptable) | ||||||||||
Packing: neutral white box or yellow box/wooden box | ||||||||||
Remarks：Using current can't over rated current,while volt higher than rated volt ,output power small than rated power | ||||||||||

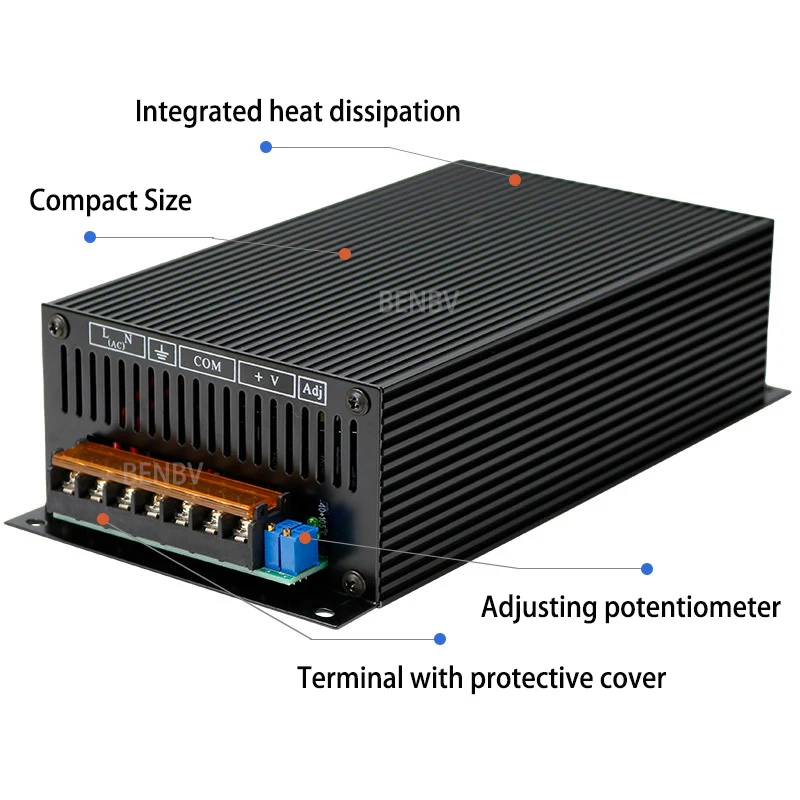

Features
*Adjustable
*Output volt can custom settled start with 0 volt
*Output volt current can custom to 0-15v or 0-12v DC PLC control (DC analog voltage signal control)
* Ok to add potentiometer
* Signal out put wire with good performance
* Wide volt current adjustable range
* Easy to connection and test
*Widely for all DC use application /Lab/industrial power supply
