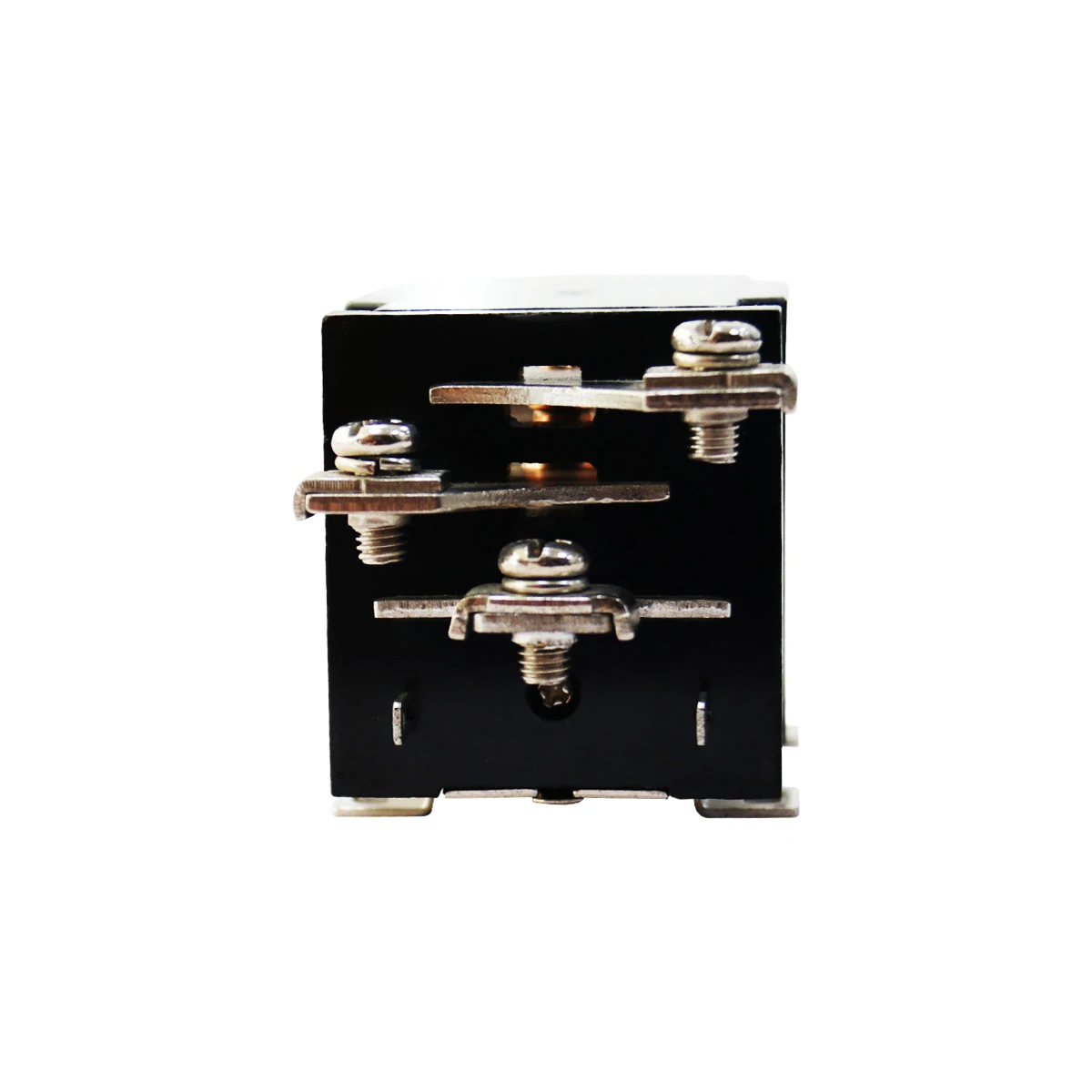

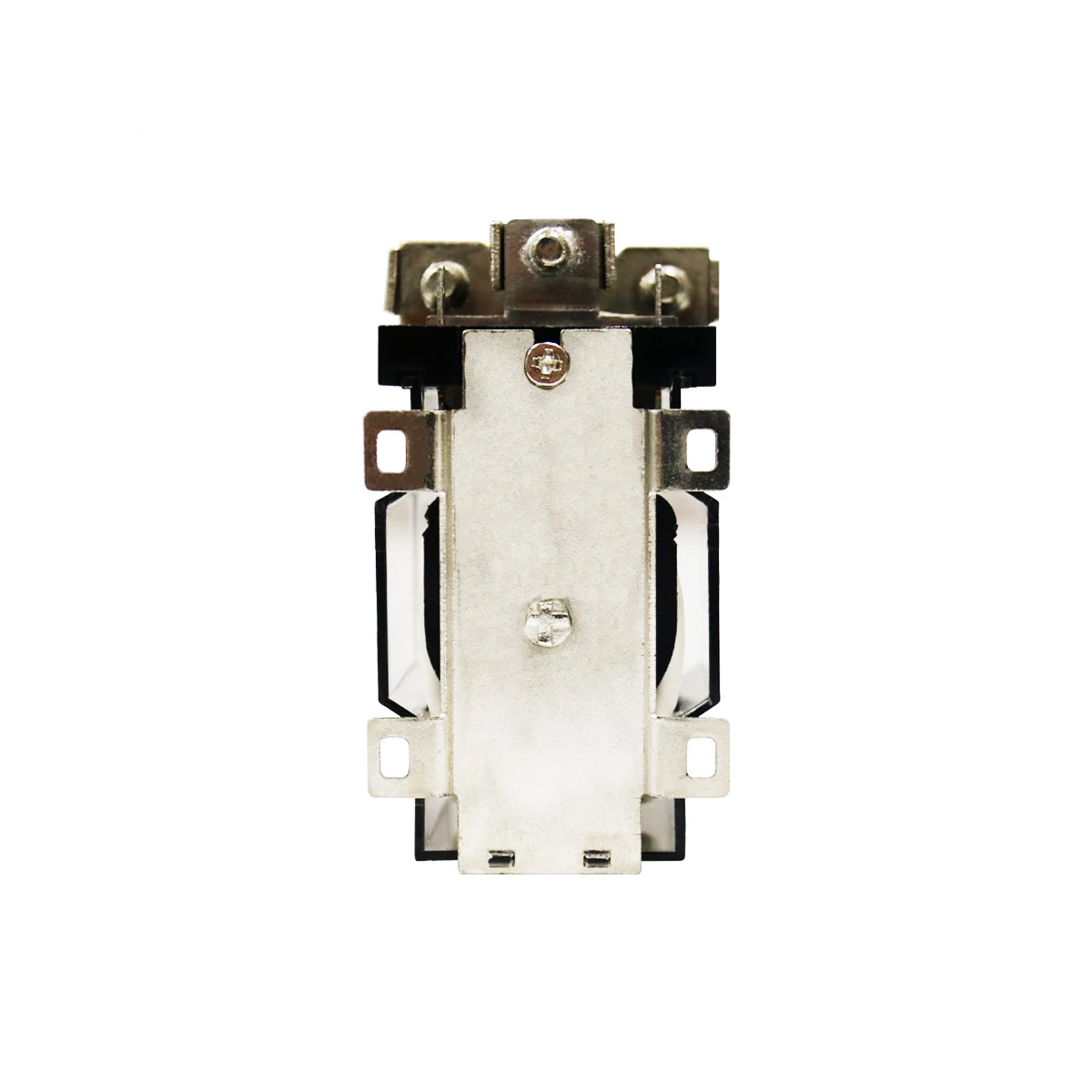

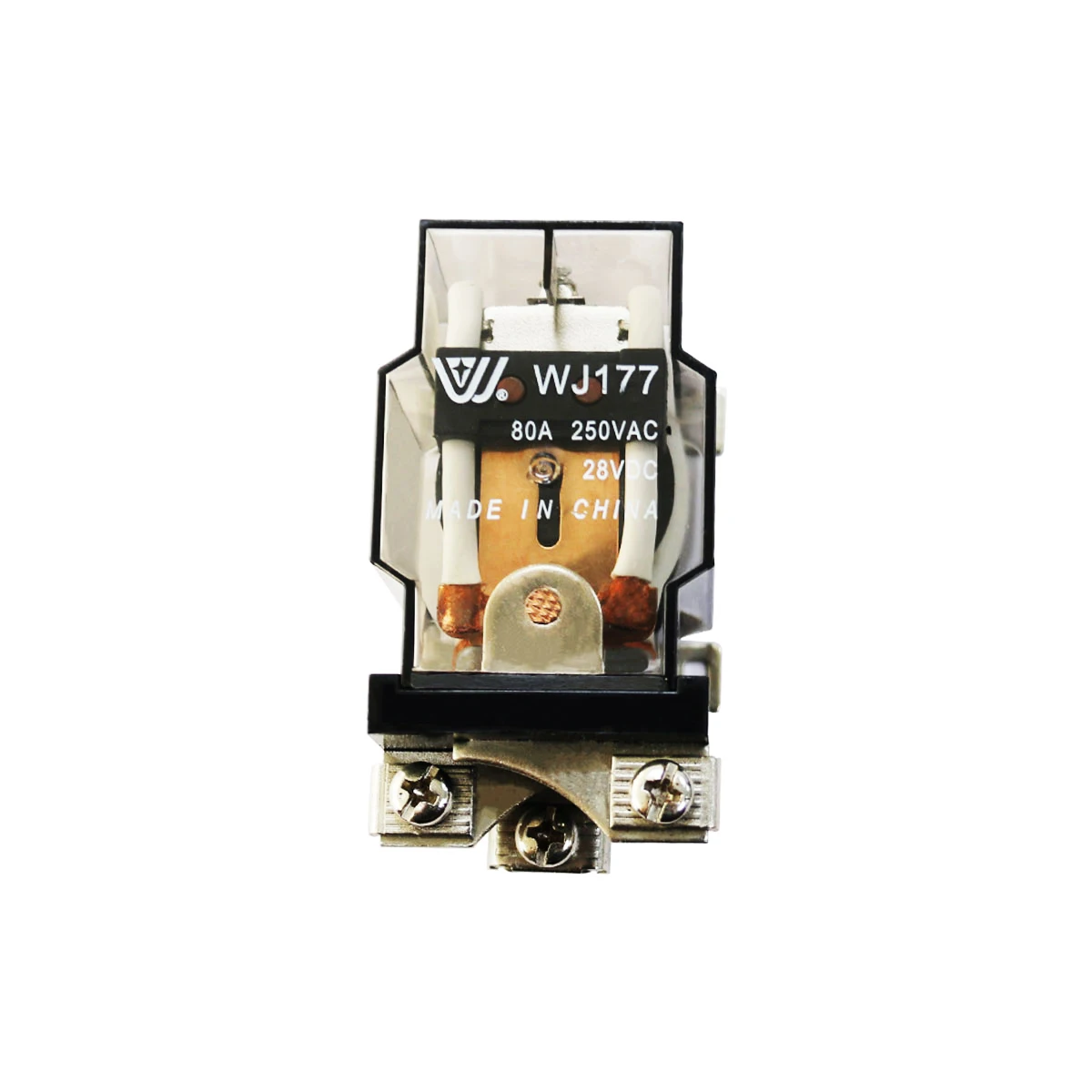

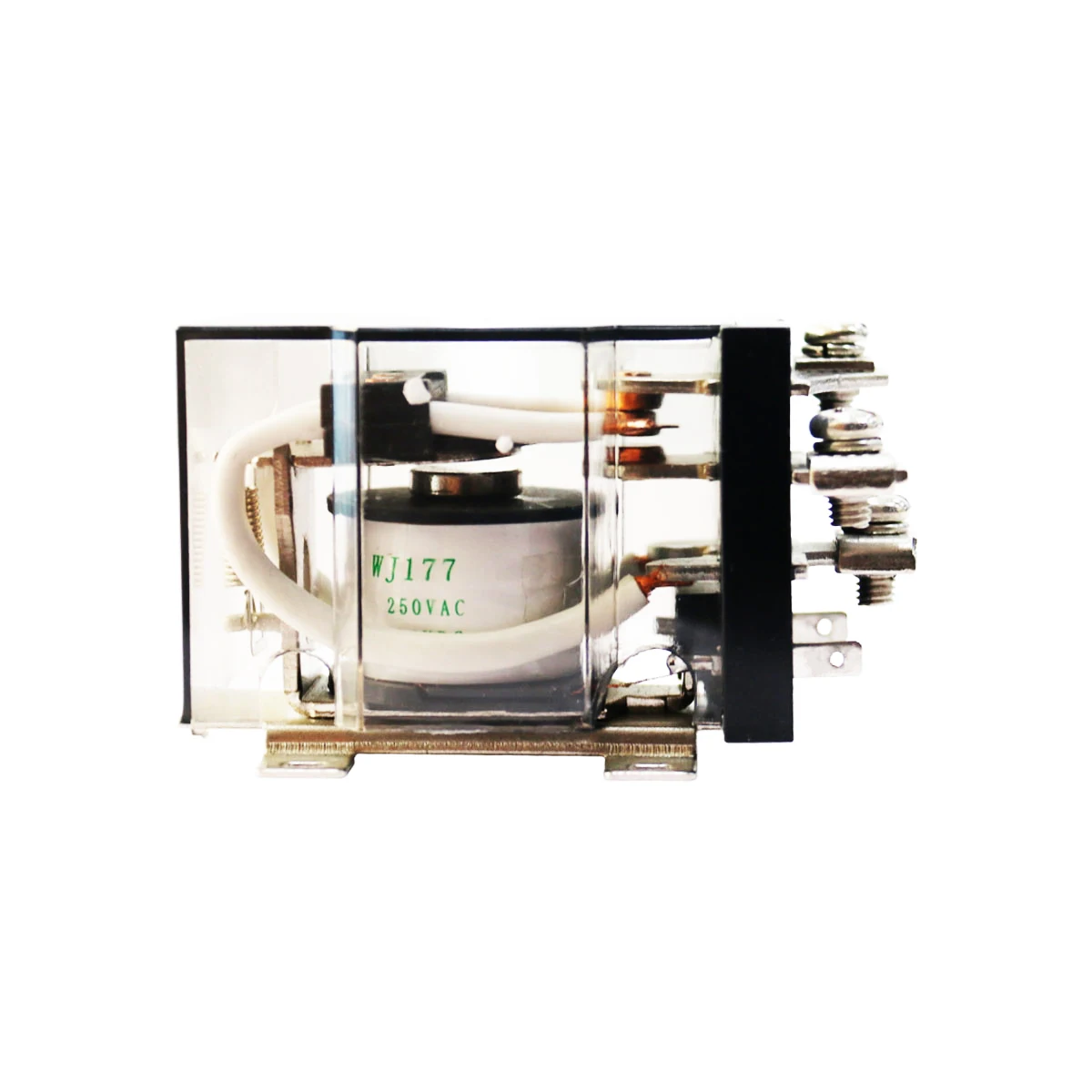

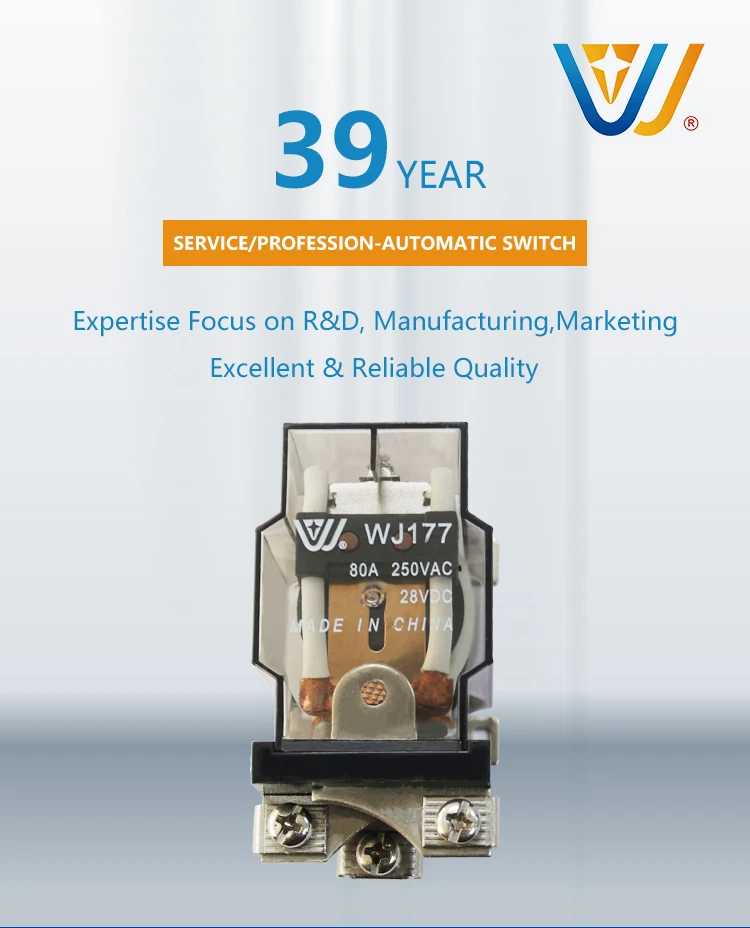

overvoltage and undervoltage relay jqx 60f 80a 70a DC 12volt 24v single pole failure protection relay for rooling door
- Category: >>>
- Supplier: Ivy Metering Co. Ltd.
Share on (1600544408511):
Product Overview
Description
Main Parameters | ||
Contact Arrangement | 1A、1B、1C | |
Contact Material | Silver Alloy | |
Contact Resistance | Max.50mΩ | |
80A 250VAC | ||
80A 28VDC | ||
Max. Switching Voltage | 28VDC/250VAC | |
Max. Switching Current | 80A | |
Max. Switching Power | 2240W/20000VA | |
Electrical Life | 1×104 | |
Mechanical Life | 1×106 | |
Coil Voltage | 6～220VDC | |
Coil Power Consumption | 3.0W | |
Other Parameters | ||||||
Pick-up Time | Max.30ms | |||||
Release Time | Max.30ms | |||||
Coil Contacts | 2500VAC,(50/60Hz),1 min. | |||||
Open Contacts | 1500VAC,(50/60Hz),1 min. | |||||
Insulation Resistance | Min. 1000MΩ (500 VDC) | |||||
Environment Temperature | -40℃～+55℃ | |||||
Operation Humidity | 45%~85% RH | |||||
Functional | Min. 10G | |||||
Destructive | Min. 100G | |||||
Anti-vibration | Functional | Functional | 1.5mm（DA）10~55 Hz | |||
Destructive | Destructive | 1.5mm（DA）10~55 Hz | ||||
Weight | ≈200g | |||||
Cautions of Power Relay:
1.Suggestions of Plastic Anti-dust Cover
We highly recommend cover :
(1)When the ambient humidity is ≥ 60% (for example refrigerator or some country like Indian),the metal parts
We highly recommend cover :
(1)When the ambient humidity is ≥ 60% (for example refrigerator or some country like Indian),the metal parts
of relay will be weakened in different degrees due to long-term exposure to the outdoors in terms of
electrical conductivity and service life.
(2)When the dust density is high in the environment, all kinds of impurities carried in the dust (such as gravel),
if gravel is embedded between contacts.Firstly, it will affect the normal opening and closing of contacts;
Secondly, part of the silicon oxide can be used as a semiconductor to conduct electricity, and then the relay's
on and off will fail if no anti-dust cover.
(3)When corrosive gases are serious in the environment, it will accelerate the metal aging, greatly affecting
the service life of electrical relays.
* When none of the above situations exists, the plastic anti-dust cover is not necessary due to extra cost.
2.Suggestions of Contacts
(1)We should pay attention to prevent contact movement,adhesion,abnormal consumption,increase of
contact resistance and other fault phenomena while using.
(2)The material of power relay can be AgCd010,AgSn08,AgSnOlnO etc.Wanjia star brand relay adopted
(2)When the dust density is high in the environment, all kinds of impurities carried in the dust (such as gravel),
if gravel is embedded between contacts.Firstly, it will affect the normal opening and closing of contacts;
Secondly, part of the silicon oxide can be used as a semiconductor to conduct electricity, and then the relay's
on and off will fail if no anti-dust cover.
(3)When corrosive gases are serious in the environment, it will accelerate the metal aging, greatly affecting
the service life of electrical relays.
* When none of the above situations exists, the plastic anti-dust cover is not necessary due to extra cost.
2.Suggestions of Contacts
(1)We should pay attention to prevent contact movement,adhesion,abnormal consumption,increase of
contact resistance and other fault phenomena while using.
(2)The material of power relay can be AgCd010,AgSn08,AgSnOlnO etc.Wanjia star brand relay adopted
AgSnO2 with high quality & stable performance.
(3)The mechanical service life and electrical service life can be main factor too
* In a word, good device need good relay to low the repairing rates and improve the endurance.
(3)The mechanical service life and electrical service life can be main factor too
* In a word, good device need good relay to low the repairing rates and improve the endurance.
