25KW 100KHZ Fast Heating High Frequency Bearing Induction Heater
- Category: >>>
- Supplier: Zhengzhou Yufeng Heavy Machinery Co. Ltd.
Share on (1600544412276):
Product Overview
Description

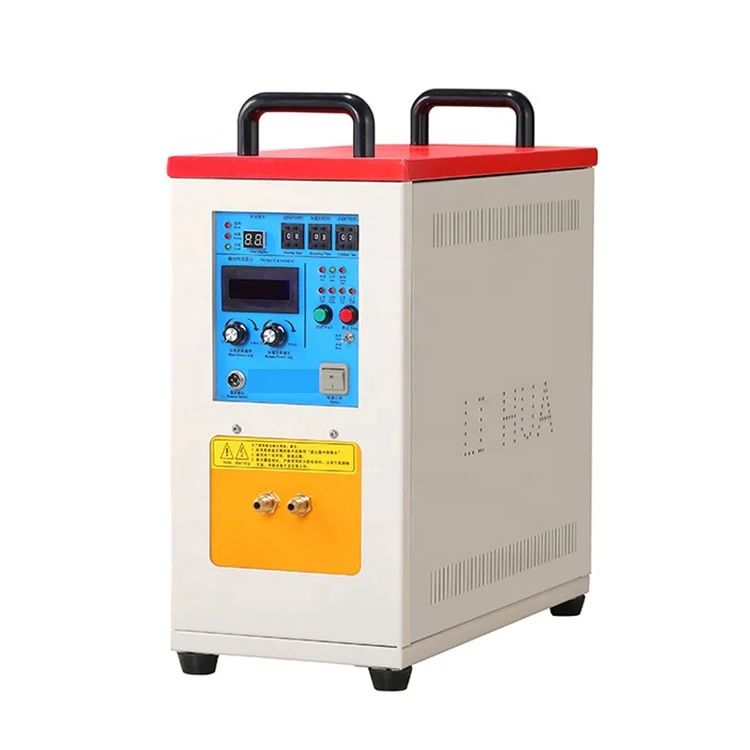

25KW 100KHZ Fast Heating High Frequency Bearing Induction Heater
Heating Temperature: 2500°C
Can be used to hardening, tempering, annealing, welding, melting, forging etc.
This machine has special requirement for cooling water, please pay attention to this.
Product Description
Main Feature:
• It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
• It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
• About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
• It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
• It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Technical Parameters:
Model | UF126-25KW E | |
Input power desire | 3 phase 380V 50/60HZ | |
Oscillate power max | 25kw | |
Output current | 200-1200A | |
Oscillate frequency | 30-80KHZ | |
Cooling water desire | 0.06-0.12Mpa 7.5L/min | |
Duty cycle | 100% 40 ℃ | |
Dimensions (L*W*H) | Generator | 535x245x550 mm |
Transformer | / | |
Net weight | $净重-主机+分机的总和$ | |
Cable length | 2-6(Meters) | |
Package List For JL-40KW:
Item | Name of machine or parts | Specification | Amount |
1 | 25kw Generator | - | 1 pc |
2 | 25kw transformer | - | 1 pc |
3 | Foot pedal | 3 core | 1 pc |
4 | Induction Coils | - | 2 sets |
5 | Connect cable | - | 1 set |
6 | Instruction Manual | - | 1 pc |
6 | Product catalogs | - | 2 sets |
