GJYXFCH Single mode OS2 1 core fiber optic FTTH drop cable outdoor flat cable drop fibra optica
- Category: >>>
- Supplier: Ningbo FB Communication Technology Co. Ltd.
Share on (1600544427310):
Product Overview
Description
FTTH outdoor drop cable flat
With the development of fiber optic communication, FTTH has been the final solution of fiber optic network. It adapts to the
demand on high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
demand on high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
Item | Technology parameter |
Cable type | Drop Cable |
Cable Count | 1 2 4 6 8 12 |
Fiber color | Green, Yellow |
Fiber type | 9/125 (G657A2) |
Sheath color | Black and white |
Sheath material | LSZH |
Cable dimension (mm) | 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
Cable weight (Kg/km) | 15 |
Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
Attenuation (dB/km) | 0.4 at 1310nm, 0.3 at 1550nm |
Short term tensile ( N) | 200; 600 |
Crush resistance (N/100mm) | 1000; 2200 |
Operation temperature (℃) | -20~+70℃ |

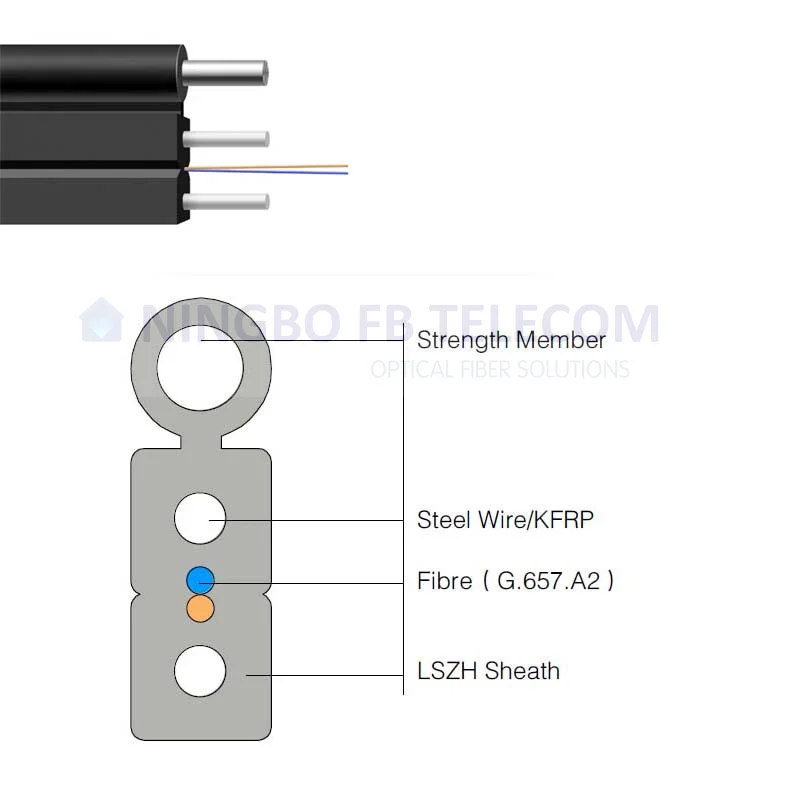

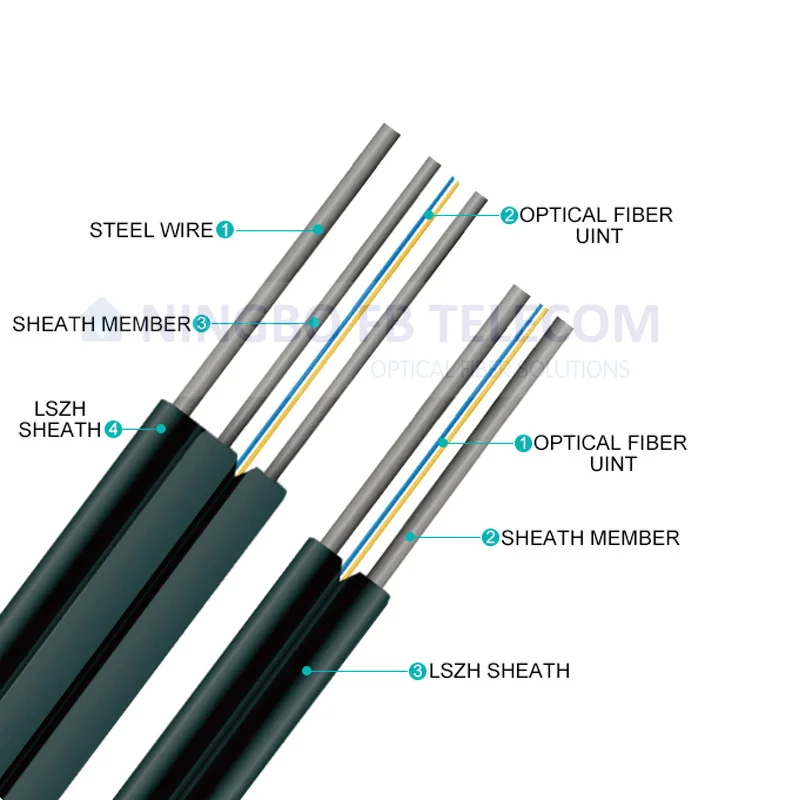

strength member | material | Galvanized steel wire/FRP/KFRP | |
diameter | 2*(0.5~0.8)mm | ||
Self support Messenger wire | material | Galvanized steel wire | |
diameter | 1.0mm | ||
Outer sheath | material | LSZH | |
diameter | 1.8±0.2mm | ||
Cable size (Height * width) | 2.0(±0.1) mm × 5.2(±0.2)mm | ||
Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | ||
Messenger sheath thickness | 0.5~0.7mm | ||
Cable weight | 1~2core | 18.2KG | |
4-6 core | 18.5KG | ||
8~24core | 54KG | ||
