Gofine 1.5m round polishing machine, organic fertilizer particle shaping equipment, finished particle polishing machine
- Category: >>>
- Supplier: Zhengzhou Gofine Machine Equipment Co. Ltd.
Share on (1600544436258):
Product Overview
Description
Products Description
Livestock and poultry manure pellet throwing machine Organic fertilizer two-stage fermentation molding equipment
The organic fertilizer polishing machine produced by our company is a rounding equipment for shaping the granules such as ring die granulation, flat die granulation and collision granulation. High ball rate, good strength, beautiful and practical. The circular polishing machine can be used for the beauty of all granular fertilizers. The granular fertilizer produced by extrusion granulation or disc granulation process can make the fertilizer particles uniform in size, accurate in roundness, bright and smooth on the surface after being rounded by the circular polishing machine. High strength, the pelleting rate of fertilizer is as high as 98%, and the pelletizing rate is low, so it can reduce energy consumption and increase output. The granules produced have low moisture content and are easy to dry. At the same time, it can also produce feed pellets, which is an ideal equipment for making pellets from organic fertilizers.
Product Parameter
Model | Yield (t/h) | Granulation rate(%) | Particle temperature(℃) | Power (kw) | Spindle diameter (mm) |
PYJ800-2 | 2.5 - 3.5 | ＞95 | ＜30 | 4 x 2 | 800 |
PYJ1000-2 | 3.5 - 5 | ＞95 | ＜30 | 5.5 x 2 | 1000 |
PYJ1200-2 | 4 - 7 | ＞95 | ＜30 | 7.5 x 2 | 1200 |
PYJ1200-3 | 6 - 9 | ＞95 | ＜30 | 7.5 x 3 | 1200 |
PYJ1500-2 | 5 - 8 | ＞95 | ＜30 | 11 x 2 | 1500 |
PYJ1500-3 | 7 - 10 | ＞95 | ＜30 | 11 x 3 | 1500 |

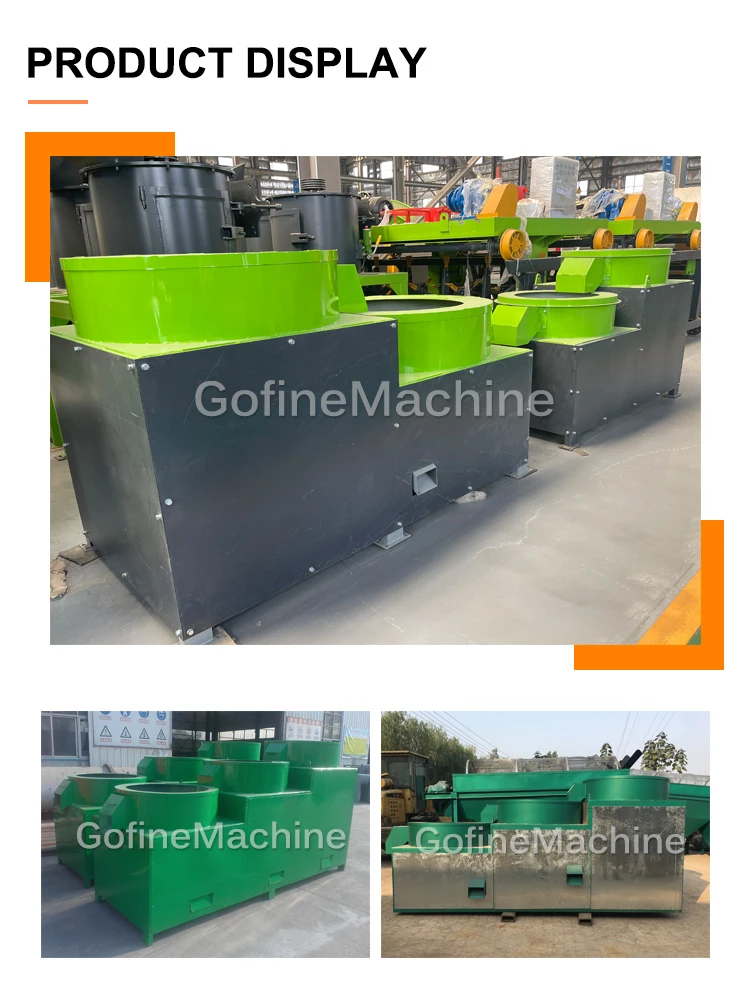

Product Details
Features:
1. The organic fertilizer rounder can effectively improve the appearance quality of particles, and can be flexibly configured according to product needs in the production process. It is used in conjunction with the granulator to make up for a series of defects such as uneven particle size and product difference produced by the granulator during mass production.

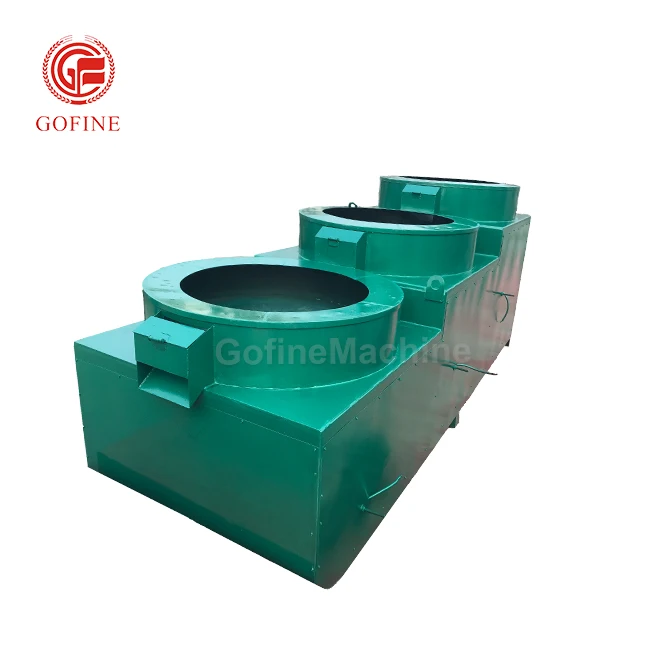

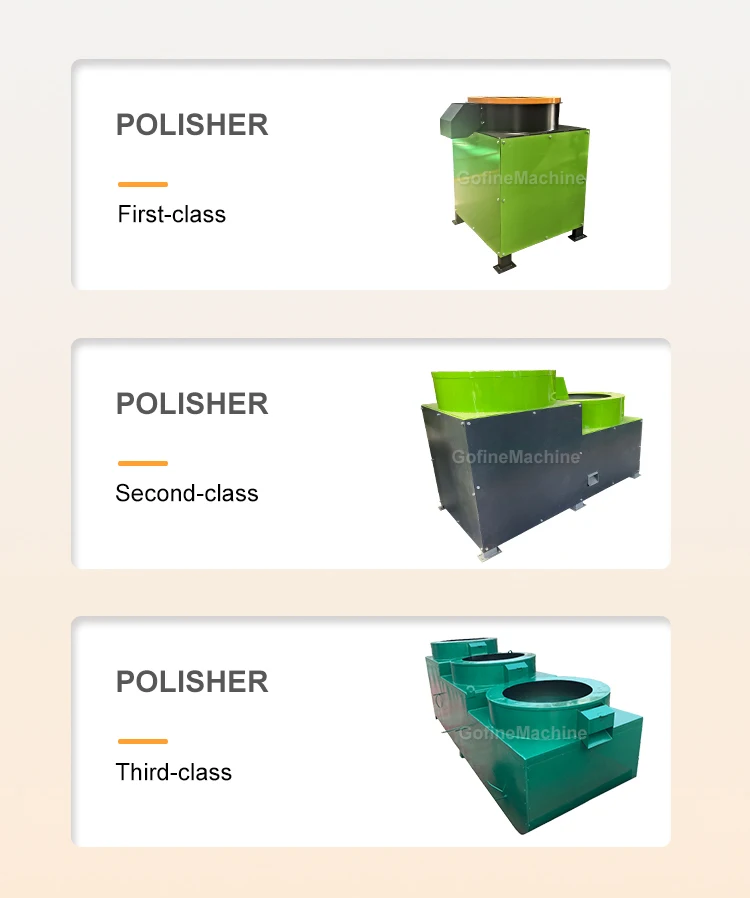

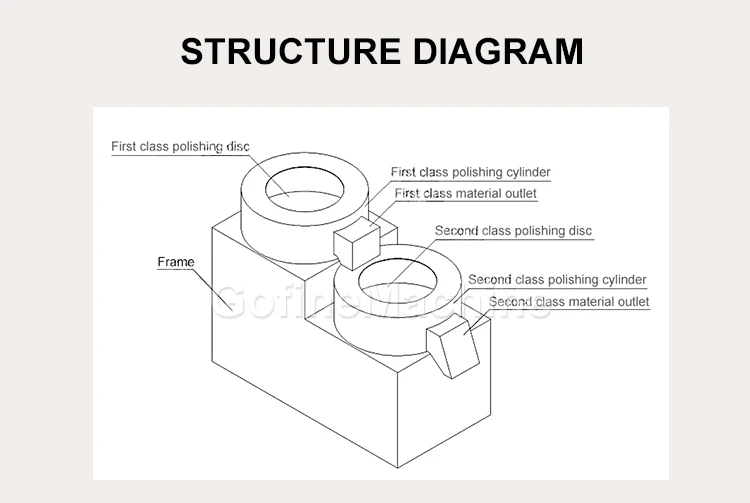

2. The machine is composed of two or three throwing cylinders arranged in sequence. After the material is thrown round several times, the finished product is discharged from the discharge port. The particle size of the finished product is consistent, round and smooth, and the yield is as high as 98%. And a small amount of fertilizer powder falls from the gap of the disk edge of the organic fertilizer rounder and is discharged along the waste port.
3. The organic fertilizer rounding machine has beautiful appearance, simple structure and working principle. Reliable installation, small size, light weight, easy operation and maintenance.
4. The organic fertilizer rounder has strong adaptability and can adapt to work in various environments, and the organic fertilizer rounder can maintain continuous operation for a long time, with low power consumption, low power consumption, low production cost and high economic benefits.
2. The machine is composed of two or three throwing cylinders arranged in sequence. After the material is thrown round several times, the finished product is discharged from the discharge port. The particle size of the finished product is consistent, round and smooth, and the yield is as high as 98%. And a small amount of fertilizer powder falls from the gap of the disk edge of the organic fertilizer rounder and is discharged along the waste port.
3. The organic fertilizer rounding machine has beautiful appearance, simple structure and working principle. Reliable installation, small size, light weight, easy operation and maintenance.
4. The organic fertilizer rounder has strong adaptability and can adapt to work in various environments, and the organic fertilizer rounder can maintain continuous operation for a long time, with low power consumption, low power consumption, low production cost and high economic benefits.
