EU Rotterdam Warehouse Solar Panel 700w
- Category: >>>
- Supplier: Rosen Solar Energy Co. Ltd.
Share on (1600544439218):
Product Overview
Description
Product Description

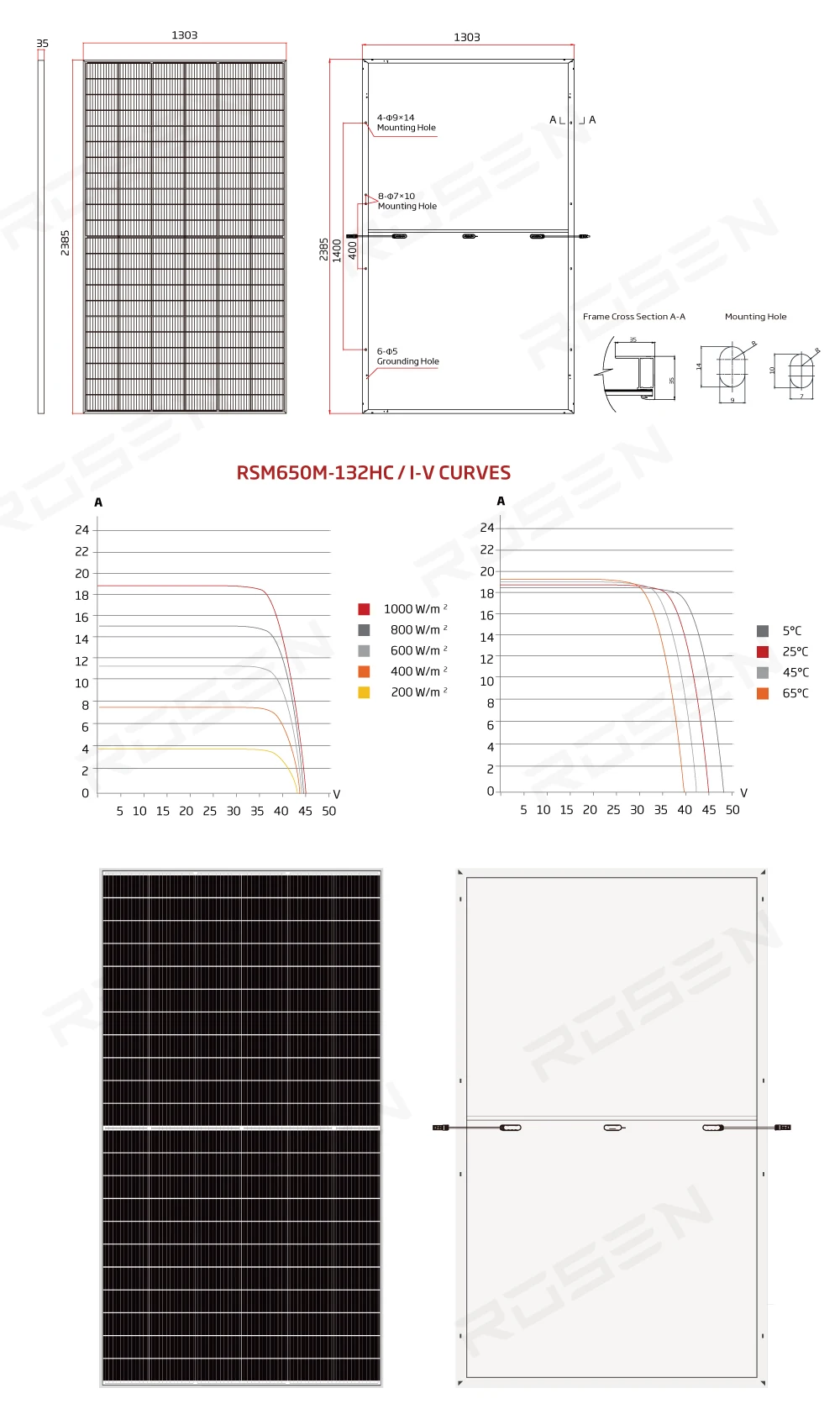

Technical Specification

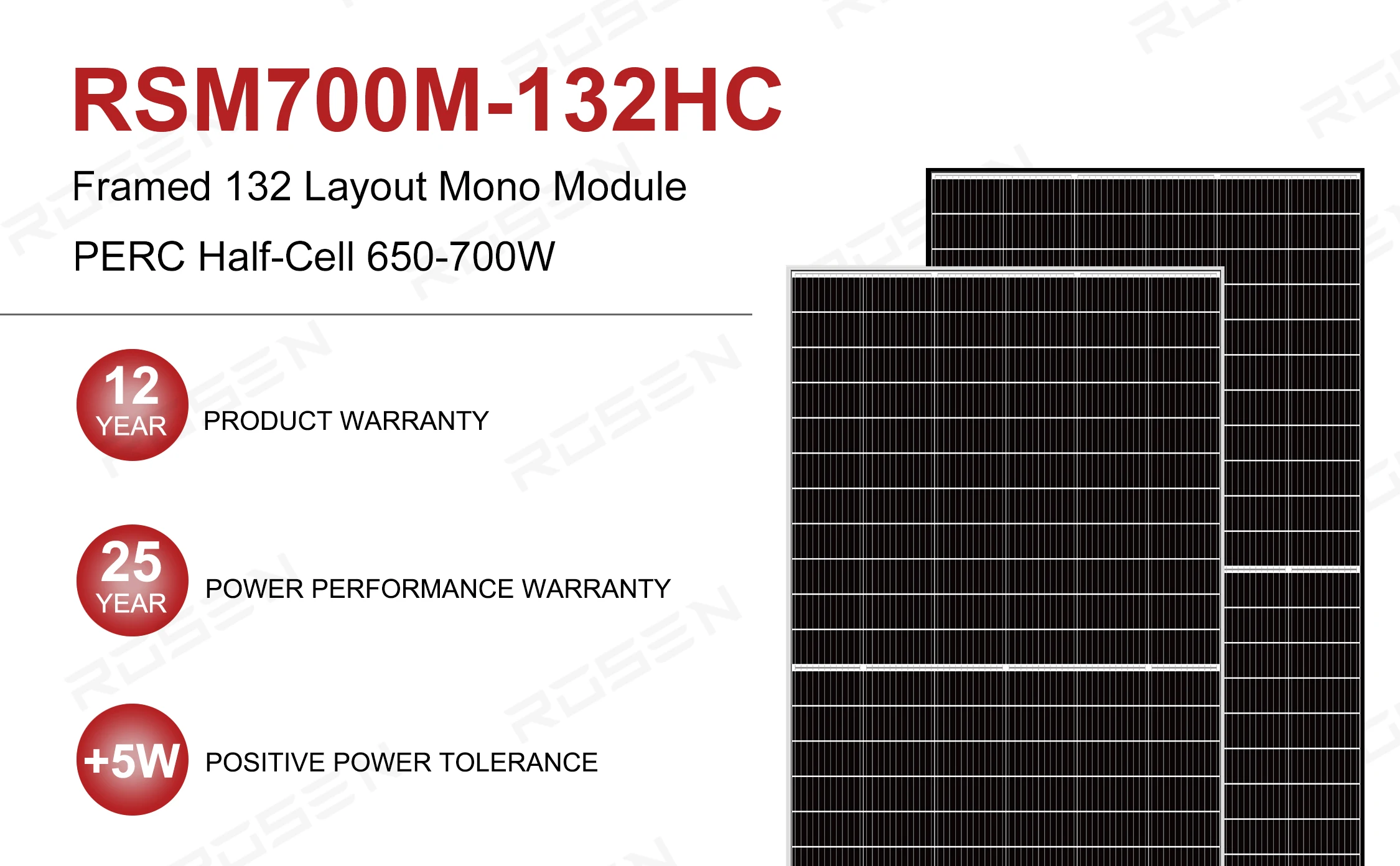

Model | RSM650-132HC | RSM660-132HC | RSM680-132HC | RSM690-132HC | RSM700-132HC | ||||
Rated Maximum Power at STC | 650W | 660W | 680W | 690W | 700W | ||||
Open Circuit Voltage(Voc/V) | 45.0 | 45.4 | 46.2 | 46.8 | 47.2 | ||||
Maximum Power Voltage(Vmp) | 37.9 | 38.3 | 39.1 | 39.5 | 39.9 | ||||
Short Circuit Current(Isc/A) | 18.39 | 18.47 | 18.63 | 18.71 | 18.79 | ||||
Maximum Power Current(Imp) | 17.16 | 17.24 | 17.40 | 17.48 | 17.55 | ||||
Module Efficiency(%) | 20.9 | 21.2 | 21.9 | 22.2 | 22.5 | ||||
Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | ||||||||
ELECTRICAL DATA(NMOT) | ||||||||||
Maximum Power-PMAX (Wp) | 487 | 495 | 510 | 518 | 526 | |||||
Maximum Power Voltage(VMPP/V) | 35.5 | 35.9 | 36.7 | 37.1 | 37.5 | |||||
Maximum Power Current-IMPP (A) | 13.74 | 13.79 | 13.91 | 13.97 | 14.03 | |||||
Open Circuit Voltage-VOC (V) | 42.5 | 42.9 | 43.7 | 44.1 | 44.5 | |||||
Short Circuit Current-ISC (A) | 14.83 | 14.89 | 15.03 | 15.11 | 15.18 | |||||
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s. | ||||||||||
Rosen Solar, with more than 4 automatic lamination lines, are professional manufacturer of solar panels with wide power range from 5w to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W etc. Solar panels, like PERC, N-Type TOPCON, HJT, Shingle types etc and bifacial/double glass, single glass, full black, black frame, and frameless half cell panels Mono and Polycrystaline panels, are all available in China and Europe stock. Tier 1 panels brands are available too. OEM and ODM service acceptable with the min one pallet. We have all certificates like TUV, CE, ISO, IEC etc, And technicians will provide manuals, and installation CAD SKETCH designs for roof or ground installation.

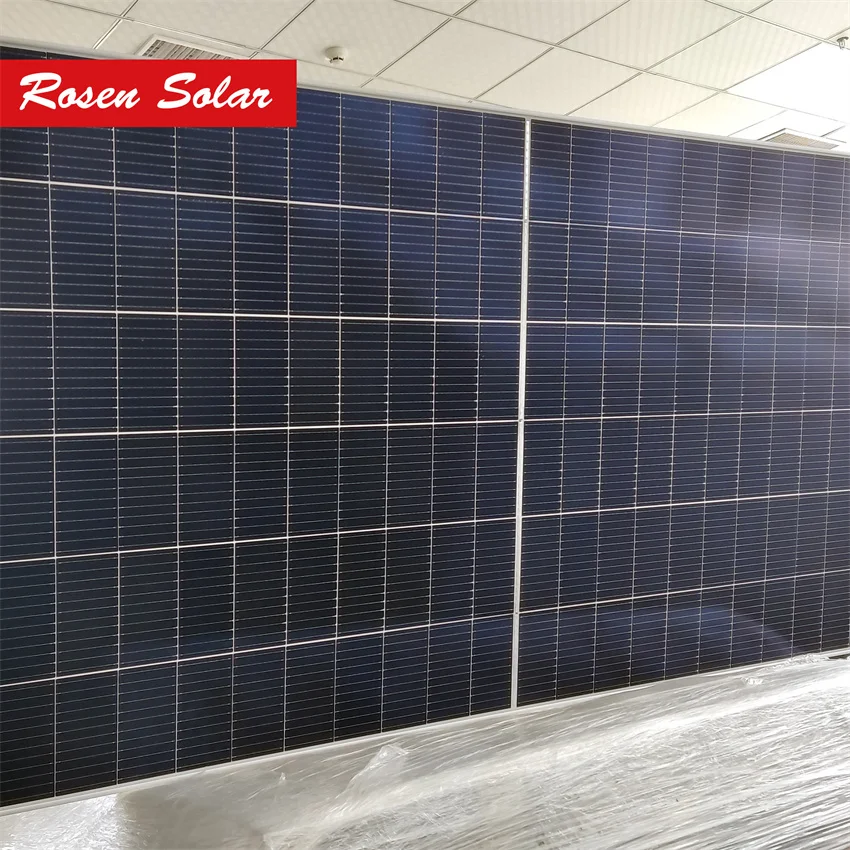

Detailed Images
EVA
High Transmittance EVA,High GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.
Solar Cell
5BB, 6BB, 9BB, 10BB, 12BB Available
158.75cells, 166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Junction--Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
Label
Waterproof Customized Label
OEM/ODM with your Logo
Professional Silver Color
F&Q:
1, How does Warranty work?
-Warranty is 25 to 30years, and solar panels efficiency more than 22%.
2, Do you have Installation manuals?
-Yes, installation manual with technician's online guidance step by step.
3, Which main types of solar panels you are making now?
-We are making Mono N type TOPCON solar panels and HJT panels etc, power range 400W to 700W. Polycrystalline solar panels are
available too. As you know TOPCON is the trend now, and tier 1 manufacturers have agreed on pv module dimension as 2382mm*1134mm,
landscape frame hole distance 400/790/1400mm
4, For further information, please leave a message or call us directly ↓↓↓
1, How does Warranty work?
-Warranty is 25 to 30years, and solar panels efficiency more than 22%.
2, Do you have Installation manuals?
-Yes, installation manual with technician's online guidance step by step.
3, Which main types of solar panels you are making now?
-We are making Mono N type TOPCON solar panels and HJT panels etc, power range 400W to 700W. Polycrystalline solar panels are
available too. As you know TOPCON is the trend now, and tier 1 manufacturers have agreed on pv module dimension as 2382mm*1134mm,
landscape frame hole distance 400/790/1400mm
4, For further information, please leave a message or call us directly ↓↓↓

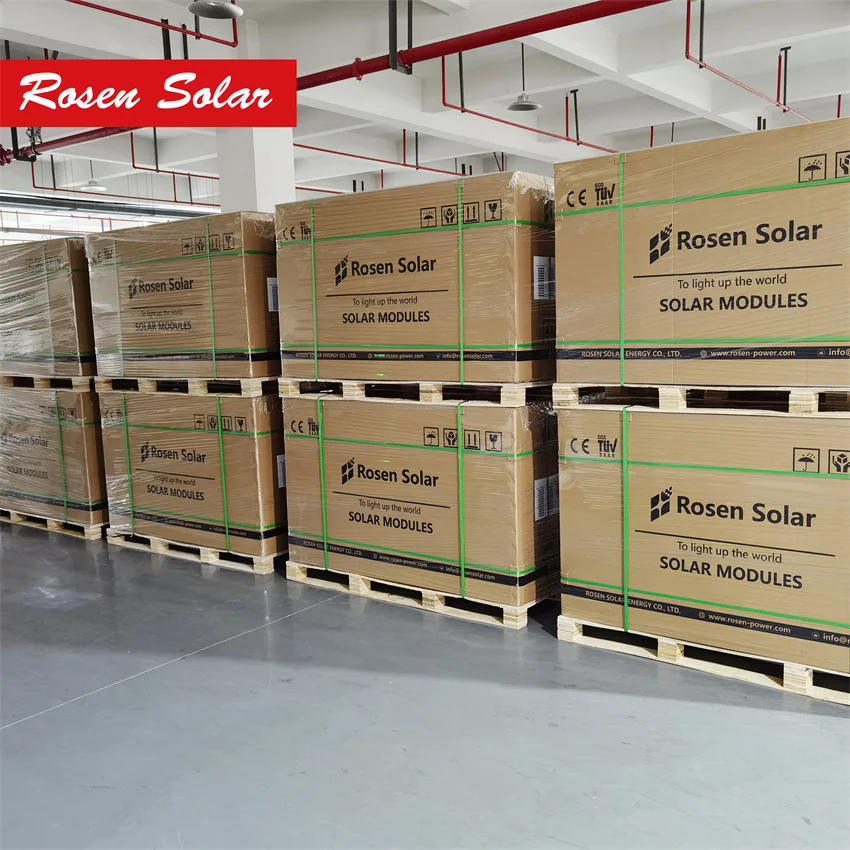

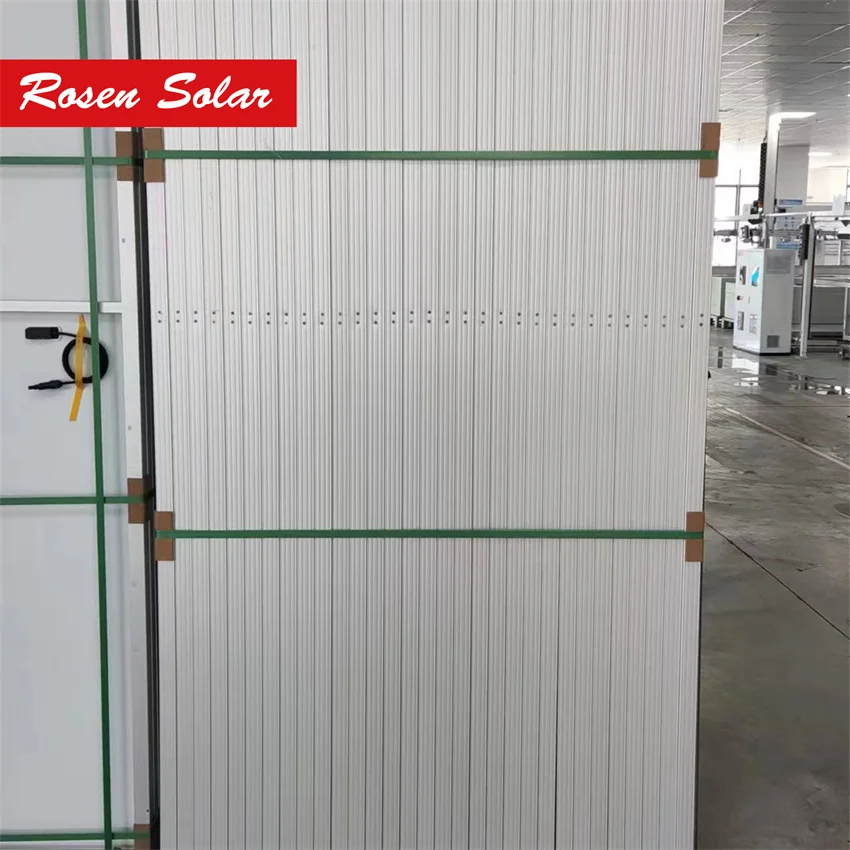

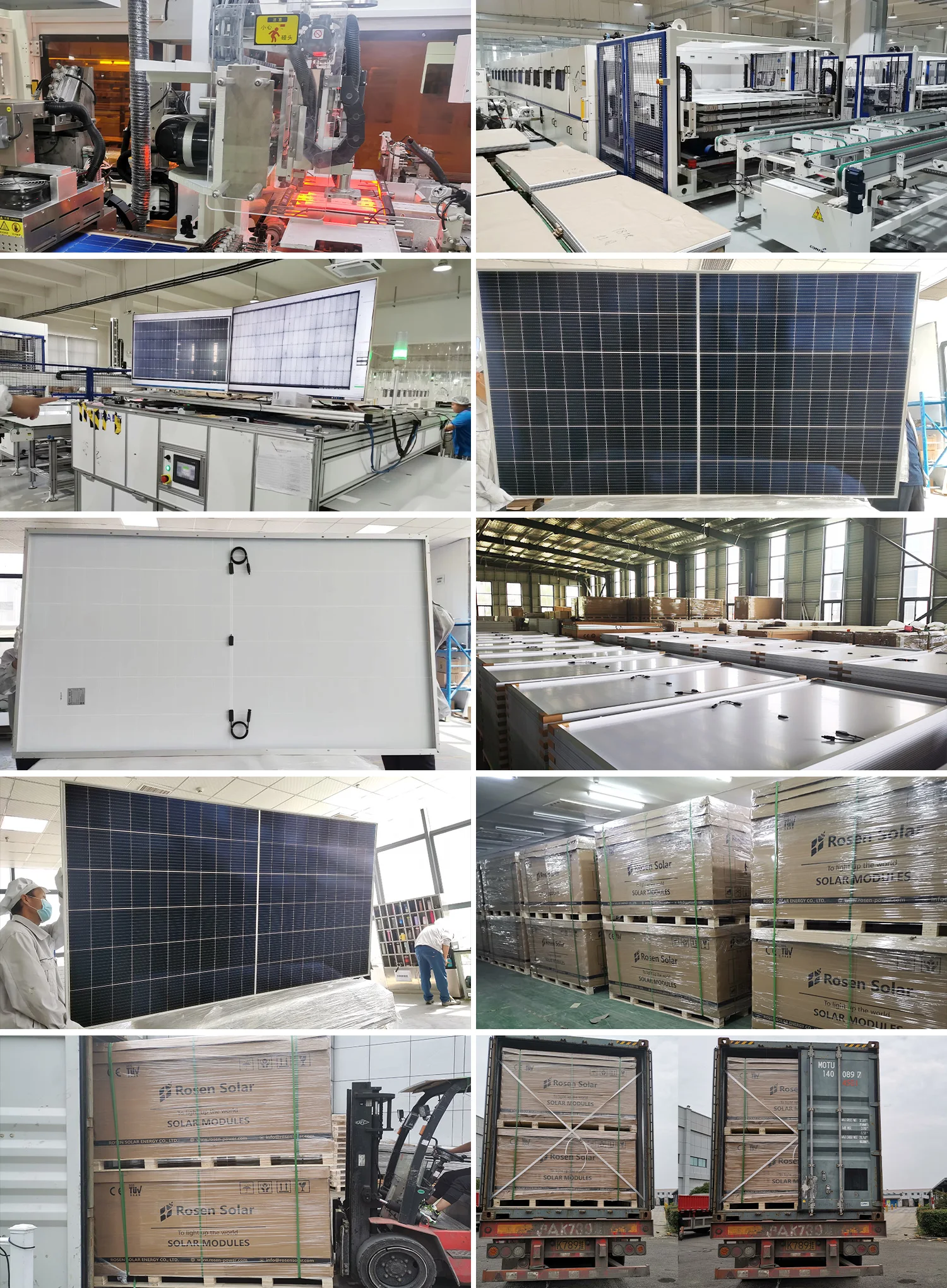

Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days
Delivery Details : 5-10 working days

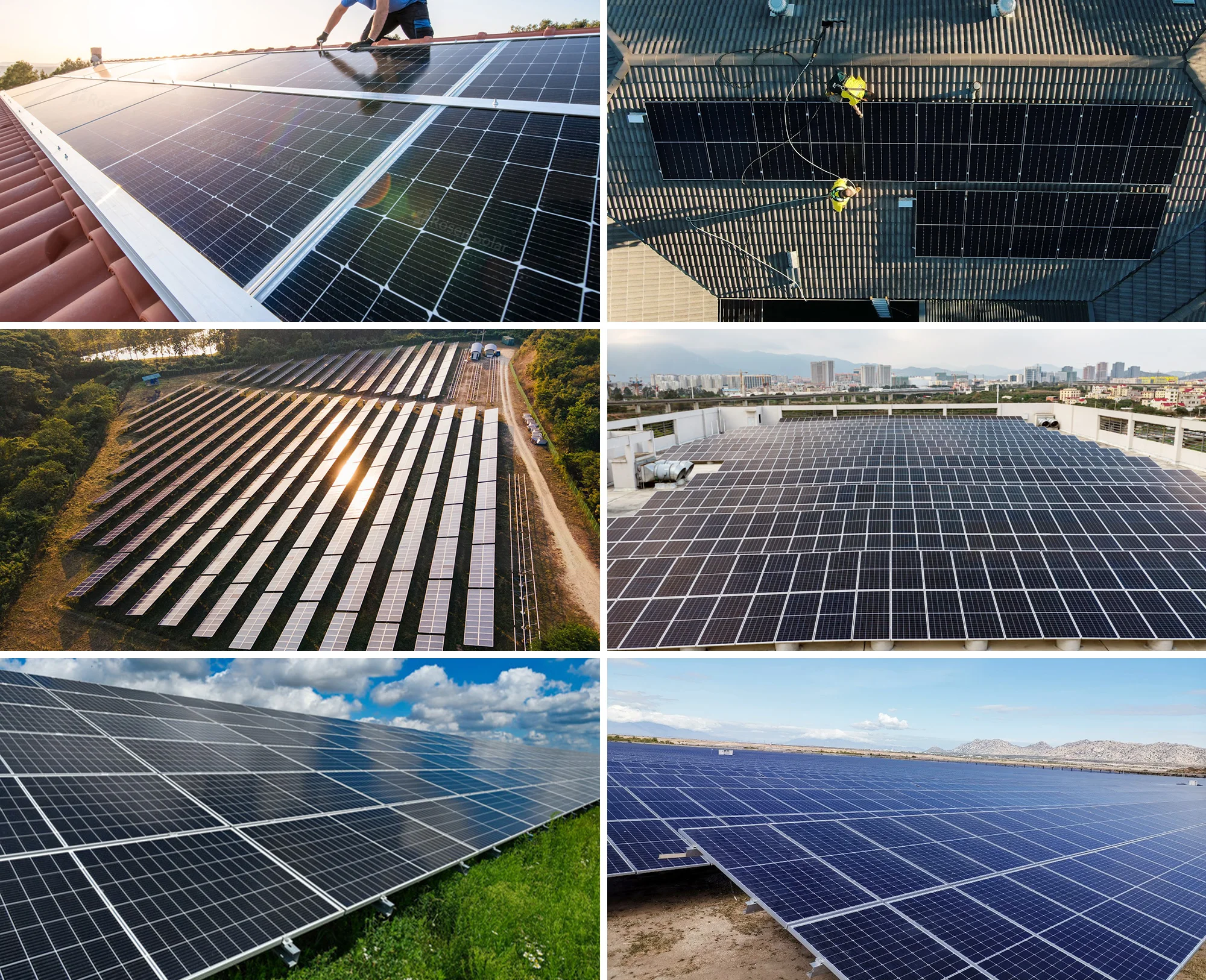

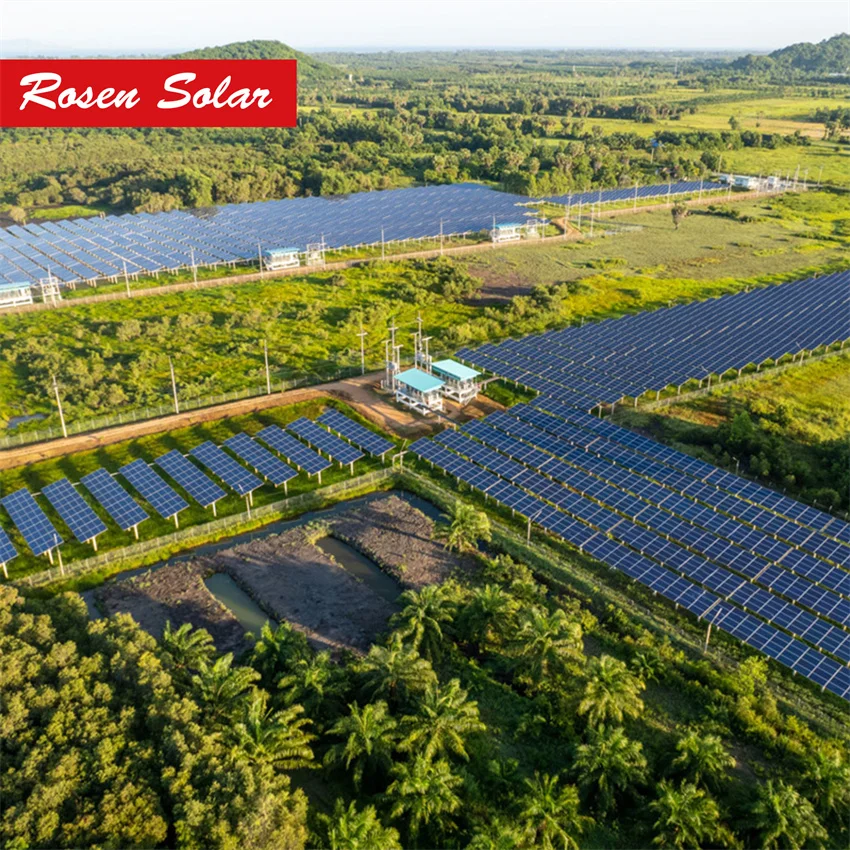

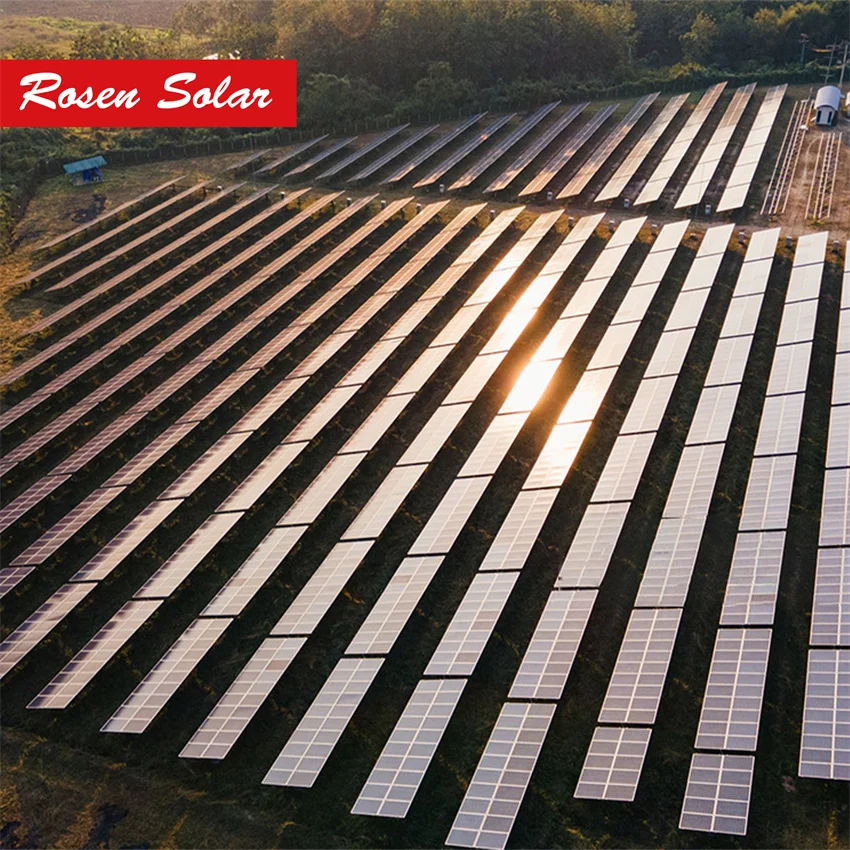

Projects

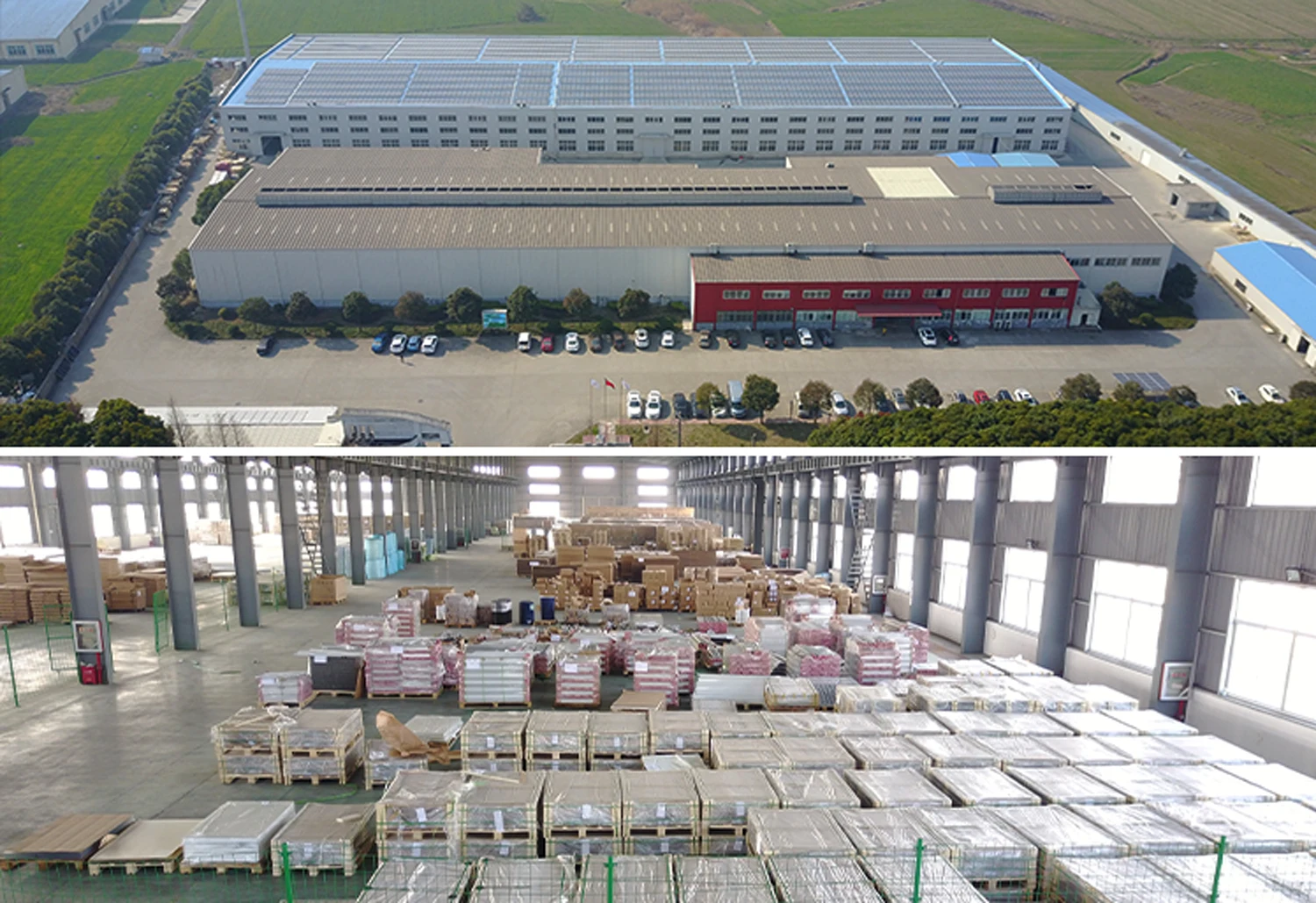

Company Profile
