Cheap Factory Price u shape tubular heater W type finned air heating tube With CE
- Category: >>>
- Supplier: Topright Industrial Technology Yancheng Co. Ltd.
Share on (1600544439503):
Product Overview
Description
Products Description

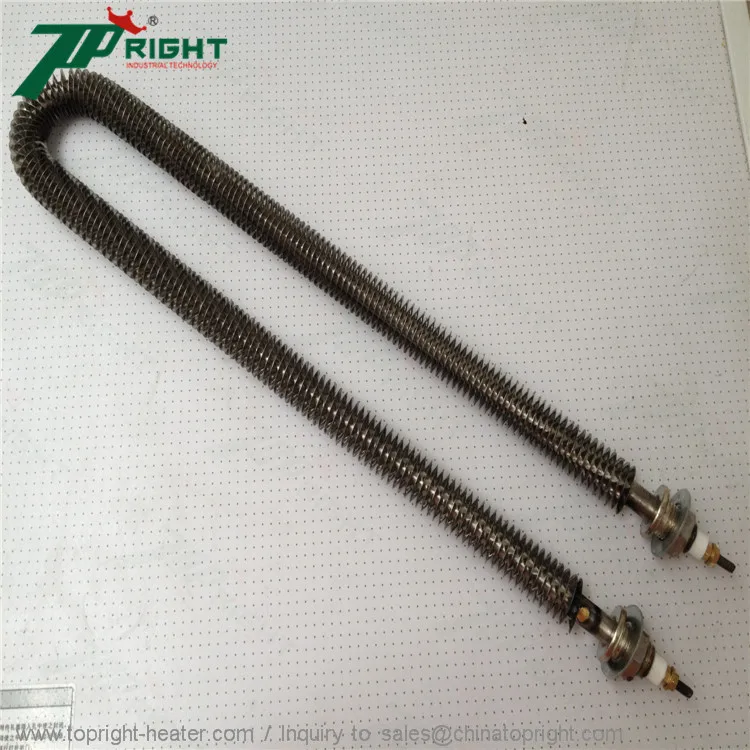

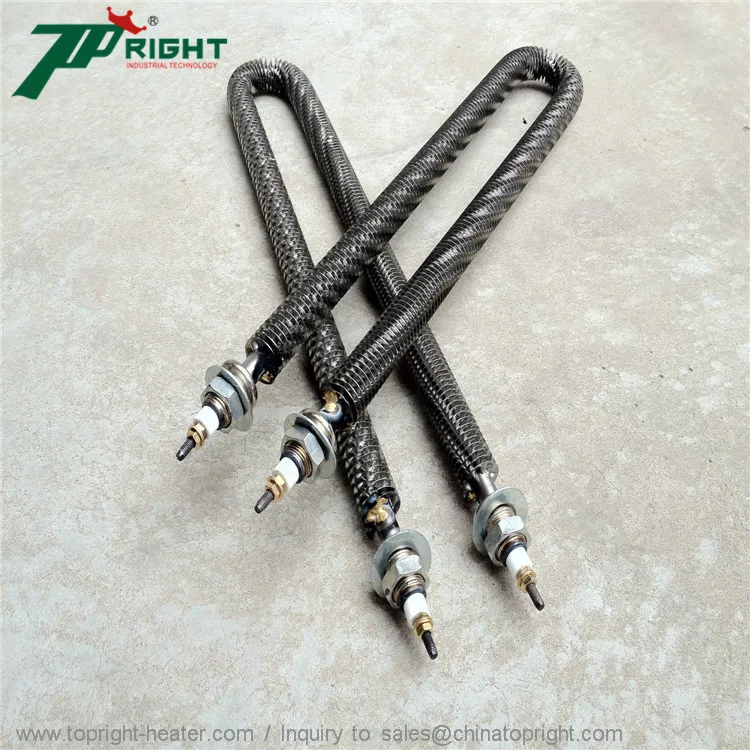

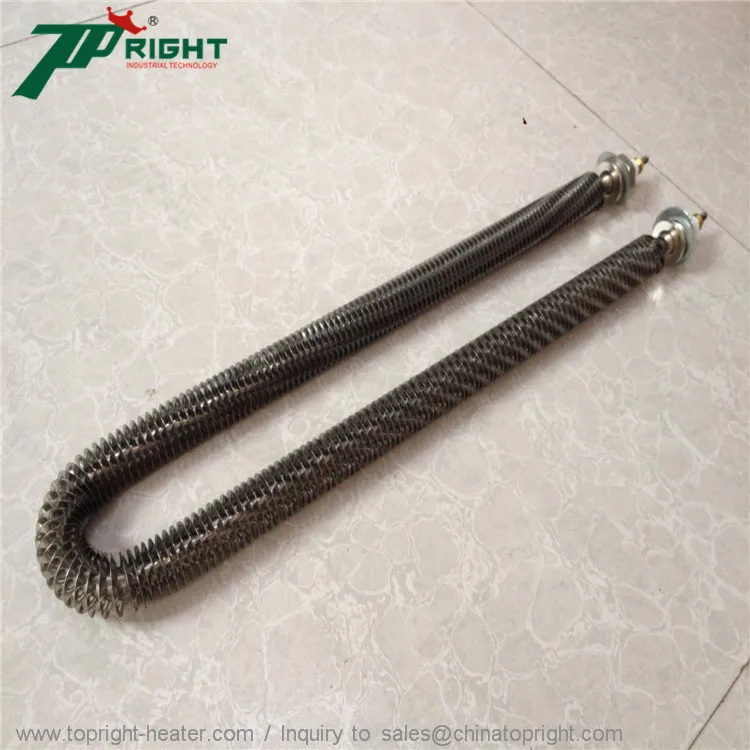

Topright Brand Finned Air Tubular Heater
Finned Tubular Heaters are normally used in forced circulation heating of low temperature air, other atmospheres and gases.
Suitable for use in a wide variety of forced air heating applications, industrial ovens and food service applications.
Finned Tubular Heaters are normally used in forced circulation heating of low temperature air, other atmospheres and gases.
Suitable for use in a wide variety of forced air heating applications, industrial ovens and food service applications.
Steel finned heaters are standard with surface temperatures limited to about 425ºC (797ºF) compared to 815ºC (1500ºF) for an alloy sheathed non-finned heater.

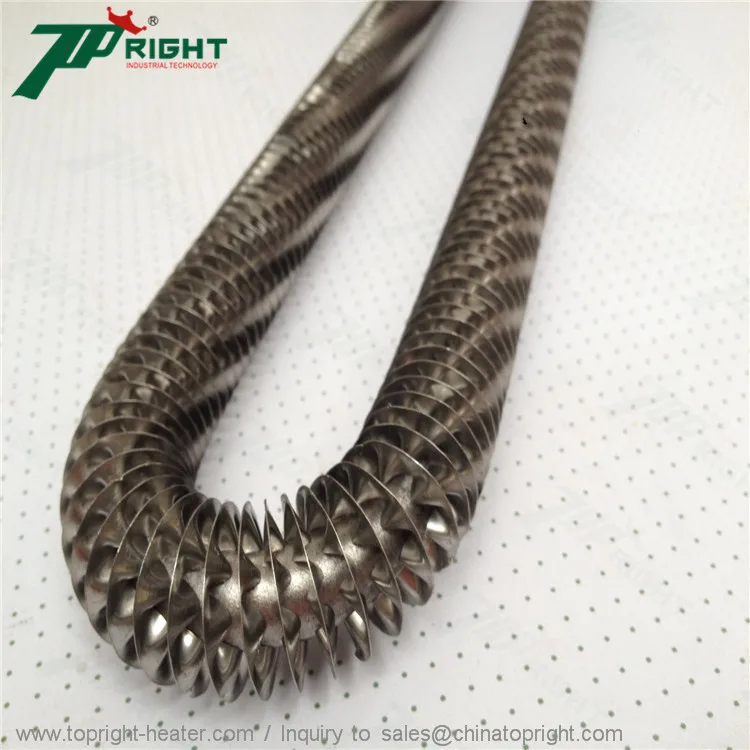

The air cooling fins shape can be round spiral or rectangular up to customer design .
Details Images
Product Paramenters
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MM) | FIN HEIGHT(MM) | FIN THICKNESS(MM) | FIN PITCH(MM) |
SS304/SS316/SS321/Incoloy | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 | |
SS304/316/321/Incoloy | Φ8 | 3-5 | 0.3-0.4 | 3-5 | |
SS304/316/321/Incoloy | Φ9 | 3-5 | 0.3-0.4 | 3-5 | |
SS304/316/321/Incoloy | Φ10 | 5-7 | 0.3-0.4 | 3-7 | |
SS304/316/321/Incoloy | Φ12 | 5-7 | 0.3-0.4 | 3-7 | |
SS304/316/321/Incoloy | Φ14 | 5-10 | 0.3-0.4 | 3-7 | |
SS304/316/321/Incoloy | Φ16 | 5-10 | 0.3-0.4 | 5-10 | |
SS304/316/321/Incoloy | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
The Related Products
Certifications
Company Profile
Topright Technology Culture
Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of
industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years.
Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years.
Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
