TTesmart OEM ODM input 3 USB C output 1 HDMI KVM Switch EDID HDCP 2.2 HDR 4K60Hz KVM Switch
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600544455482):
Product Overview
Description
Product Description
3x1 USB Type-C KVM Switch
# CKS0301A1U
This 3x1 USBC Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any USBC computers using one HDMI compliant display.
This 3x1 USBC Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any USBC computers using one HDMI compliant display.
Features

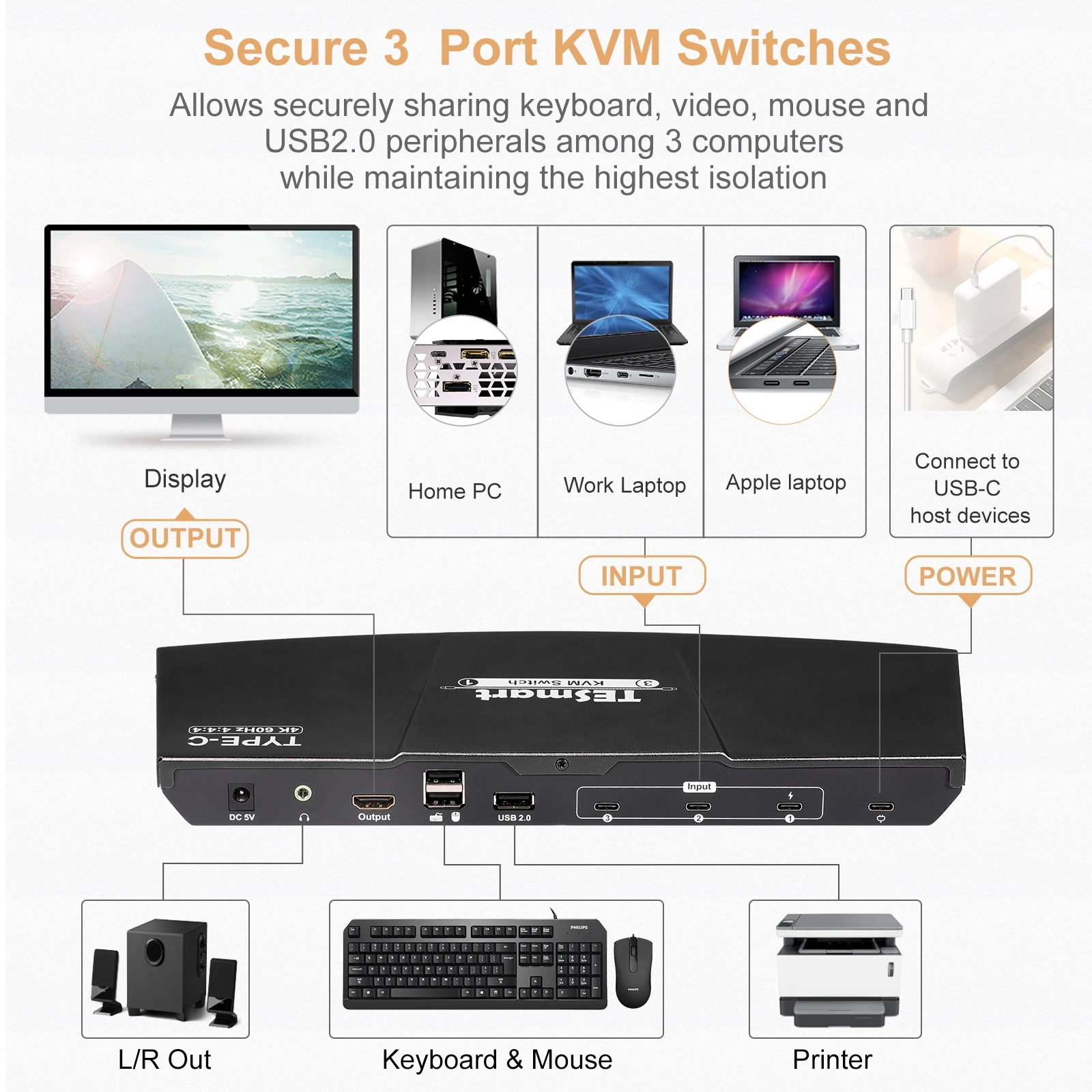

*Using only 1 set of keyboard ,mouse and monitor to control 3 computer devices
*Support resolution up to 3840*2160@60Hz 4:4:4
*HDCP 2.2 compliant

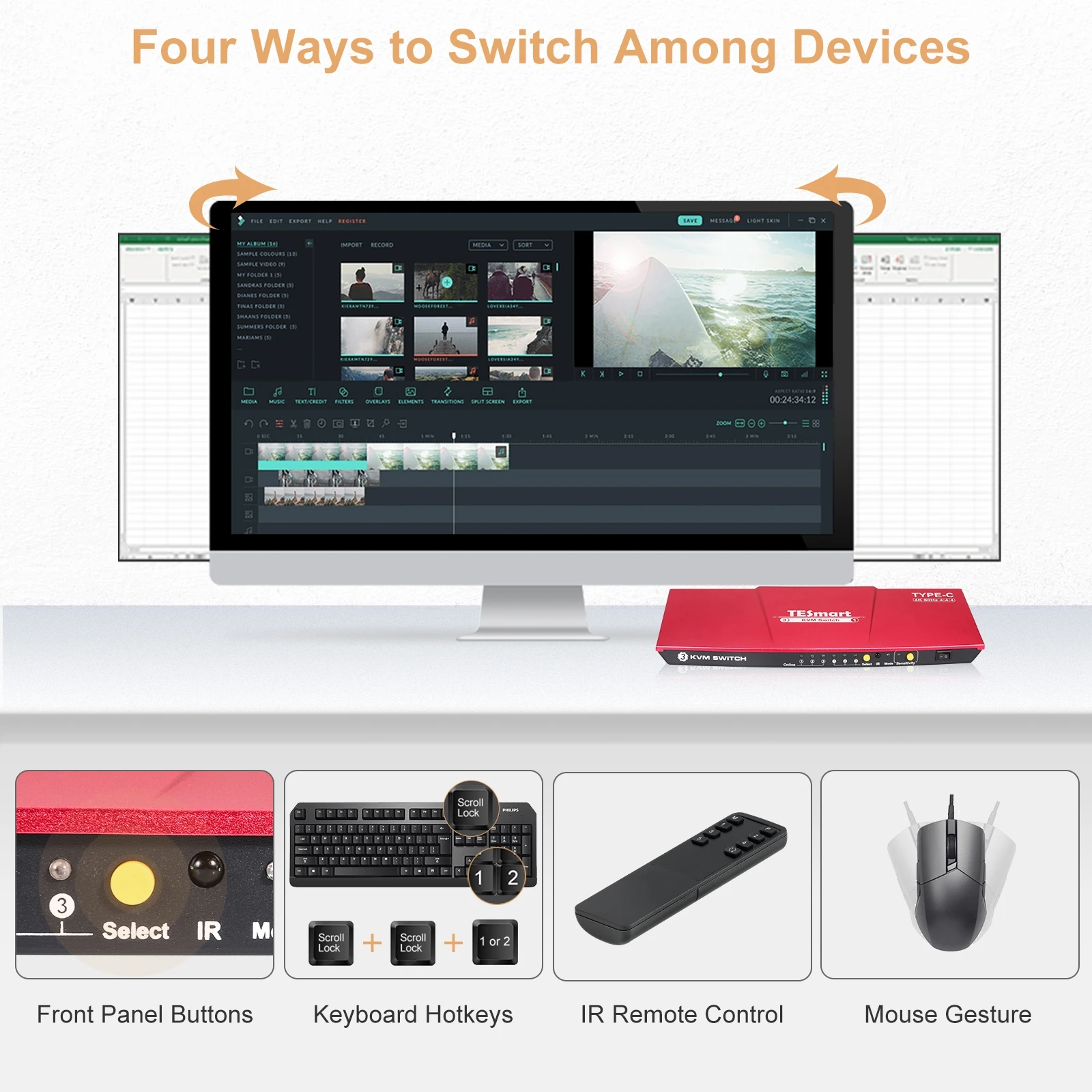

*Support front panel button, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
*Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
*Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
*Support using a USB Type-C fast chargerto charge the devices connected to input port 1

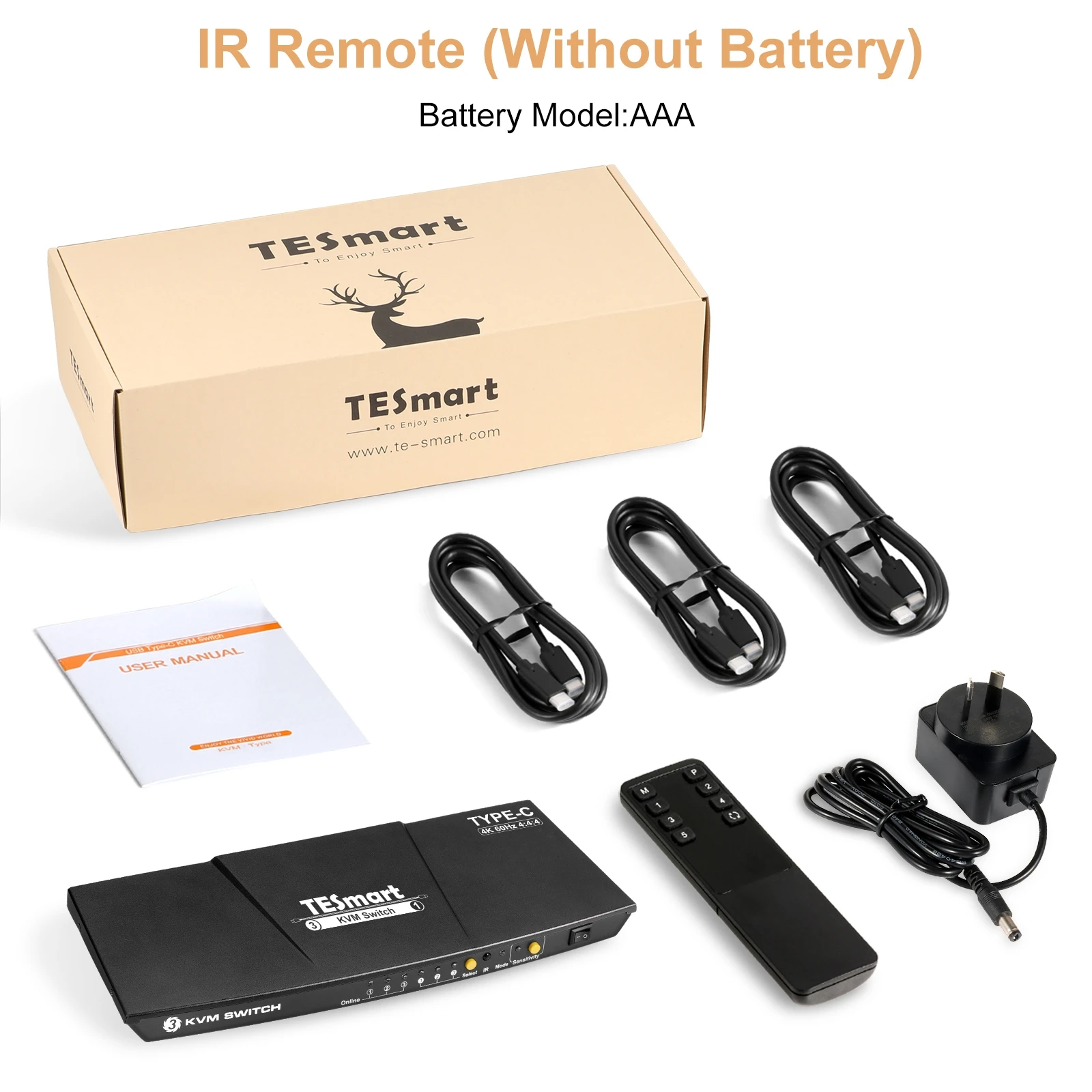

Packing list
1 * 3x1 USB Type-C KVM Switch
1 * DC 5V power adapter
1 * IR remote control
1 * User Manual
3 * USB Type-C cables
1 * Quick-Start Guide
1 * 3x1 USB Type-C KVM Switch
1 * DC 5V power adapter
1 * IR remote control
1 * User Manual
3 * USB Type-C cables
1 * Quick-Start Guide
Specification
CKS0301A1U | 3x1 USB Type-C KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Mouse gesture | Yes | |||
Console commands | No | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 5~254 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |||

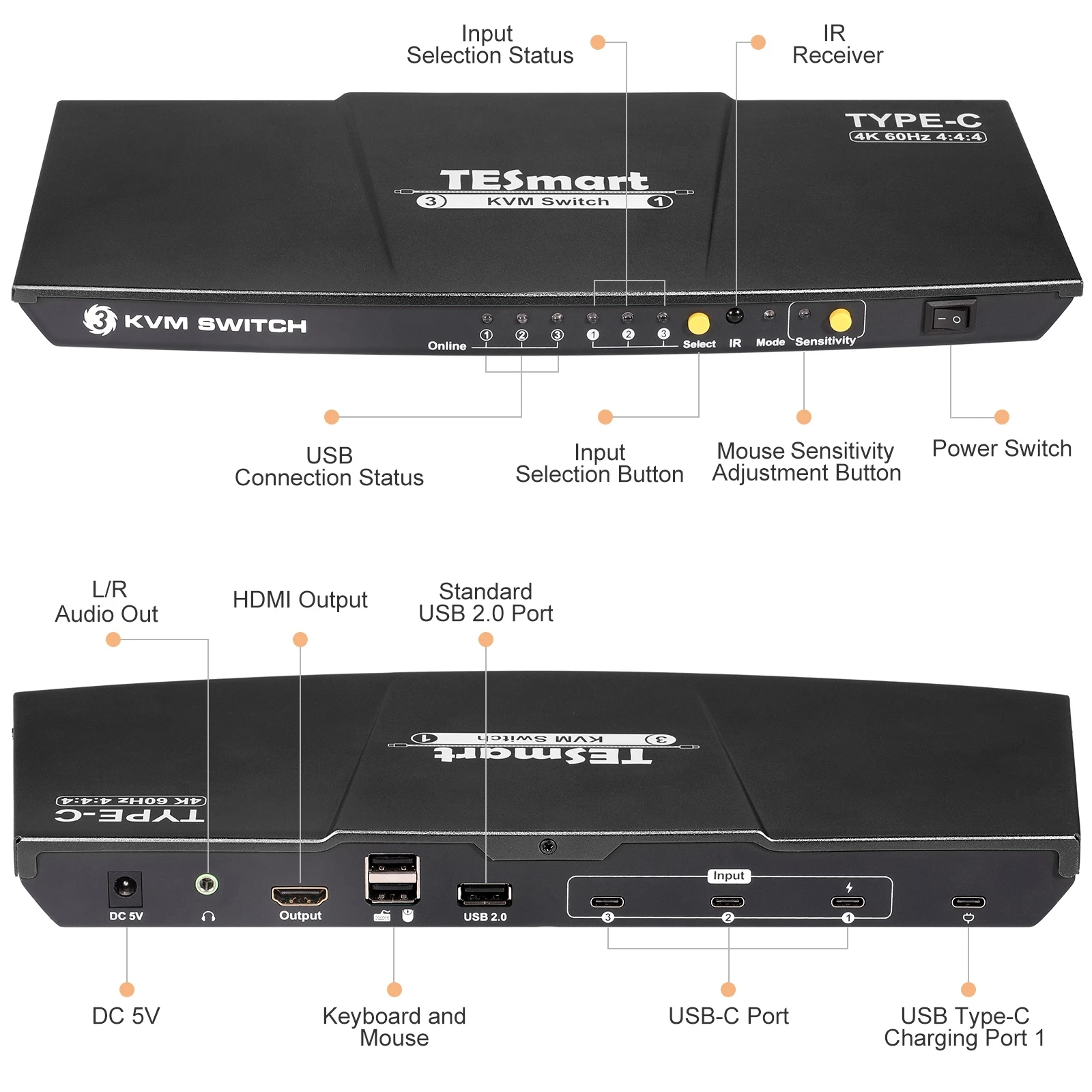

Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | L/R audio output | 1 * AUX | ||
Video / Audio | 3 * USB Type-C | |||
Charging port | 1 * USB Type-C | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product | Dimension | 300 (L) x 117 (W) x 30 (H) mm | ||
Weight | 507g | |||
Item | Dimension | 338 (L) x 166 (W) x 90 (H) mm | ||
Weight | 1100g | |||
Carton | Dimension | 490 (L) x 360 (W) x 360 (H) mm | ||
Quantity | 10pcs | |||
Total Weight | 11.85kg | |||
