New Arrival RZ/ G2L Industrial Grade Single Board Computer with Duan Ethernet Dual CAN and One RS485
- Category: >>>
- Supplier: Baoding Forlinx Embedded Technology Co. Ltd.
Share on (1600544458251):
Product Overview
Description
New Arrival RZ/ G2L Industrial Grade Single Board Computer with Duan Ethernet Dual CAN and One RS485
OK-G2LD-C is a new single board computer which is the first time for Forlinx using Renesas processor for development board designing. It is based on G2L which is a hybrid processor contains a dual-core Cortex-A55 processor up to 1.2GHz and a Cortex-M33 core up to 200MHz and integrated with Mali-G31 GPU up to 500MHz, the whole development board/ kit consists of carrier borad and SoM, the SoM is pluaggable and it could be connected to carrier borad by three untra thin connectors, which is much more convenient for user's carrier board designing and also product maintenance. Besides, it has RS485 and CAN buses with EMC solution on carrier board, which is much preferable for field applcation.
Product Description
Robust and Reliable
All components on SoM are industrial grade materials that working temperature width ranges from -40℃ to +85℃, while allows the SoM work well even in tough environment

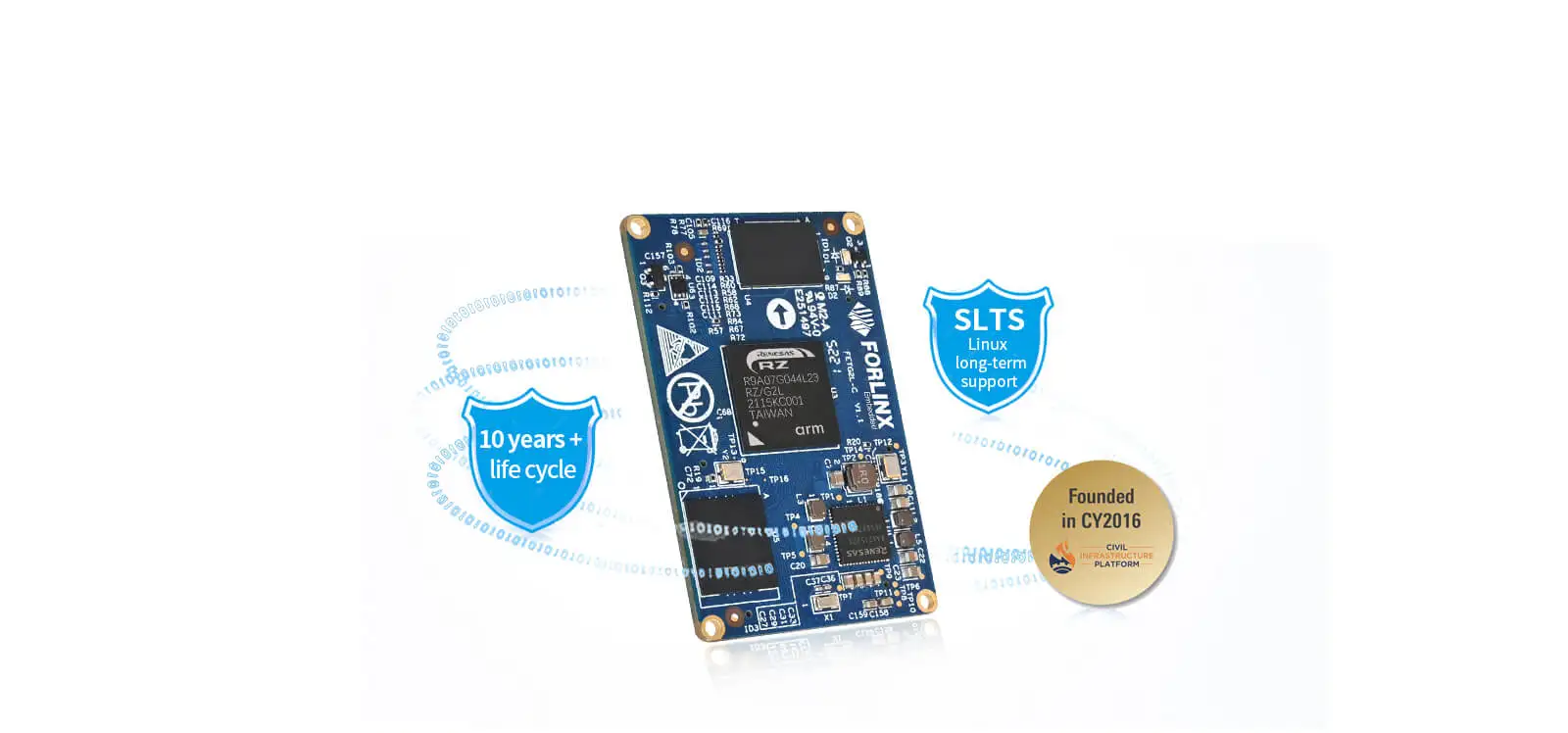

10+ Years Lifespan
Lifespan of the main processor RZ/ G2L is not less than 10 years with supporting of (SLTS) Linux kernel.

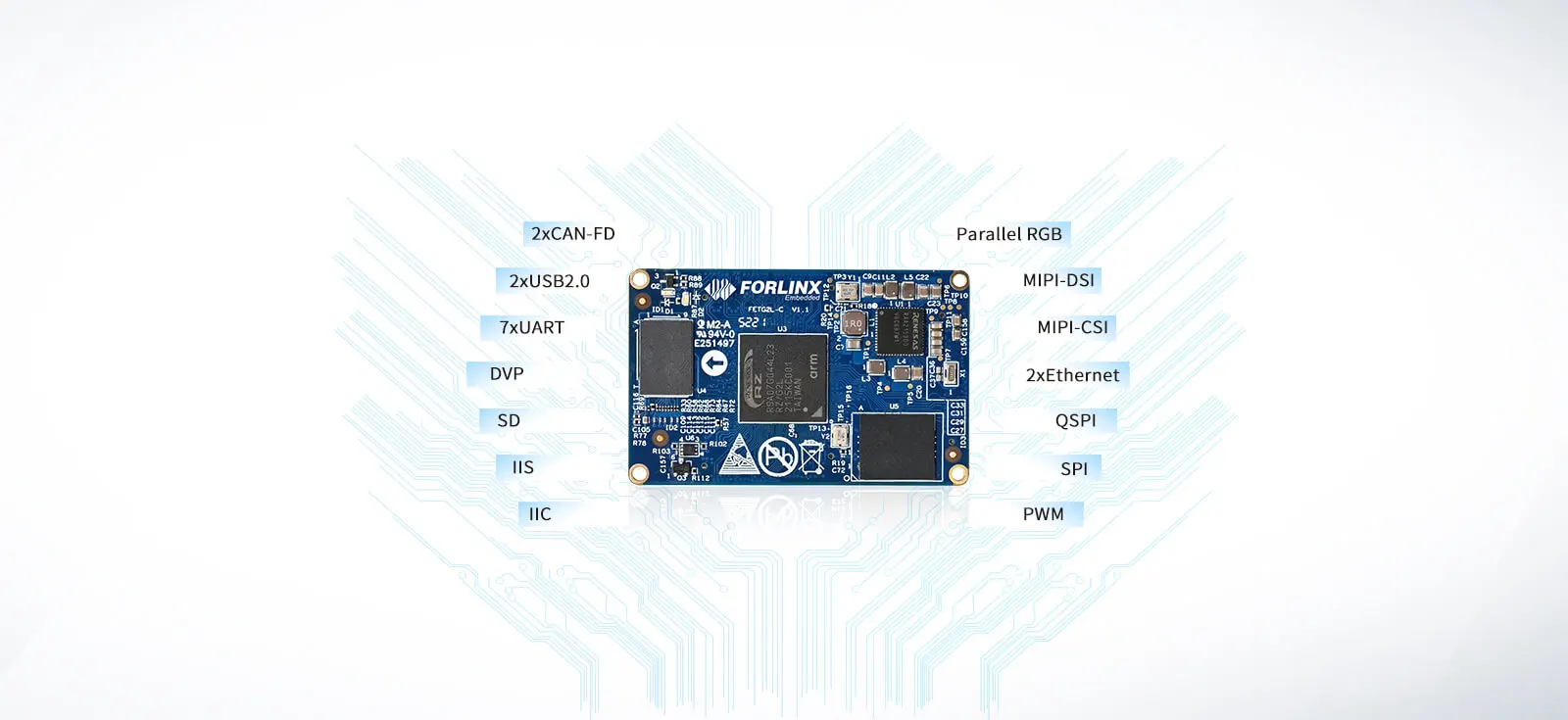

High scalibility
The SoM FET-G2LD-C is designed with various easy going peripheral sources, such as 2x GMAC, 2x CAN-FD, 2x USB2.0, 7x UART, MIPI-DSI, parallel RGB, MIPI-CSI, DVP, SD, IIC, SPI, QSPI, PWM, ADC and other general purpose interface.

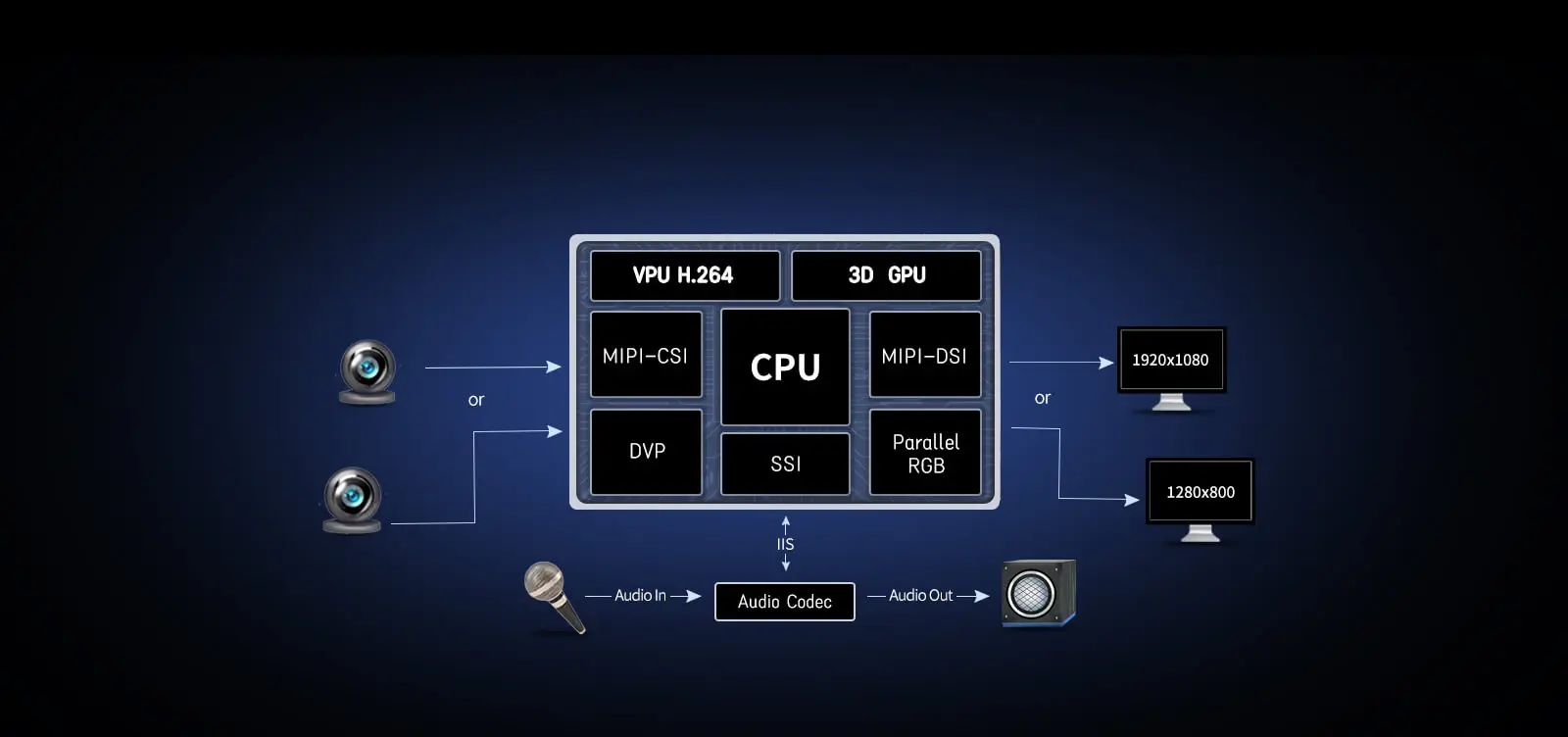

HMI Preferable
Display, camera and audio interfaces and also built in GPU and VPU are all available, which are preferable for HMI application. Built in VPU supports H.264 up to 1920x 1080@ 30FPS, and GPU Mali G31@ 500MHz can support Vulkan, OpenGL and OpenCL.

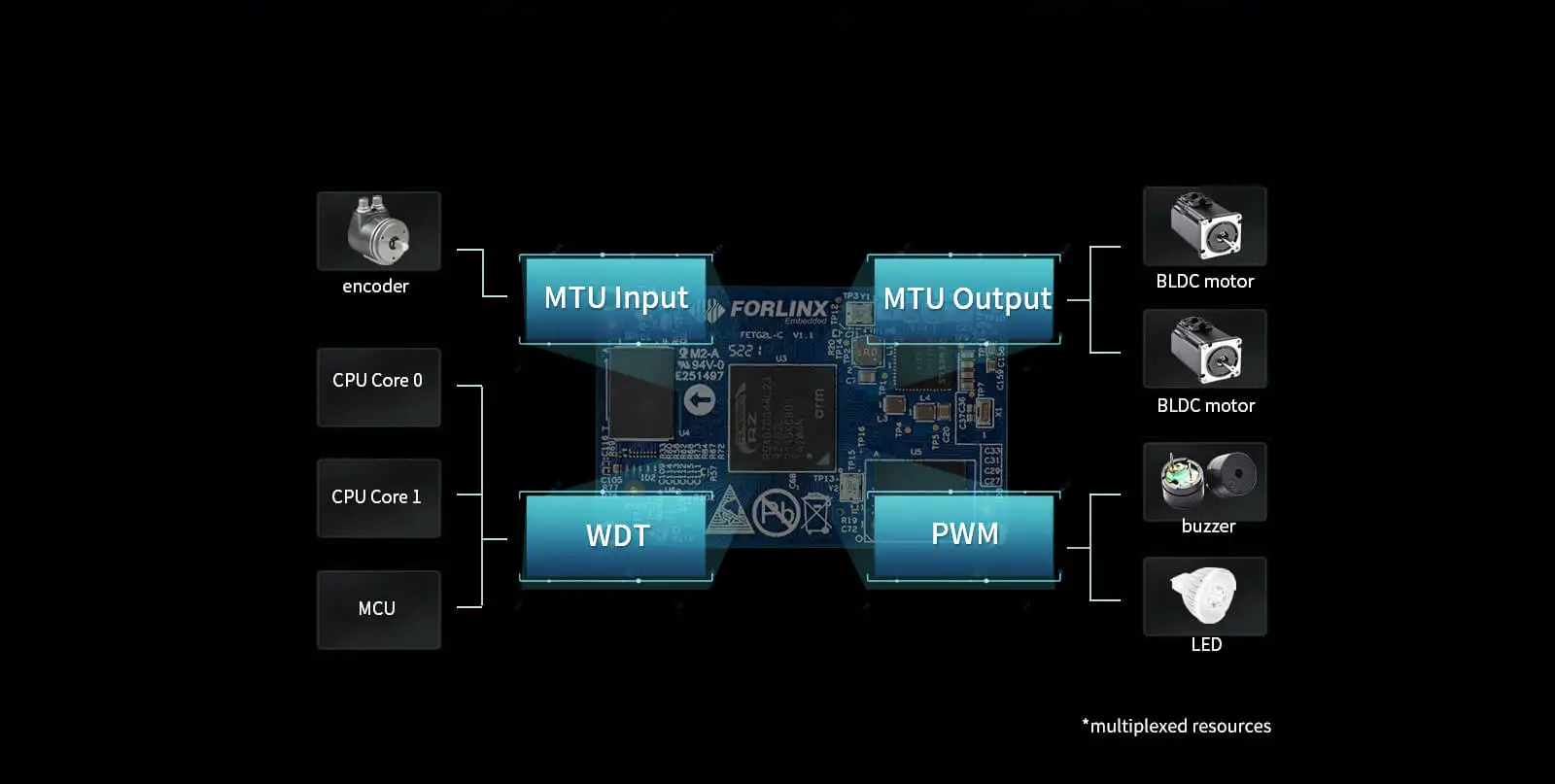

MTU3a
RZ/ G2L processor is equipped with 1-lane 32-bit MTU3*, 8-lane 16-bit MTU3*, 8-lane 32-bit PWM* and 3-lane watchdog. The MTU3a(Multi-Function Timer Pulse Unit 3) contains 8 16-bit timer and 32-bit lanes, which can support PWM complementary input and output used for programmer input and motor control.

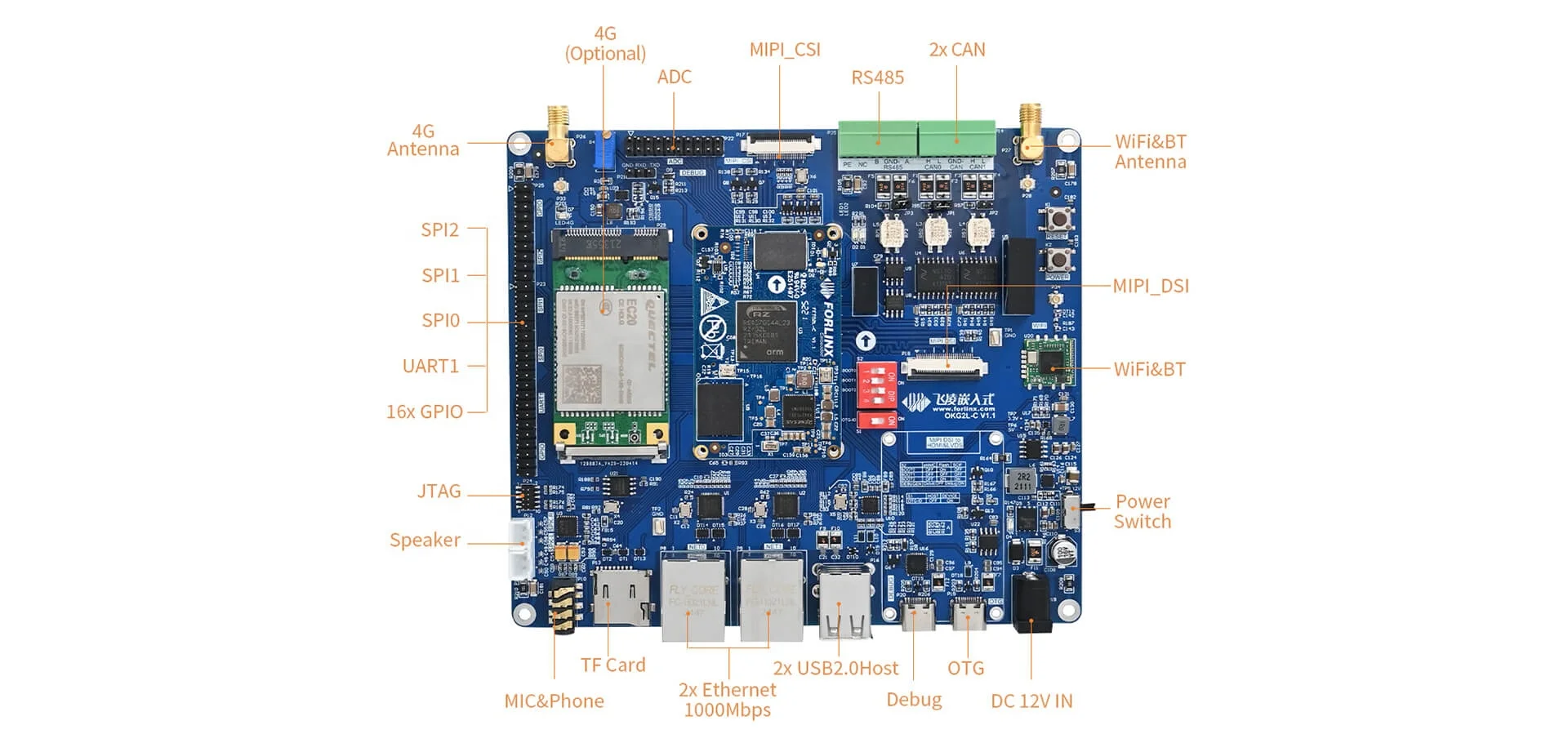

Carrier board Pin Diagram
OK-G2LD-C single board computer consists of SoM FET-G2LD-C and carrier board. There are multiple connectors available on carrier board which is much convenient for users testing purpose.
Target Application
FET-G2LD-C SoM could be widely used in industrial automation, medical, power management, smart transportation, security, etc.
Packing&Shipping
Generally a single board computer with or without LCD can be packed in one piece a box, bottom layer for accessories, and top layer for board.
Payment term: 100% in advance
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
After Sales Service
After-sale Service Policy
1. Please take a valid purchasing voucher for maintenance request when you have product failure problems.
2. We kindly provide one year of warranty to ARM board except non-warranty components(CPU, RAM and Flash/ storage chips) and three
months warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the
maintenance department. If goods seriously damaged, accessory discontinued or other uncontrollable conditions which may cause the
products can not be fixed, Forlinx will not provide maintenance service.
4. Forlinx kindly provide one month of warranty to the repaired items, payment should be done to the appointed account.
Note: this warranty is only valide to the repaired problem.
5. Please take necessary data backup before the defective item sent back to up for maintenance, all risks caused by no backup
should be born by customers.
6. Forlinx will reject items sent back without our permission.
7. To goods within warranty period, freight should be shared by both sides, otherwise, customer should bearn all maintenance
related freight and custom fees.
Non-warranty Coverage（Paid Maintenance Service）
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. Bar code or factory ID on purchasing voucher is not matched with the product itself;
6. Product failure caused by non-authorised maintenance, improper operations, misuse operations or other unexpected behaviors.
7. Product failure caused by fore majeure.
8. Other failures caused during delivery.
1. Please take a valid purchasing voucher for maintenance request when you have product failure problems.
2. We kindly provide one year of warranty to ARM board except non-warranty components(CPU, RAM and Flash/ storage chips) and three
months warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the
maintenance department. If goods seriously damaged, accessory discontinued or other uncontrollable conditions which may cause the
products can not be fixed, Forlinx will not provide maintenance service.
4. Forlinx kindly provide one month of warranty to the repaired items, payment should be done to the appointed account.
Note: this warranty is only valide to the repaired problem.
5. Please take necessary data backup before the defective item sent back to up for maintenance, all risks caused by no backup
should be born by customers.
6. Forlinx will reject items sent back without our permission.
7. To goods within warranty period, freight should be shared by both sides, otherwise, customer should bearn all maintenance
related freight and custom fees.
Non-warranty Coverage（Paid Maintenance Service）
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. Bar code or factory ID on purchasing voucher is not matched with the product itself;
6. Product failure caused by non-authorised maintenance, improper operations, misuse operations or other unexpected behaviors.
7. Product failure caused by fore majeure.
8. Other failures caused during delivery.
Company Profile
Forlinx Embedded Technology is a well-established and constantly growing company, focused on designing, developing and manufacturing embedded systems solutions. Since 2007, Forlinx has committed to provide user-friendly, cost-efficient, stable and advanced embedded solutions which are based on ARM architecture, and offer a variety of platforms including SOMs (System-on-Module), SBCs (Single Board Computer) and industrial embedded PCs with global logistics support.
In order to bring customers the outstanding quality and highly stable performance, Forlinx established the stringent standards in each step of development, and have the high and low temperature laboratory, EMC laboratory and other specialized instruments for full functional testing.
Forlinx strictly practices ISO9001 quality management standard and implements MES system to achieve high productivity and ensure responsiveness to market demand.With the advanced production technique and automatic production line, Forlinx have the ability to produce several million pieces of SoMs per year.
Additionally, Forlinx provides one-stop customization service including BSP tailoring, software and hardware design, mechanical design and integration, which will help customers to reduce product cost and speed up their products to market.
In order to bring customers the outstanding quality and highly stable performance, Forlinx established the stringent standards in each step of development, and have the high and low temperature laboratory, EMC laboratory and other specialized instruments for full functional testing.
Forlinx strictly practices ISO9001 quality management standard and implements MES system to achieve high productivity and ensure responsiveness to market demand.With the advanced production technique and automatic production line, Forlinx have the ability to produce several million pieces of SoMs per year.
Additionally, Forlinx provides one-stop customization service including BSP tailoring, software and hardware design, mechanical design and integration, which will help customers to reduce product cost and speed up their products to market.
