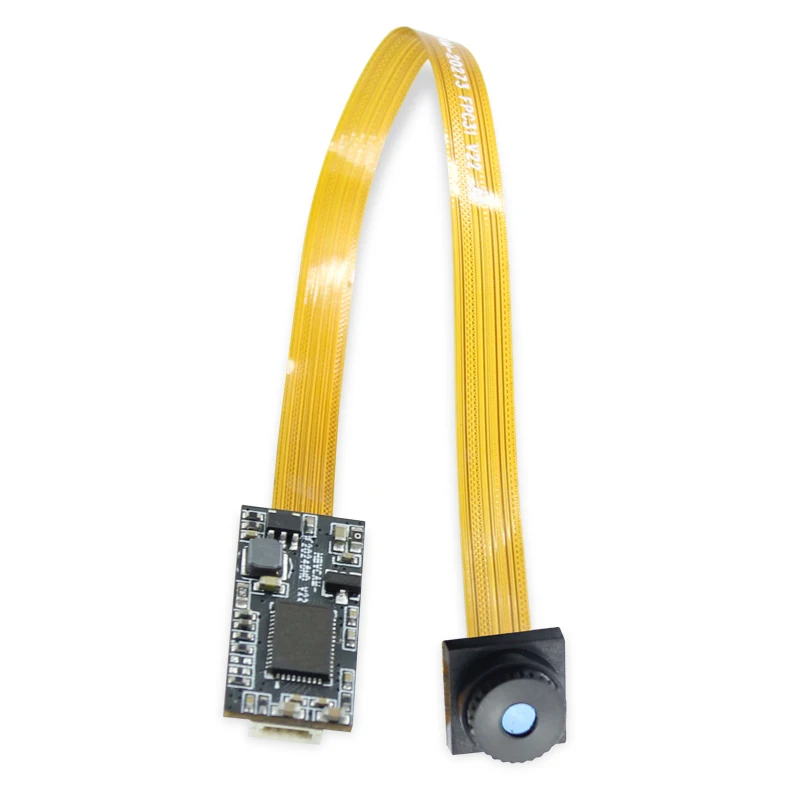

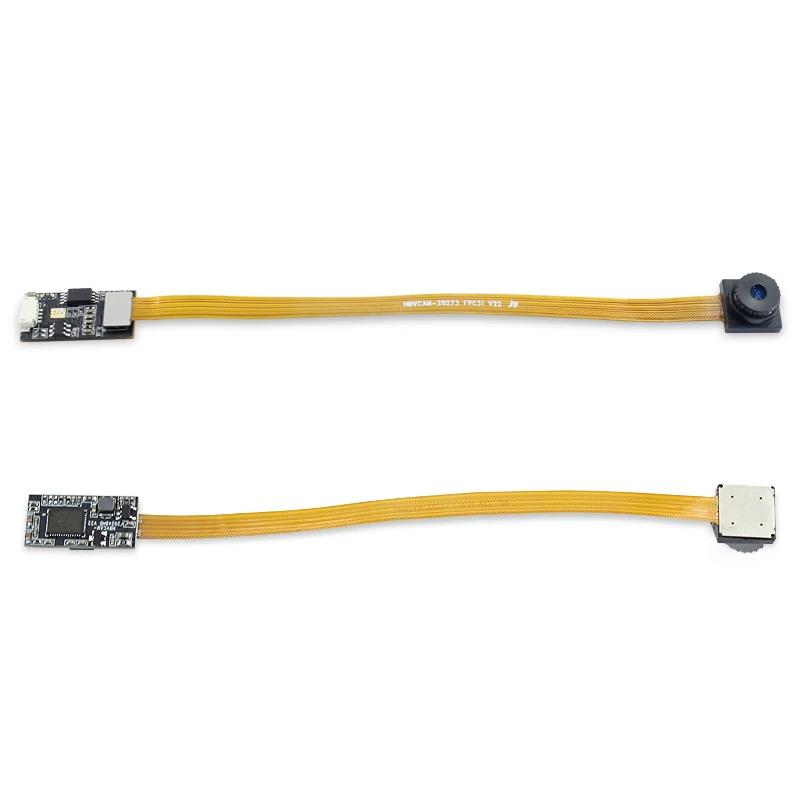

Professional Manufacturer 2Mp Hd 1080P Mipi Interface Cmos Sensor HM2131 Camera Module Uvc 60 Fps Usb Camera Module

Product Overview

Description

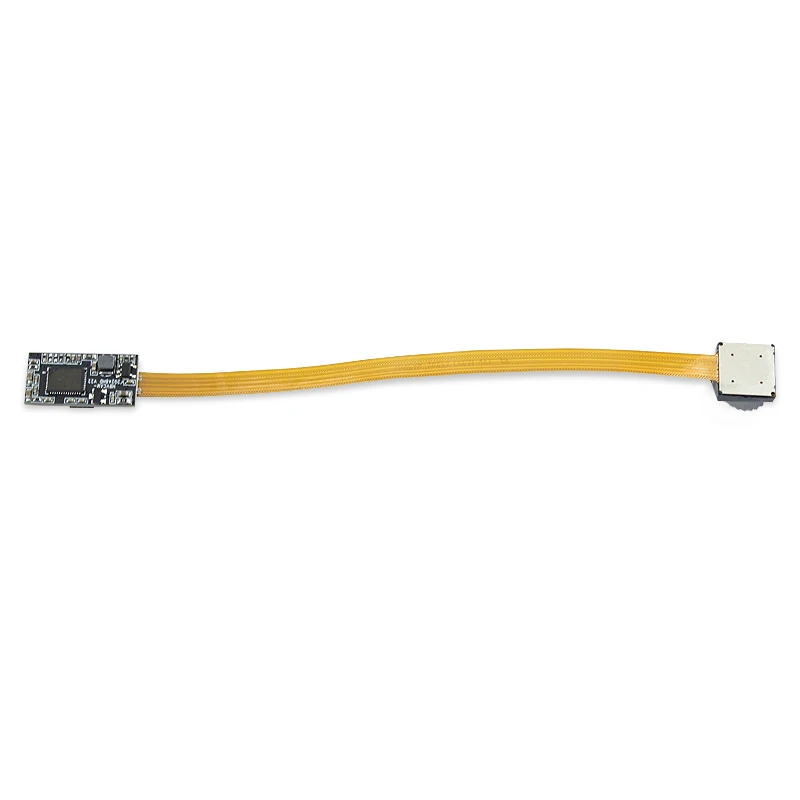

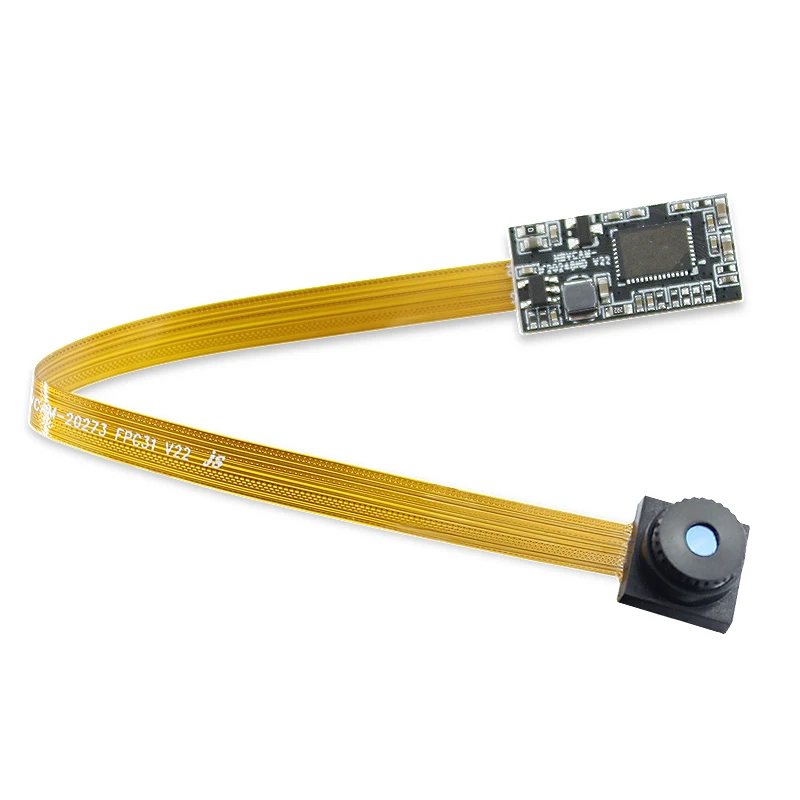

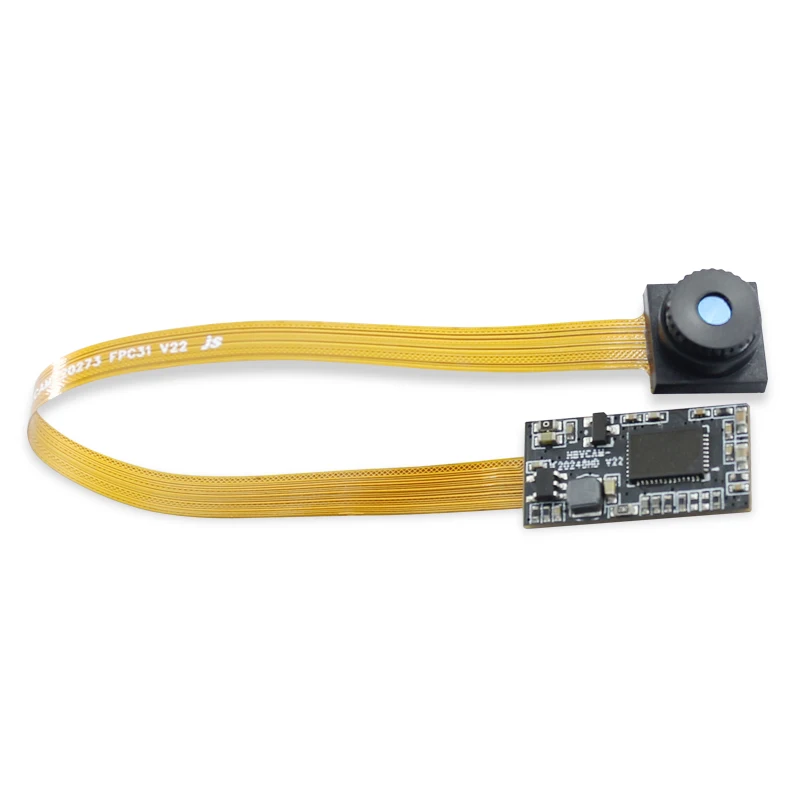

Product Name	2 MP soft hard board separation docking flexible structure device embedded built-in camera module
Module No.	HBVCAM-F20248HD V22

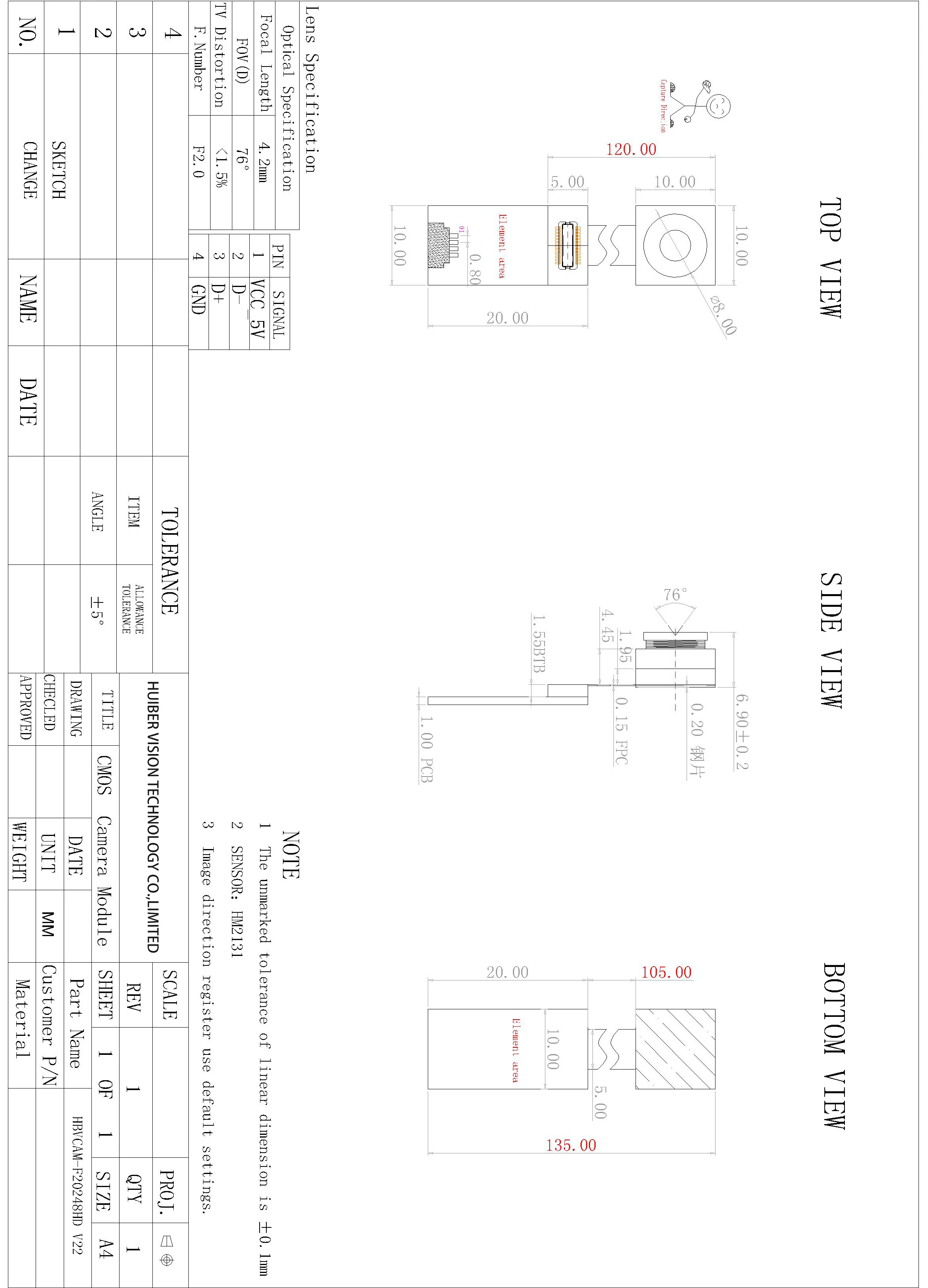

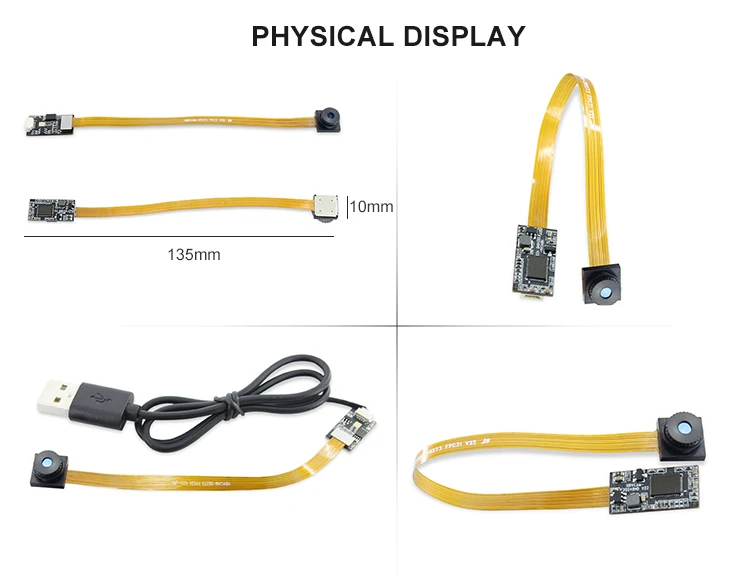

Module Size	135mm × 10mm × 6.9mm±0.2MM
Features	1. Soft and hard board split flexible structure, large image surface, high-definition effect, small volume 2. Can do 30/60FPS 3. The head can be made 9X9mm/10X10mm 4. Several specification lenses are optional
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

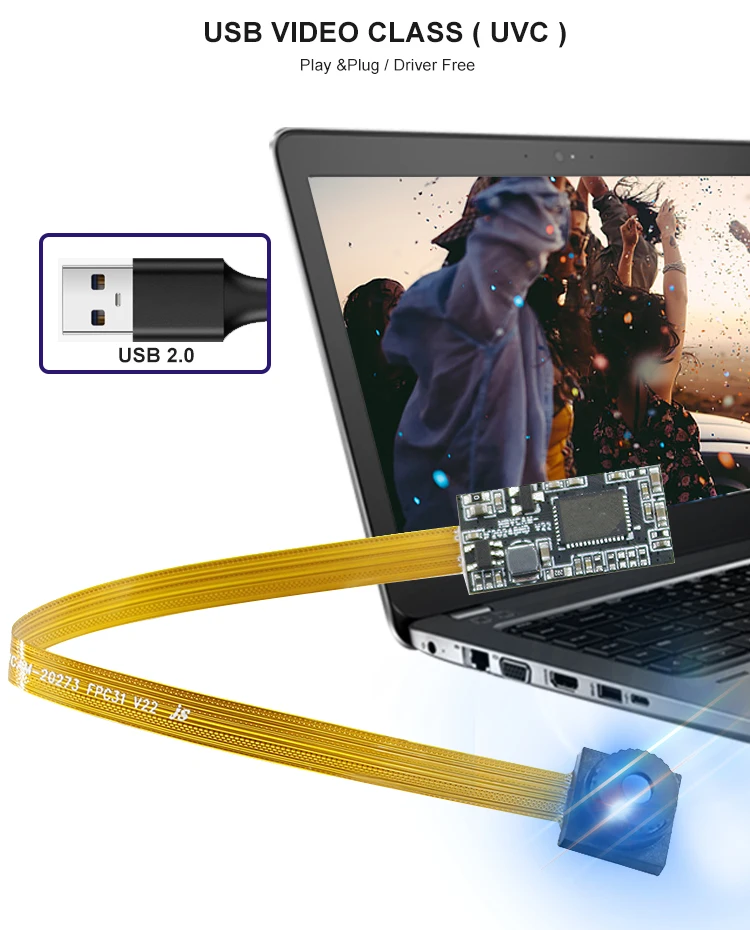

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	450mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	HM2131 (1/2.7” )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	38.9 db
Max Dynamic Range	62 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	2.0
EFL	4.2mm
FOV	76°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH



1.Are you camera module manufaurer?

Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013

year



2. Do you supply OEM/ODM service?

Yes, we can supply OEM/ODM service, we also can customize the camera module according to your

requirement.



3. Do you provide samples?What's the MOQ?

Samples are provided, but not free.Some of our products provide a drop shipping service, and some

products have a minimum order of 100 /500pieces



4. How to guarantee quality?

Always a pre-production sample before mass production,and final inspection and test before shipment



5: How to pay for order ?

you can pay by TT, Paypal, Escrow, Western Union



6. Does the camera module can work with Windows/Android/Linux system?

Usually the camera can work with Windows system with free driver, it is a play and plug camera

module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to

be tested whether work with Android and Linux system.



7.Does the camera support OTG?

Most of our usb cameras support OTG function



8.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
