4G Modules LTE EG25G MiniPCIe series EG25 G EG25GGB MINIPCIE Quad band CAT4 Module wireless IoT modules worldwide BandInfo
- Category: >>>
- Supplier: Shenzhen Wuji Electronics Co. Ltd.
Share on (1600544462021):
Product Overview
Description
4G Modules LTE EG25G MiniPCIe series EG25-G EG25GGB-MINIPCIE Quad-band CAT4 Module wireless IoT modules worldwide BandInfo
Products Description
Key Features
Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
Supports MIMO
Supports DFOTA and DTMF
Multi-constellation GNSS receiver available
USB 2.0 high-speed interface
Overview

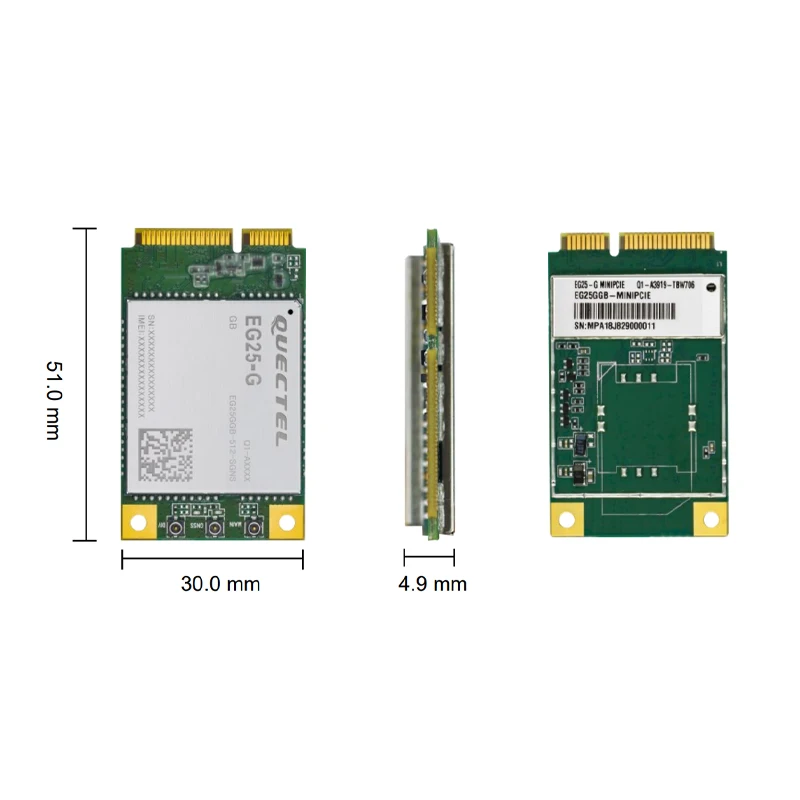

The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.
Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.
The EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.
Product Paramenters
Product Name（Module） | EG25GGB-MINIPCIE |
Module Type | LTE Cat 4 module |
Other OC | EG21GGB-128-SGNS EG25GGB-256-SGNS EG25GGC-128-SGNS EG25GGD-256-SGNS EG21GGB-MINIPCIE EG25GGB-MINIPCIE EG25GGB-MINIPCIE-S |
BandInfo | FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 TDD:B38/B39/B40/B41 WCDMA:B1/B2/B4/B5/B6/B8/B19 GSM:B2/B3/B5/B8 |
Form Factor | MINIPCIE |
Details Images
The above parameters are for reference only, and the actual situation shall prevail.
We have a strong technical team that can provide all product specifications, hardware, software, development boards and other documentation and technical guidance.
If you need these materials and technical guidance, please contact us! (click here)
