Product Overview

Description

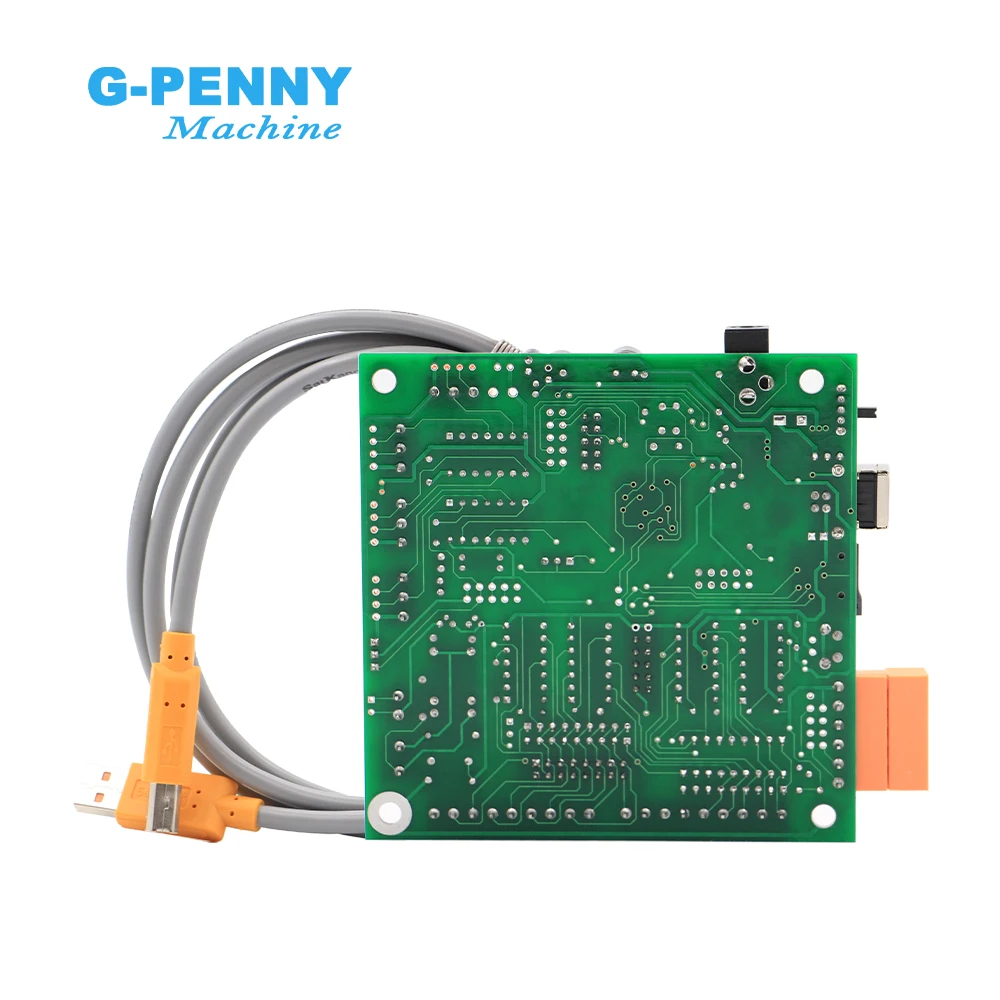

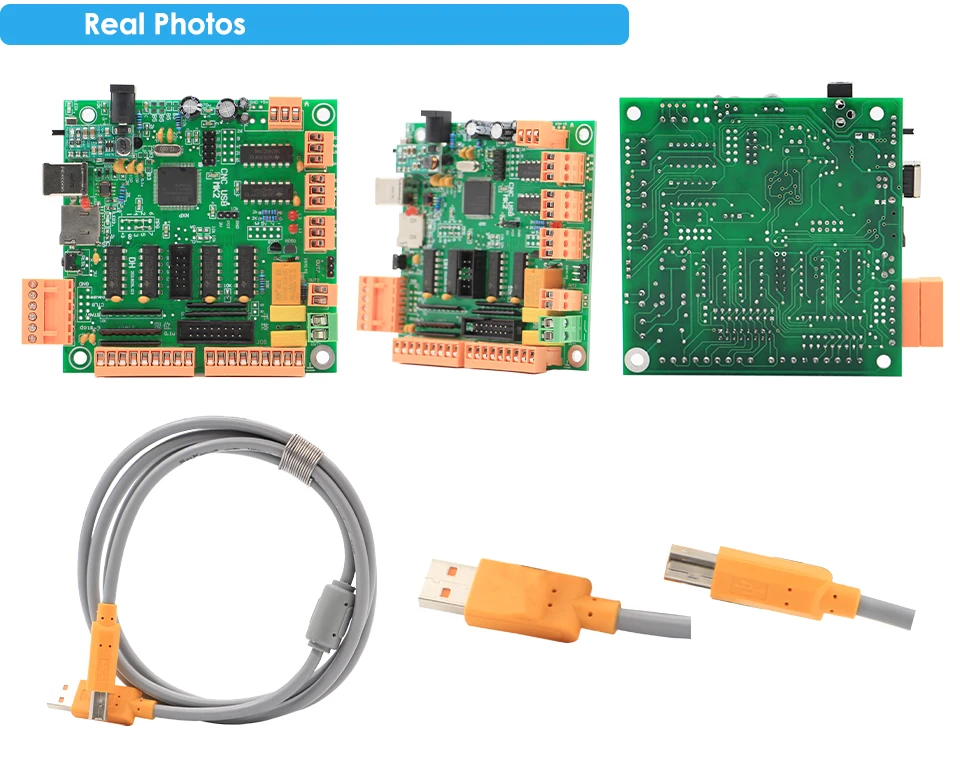

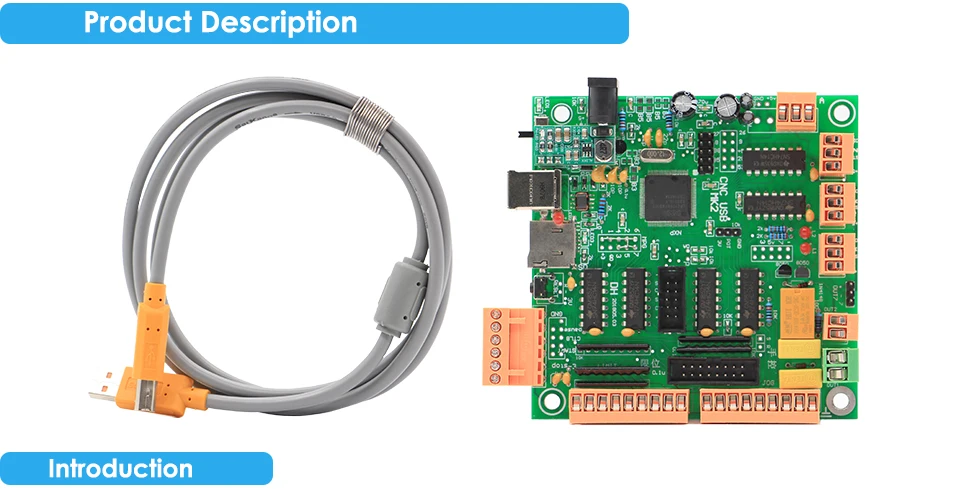

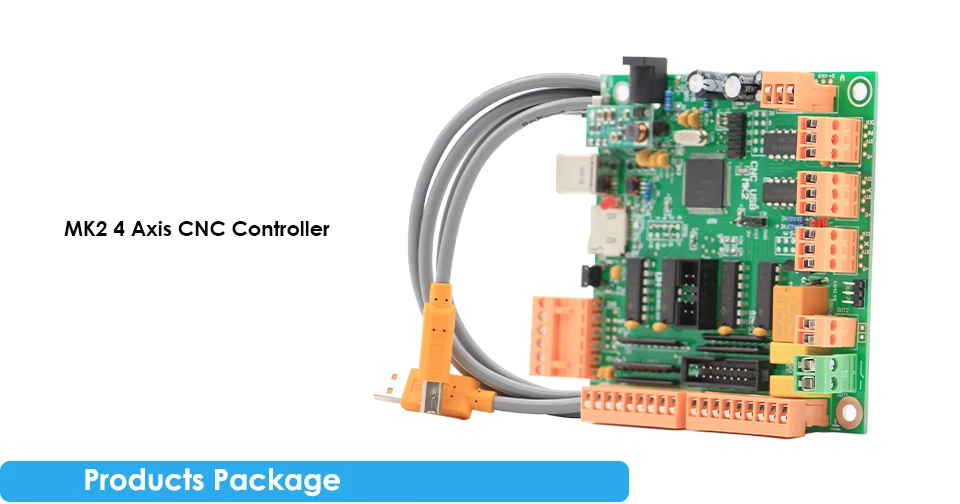

1 x USBCNC DIY MK2 Control board
1 x USB Cable




* USB CNC motion controllers link between a personal computer and motor drivers supporting step/direction control. They are compatible with most drivers. The controllers use the USB port, available on all modern computers and laptops. They can serve as direct replacement or upgrade for many parallel port break-out boards.
* The Mk2/4 controller supporting up to 4 axes. The Mk2/4 controller is essentially a 4 axis version of the Mk2 controller,
supporting the same high pulse rate and advanced software functions. It also provides DB25 and built-in screw terminal connections.
* It has many advanced features to assist day-to-day CNC machine operation.


Advantage
1, Maxium control is 9 Axis, maximum frequency is 100KHZ, can be used for servo motor.
2, 7 output points
3,5 input points, you can add start, stop, knife,
4, it can contact the hand wheel outside.
5, it can make lathe spindle encoder thread
6, there hss software for limited
7, it can be offline opetation with outside SD card
8, can be carved uneven PCB
9, can be digitally capture
10. API
11. may be positioned camera

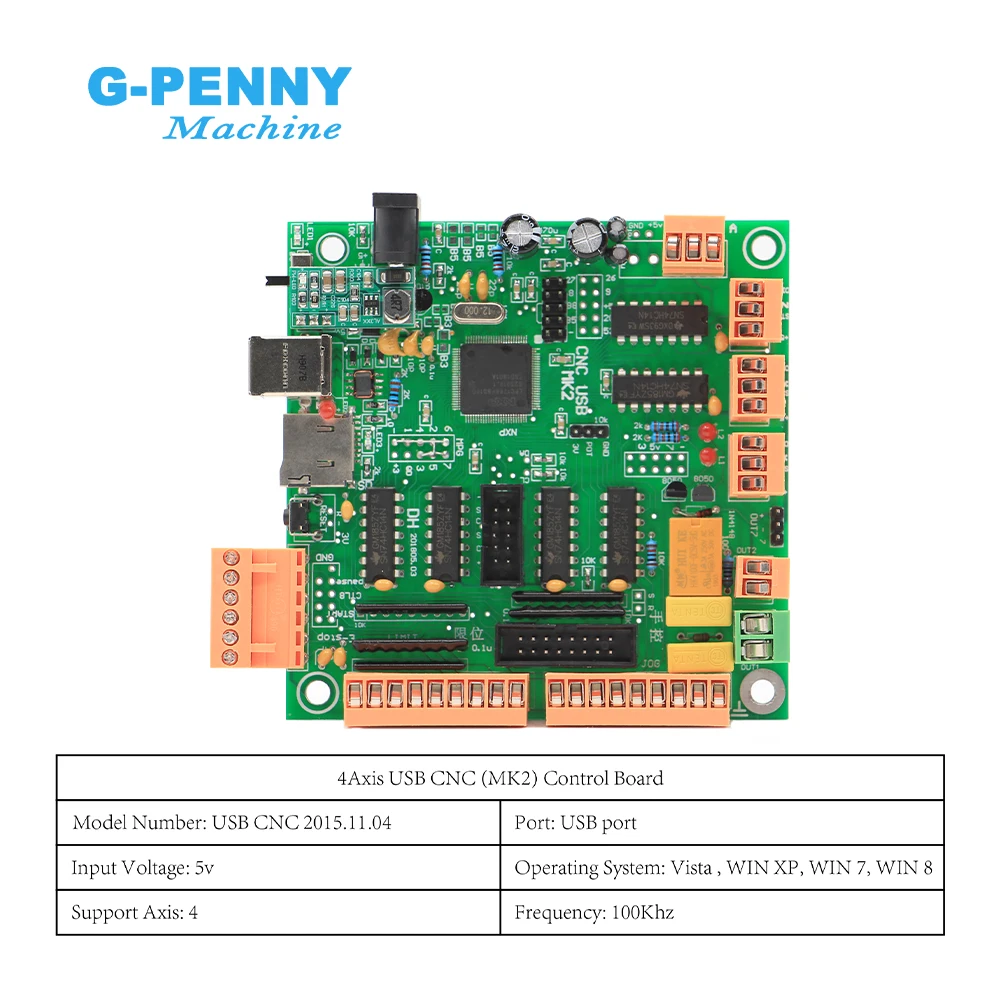

Name
4Axis USBCNC (MK2) Control Board
Model Number
USBCNC 2015.11.04 ( Already update the software, now we can support 2015 version.)
Port
USB port
Input Voltage
5V
Operating System
Vista , WIN XP, WIN 7, WIN 8
Support Axis
4
Frequency
100Khz


Features and Specifications

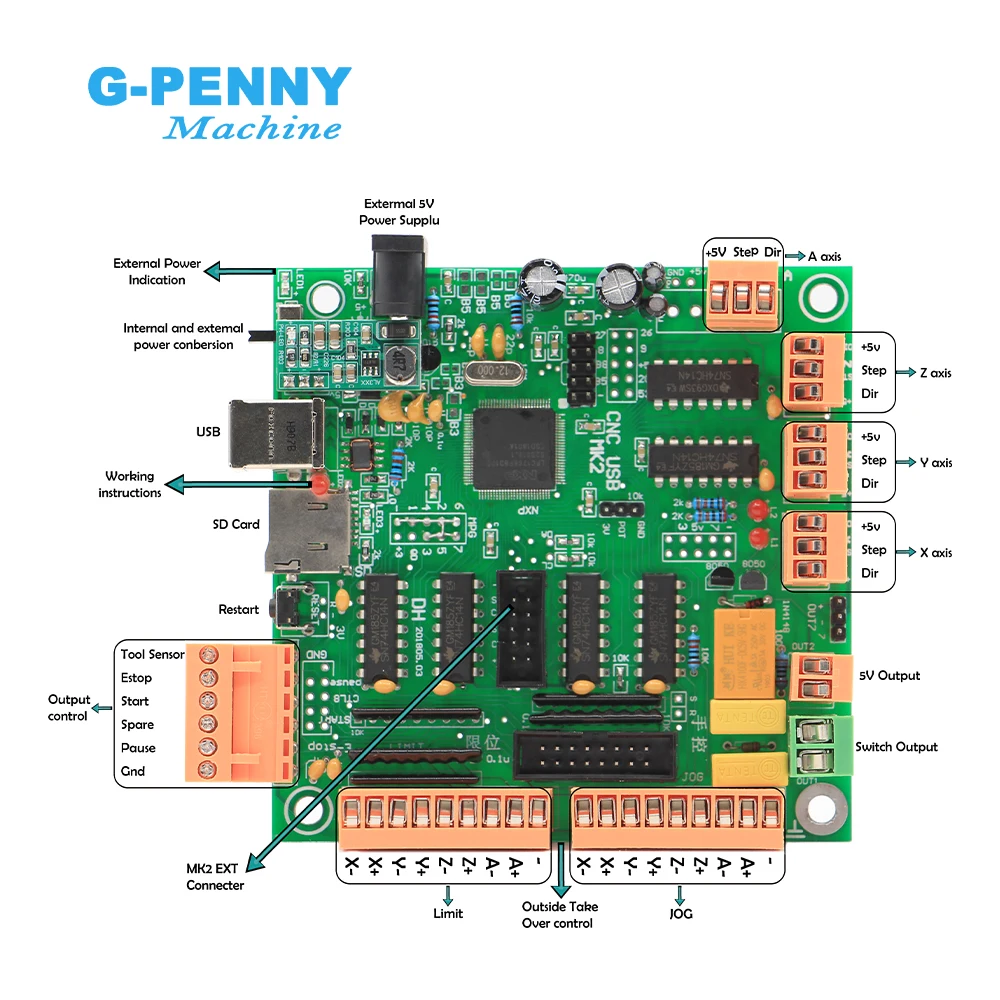

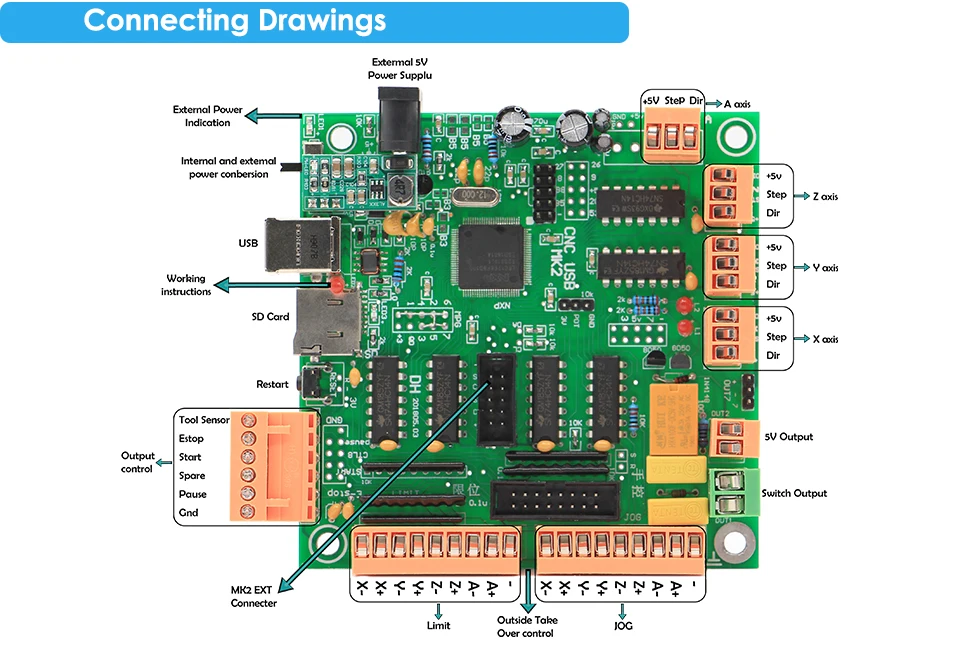

* 4-axis motor signal is teriminal ,it is easy to connect , output is also terminal plug. Increase the PWM, it can connect VFD directly , increasing the SD card, increasing the reset button, outside hand wheel leads to the start signal. More convenient and practical.
* According to the official installation method to install software (NET35, DX9, drive, 2013,7,31 version of the software), and finally putting the no registering files to copy to the installation folder. After copying to the control board, it does not be registered .
