Product Overview

Description





Product Description

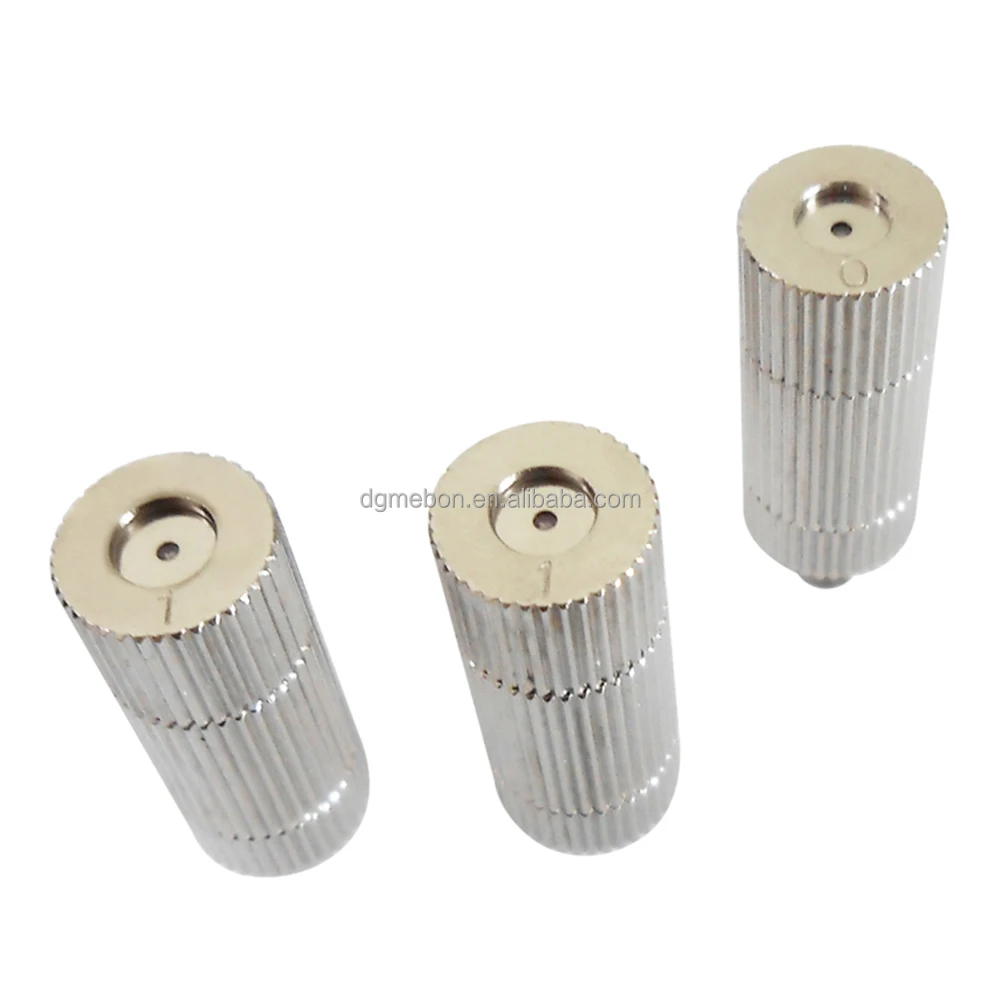

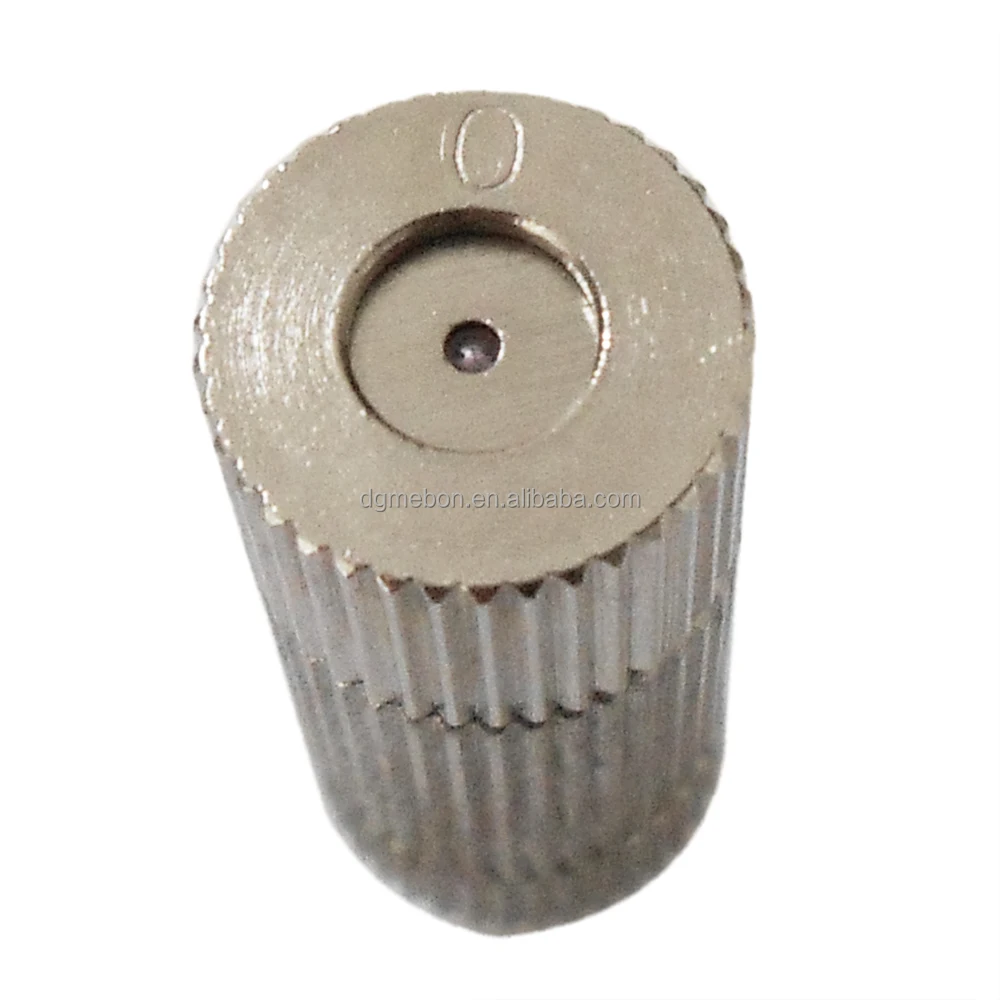

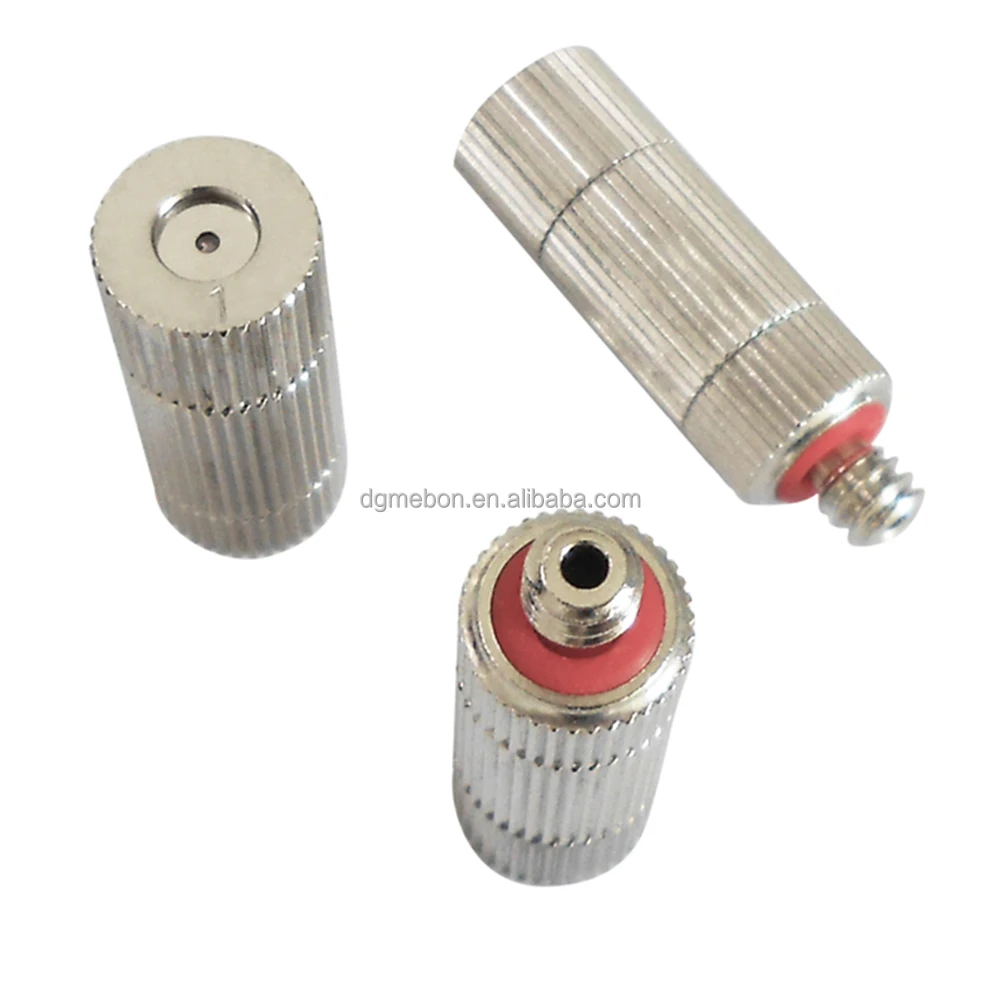

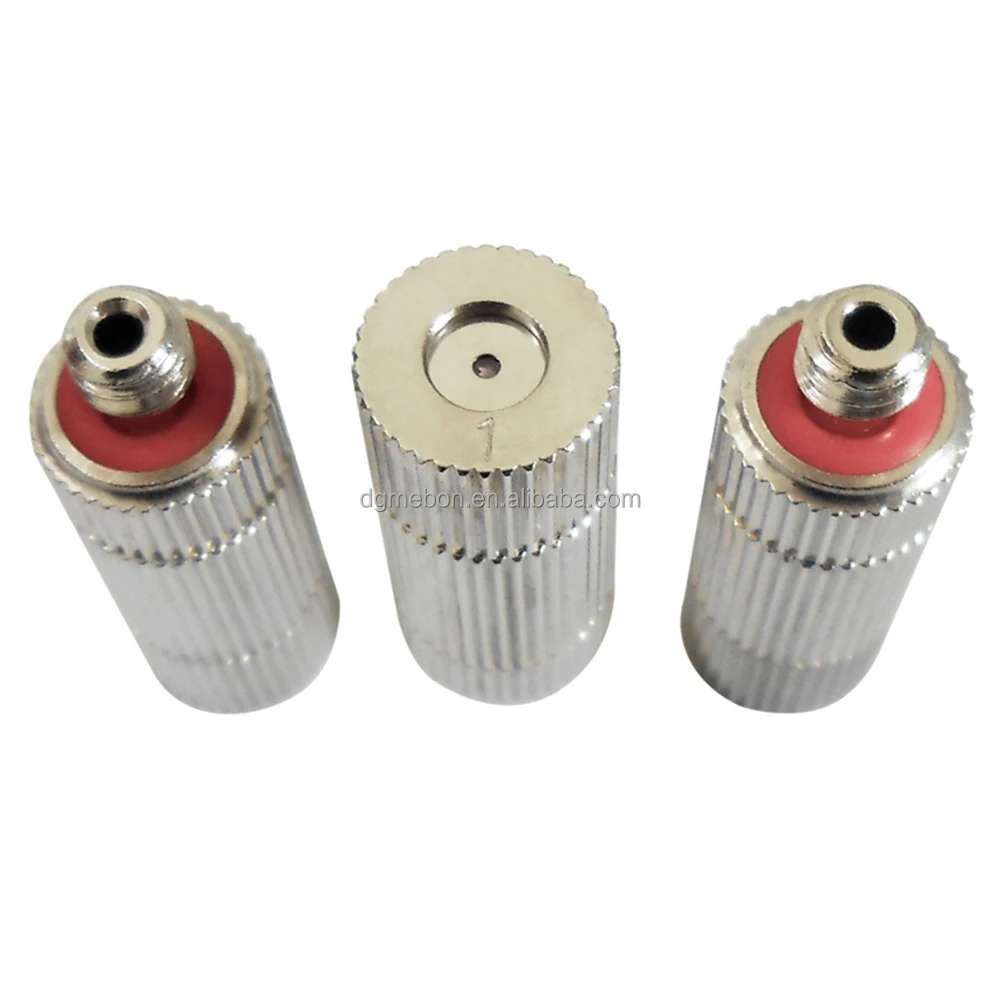

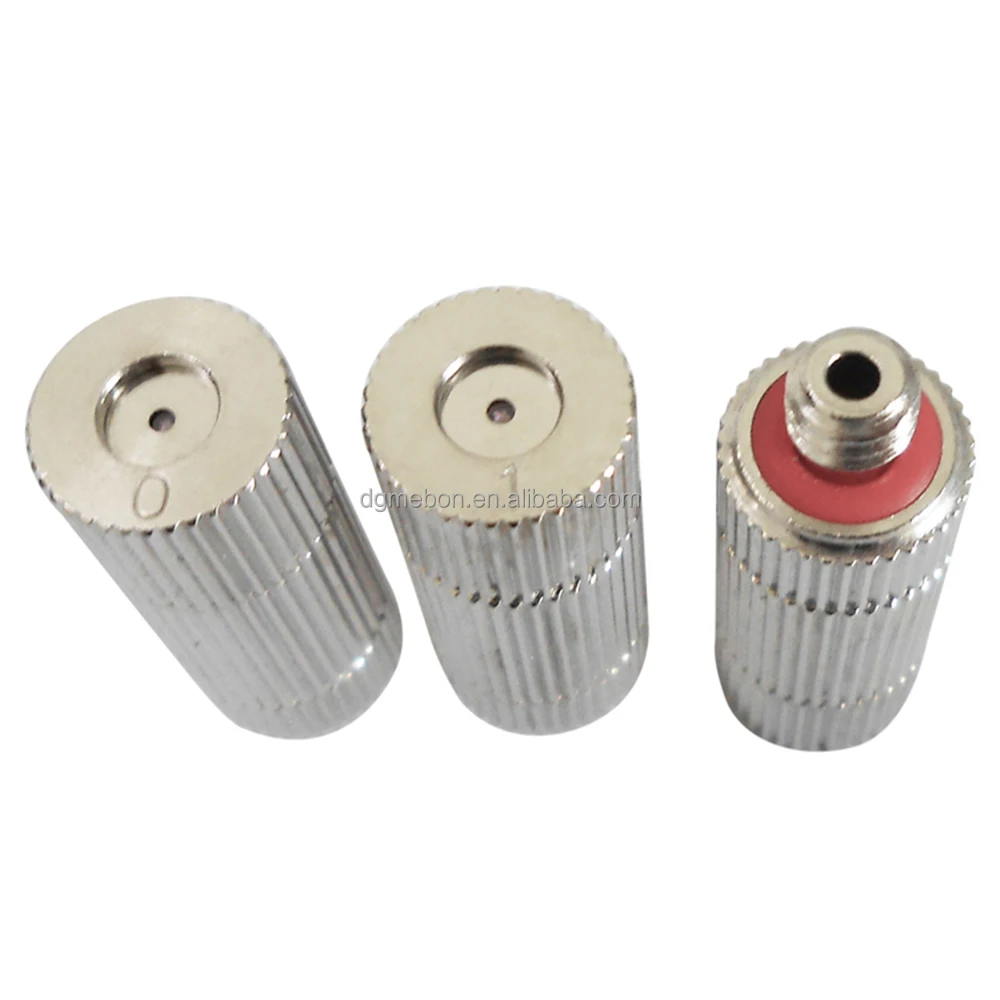

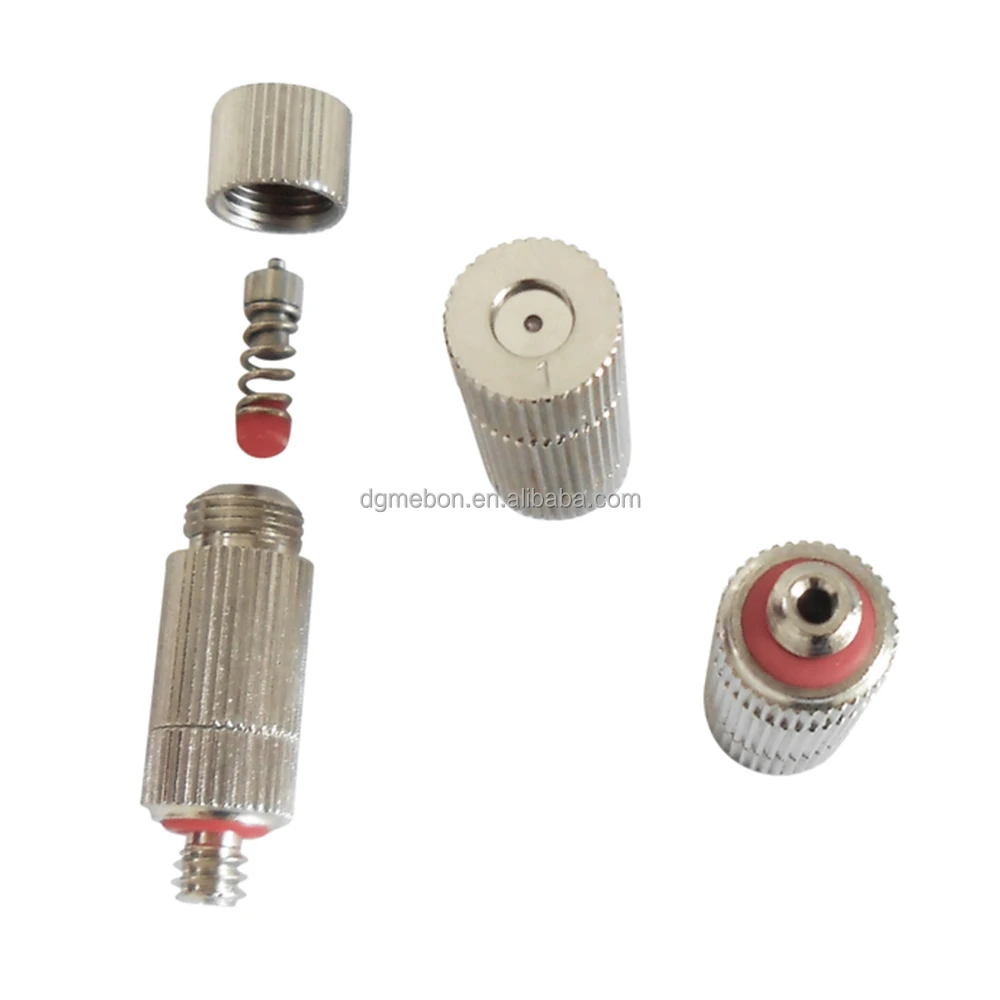

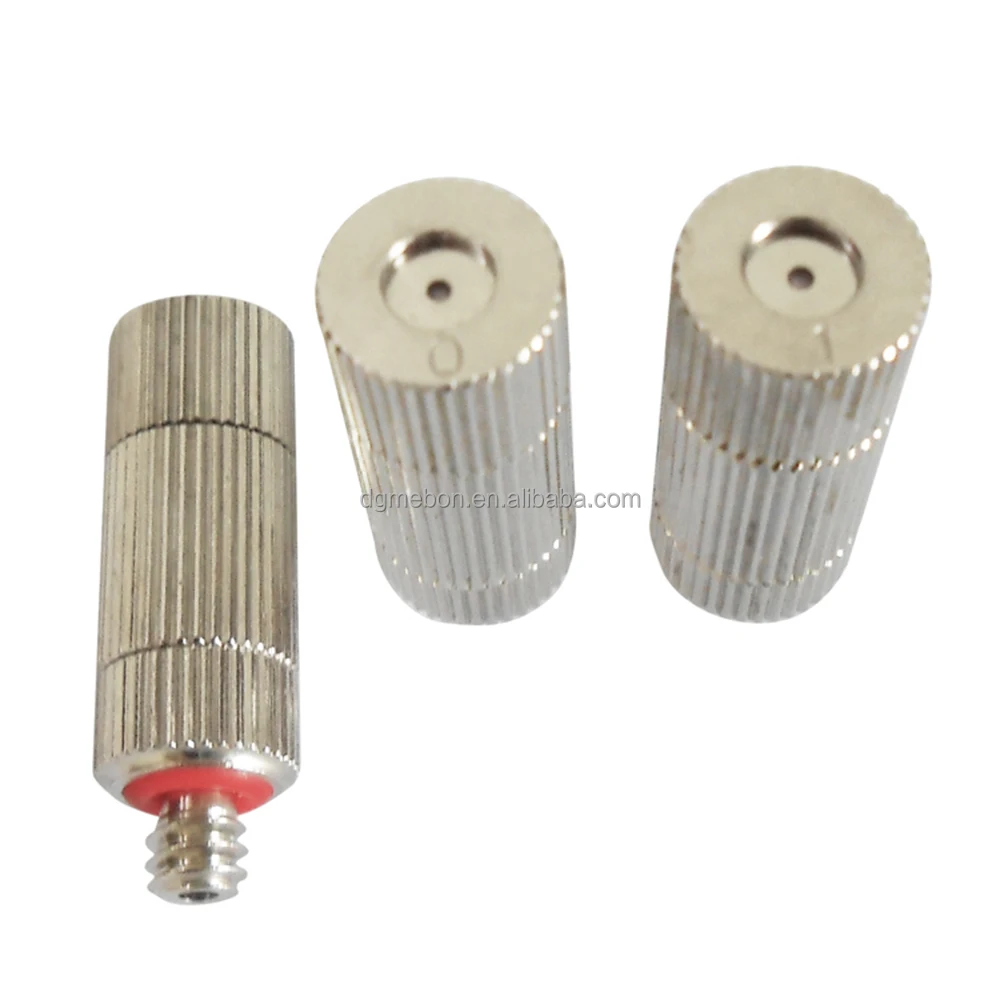

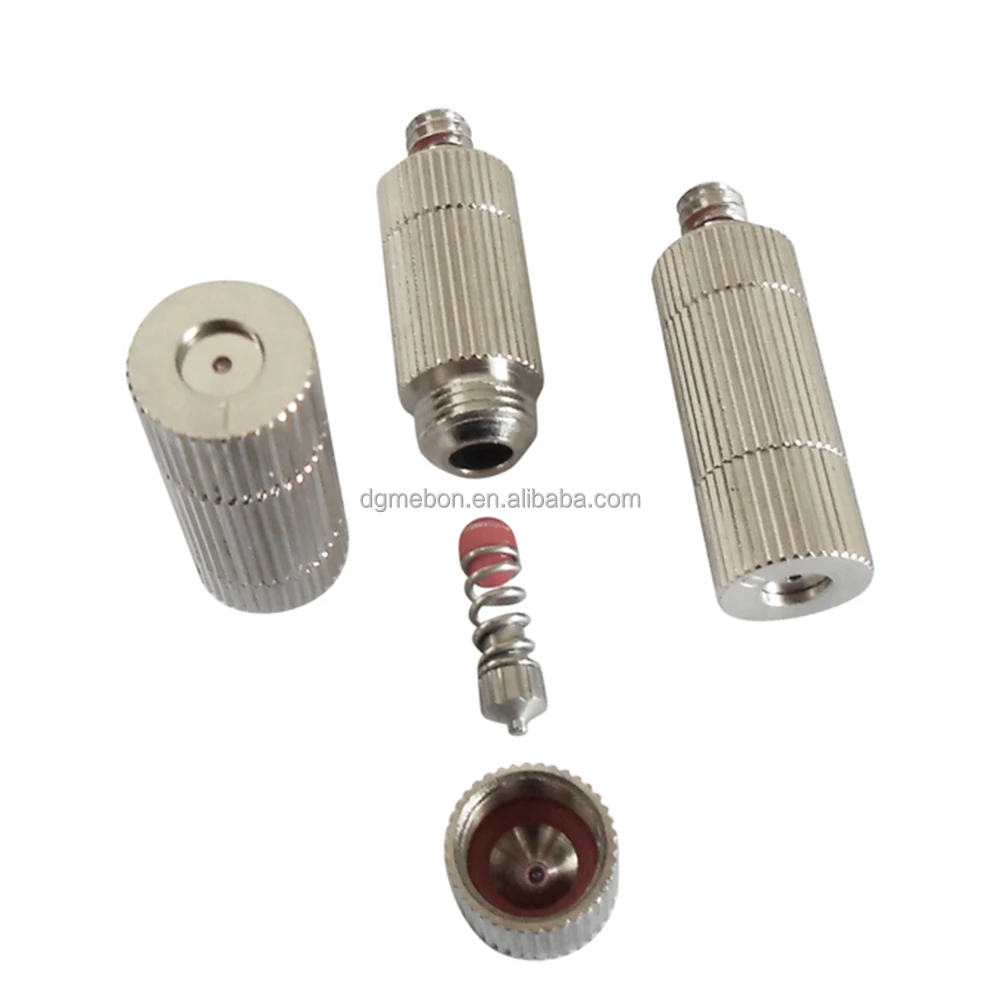

  • Metal fog spray nozzle consists of SS body with internal ruby core and stainless steel guide vane (with a leak-proof device).

  • The liquid flows at high velocity under the water pressure of 20kg to 70kg, forming centrifugal swirl and spraying very fine droplet.

  • It is equipped with TEFLON strainer and the fog droplet sizes are about 20um.

  • Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.

  • The nozzle saves 10 times or above cost than that of moistening by air.

  • Thread size: 10/24,12/24 UNC,1/8',3/16"

  • Spray pattern:full cone

  • Orifice: ruby core

  • Thread screw:3/16 or 1/8.









































Performance Data
Fog NozzleOrifice DiameterOperation PressureFlow Rate
FD10.15mm20-70kg/cm20-46ml/min
FD20.20mm49-89ml/min
FD30.30mm80-145ml/min
FD40.40mm95-178ml/min
FD50.50mm




130-243ml/min






Commen Application


1. Wetting & Rust removal


2.Humidify for space


3.Chemical treatment


4.Chemical agent spraying


5.Liquid coating


6.Humidify for tabacco leaf


7.Pill coating


8.Evaporative cooling for flue gas


9.Disinfection & sterilization


10.Parts cooling


11.Fruit wax injection


12.Ceramic tile glazing


13.Humidify for factory


14.Salt fog test


15.Artificial fog


16.Humidify for other place





Product Show

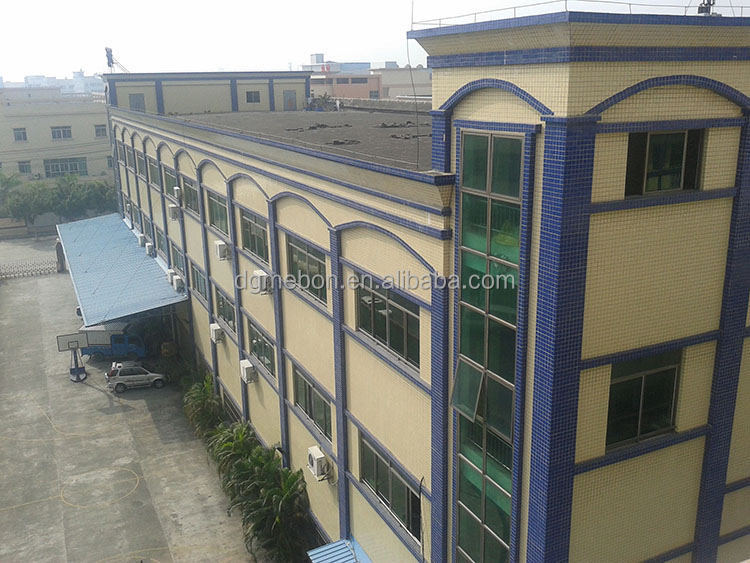

Our Factory

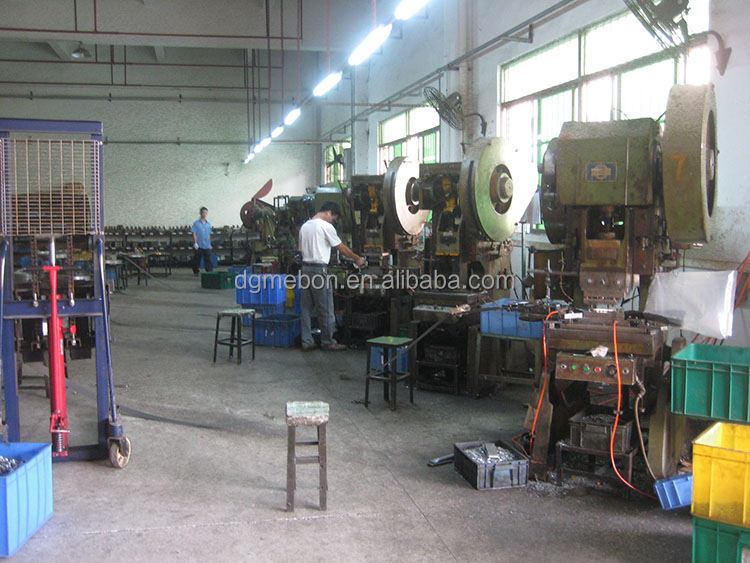

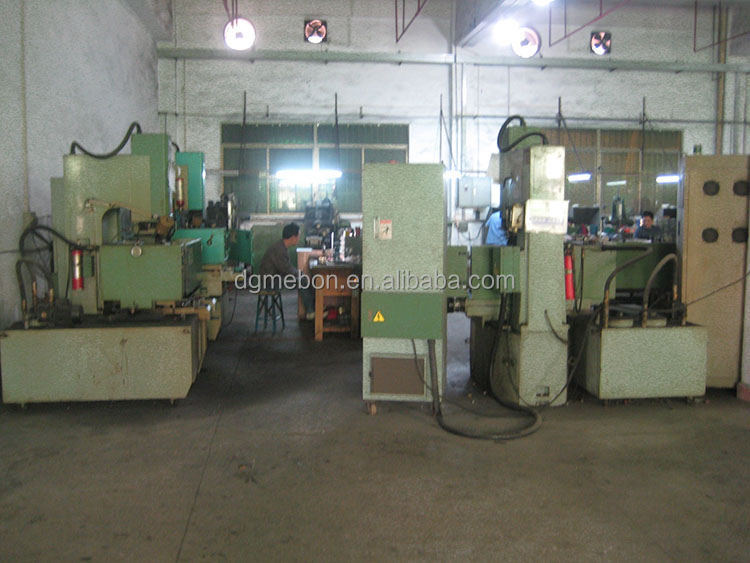

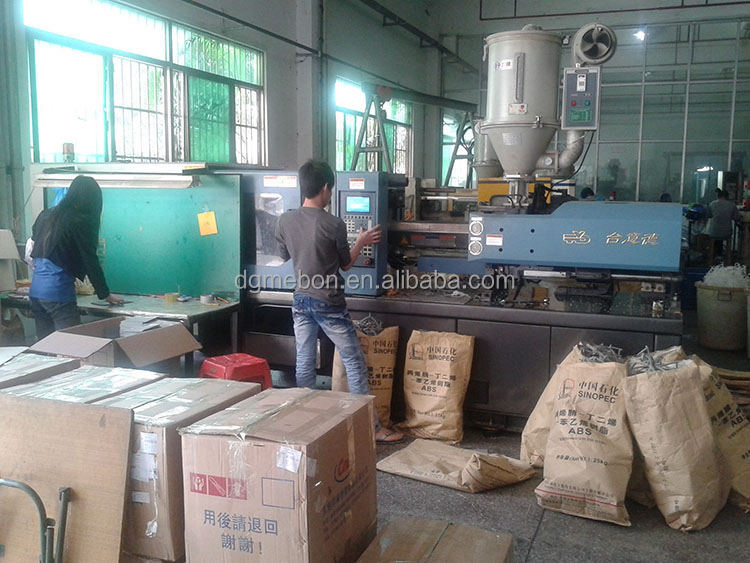

Workshop

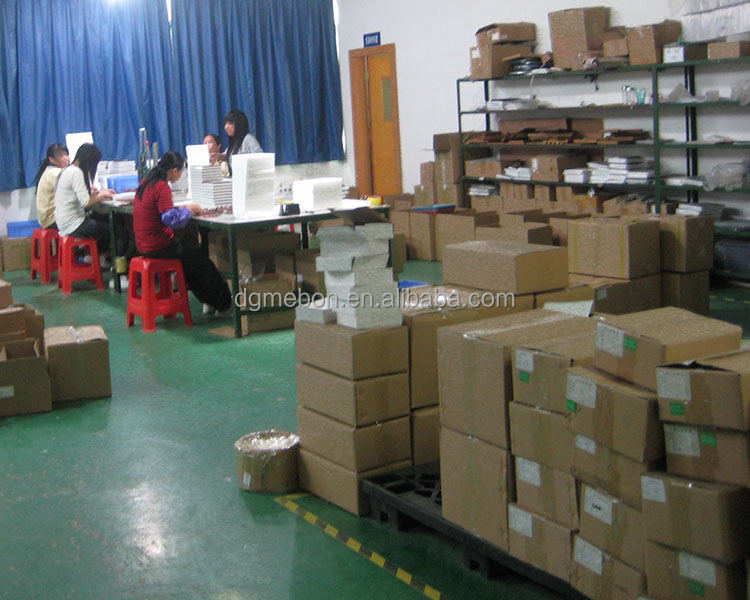

Packaging






Why choose us?


1. Professional, 12 years experience about nozzles.


2. Various types of products. Provide professional products with more than 2,000 types.


3. Original manufacturer with direct factory price, Competitive & Professional.


4. High Standard management for quality control.


5. Small order acceptable.


6. Safe payment terms: T/T and Western Union are available.


7. Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, TNT.


8. Widely cooperats with Chinese customers and overseas.


9. Excellent Service, Smooth export procedure.
