Product Overview
Description
Online Conductivity Probe RS485 EC Sensor Electrode Salinity Sensor TDS Probe Conductivity Sensor 4 20ma
Product Description
Electrical conductivity probe features
- Digital sensors, 7*24 hours online monitoring
- 2-pole electrical conductivity sensor
- High precision, fast response
- No need controller and transmitter

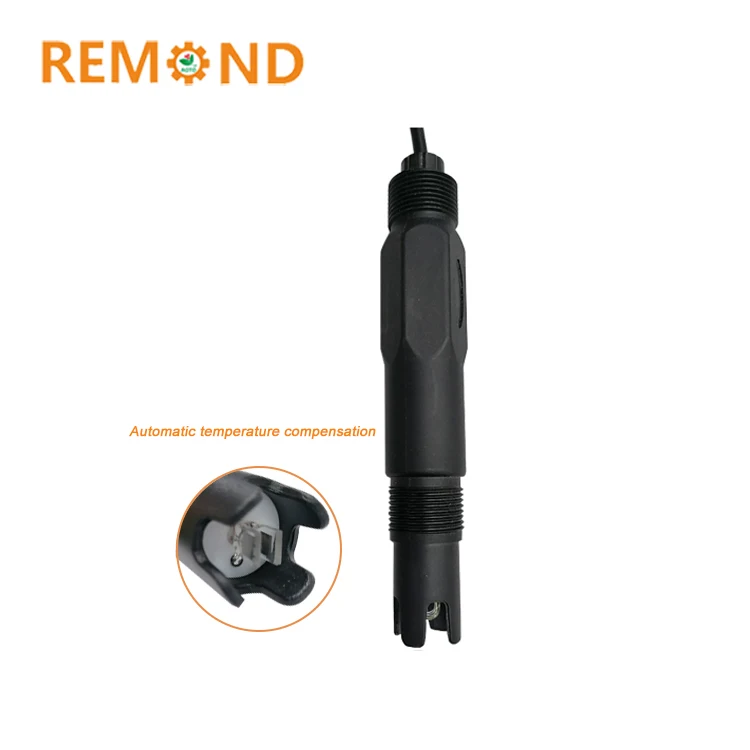

- Built-in temperature sensor, automatic temperature compensation

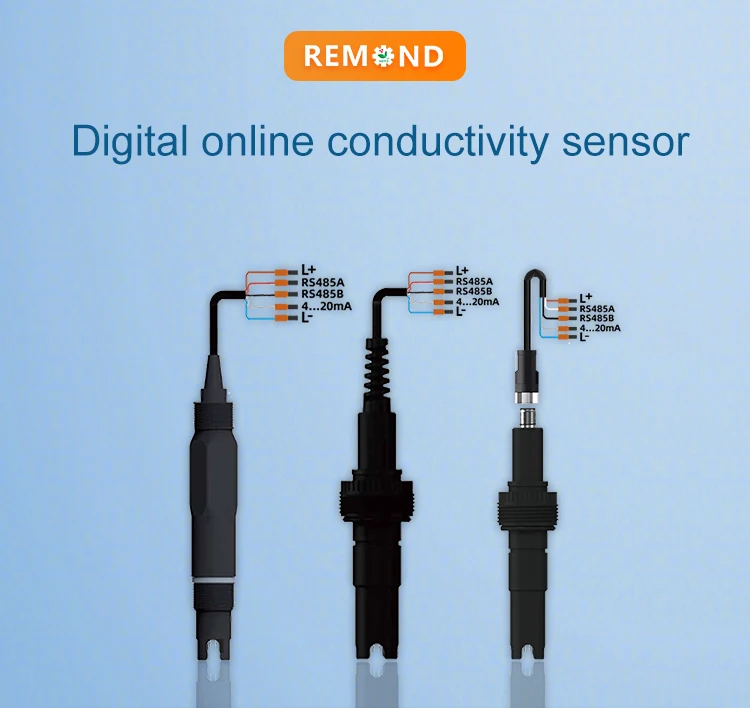

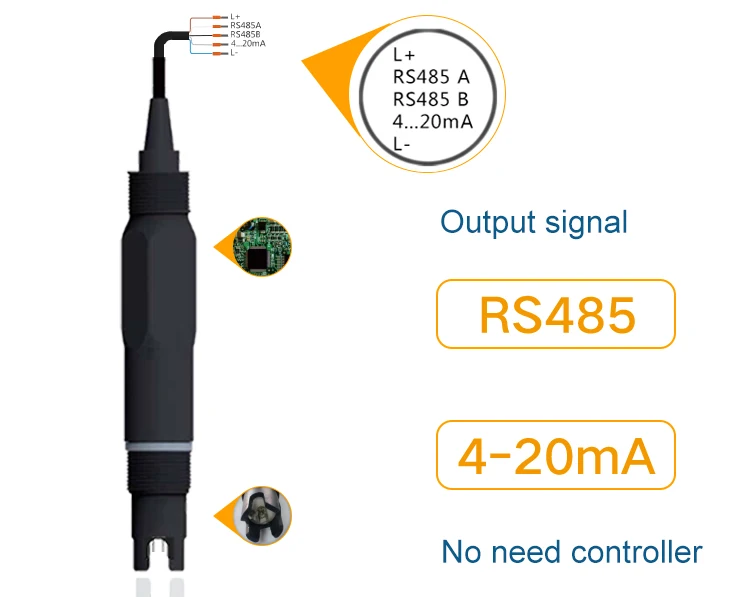

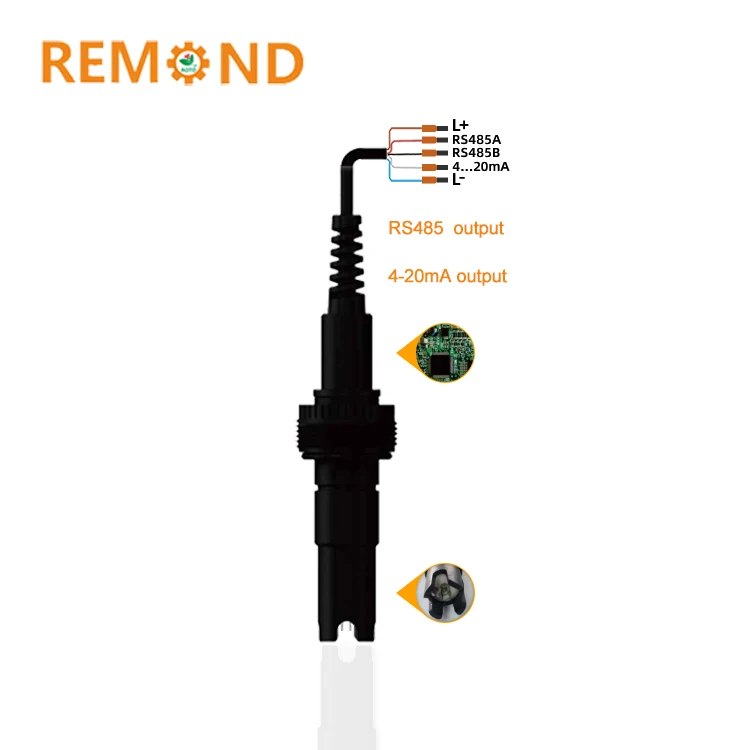

- Power supply DC9-30V, output signal RS485 and 4-20mA
- The sensor can be connected to a computer or PLC
- A sensor can measure EC, TDS, salinity, temperature, resistivity

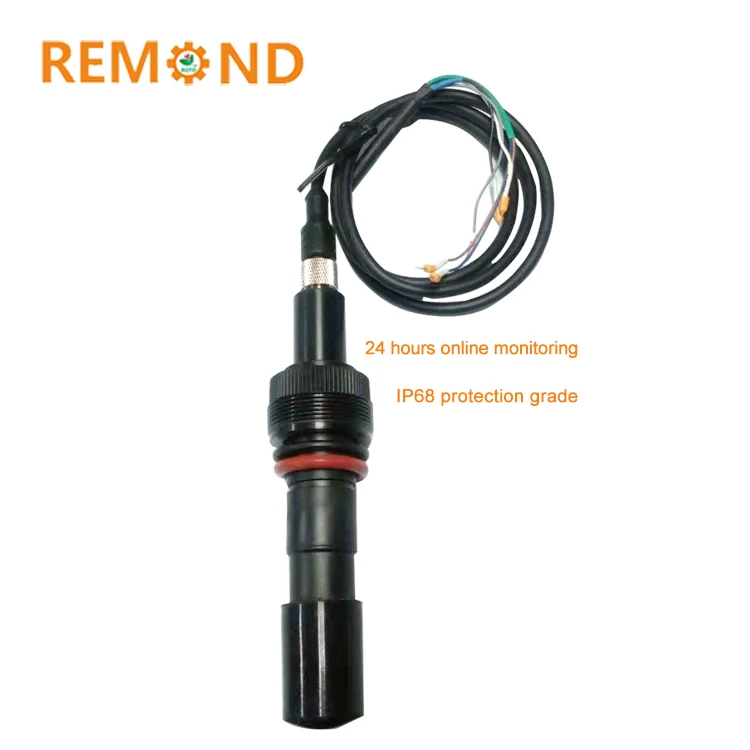

- IP68 grade, waterproof and dustproof
- A variety of installation methods, easy to install
Detailed Images
Conductivity probe specification

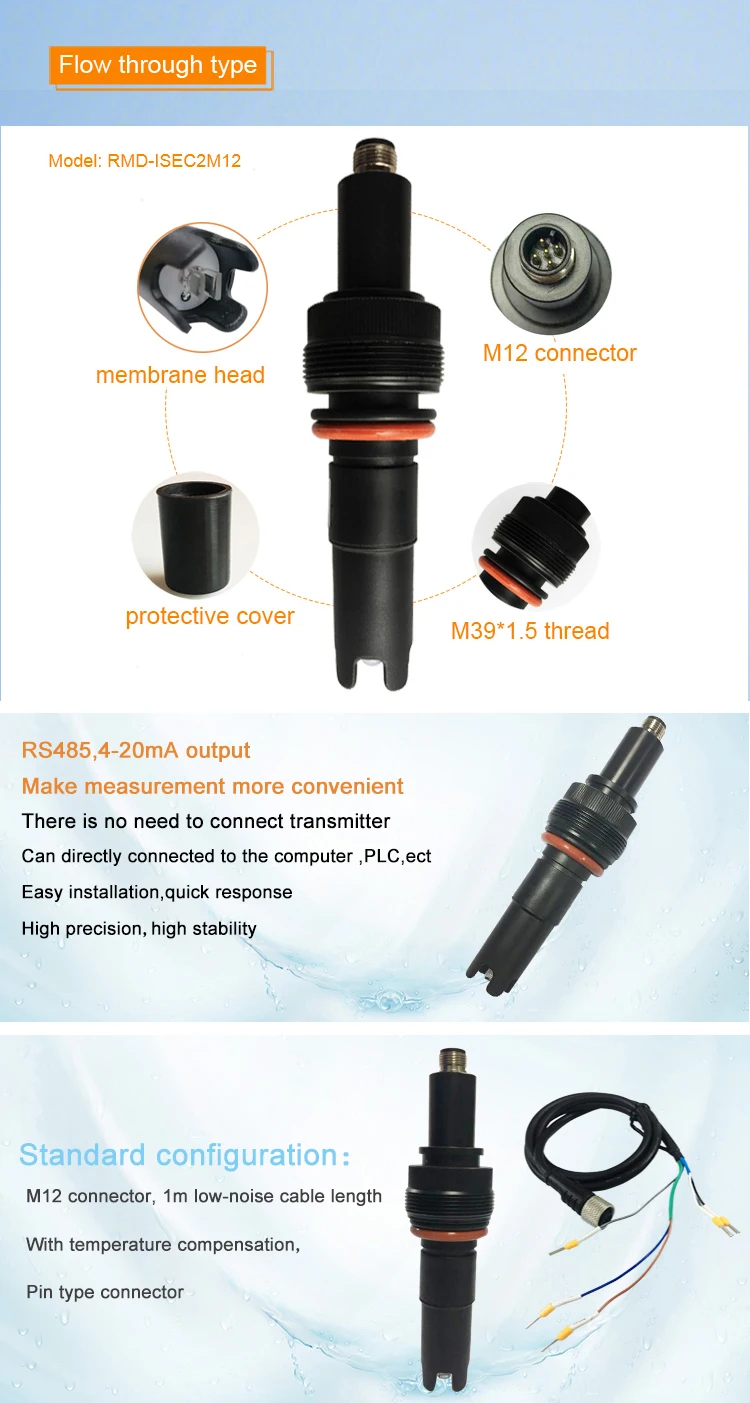

| Model | RMD-ISEC2M12 | RMD-ISEC205 | RMD-ISEP105 |
| Measuring range | 0...2000uS/cm | 0...2000uS/cm | 0...2000uS/cm |
| Constant | K=1.0 | K=1.0 | K=1.0 |
| Accuracy | ±2%FS | ±2%FS | ±2%FS |
| Resolution | ±1uS/cm | ±1uS/cm | ±1uS/cm |
| Temperature range | 0...60℃ | 0...60℃ | 0...60℃ |
| Temp compensation | Automatic | Automatic | Automatic |
| Power supply | DC12V,DC24V | DC12V,DC24V | DC12V,DC24V |
| Output signal | RS485, 4-20mA | RS485, 4-20mA | RS485, 4-20mA |
| Shell material | ABS | ABS | PPS |
| Pressure range | 0...4bar | 0...4bar | 0...4bar |

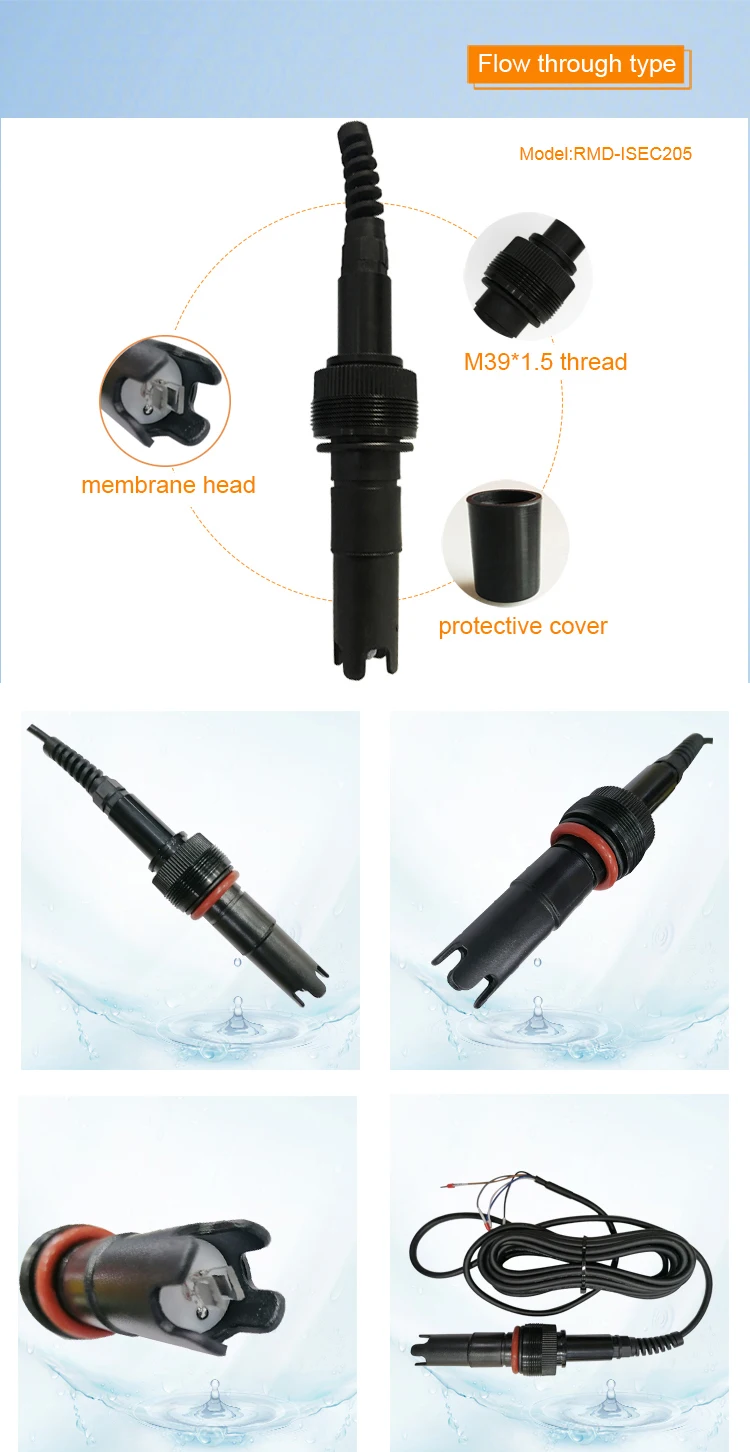

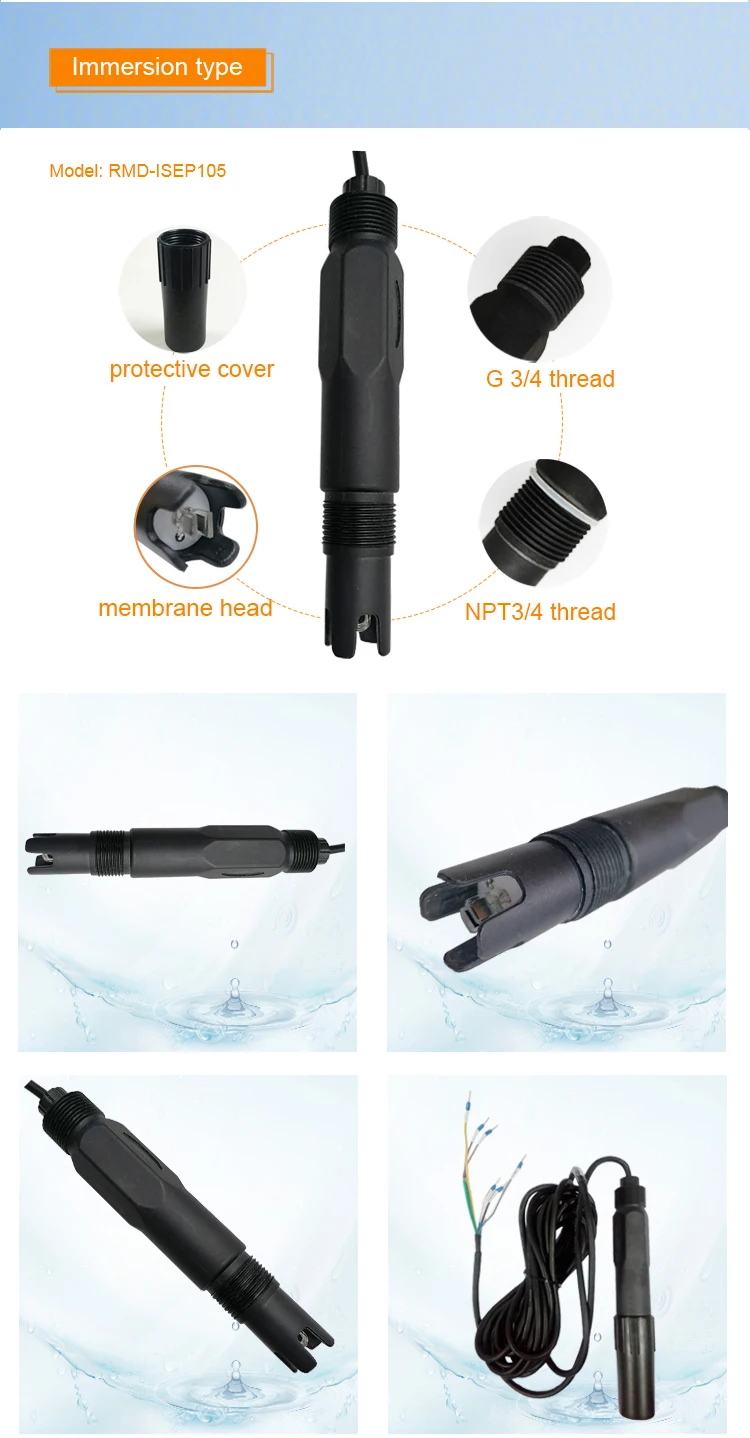

| Thread | M39*1.5 | M39*1.5 | 3/4 |

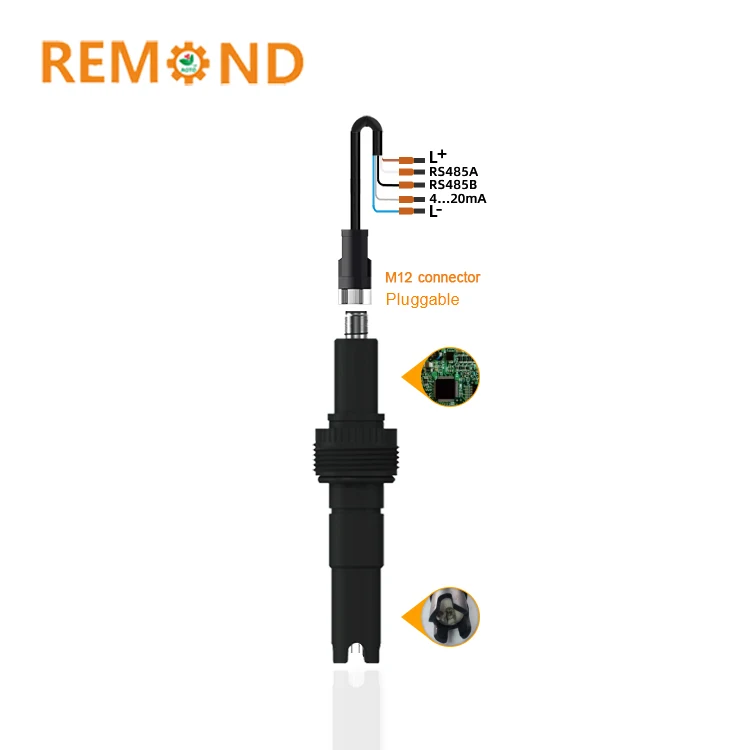

| Electrical connection | M12 connector | Pin type | Pin type |

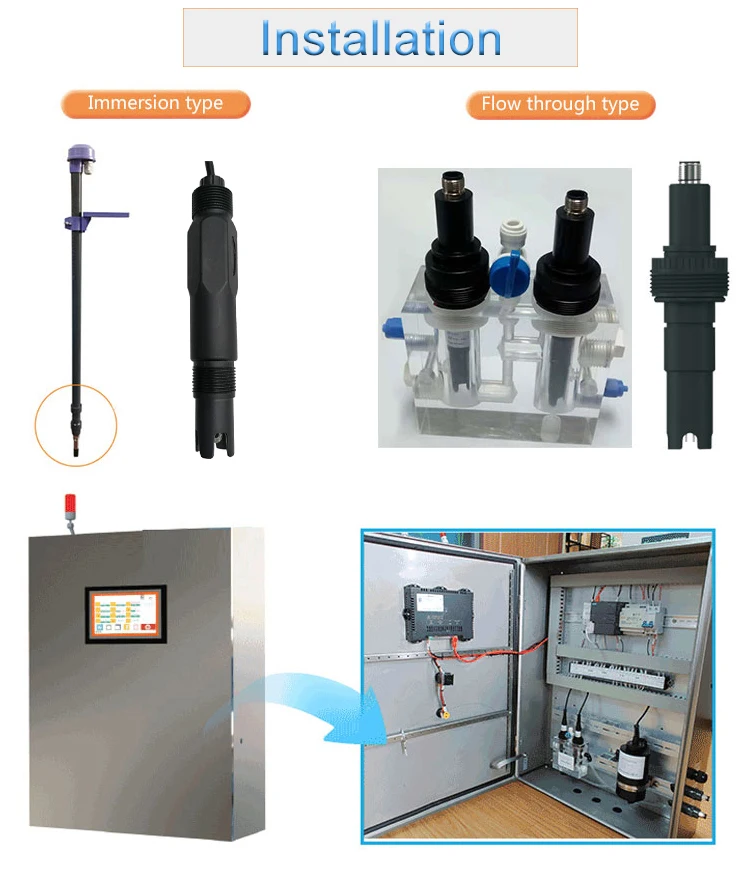

| Installation | Flow through type | Flow through type | Immersion type |
| Cable length | 5m or customize | 5m or customize | 5m or customize |
| Protection grade | IP68 | IP68 | IP68 |
Related Products
Certifications
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: sensor: 1 year warranty
