Chinese Factory OEM Production Line Copper Wire Tube Rod Upward Continuous Casting Machine

Product Overview

Description











Craftwork Flow

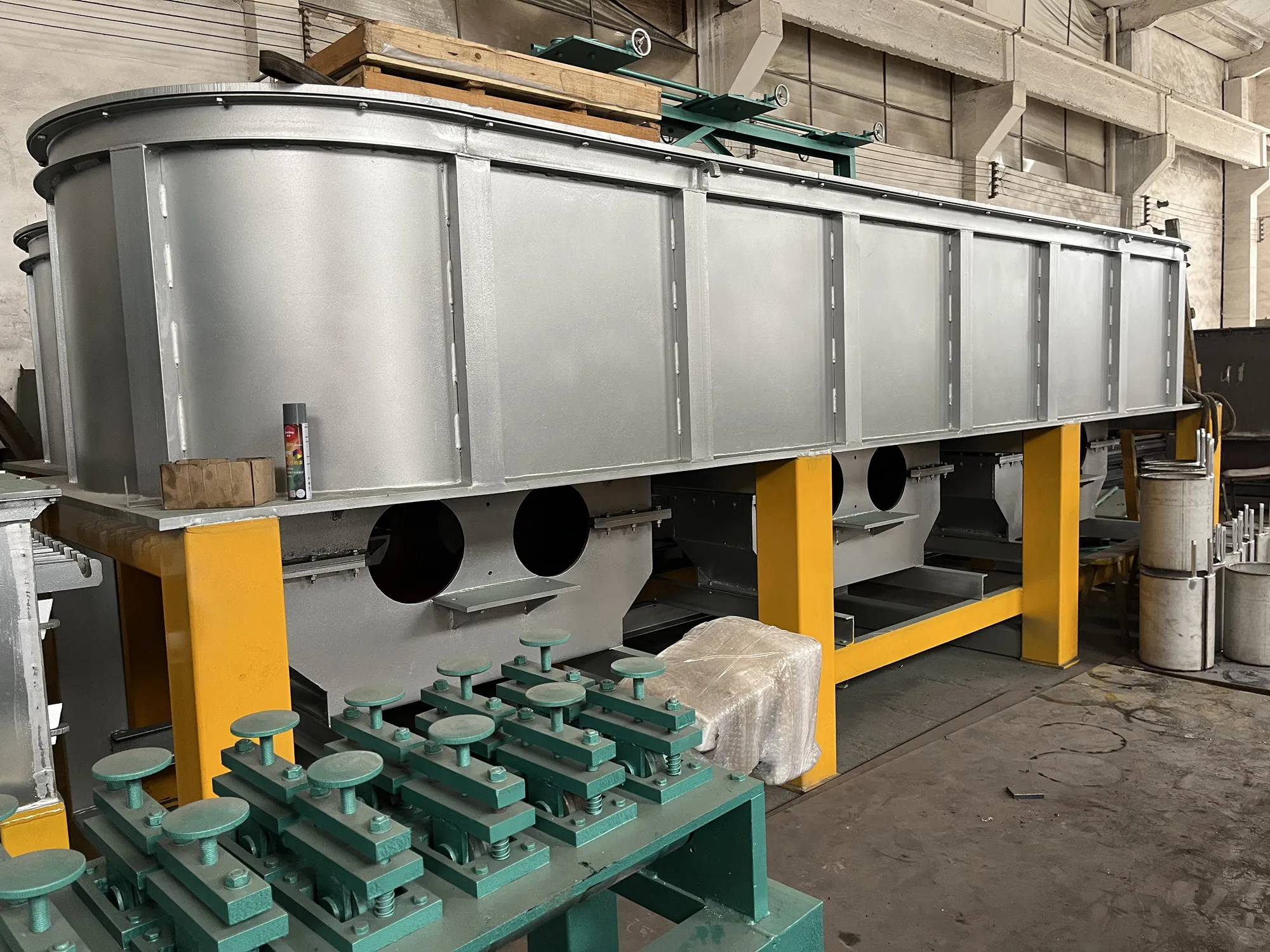

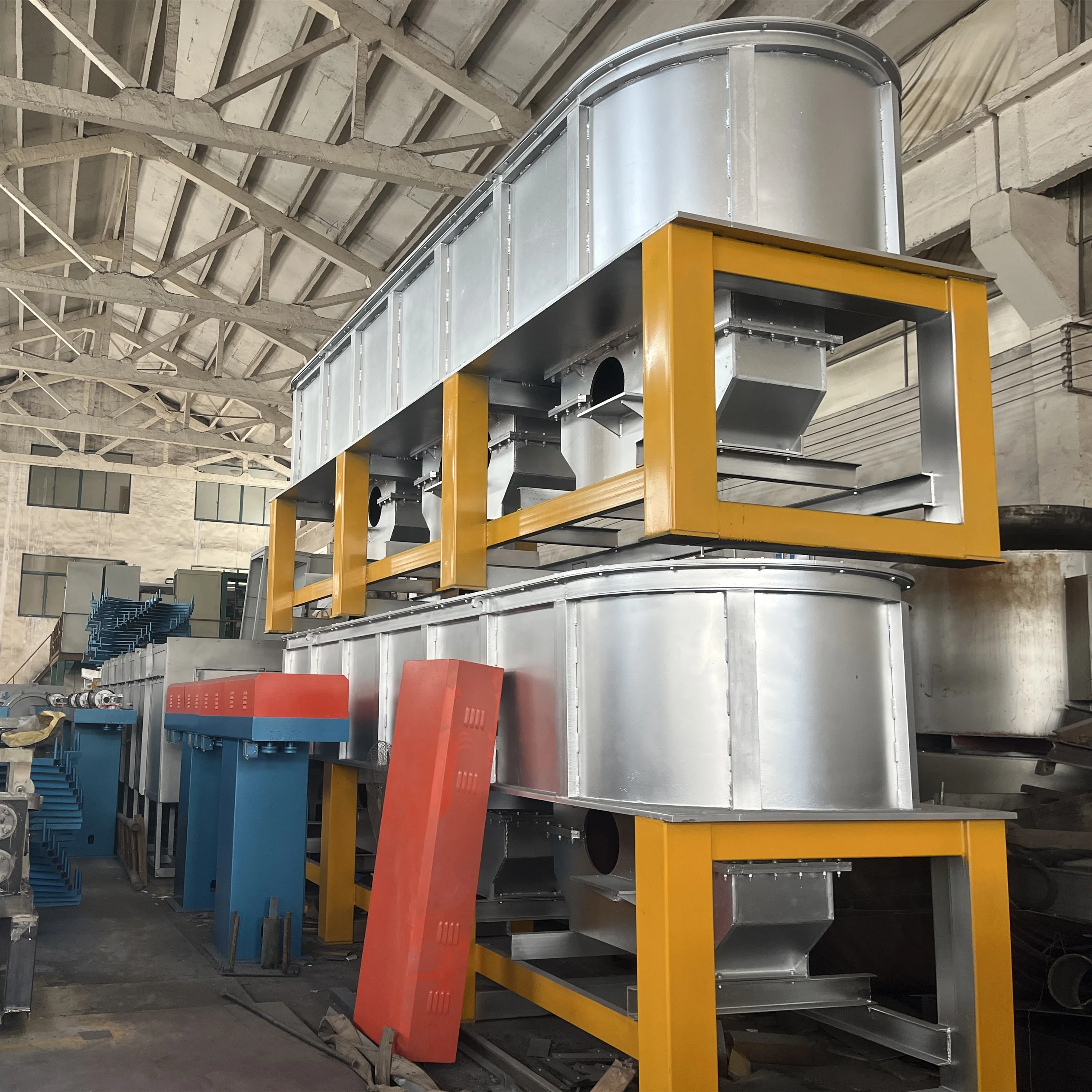

1. Furnace



Parameter:

Model Number	GYT-300/300	GYT500/300	GYT-300*2/300	GYT-500*2/300	GYT-500*2/500
Content(T)	4~5T	5~6T	6~7T	7~8T	8~9T
Capacity Annually	2000~2500T	3000~4000T	4500~5000T	7500~8000T	7500~8000T
Ele. Capacity(KW)	80/45	120/45	160/50	240/50	240/80
Voltage(V)	380~415	380~415	380~415	380~415	380~415
Phase Number	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)
Power Factor	0.95	0.95	0.95	0.95	0.95
Frequency of Input Current (HZ)	50	50	50	50	50
Melting Rate ( KG)	300	500	600	1000	1000
Rating Working Temperature (℃)	1200	1200	1200	1200	1200

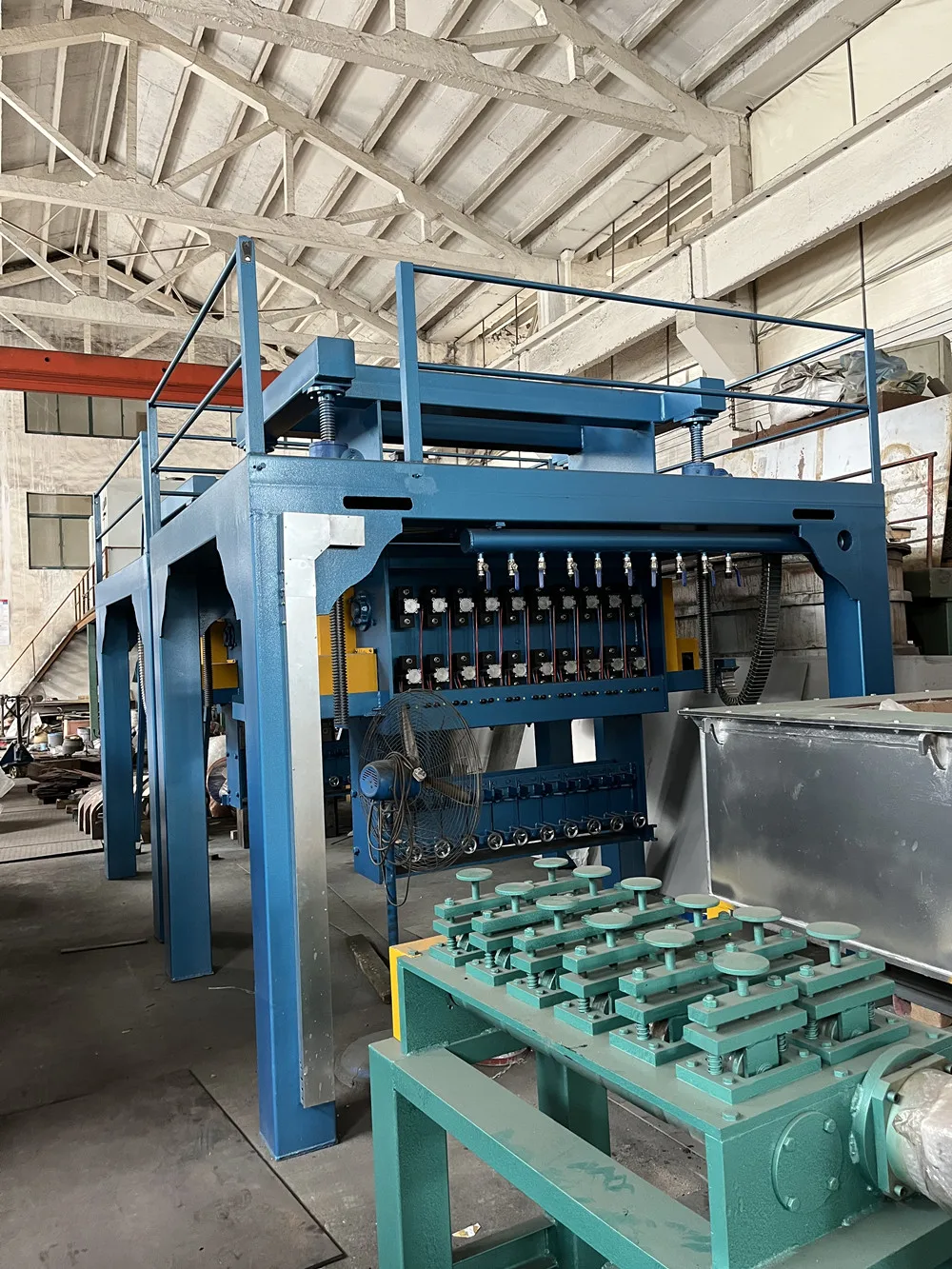

2. Upward continuous casting machine



No.	Parameters:
1	Motor: Servo Motor 3-5KW (single or double Servo Motor)
2	Up Drawing Speed: 0-1800mm/minute
3	Copper Rod Diameter: as per required size
4	Copper Rod Qty: as per requirement capacity
5	Control: PC Controlled

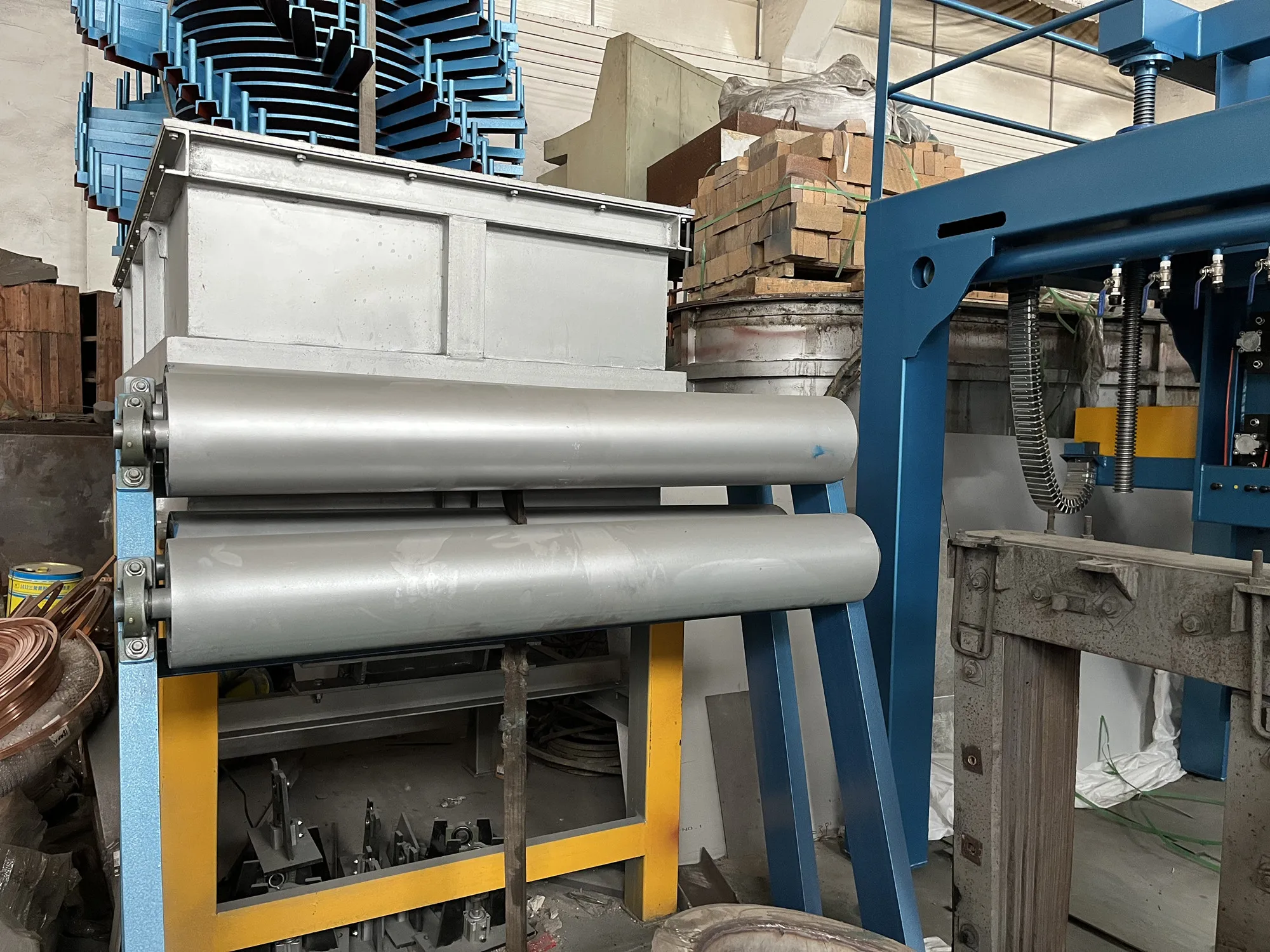

3. Take-up Machine



No.	Parameters:
1	Motor: Variable Frequency Motor 3kw (Two side )
2	Speed Reducer:  Gear Reducer
3	Take-up Reel Capacity:2-3T
4	Take-up coil standard for rod: 800mm × 1500mm× 800mm
5	Take-up form: Automatic adjust
6	Take-up copper rod rang rod automaticall









4. Crystallizer















Q. What is your MOQ?
A. 1 set.



Q. Your company is a trading firm? or Factory?
A. We are a factory with 10+ years experience in industrial melting feild. We currently have three branches: main frequency furnace production, medium frequency furnace production, component machine production. You are warmly welcomed to visit our factories.



Q. How is your products quality?
A. As a manufacturer, we have our own R&D team. Basing on several years of technical innovation, we have accumulated successful experience in induction heating, temperature holding, fast melting. We've customized so many furnaces with all positive feedbacks.



Q. What kind of material our furnace can melting?
A. Jintong is able to supply a melting production line such as copper/zinc/aluminum melting line.Jintong medium frequency furnace can also melt iron, steel, gold, silver and so on.



Q. I am not so familiar with your machine now. I am not sure I can use it well if I buy it from you.
A. Don't worry about this. With the machine, we will send you a brochure with detailed information of our machine operation. In addition, we will send you videos of machine set up and using. Our engineers are always available for consultation. Engineers can support at your place if it is needed.
