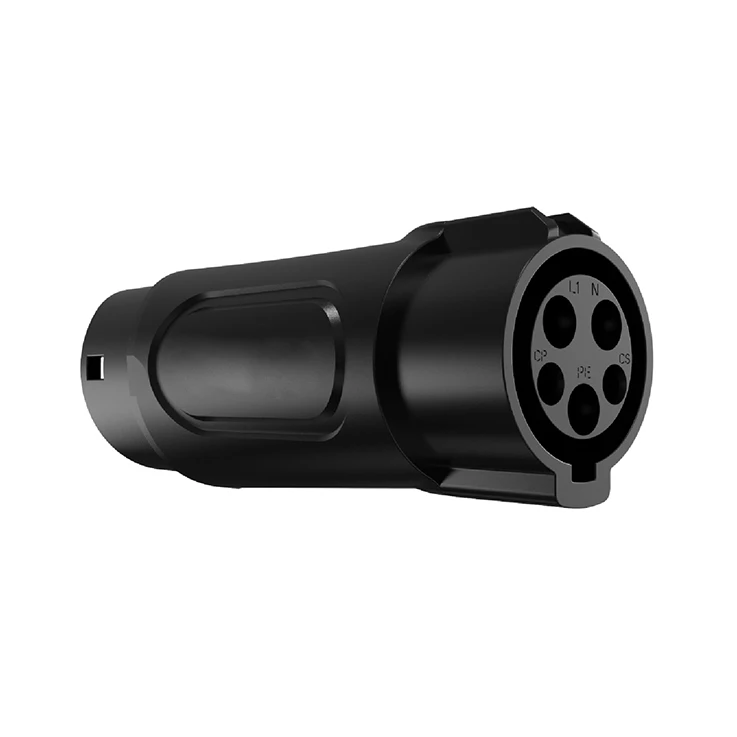

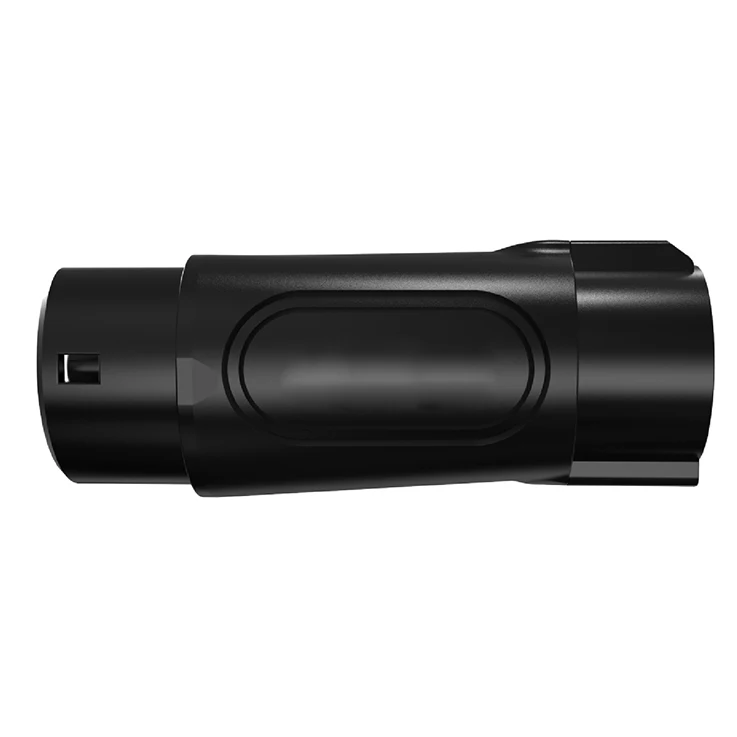

32A Type2 to Type1 Ev Charging j1772 Adapter
- Category: >>>
- Supplier: Chongqing Senku Machinery Imp And Exp Co. Ltd
Share on (1600544498736):
Product Overview
Description
Products Description
What Do I need this Type 1 to Type 2 EV adapter for?
Electric vehicles with a type 2 socket can use this Type 2 to Type 1 adapter.

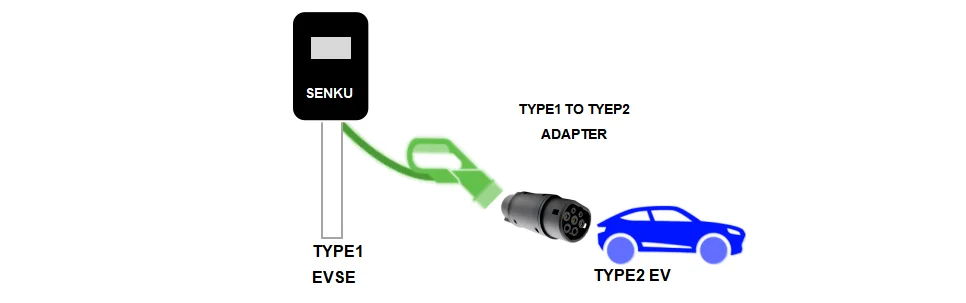

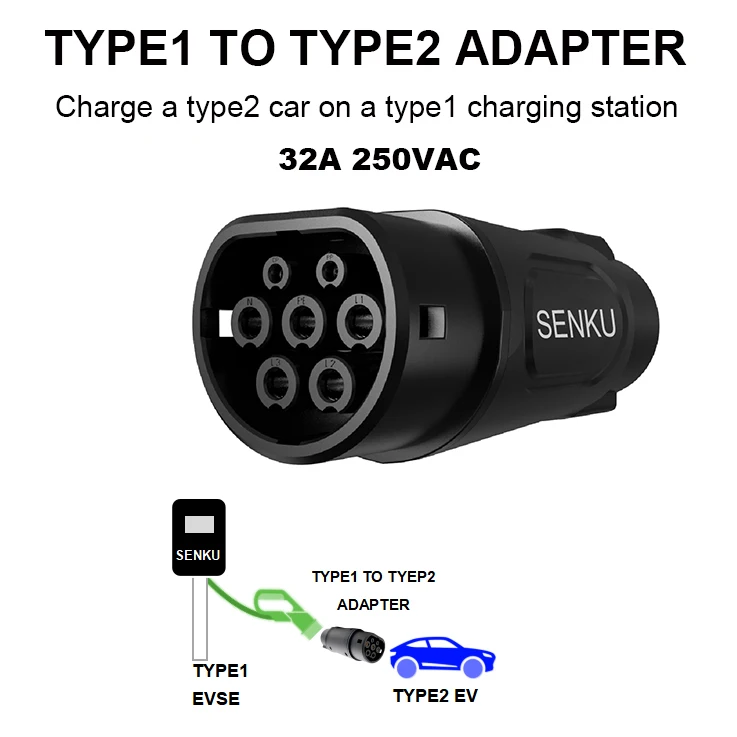

If you have a EV charger with a tethered type 1 (j1772) cable (Or your local city mainly public EV chargers are with a tethered type 1 cable), but your electric vehicle is type 2 (IEC 62196) charge port, then this handy and easy to store Type 1 to Type 2 EV adapter is what you need. With this adapter, you can easy charge a type 2 vehicle on a type 1 EV charger.
If you have a EV charger with a tethered type 1 (j1772) cable (Or your local city mainly public EV chargers are with a tethered type 1 cable), but your electric vehicle is type 2 (IEC 62196) charge port, then this handy and easy to store Type 1 to Type 2 EV adapter is what you need. With this adapter, you can easy charge a type 2 vehicle on a type 1 EV charger.
Rated Current: | 32A |
Rated Voltage: | 240V AC |
Insulation resistance: | >5MΩ (DC500V) |
Terminal temperature rise.: | <50K |
ithstand Voltage: | 2000VAC/ min |
Contact Resistance: | 0.5m Ω Max |
Fire rating of plastic shell: | UL94V-0 |
Case Material:
Thermoplastic, Flame retardant grade UL94-V0
Good flame retardant performance, safer
Type2 plug___ for Vehicle side:
Cooper alloy+ thermoplastic on the top
Better conductivity, more stable
Type1 socket___ for ev charger side:
Mechianical life: no-load plug in / plug out > 10000 times
Durable, long service life
Good to Know!
Proper and good maintenance will prolong the service life of the EV adapter. Please always storage the iec62196 adapter in a dry place and use a dry cloth to clean occasionally the adapter from dirt and dust.
How fast can this EV type 2 to type 1 converter charge?
Due to the most type1 vehicle side max allow 32A single phase charging, so the whole EV type 2 to type 1 converter MAX charging speed also limited to approximately 7.4KW MAX;
How to start charging with type 2 to j1772 adapter?
Due to the most type1 vehicle side max allow 32A single phase charging, so the whole EV type 2 to type 1 converter MAX charging speed also limited to approximately 7.4KW MAX;
How to start charging with type 2 to j1772 adapter?

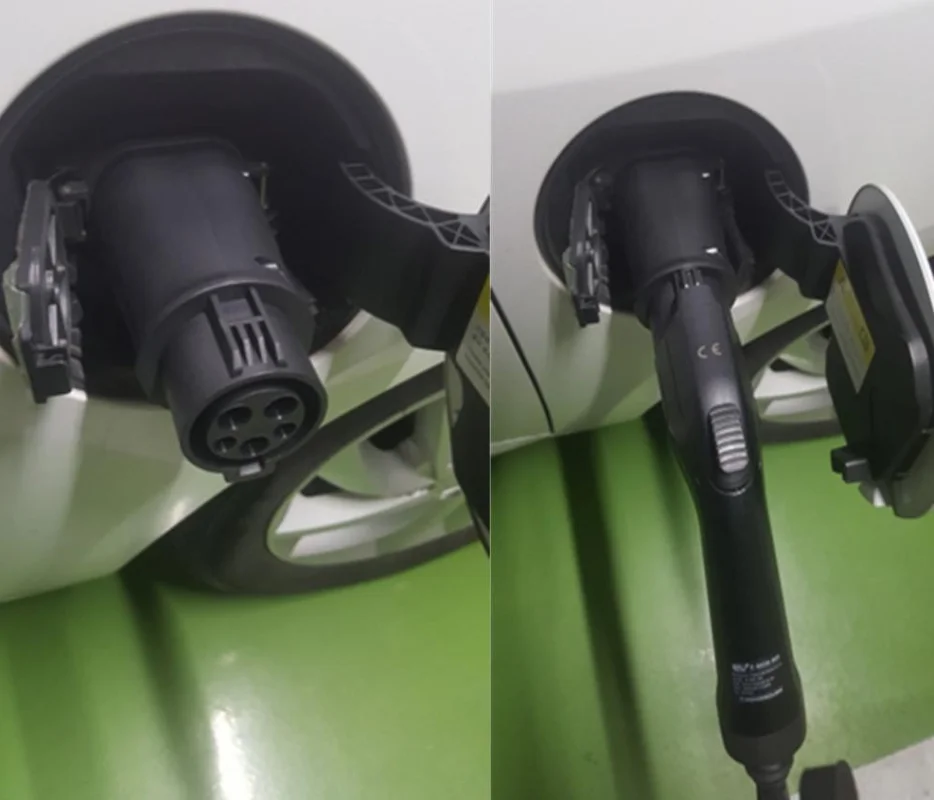

1)Plug in the Type 2 end of the adapter to the type 2 charging station fixed cable plug
2)Plug in the Type 1 end of the adapter to the Type 1 port of the electric vehicle
NOTE:
﹡Please make sure the adapter both side plugged firmly and in position.
﹡Don’t forget to activate the charging station
How to Stop charging of type 2 to j1772 adapter?
1)Stop charging on charging station
2)Remove the adapter from the vehicle port
3)Remove the adapter from the charging station plug
2)Plug in the Type 1 end of the adapter to the Type 1 port of the electric vehicle
NOTE:
﹡Please make sure the adapter both side plugged firmly and in position.
﹡Don’t forget to activate the charging station
How to Stop charging of type 2 to j1772 adapter?
1)Stop charging on charging station
2)Remove the adapter from the vehicle port
3)Remove the adapter from the charging station plug
