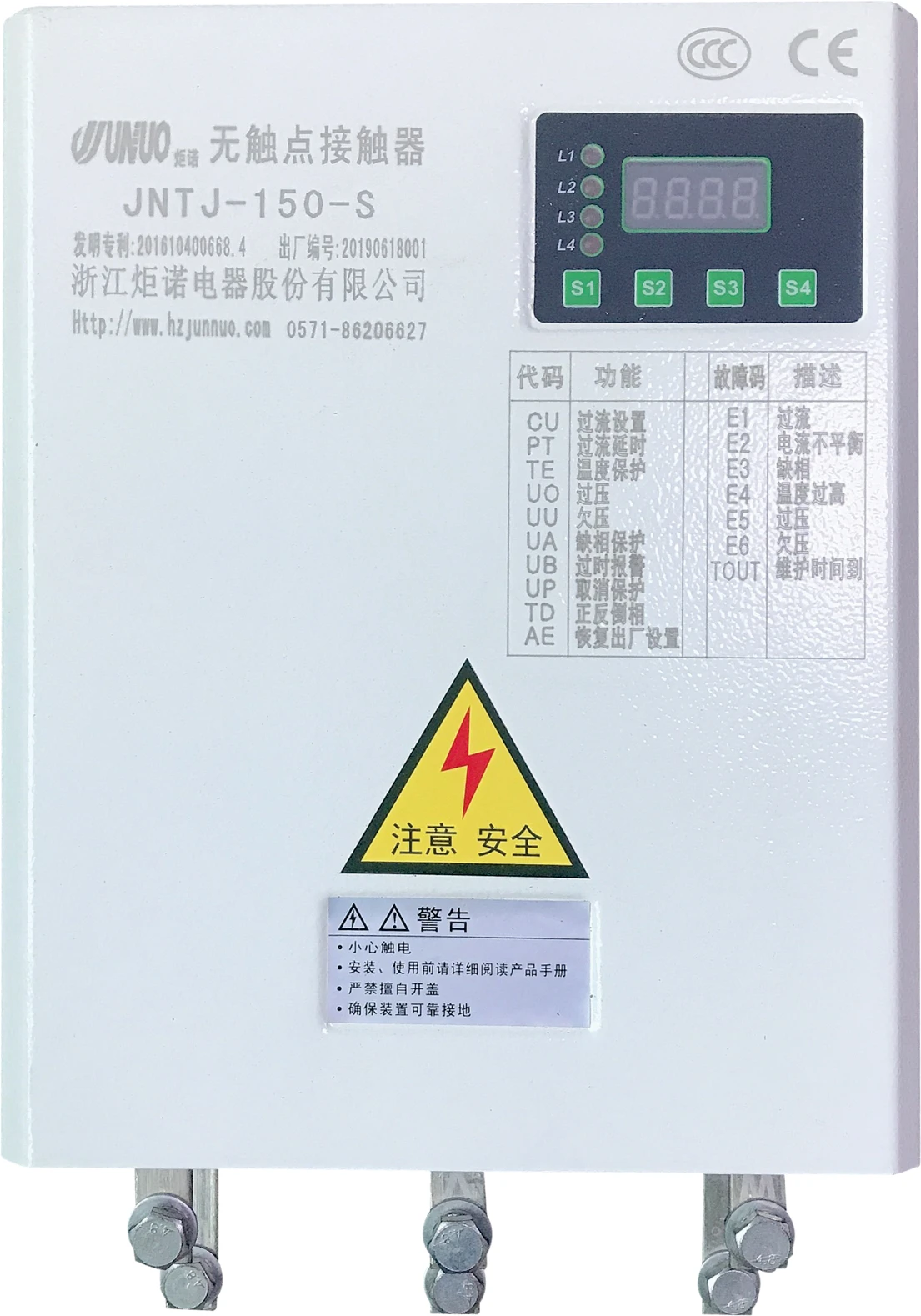

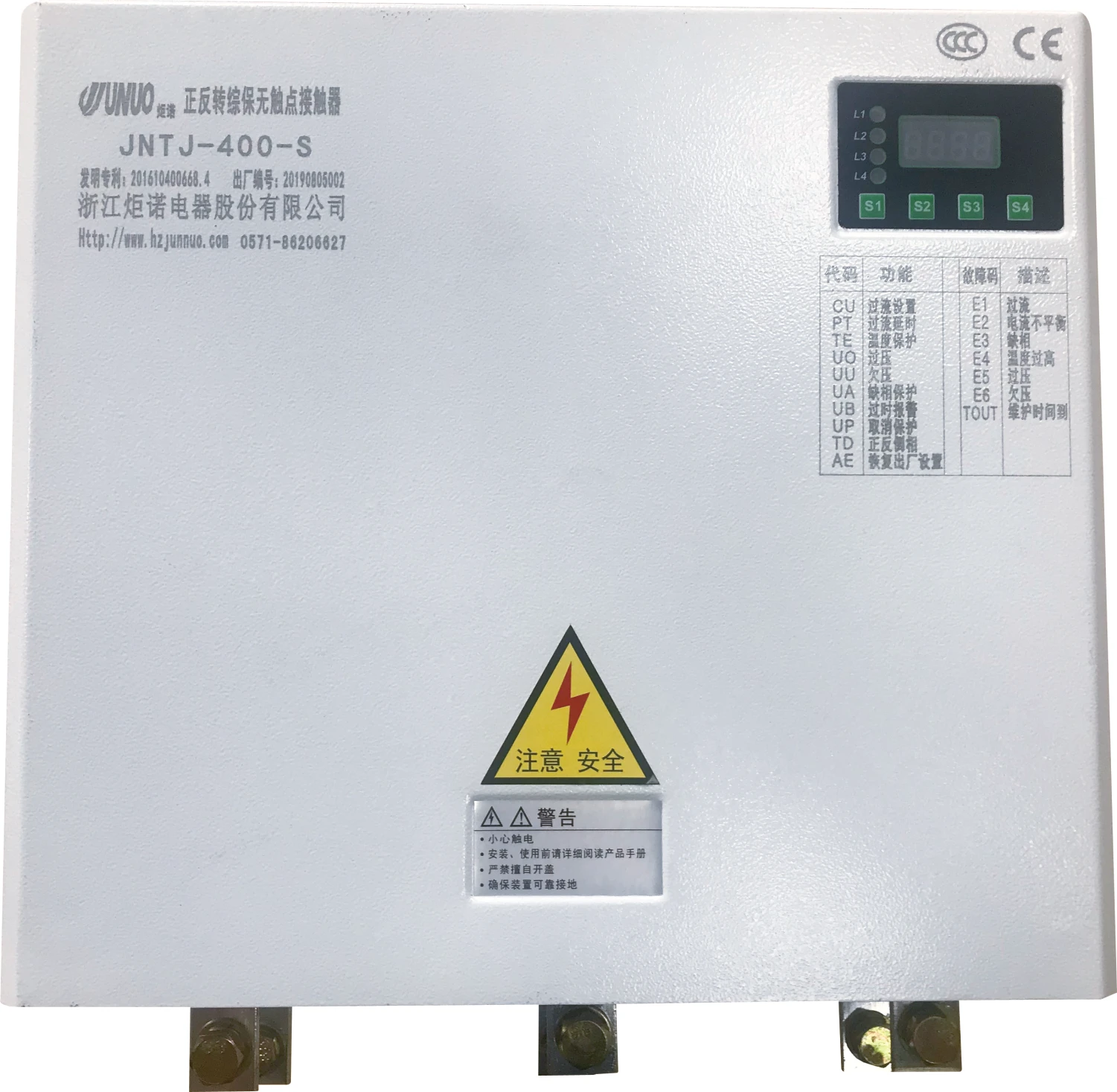

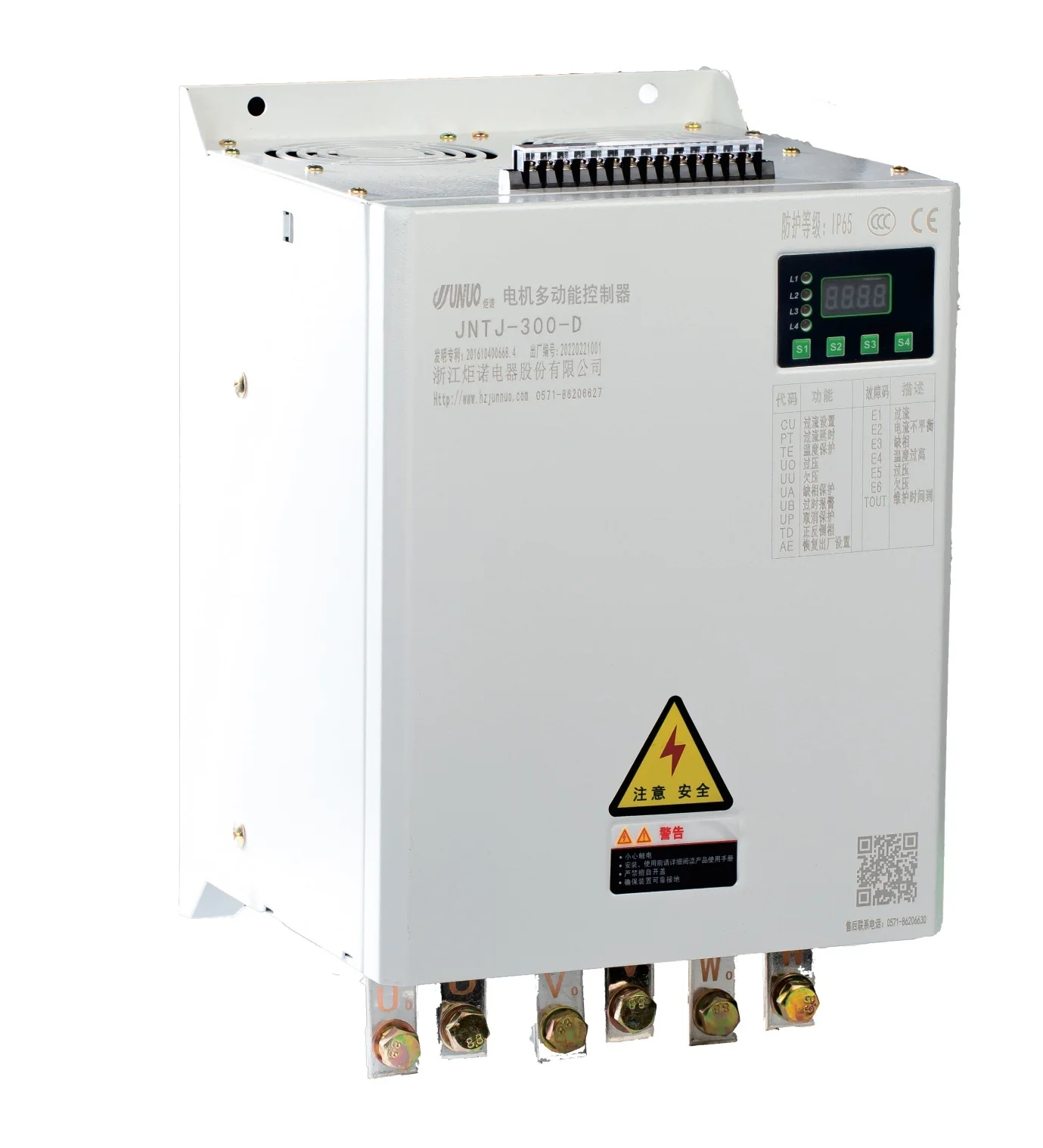

Solid State Type Thyristor Digital Crane Controller Motor Contactor
- Category: >>>
- Supplier: Ningbo CCTSA Pneumatic Technology Co. Ltd.
Share on (1600544607213):
Product Overview
Description
One Way Forward and Reverse Rotation Motor Contactor SCR Digital Controller for Crane Elevator Water Pump Conveyor Solid State Contactor
1. One-way and forward-reverse rotation
2. Real-time current,voltage and abnormal code display,optional RS485,Ethernet,DP etc. 380VAC and 220VAC compatible input.
3. Work until 150ºC.
4. Overcurrent,overvoltage,undervoltage protection can be set.
5. Reverse and start delay time can be set.With more than 5 years working life.
Application: forward-reverse control motor for example the crane,elevator,belt conveyor motor etc.
Product Description
| Model | Rated current(A) |
| JNTJ-100-D | 100 |
| JNTJ-150-D | 150 |
| JNTJ-200-D | 200 |
| JNTJ-300-D | 300 |
| JNTJ-400-D | 400 |
| JNTJ-500-D | 500 |
| JNTJ-600-D | 600 |
| JNTJ-800-D | 800 |
| JNTJ-1000-D 1000 |
JNTJ series (one-way and forward-reverse rotation)
Motor multi-function controller
JNTJ series motor multi-function controller (hereinafter referred
to as multi-controller) is the most new contactless multi-purpose motor
control product designed by our company according to the actual needs
of the electrical control industry and the starting machine industry. JNTJ
adopts the powerelectronic technology, withtheadvantagesofintelligence,
no spark, strong anti-interference ability, long life, etc., especially for
electrical control system of frequent action and bad working environment.
JNTJ series multi-controller is suitable for three-phase electric control
circuit and positive and negative motor rotation control circuit with AC
voltage less than 500V and frequency range of 45Hz~250Hz. It has such
intelligent detection functions for overcurrent, overvoltage, undervoltage,
phase loss, load imbalance, overheating, fault alarm and adjustment
functions, which can replace electromagnetic contactor with the extra
installation of various protective devices, without loads differentiation.
Features:
1: Real-time current and voltage display;
2: Over-voltage,over-current,under-voltage,three-phaseunbalanced
alarm;
3. One machine can realize positive and negativemotor rotation
function,delay switchingsettingfunction, motorprotectionfunction,
RS485 communication function, etc.;
4: Simplified power distribution, circuit breaker-multi-controller-
motor, no unnecessary components;
5. Design life of more than 3 years, with 3 years maintenance-free
and delivery warranty of 18 months;
6: Wide voltage design, reduced purchase cost, normally use even
if the environment temperature above 90 degrees.
Advantages compared to similar manufacturers:
1: Other manufacturersall just usesimplerelay trigger,only replaces
the contactor. Our company's products are the only one which
use chip (American) design, so cover contactor, thermal relay,
delay relay,motorprotectorandother functions,theonly manufacturer
JNTJ series (one-way and forward-reverse rotation)
Motor multi-function controller
JNTJ series (one-way and forward-reverse rotation)
Motor multi-function controller05
realizingcircuitbreaker-multi-controller-motor simplifiedstructure.
2: Other similar manufacturersdonothavehightemperaturefunction
due to relay trigger.Our company adopts American industrial
high temperature chip, the product can work reliably in 90-120
degree temperature.
3: Our products have fault code display, no need to troubleshoot
on-site fault as the fault code displays fault.
4:Our products have CCC certification and CE certification.

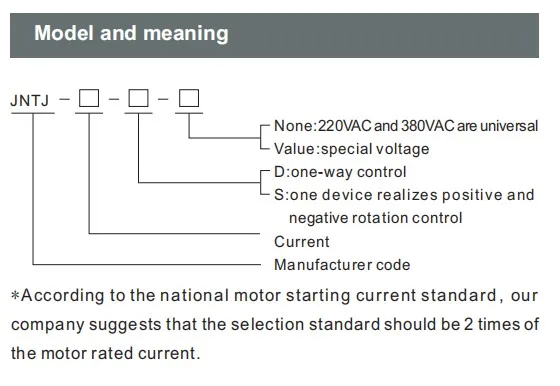

None:220VACand 380VACare universal
Value:special voltage
D:one-way control
S:one device realizes positive and
negative rotation control
Current
Manufacturer code
*According to the national motor starting current standard, our
company suggests that the selection standard should be 2 times of
the motor rated current

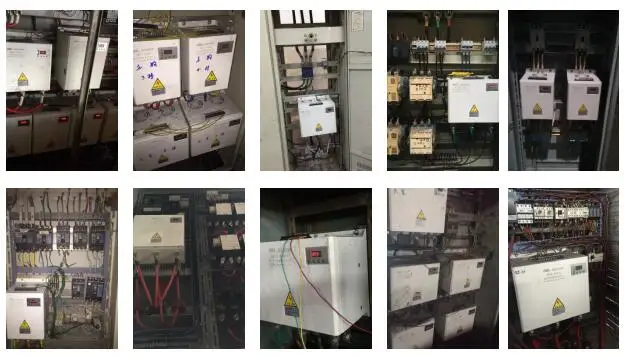

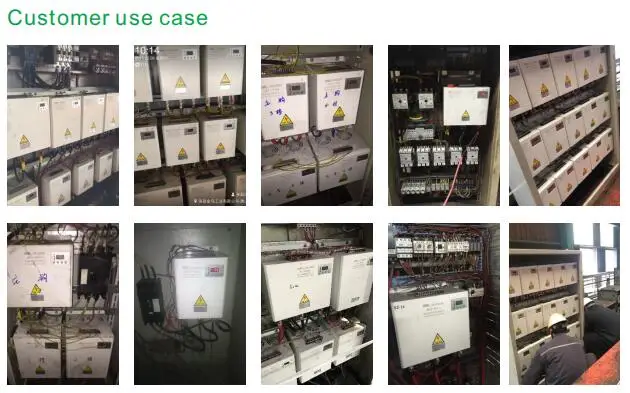

Application
Workshop
Certifications
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
