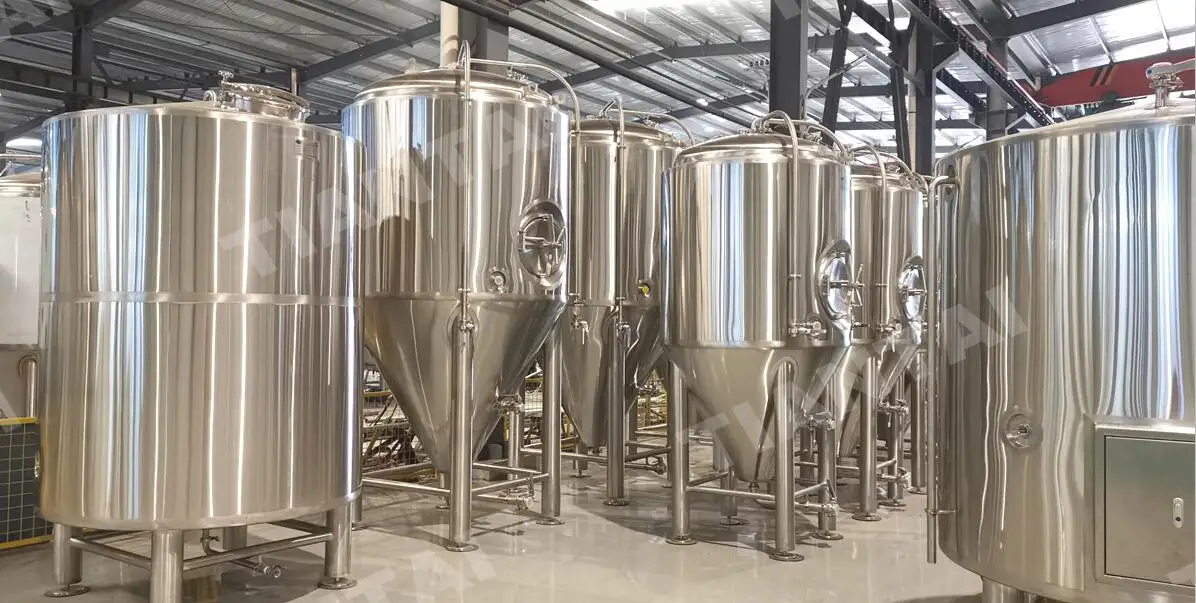

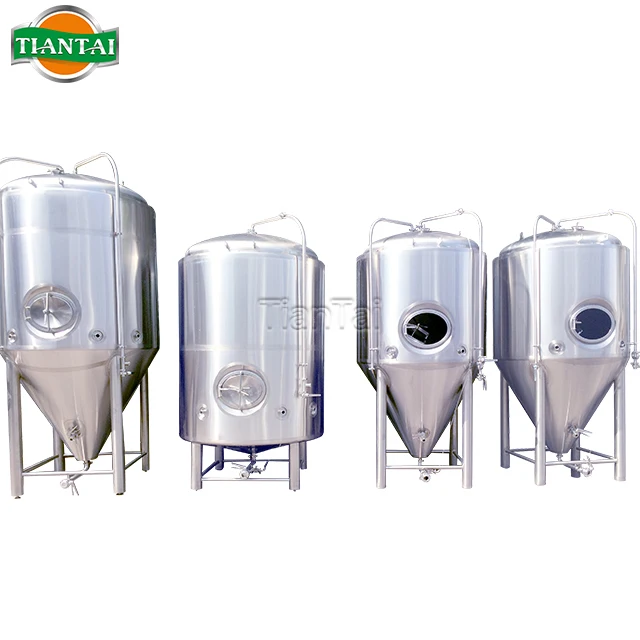

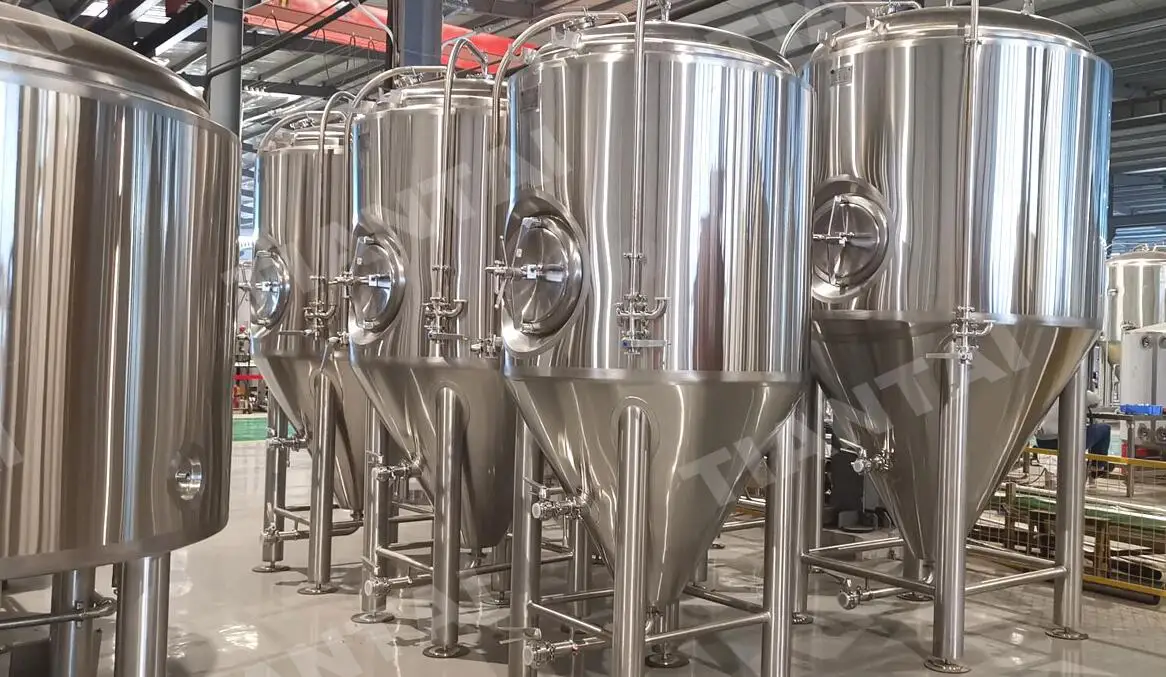

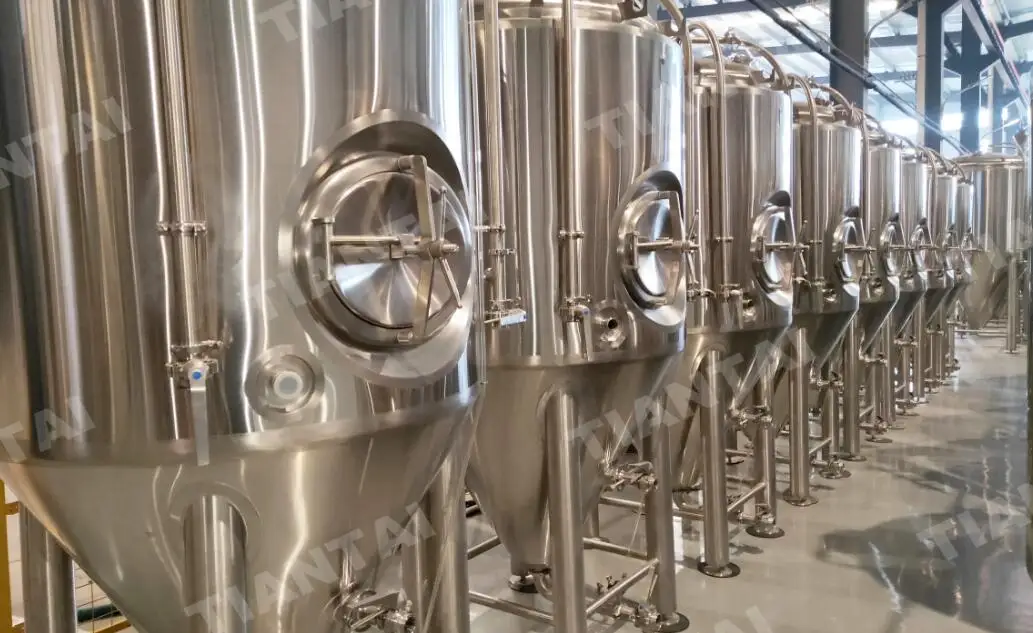

100L 100HL beer fermenter used brewery fermentation equipment

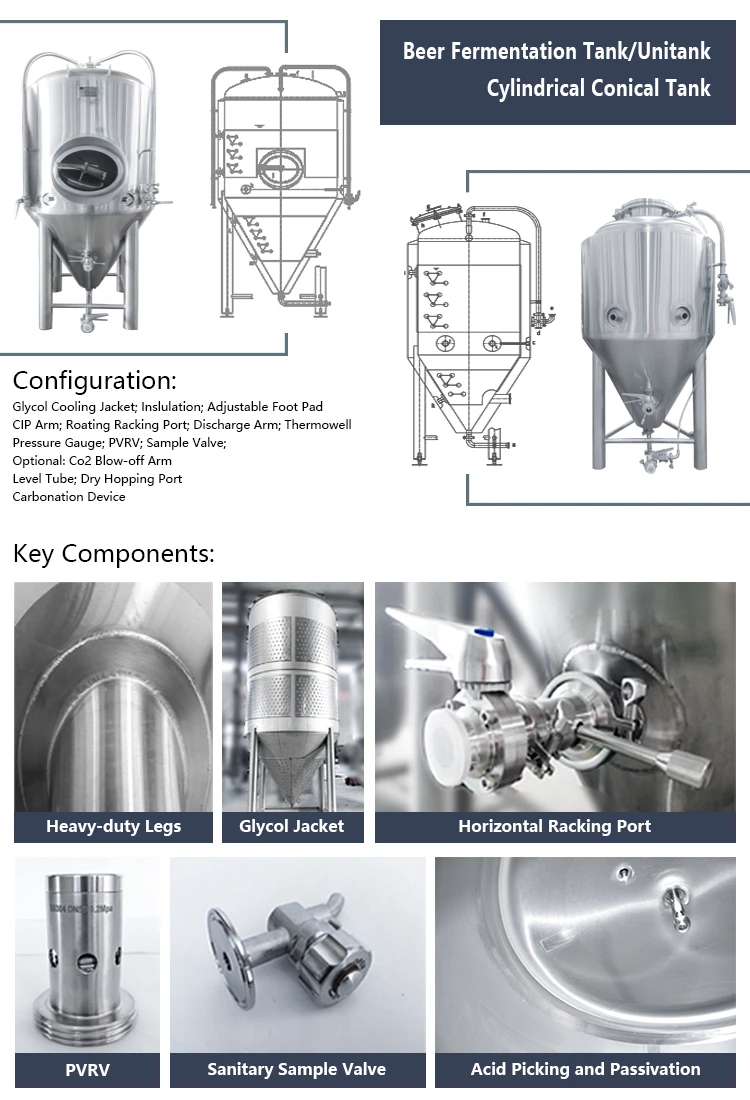

Stainless steel 500 gallon beer fermentation machine/fermenter tank are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermenters or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

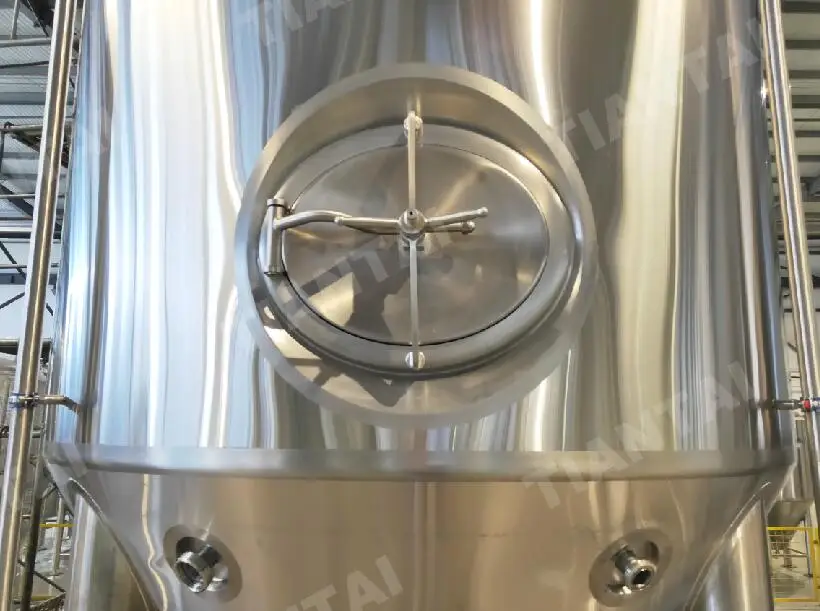

Tiantai 1500 liter stainless steel beer fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc.
The design of carft beer fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

Detailed cooling process

A.Please set a suitable temperature on the control panel according to the beer you will brew.
B.When the temperature inside the tank is higher than the temperature you set, the control panel will   convey the signal to solenoid valve.
C.The solenoid valve will be opened automatically.
D. The glycol water will flow into the glycol jacket to cool down the temperature.
E. When the temperature has been cooled and is lower than the temperature you set, the control panel will   convey the signal to solenoid valve. Then the valve will be closed automatically.

Grain miller

Function: Grain crushing

Output: 300~500kg/hr

Crushing Particle Size: Adjustable

Cover and frame carbon steel

(stainless steel for optional)

Capacity: 1000L or 2000L

Structure: Two vessel/Three vessel

Mash/Lauter tun+kettle/whirlpool tun+hot liquor tun

Hesting: Steam heating

Bright Beer Tank

Capacity: 2000L with 20% headspace

Function:Maturation or serving

Cooling system

Function: Cooling wort and beer

Parts: Glycol water tun+chiller+pump

Chiller quantity: 2sets

Controller system

Function: Control whole brewing and fermenting process.

Style: Compact controller

or separated brewhouse controller and fermenting controller

CIP

Function: Cleaning.

Capacity: 100L.

Parts: caustic tank+sterilization tank

Independent controller: Optional

Our 2000l beer fermenter has passed the CE certificate for low pressure, machine as well as the pressure equipment.

And our equipment also pass the ISO to ensure the quality

We will provide the container loading drawing to confirm the container quantity needed

and consult the freight.

The delivery pictures of every equipment will be took to make sure everything will be shipped to you.
