Digital Load Cell Weight Sensor 1 200KG Weighing scale PCB Ad Module Electronic scales IC chip HX711

Share on:

Price in USD:Details


Product Overview



Four leads, easy to use, plus 5-10V drive voltage, direct output as a voltage signal due to force changes.
Load cell size: OEM

Technical Parameters

Range: 0-1KG 0-5KG 0-10KG 0-200KG
Output sensitivity: 1.0±0.1mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05% F.S
Lag: 0.05% F.S
Repeatability: 0.05% F.S
Creep: 0.05% F.S/3min
Output impedance: 1000±5% ohms
Zero temperature drift: 0.05% F.S/10°C
Temperature sensitivity drift: 0.05% F.S/10°C

Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black
signal Negative : white

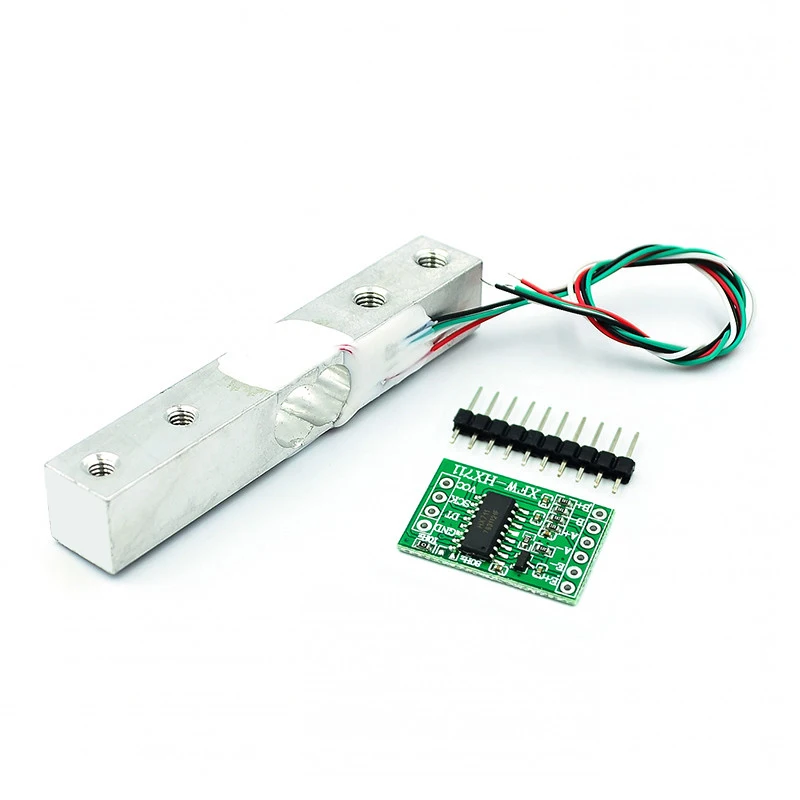

Package included:
1 * Load Cell Weight Sensor

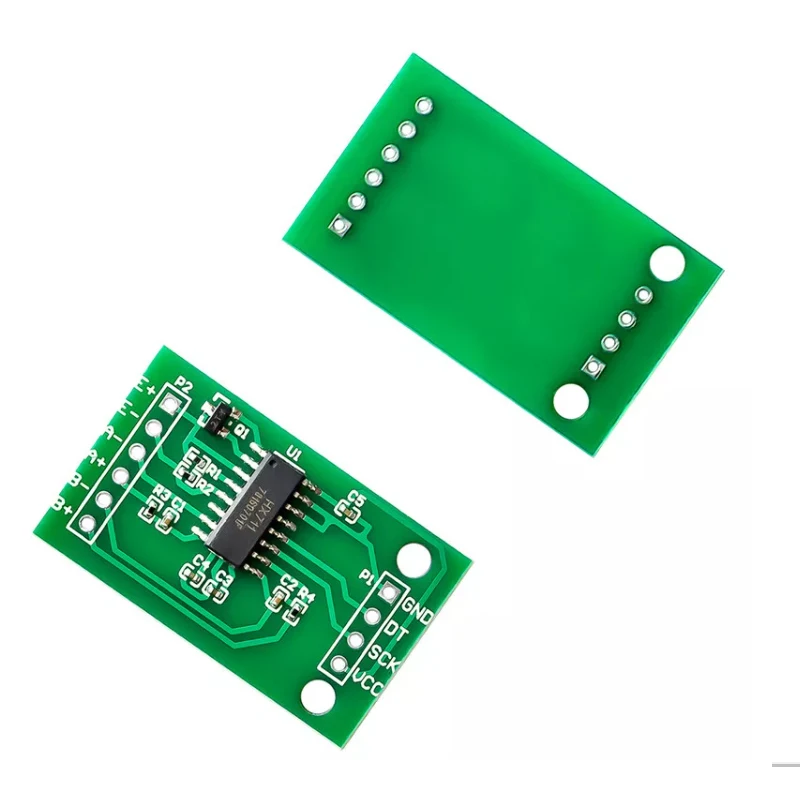

1 * HX711 Module
1 * Mini Bracket

5 * Screw
