HEYRV High Quality Caravan Electric Aluminum profile Adjustable Intelligence Motorhome Camper Save space Lifting bed
- Category: >>>
- Supplier: Dongguan Hejia Trading Co. Ltd.
Share on (1600544834141):
Product Overview
Description

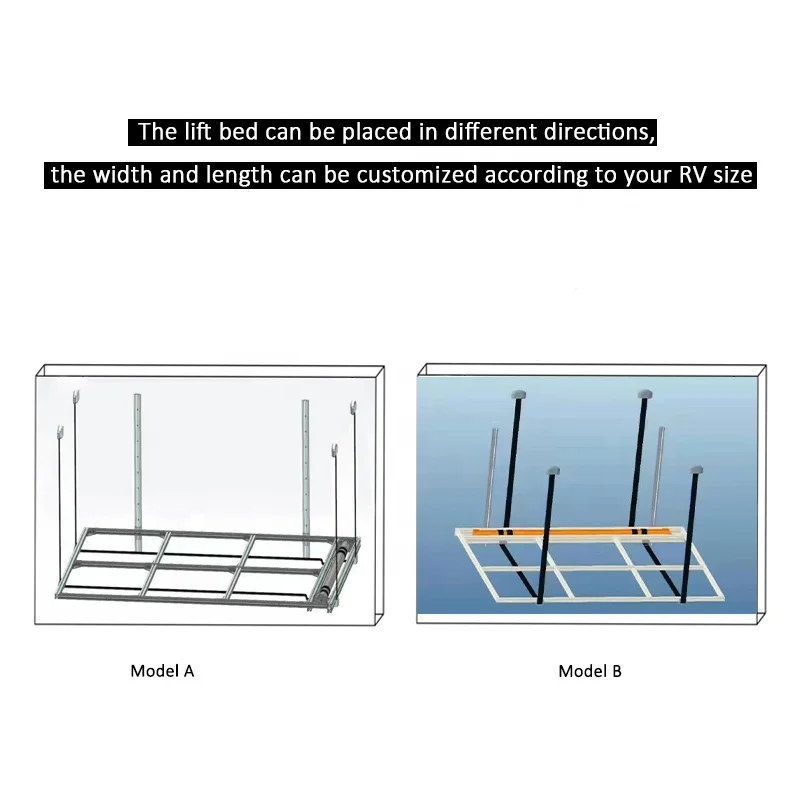

PRODUCT FUNCTION DIAGRAM

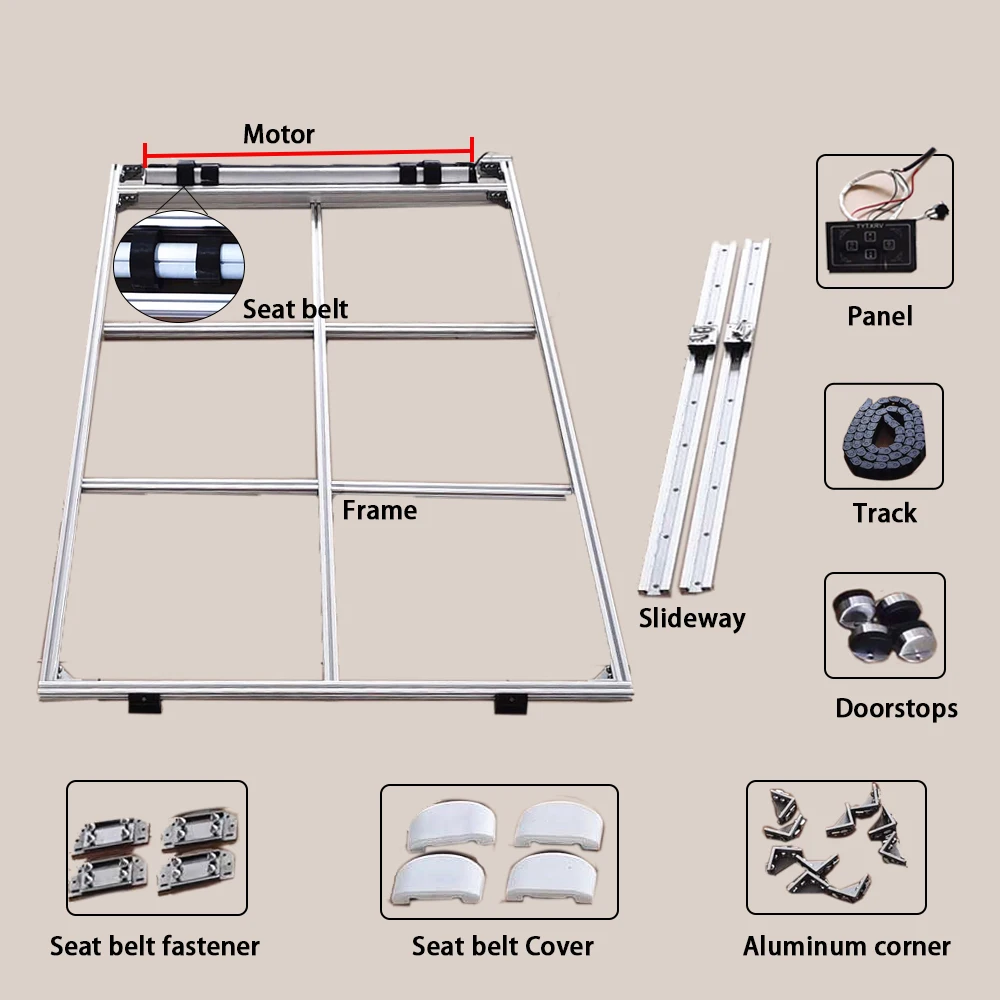

LIFTING BED STANDARD CONFIGURATION

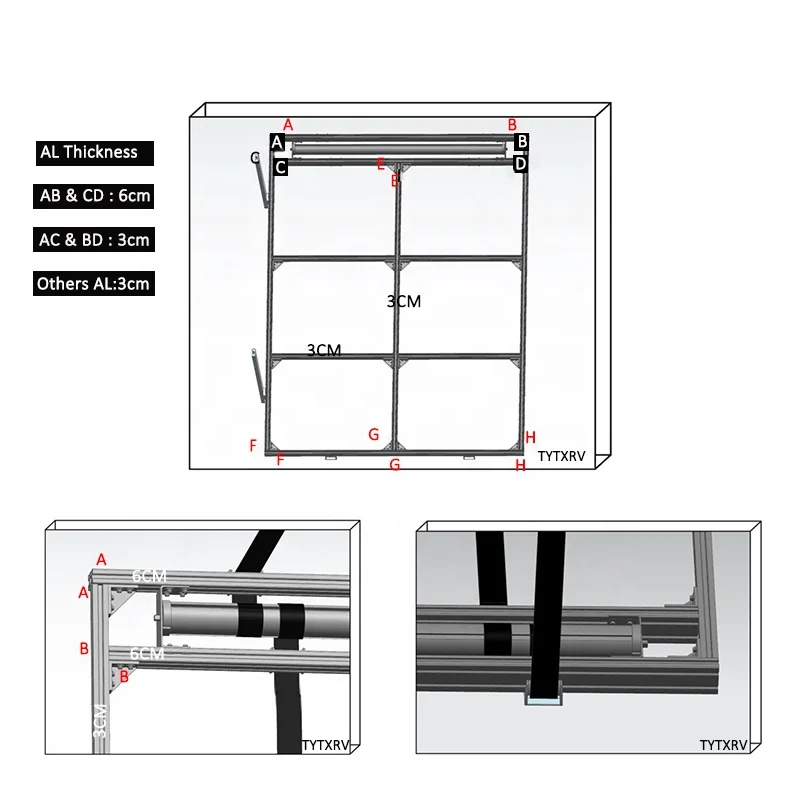

INSTALLATION INSTRUCTIONS OF ELECTRIC LIFTING BED
1. The lifting bed support is marked with English letters, which can be matched according to the letters in the figure
2. Note:put the square nut into the bracket opening before installation
3. The four ropes are wound around the motor housing in the same direction, clockwise
2. Note:put the square nut into the bracket opening before installation
3. The four ropes are wound around the motor housing in the same direction, clockwise

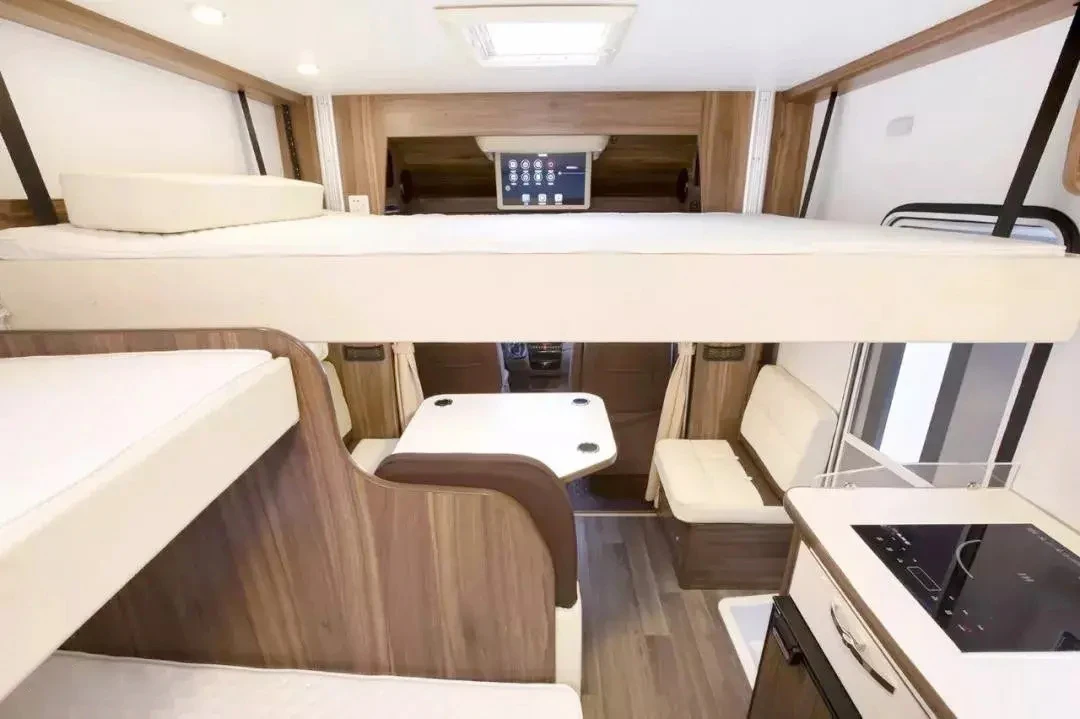

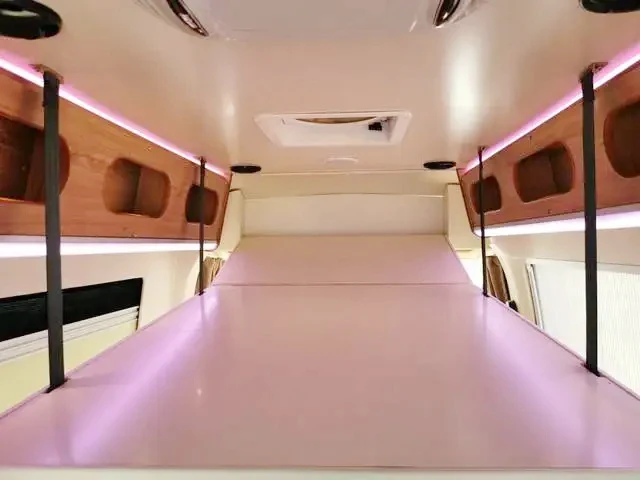

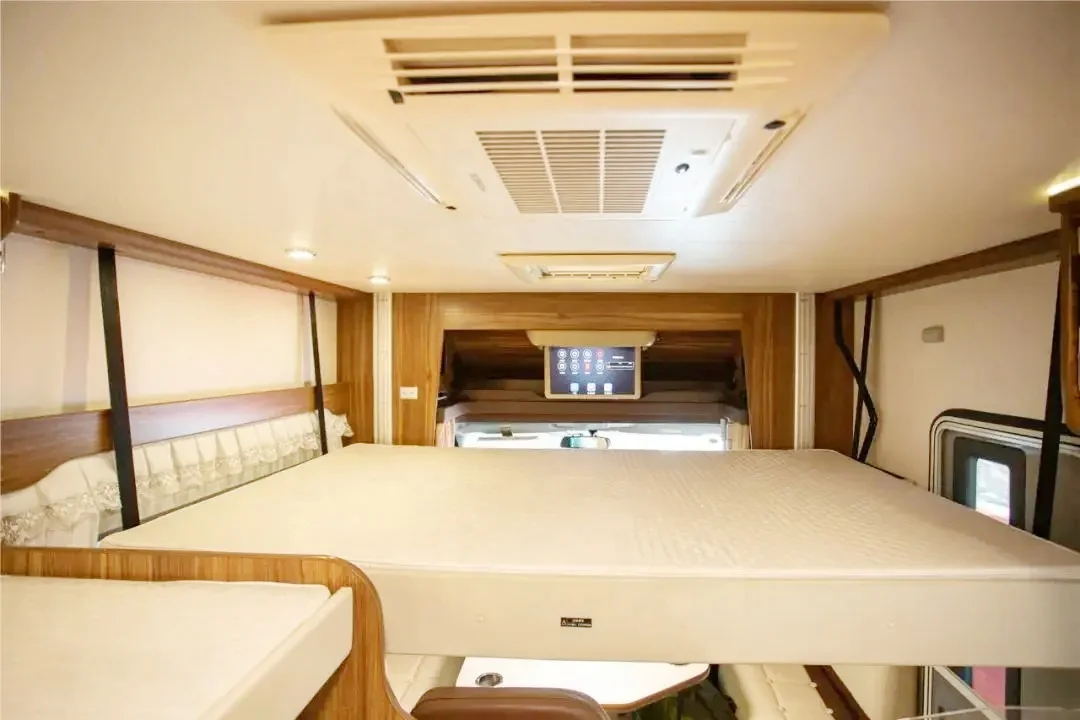

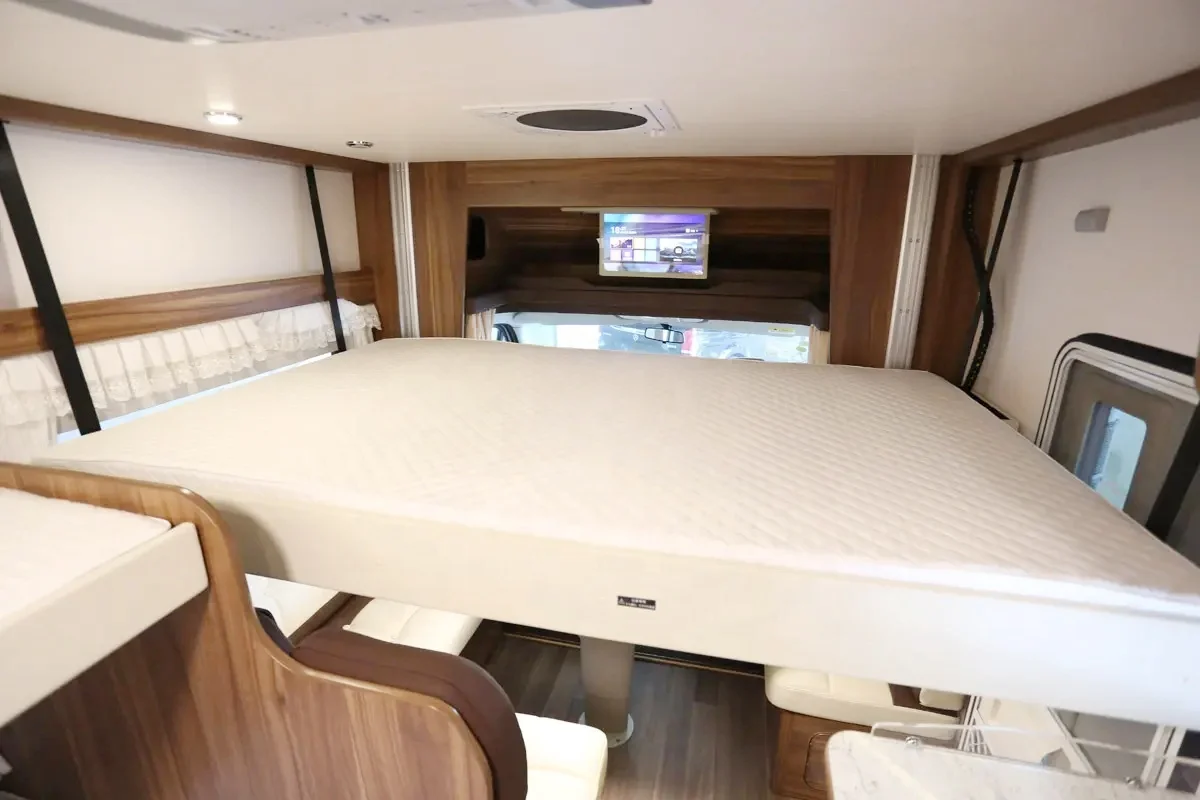

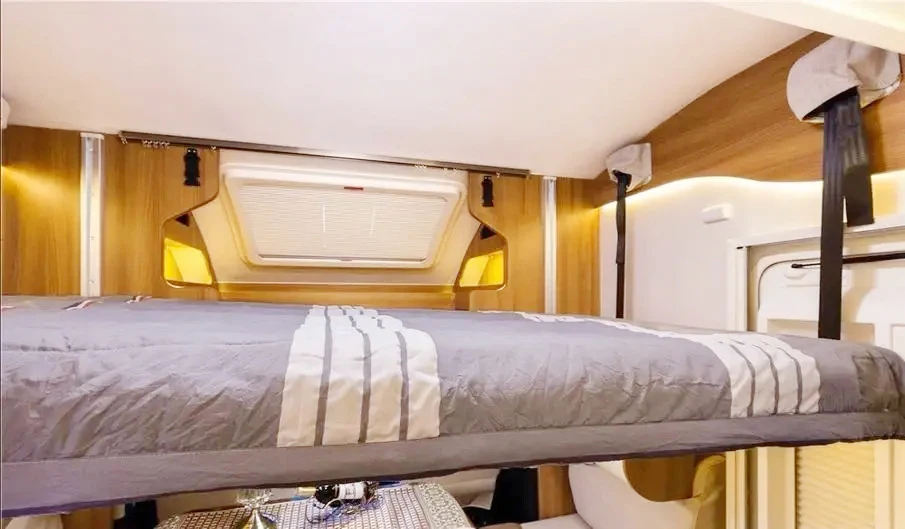

LIFTING BED SCENE DIAGRAM
ELECTRIC LIFTING BED FEATURES
1. The electric lift bed mechanism only acts on the lift inside the Car/Motorhome/Camper
2. The weight limit of the electric lifting bed is 60kg
3. There must be four brackets when the electric lifting bed is lowered, otherwise it will damage the electric lifting bed itself
4. When hoisting, be sure to remove foreign objects on the bed
5. During the descent, please ensure that there are no obstacles under the bed
6. The debugging of the upper and lower limit of the electric lifting bed requires professional technicians
7. The slide rail of the electric elevator needs to be installed in a special part
2. The weight limit of the electric lifting bed is 60kg
3. There must be four brackets when the electric lifting bed is lowered, otherwise it will damage the electric lifting bed itself
4. When hoisting, be sure to remove foreign objects on the bed
5. During the descent, please ensure that there are no obstacles under the bed
6. The debugging of the upper and lower limit of the electric lifting bed requires professional technicians
7. The slide rail of the electric elevator needs to be installed in a special part

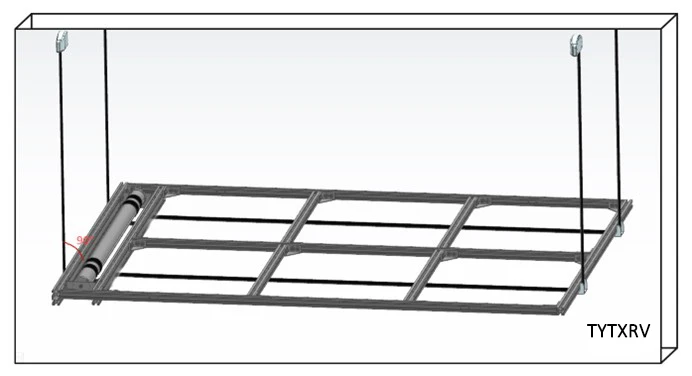

MOTOR DIRECTION MAP

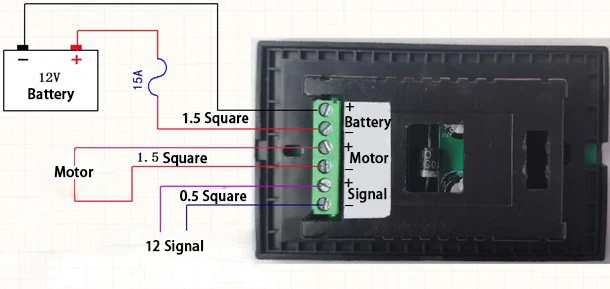

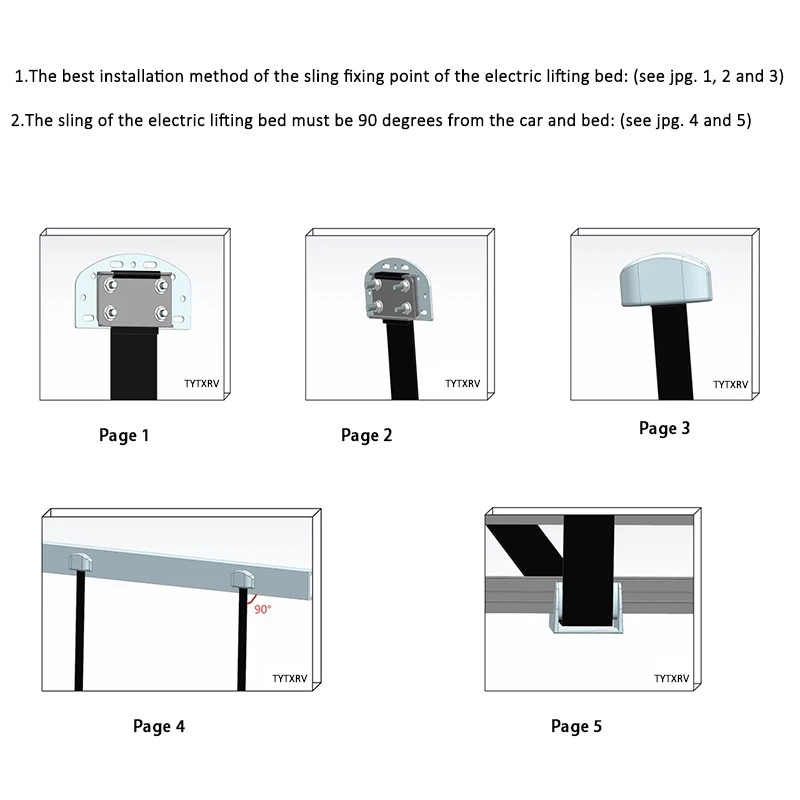

INSTALLATION METHOD
Tips LIFTING BED SAFETY
Step 1: Please visually and ensure that there is no one and nothing on the bed
Step 2: press the up button of the switch to move the electric lifting bed to the preset support position of the whole bed
Step 3: confirm that the electric bed has risen to the preset position
Step 4: please connect the double safety buckle of the lift bed
Step 2: press the up button of the switch to move the electric lifting bed to the preset support position of the whole bed
Step 3: confirm that the electric bed has risen to the preset position
Step 4: please connect the double safety buckle of the lift bed

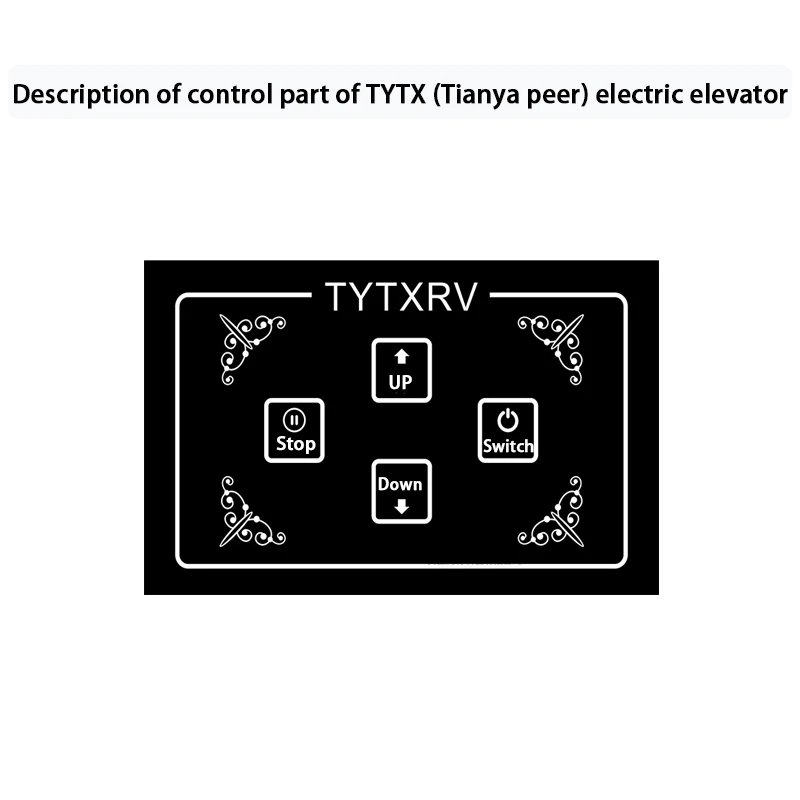

OPERATION FLOW OF CONTROL PANEL
1. Press and hold the "main switch" for 2 seconds starts
2. Short press "L", the lifting bed will rise. When it rises to the limit switch, the lifting bed will stop. At this time, short
press "stop"
3. Short press "down" to lower the lifting bed. When it reaches the limit switch, the lifting bed will stop. At this time, short
press "stop" or delay 2 minutes to close automatically
4.After 2.5 minutes of standby on the touch panel, the main switch will be turned off automatically
2. Short press "L", the lifting bed will rise. When it rises to the limit switch, the lifting bed will stop. At this time, short
press "stop"
3. Short press "down" to lower the lifting bed. When it reaches the limit switch, the lifting bed will stop. At this time, short
press "stop" or delay 2 minutes to close automatically
4.After 2.5 minutes of standby on the touch panel, the main switch will be turned off automatically
OPERATION FLOW OF CONTROL PANEL
1. Press and hold the "main switch" for 2 seconds, and the touch panel function key starts
2. Short press "L", the lifting bed will rise. When it rises to the limit switch, the lifting bed will stop. At this time, short
press "stop" or delay 2 minutes to close automatically
3. Short press "down" to lower the lifting bed. When it reaches the limit switch, the lifting bed will stop At this time, short
press "stop" or delay 2 minutes to close automatically
4. After 2.5 minutes of standby on the touch panel, the main switch will be turned off automatically
2. Short press "L", the lifting bed will rise. When it rises to the limit switch, the lifting bed will stop. At this time, short
press "stop" or delay 2 minutes to close automatically
3. Short press "down" to lower the lifting bed. When it reaches the limit switch, the lifting bed will stop At this time, short
press "stop" or delay 2 minutes to close automatically
4. After 2.5 minutes of standby on the touch panel, the main switch will be turned off automatically
