Product Overview
Description
Products Description

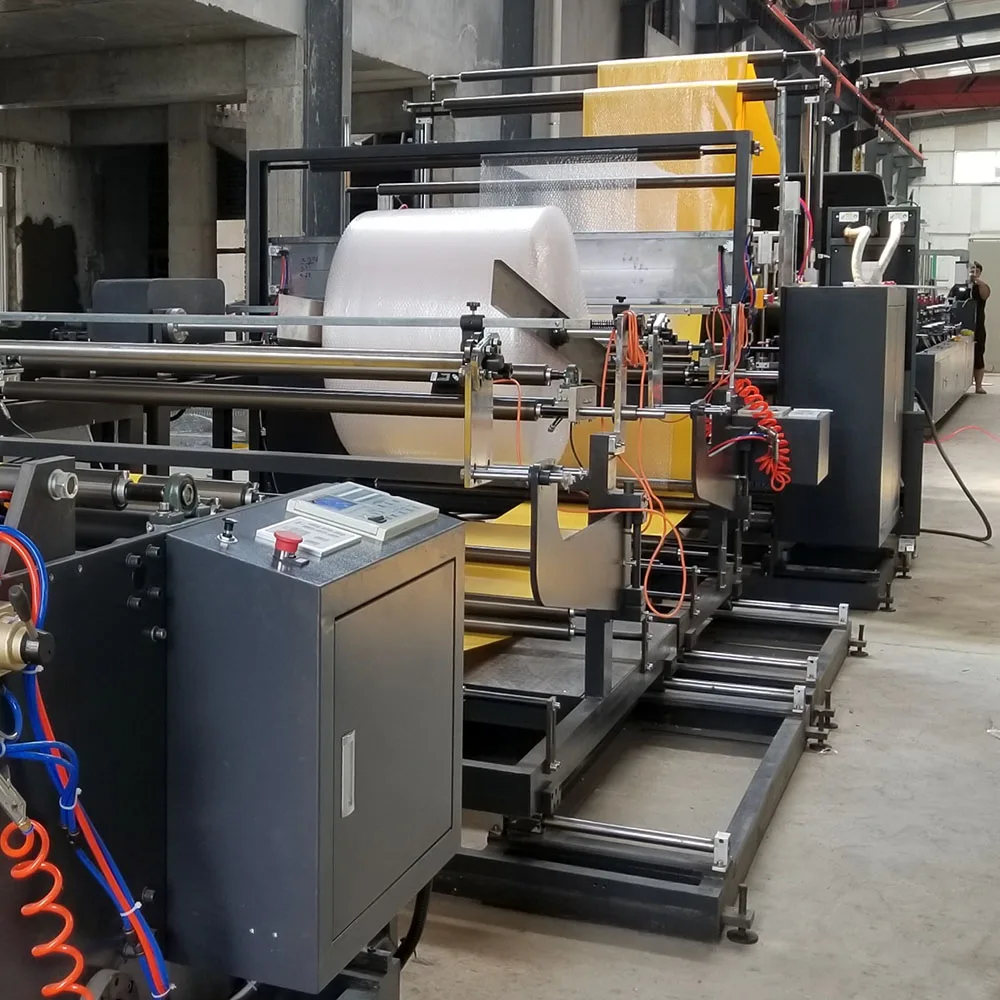

Full Automatic Kraft Paper Bubble Mailer/Envelope / Bags Making Machine
Our company established in 1980. is a SINO-ITALY joint venture with advanced leading technolog,We specialize in manufacturing the following products: Plastic Foaming Machine, Packing Machinery, Pulp Moulding Machinery more than 30 years expenences. Our enterprise management concept is based on innovation, excellent quality and skilled workmanship. We are enjoying a good reputation through over 100 countries and areas and have got customers' trust deeply.Moreover, our sales volume of foaming mahcine is No.1 compared with other Chinese suppliers. We sincerely hope to cooperate with friends from and abroad and help you succeed with our profession.
Detailed information
Gluing
The machine is equipped with sticker adhesive device by motor active feeding, following the movement of compounded material, sticking the sticker adhesive and composite bubble film together.
It transforms the glue on release film or release paper to compounded bubble film bags by glue gun.
Press molding
The main function of main engine is to mold the compounded material by heating pressing and sealing.
Under press molding by mechanical style.The time of sealing can be controlled according to the thickness of material.
The width of hot sealing is 18mm.
Three sets of copper sealing knives is delivered with machine.
Under press molding by mechanical style.The time of sealing can be controlled according to the thickness of material.
The width of hot sealing is 18mm.
Three sets of copper sealing knives is delivered with machine.

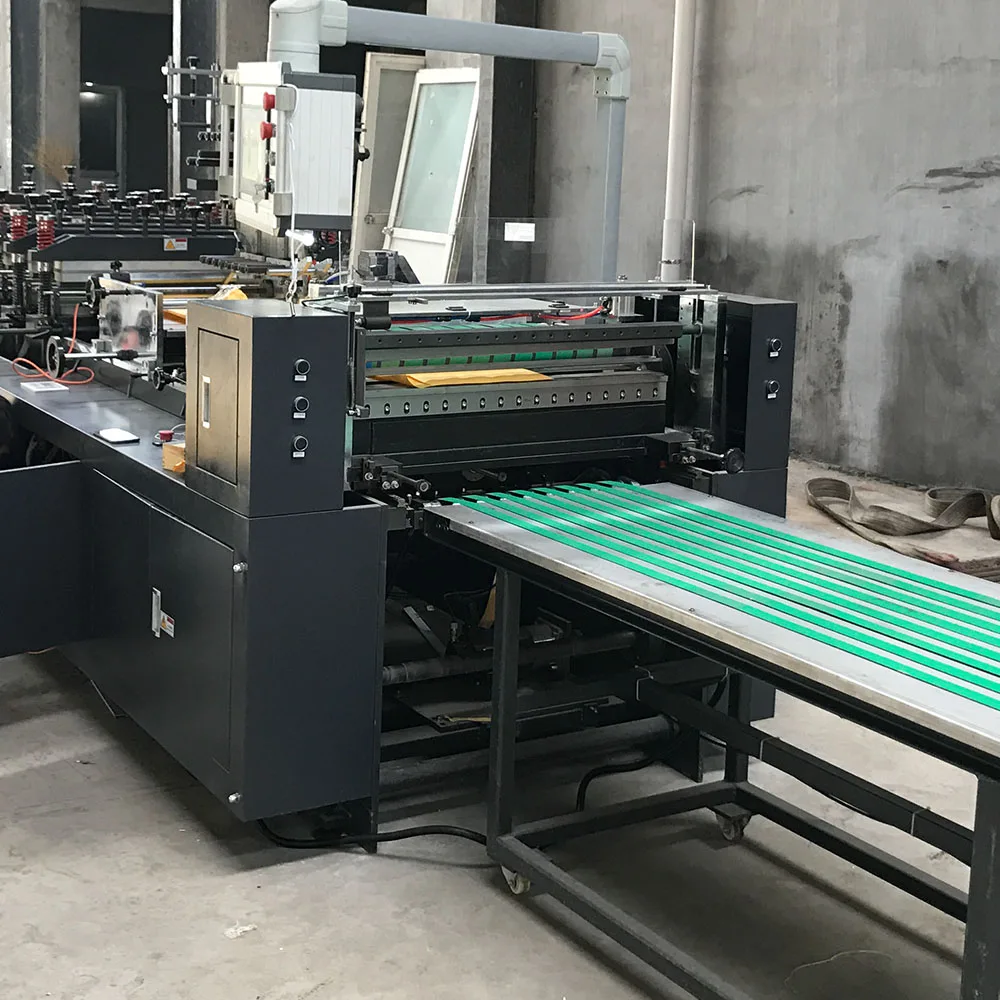

Cutter
1.The machine independently uses AC servo motor to control cutting.
2.The cooling cutter is controlled by the stepper motor for
forth and rear shift cutting with electric eye to track printing color mark.
3.The movement of cutter is accurately controlled by type AC servo motor.
4. This part has Plexiglas protector.
forth and rear shift cutting with electric eye to track printing color mark.
3.The movement of cutter is accurately controlled by type AC servo motor.
4. This part has Plexiglas protector.

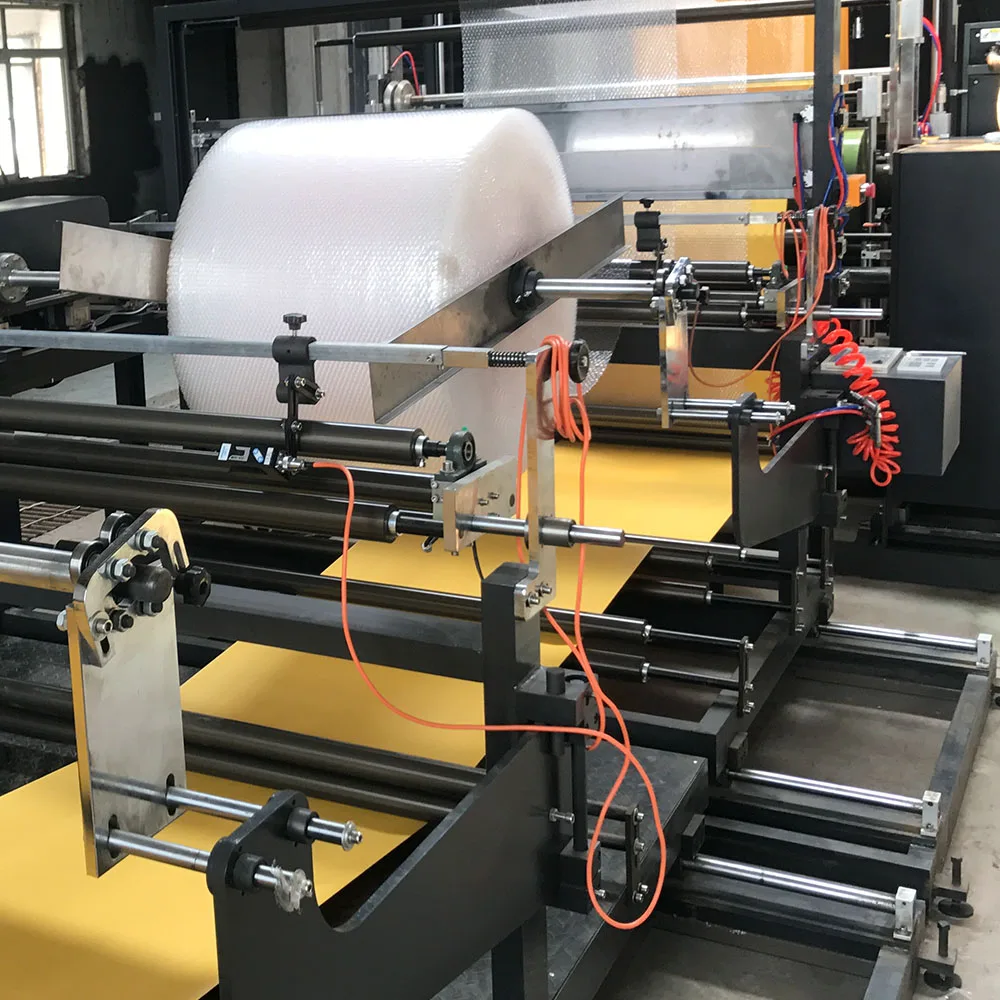

Material pulling
Multi-roll storing device and swing arms send the composite material to the folding shelf smoothly and steadily.
1. Multi-roll storing auto feeding device
2.This machine adopts double servo for fixed length. Two sets of servo are both belt clamp type fixed length.
2.This machine adopts double servo for fixed length. Two sets of servo are both belt clamp type fixed length.
Details Images
Technical Parameters

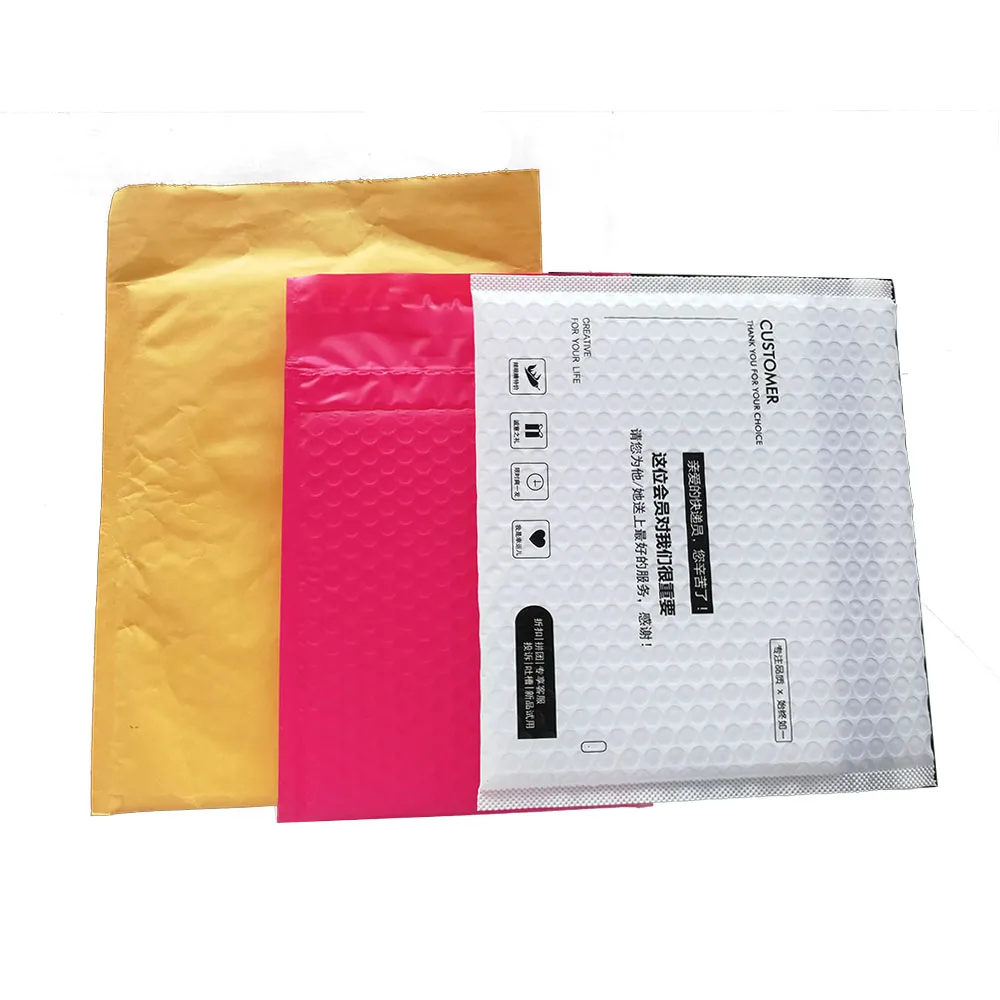

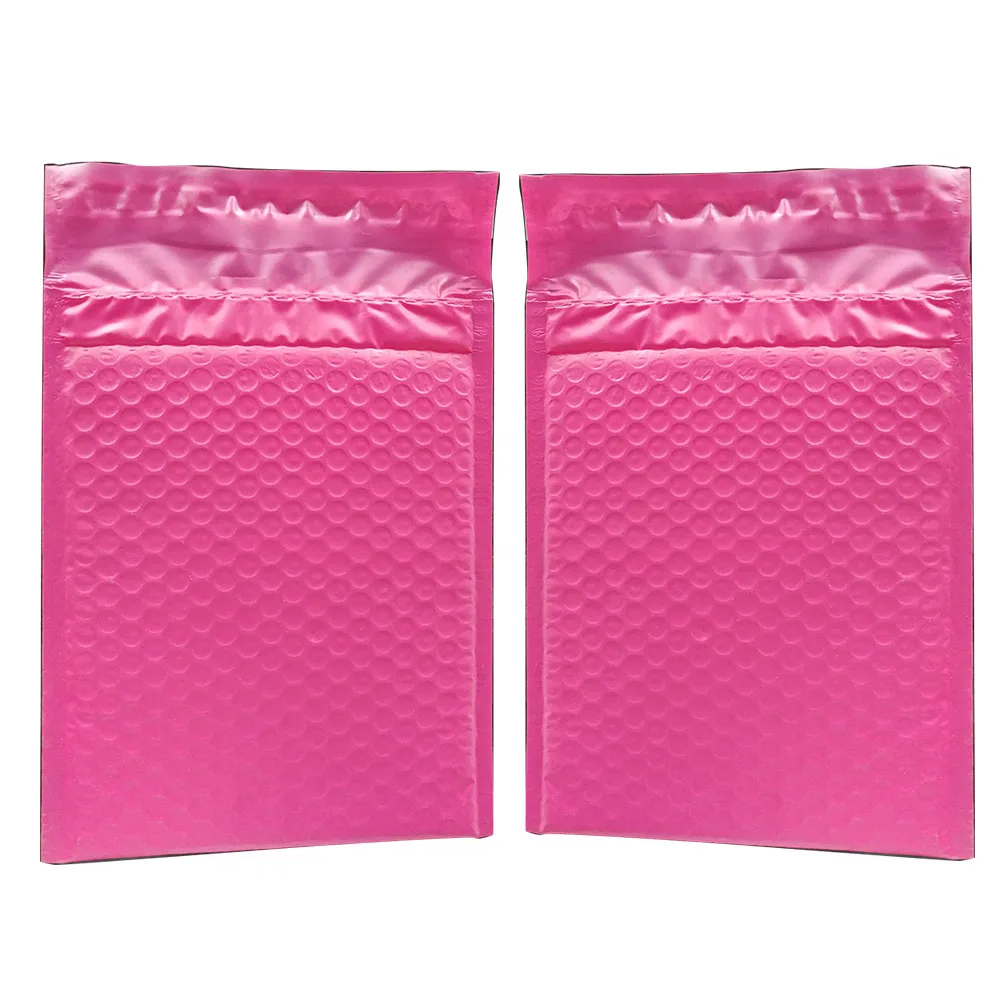

1.Suitable bags | Poly bubble mailer and Kraft bubble mailer.(The machine can make laminating and folding two side seal bubble envelope.) |
2.Mechanical executing speed | 90 pcs/min(The actual speed of making bags may differ according to the size of bags, thickness of materials and time of fusing.) |
3. Max width of bag | One line: 800mm (including the envelope flap) Double line: 400mm (including the envelope flap) |
4.Maximum length of bag | 400mm |
5.Maximum width of unwinding | paper or film(1400mm bubble 1350mm) |
6.Maximum diameter of unwinding | paper or film Φ800mm, bubble Φ1300mm |
7.Weight of machine | 8500kg |
8.Overall dimension | 23000X2600X2400mm(L×W×H) |
9.Power required | 80KW |
10.Voltage | three-phase five-wire, AC 380V 50Hz (three firing line, one null line, one ground lead) |
Main Configuration
1.COMPUTER CONTROL
2.Cutter
3.Material pulling
4.Gluing
5.The main function of main engine is to mold the compounded material by heating pressing and sealing.
6.Folding part
7.Feeding part
2.Cutter
3.Material pulling
4.Gluing
5.The main function of main engine is to mold the compounded material by heating pressing and sealing.
6.Folding part
7.Feeding part
