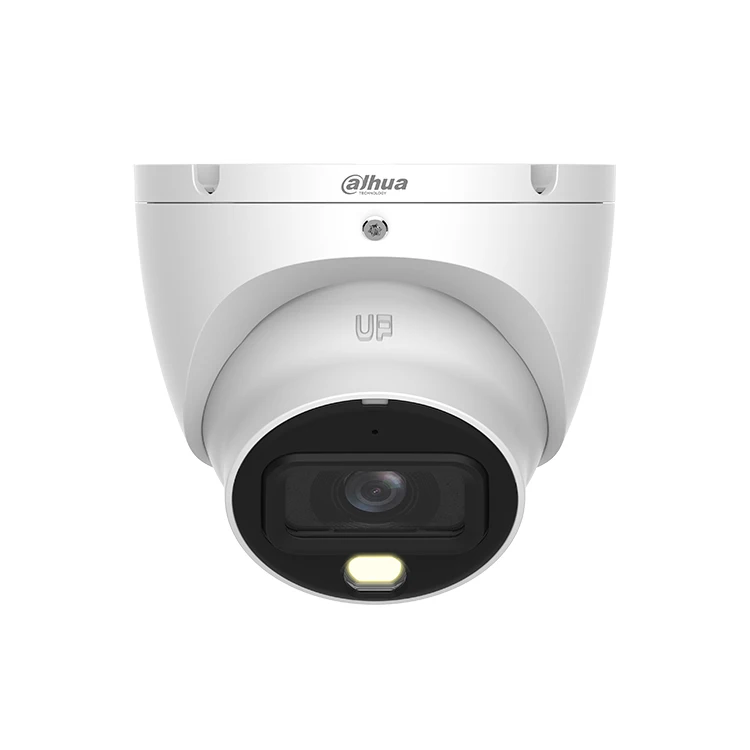

4K Full Color HDCVI Eyeball Camera HAC HDW1809TLM A LED Built in Mic Analog CCTV Camera Dahua 8MP
- Category: >>>
- Supplier: Beijing Sinlay Technology Limited
Share on (1600544860739):
Product Overview
Description
4K Full-Color HDCVI Eyeball Camera HAC-HDW1809TLM-A-LED Built-in Mic Analog CCTV Camera Dahua 8MP
Products Description
HAC-HDW1809TLM-A-LED
4K Full-Color HDCVI Eyeball Camera
> Max. 15 fps@4K.
> 120 dB true WDR, 3D NR.
> 24/7 color imaging.
> 20 m illumination distance.
> Super Adapt.
> Built-in MIC(-A) .
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
4K Full-Color HDCVI Eyeball Camera
> Max. 15 fps@4K.
> 120 dB true WDR, 3D NR.
> 24/7 color imaging.
> 20 m illumination distance.
> Super Adapt.
> Built-in MIC(-A) .
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Product Paramenters
Camera | ||
Pixel | 8 MP | |
Image Sensor | 8MP CMOS | |
Max. Resolution | 3840 (H) × 2160 (V) | |
Scanning System | Progressive | |
Electronic Shutter Speed | PAL: 1/3 s–1/100000 s | |
NTSC: 1/4 s–1/100000 s | ||
Min. Illumination | 0.001 lux@F1.0 (Color) | |
0 lux (Illuminator on) | ||
S/N Ratio | >65 dB | |
Illumination Distance | 20 m (65.62 ft) | |
Illuminator On/Off Control | Auto/Manual | |
Illuminator Number | 1 (Warm light) | |
Pan/Tilt/Rotation Range | Pan: 0°–360° | |
Tilt: 0°–78° | ||
Rotation: 0°–360° | ||
Lens | ||
Lens Type | Fixed-focal | |
Lens Mount | M12 | |
Focal Length | 2.8 mm; 3.6 mm | |
Max. Aperture | F1.0 | |
Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | |
3.6 mm: H: 85°; V: 45°; D: 100° | ||
Iris Control | Fixed | |
Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) | |
3.6 mm: 2.8 m (9.19 ft) | ||
DORI Distance | Lens | |
2.8 mm | ||
3.6 mm | ||
Video | ||
Video Frame Rate | CVI: | |
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; | ||
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; | ||
AHD: | ||
PAL: 4K@15 fps; | ||
NTSC: 4K@15 fps; | ||
TVI: | ||
PAL: 4K@15 fps; | ||
NTSC: 4K@15 fps; | ||
CVBS: | ||
PAL: 960H; | ||
NTSC: 960H | ||
Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960 H (960 × 576/960 × 480) | |
Day/Night | Color | |
BLC | BLC; HLC; WDR; HLC-Pro | |
WDR | 120 dB | |
White Balance | Auto; Area white balance | |
Gain Control | Auto | |
Noise Reduction | 3D NR | |
Illumination Mode | Smart Light | |
Defog | Electronic defog | |
Digital Zoom | 4× | |
Mirror | Yes | |
Privacy Masking | Off/On (8 areas, rectangle) | |
Certification | ||
Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) | |
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) | ||
Port | ||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
Audio Input | One channel built-in MIC | |
Power | ||
Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) | |
Power Consumption | Max 5 W (12 VDC, LED on) | |
Environment | ||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
Operating Humidity | <95% (RH), non-condensing | |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
Protection | IP67 | |
Structure | ||
Casing Material | Metal | |
Product Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") | |
Packaging Dimensions | 122 mm × 119 mm × 111 mm (4.80" × 4.69" × 4.37") | |
Net Weight | 0.33 kg (0.73 lb) | |
Gross Weight | 0.48 kg (1.06 lb) | |
Installation | Wall mount; ceiling mount; vertical pole mount | |
Company Profile
\tBejing Sinlay technology limited is a young ,creative and energetic company located in beijing.with a strong focus on service and providing innovative,high quality and competitively priced products including Hikvision/dahua CCTV Camera,IP Video solutions and so on.
Our products are sold far to Europe, America, Southeast Asia and other countries and regions. High quality, good price, on time delivery and sincere service are our value and promises to our customers. As an enterprise integrating manufacture and sales, we have confidence to launch more competitive products to cope with severe competition. Sinlay is your sincere partner!
FAQ
01
How to confirm whether the product is Dahua and Hikvision genuine English version?
You can download software in the official website of Dahua and Hik vision,only Dahua and Hik vision genuine product is compatible with the software.And we promise all of our products are Dahua and Hik vision genuine products.
02
When will you ship my order？
Ordinary,once we get confirmation for payment,we will ship order within 1-2 days.
03
Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
04
How is your after-sale service?
Three engineers work more than five years we will respond your technical support within 24 hours.
05
Do you support drop shipping?
Yes,your drop shipping is aviable.
06
How about warranty?
Two years warranty.
