HDPE PE PVC plastic pipe planetary cutting machines
- Category: Plastic Cutting Machines >>>
- Supplier: Zhangjiagang Huade Machinery Technology Co. Ltd.
Share on (1600544864041):
Product Overview
Description
Related Products Recommended
HDPE PE PVC plastic pipe planetary cutting machines
Planetary Cutter
Usage and scope of HDPE PE PVC plastic pipe planetary cutting machines
Mainly used for cutting the HDPE,PP,PPR,PE-RT Pipe.No-dust cutter can protec the environment because there is no dust during the cutting and there is no noise. The cutting surface of the pipe is smooth and elegance.It is suitable for cutting the pipes made by different materials and in different diameters.
HDPE PE PVC plastic pipe planetary cutting machines characteristic
1.Pneumatic compression; High parallelism; Precise tracking
2.Acceptable arbitrary cutting signal,such as encoder, photoelectric switch, travel switch, proximity switch, etc.
3.High automation, high cutting quantity
4.Compact structure, beautiful appearance, low noise
5. Can be equipped with a dust-separation equipment to keep the environment clean
The plastic pipe cutter,cutting machine is mainly used in cutting plastic pipe materials, shaped materials which is transferred by drawing machine according to the demand.
Mainly used for cutting the HDPE,PP,PPR,PE-RT Pipe.No-dust cutter can protec the environment because there is no dust during the cutting and there is no noise. The cutting surface of the pipe is smooth and elegance.It is suitable for cutting the pipes made by different materials and in different diameters.
HDPE PE PVC plastic pipe planetary cutting machines characteristic
1.Pneumatic compression; High parallelism; Precise tracking
2.Acceptable arbitrary cutting signal,such as encoder, photoelectric switch, travel switch, proximity switch, etc.
3.High automation, high cutting quantity
4.Compact structure, beautiful appearance, low noise
5. Can be equipped with a dust-separation equipment to keep the environment clean
The plastic pipe cutter,cutting machine is mainly used in cutting plastic pipe materials, shaped materials which is transferred by drawing machine according to the demand.
HDPE PE PVC plastic pipe planetary cutting machines
Suitable pipe:PPR,HDPE,PVC,ABS,PERT,TPU,PB etc.
Pipe diameter 16mm-2000mm.
This machine is used to cut plastic pipe during pipe producing or offline working. Max cutting thickness coulde be 120mm, size from 16-2000mm pipes. For the small diameter pipes, we have high speed fly cutter. For the medium diameter pipes, we have planetary cutter and no dust cutter. For the big diameter pipes, we have no dust cutter and saw blade cutter.
It adopts parts with high performance and the precision and suitable structure and design.Without auxiliary parts, the cut pipe section is flat and smooth, which really realized the flash cutting of pipes of small caliber and solved the problem of hard cutting of high-speed production.
Suitable pipe:PPR,HDPE,PVC,ABS,PERT,TPU,PB etc.
Pipe diameter 16mm-2000mm.
This machine is used to cut plastic pipe during pipe producing or offline working. Max cutting thickness coulde be 120mm, size from 16-2000mm pipes. For the small diameter pipes, we have high speed fly cutter. For the medium diameter pipes, we have planetary cutter and no dust cutter. For the big diameter pipes, we have no dust cutter and saw blade cutter.
It adopts parts with high performance and the precision and suitable structure and design.Without auxiliary parts, the cut pipe section is flat and smooth, which really realized the flash cutting of pipes of small caliber and solved the problem of hard cutting of high-speed production.
Name | XQG-250 | XQG-315 | XQG-400 | XQG-630 |
Cutting pipe Dia.(mm) | 60-250 | 110-315 | 160-400 | 400-630 |
Saw Spec. (mm) | 110*2*40T | 125*2*40T | 125*2*40T | 150*2.2*60T |
Milling cutter Spec. (mm) | 80*75*25 | 90*75*30 | 90*75*35 | Special |
Central height (mm) | 1000 | 1000 | 1000-1200 | 1200-1500 |
Product linear speed (M/min) | 4 | 3 | 2.5 | 1.5 |
Cutting pipe thickness (mm) | 15 | 20 | 25 | 30 |
Dimension (mm) | 2500*1160*1540 | 3000*1260*1580 | 3000*1360*1540 | 3000*1360*1740 |
Weight (mm) | 1200 | 1400 | 2000 | 2000 |

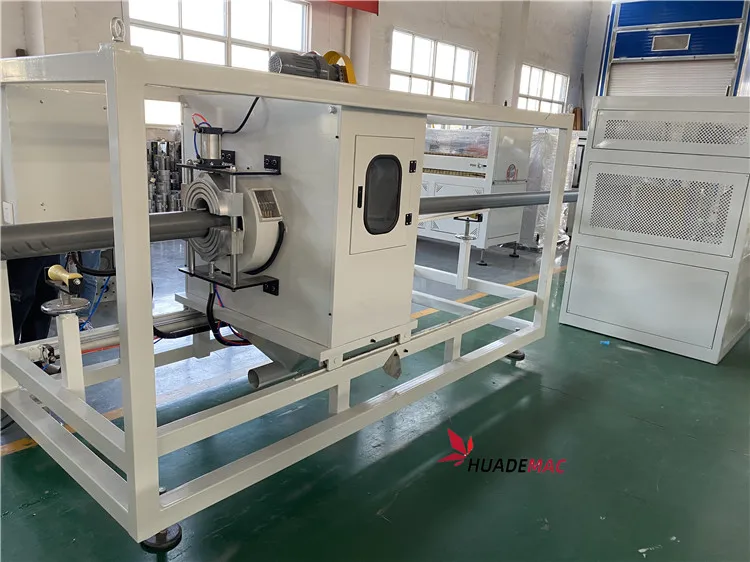

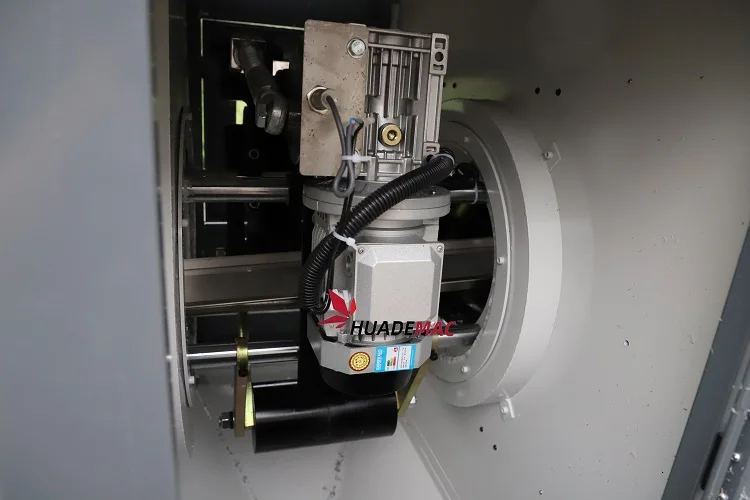

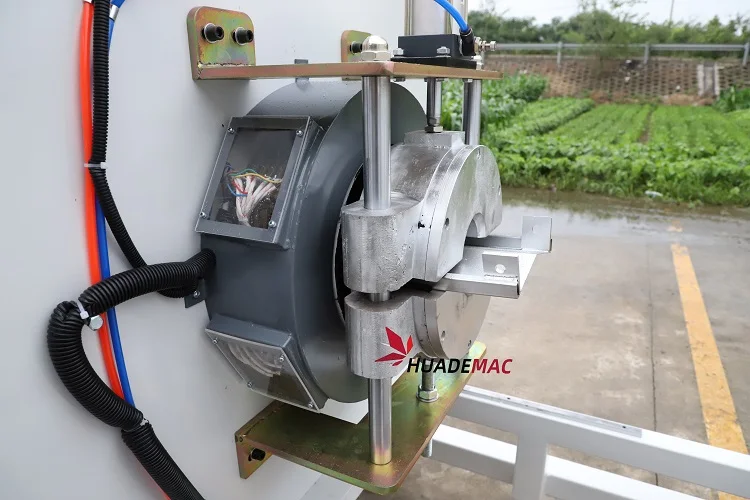

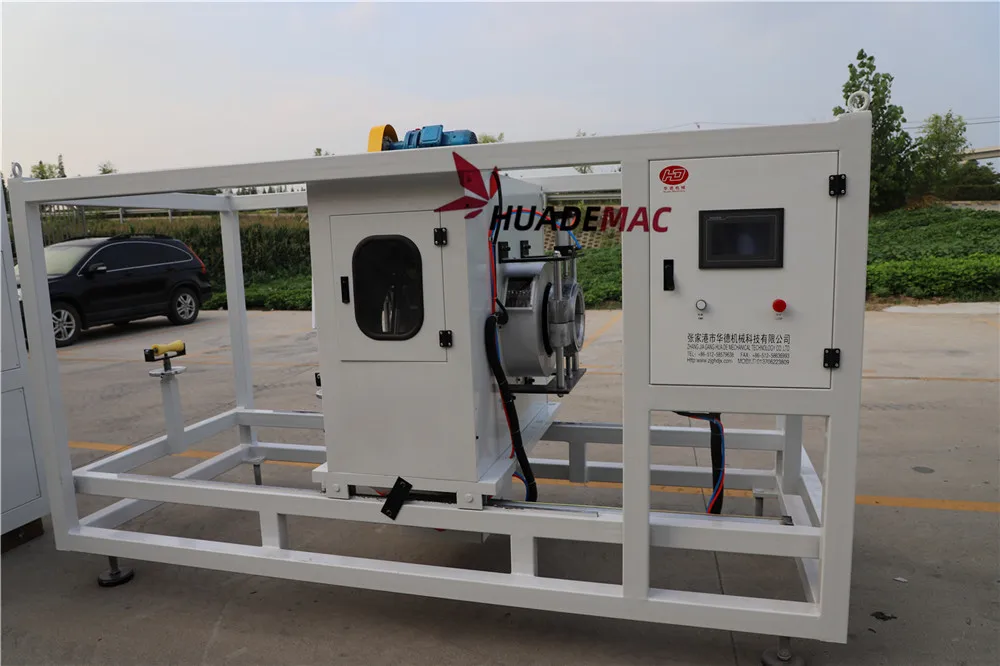

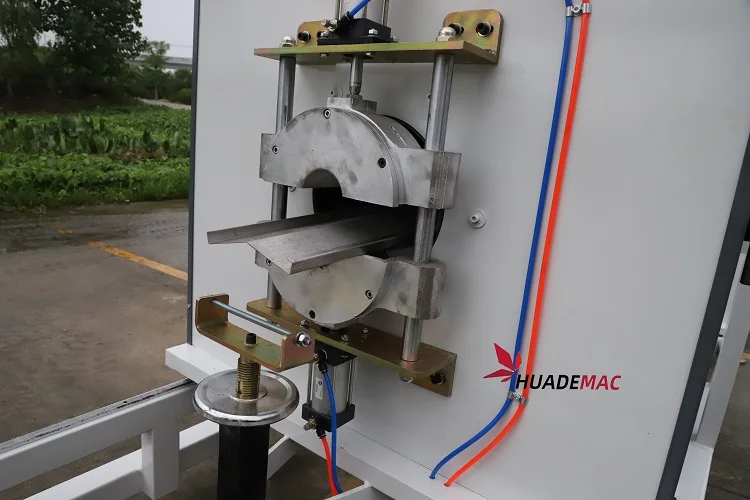

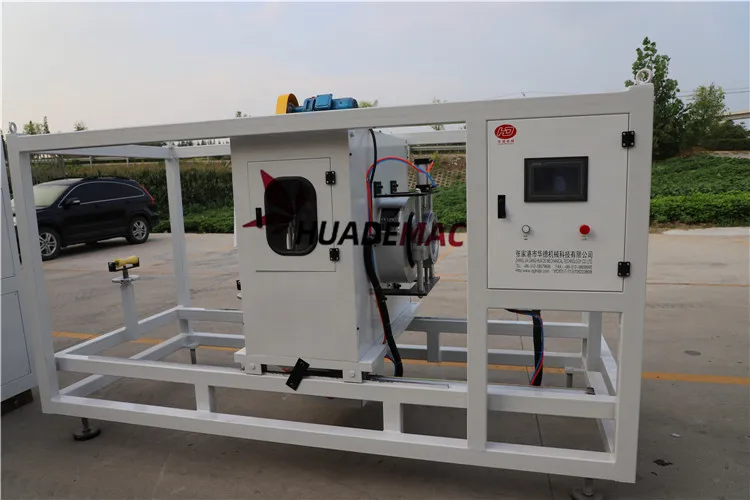

HDPE PE PVC plastic pipe planetary cutting machines photos
HDPE PE PVC plastic pipe planetary cutting machines from Zhangjiagang Huade Machinery
Packaging and shipment of HDPE PE PVC plastic pipe cutting machines
