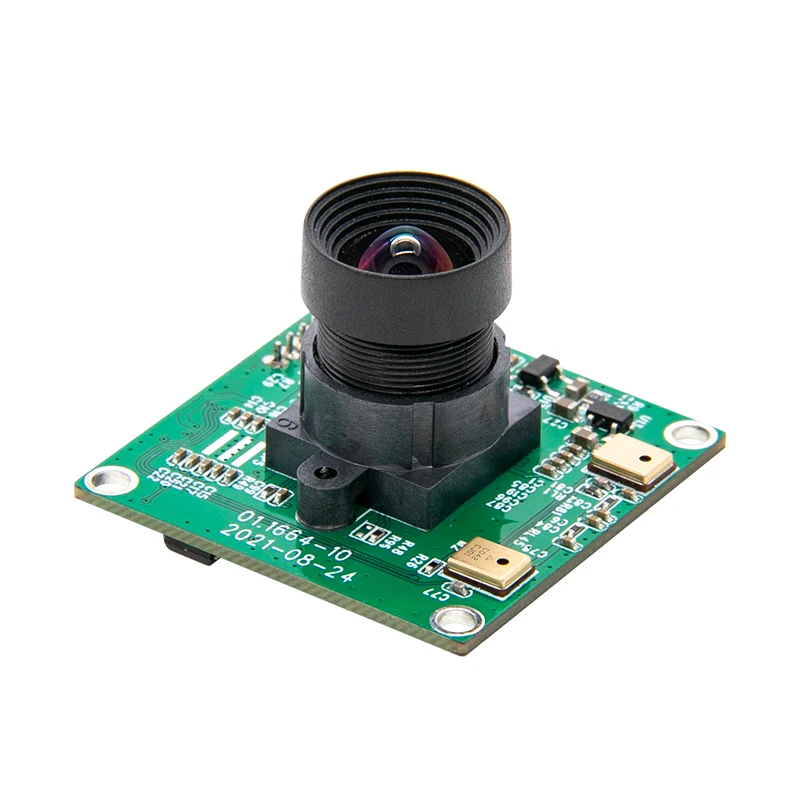

Hot Selling 2MP 32x32(mm) Mini Security Board Camera ov2735 CMOS CCTV Camera Module 1080P for Industrial Robot Vision
- Category: >>>
- Supplier: Dongguan Hampo Electronic Technology Co. Ltd.
Share on (1600544919179):
Product Overview
Description
Hot-Selling 2MP 32x32(mm) Mini Security Board Camera ov2735 CMOS CCTV Camera Module 1080P for Industrial Robot Vision
Product Description
Hampo 003-1664 is a 2MP full HD low light camera module, which adotping a high-performance 1/2.7" OMNIVISION’s OV2735 image sensor that brings 1080p high-definition (HD) video capture to mainstream security and surveillance cameras. The 1080P usb camera module offers technical advancements such as support for low-power mode, stable image quality within operating temperatures ranging from 0°C to 60°C, and dramatically reduced power consumption. As such, the module offers security and surveillance camera OEMs an easy upgrade camera solution in the popular 1/2.7-inch optical format.Built on OMNIVISION’s proven OmniPixel®3-HS pixel technology, the 2MP OV2735 camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps. It is widely used for robot,PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.
Key Features

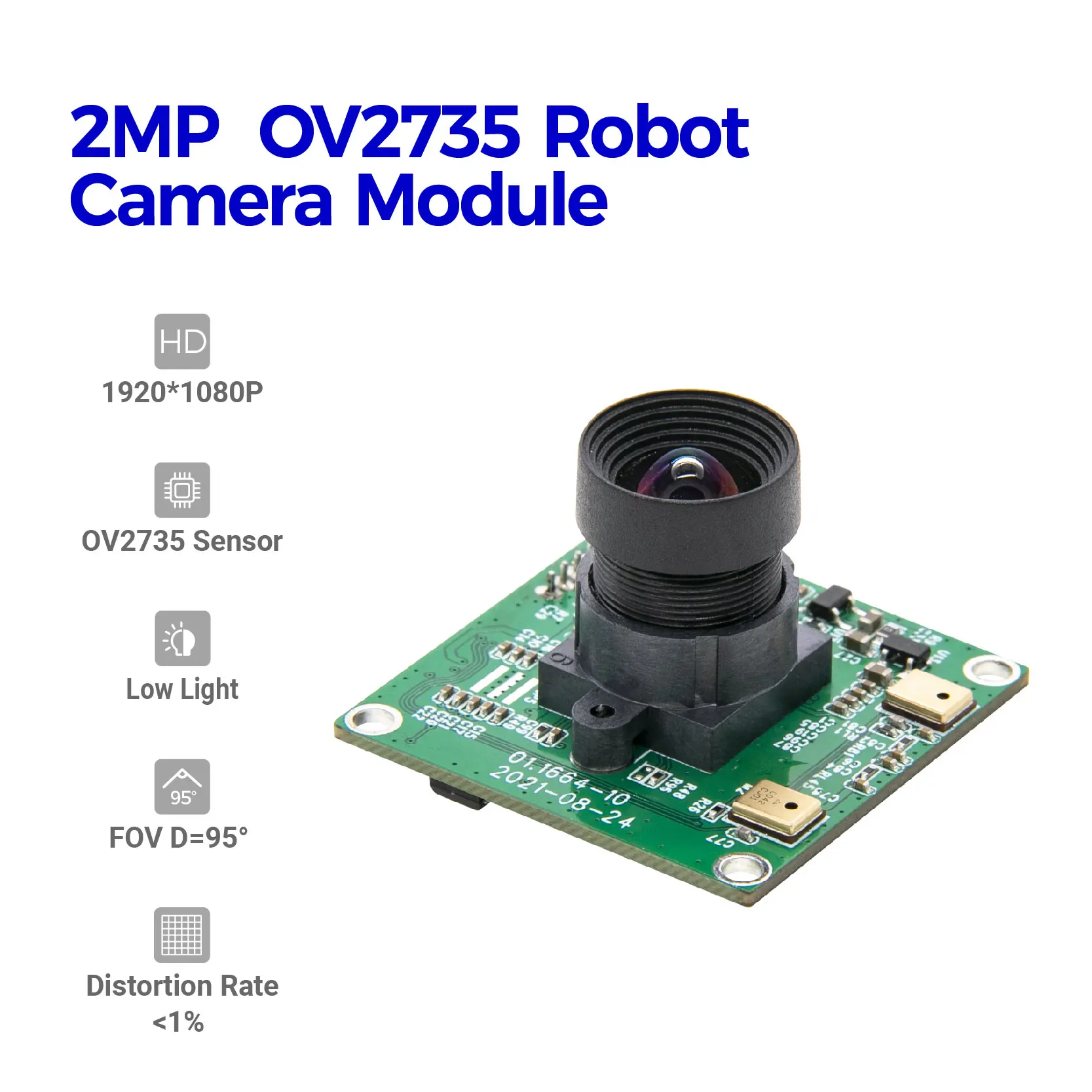

More than HD: This camera module adopts 1/2.7" Omnivision OV2735 sensor for full HD 1920*1080P image quality and smooth video.
Capture Video with Audio: High frame rates, the 2MP OV2735 camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps.
Low Power&Low Light: The camera module feature low power and good low light performance.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny32mm x 32mm camera board can be installed in most hidden and narrow position for notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.
Specification
Camera | ||
Model No. | 003-1664 | |
Max Resolution | 1920*1080P | |
Sensor | 1/2.7" OV2735 | |
Frame Rate | MJPG 30fps@1920 x 1080/60fps@720P | |
Pixel Size | 3.0μm*3.0μm | |
Output Format | YUY2/MJPG | |
Dynamic Range | 72dB | |
Lens | ||
Focus | Fixed focus | |

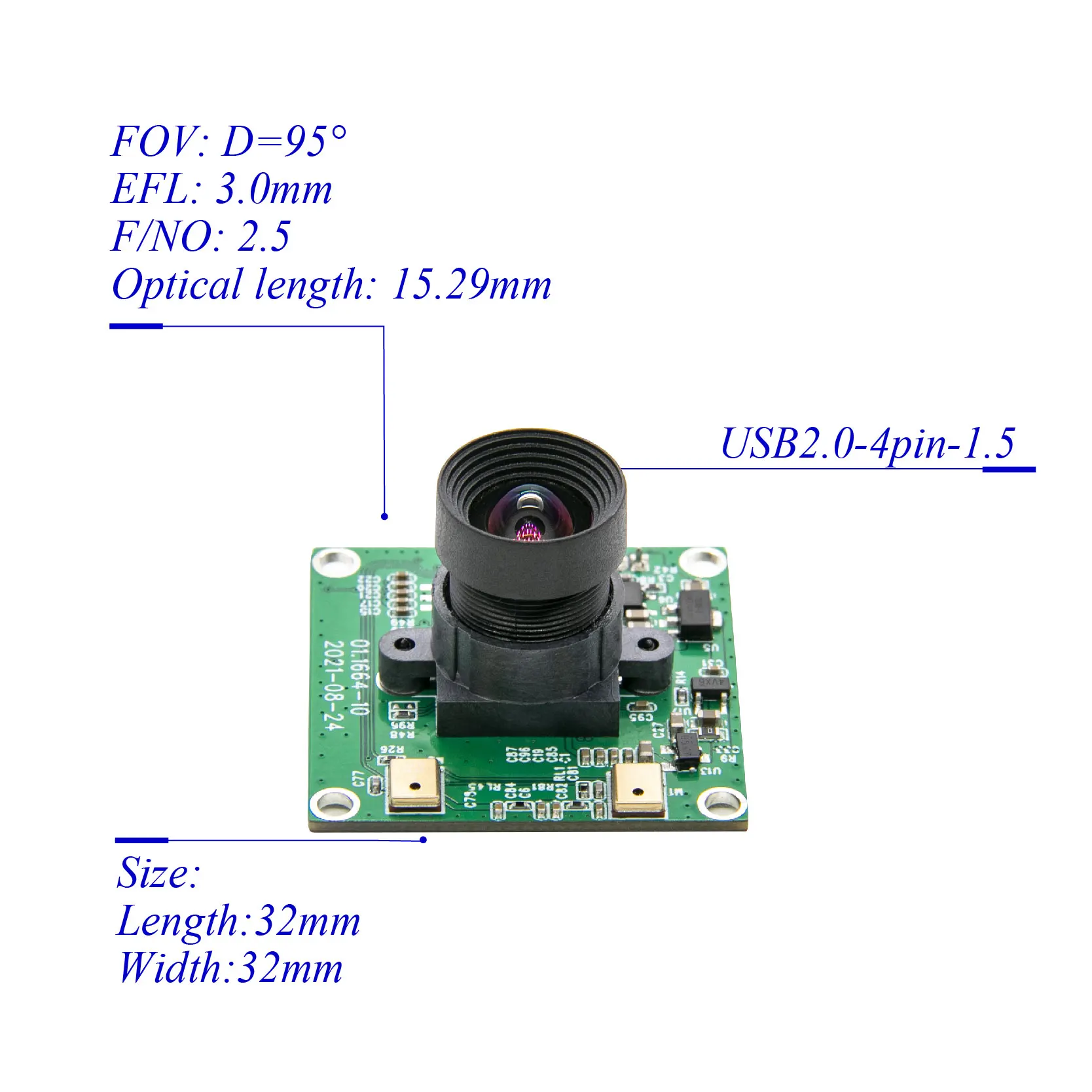

FOV | D=95° H=86° | |
Lens Mount | M12 * P0.5mm | |
Focusing Range | 3.3ft (1M) to infinity | |
Power | ||
Working Current | MAX 200mA | |
Voltage | DC 5V | |
Physical | ||
Interface | USB2.0 | |
Storage Temperature | -20ºC to +70ºC | |
Operating Temp | 0°C~60°C | |

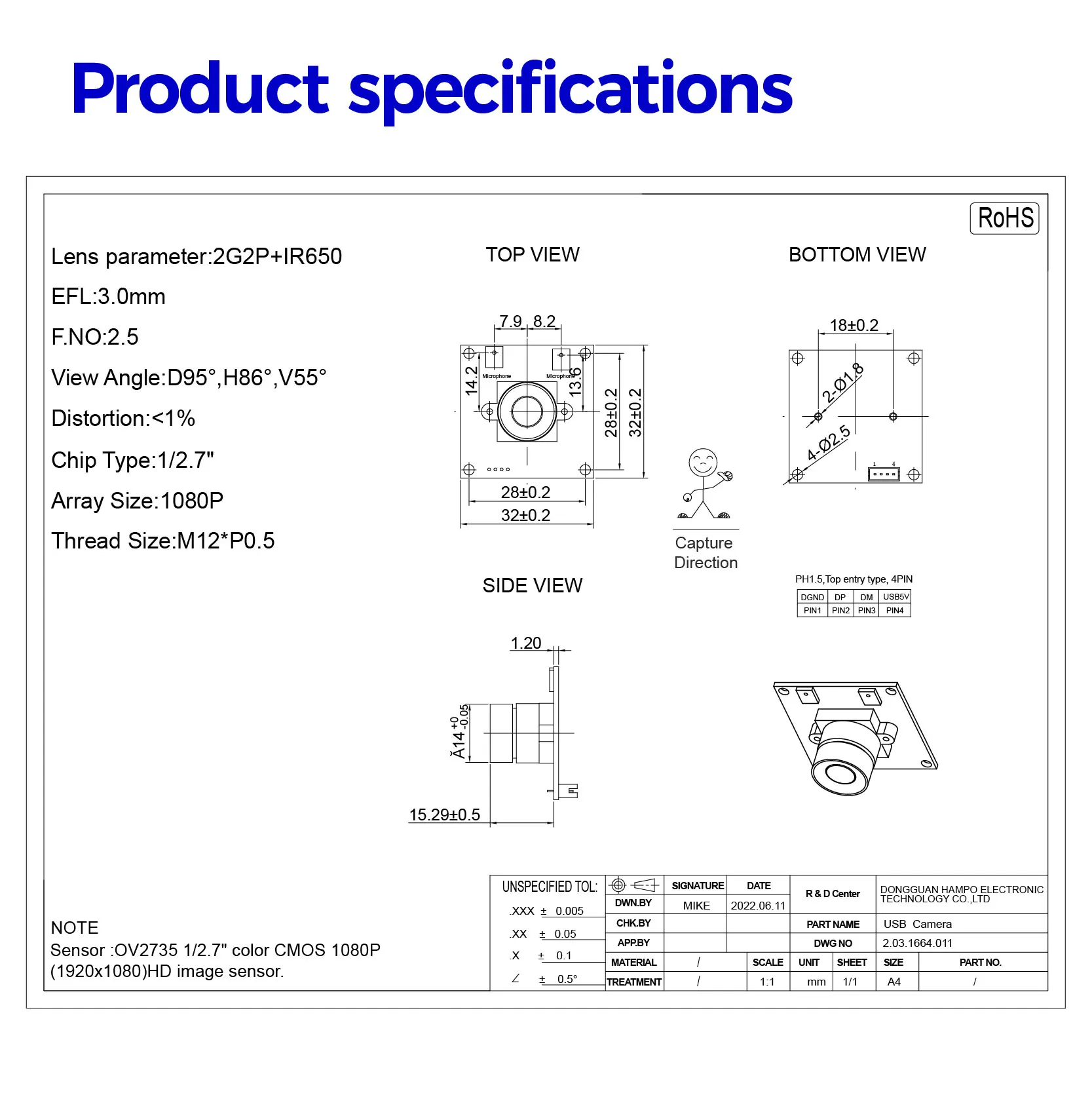

PCB Size | 32*32MM(Hole pitch compatible with 28x28mm) | |
Cable Length | 3.3ft (1M) | |
TTL | 15.29MM | |
Functionality and Compatibility | ||
Adjustable parameter | Exposure/ White balance | |
System Compatibility | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver | |

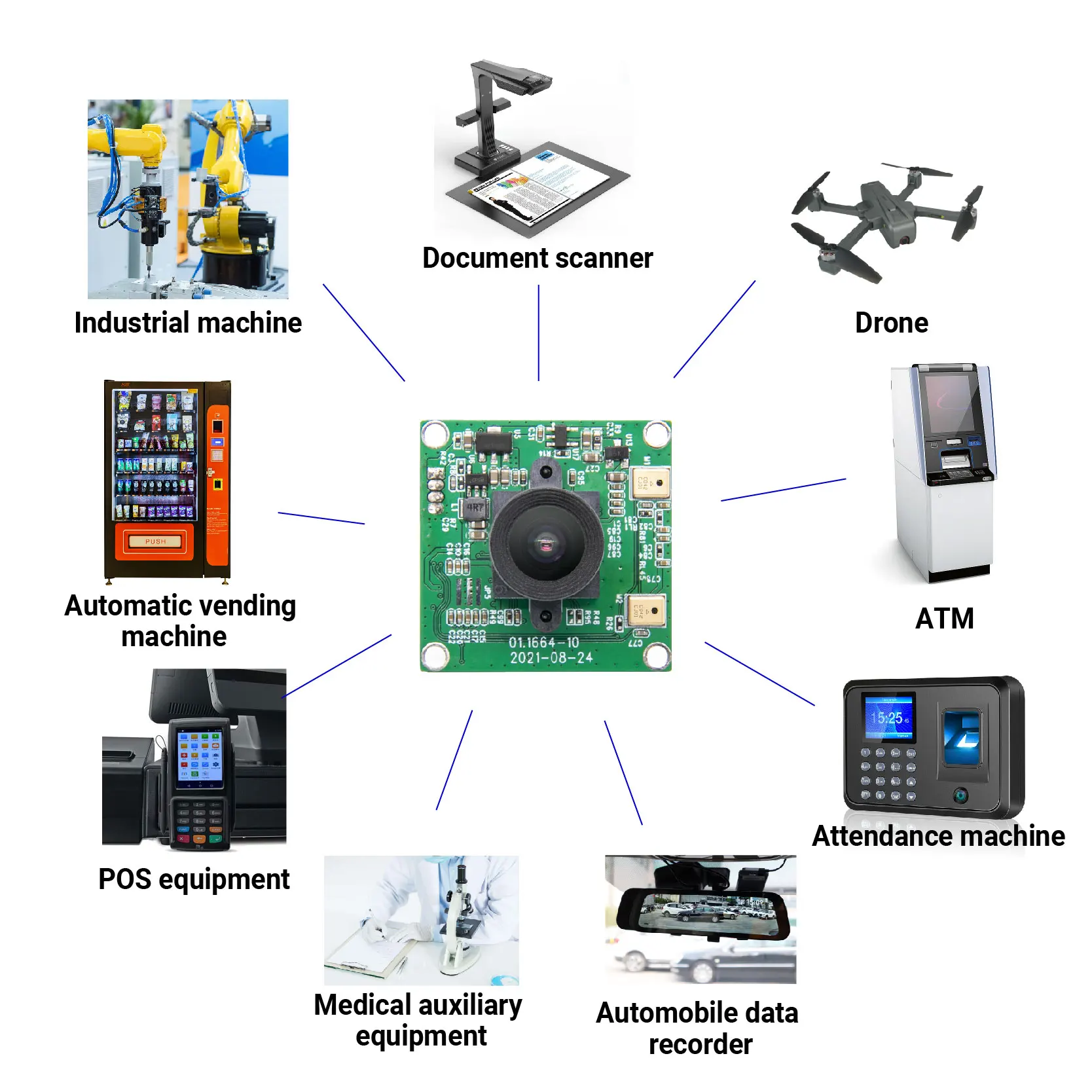

Applications
machinary equipment
all-in-one machine
robot
document scanner
industrial machine
Drone
medical auxiliary equipment
Security monitoring
face recognition
ATM
access control system smart terminal
all-in-one machine
robot
document scanner
industrial machine
Drone
medical auxiliary equipment
Security monitoring
face recognition
ATM
access control system smart terminal
Company Profile
Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.
Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
To meet customers’ needs and ensure a timely delivery, Hampo has equipped 3 SMT lines, 5 module assembly lines and 8 PC camera lines. Those production lines can output 600K camera modules and 767k PC cameras monthly.
Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents.
Hampo has three product series.
Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children’s puzzle electronic products.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents.
Hampo has three product series.
Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children’s puzzle electronic products.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
FAQ
1. How's the sensitivity this camera module has?
It has a high temperature resistance and high sensitivity feature, which make a good effect on robot camera.
2. How's the illumination on this module?
The camera module adopts ov2735 image sensor, has a good low light performance.
3. Does the camera support OTG?
Most of our usb cameras support OTG function.
4. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
5. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
It has a high temperature resistance and high sensitivity feature, which make a good effect on robot camera.
2. How's the illumination on this module?
The camera module adopts ov2735 image sensor, has a good low light performance.
3. Does the camera support OTG?
Most of our usb cameras support OTG function.
4. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
5. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
