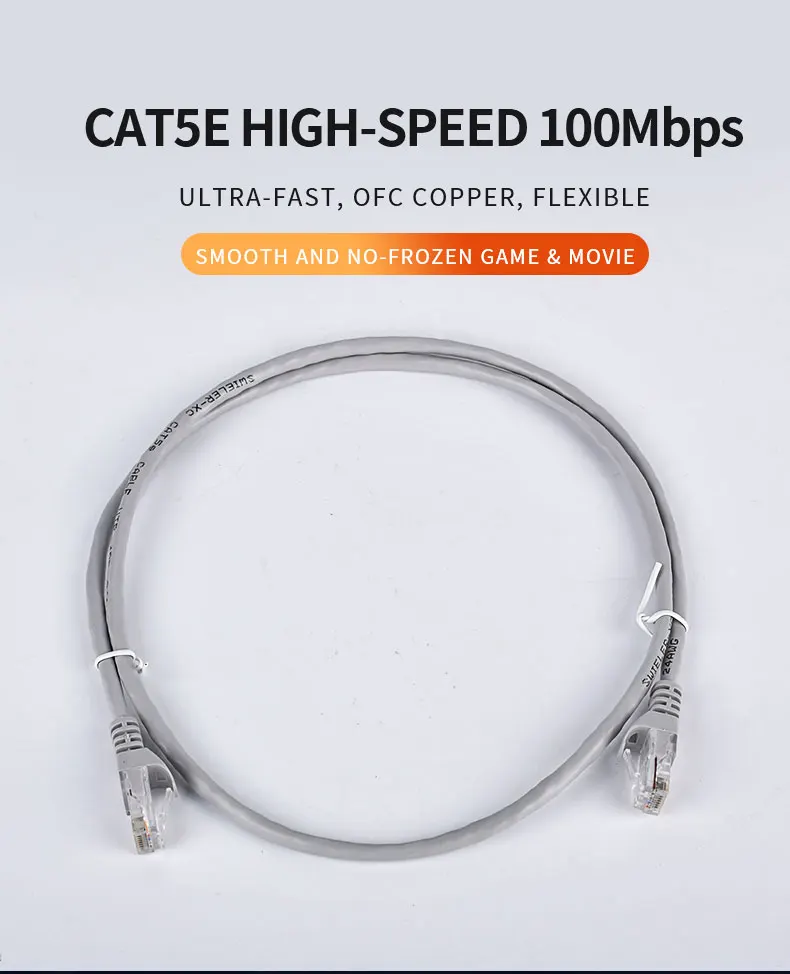

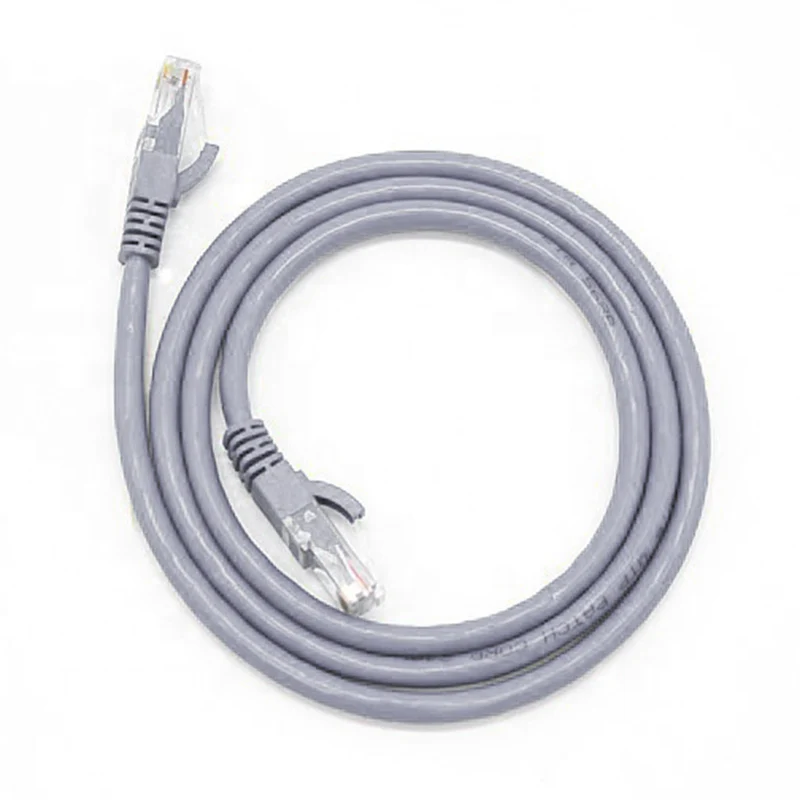

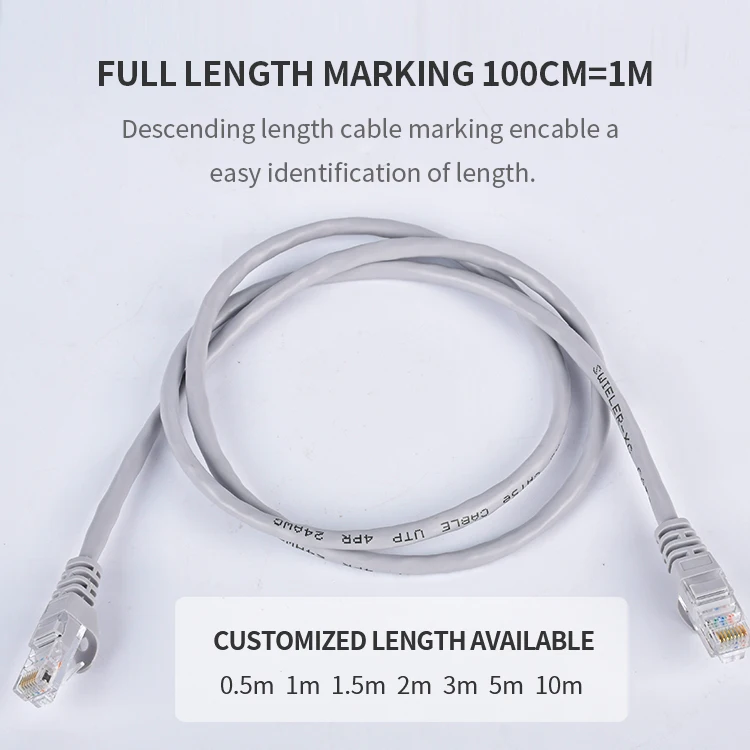

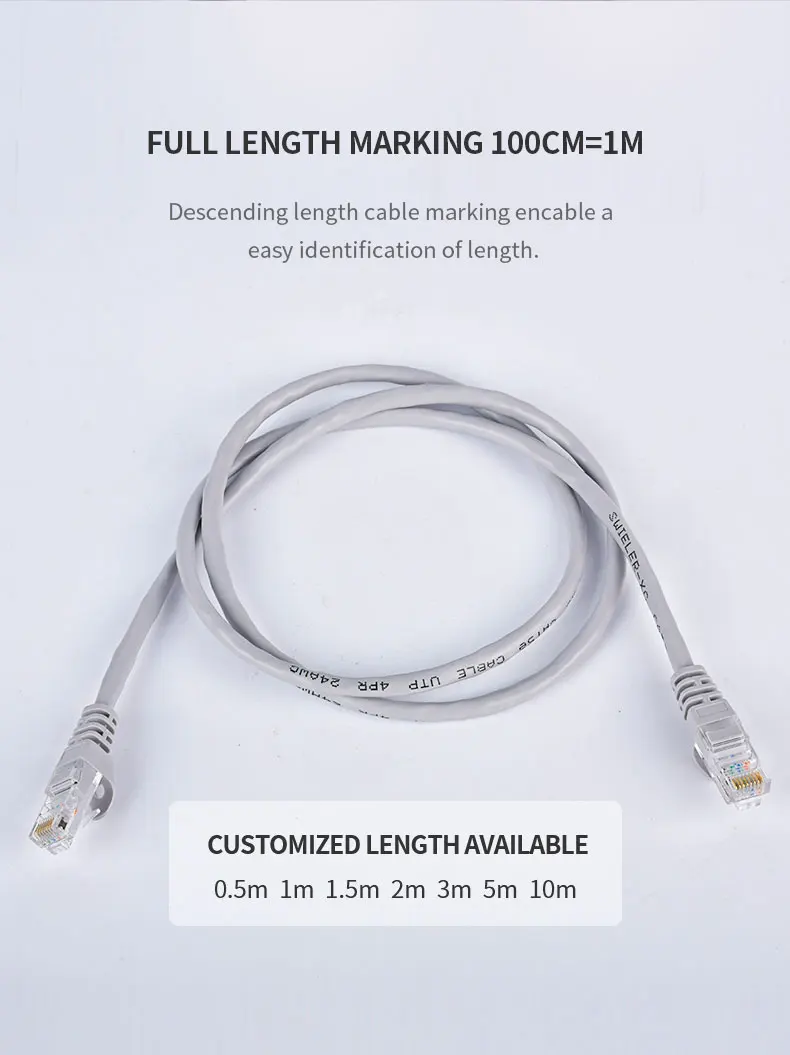

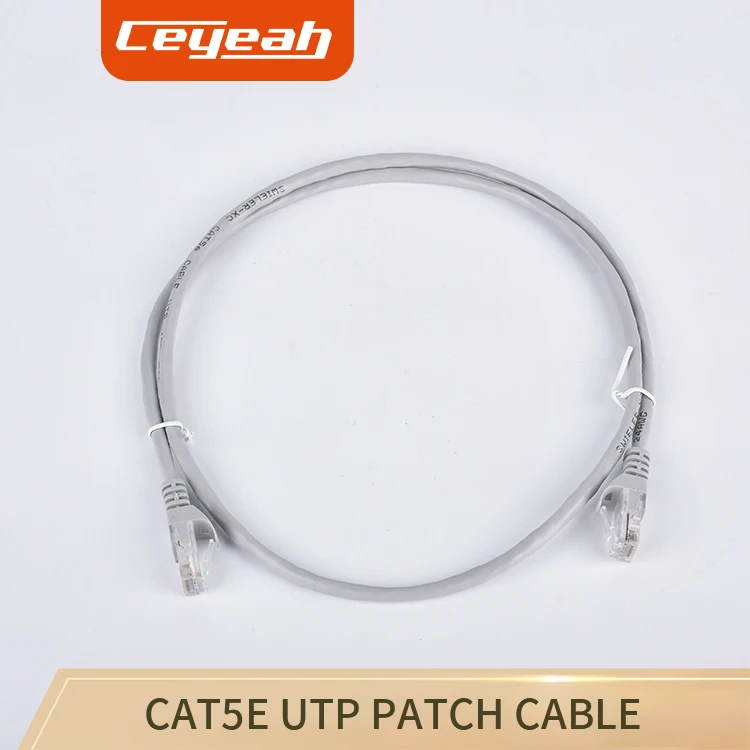

Cat5e UTP Patch Cord 26AWG BC Stranded OFC Copper RJ45 8P8C 100Mbps High Speed Network Patch Cable 1M Grey PVC
- Category: >>>
- Supplier: Foshan Hongyi Cable Industry Co. Ltd.
Share on (1600544928665):
Product Overview
Description

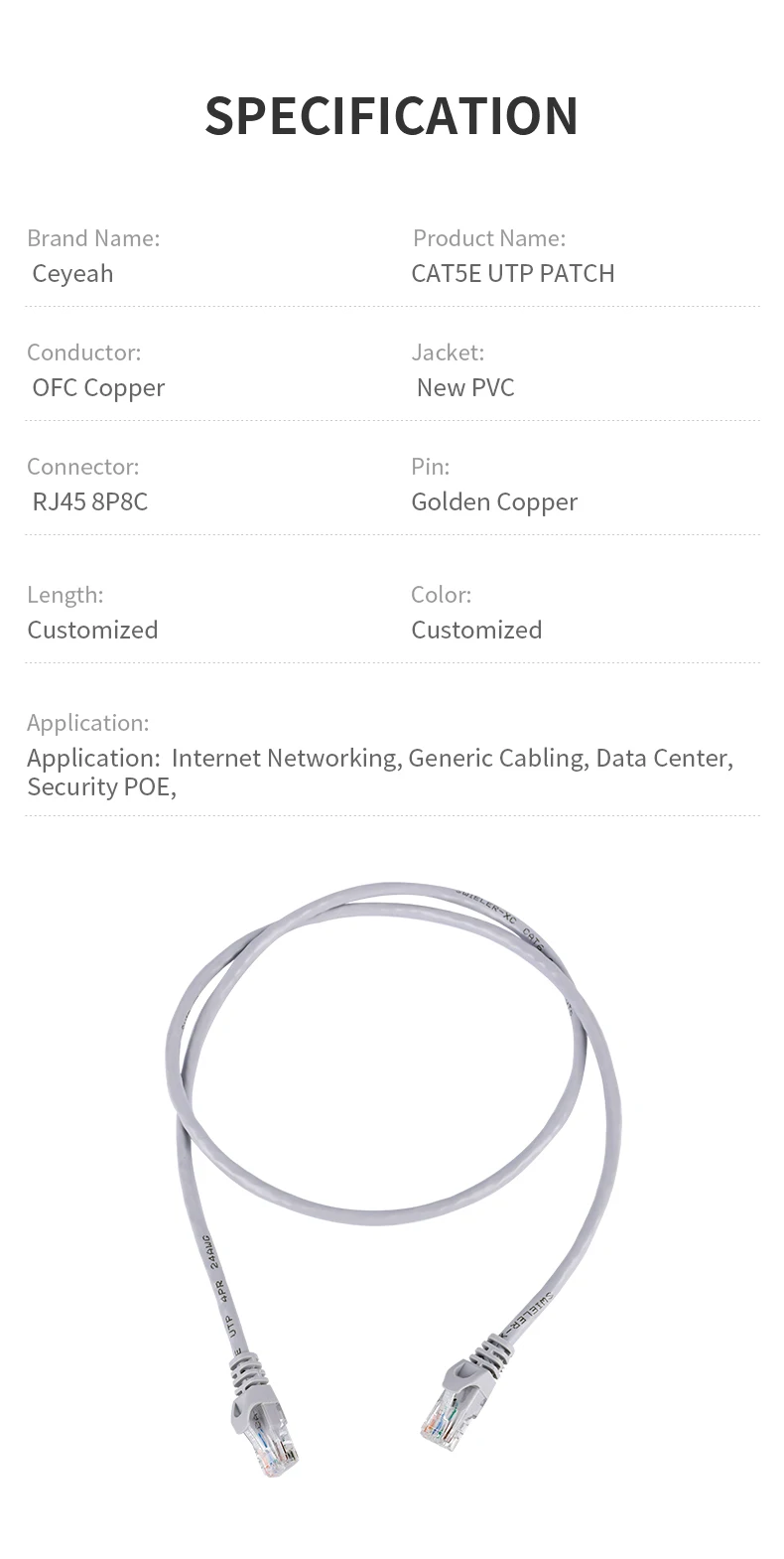

Cable Construction:
* Cable Construction: * Conductor: CAT5 UTP stranded, 26AWG, Oxygen-Free Copper
* Cable Outer Diameter: nominal 5.0 ±0.2mm
* Insulation: polyethylene with color marking on white cores
* Color codes: BL/WH-BL, OR/WH-OR, GN/GN-WH and BR/BR-WH
* Shield: N/A
* Outer jacket and boots: PVC / LSZH

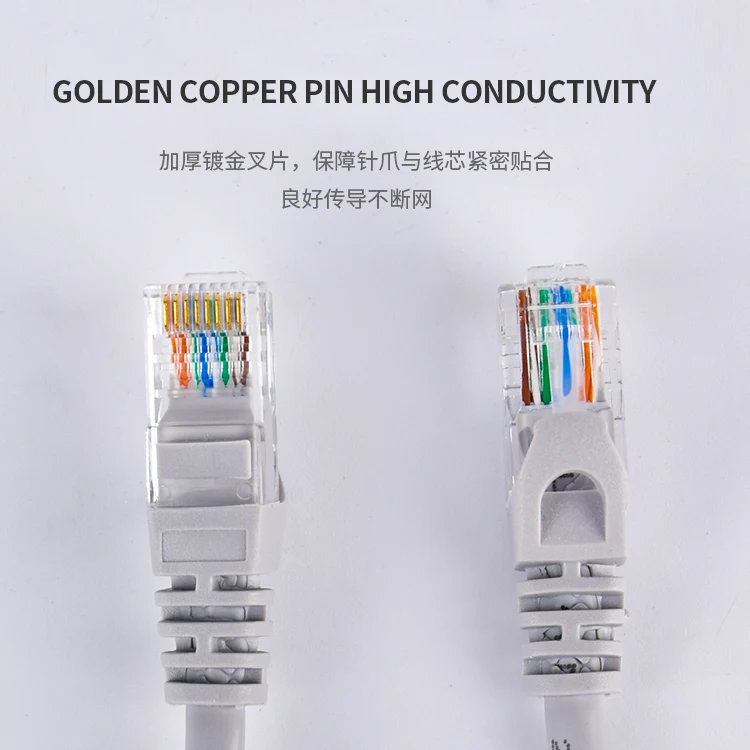

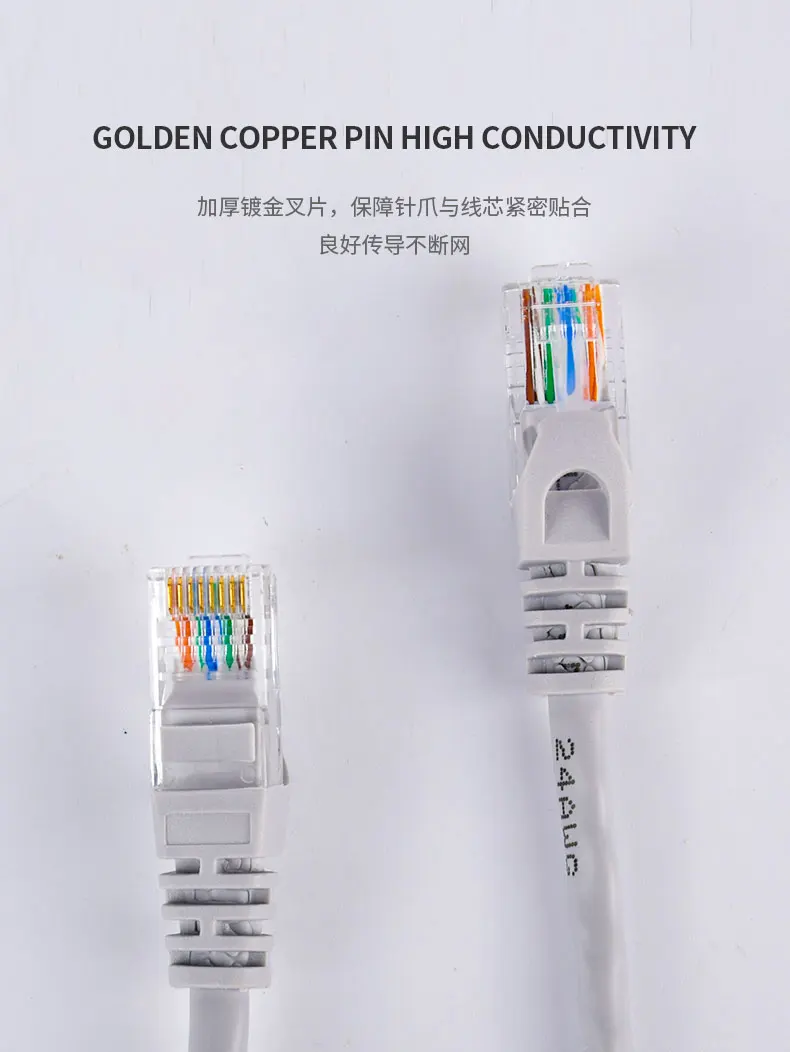

* Plug contact materials: Copper with 50μ gold plated

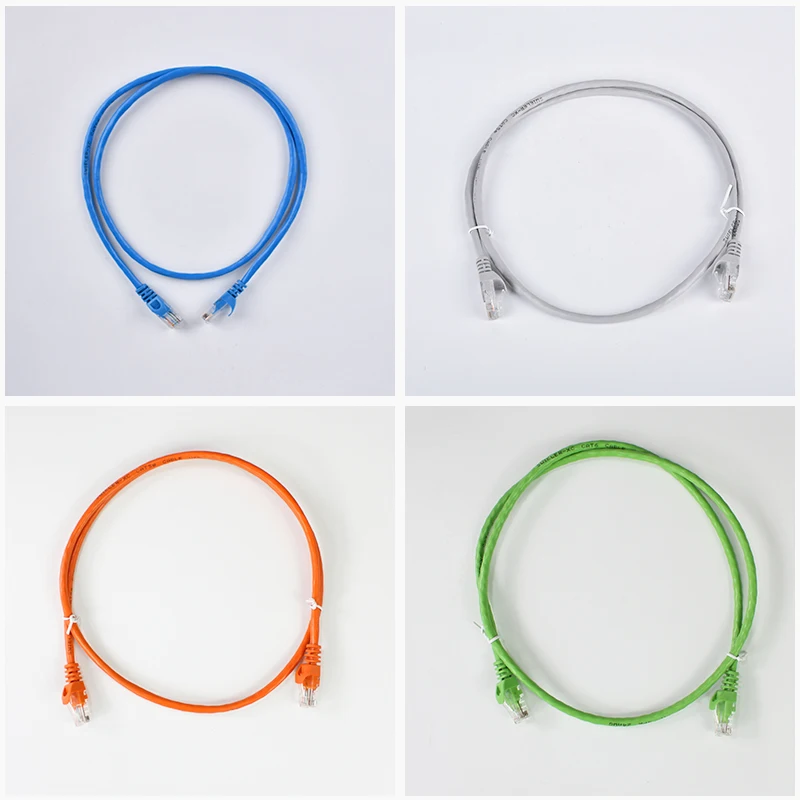

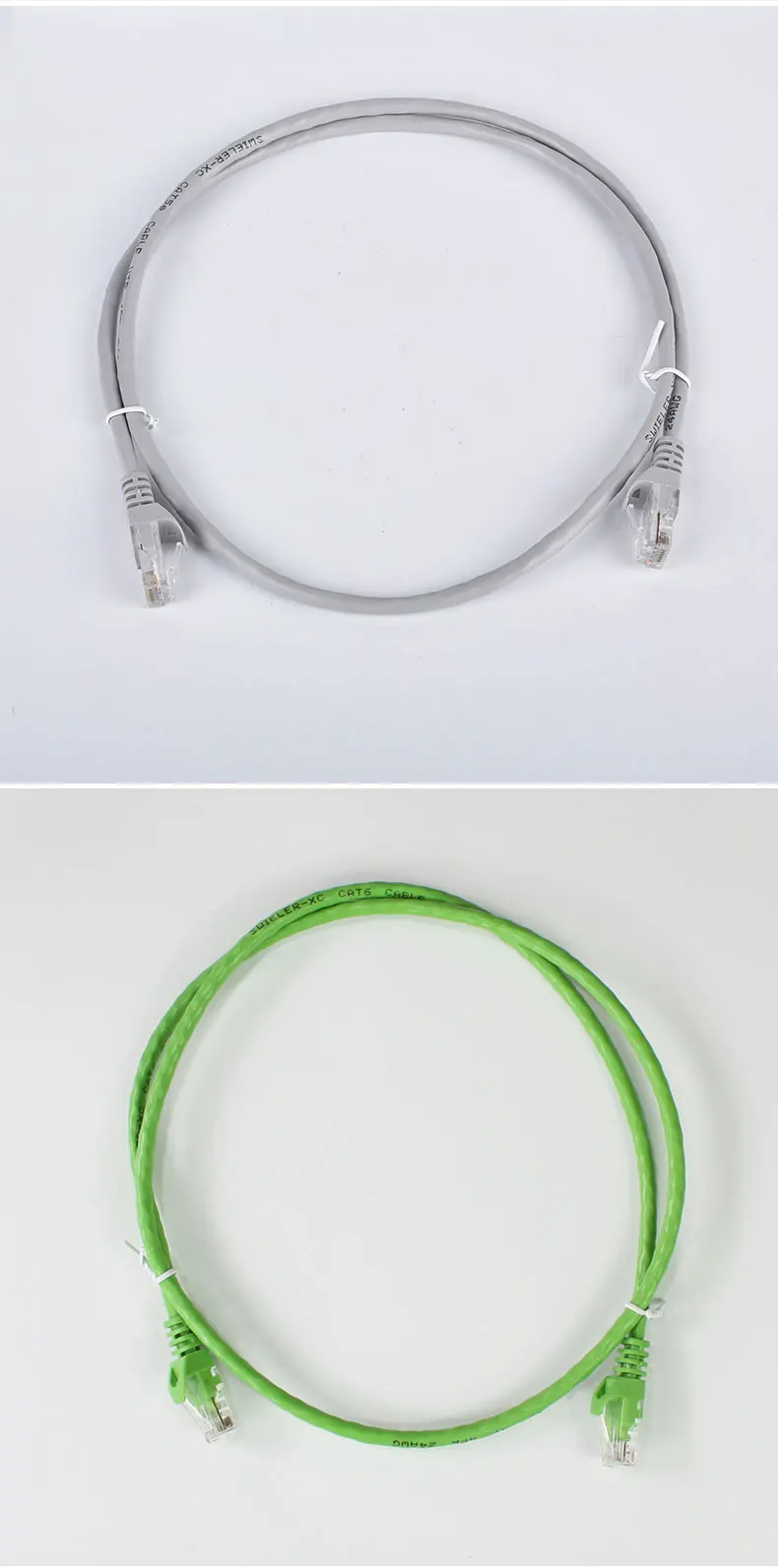

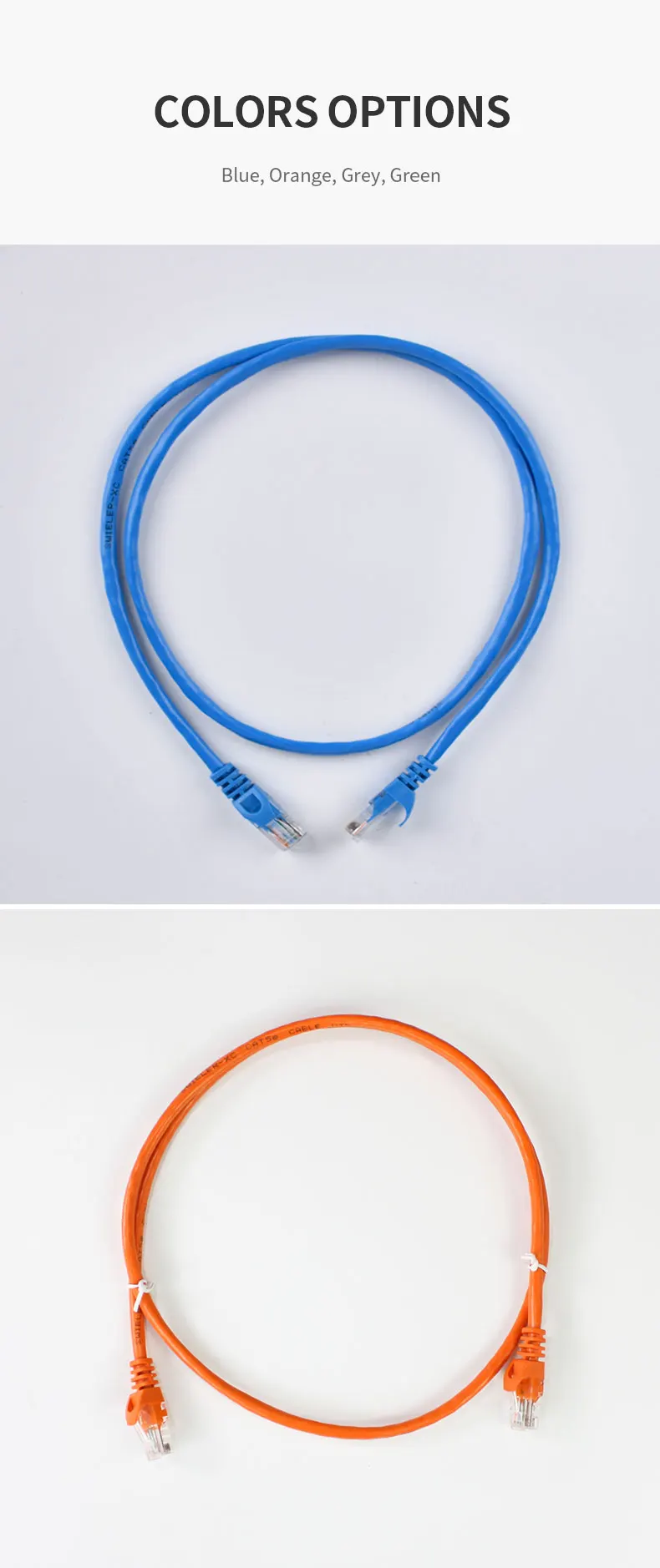

* Cable colors: green, others colors from RAL and Pantone
* Cable Outer Diameter: nominal 5.0 ±0.2mm
* Insulation: polyethylene with color marking on white cores
* Color codes: BL/WH-BL, OR/WH-OR, GN/GN-WH and BR/BR-WH
* Shield: N/A
* Outer jacket and boots: PVC / LSZH
* Plug contact materials: Copper with 50μ gold plated
* Cable colors: green, others colors from RAL and Pantone
Mechanical Characteristics:
* Cable to plug tensile strength: 9kgsf (90n) minimum
* Minimum bending radius: 22mm
* Storage temperature: -20 to +80°C
* Durability: 750 mating cycles
* Minimum bending radius: 22mm
* Storage temperature: -20 to +80°C
* Durability: 750 mating cycles
Electrical Performance:
* Test: 100% component test

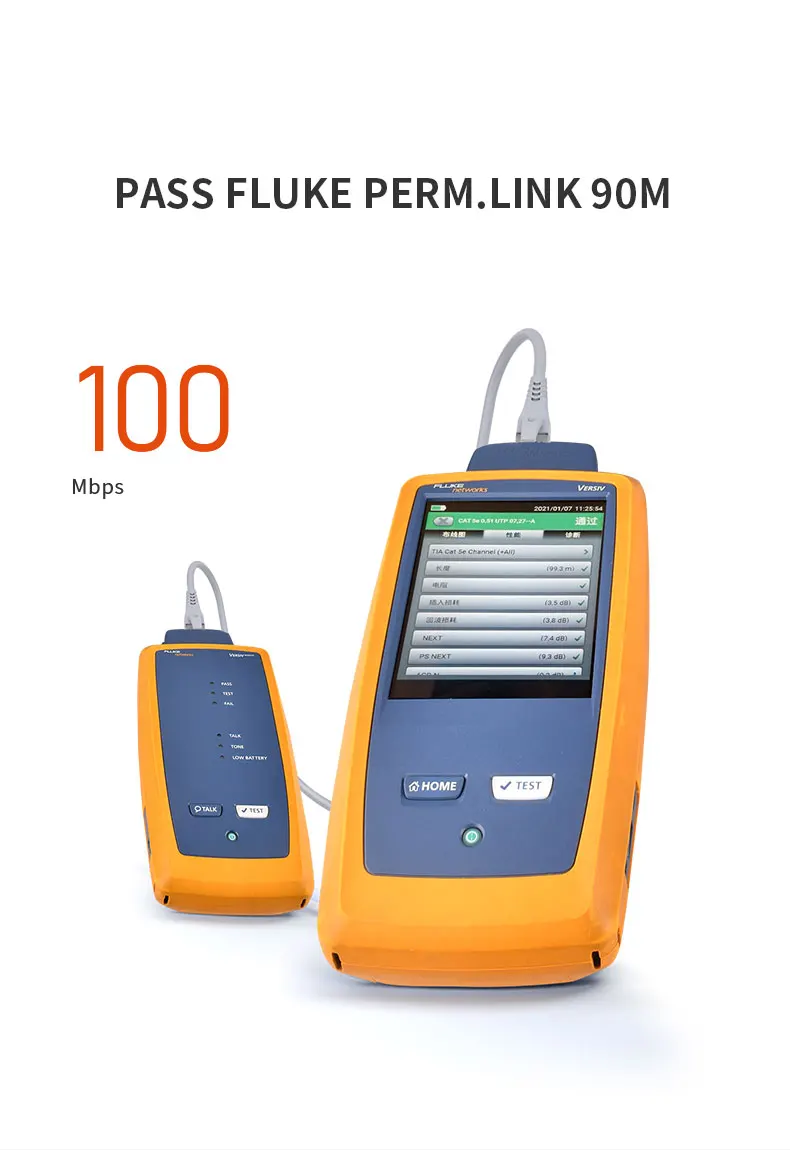

* Performance test: 100% patch cord test, Fluke Test Perm.Link 90M
* Insulation resistance: 500MΩ, minimum at 500V DC
* Current: 1.0A, maximum
* Dielectric strength: 1000V/minute, minimum RMS
* Voltage rating: 75V maximum
* Contact resistance: 20mΩ maximum
* Performance test: 100% patch cord test, Fluke Test Perm.Link 90M
* Insulation resistance: 500MΩ, minimum at 500V DC
* Current: 1.0A, maximum
* Dielectric strength: 1000V/minute, minimum RMS
* Voltage rating: 75V maximum
* Contact resistance: 20mΩ maximum
