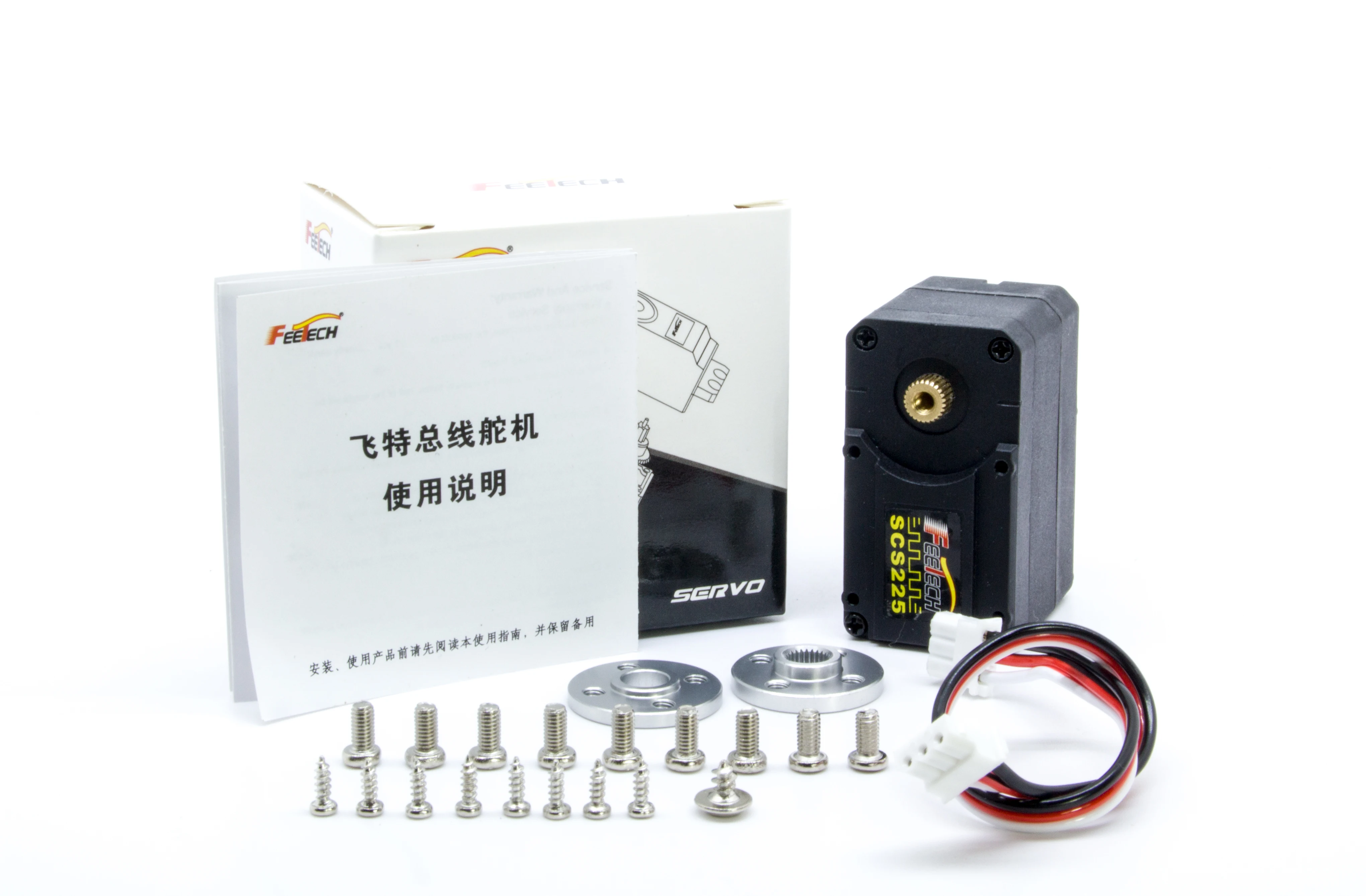

Smart Servo Motor SCS225 Drawing Robot 18KG Serial Control BUS Servo For Humanoid Robot/Smart Controller Arduinox robot
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.
Share on (1600544938245):
Product Overview
Description
Product Description
15kg High Torque SCS215 Serial Bus Servo with Beautiful Wiring
Specifications
* Dimensions : 45.2*24.7*35mm
* Weight : 50g
* Operating Angle : 0-180 Degree
* Bus Interface : TTL Level Multi Drop
* Control Type : Bus Packet Communication
* Control Protocol : Half Duplex Asynchronous Serial Communication
* Servo ID available : 0 - 253
* Communication Speed : 38400 bps - 1M bps
* Feedback Type : Position, Temperature, Load, Speed, Voltage
* Operating Voltage : 4.8V - 7.4V
* Stall Torque (Kg.cm) : 17 (4.8V) - 19.5 (7.4V)
* Stall Current : 1.5A (7.4V)
* Speed (RPM) : 0.18 sec/60° (6V) - 0.15 sec/60°(8.4V)
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
* Dimensions : 45.2*24.7*35mm
* Weight : 50g
* Operating Angle : 0-180 Degree
* Bus Interface : TTL Level Multi Drop
* Control Type : Bus Packet Communication
* Control Protocol : Half Duplex Asynchronous Serial Communication
* Servo ID available : 0 - 253
* Communication Speed : 38400 bps - 1M bps
* Feedback Type : Position, Temperature, Load, Speed, Voltage
* Operating Voltage : 4.8V - 7.4V
* Stall Torque (Kg.cm) : 17 (4.8V) - 19.5 (7.4V)
* Stall Current : 1.5A (7.4V)
* Speed (RPM) : 0.18 sec/60° (6V) - 0.15 sec/60°(8.4V)
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
Structure Size | 45.23*24.7*35mm | ||||||
Product Weight | 55± 1g | ||||||
The Maximum Speed | 0.192sec/60°@7.4V | ||||||
The Stall Torque | 19kg.cm@7.4V | ||||||
The Case | PA+GF | ||||||
The wire length | 15CM | ||||||
The Voltage range | 4-7.4V | ||||||
Protocol Type | Half Duplex Asynchronous Serial Communication | ||||||
Communication Speed | 38400bps ~ 1 Mbps | ||||||
ID range | 0-253 | ||||||
Control Algorithm | PID | ||||||
Neutral Position | 180°（511） | ||||||
Running degree | 300°(when 0～1024） | ||||||
Feedback | Load, Position,Speed,Input Voltage,Temperature | ||||||
Resolution [deg/pulse] | 0.322°(330°/1024) | ||||||
Specification
item | Feetech SCS225 7.4V 19KG 20KG Serial Bus Servo With Current Feedback |
Gender | Unisex |
Age Range | 14 Years & up |
Type | ROBOT ARDUINO |
Power | Battery |
Material | Vinyl |
Plastic Type | ABS |
Scale | 1:10 |
Radio Control Style | RC Hobby |
Place of Origin | China |
Guangdong | |
Brand Name | FEETECH |
Model Number | SCS225 |
Product name | Serial Bus Servo |
Certificate | ROHS |
Function | Robot part |
Feature | Coreless |
Torque | 19kg |
voltage | 7.4v |
Description | Metal Gear Digital Robot servo |
Product size | 45.23*24.7*35mm |
angel | 180 degree |
Certification | ce |
Packing & Delivery
Giftbox
Company Profile
We are a professional manufacturer and exporter of R/C Hobby products and R/C Drone, such as R/C Drone, R/C Airplanes, R/C Cars, R/C Boats, R/C Toys, Gas R/C Airplanes, Gas R/C Helicopters, Gas R/C Engines, Gas R/C Cars, Remote Control Equipment, R/C Accessories/Tools and so on.
We export our products to the markets all over the world. Now we are enjoying a high reputation in the overseas markets. All of our products conform to international standards, and our products are popular among our customers. OEM and ODM orders are welcome. "Quality products, excellent service, reasonable price and timely delivery" is our persistent goal.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We export our products to the markets all over the world. Now we are enjoying a high reputation in the overseas markets. All of our products conform to international standards, and our products are popular among our customers. OEM and ODM orders are welcome. "Quality products, excellent service, reasonable price and timely delivery" is our persistent goal.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Installation Instructions
Operation Instructions For Feetech Serial Bus Servo
Please read this user guide before installing and using the product, and keep it for future use
Welcome To Use
This instruction will guide you to quickly understand Feetech Bus Servo.
If you need more detailed for operating instructions and materials, please visit Feetech's official website www.feetechrc.com and enter "Service
And support-technical support" section to get relevant product information. You can also contact our Salesman, we will serve you wholeheartedly.
Feetech Serial Bus Servo
Steering servo, an integration consisting of reduction gears, drive motors, sensors, control boards, and bus communication,
is a new concept power execution module developed based on scalability and basic functions.
Naming Model
Feetech Serial Bus Servo is divided into SMS series/STS series/SCS series, and the communication protocol is the same.
Product model such as SM40BL, the beginning of SM stands for SMS series.
SMS series are RS485 communication level, STS series/SCS series are TTL communication level.The electronic control function of STS series is the same as SMS, please refer to SMS series.
Precautions
Voltage Range
The voltage required to drive the Feetech Serial Bus Servo is different according to different models, and the voltage range is Please refer to the product specification of the corresponding model, it is recommended to use a typical voltage value to drive the servo.
Bracket Use
Some models of Feetech Bus Servo are equipped with U-shaped brackets. Please refer to the configuration list of the specification.
Please set the angle limit before matching, and be careful not to cause hazards if the angle is too large.
Torque Output
The logos on the Feetech Serial Bus Servo webpage are all Peak stall torque (the instantaneous maximum at 1Cm of the servo output shaft).
Large load), the rated torque (continuous working torque) should be less than one-third of the locked-rotor torque;
If the nominal Peak stall torque is 60Kg.cm, the rated torque is less than 20Kg.cm.
Exceeding it may cause the service life of the servo to be shortened or even damaged.
Force Direction
The servo only supports force in the direction of rotation. Forces in other directions including gravity applied to the servo output shaft will cause irreversible damage to the internal gear box.
Please take some protective measures for the servo output shaft when designing the structure, such as adding Install bearings and other methods.
Service And Warranty
Warranty Service
Since the date of purchase, the product provides 1 year warranty service.
About Shipment Fees
For all products that meet the warranty terms, half of the freight will be borne by each.
Disclaimer
If any of the following situations occurs, the product does not have the warranty conditions:
① The servo malfunctions due to the incorporation of water or other liquids;
② Circuit damage caused by exceeding the rated voltage range;
③Users disassemble or change the product structure by themselves;
④ Products with severely damaged or deformed shells;
⑤Due to improper use or installation, broken gear teeth, bearing breakage, motor burnout, etc.;
Other
For products that do not meet the warranty conditions, if you need to repair, please contact Jenny Deng for consultation.
