electric engine E7 electric outboard motor
- Category: Boat Engines >>>
- Supplier: Zhejiang,Anqidi,Power,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

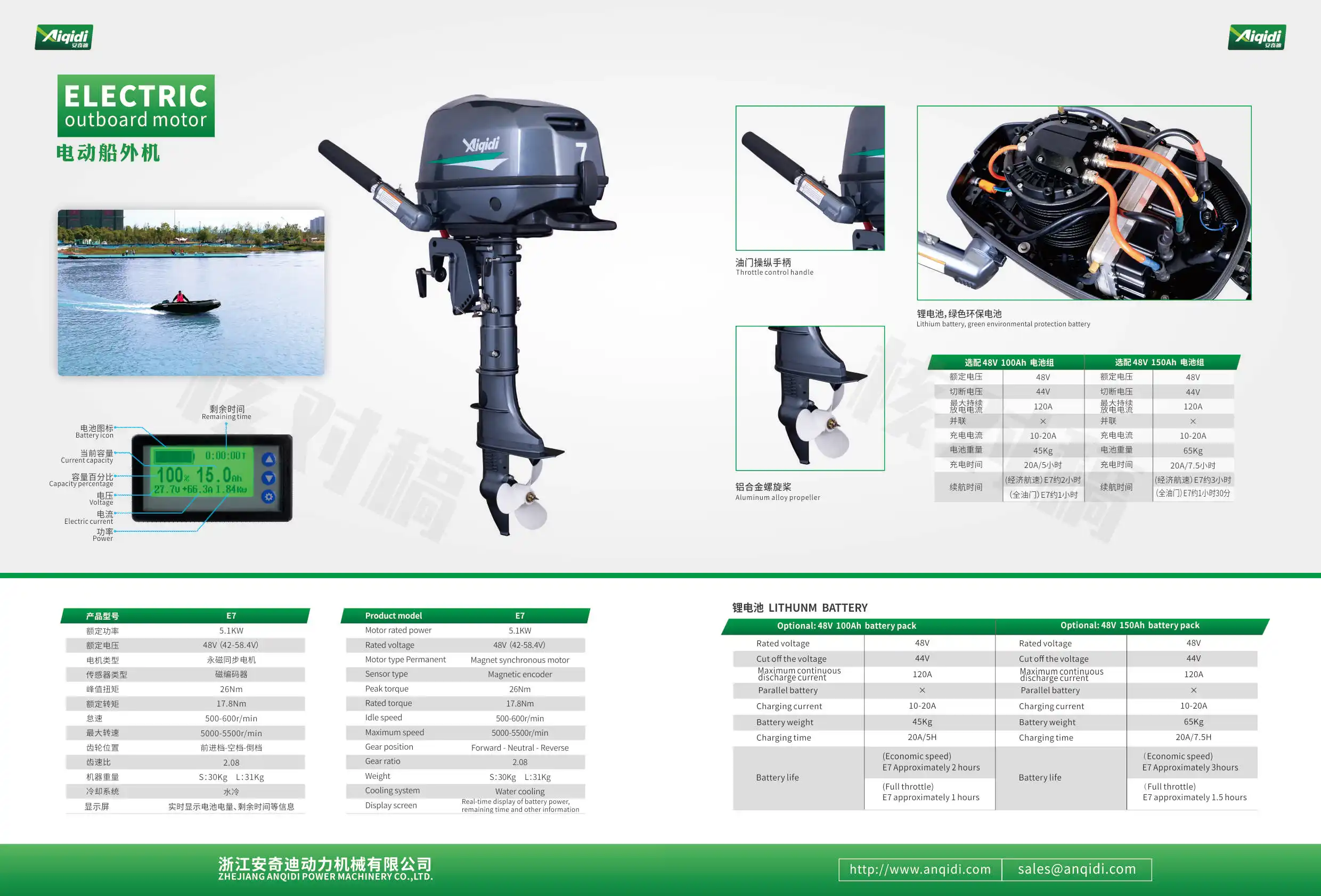

Aqidi E7 electric OUTBOARD MOTORS SPECIFICATIONS | |
| Electric outboard motor parameters | |
| Product model | E7 |
| Motor rated power | 5.1KW |
| Rated voltage | 42-58.4V |
| Motor type Permanent | Magnet synchronous motor |
| Sensor type | Magnetic encoder |
| Peak torque | 26Nm |
| Rated torque | 17.8Nm |
| Idle Speed | Idle function (about 500 RPM) |
| Maximum speed | 5000-5500 RPM |
| Gear position | Forward - Neutral - Reverse |
| Gear ratio | 2.08 |
| Cooling system | Water cooling |
| Battery pack (Lithium iron phosphate battery) | |
| Nominal voltage | 51.2V |
| series battery | NO |
| parallel battery | NO |
| Charging current | 10-20A |
| battery weight | 45Kg |
| Charging time | 20A about 6 hours |
| Battery life | (half throttle) E7 about 120 minutes |
| (Full throttle) E7 approximately 60 minutes | |
