Online Turbidity Probe RS485 Turbidity Sensor Flow Cell TSS Probe Digital Turbidity Sensor for Drinking Water
Product Description
The turbidity sensor adopts the principle of 90° scattered light.The infrared light sent by the transmitter on the sensor is absorbed, reflected and scattered by the measured object during the transmission process, and only a small part of the light can irradiate the detector. The concentration of the measured sewage has a certain relationship, so the concentration of the sewage can be calculated by measuring the transmittance of the transmitted light.
Features:
90° scattered light principle
Power supply DC9-30V
4-20mA output signal

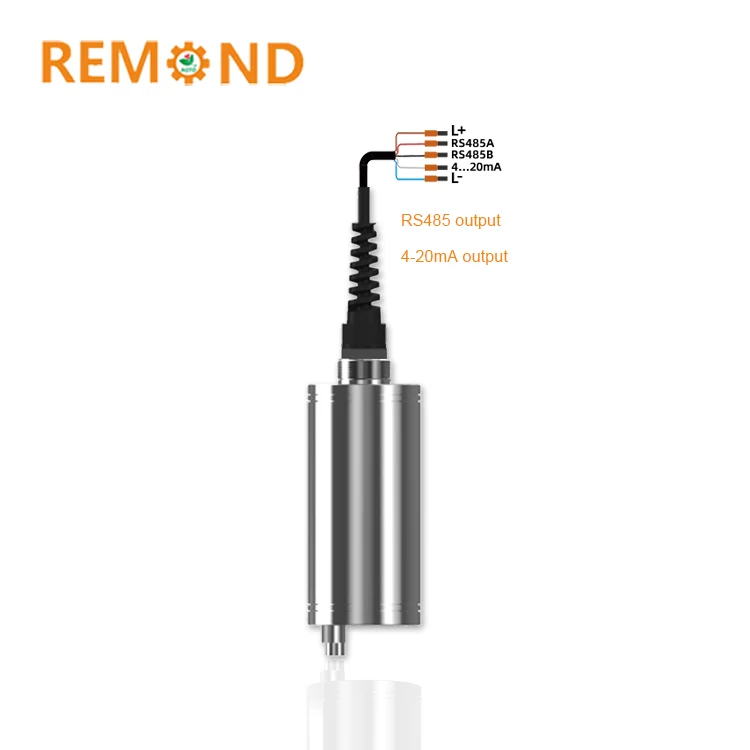

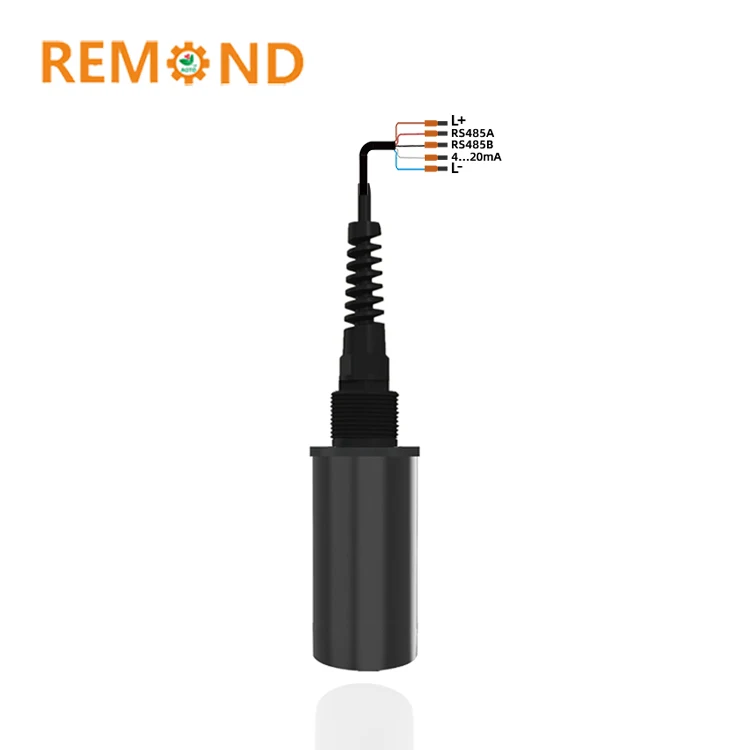

Support RS-485, Modbus/RTU protocol
IP68 protection, waterproof
Quick response, high precision
7*24 hours continuous monitoring
Easy installation and easy operation
Different measuring range can meet different requirements
Application:
Suitable for monitoring in drinking water, sewage treatment plants, water plants, water stations, surface water, river monitoring, secondary water supply,metallurgy, chemical industry and other fields.
Detailed Images

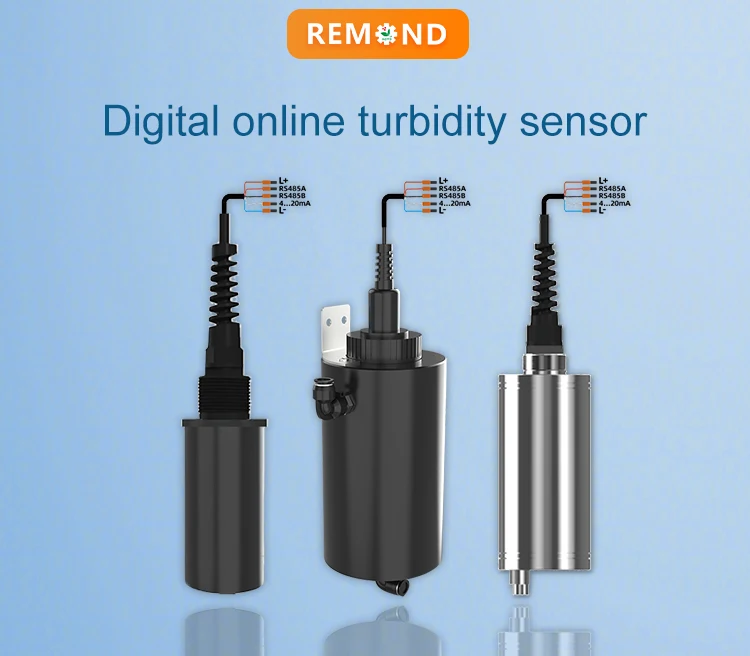

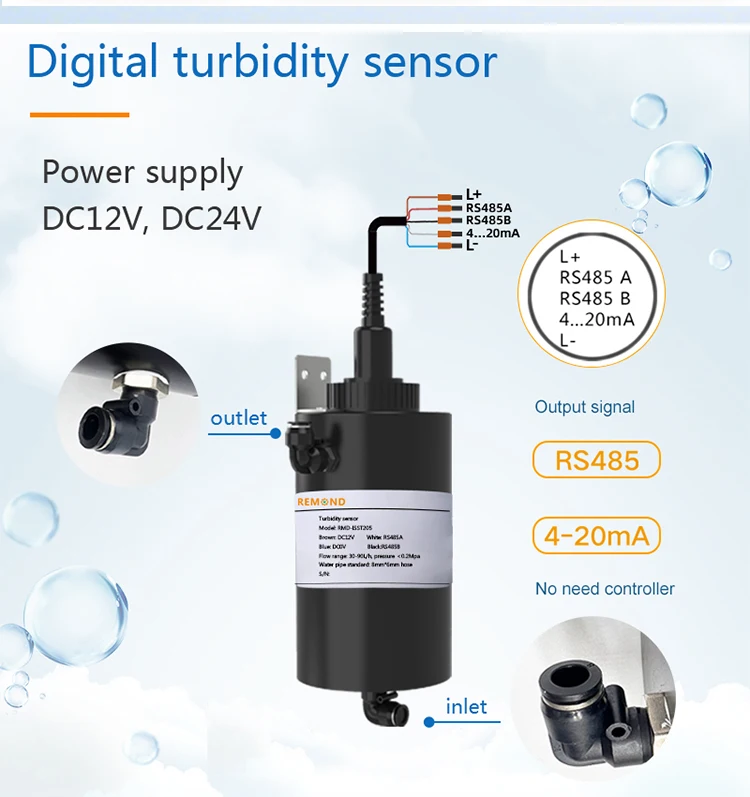

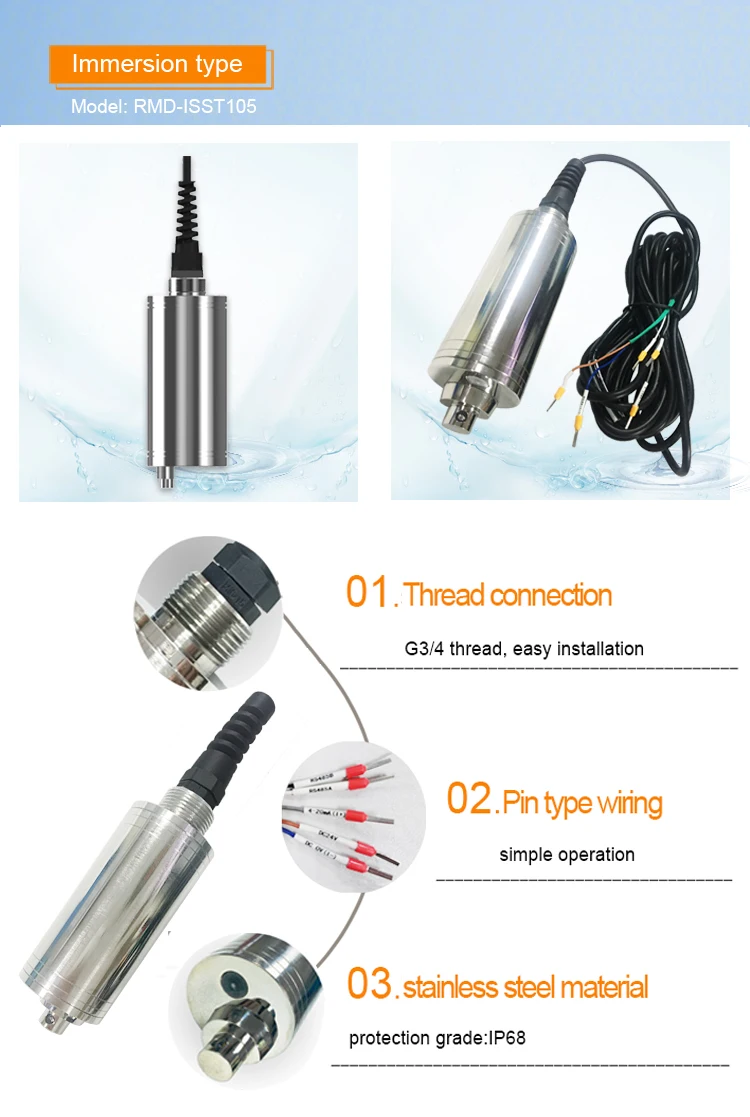

Digital turbidity sensor specification

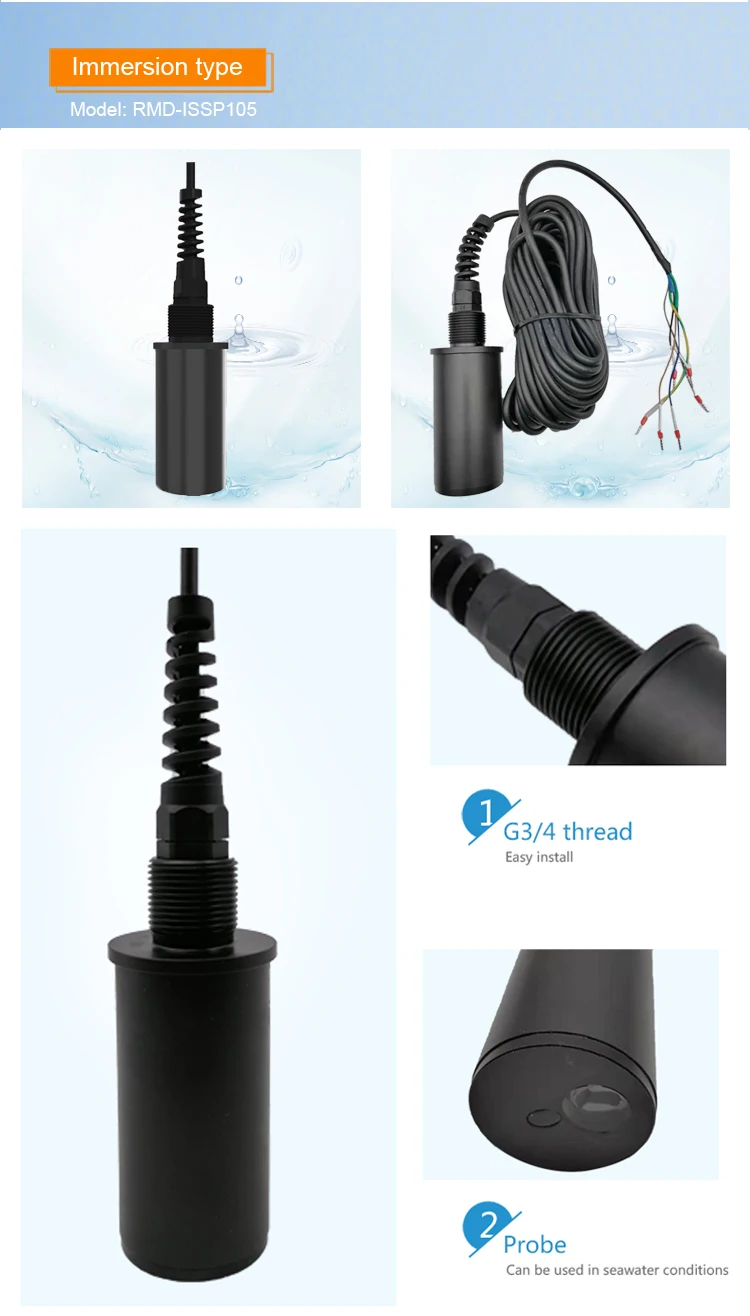

| Model | RMD-ISST205 | RMD-ISST105 | RMD-ISSP105 |
| Measuring range | 0...400NTU | 0...4000NTU | 0...4000NTU |
| Principle | 90° scattered light | 90° scattered light | 90° scattered light |
| Accuracy | ±5%FS | ±5%FS | ±5%FS |
| Resolution | 0.01% | 0.01% | 0.01% |
| Temperature range | 0...60℃ | 0...60℃ | 0...60℃ |
| Calibration method | Formazin Solution | Formazin Solution | Formazin Solution |
| Power supply | DC12V,DC24V | DC12V,DC24V | DC12V,DC24V |
| Output signal | RS485, 4-20mA | RS485, 4-20mA | RS485, 4-20mA |
| Shell material | POM | Stainless steel | POM |
| Pressure range | 0...2bar | 0...3bar | 0...2bar |
| Thread | NO | G3/4 | G3/4 |
| Electrical connection | Pin type | Pin type | Pin type |

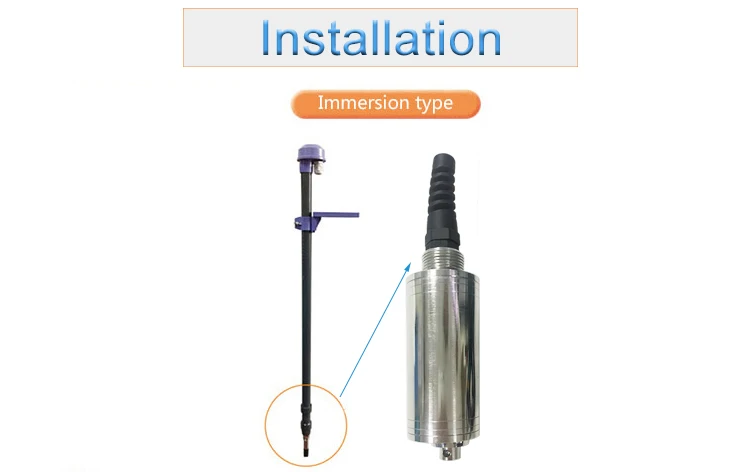

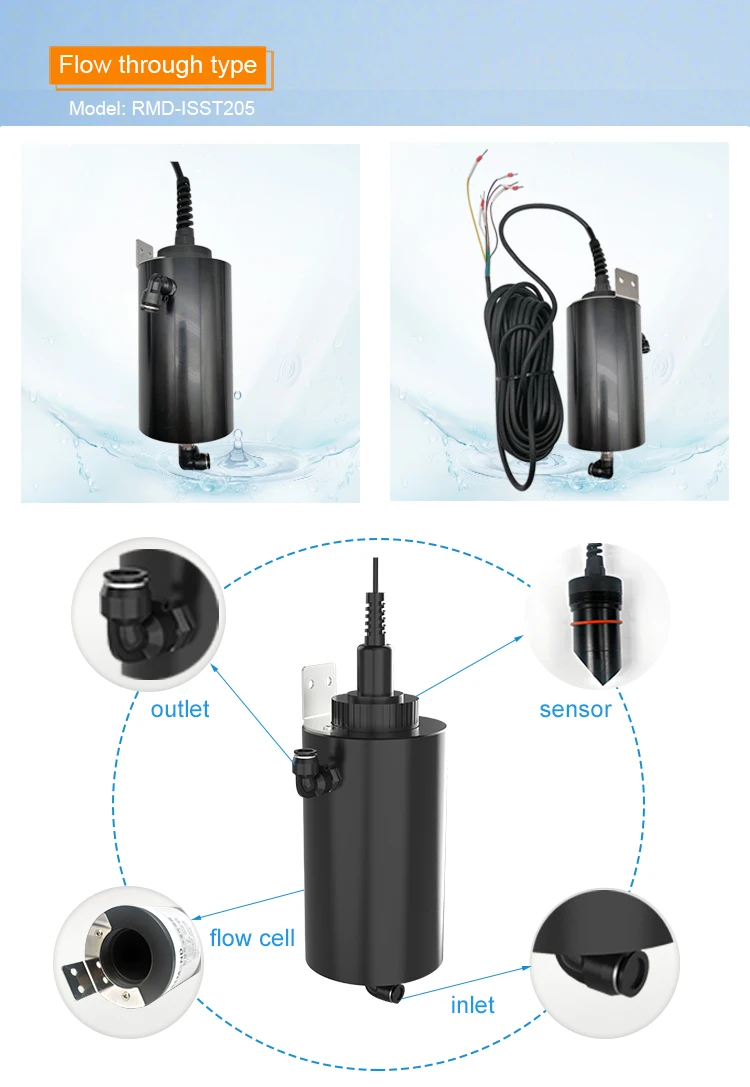

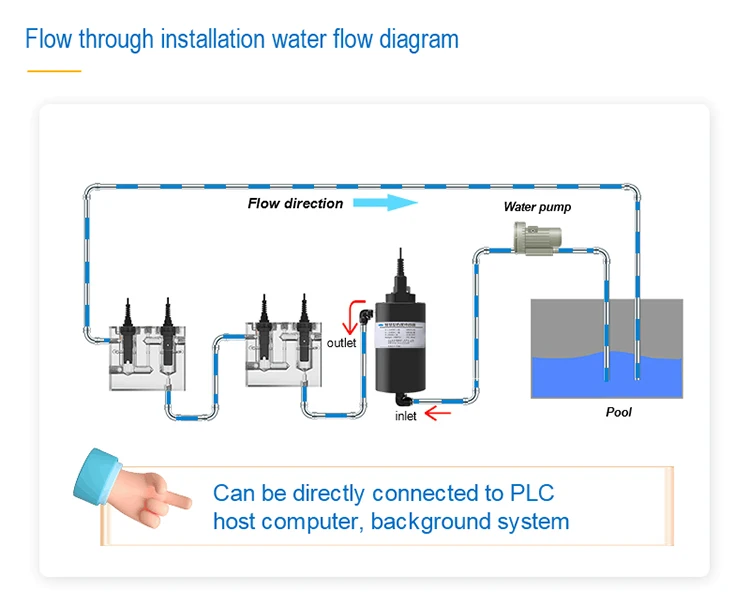

| Installation | Flow cell | Immersion type | Immersion type |
| Cable length | 5m or customize | 5m or customize | 5m or customize |
| Protection grade | IP68 | IP68 | IP68 |
| Application | Tap water | River and lake | Seawater |
