EPS foam styrofoam polystyrene Coffee/Tea/Coke/Water/Ice cream Cup/mug/bowl Making machine production line
- Category: >>>
- Supplier: Longkou Tongyi Machinery Equipment Co. Ltd.
Share on (1600544984571):
Product Overview
Description
Machine Introduction
Disposable Eps Foam Cup/bowl/tray Equipment Eps Foam Cups Making Machine
2. Light weight, good rigidity and well heat isolation.
3. The machine holds many merits such as high foaming times, high producing efficiency, low steam consumption, low cost and different model products are made at same time.
4. Pipes and tubes of the transferring system are all made from stainless material so that they resist eroding and easy to be cleaned.
5. Pre-expand and forming procedures are all operated by automatic controller, the mechanical and electrical device or apparatuses are all from international famous brand
Production Process

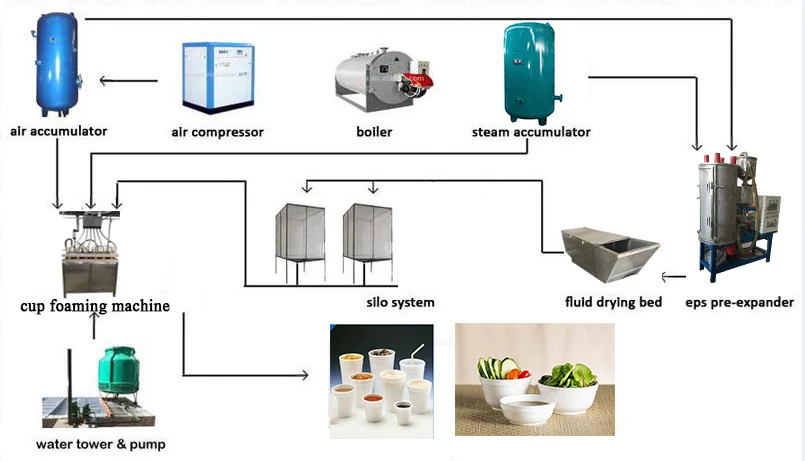

The main process of EPS foam cup production is illustrated as below:
2. To forward the mixed material into the Pre-foaming Machine and input water steam at the same time so as to swell the granule diameter of resin to given size.

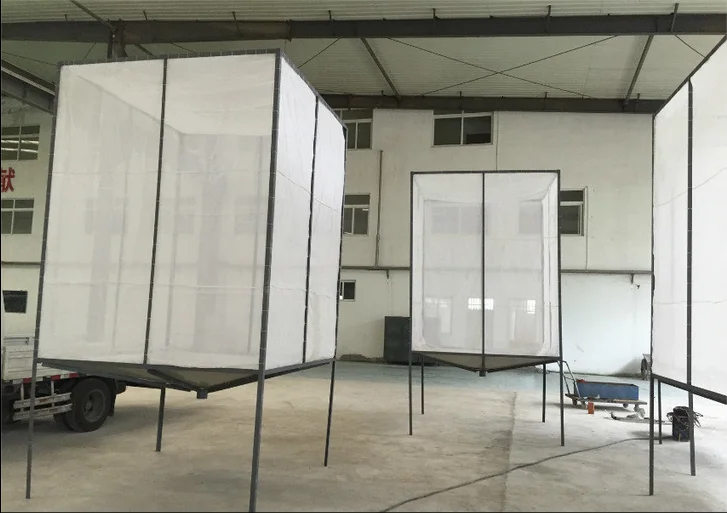

3. To vibrate the pre-foamed material and store it for several hours.
4. To form EPS cups with the pre-foamed material after keeping on storage for several hours.
5. To pack these finished EPS cups with certain size plastic packaging bags.
1. To boil water for getting water steam at certain press, meanwhile to mix the EPS resin with the agent (ZnSt) according to the given proportion.
2. To forward the mixed material into the Pre-foaming Machine and input water steam at the same time so as to swell the granule diameter of resin to given size.
3. To vibrate the pre-foamed material and store it for several hours.
4. To form EPS cups with the pre-foamed material after keeping on storage for several hours.
5. To pack these finished EPS cups with certain size plastic packaging bags.

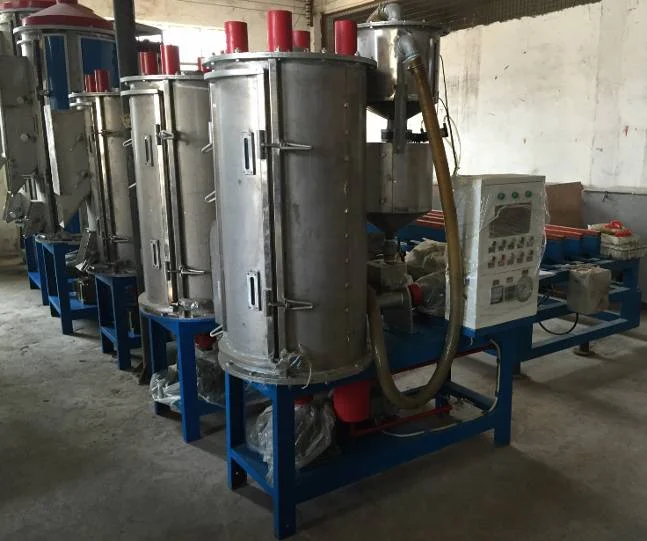

EPS Pre-Expander Machine
* The size of material-foamed cylinder: Φ 600X1350mm
* Steam pressure: 0.7-0.8 MPA.
* Air pressure: 0.7-0.8 MPA.
* Foaming times: 20-50.
* The tolerance of foaming granule diameter: ≤ 10%.
* Output: 50-160 Kg/h.
* Air blower Motor: 2.2 Kw and 0.75 kw.
* The weight of whole machine: 1.5 T.
* Machine size (L*W*H): 1400*800*2500 mm.
* Pre-Expander: the barrel and drying bed are stainless steel, the expanding is stable. The machine installs angle valve and reducing valve, this can save the energy.
* Steam pressure: 0.7-0.8 MPA.
* Air pressure: 0.7-0.8 MPA.
* Foaming times: 20-50.
* The tolerance of foaming granule diameter: ≤ 10%.
* Output: 50-160 Kg/h.
* Air blower Motor: 2.2 Kw and 0.75 kw.
* The weight of whole machine: 1.5 T.
* Machine size (L*W*H): 1400*800*2500 mm.
* Pre-Expander: the barrel and drying bed are stainless steel, the expanding is stable. The machine installs angle valve and reducing valve, this can save the energy.

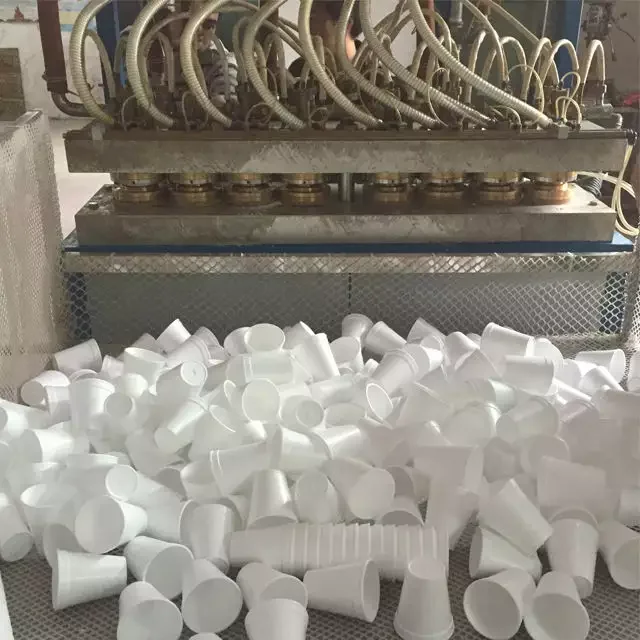

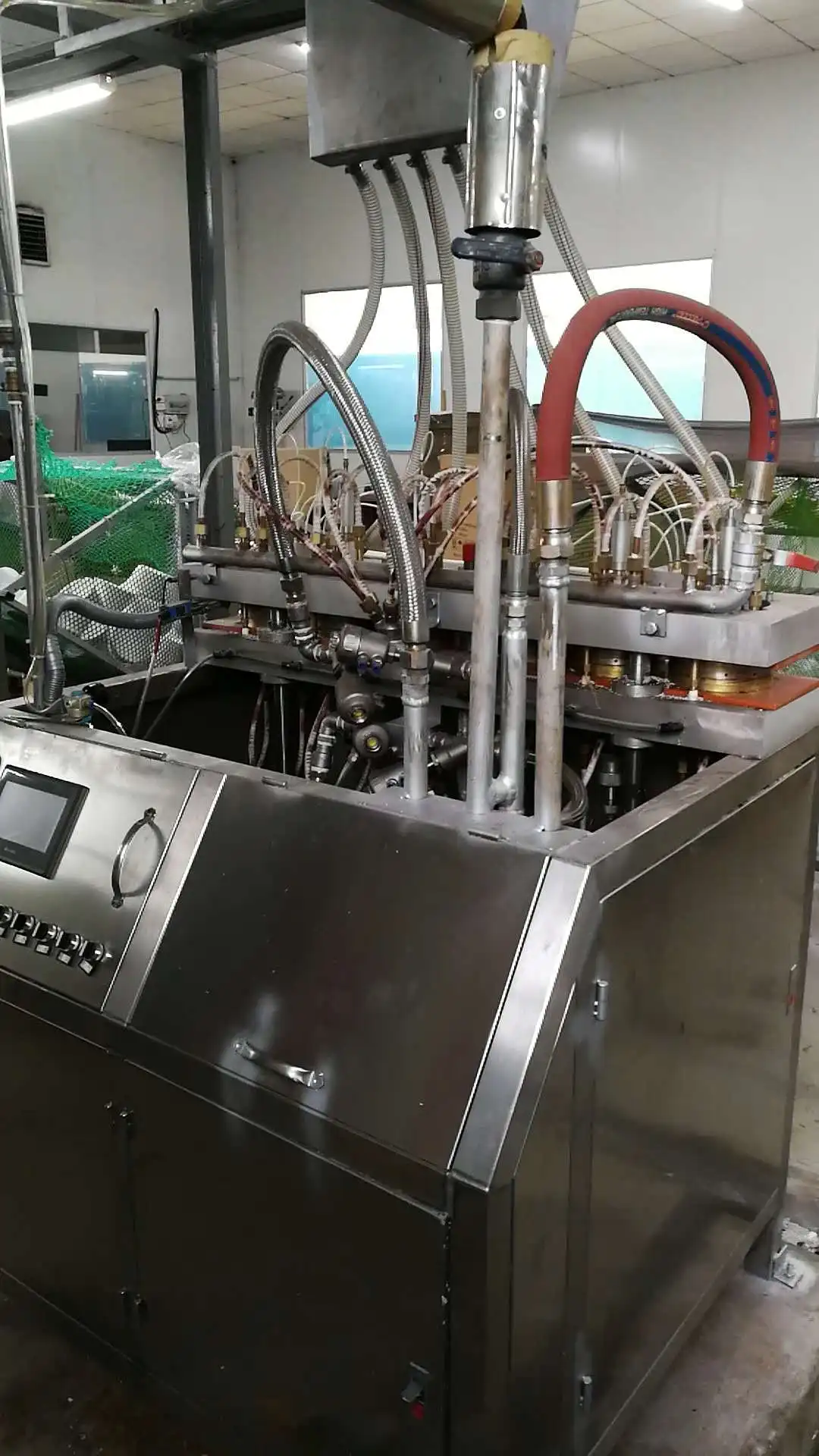

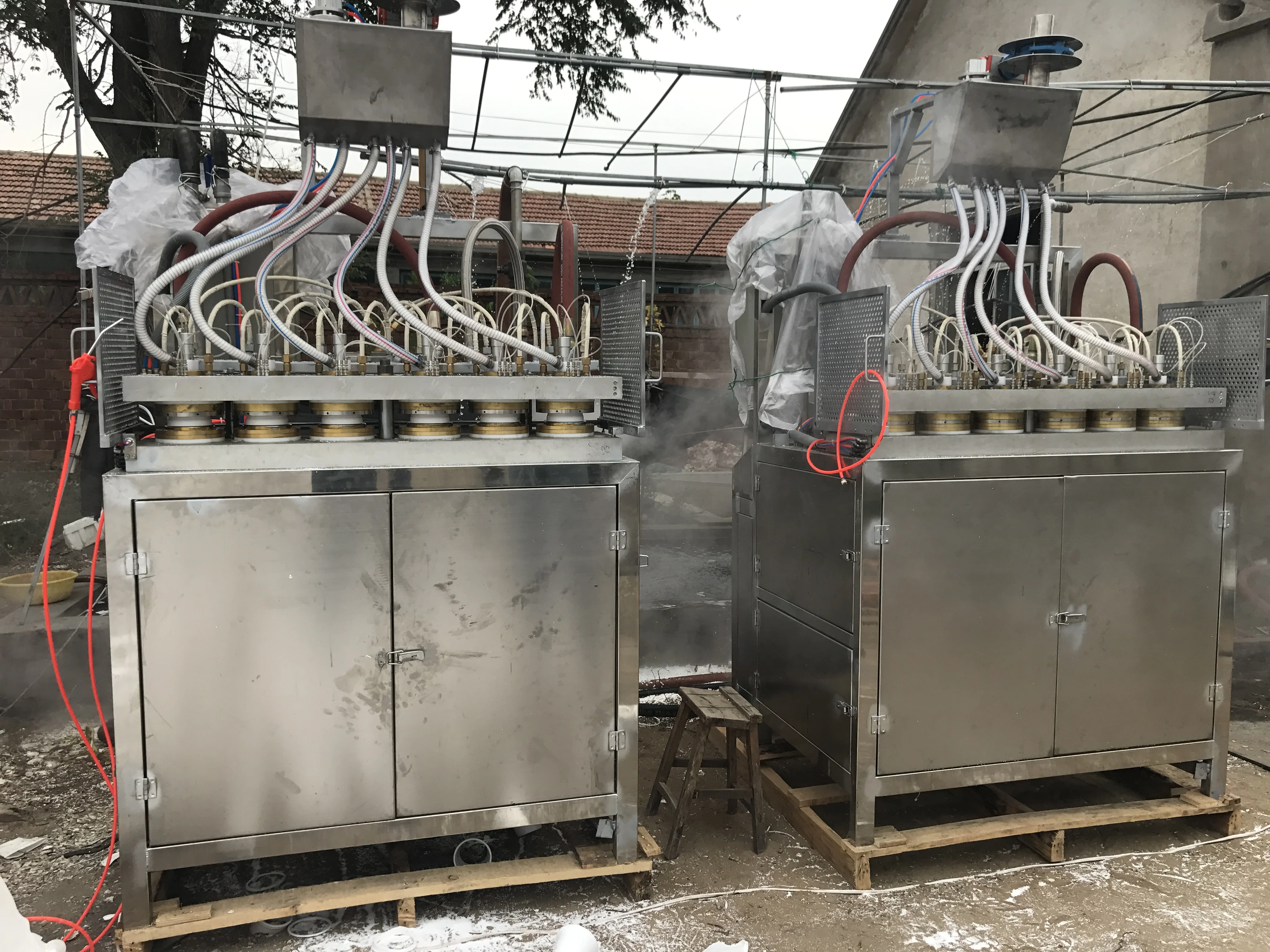

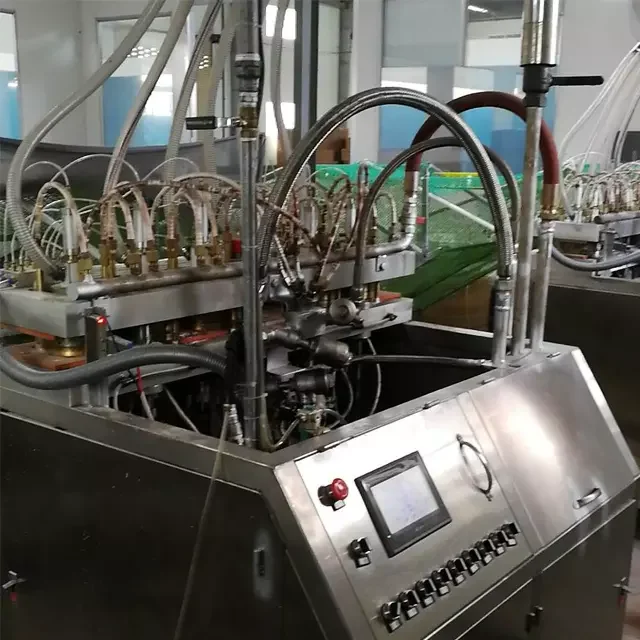

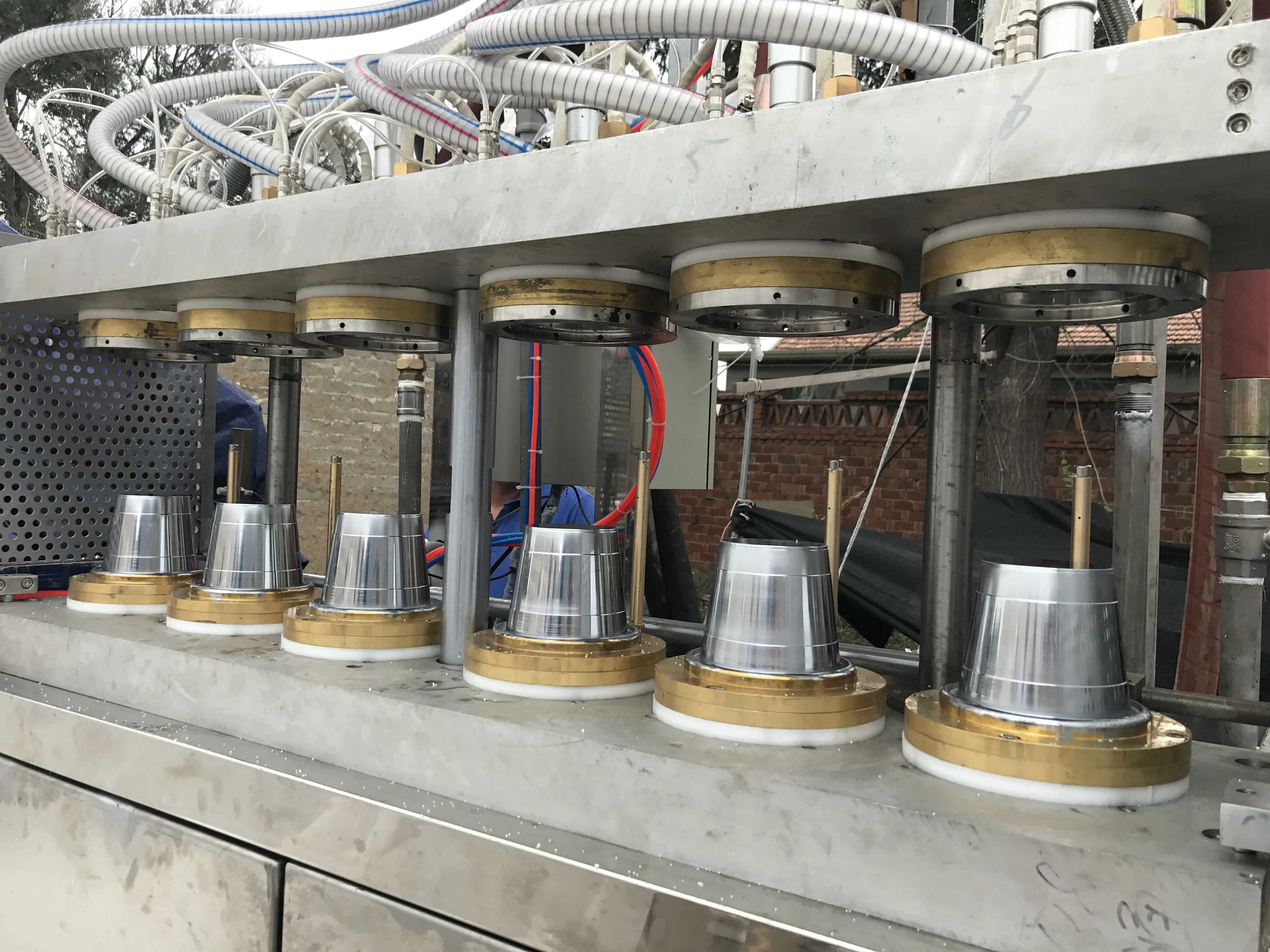

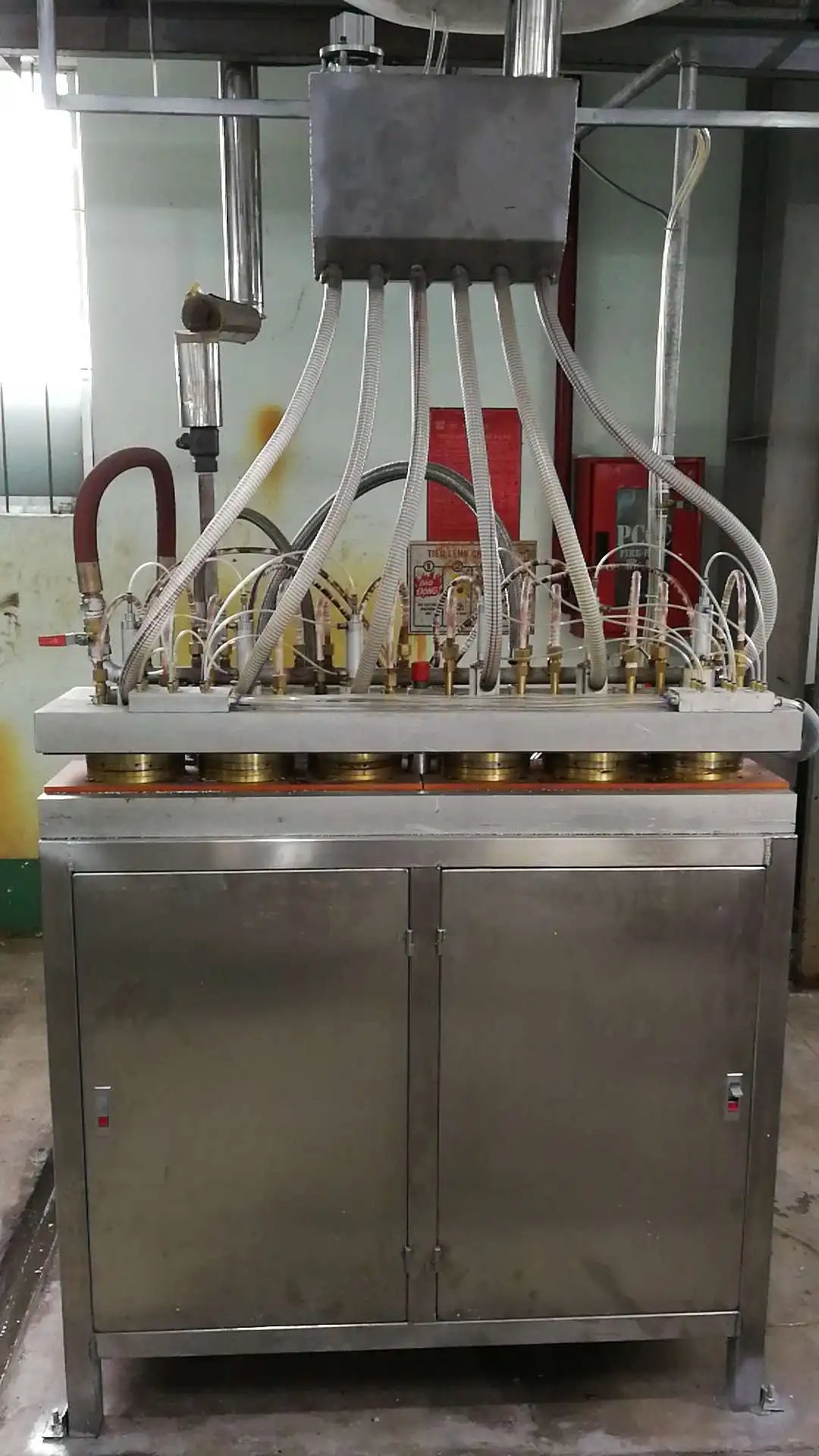

EPS Foam Cup Molding Machine
Working area (L*W): 1200*280 mm.
* Stroke high: 3-180 mm.
* Production cycle: 7-15 Second/one mold.
* Energy consumption: ≤0.3KW/day
* Steam press: 0.6-0.9 MPA.
* Cool water press: 0.4-0.5MPA
* Air press: 0.6-0.9MPA
* The cup forming whole frame is stainless steel
* Cup forming machine: The materials comes into the mold cavity with negative pressure, this can avoid materials
* Stroke high: 3-180 mm.
* Production cycle: 7-15 Second/one mold.
* Energy consumption: ≤0.3KW/day
* Steam press: 0.6-0.9 MPA.
* Cool water press: 0.4-0.5MPA
* Air press: 0.6-0.9MPA
* The cup forming whole frame is stainless steel
* Cup forming machine: The materials comes into the mold cavity with negative pressure, this can avoid materials
shortage and ensure the product quality. There is mainly has waste at the every time machine starting.
* Our machines can save energy including compress air (save 1/3 compared with other companies) and steam. Our
* Our machines can save energy including compress air (save 1/3 compared with other companies) and steam. Our
machine inside structure design is more advanced and reasonable.

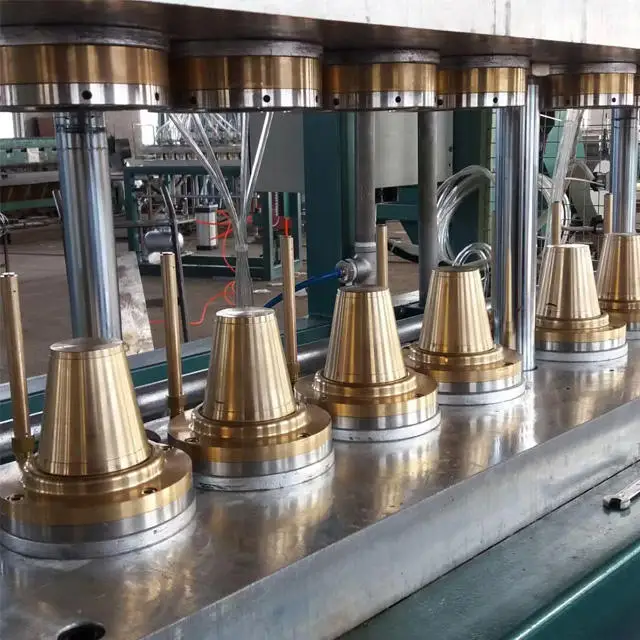

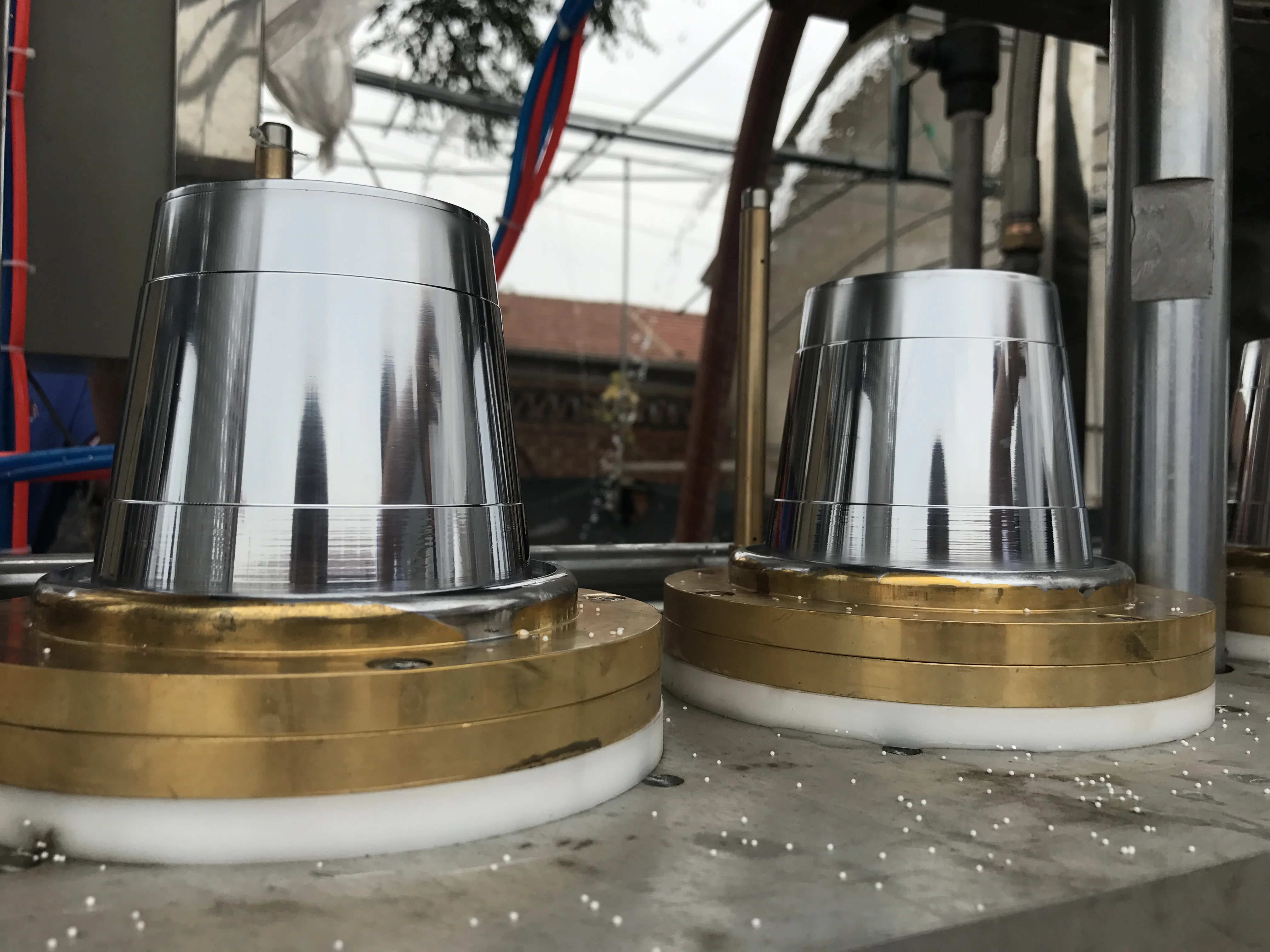

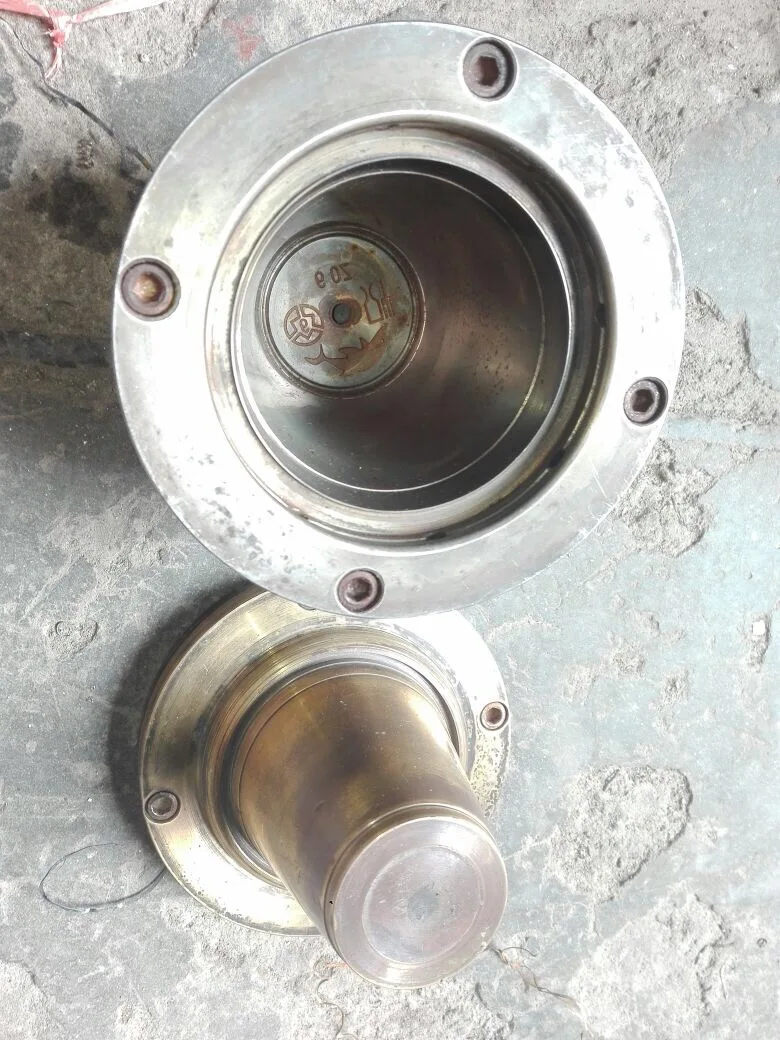

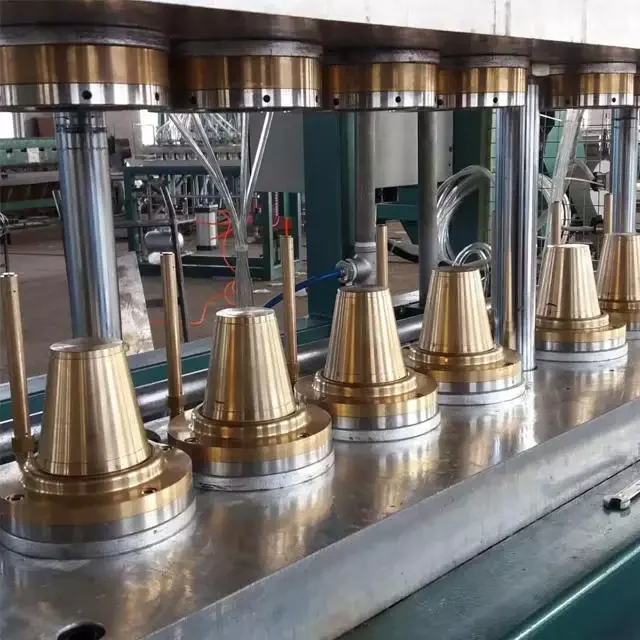

EPS Foam Cup Mold
* Mold base plate is Aluminum
* Mold materials: up mold cavity inside: 316# stainless steel with forging, this material is anti-rusty. Stainless steel is
easy for de-molding and also the product surface will be more smooth.
* Up mold cavity outside: 52# yellow brass (copper) with forging
* Down mold cavity inside and outside: 52# yellow brass (copper) with forging
* Our mold manufacturing accuracy is 0.03 mm. Other companies are about 0.05 mm.
* Mold materials: up mold cavity inside: 316# stainless steel with forging, this material is anti-rusty. Stainless steel is
easy for de-molding and also the product surface will be more smooth.
* Up mold cavity outside: 52# yellow brass (copper) with forging
* Down mold cavity inside and outside: 52# yellow brass (copper) with forging
* Our mold manufacturing accuracy is 0.03 mm. Other companies are about 0.05 mm.

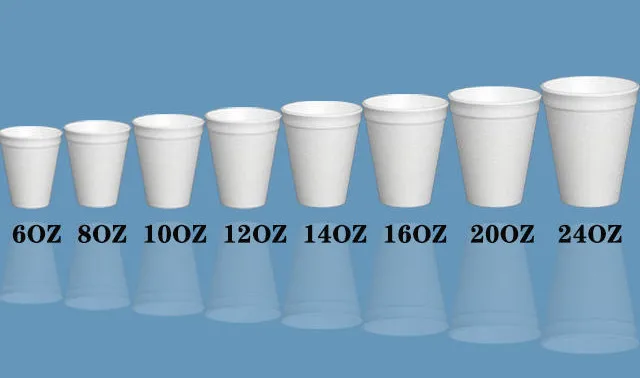

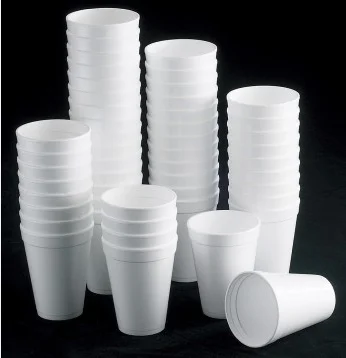

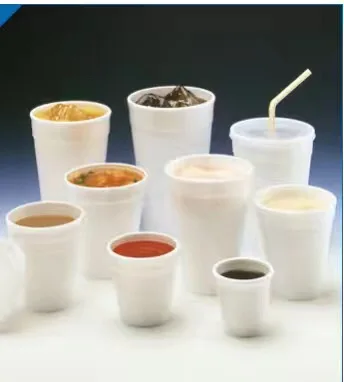

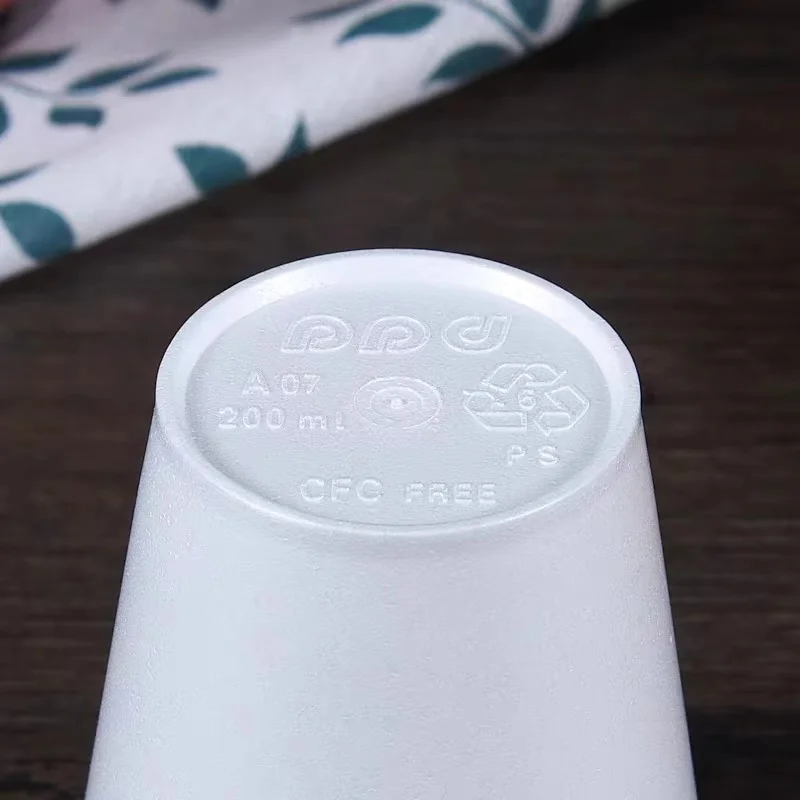

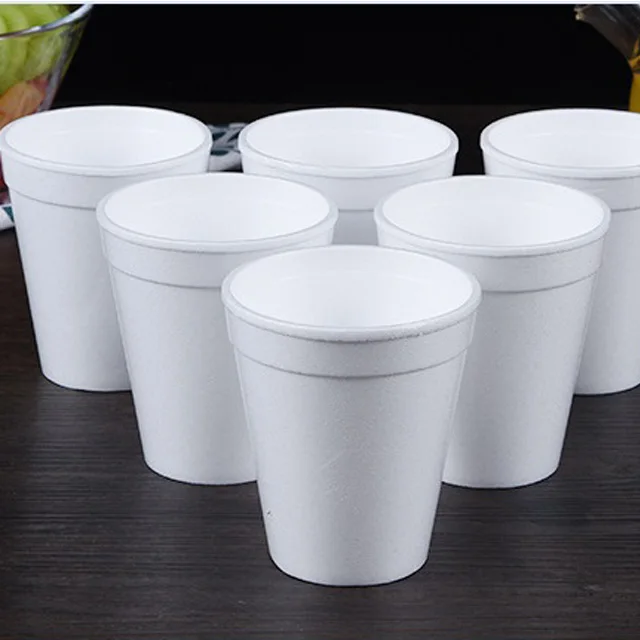

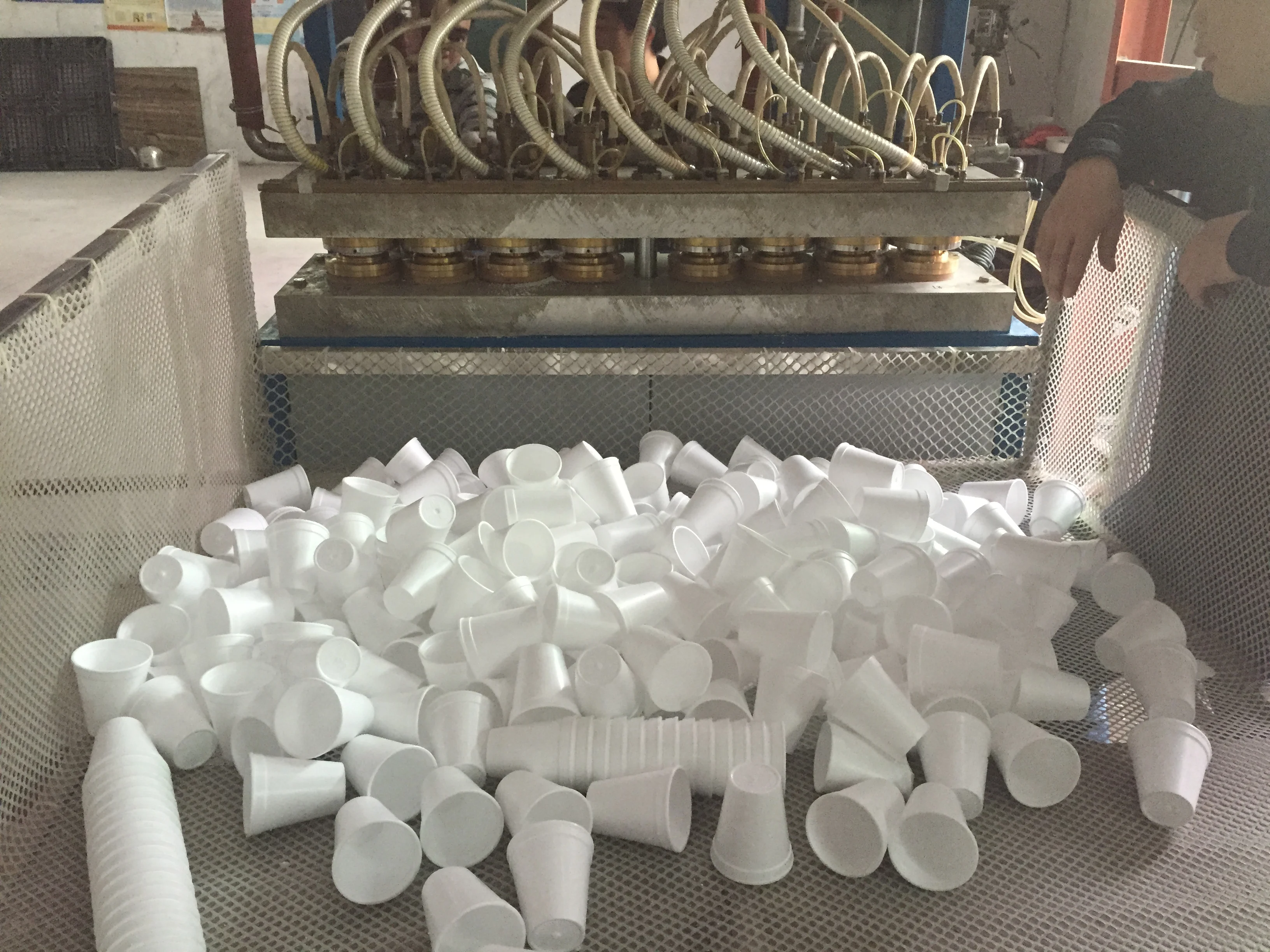

Finished Product Photo

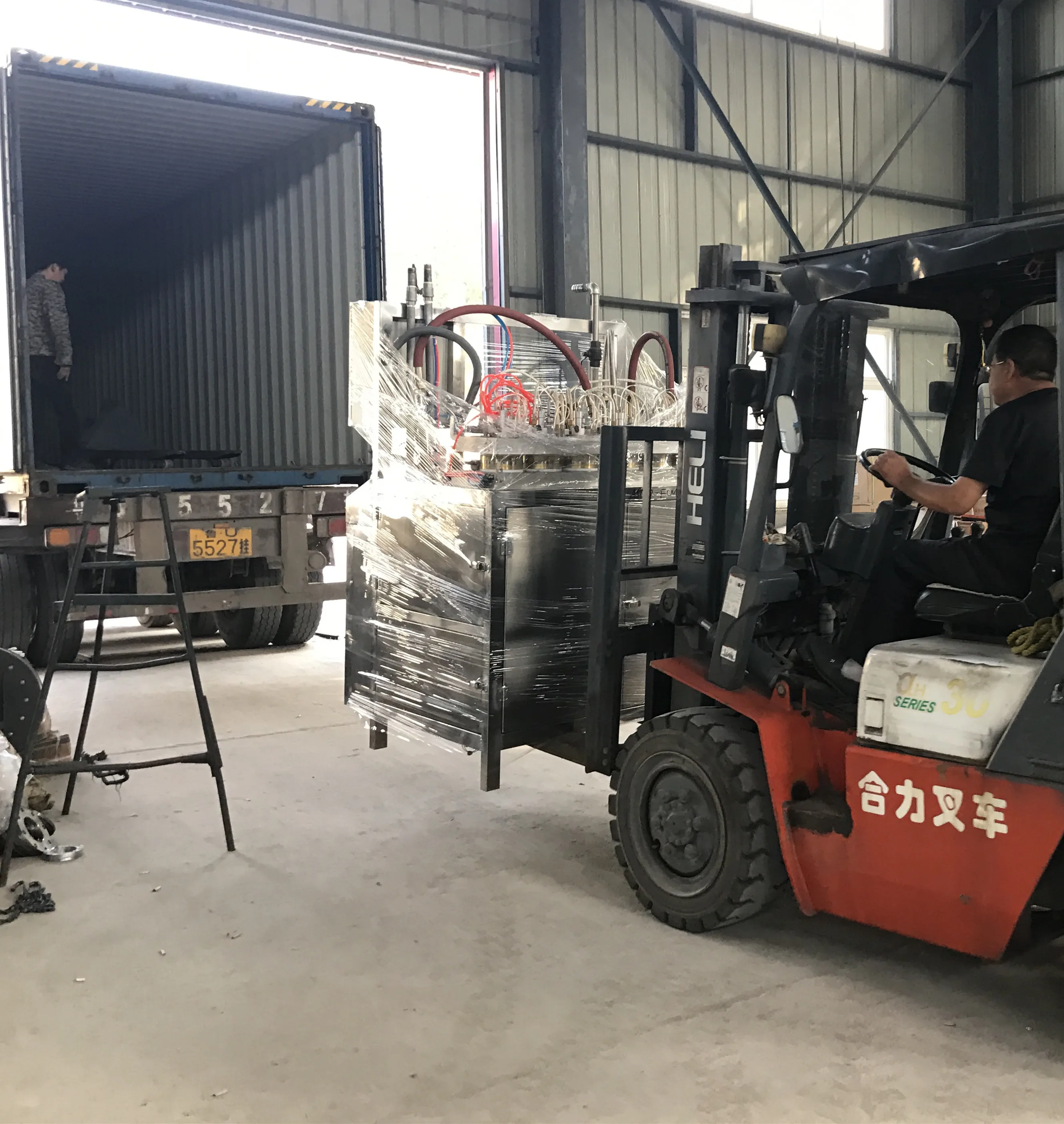

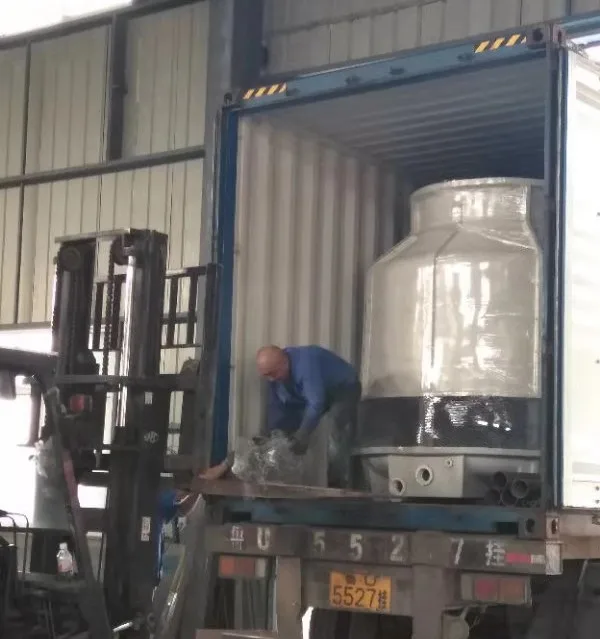

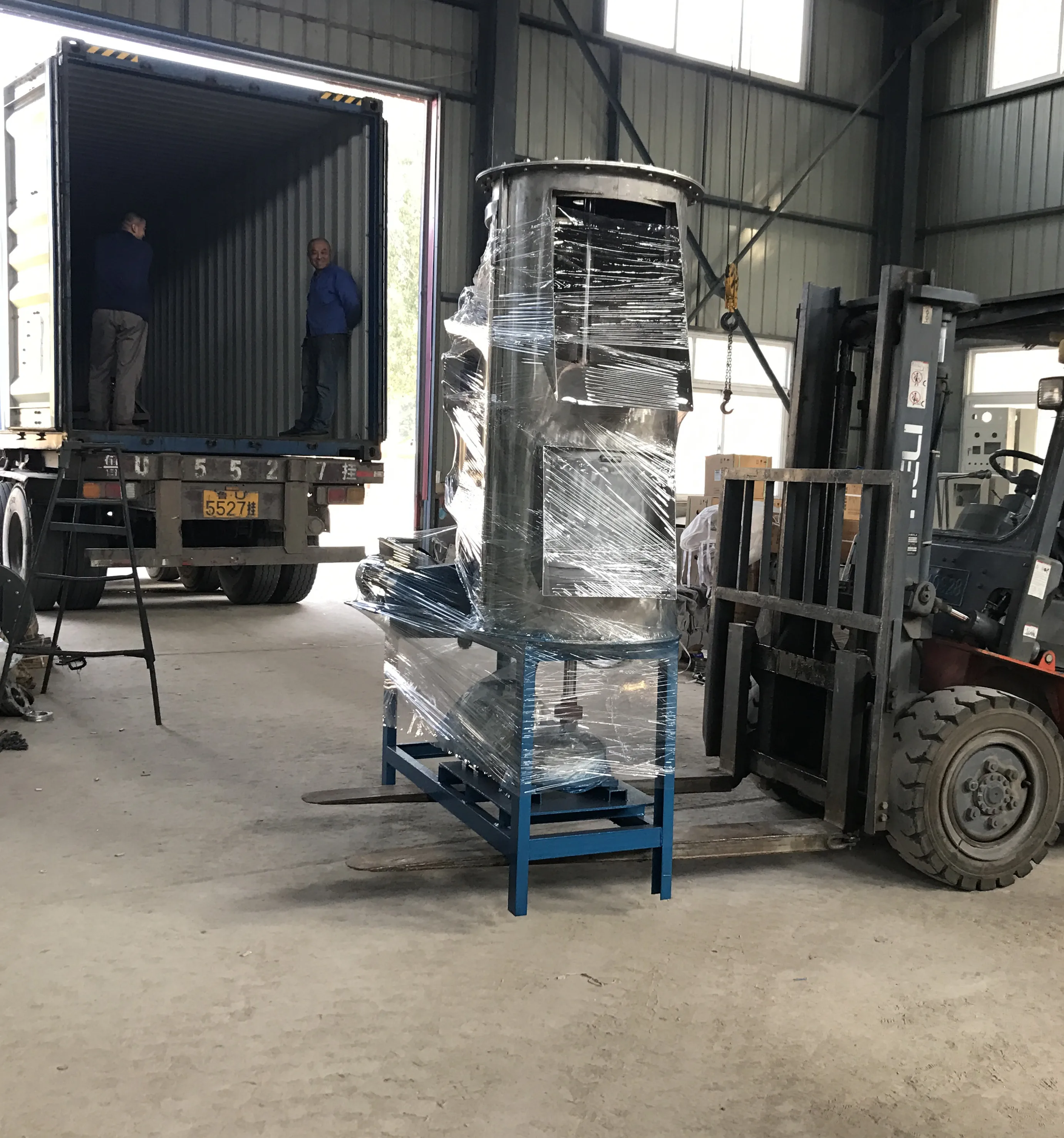

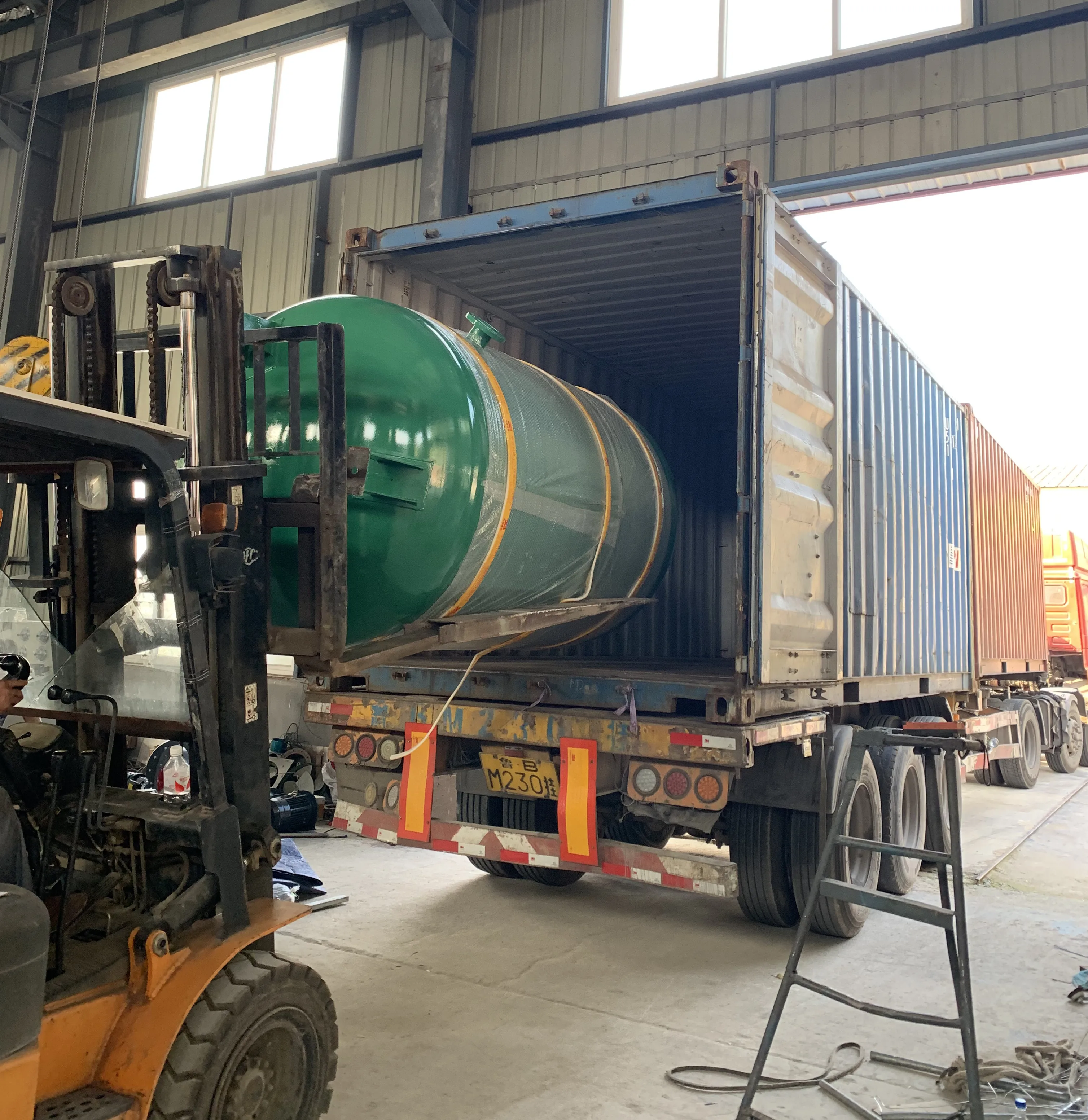

Packaging&Shipping
